KitchenAid KGCC566R User manual

Metal Cooktops
Straight-edge glass cooktops
Curved-edge glass cooktops
A. 21 ¹⁄₄ " (53.4 cm)
B. 31
⁷⁄₁₆ " (79.8 cm) on 30" (76.2 cm) models,
37
⁹⁄₁₆ " (95.4 cm) on 36" (91.4 cm) models
C. 2
⁷⁄₈ " (7.3 cm)
A. 20
⁵⁄₁₆ " (51.5 cm)
B. 30
³⁄₁₆ " (76.8 cm) on 30" (76.2 cm) models,
36
⁷⁄₁₆ " (92.5 cm) on 36" (91.4 cm) models
C. 2
⁷⁄₈ " (7.3 cm)
A. 21
¹⁄₈ " (53.7 cm)
B. 30
⁵⁄₁₆ " (77.0 cm) on 30" (76.2 cm) models,
36
⁵⁄₁₆ " (92.3 cm) on 36" (91.4 cm) models
C. 2
⁷⁄₈ " (7.3 cm)
A
B
C
C
A
B
A
B
C
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KGCC506R
KGCC566R
KGCC706R
KGCC766R
KGCV566R
Gas Supply: This cooktop is factory set for use
with Natural gas. Cooktop can be converted to LP
gas. Provide a gas supply line of ³⁄₄" (1.9 cm) rigid
pipe to the cooktop location. A smaller size pipe on
longer runs may result in insufficient gas supply.
Pipe-joint compounds that resist the action of LP
gas must be used. Do not use TEFLON®tape. With
LP gas, piping or tubing size can be ¹⁄₂" minimum.
Usually, LP gas suppliers determine the size and
materials used in the system.
Electrical: A 120 volt, 60 Hz., AC only, 15-amp
fused, electrical circuit is required. A time-delay
fuse or circuit breaker is also recommended. It is
recommended that a separate circuit serving only
this cooktop be provided.
Gas Built-in Cooktop
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8286304
11-30-05
A. 30"(76.2 cm) on 30"models; 36"(91.4 cm) on 36"models
B. Combustible area above countertop (shown by dashed box
above)
C. 30"(76.2 cm) minimum clearance between top of cooktop
platform and bottom of unprotected wood or metal cabinet
(24"[61 cm] minimum clearance if bottom of wood or metal
cabinet is protected by not less than ¹⁄₄"[0.6 cm] flame
retardant millboard covered with not less than No. 28
MSG sheet steel, 0.015"[0.04 cm] stainless steel, or
0.024"[0.06 cm] aluminum or 0.020"[0.05 cm] copper)
D. 13"(33 cm) maximum upper cabinet depth
E. 2
¹⁄₈ "(5.4 cm)
B
D
A
C
EF
H
I
J
G
K
L
M
F. 1 9 "(48.3 cm)
G. 18" (45.7 cm) minimum clearance from upper cabinet to
countertop within minimum horizontal clearances to cooktop
H. Grounded outlet - Locate within 24" (61 cm) of right rear
corner of cutout
I. 29" (73.7 cm) on 30" models; 35¼" (89.5 cm) on 36" models
J. 8
³⁄₈
" (21.3 cm) minimum distance to nearest left and right side
combustible surface
K. 2
⁷⁄₈
" (7.3 cm) minimum distance to rear combustible surface
L. Gas line opening - Wall: anywhere 5" (12.7 cm) below
underside of countertop. Cabinet floor: anywhere within
6" (15.2 cm) of rear wall is recommended
M. 24" (61 cm) minimum countertop depth is required
®

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
U.S.A. ONLY
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See Cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout. The junction box for the oven can be installed on either
side of the cutout area. The shaded area not used for the oven junction box is recommended for a junction box for the cooktop.
Approved Built-In Oven and Electric Cooktop Combinations
For the approved model number combinations refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
Approved Built-In Oven and Gas Cooktop Combinations
For the approved model number combination refer to the
undercounter label located on top of the oven chassis.
*NOTE: Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas pipe can be installed on
either side of the cutout, and either through the floor or through the wall. The shaded area not used for oven junction box is
recommended for 120-volt grounded outlet for cooktop.
ABC
DEF GH
I
J
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 4⁵⁄₈" (11.7 cm) from floor
J. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22¹⁄₂" (57.2 cm)
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34¹⁄₂" (87.6 cm)
ABC
DEF
GH
J
I
L
K
N
M
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. Gas line through wall 9" (22.9 cm) to center of cutout
J. 3¼" (8.26 cm)*
K. 4⁵⁄₈" (11.7 cm) from floor
L. 3¼" (8.26 cm)*
M. Gas line through floor 9" (22.9 cm) to center of cutout
N. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22¹⁄₂" (57.2 cm)
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34¹⁄₂" (87.6 cm)
8303946

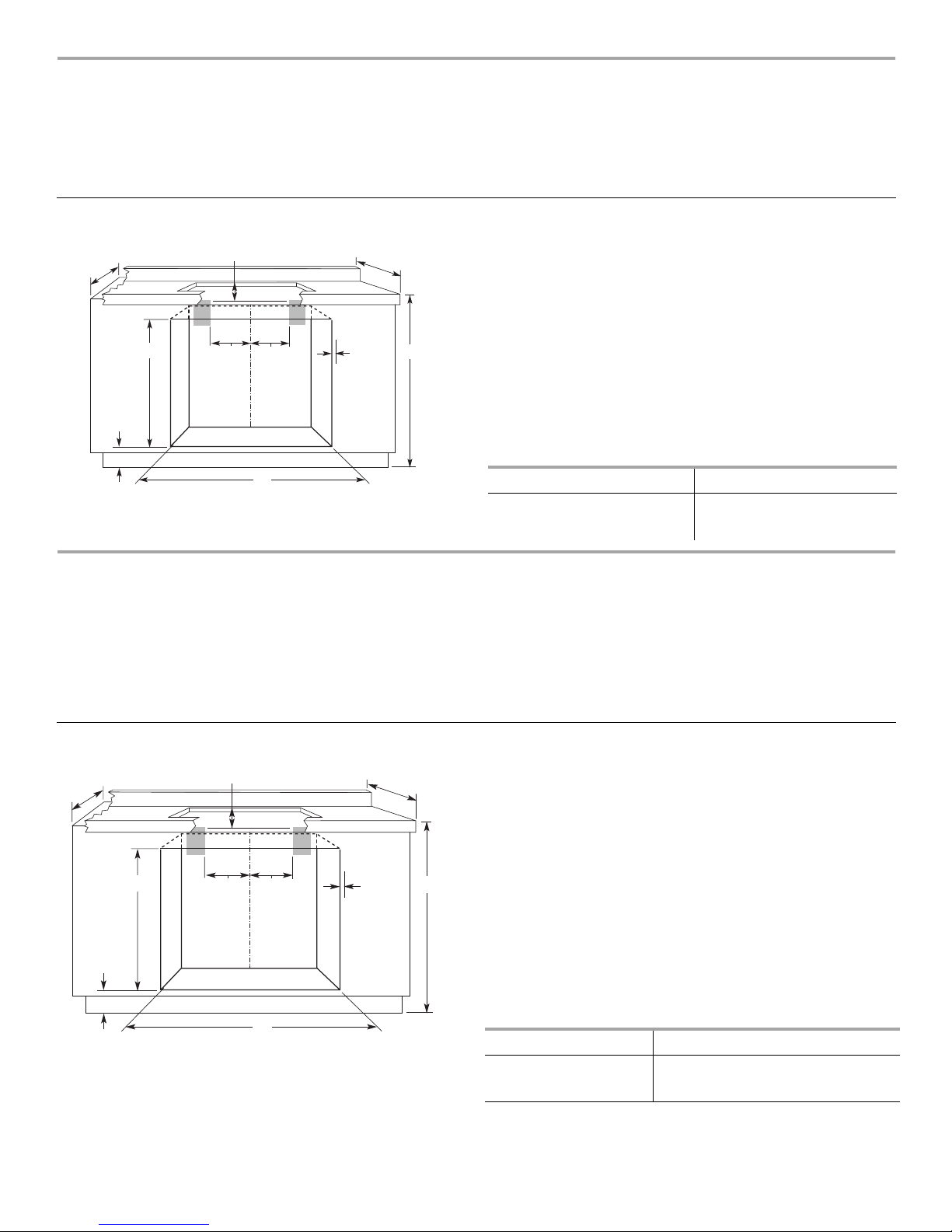

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
CANADA ONLY
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See Cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout. The junction box for the oven can be installed on either
side of the cutout area. The shaded area not used for the oven junction box is recommended for a junction box for the cooktop.
Approved Built-In Ovens and Electric Cooktops
For the approved model number combination refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
NOTE: The installation of gas cooktops and oven combinations is
not approved for use in Canada.
FOUR INSTALLÉ SOUS LA TABLE DE CUISSON - DIMENSIONS
POUR L'OUVERTURE À DÉCOUPER - CANADA SEULEMENT
IMPORTANT : Observer toutes les dispositions des codes et règlements en vigueur. La table de cuisson doit être homologuée pour
l'utilisation au-dessus d'un four. Pour les dimensions de l'ouverture àdécouper, voir les “Instructions d'installation de la table de
cuisson”. Centrer l'ouverture àdécouper pour la table de cuisson par rapport àl'ouverture découpée pour le four. On peut installer le
boîtier de connexion pour le four d'un côtéou de l'autre de l'ouverture découpée. On recommande d'utiliser pour le boîtier de
connexion de la table de cuisson la zone grisée qui n'est pas étéutilisée pour le boîtier de connexion du four.
Combinaisons table de cuisson/four encastré(produits homologués)
Pour connaître les combinaisons approuvées par numéro de
modèle, consulter l'étiquette située sur la partie supérieure
du châssis du four et au fond de la boîte de brûleur de la
table de cuisson.
REMARQUE : L'installation de combinaisons table de cuisson à
gaz/four n'est pas approuvée pour utilisation au Canada.
ABC
DEF GH
I
J
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 4⁵⁄₈" (11.7 cm) from floor
J. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
ABC
DEF GH
I
J
A. Profondeur de placard 24" (61 cm)
B. 4" (10,2 cm) jusqu’au sommet du plan de travail
C. Profondeur du plan de travail 25" (63,5 cm)
D. Hauteur minimale de l'ouverture àdécouper 27¾" (70,5 cm)
E. Boîtier de connexion 9" (22,9 cm) jusqu'au centre de
l'ouverture découpée
F. Boîtier de connexion 9" (22,9 cm) jusqu'au centre de
l'ouverture découpée
G. Prévoir ⁵⁄₈" (1,6 cm) pour le chevauchement de la garniture du
four, de chaque côté.
H. 36" (91,4 cm) entre la base du placard et le plan de travail
I. 4⁵⁄₈" (11,7 cm) depuis le plancher
J. Voir le tableau Dimensions de l'ouverture àdécouper.
OUVERTURE ÀDÉCOUPER - DIMENSIONS
Taille du four Ouverture àdécouper pour le four
27" (68,6 cm) 25¹⁄₂" (64,8 cm)
30" (76,2 cm) 28½" (72,4 cm)
8303946
