PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
KGCU407V
KGCU462V
KGCU463V
KGCU467V
KGCU482V
KGCU483V
KGCU484V
Type of Gas
Natural Gas:
This cooktop is design-certified by CSA International for
use with Natural gas or, after proper conversion, for use
with LP gas.
This cooktop is factory-set for use with Natural gas. To
convert to LP gas, see the Gas Conversion instructions
provided in the package containing literature. The model/
serial rating plate located on the left underside of the
cooktop burner base has information on the types of gas
that can be used. If the types of gas listed do not include
the type of gas available, check with the local gas supplier.
LP Gas conversion:
Conversion must be done by a qualified service technician.
No attempt shall be made to convert the cooktop from the
gas specified on the model/serial rating plate for use with a
different gas without consulting the serving gas supplier. To
convert to LP gas, use the LP gas conversion kit provided
with the cooktop and see the “Gas Conversions” section.
Electrical:
A 120-volt, 60-Hz, AC-only, 15-amp, fused electrical circuit
is required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this cooktop be provided.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice. Ref. W10271686D
08/26/09
Commercial Style Gas Cooktop
®
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances.
Do not obstruct flow of combustion and ventilation air.
It is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the underside of the
cooktop burner base.
It is recommended that a 600 CFM or larger vent hood be
installed above the cooktop.
It is not recommended that a microwave hood combination
be mounted above the cooktop.
The cooktop should be installed in a location away from
strong draft areas, such as windows, doors and strong
heating vents or fans.
All openings in the wall or floor where cooktop is to be
installed must be sealed.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
IMPORTANT: To avoid damage to your cabinets, check with
your builder or cabinet supplier to make sure that the
materials used will not discolor, delaminate or sustain other
damage.

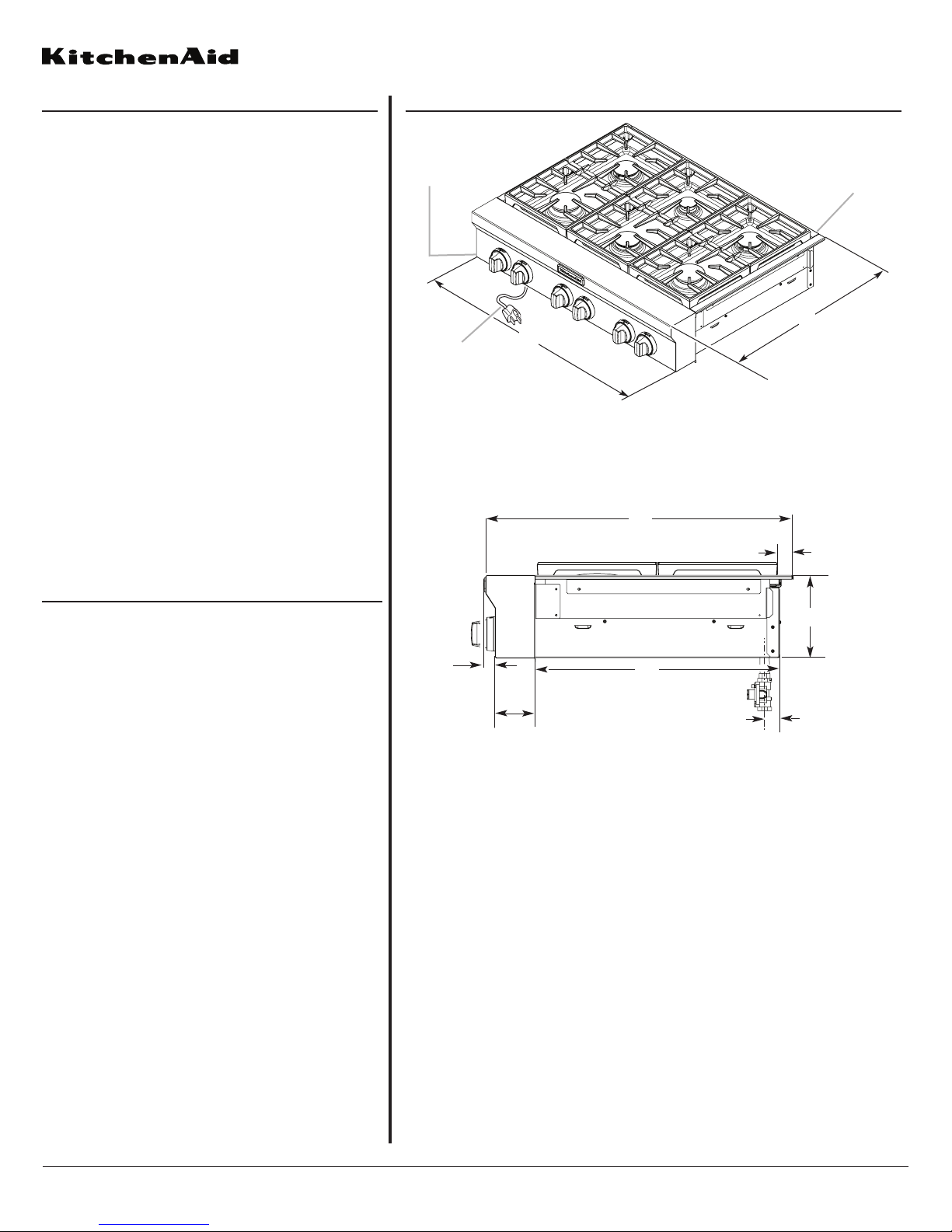

A. 30" (76.2 cm) cooktop: 29 ⁵⁄₈ " (75.1 cm)
36" (90.4 cm) cooktop: 35
⁵⁄₈ " (90.4 cm)
48" (121.9 cm) cooktop: 47 ⁵⁄₈ " (120.8 cm)
B. 36" (91.4 cm) long 3 prong grounding-type
power supply cord
C. Model/serial rating plate (located on the
underside of the cooktop burner base)
D. Island trim or optional backguard
E. 27¾" (70.5 cm)
A. 27¾" (70.5 cm)
B. 1¼" (3.2 cm)
C. 7
⁷⁄₁₆ " (18.8 cm)
D. Gas inlet is located 1
⁷⁄₈ " (4.8 cm) from the back of
the cooktop burner base and 4 ⁷⁄₈ " (12.4 cm) in
from left-hand side of the cooktop burner base.
E. 22" (55.9 cm)
F. 3
⁵⁄₈ " (9.2 cm)
G. 1" (2.6 cm)
B
C
A
D
E
A
C
F
G
D
E
B
Side View of Cooktop
Page 1 of 2

Commercial Style Gas Cooktop
®
CABINET REQUIREMENTS
*NOTES: Dimension “B” can be reduced by 6" (15.2 cm) when bottom of wood or metal cabinet is covered by not less than
0.25" (6.4 mm) flame retardant millboard covered with not less than No. 28 MSG sheet metal, 0.015" (0.4 mm) stainless steel,
0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
If installing a range hood above the cooktop, follow the range hood instructions for dimensional clearances above the cooktop
surface.
**NOTE: If backwall is constructed of a combustible material and a backguard is not installed, a minimum clearance of dimension A +
6" (15.2 cm) is required for 48" (121.9 cm) cooktops and cooktops with a grill.
A. Grounded 3-prong outlet should be located on
left-hand side of the cutout 16" (40.6 cm) max.
from enclosure sidewall
B. 10" (25.4 cm) min. clearance from countertop to
top of the outlet
C. 14" (35.6 cm) countertop to the gas supply line
D. Gas supply line should be located in this area on
rear or side walls, or the supply line can come up
through the floor.
NOTE: Solid side and bottom of cutout enclosure
not shown.
A
BC
D
B min.*
C
A**
D
E
F
I
J
KM
G
N
O
H
C
EL
P
L
D
A. See chart.
B. See chart.
C. See chart.
D. See chart.
E. See chart.
F. 18" (45.7 cm) min. clearance upper
cabinet to countertop
G. " (1.9 cm) back of cabinet cutout to gas
opening cutout
H. " (16.1 cm) gas opening cutout depth
" (31.7 cm) gas opening cutout width
J. " (56.5 cm) cabinet cutout depth
K. 2" (5.1 cm) cabinet side to gas cutout
L. 6" (15.2 cm) min. distance on both sides of the
cooktop to the side wall or other combustible
material above cooking surface
M. 24" (61.0 cm) cabinet depth
N. " (18.4 cm) cabinet depth to countertop
O. Notch to be equal on both sides
P. 13" (33.0 cm) upper cabinet depth
Size Model A**
Cooktop Cutout
to Back Wall
B*
Cooktop to
Cabinet
C
Optional
Backguard
Opening
D
Cabinet and
Countertop
E
Countertop Only
30" (76.2 cm) KGCU407 30" (76.2 cm) ) 30" (76.2 cm) or
29 (75.9 cm) for
zero clearance
36" (91.4 cm) KGCU462
KGCU463
KGCU467
36" (91.4 cm) or
35 (91.1 cm) for
zero clearance
48" (121.9 cm) KGCU482
KGCU483
KGCU484
47 (121.6 cm) for
zero clearance
Gas and Electric
Connection Locations
1¾" (4.4 cm)**
1½" (3.8 cm)**
1¾" (4.4 cm)
1¾" (4.4 cm)
1¾" (4.4 cm)**
1½" (3.8 cm)**
1½" (3.8 cm)**
42" (106.7 cm)
42" (106.7 cm)
36" (91.4 cm)
48" (121.9 cm)
30" (76.2 cm) 29¼" (74.3 cm)
35¼"
(89.5 cm)
47¼" (120.0 cm) 48" (121.9 cm) or
⁷⁄₈"
⁷⁄₈"
⁷⁄₈"
7¼
22¼
12½
6⁷⁄₈
¾
I.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice. Ref. W10271686D
08/26/09
