KitchenAid 5KSMICM User manual

Ice Cream Maker Attachment
5KSMICM
EN Use and Care manual 2
DE Gebrauchs- und Pegeanleitung 16
FR Manuel d’utilisation et d’entretien 30
IT Manuale d’uso e manutenzione 45
NL Gebruiks- en
onderhoudshandleiding 58
ES Manual de uso y cuidado 71
PT Manual de utilização e
manutenção 84
EL Εγχειρίδιο Χρήσης και Φροντίδας 97
SV Handbok för skötsel och
användning 110
NO Håndbok for bruk og vedlikehold 123
FI Käyttö- ja huolto-opas 136
DA Vejledning til anvendelse og
vedligehold 148
IS Notenda & Meðhöndlunar
handbók 160
RU Руководство по эксплуатации и
уходу 172
PL Instrukcja obsługi i konserwacji 185
CS Návod k použití a údržbě 198
TR Kullanım ve Bakım kılavuzu 210
UK Посібник із використання й
догляду 222
AR  1
W11511151B_01_EN.indd 1W11511151B_01_EN.indd 1 01-07-2021 21:44:1201-07-2021 21:44:12

2
PARTS AND FEATURES
NOTE: The Freeze Bowl must be completely frozen to make ice cream.
IMPORTANT: The Freeze Bowl is not dishwasher-safe. Hand wash only.
NOTE: The Freeze Bowl is compatible with all Tilt Head Mixers except for models
5KSM3316, 5KSM3317. Also compatible with all Bowl-Lift Mixers except for models
5KPM5, 5K5, 4KSM5, K5SS, KSM5, KSM50, KSM500, 3KSM5, 9KSM5, and 5KSM450.
1Freeze Bowl
2Drive Assembly
3Dasher
1
3
2
W11511151B_01_EN.indd 2W11511151B_01_EN.indd 2 01-07-2021 21:44:1201-07-2021 21:44:12

ENGLISH
3

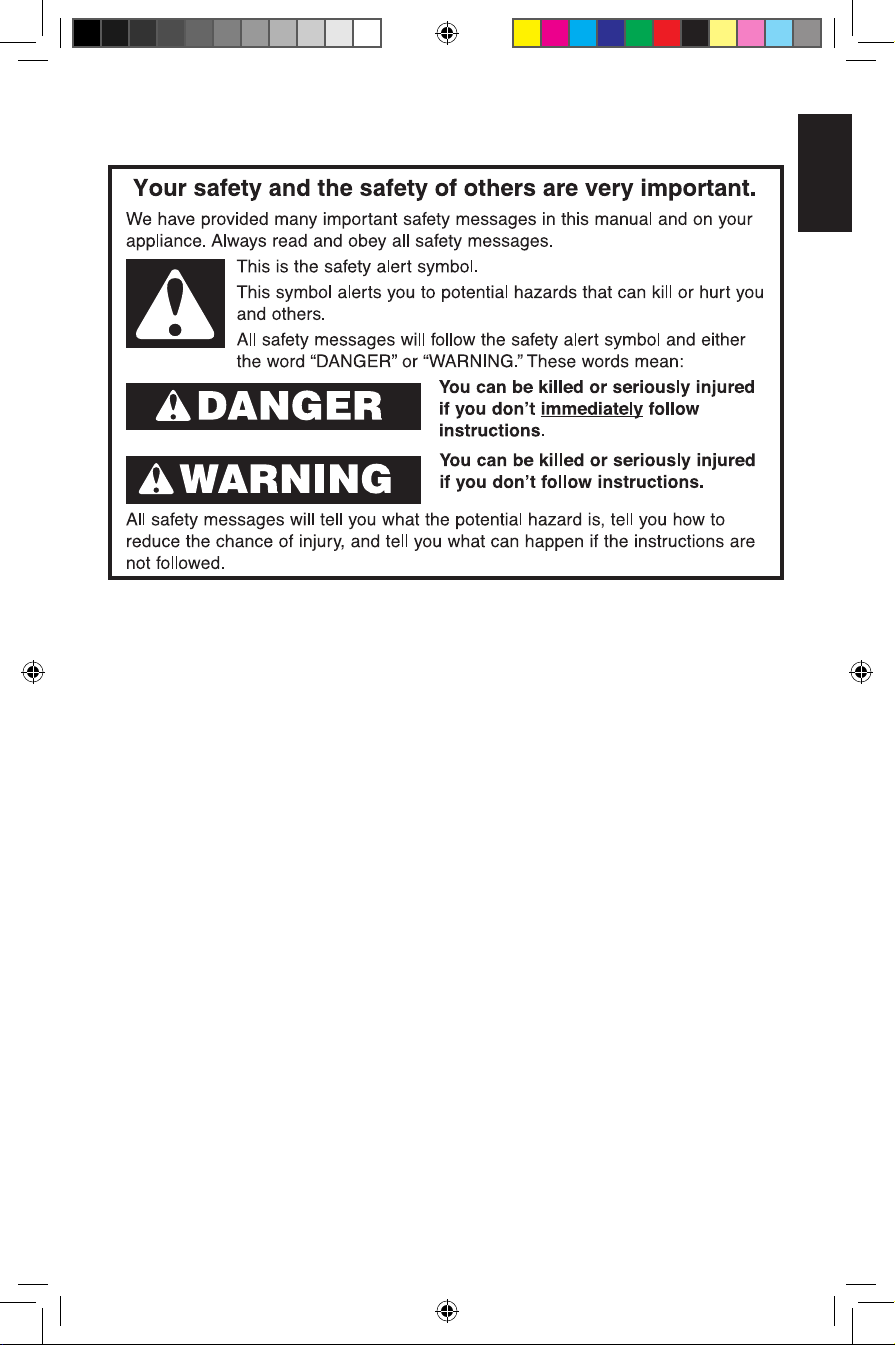

PRODUCT SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions. Misuse of appliance may result in personal injury.
2. To protect against risk of electrical shock, do not put Stand Mixer in water or
other liquid.
3. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. European Union only: Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance.
6. European Union only: This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
7. Close supervision is necessary when this or any appliance is used near children.
8. Turn the appliance OFF, then unplug from the outlet when not in use, before
assembling or disassembling parts, and before cleaning. To unplug, grasp the
plug and pull from the outlet. Never pull from the power cord.
9. Avoid contacting moving parts. Keep ngers out of hopper inlet and discharge
opening.
10. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest Authorised Service Facility for examination, repair, or
electrical or mechanical adjustment.
W11511151B_01_EN.indd 3W11511151B_01_EN.indd 3 01-07-2021 21:44:1201-07-2021 21:44:12

4
PRODUCT SAFETY
11. The use of attachments not recommended or sold by KitchenAid may cause re,
electric shock, or injury.
12. Do not use the Stand Mixer outdoors.
13. Do not let the cord hang over the edge of table or counter.
14. Do not let the cord contact hot surfaces, including the stove.
15. Never leave the appliance unattended while it is in operation.
16. Keep hands, hair, clothing, as well as spatulas and other utensils away from
beaters during operation to reduce the risk of injury to persons, or damage to the
mixer.
17. Remove beaters from mixer before washing.
18. To avoid product damage, do not use the mixer bowls in areas of high heat such
as an oven, microwave, or on a stovetop.
19. Also see the Important Safeguards section included in the Stand Mixer Use and
Care Guide.
20. Refer to the “Care and Cleaning” section for instructions on cleaning the
surfaces in contact with food.
21. This appliance is intended to be used in household and similar applications such
as:
- staff kitchen areas in shops, farmhouses, ofces, or other working
environments;
- farmhouses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
SAVE THESE INSTRUCTIONS
Instructions are also available online, visit our website at:
www.KitchenAid.co.uk or www.KitchenAid.eu
W11511151B_01_EN.indd 4W11511151B_01_EN.indd 4 01-07-2021 21:44:1201-07-2021 21:44:12

ENGLISH
5
PRODUCT SAFETY
ELECTRICAL EQUIPMENT WASTE DISPOSAL
Recycling the product
- This appliance is marked in compliance
with law in the EU and UK covering,
Waste Electrical and Electronic Equipment
(WEEE).
- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
- The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection centre for the recycling of electrical
and electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city office,
your household waste disposal service or the
shop where you purchased the product.
DECLARATION OF CONFORMITY (UK)
This appliance has been designed, constructed and distributed in compliance with
the safety requirements of UK Legislation: Electrical Equipment (Safety) Regulations
2016, Electromagnetic Compatibility Regulations 2016. The Ecodesign for Energy-
Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019.
The Restriction of the Use of Certain Hazardous Stubstances in Electrical and Electronic
Equipment Regulations 2012.
DISPOSAL OF PACKING MATERIAL
The packing material is recyclable and is marked with the recycle symbol . The various
parts of the packing must therefore be disposed of responsibly and in full compliance
with local authority regulations governing waste disposal.
DECLARATION OF CONFORMITY (EU)
This appliance has been designed, constructed, and distributed in compliance with the
safety requirements of EC Directives: Low Voltage Directive 2014/35/EU, Electromagnetic
Compatibility Directive 2014/30/EU, Ecodesign Directive 2009/125/EC, RoHS Directive
2011/65/EU and following amendments.
W11511151B_01_EN.indd 5W11511151B_01_EN.indd 5 01-07-2021 21:44:1201-07-2021 21:44:12

6
PRODUCT USAGE
Before first use
Before using your attachment, remove the “Do not immerse in water” label. The Freeze
Bowl, Dasher, and Drive Assembly must be washed by hand.
ATTACHING THE ICE CREAM MAKER FOR TILT-HEAD MIXERS
Turn Stand Mixer OFF (0) and unplug. Tilt motor head back and remove the
mixing bowl.
IMPORTANT: Before first use, set freezer to its coldest setting and store the Ice Cream
Bowl in the freezer for a minimum of 16 hours. Do not pour ice cream batter into the
Freeze Bowl until all parts are assembled and the mixer is running.
NOTE: Use the Freeze Bowl immediately upon removal from freezer, as it begins to
thaw once removed.
Place the Dasher inside the
Freeze Bowl.
Place the Freeze Bowl on the
Bowl-Clamping Plate.
Bowl-Clamping
Plate
1 2
3 4
W11511151B_01_EN.indd 6W11511151B_01_EN.indd 6 01-07-2021 21:44:1301-07-2021 21:44:13

ENGLISH
7
PRODUCT USAGE
ATTACHING THE DRIVE ASSEMBLY FOR TILT-HEAD MIXERS
Be sure the Stand Mixer is OFF (0) and
unplugged. Keep the motor head tilted
back and put the Dasher and Freeze Bowl
into place.
Place Drive Assembly onto the mixer,
aligning the cutout with the mixer shaft.
Lower the motor head to engage the
Drive Assembly with the Dasher. If the
Drive Assembly doesn’t engage the
Dasher, slide the Drive Assembly either
back or forward until it does engage the
Dasher properly.
Make sure the motor head is down
completely.
Place locking lever in the LOCK position.
Before mixing, test the lock by attempting
to raise the motor head.
1 2
3 4
5
W11511151B_01_EN.indd 7W11511151B_01_EN.indd 7 01-07-2021 21:44:1301-07-2021 21:44:13

8
ATTACHING THE ICE CREAM MAKER FOR BOWL-LIFT MIXERS
Turn Stand Mixer OFF (0) and unplug. Place bowl-lift handle in down position
and remove mixing Bowl.
PRODUCT USAGE
Plug the Stand Mixer into an earthed
outlet.
Before first use
Before using your attachment, remove the “Do not immerse in water” label. The Freeze
Bowl, Dasher, and Drive Assembly must be washed by hand.
IMPORTANT: Do not pour ice cream batter into the Freeze Bowl until all parts are
assembled and the mixer is running.
NOTE: Use the Freeze Bowl immediately upon removal from freezer, as it begins to
thaw once removed.
6
1 2
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
W11511151B_01_EN.indd 8W11511151B_01_EN.indd 8 01-07-2021 21:44:1301-07-2021 21:44:13

ENGLISH
9
Fit the Freeze Bowl in place over the
locating pins. Press down on the back of
the Freeze Bowl until the bowl pin snaps
into the spring latch.
NOTE: The Freeze Bowl is designed to
fit most bowl-lift mixers. If the bowl pin
at the back of the Bowl is too long to
snap into the spring latch, remove and
rotate the Bowl so the blank side faces
the spring latch. Repeat step 3.
PRODUCT USAGE
Place the Dasher inside the Freeze Bowl.
ATTACHING THE DRIVE ASSEMBLY FOR BOWL-LIFT MIXERS
Be sure the Stand Mixer is OFF (0) and
unplugged.
Make sure the bowl-lift handle is still in
the down position and the Freeze Bowl
and Dasher are in place.
3
4
1 2
W11511151B_01_EN.indd 9W11511151B_01_EN.indd 9 01-07-2021 21:44:1301-07-2021 21:44:13

10
PRODUCT USAGE
Place Drive Assembly onto the Dasher,
aligning the cutout with the mixer shaft.
Raise the Bowl to connect the Drive
Assembly to the Mixer.
Plug the Stand Mixer into an earthed
outlet.
3 4
5
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
W11511151B_01_EN.indd 10W11511151B_01_EN.indd 10 01-07-2021 21:44:1401-07-2021 21:44:14

ENGLISH
11
PRODUCT USAGE
MAKING ICE CREAM
IMPORTANT: Pouring batter into the Freeze Bowl before starting the Stand Mixer may
cause the batter to freeze prematurely and lock the Dasher.
Before first use
Set freezer to coldest setting. Store the Freeze Bowl in the freezer for a minimum of
16hours. Prepare ice cream batter in advance. Please see “Tips for Great Results”.
O/0 Stir 2 4 6 8 10
Set the mixer to “STIR” speed and pour
the ice cream batter into the Freeze
Bowl; mix 20-30 minutes, or to desired
consistency. Add any solid ingredients
such as fruits, nuts, candies, or chocolate
chips, after 12-15 minutes of the mixing
process.
Remove the Dasher and the Freeze Bowl
and, using a rubber spatula or a plastic
or wooden spoon, transfer ice cream to
dessert dishes or to an airtight container
for storage.
NOTE: If the Dasher begins to slip and make a clicking noise, this is an audible indicator
that the ice cream is done.
NOTE: The Ice Cream Maker Attachment will create a soft-consistency ice cream.
For firmer consistency, store ice cream in a shallow airtight container in the freezer
for 2-4 hours.
IMPORTANT: Do not store ice cream in the Freeze Bowl in the freezer. Prying hard ice
cream out of the Freeze Bowl with metal scoops or utensils may damage the Freeze
Bowl.
1 2
W11511151B_01_EN.indd 11W11511151B_01_EN.indd 11 01-07-2021 21:44:1401-07-2021 21:44:14

12
• The Freeze Bowl must be completely
frozen to make ice cream or other
frozen desserts.
• For best results, store the Freeze Bowl
in the back of your freezer where the
temperature is coldest for at least
16hours. Adjusting your freezer to its
coldest setting will help the Freeze
Bowl make firmer ice cream faster.
• Storing the Freeze Bowl in the freezer
at all times allows you the flexibility to
make your favourite frozen desserts
on a whim.
• For recipes that need to be pre-
cooked, allow the mixture to cool
completely in the refrigerator.
• All batter recipes need to be
completely chilled in the refrigerator
before making ice cream.
• When mixing an ice cream recipe
that calls for solid ingredients such
as fruits, nuts, candies, or chocolate
chips, it is best to wait until the final
two minutes of the mixing process to
add them.
• Ice cream making is a two-part
process: conversion and ripening.
Mixing batter into ice cream is the
conversion process in which the ice
cream consistency will be similar to
soft serve. The ripening process takes
place in the freezer, where the ice
cream will harden over a period of
2-4 hours.
• Follow recommended mixer speeds.
Faster speeds will slow the conversion
process.
• Batter volume grows significantly
during the conversion process.
• Initial batter volume should not
exceed 46 oz. (1.4 L) to produce
2 quarts (1.9 L) of ice cream.
• Keep in mind that freezing subdues
sweetness, so recipes won’t taste
quite as sweet once they are frozen.
PRODUCT USAGE
TIPS FOR GREAT RESULTS
CARE AND CLEANING
CLEANING THE ICE CREAM MAKER ATTACHMENT
IMPORTANT: Allow the Freeze Bowl to reach room temperature before attempting to
clean it.
The Dasher and Drive Assembly are
dishwasher-safe, top rack only.
1
Hand wash the Freeze Bowl in warm
water with mild detergent. Never wash
it in the dishwasher. Thoroughly dry the
Freeze Bowl before storing in freezer.
2
W11511151B_01_EN.indd 12W11511151B_01_EN.indd 12 01-07-2021 21:44:1401-07-2021 21:44:14

ENGLISH
13
WARNING
Food Poisoning Hazard
Do not let foods that contain
perishable ingredients such as
eggs, dairy products, and
meats remain unrefrigerated for
more than one hour.
Doing so can result in food
poisoning or sickness.
RECIPES
FRENCH VANILLA ICE CREAM
Servings: 1 quart (about 4-5 large scoops)
Prep Time: 10 minutes
Cook Time: 10 minutes
Chill Time: 2 hours
Churn Time: 15-20 minutes
Freeze Time: 3-4 hours or overnight
Special Equipment: Frozen KitchenAid®
Ice Cream bowl; spatula; saucepan; freezer
safe container
Ingredients
1 ¼ cups (0.3 L) half-and-half
4 (72g) egg yolks
½ cup (100g) sugar
1 ¼ cups (0.3 L) whipping cream
2 teaspoons (8g) vanilla
Pinch of salt
1. Heat half-and-half in a medium
saucepan over medium heat, stirring
often, until bubbles form around the
edge of the pan. Do not boil. Remove
from heat.
2. Attach the Flat Beater to your
KitchenAid®Stand Mixer. Place the
egg yolks and sugar in the Stand
Mixer Bowl and beat on low for about
1 minute, or until well blended and
slightly thickened. Very gradually add
in the warm half-and-half on low; mix
until blended. Return mixture to the
same saucepan; cook over medium
heat, stirring constantly, until small
bubbles form around the edge and
mixture is steamy. Do not boil. Transfer
mixture to a large bowl. Gently stir in
cream, vanilla and salt, then cover and
refrigerate 2 hours, or until cold.
3. Attach the frozen KitchenAid®Ice
Cream Bowl and Dasher to the Stand
Mixer. Turn mixer to stir, and pour
cold mixture into bowl with the mixer
running. Allow the mixer to stir the ice
cream mixture for 15-20 minutes, or
until it reaches the consistency of soft-
serve ice cream.
4. Transfer ice cream to an airtight
container; freeze several hours or until
firm.
Makes roughly 1 quart of ice cream
W11511151B_01_EN.indd 13W11511151B_01_EN.indd 13 01-07-2021 21:44:1401-07-2021 21:44:14

14
TERMS OF KITCHENAID GUARANTEE
("GUARANTEE")
Covering U.K. - Ireland - South Africa - UAE
KitchenAid Europa, Inc., Nijverheidslaan 3, Box 5, 1853 Strombeek-Bever, Belgium ("Guarantor") grants the end-customer, who
is a consumer, a Guarantee pursuant to the following terms.
FOR U.K.:
The Guarantee applies in addition to and does not limit or affect the statutory warranty rights of the end-customer against the
seller of the product. In summary, the Consumer Rights Act 2015 says products must be as described, fit for purpose and of
satisfactory quality. During the expected lifespan of your product your legal rights entitle you to the following:
- Up to 30 days: if your product is faulty, then you can get an immediate refund.
- Up to six months: if your product can't be repaired or replaced, then you're
entitled to a full refund, in most cases.
- Up to six years: if your product does not last a reasonable length of time you
may be entitled to some money back.
These rights are subject to certain exceptions. For detailed information please visit the Citizens Advice website www.
adviceguide.org.uk or call 03454 04 05 06.
FOR IRELAND:
The Guarantee applies in addition to and does not limit or affect the statutory warranty rights of the end-customer against
the seller of the product under the European Communities (Certain Aspects of the Sale of Consumer Goods and Associated
Guarantees Regulations 2003 (S.I. No. 11/2003)) and other enactments governing the sale of consumer goods.
FOR SOUTH AFRICA:
The Guarantee applies in addition to and does not limit or affect the statutory warranty rights of the end-customer against the
seller of the product. In summary, the Consumer Protection Act, 2008 says that products must be: (i) reasonably suitable for
the purpose for which they are intended; (ii) in good working order, of good quality and free of any defects; (iii) useable and
durable for a reasonable period of time, having regard to the use to which they would normally be put and to all the surrounding
circumstances; and (iv) in compliance with any applicable standards or any other public regulations.
During the expected lifespan of your product and where the products are not purchased online, your legal rights will entitle you
to the following:
- You will be entitled to a full refund, if you did not have the opportunity to examine the product before delivery and if you
rejected delivery of the product on the basis that the type and quality of the product was not as reasonably expected or did not
reasonably conform to the material specifications.
- Within 5 business days after delivery: you may rescind your purchase and request a refund, if your purchase resulted from direct
marketing.
- Within 10 business days after delivery: you will be entitled to a full refund, if it is found that the product was unsuitable for a
particular purpose specifically communicated to you by the Guarantor.
- Within 15 business days after delivery: you will be entitled to a refund if: (i) the product was not delivered to you; or (ii) if you
returned the product to the Guarantor.
- Within 6 months after delivery: you will be entitled to a refund or a replacement product, if the product is defective or fails to
operate in terms of its specifications.
Where you have purchased a product online your legal rights will be governed by the Electronic Communications and
Transactions Act, 2002 and you will be entitled to the following:
- Within 7 days after conclusion of the transaction or after delivery: you may cancel your purchase without reason and without
penalty.
- Within 30 days of the date of cancellation of the transaction: you will be entitled to receive a refund, if you have already made
payment.
- You will only be liable for the direct costs of returning the product to the Guarantor.
FOR UAE:
The Guarantee applies in addition to and does not limit or affect the statutory warranty rights of the end-customer against the
seller of the product.
1) SCOPE AND TERMS OF THE GUARANTEE
a) The Guarantor grants the Guarantee for the products mentioned under Section 1.b) which a consumer has purchased from
a seller or a company of the KitchenAid-Group within the following countries: U.K., Ireland, or South Africa, or the United Arab
Emirates (UAE).
b) The Guarantee period depends on the purchased product and is as follows:
- Two years full guarantee from date of purchase.
c) The Guarantee period commences on the date of purchase, i.e. the date on which a consumer purchased the product from a
dealer or a company of the KitchenAid-Group.
d) The Guarantee covers the defect-free nature of the product.
e) The Guarantor shall provide the consumer with the following services under this Guarantee, at the choice of the Guarantor, if
a defect occurs during the Guarantee period:
- Repair of the defective product or product part, or
- Replacement of the defective product or product part. If a product is no longer
available, the Guarantor is entitled to exchange the product for a product of equal or
higher value.
W11511151B_01_EN.indd 14W11511151B_01_EN.indd 14 01-07-2021 21:44:1401-07-2021 21:44:14

ENGLISH
15
f) If the consumer wishes to make a claim under the Guarantee, the consumer has to contact the country specific KitchenAid
service centres or the Guarantor directly at KitchenAid Europa, Inc. Nijverheidslaan 3, Box 5, 1853 Strombeek-Bever, Belgium;
Email-Address U.K.: CONSUMERCARE. [email protected]
Email-Address IRELAND: [email protected]
Toll Free Number U.K. & IRELAND: 00 800 381 040 26
FOR SOUTH-AFRICA:
Our local KitchenAid Distributor:
KitchenAid Africa
PO Box 52102
V&A Waterfront
Cape Town
8002
Contact our distributor:
Telephone: [phone]
You can contact our Customer Service Centre for Small Domestic Appliances
from 8.30 am to 1.00pm and from 1.30 pm to 5.00 pm or write to us at the following address: [email protected]
FOR UAE:
AL GHANDI ELECTRONICS.
POST BOX NO. 9098,
DUBAI, UNITED ARAB EMIRATES
Toll free number: [phone]
g) The costs of repair, including spare parts, and any postage costs (if applicable) for the delivery of a defect-free product
or product part shall be borne by the Guarantor. The Guarantor shall also bear the postage costs for returning the defective
product or product part if the Guarantor or the country specific KitchenAid customer service centre requested the return of the
defective product or product part. However, the consumer shall bear the costs of appropriate packaging for the return of the
defective product or product part.
h) To be able to make a claim under the Guarantee, the consumer must present the receipt or invoice of the purchase of the
product.
2) LIMITATIONS OF THE GUARANTEE
a) The Guarantee applies only to products used for private purposes and not for professional or commercial purposes.
b) The Guarantee does not apply in the case of normal wear and tear, improper or abusive use, failure to follow the
instructions for use, use of the product at the wrong electrical voltage, installation and operation in violation of the
applicable electrical regulations, and use of force (e.g. blows).
c) The Guarantee does not apply if the product has been modified or converted, e.g. conversions from 120 V products to
220-240 V products.
d) The provision of Guarantee services does not extend the Guarantee period, nor does it initiate the commencement of
a new Guarantee period. The Guarantee period for installed spare parts ends with the Guarantee period for the entire
product.
e) FOR SOUTH-AFRICA & UAE ONLY:
Further or other claims, in particular claims for damages, are excluded unless liability is mandatory by law.
After expiry of the Guarantee period or for products for which the Guarantee does not apply, the KitchenAid customer service
centres are still available to the end-customer for questions and information.
Further information is also available on our website:
- For U.K. & Ireland www.kitchenaid.eu
- For South-Africa: www.kitchenaidafrica.com
- For UAE: www.KitchenAid-MEA.com
TERMS OF KITCHENAID GUARANTEE
("GUARANTEE")
PRODUCT REGISTRATION
Register your new KitchenAid appliance now: http://www.kitchenaid.eu/register
©2021 All rights reserved.
KITCHENAID and the design of the Stand Mixer are trademarks in the U.S. and elsewhere.
W11511151B_01_EN.indd 15W11511151B_01_EN.indd 15 01-07-2021 21:44:1401-07-2021 21:44:14
