MAXIMUM EXTRACTION JUICER INSTRUCTIONS
MAXIMUM EXTRACTION JUICER SAFETY
Important safeguards�������������������������������������������������������������������������������������������6
Electrical requirements ���������������������������������������������������������������������������������������8
Electrical equipment waste disposal��������������������������������������������������������������������8
PARTS AND FEATURES
Parts and accessories�������������������������������������������������������������������������������������������9
ASSEMBLING THE MAXIMUM EXTRACTION JUICER
Assembling the Maximum Extraction Juicer parts���������������������������������������������10
OPERATING THE MAXIMUM EXTRACTION JUICER
Making juice�������������������������������������������������������������������������������������������������������12
TIPS FOR GREAT RESULTS
Quick tips ����������������������������������������������������������������������������������������������������������13
CARE AND CLEANING
Cleaning the Maximum Extraction Juicer ����������������������������������������������������������14
TROUBLESHOOTING������������������������������������������������������������������������������������������16
WARRANTY AND SERVICE��������������������������������������������������������������������������������17
TABLE OF CONTENTS
W10670861B_EN-Final.indd 5 7/30/14 1:05 PM

6
MAXIMUM EXTRACTION JUICER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1. Read all instructions� Misuse of appliance may result in
personal injury�
2. The use of attachments not recommended or sold by
KitchenAid may cause re, electric shock, or injury.
3. Do not operate without the pulp container in place�
4. Always make sure Juicer lid is securely closed before
motor is turned on� Do not remove the lid while the Juicer
is in operation�
5. Do not attempt to defeat the cover interlock mechanism�
6. Be sure to turn the Juicer off and unplug it from the power
outlet when not in use, after each use, before putting on or
taking off parts, and before cleaning. Make sure the motor
stops completely before disassembling�
7. Do not open until blades and rotating sieve stops�
8. Avoid contacting moving parts�
MAXIMUM EXTRACTION JUICER SAFETY
W10670861B_EN-Final.indd 6 7/30/14 1:05 PM

7
English
MAXIMUM EXTRACTION JUICER SAFETY
MAXIMUM EXTRACTION JUICER SAFETY
9. Blades are sharp� Care should be taken when handling
the sharp cutting blades, emptying the bowl and during
cleaning�
10. Do not put your ngers or other objects into the Juicer
opening while it is in operation� If food becomes lodged
in opening, use pusher or another piece of fruit or
vegetable to push it down� Never feed by hand� Always
use the pusher. When this method is not possible, turn
the motor off and disassemble the Juicer to remove the
remaining food�
11. Do not use outdoors�
12. Children should be supervised to ensure they do not play
with the appliance� The appliance is not to be used by
children� The appliance and cord should be out of reach
of children� Children shall not clean or perform user
maintenance on the appliance without supervision�
13. This appliance is not intended for use by persons with
reduced physical sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instructions concerning use of the appliance
in a safe way and understand the hazards involved�
14. Do not operate the appliance if the sieve or rotating parts
are damaged� Return appliance to the nearest Authorized
Service Facility for examination, repair, or electrical or
mechanical adjustment�
15. Do not operate the appliance if the cord or plug is
damaged, after the appliance malfunctions, or is dropped
or damaged in any manner� Return appliance to the nearest
Authorized Service Facility for examination, repair,
or electrical or mechanical adjustment�
16. To protect against risk of electrical shock, do not immerse
Juicer body in water or other liquids�
17. To prevent damage to gear assembly, do not immerse
Juicer body in water or other liquids�
18. Do not let the cord hang over the edge of table or counter�
W10670861B_EN-Final.indd 7 7/30/14 1:05 PM

8
MAXIMUM EXTRACTION JUICER SAFETY
Volts: 220-240 VAC
Hertz: 50 Hz
Wattage: 230W
NOTE: If the plug does not fit in the
outlet, contact a qualified electrician. Do
not modify the plug in any way� Do not use
an adapter�
Do not use an extension cord� If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet
near the appliance�
Electrical requirements
Electrical equipment waste disposal
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol �
The various parts of the packing must
therefore be disposed of responsibly
and in full compliance with local authority
regulations governing waste disposal�
Scrapping the product
- This appliance is marked in compliance
with European Directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE)�
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product�
- The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection center for the recycling of
electrical and electronic equipment�
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city ofce,
your household waste disposal service or the
shop where you purchased the product�
19. This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, ofces or other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments�
SAVE THESE INSTRUCTIONS
PARTS AND FEATURES
W10670861B_EN-Final.indd 8 7/30/14 1:05 PM

9
English
MAXIMUM EXTRACTION JUICER SAFETY
PARTS AND FEATURES
2-in-1 food pusher

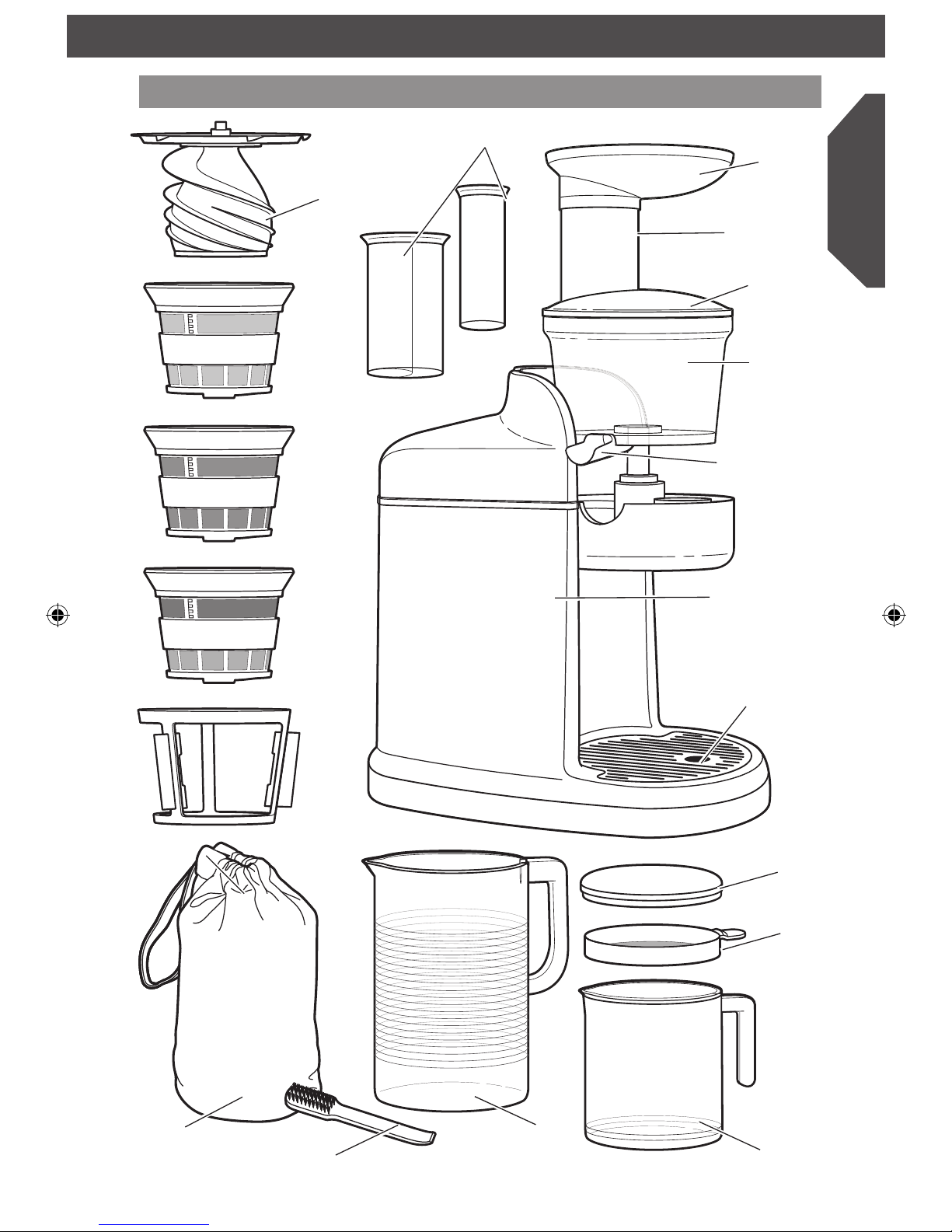

Parts and accessories
Auger/blade
assembly
High pulp screen
Removable
drip tray grate
and drip tray
basin
Low pulp screen
Sauce screen
Main Juicer
body
Hopper
Juicing
bowl
Juicer lid
Pulp chute
Feed chute
Screen wiper basket
Pulp container
Juice container
Foam
screen
Juice
container lid
Cleaning brush
(for screens)
Screen storage bag
W10670861B_EN-Final.indd 9 7/30/14 1:05 PM

10
ASSEMBLING THE MAXIMUM EXTRACTION JUICER
Assembling the Maximum Extraction Juicer parts
1Slide the gasket into place behind
the pulp chute�
Before First Use
Before using your Maximum Extraction Juicer for the first time, the Main Juicer body should be
wiped clean with a damp cloth� All other parts should be washed by hand or in the top rack of
the dishwasher� See “Care and Cleaning” section�
2Place the bowl into the juicer body�
3Put the screen wiper basket into the
bowl�
4Place the screen of your choice into
the screen wiper basket so that the
alignment mark matches up with the
mark on the bowl�
Alignment
marks
ASSEMBLING THE MAXIMUM EXTRACTION JUICER
W10670861B_EN-Final.indd 10 7/30/14 1:05 PM

11
English
ASSEMBLING THE MAXIMUM EXTRACTION JUICER
ASSEMBLING THE MAXIMUM EXTRACTION JUICER
7Place hopper on top of feed chute�
Insert food pusher in feed chute� 8Place juice container under juice bowl,
and pulp container beneath pulp chute�
5Place the auger/blade assembly inside
the screen�
6Place the lid on the juicer, aligning the
unlocked icon on the lid with the red
arrow on the juicing bowl� Rotate lid
clockwise until lid locks into place�
W10670861B_EN-Final.indd 11 7/30/14 1:05 PM

12
OPERATING THE MAXIMUM EXTRACTION JUICER
Making juice
BEFORE JUICING: Large seeds or pits
need to be removed prior to juicing to
avoid damage to the auger or screens� This
includes fruits such as; nectarines, peaches,
mangoes, apricots, plums, cherries, etc.
3To make sauces, make sure the rubber
gasket is in place, and sauce screen is
installed� Pull the pulp chute out; this
is the closed position� When the pulp
chute is closed, the juice and fiber exit
through the juice chute as a sauce�
2To make juice, the pulp chute should
always be pushed in; this is the open
positon. When the pulp chute is open,
pulp created while juicing will flow
through the pulp chute, separating it
from the juice�
Pulp
Juice
1Plug into a grounded outlet�
OPERATING THE MAXIMUM EXTRACTION JUICER
TIPS FOR GREAT RESULTS
W10670861B_EN-Final.indd 12 7/30/14 1:05 PM

13
English
OPERATING THE MAXIMUM EXTRACTION JUICER
OPERATING THE MAXIMUM EXTRACTION JUICER

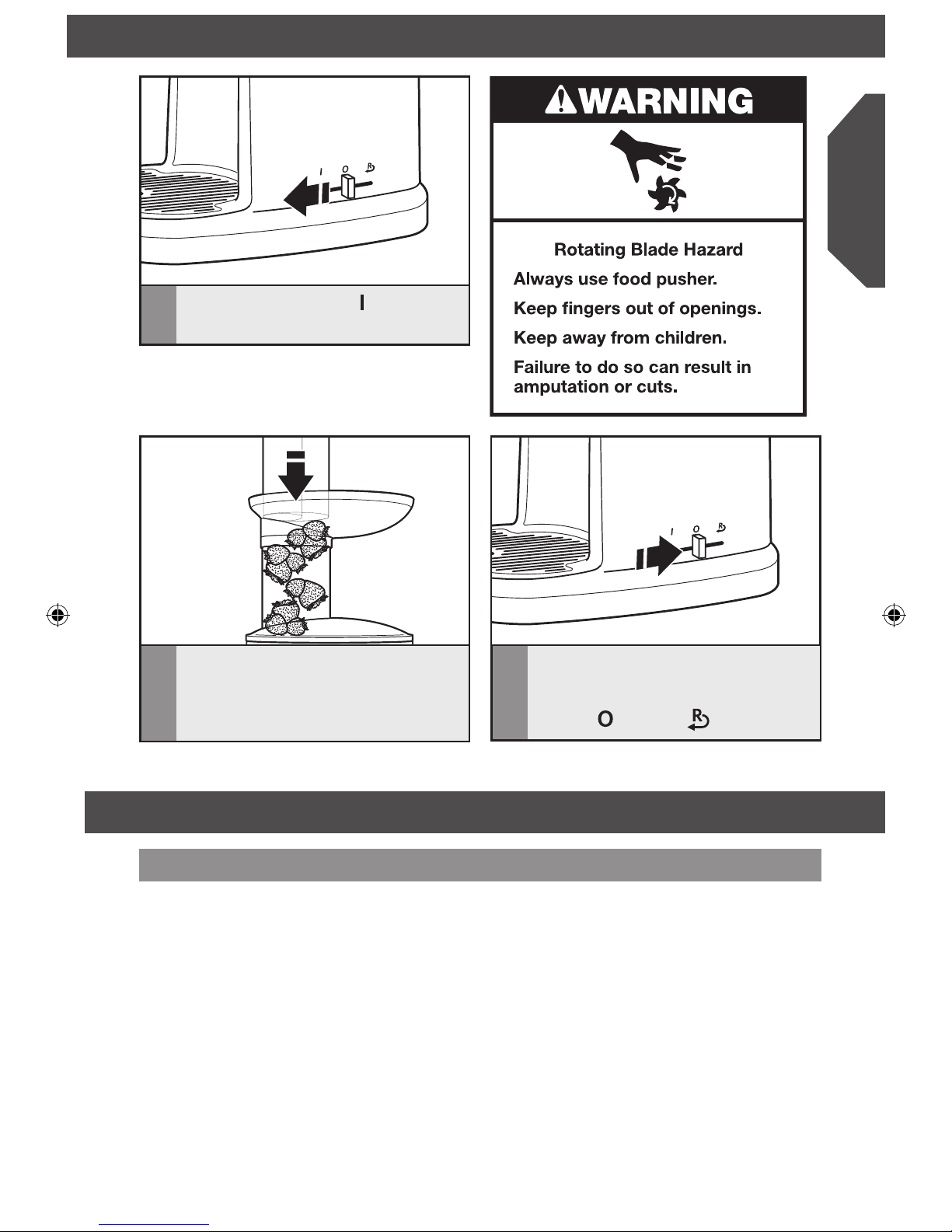

5Place items to be juiced into the hopper�
Use the food pusher to slowly feed
items into the juicer bowl�
4Move the power lever to �
6Pulp may build up on the screen and
auger assembly and cause a jam� Clear
the buildup by moving the power
lever to and then �
TIPS FOR GREAT RESULTS
Quick tips
Before juicing:
• Thoroughly wash your fruits and
vegetables, making sure they are
free of soil, leaves, and stems. Small
leaves, such as on strawberries, do
not have to be removed�
• To avoid damaging the juicer, do not
juice frozen fruits or vegetables� For
optimal performance, always use fresh
fruits and vegetables�
• Large seeds or pits must be removed
prior to juicing to avoid damage to the
auger or screens� This includes fruits
such as; nectarines, peaches, mangoes,
apricots, plums, cherries, etc.
• Always peel fruits with hard or inedible
skins. Examples include mangoes, citrus
fruits, melons, and pineapples.
NOTE: Recommended maximum juicing
time is 25 minutes� After juicer to cool for
10-15 minutes before resuming operation�
W10670861B_EN-Final.indd 13 7/30/14 1:05 PM

14
TIPS FOR GREAT RESULTS
• Some vegetables, such as cucumbers
or yellow squash, do not have to be
peeled rst, depending on the softness
of the skin and recipe requirements�
Leaving the peels on will change the
colour and avour of the nished juices.
While juicing:
• For optimum results, insert one piece
of ingredients at a time�
• When juicing celery with other fruits/
vegetables, it is recommended to
interchange the celery with other
items to prevent pulp build-up inside
the juice bowl�
• When juicing leafy greens like spinach
and kale, it is recommended to juice
with a combination of watery or brous
fruits and vegetables to help with juice
ow and to increase juice yield.
CARE AND CLEANING
Cleaning the Maximum Extraction Juicer

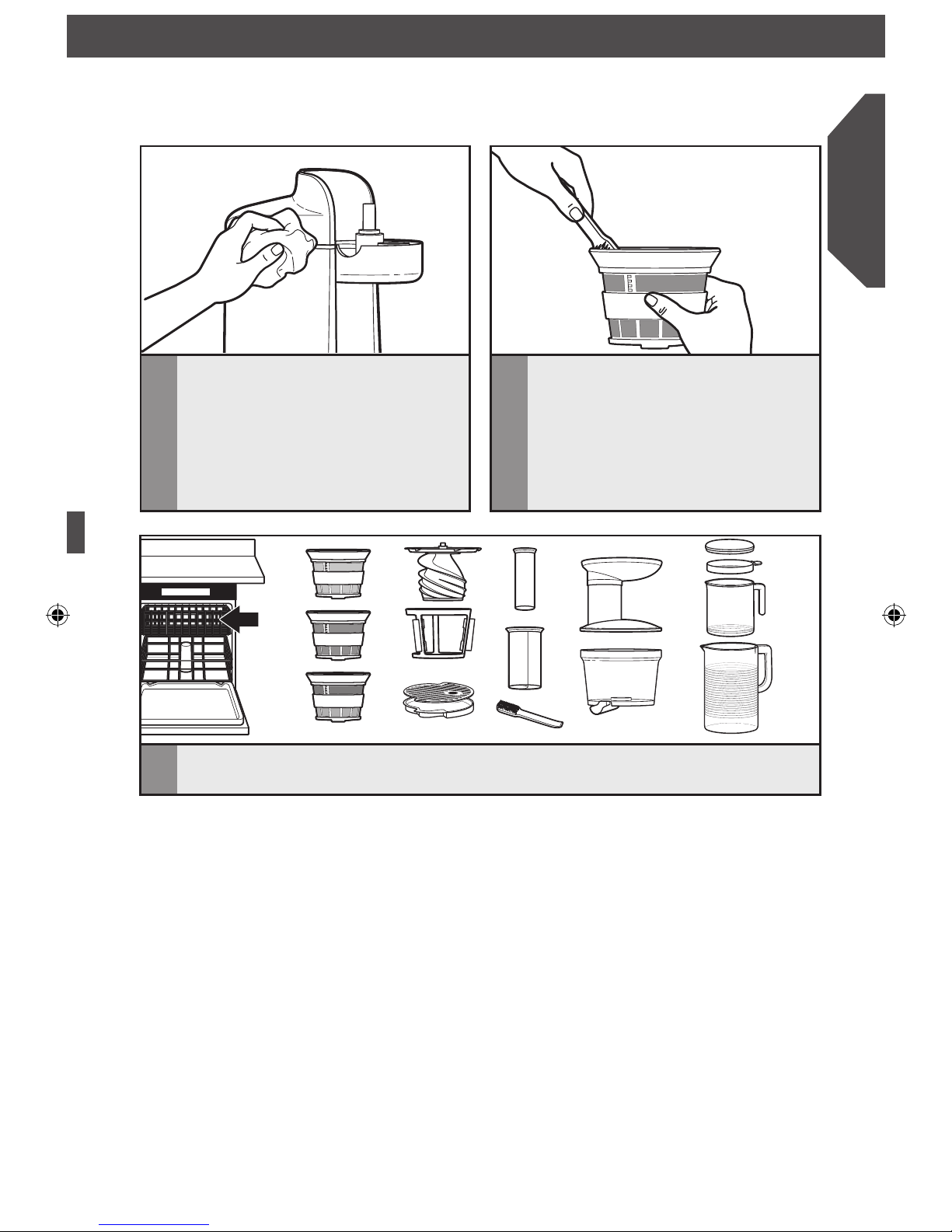

1To disassemble juicing bowl: Remove
the lid� Remove the auger� Lift the
assembled screen and screen wiper
basket out of the bowl, and separate.
2To disassemble pulp chute for
cleaning: Pull gasket out from back of
chute� Slightly pinch gasket hinge while
sliding chute in towards the center of
the juicing bowl�
IMPORTANT: To avoid damaging the Juicer, do not wash or immerse the juicer body in
water or other liquids� All other parts are top rack dishwasher safe�
Before cleaning, make sure juicer has been turned off and unplugged from the outlet.
• You should not juice bananas�
• For less foam build-up and seeds/particles
in your juice, use the foam screen to
strain these sediments before they go
into the juice�
After juicing:
• Saved pulp can be used for other
recipes, as compost for your garden,
or can be discarded�
For easy cleanup:
• As you juice, clean parts to avoid dried-on
juice and pulp�
• After each use, immediately rinse
removable parts in hot water to remove
pulp and juice� It may be necessary to use
the cleaning brush to remove pulp from
the screen� Let parts air dry�
CARE AND CLEANING
W10670861B_EN-Final.indd 14 7/30/14 1:05 PM

15
English
TIPS FOR GREAT RESULTS
CARE AND CLEANING
CARE AND CLEANING
4Use the brush with warm soapy water
to clean out any stuck food or residue in
the screens�
3Wipe the juicer body with a warm,
damp cloth� Avoid using abrasive
cleaners or scouring pads as they may
scratch the juicer � Thoroughly dry with
a soft cloth� To avoid damaging the
juicer , d o not wash or immerse the
juicer body in water or other liquids,
or wash in the dishwasher�
NOTE: Juice may drip onto the drip tray grate after juicing� Both the grate and drip tray basin
may be removed and washed in the top rack of the dishwasher for easy cleaning�
5All parts other than the juicer body are top rack dishwasher safe�
W10670861B_EN-Final.indd 15 7/30/14 1:05 PM

16
TROUBLESHOOTING
Maximum Extraction Juicer does not operate
• Check to see whether the Juicer
is plugged into a grounded outlet. If it is,
check the fuse or circuit breaker on the
electrical circuit the Juicer is connected to
and make sure the circuit is closed�
• Check to make sure the Juicer was
assembled correctly� See “Assembling the
Maximum Extraction Juicer” section�
• Check to see if the screen is clean and
clear of pulp� Too much pulp on the screen
may affect performance, and will need to
be removed� See “Cleaning the Maximum
Extraction Juicer” section�
• The juicer might be jammed� Turn Juicer
off and reverse direction� Turn off Juicer
again, unplug unit, and remove lid to
clean out pulp build up� See “Cleaning the
Maximum Extraction Juicer” section�
If the problem cannot be corrected: See
the “Warranty and Service” section� Do not
return the Juicer to the retailer; retailers do
not provide service� The serial number for
service is on the bottom of the Juicer body�
• Check to see whether the rubber gasket
on the bottom of the Juicer is placed
properly�
Juice does not ow sufciently, or is owing out of the pulp ejector
Makes a squeaking or clicking noise or shakes when making juice
• A squeaking noise is normal� It is the sound
of juice being squeezed by the auger� • Some shaking is normal� It is the sign of the motor working properly�
WARRANTY AND SERVICE
W10670861B_EN-Final.indd 16 7/30/14 1:05 PM

17
English
TROUBLESHOOTING
WARRANTY AND SERVICE
Length of
Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:
Europe, Middle East
and Africa:
Five years full warranty
from date of purchase.
The replacement
parts and repair
labor costs to
correct defects
in materials or
workmanship.
Service must
be provided by
an Authorized
KitchenAid Service
Center.
A. Repairs when Juicer is used
for operations other than
normal residential use
B. Damage resulting from
accident, alterations,
misuse, abuse, or
installation/operation
not in accordance with
local electrical codes.
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT
DAMAGES.
KitchenAid Maximum Extraction Juicer warranty
For more information, visit our website at:
www.KitchenAid.co.uk
www.KitchenAid.eu
Customer service
© 2014� All rights reserved�
Specications subject to change without notice.
In U.K. and Ireland:
For any questions, or to find the nearest KitchenAid Authorized Service Center, please find
our contact details below�
NOTE: All service should be handled locally by an Authorized KitchenAid Service Center�
Contact number for U�K� and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard network
rate) or call 0194 260 5504�
Contact number for Ireland:
Tollfree number [phone]
E-mail contact for U�K� and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom
of the page�
Address for U�K� and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Center�
W10670861B_EN-Final.indd 17 7/30/14 1:05 PM
