KK farming AeroBoxClassic User manual

i n sta lla ti on a n d o pera ti n g i n s tru cti on s | e n g li sh
AeroBoxClassic
AeroBoxXL

installation and operating instructions
AeroBoxClassic und AeroBoxXL

KK OG
2700 Wiener Neustadt
Fischauer Gasse 1 64 Top 20
AUSTRIA
Registered Company number: FN 482950 x
Registration court.: Landesgericht Wiener Neustadt
VAT-Nr.: ATU72951 308
E- ail: [e-mail]
Web page: www.kkfarming.com
When operating products from KK OG, national law must be regarded.
The KK OG accept no responsibility and assume no liability for any
improper or illegal use of their products!

Congratulations!
You are now the owner of a high-tec product!
Aeroponic, Aeroculture – there are a lot of names for the
most modern technology of plant breeding. Yet every one
of them describes the same method: A cultivation
technique for plants without a medium, where the roots
are hanging in the air and sprayed with a nutrient solution.
Not only is this the most efficient cultivation method
regarding water and nutrition, it is so promising,
organisations like NASA and other space agencies use this
technology for research on cultivation farming in space.
This makes us sure: You will achieve peak results with the
AeroBox.
On that note – LET IT GROW!
arco Keiblinger, company management Nino Keiblinger, company management

7
Index
Package includes ................................................................ 8
Assembling ............................................................................ 10
Operating instructions ...................................................... 18
Water/nutrient solution .................................... 18
Operating time .................................................... 19
aintenance ......................................................................... 20
aintaining coarse filters ............................... 20
aintaining spray valves ................................. 21
aintaining circulation pump ......................... 23
Cutting set ........................................................................... 24
Warnings ................................................................................ 26
.R.S high pressure pump ............................ 26
Water reservoir .................................................... 27
agnets ................................................................... 27
Contact/support .................................................................. 28
Purchasing spare parts and accessories ................... 28

8
AeroBoxXL includes
1 . Circulation pump: HYDOR Centrifugal Pump Pico 1 000
2b. High pressure pump: .R.S. Whisper PowerPump Professional
3b. Water reservoir: 1 00 liter
4. 2 x Root vessel
5. Seal set
6. Double filter (pre-assembled)
7. Hose – Ø-8mm
8. Hose – Ø-6mm
9. 1 6 x valve and adapter (pre-assembled)
1 0. 1 6 x extra valve
1 1 . 2 x Water distributor (pre-assembled)
1 2. 4 x Strainer
1 3. 4 x Rivet
1 4. 2 x Perforated top cover (7,8 or 1 5 void)
1 5. 30 x Net pot
1 6. 2x Hydrocorrels 3L
1 7. T-joint
AeroBoxClassic includes
1 . Circulation pump: HYDOR Centrifugal Pump Pico 1 000
2a. High pressure pump: .R.S. Whisper PowerPump Small
3a. Water reservoir: 45 liter
4. Root vessel
5. Seal set
6. Double filter (pre-assembled)
7. Hose – Ø-8mm
8. Hose – Ø-6mm
9. 8 x valve and adapter (pre-assembled)
1 0. 8 x extra valve
1 1 . Water distributor (pre-assembled)
1 2. 2 x Strainer
1 3. 2 x Rivet
1 4. Perforated top cover (7,8 or 1 5 void)
1 5. 1 5 x Net pot
1 6. Hydrocorrels 3L
1 7. T-joint

9
3a
4
1 1
1 4
3b
6
9
12b
1 6
1 0
1 5
1 2
5
1 1 1 7
1 3
2a
8
7

1 0
Assembling
Thread the flat plug terminal of
your circulation pump through
the big seal with three holes.
S EP 1
All you need to set up your AeroBox is a few minutes of
time, just follow the instructions in this manual.
SEALS
CHILLER-IN
1 /2" 3/4"
CHILLER-OUT
3/4" 1 /2"
Note:
You can find
additional o tions to
connect o tional
Chiller/cooling
devices, or other
devices such as (e.g.
Biofilters), beside the
big seal with three
holes.

1 1
Thread the doublefilter to the
ø-8mm hose.
S EP 2
Thread the ø-8mm hose
through the big seal with three
holes.
S EP 3

1 2
Attach the ø-6mm hose
through the middle hole.
S EP 4
Replace the seal in the water
reservoir and mount the
circulation pump and
doublefilter as shown below.
S EP 5

1 3
Attach both hoses to the
openings on your circulation
pump.
ake sure that the connection
is airtight.
S EP 6
Information for AeroBoxXL :
You will receive the ressure
adjustable um of your
AeroBoxXL reset o timally. If
you, for what ever reson, want
to adjust the ressure
elsewise, make sure to follow
the included instruction
manual form M.R.S..
AeroBoxClassic
AeroBoxXL
Select the location to operate your pumps respecting the
included instruction manual. In general, make sure that
the high pressure pump is operated in a dry and splash
guarded location.

1 4
S EP 7
Thread the hoses of the spray
valves through the holes of the
root vessel from the inside.
Attach the hoses of the spray
valves to the water distributor.
For AeroBoxXL repeat step 7
and 8 with the second root
vessel.
S EP 8
Information for AeroBoxXL :
For AeroBoxXL repeat step 7
and 8 with the second root
vessel.

1 5
Attach the loose end of the ø-
6mm hose to the water
distributor.
S EP 9A (AeroBoxClassic)
Join the water reservoirs with
the T-joints hoses.
Now attach the T-joint to the
loose end of the ø-6mm hose.
S EP 9B (AeroBoxXL)
Attach Release
Release connectors:
To release the connectors, ull
on the hose and ush the
movable ring against the
direction of ull.

1 6
AeroBoxClassic
Place the root vessel on the
water reservoir and put the
strainers in the intended holes.
S EP 1 0
Put the rivets in the holes on
the sides of the box.
S EP 1 1
AeroBoxXL
AeroBoxClassic AeroBoxXL

1 7
S EP 1 2B (AeroBoxXL)
Put the lid on the root vessel
and place the net pots in the
holes.
S EP 1 2A (AeroBoxClassic)
Put the lids on the root vessels
and place the net pots in the
holes.
Fill the net pots with hydrocorrels. Then fill the water
reservoir of your AeroBox with water up to 3cm under the
rubber seals.
Your AeroBox is now ready-to-operate.
Socket
Interval - Timer
Socket
Interval - Timer

1 8
Operation
This manual is only a technical overview for operating an
AeroBox. For more in depth operational procedures, tips
and tricks visit us on our homepage:
www.kkfarming.com /de/guide/
Please follow the safety references in this manual.
You can fill the water reservoir up to 3cm under the
rubber seals, but be aware that a high fill level will
increase the risk of spilling over.
The circulation pump will make sure the nutrient solution
is stirred and replenished with oxygen. This is why it
should be activated 24 hours a day.
This way nutrients and pH regulators can easily be added.
Do keep in mind that it may take a few minutes for all data
to show accurately. Additional agitation will accelerate
this process.
A EN ION – Never operate AeroBox without
water!
his can severely damage the pump.
Water/nutrient solution

1 9
A EN ION – Only use nutrients that have a
good solubility!
Especially many organic fertilisers can clogg the
spray valves and should be used with caution. he
spray valve size is 0,61 mm and produces a liquid
droplet size of around 65 µm.
Operating time
A EN ION – Never use your high pressure pump
permanently!
Not only can it damage the pump but also,
advantages of aeroponic can be inhibited.
Operating in an ON/OFF interval is required.
Achieve best results by experimenting with operation
intervals. If u have no experience with aeroponic systems
we would recommend a standard value of 1 5 second ON
and 1 5 minutes OFF.
Such operation intervals can be accomplished by using an
interval-timer. Interval-timers are available in our online
shop:
www.kkfarming.com/de/sho /

20
A EN ION – Life threatening situation!
Before servicing your AeroBox, make sure all power
plugs have been removed. High voltage can cause
life threatening events.

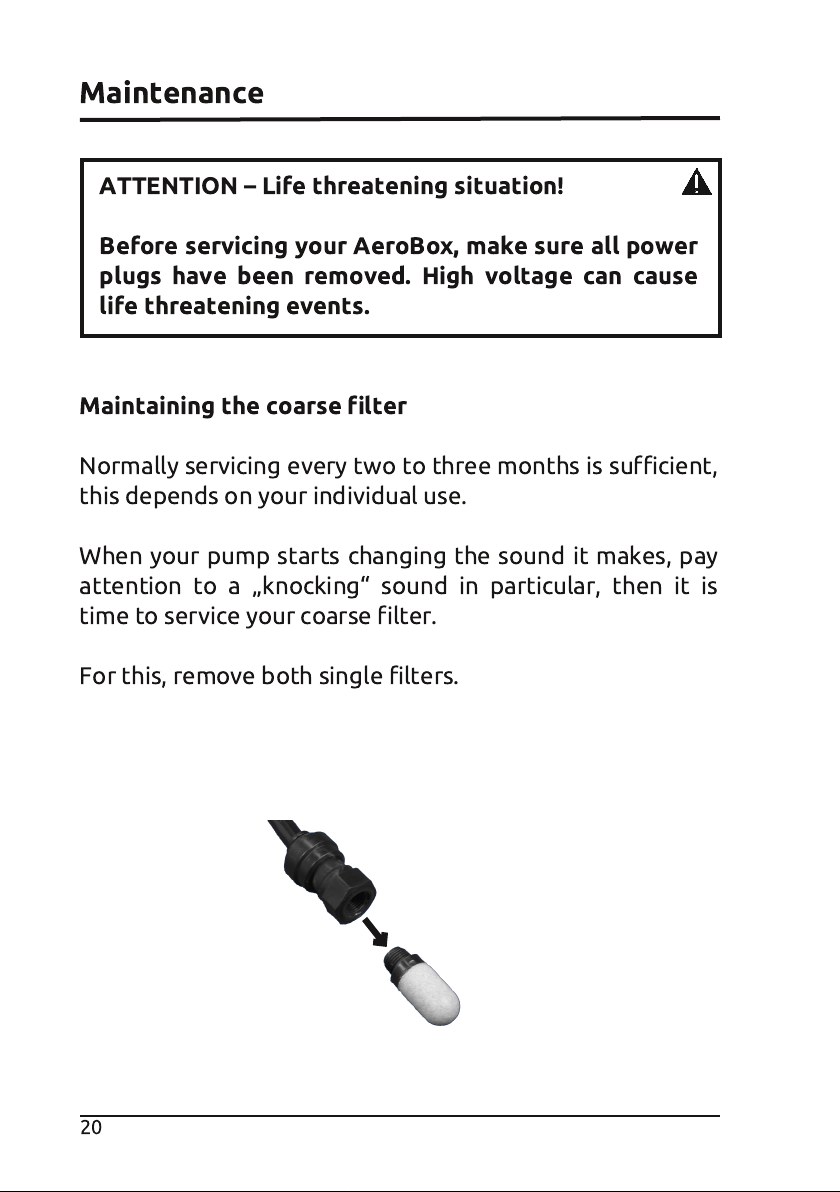

Maintenance
Maintaining the coarse filter
Normally servicing every two to three months is sufficient,
this depends on your individual use.
When your pump starts changing the sound it makes, pay
attention to a „knocking“ sound in particular, then it is
time to service your coarse filter.
For this, remove both single filters.
