KKT KOLBE GS6012ED User manual

Version: 1.0 / 140703 EN
User’s manual
for your dishwasher
Model: GS6012ED

Hints and symbols
!
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
(e.g. PS for polystyrene, padding material)
This appliance is identied according to the European guideline
2002/96/EC on waste electrical and electronic equipment -WEEE. The
guideline species the framework for an EU-wide valid return and re-use
of old appliances.
This icon indicates a hazardous situation.
You‘ll nd it especially with all descriptions of the steps that might
cause danger to persons arising.
Observe these safety instructions and behave accordingly careful.
Enter these warnings also to other users of the device.
This icon indicates a warning.
You can nd it in the description of the steps that must be obser-
ved in order to damage to the unit can be prevented. Please inclu-
de these safety instructions to all device users.
This icon indicates an information.
This symbol indicates useful tips and calls attention to proper pro-
cedure and behavior. The observance of the notes marked with
this icon may save you many problems.

EN
When using your dishwasher, follow
the basic precautions including the
following:
Hydrogen gas is explosive
Under certain conditions, Hydrogen
gas may be produced in a hot-water
system that has not been used for
two weeks or more. Hydrogen gas
is explosive. If the hot-water system
has not been used for such a period,
before using the dishwasher turn on
all hot-water faucets and let the water
ow from each for several minutes.
This will release any accumulated
hydrogen gas. As the gas is ammable,
do not smoke or use an open ame
during this time.
Warning! Proper use:
• Do not abuse, sit on, or stand on the
door or dish basket of the dishwasher.
• Do not touch the heating element during
or immediately aer use.
• Do not operate your dishwasher unless
all enclosure panels are properly in
place. Open the door very carefully if the
dishwasher is operating. There is a risk
of water squirting out.
• Do not place any heavy objects or stand
on the door when it is open. The appli-
ance could tip forward.
• When loading items to be washed:
Locate sharp items so that they are not
likely to damage the door seal;
Load sharp knives with the handles up to
reduce the risk of cut-type injuries;
• Warning: Knives and other utensils with
sharp points must be loaded in the bas-
ket with their points down or placed in a
horizontal position.
• When using your dishwasher, you should
prevent plastic items from contacting
with heating element.
• Check that the detergent receptacle
is empty aer completion of the wash
cycle.
• Do not wash plastic items unless they
are marked dishwasher safe or the equi-
valent. For plastic items not so marked,
check the manufacturer‘s recommen-
dations.
• Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or
hand washing detergent in your dish-
washer.
• Other means for disconnection from
the supply must be incorporated in the
xed wiring with at least 3mm contact
separation in all poles.
• Keep children away from detergent and
rinse aid, keep children away from the
open door of the dishwasher , there
could still be some detergent le inside.
• Young children should be supervised
to ensure that they do not play with the
appliance.
• This product is not designed for use by
persons (including children) who have
reduced physical, sensory or mental
capacities or persons with no experience
or knowledge, unless they are instruc-
ted and supervised in the use of the
appliance by a person responsible for
their safety.
• Dishwasher detergents are strongly al-
kaline. They can be extremely dangerous
if swallowed.
• Avoid contact with skin and eyes, and
keep children away from the dishwasher
when the door is open.
• The door should not be le in the open
position since this could present a trip-
ping hazard.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its ser-
vice agent or a similarly qualied person
in order to avoid a hazard.
Safety Information

4
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre.
Cut o the power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be
disposed in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent po-
tential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
For more detailed information about recycling of this product, please con-
tact your local city oice and your household waste disposal service.
Congratulations on the purchase of your new dishwasher!
We recommend that you spend some time to read this Instruction
/ Installation Manual in order to fully understand how to install
correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this
Instruction / Installation Manual for future reference.
Konformiditätserklärung
• During installation, the power supply
must not be excessively or dangerously
bent or attened.
• Do not tamper with controls.
• The appliance is to be connected to the
water mains using new hose sets, and the
old hose-sets should not be reused.
• Make sure that the carpet must not obst-
ruct the openings at the bottom base.
• Use the dishwasher only for its intended
function.
• The dishwasher is intended for indoor use
only.
• The dishwasher is not designed for com-
mercial use. It is intended for use in do-
mestic households and in similar working
and residential environments.

5
Table of content
1. Specications
1.1 Product specications
1.2 Informations about energy eiciency
2. Device description
2.1 Control panel
3. Using your dishwasher
3.1 Before the rst use
3.2 Loading salt into the soener
3.3 Set up the water soener
3.4 Fill the rinse aid dispenser
3.5 Adjusting the rinse aid dispenser
3.6 Loading the upper basket
3.7 Adjusting the upper basket
3.8 Loading the lower basket
3.9 Folding racks
3.10 Cutlery basket and fork shelf
4. Starting a washing program
4.1 Wash cycle table
4.2 Changing the program
4.3 At the end of the cycle
4.4 Forget to add dish
4.5 Set up the delayed start
4.6 Rell signal lamps
4.7 3-in-1-Function
4.8 Key lock
5. Energy saving
6. Maintenance and clearning
6.1 Filter clearning
6.2 Maintenance and cleaning
6.3 Cleaning tips
7. Troubleshooting
7.1 General troubleshooting
8. Information sheet
7
8
10
19
23
24
27
31
EN

6
My device
For future reference please record the
following information, which can be
found on the nameplate. Also, please
note the date of purchase of your device
that is on your invoice. The rating plate
of your dishwasher is located on the right
inside of the hinged door.
Model number:
Serial number:
Date of purchase:

7
General Information
1. Specication
1.1 Product specications
1.2 Daten zur Energieeizienz
• 12 Place settings
• 6 programs:
ECO
Intensive
Light
Rapid
Crystal
1 hour
• 4 Temperatures: 40°C, 45°C, 46°C, 60°C
• Delayed start
• LED-Display
• 3 in 1-Function
• Self-cleaning stainless microlter
• Aqua-Stop
• Waterproof-System
• Concealed radiator
• Height-adjustable upper basket
• Tiltable plate holder
• Adjustable feet
• Water consumption: 13 Liter
Energy eiciency class: A++
Cleaning performance class: A
Drying performance class: A
Energy consumption
O-Mode: 0,35 W
Stand-By-Mode: 0,90 W
Electrical Information
Rated voltage: 220-240 V 50 Hz
Maximum connection value: 0,92 kW
Fuses: 16 A
Dimensions:
Height: 845 mm
Width: 600 mm
Depth: 600 mm
Packaging dimensions:
Height: 885 mm
Width: 642 mm
Depth: 637 mm
EN
845
642 637

8
Device description
2. Device description
9
8
5
1
10
7
2
3
4
6

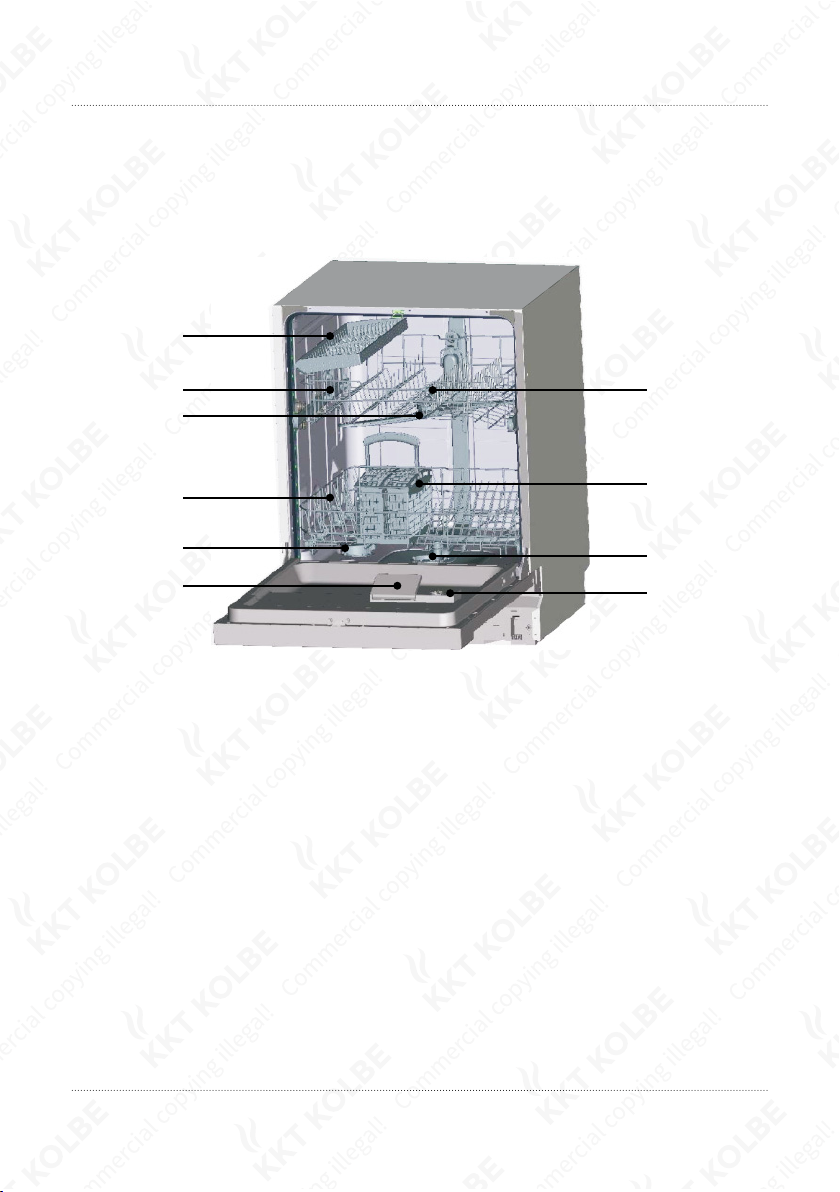

1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Soener
5 Filters
6 Detergent Dispenser
7 Rinse Aid Dispenser
8 Cutlery basket
9 Fork shelf

9
Control panel
2.1 Control panel
1. Power switch: To turn on/o the power supply.
2. Program key: Press the key to scroll through the wash cycles.
The corresponding program light will be ON to indicate which
WASH CYCLE has been selected.
3. „3-in-1“-Button: Press this button - you can choose or cancel
the 3-in-1-Function.
4. Delay button: The start delay will allow you to delay the start
time of any cycle automatically up to 24 hours.
5. Start/Pause-Button: The appliance will start or pause the ex-
pected washin cycle.
6. Program indicator lamp: When you select a washing program,
the corresponding lamp will light up.
7. Rinse aid rell indicator: The indicator lights up when dispenser
needs to be relled.
8. Salt rell indicator: The indicator lights up when the soener
needs to be relled.
9. 3 in 1 indicator: The indicator lights up when the additional
function is selected.
10. Washing light: Appears when the washing process is running.
11. Child lock indicator: The „Child lock“ will be available when
you press the 3 in 1 button and Delay button at the same time for 3
seconds.
12. Drying light: To come on when the dishwasher is drying.
13. Digital display: Displays the running time remain, malfunction
codes and delay time.
123
6
11
75
8
9
10
12
4
13
3Sec
EN

10
Using the dishwasher
3. Using the dishwasher
3.1 Before rst use
3.2 Loading the salt into the soener
• A. Set the water soener
• B. Pour 500ml of water inside the salt container and then ll with
dishwasher salt
• C. Fill the rinse aid dispenser
• D. Detergent
Important
Always use rened salt, which is intended for the dishwasher. If
you take a dierent kind of salt (in particular table salt), the water
soener is damaged.
• Remove the lower basket and then unscrew and remo-
ve the cap from the salt container.
• If you are lling the container for the rst time, ll 2/3 of
its volume with water (around 500ml).
• Place the end of the funnel (supplied) into the hole
and introduce about 2kg of salt. It is normal for a small
amount of water to come out of the salt container.
• Carefully screw the cap back on.
• Usually, the salt warning light will be o in 2-6 hours
aer the salt container is lled with salt.

11
Using the dishwasher
Important Information
The next relling of salt in a dishwasher relling of 500 ml of wa-
ter in the reservoir of the water soener is not necessary.
EN

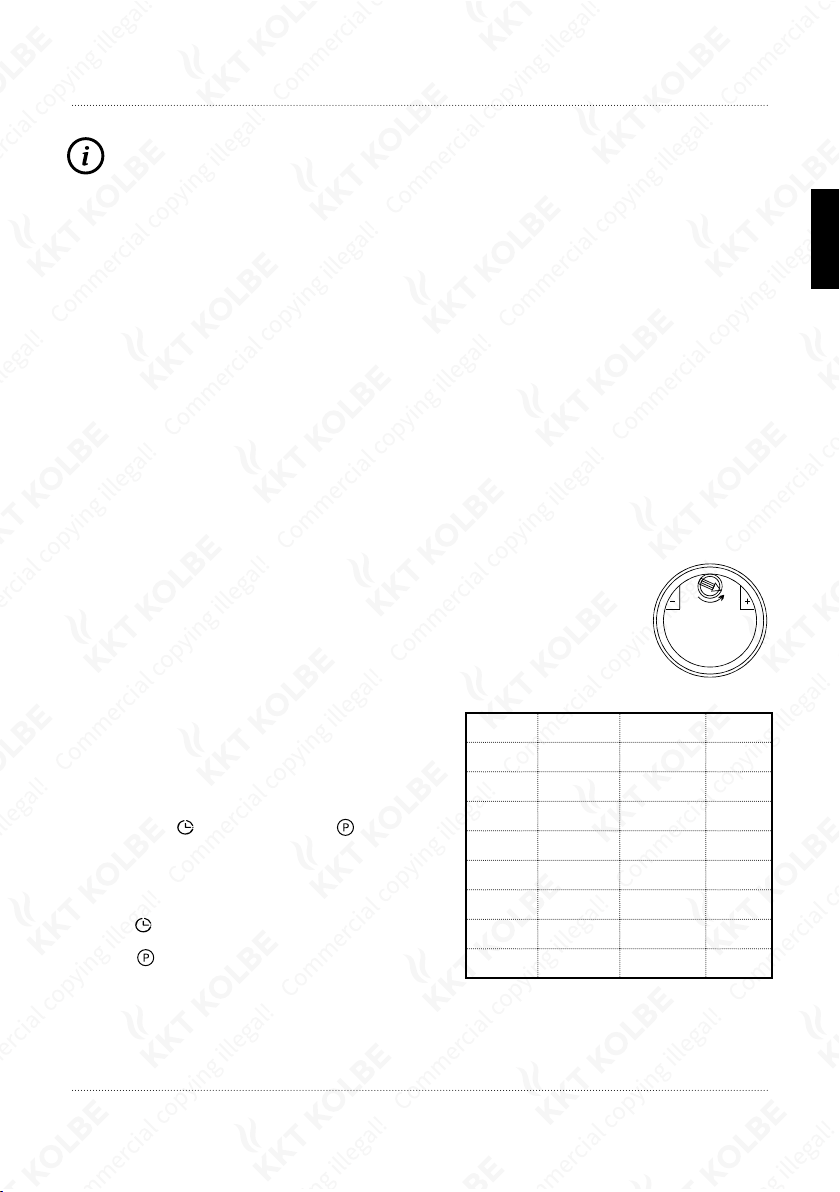

3.3 Set up the water soener
The water soener has to be set manually. This feature is built in
your device to remove minerals and salt from the water, which
would have a detrimental or adverse eect on the operation of the
appliance. The higher the amount of these particles, the harder the
water is. The soener should be adjusted according to the hardness
of the water in your area of living. Inform yourself at your local wa-
ter authority about these values.
Setting:
• Unscrew the cap from the salt container.
• There is a ring on the container with an arrow
on it (see gure to the side). The ring must be
rotated towards the „+“ sign and rell the con-
tainer with salt.
• Close the cap and the appliance door.
• Turn the appliance on.
• Hold down -button and press -button for
about 5 seconds. The buzzer rings one time and
H4 appears on the screen (standard value).
• To change the value according to the table,
press -button till you have reached it.
• Press to store your setting.
°Clark Range Mmol/l Value
0–8 so 0–1.1 H0
9–10 so 1.2–1.4 H1
11–12 medium 1.5–1.8 H2
13–15 medium 1.9–2.1 H3
16–20 medium 2.2–2.9 H4
21–26 hard 3.0–3.7 H5
27–38 hard 3.8–5.4 H6
39–62 hard 5.5–8.9 H7

12
Using the dishwasher
If there is no rinse-aid warning light on the
control panel, you can judge the amount
of rinse-aid by the color of the optical level
indicator „D“ located next to the cap. When
the rinse-aid container is
full, the whole indicator will be dark. As the
rinse aid diminishes, the size of the dark dot
decreases.
Full
3/4 full
1/2 full
1/4 full - Should rell to
eliminate spotting
Empty
rinse aid
indicator
2
1

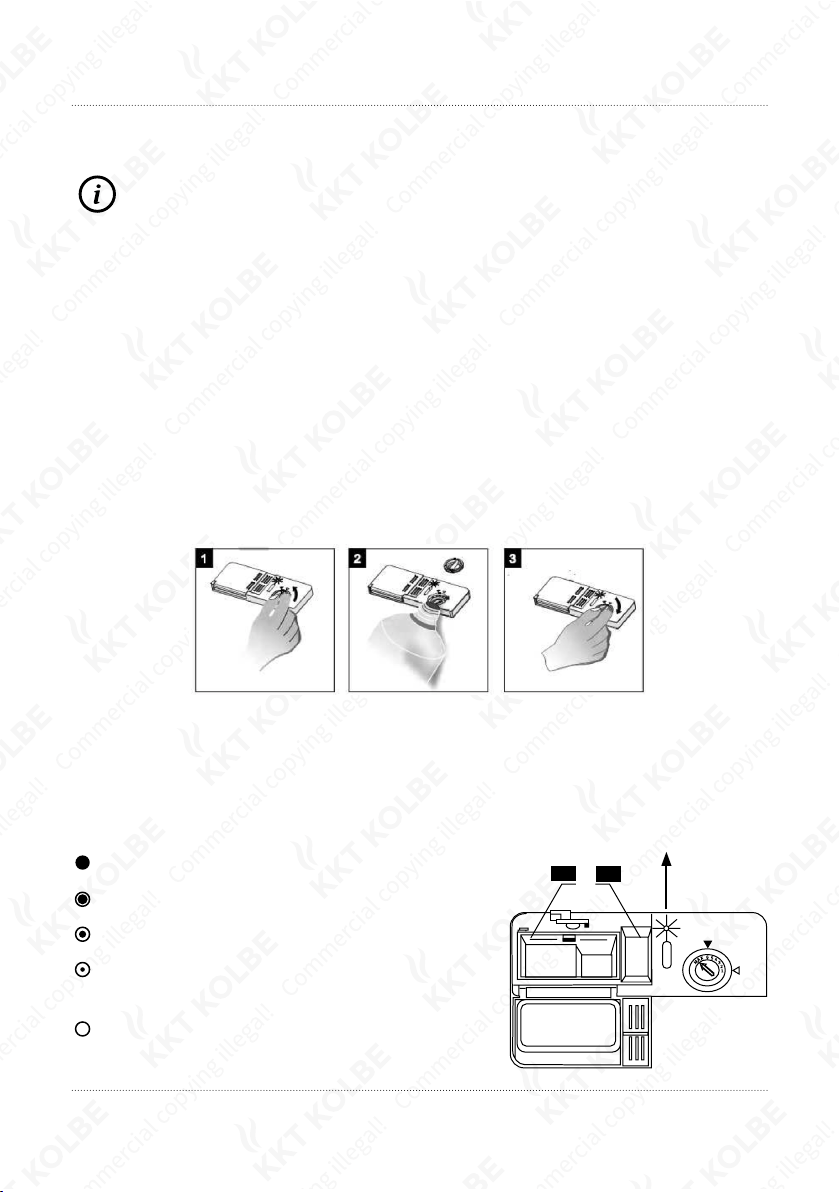

3.4 Fill the rinse aid dispenser
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, spot and streak free drying.
• This appliance has been designed for the
use of liquid rinse aids.
• The dosage of the rinse aid is on the inside
of the tiltable door, next to the Chamber
of the dosage of dishwasher tablets.
• To make the rinse aid reservoir of acces-
sible, turn the cap counterclockwise, the
cap is thus loosened from the lling ope-
ning (1). Pour slowly the liquid rinse aid
(2); the capacity of the reservoir is about
110 ml
• You should pour in the rinse aid slowly un-
til the level indicator is completely black.
• You should not overll the reservoir, it
could cause the selected wash program
for excessive foaming. Wipe o the re-
mains of the rinse aid with a damp cloth.
• Unscrew the cap clockwise back again
until it locks into position (3).
• If the control indicator „Rinse aid“ on the
control panel on, it is necessary to ll the
detergent reservoir again.
• Important: Even if you use detergent ta-
blets 3 in 1, it is necessary to constantly
rell rinse aid into the reservoir.

13
Using the dishwasher
3.5 Adjusting the rinse aid dispenser
The amount of rinse agent that consumes the dishwasher, also
depends on the water hardness. With the setting of the rinse aid
dosage you should experiment until you nd the optimum setting
that ensures the best results.
• We recommend that the rst ushing adjust the rinse aid dis-
penser at number 4.
• If there are water spots on the dishes or the dish is not dry
enough, move the arrow counter-clockwise and set it to the next
higher number.
• Set the rinse aid dosage to no water stains will last as long a
upward.
• If there are streaks and stripes on the dishes, the setting of the
rinse aid dosage could be too high. This causes foam during the
ush. Move the arrow clockwise to the next lover number.
Dosage of dishwasher tablets
The dosing of the detergent must each time the ushing are lled
(except for the ush mode).
• Open the lid of the detergent container (1) and ll in the deter-
gent (2).
EN

14
Using the dishwasher
• The chamber on the picture (1) is intended for detergent of the main wa-
shing program. In the detergent dispenser only one tablet of detergent
is inserted. If you use powder detergent or liquid detergent, follow the
recommendations of the detergent manufacturer.
• The chamber on the gure (2) contains an extra detergent, namely for
each ushing, which has a Vorspülungsfunktion; but this is only an op-
tional extra function. This is only for powder detergent or liquid deter-
gent, not for tablets.
• Close the lid of the detergent container and on the outside edge make
the clip so that it keeps the lid closed.
• The clip opens aer the rinsing operation is started and the tablet / pow-
der / liquid are dosed into the dishwasher.
Intensive detergent
• The use of the program for normal rinsing in conjunction with reducing
a intensive dishwashing liquid contamination and is suitable for your
dishwasher. This dishwashing corresponds to the specic enzymes that
dissolve the dirt particles and are included in the concentrated dishwa-
shing detergents.
• For this reason, when selecting the normal wash cycle using dishwasher
detergent the same result as „Intensive“ can be achieved.
Detergent tablets
• The detergent tablets of dierent brands dissolve at dierent rates.
For this reason some detergent tablets do not dissolve during the short
wash cycles and can thus develop a suiciently eective cleaning power.
• Therefore always choose a longer program, if you use the detergent tab-
lets, to remove all residues during the ushing process.
2
1

15
Using the dishwasher

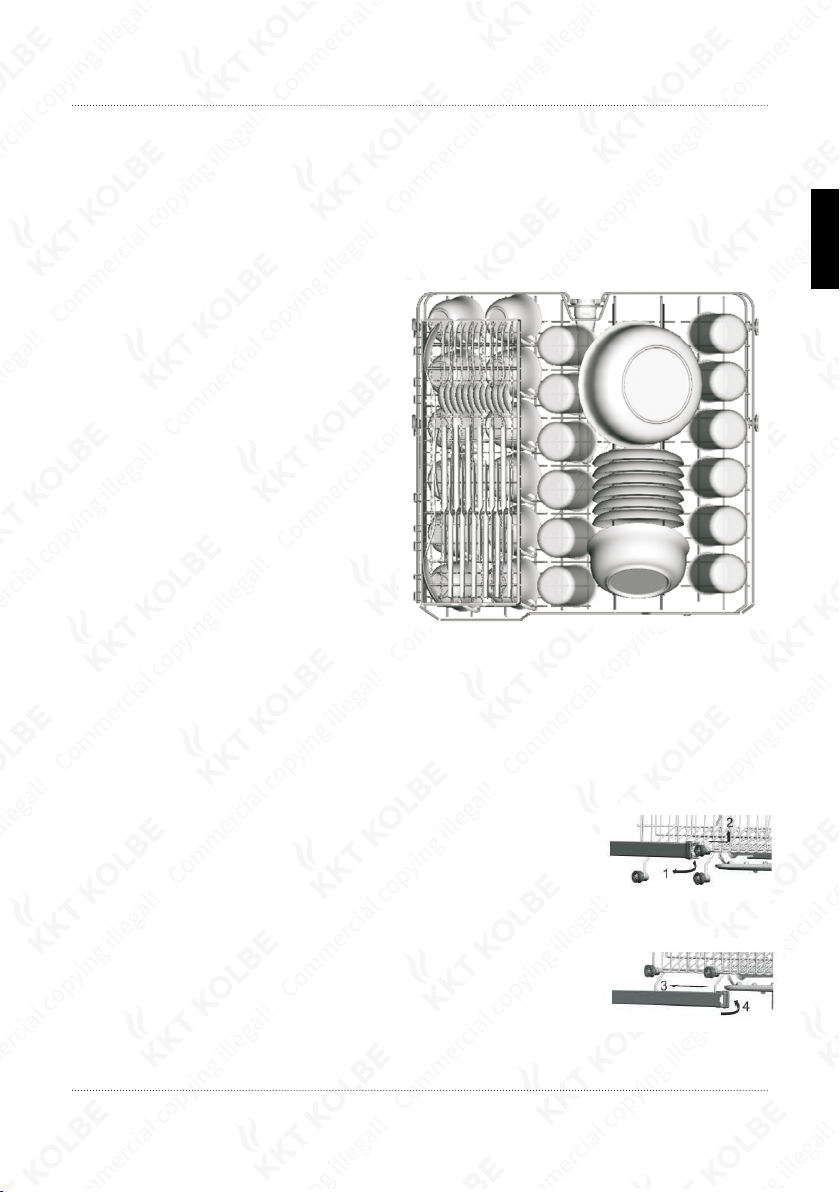

3.6 Loading the upper basket
3.7 Setting the upper rack position
The upper basket is designed for gentle rinse of the sensitive,
fragile and smaller dishes pieces, eg of glasses, cups, small plates,
bowls and shallow pans (if they are not heavily soiled) provided.
Your dishwasher has an height-adjustable upper basket, making
the optimum height position of the upper basket, which can be
achieved by the rinsing of pickled crockery.
The height of the upper basket can be achieved by situating the
wheels be set in the other plane of the guide rails.
Long objects should be placed in the cutlery tray to prevent collisi-
ons with the spray arms.
When removing the basket from the guides The basket must be
empty. For easier positioning of pots and Pans, the position of
the upper tray has to be changed.
• The dishes are to be distributed
such that it does not move during
the wash under the pressure of the
water ow.
• Use the picture as a guide to the
distribution of the dishes in the dish-
washer.
* The procedure for loading the cutlery tray
on the upper rack, refer to the correspon-
ding page.
A Cups
B Glasses
C Saucer
D Serving bowl
E Serving bowl E
C
D
B
A
B
BB
BB
BB
BB
BB
EN

16
Using the dishwasher
3.8 Loading the lower basket
3.9 Foldable stand the lower rack
The lower basket is designed for large
and more dirty dishes, such as Pans,
pan lid or serving dish suitable. In
the lower basket, you can also insert
mugs and various plates.
H Plates
I Dessert Plates
J Oval plates
K Soup plates
• Depth kitchen pans are inclined
position so that the water can ow
from the pans.
• The lower bracket has at the back of
the basket folding holder that can
be folded down, making it easier to
load large kitchen pans and serving
dishes.
1
2

17
Using the dishwasher
3.10 Loading the cutlery baskets
In the lower basket, the cutlery should be placed with
handles at the bottom. For optimum sweep eiciency
to use the already connected to the basket place net
and put the cutlery individually into the appropriate
slots. Especially long utensils should be at the front of
the upper basket (pictured right), placed in a horizon-
tal position.
• The kits are lodged in the cutlery basket on the top
holes for achieving the best cleaning results.
Important
Avoid falling through the cutlery through the bottom of the cutlery
basket, as it could cause damage to the spray arm and / or own cutle-
ry. If the bottom of the cutlery basket begins to deform and thereby
enables falling through the cutlery, so replace the cutlery basket.
1. Teaspoon
2. Dessert spoons
3. Soup spoons
4. Ladle
5. Skewers
6. Fork
7. Knives
8. Salad / Serving
1 2 3 4 5 6 7 8
1
8
8
7
!
EN

18
Using the dishwasher
Don’t try to wash rags, sponges or other
items that suck the water rinse.
• Before loading the dishes into the dish-
washer to remove food debris and soak
the burnt food residues on the pans on.
• Aer loading the machine, check that the
spray arms can rotate freely. If the spray
arm in the rotation come into contact
with the dishes, change the distribution
of pickled dishes.
• The cups, glasses, pans, etc., are always
insert with the bottoms up so that the
water can not collect in them.
• Cutlery and crockery may not cover
each other; this could lead to insuicient
rinsing.
• Avoid contact with each of glasses in the
dishwasher, it could cause damage to
them.
• Small objects can be placed in the cutlery
basket.
The following items are not suitable for washing:
The following items are suitable for washing only partially.
• Cutlery with mother of pearl, wood, horn or porcelain handle.
• Plastic items that are not heat resistant.
• Cutlery with glued parts that are not temperature resistant.
• Cutlery or glued Earthenware
• Copper or pewter
• Lead crystal glass
• Wooden bowls
• Articles made from synthetic bers
• Earthenware dishes must be washed in the dishwasher only if the
manufacturer declares for the dishes to be suitable.
• Plastic objects (eg food storage containers) may be washed in the dish-
washer only if the manufacturer declares it to be suitable.
• Glazed Earthenware may fade aer many washings in the dishwasher.
• Silver and aluminum objects can change the color in the dishwasher.


19
Washing programs
4. Overview
Program
Program
information
Cycle
description
Dishwasher
cleaner for
pre- and
main wash
Running
time
(min)
Energy con-
sumption
(KWh)
Water con-
sumption
(l)
Intensive
For the heaviest
soiled loads,
such as pots,
pans, casserole
dishes and
dishes that
have
been sitting
with dried food
on them for a
while.
→ Pre-wash
→ Main
wash(60°C)
→ Rinse 1
→ Rinse2
→ Hot rinse
→ Drying
5/25 g
(or 3 in 1)
180
minutes 1,30 16
ECO
(*E 50242
standard
program)
For normally
soiled loads,
such as pots,
plates, glasses
and lightly
soiled pans.
standard daily
cycle.
→ Pre-wash
→ Main wash
(46 °C)
→ Hot rinse
→ Drying
5/25 g
(or 3 in 1)
172
minutes 0,92 13
Light
Light wash cyc-
le to be used
for more
delicate items
which are sen-
sitive to high
temperatures.
(Run cycle
immediately
aer use)
→ Pre-wash
→ Main wash
(45° C)
→ Hot rinse
→ Drying
5/20 g
(or 3 in 1)
137
minutes 0,85 14
1 hour
For lightly and
normally soiled
plates and pans
for every day.
→ Hot rinse 1
→ Hot rinse 2
→ Hot
rinse(60°C)
→ Drying
5/20 g 60
minutes 0,95 10
Rapid
A shorter wash
for lightly
soiled loads
that do not
need drying.
→ Main
wash(40°C)
→ Hot rinse
15 g (Main
washing)
39
minutes 0,50 7
Pre-Rinse
To rinse dishes
that you plan to
wash later that
day.
→ Pre-wash –11
minutes 0,01 4
1h
EN

20
Using the dishwasher
!
!
The Washing program „ECO“ is „medium“ for the ushing of
the suitable soiled dishes and most eicient in terms of com-
bined energy and water consumption.
The fair values of the washing program are a guideline only. Cir-
cumstances that are not dependent on the device, for example
the temperature of the supplied water, the water pressure, etc.,
may aect the overall duration of the wash cycle.
* Default program, according to the test cycle.
1. Check the status of the rinse aid and rened salt.
2. Pull out the upper and lower basket and clear up the dishes - see
instructions for loading the dishwasher.
3. Press the lower and upper basket back in place.
4. Fill in the washing detergent.
5. Turn the dishwasher o using the ON/OFF-button.
Wait before pushing the program selection button for 5 seconds,
otherwise it could happen that the consumer is not working
properly.
6. Press the program selector button and select the appropriate pro-
gram in order for the installed harness. The program indicators
show you which wash program you have selected.
7. Select the program you want to use.
8. Close the door rmly until you hear a click of the door lock.
9. Aer a few seconds you will hear how the machine lls with water
and as the wash cycle begins.
Make sure that notes from the rst section have been complied
with „before rst use“.
4.1 Set up the washing program
