KLING & FREITAG PIA M User manual

EN | VERSION 1.0 | 08/11/2022
USER‘S MANUAL
K&F PIA M

User‘s Manual K&F PIA M
©KLING & FREITAG GMBH Version 1.0 Page 3 of 38
Table of Content
Chapter / Content Page
1 Introduction 5
1.1 Icons Used 5
1.2 About this user's manual 5
1.3 Scope of Application 5
2 Product Description 6
2.1 Intended Use 6
2.2 System requirements 7
2.3 Items Included 8
2.4 Overview of PIA M Parts 8
2.5 PIA M Dimensions 9
2.6 PIA M Dimensions (incl. wall mount) 10
2.7 Technical Specifications 11
2.8 Measuring Diagrams 13
2.8.1 Directivity in bass-reflex mode 13
2.8.2 Directivity in cardioid mode 16
2.8.3 Bass reflex mode Frequency Response 19
2.8.4 Cardioid mode Frequency Response 19
3 Accessories, Description and Items Included 20
4 General Safety Instructions 22
4.1 Preventing Hearing Damage 22
4.2 Protecting the Speakers, Reliability 22
5 Speaker Preparation 23
5.1 Adjusting the Vertical Directivity 23
5.2 Selecting Bass-Reflex or Cardioid Modes 24
6 Mounting the Accessories 26
6.1 Mounting the PIA M Wall Bracket 26
6.2 Mounting the PIA MTruss Adapter Set 29
6.3 Mounting the Stand Sleeve 30
6.4 Mounting the TV Spigot 31
6.5 Mounting the M10×35 Eyebolt 32
7 Wiring 33
7.1 Pinout 34
8 Initial Operation 34
9 Operation in a Setup with K&F Subwoofers 35
10 Care and Maintenance 35
11 Transportation and Storage 36
12 Disposal 36
12.1 Germany 36
12.2 EU, Norway, Iceland, and Liechtenstein 36

User‘s Manual K&F PIA M
Page 4 of 38 Version 1.0 ©KLING & FREITAG GMBH
12.3 All Other Countries 36
13 EC Declaration of Conformity 37

© KLING & FREITAG GMBH Version 1.0 Seite 5 von 38
User's Manual K&F PIA M
1 Introduction
1.1 Icons Used
1.2 About this user's manual
EN | Translation of the original instructions
All KLING & FREITAG manuals are originally authored in German.
© KLING & FREITAG GmbH, all rights reserved.
All specifications regarding the features of the described products and applicable safety guide-
lines provided in this manual are based on information available at the time of publishing.
We assume no responsibility for technical specifications, dimensions, weights, and properties.
All information in this manual is subject to change without notice.
To ensure safe operation, all persons using the speaker system must have access to
these user's manual and all other relevant material during installation. The speaker
system may neither be set up nor used until these user's manual has been read, un-
derstood and kept readily available in site.
KLING & FREITAG spare manuals are separately available for order or can be downloaded from
our website: www.kling-freitag.de
Contact Us: [e-mail]
KLING & FREITAG GMBH, Junkersstr. 14, D-30179 Hannover
Phone [phone], fax [phone] (other countries)
1.3 Scope of Application
If you have purchased this product together with other accessories, the instructions of those
accessories including, but not limited to, mounting-accessory instructions become part of
these instructions by reference.
If the
PIA M speaker is used together with accessories that restrict the use specified in here,
those restrictions will apply.
WARNUNG
This icon indicates a risk of injury or death. Not following these instructions may result in seri-
ous health problems including potentially fatal injuries.
VORSICHT
This icon indicates a possibly dangerous situation. Not following these instructions may cause
minor injuries or damage.
HINWEIS
This icon marks instructions for proper use of the described products. Not following these in-
structions may cause malfunctions or damage.
TIPP
This icon marks information provided for simplified use of the described products.

Seite 6 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
2 Product Description
The Kling & Freitag PIA M is a passively isolated 3-way high-performance line-array speaker
with variable directivity in the high and low frequency ranges. The PIA M has been designed
for mobile use as well as for stationary installations with a focus on superior yet discreet ap-
pearance.
It provides four 4” woofer drivers that support operation in both bass-reflex and cardioid
modes, two 4” midrange drivers in a cardioid chamber, and four 0.7” compression drivers im-
plemented as an adaptive tweeter array.
The horizontal beamwidth is 100°. When configuring the woofer chamber as a cardioid sys-
tem, the speaker achieves a rear attenuation of 10dB+ down to the lowest playback frequency.
Configuring the system for bass-reflex operation extends the bandwidth to 85Hz, thus allow-
ing for using the system for speech and high-quality music playback.
The adaptive tweeter array allows for perfectly matching the vertical coverage to various
sound-reinforcement scenarios, each with their own requirements. Setups support large cast-
ing distances of up to 25 meters (80ft) or highly consistent coverage of large audience areas.
To achieve this, you can position the tweeter array thanks to its adaptive J-shape that allows
for selecting one of three options (straight, narrow, wide). The respective vertical beamwidths
are 5°, 15°, and 25°.
2.1 Intended Use
Be sure to use the K&F PIA M only with system amplifiers or controllers approved by
KLING & FREITAG.
Be sure to use the speaker system only with K&F mounting accessories suitable for the specific
application.
The product and any optional accessories are suitable for indoor use (exhibition halls, event
halls, etc.). This product is not designed for prolonged use in corrosive environments.
Installation and operation must be performed by qualified event technicians or appropriately
trained persons. Planning must be performed and responsibility be taken by qualified person-
nel only.
Any use not described in this User’s Guide is not an intended use.
WARNUNG
Risks imposed by falling or overturning parts!
Be sure to install, suspend, fasten, and use Kling &<###Space: 1##>Freitag speakers only us-
ing the designated fixtures as specified in this document.
Be sure to observe all instructions and information in the user manuals of the specific mounting
accessories.
Never down-tilt speakers mechanically.

© KLING & FREITAG GMBH Version 1.0 Seite 7 von 38
User's Manual K&F PIA M
2.2 System requirements
•K&F mounting hardware
•K&F SystemAmp:
•PLM 20k
•PLM 12k
•PLM 5k
•D200
•D120
•D80
•D40
•D20
•D10
•IPX2400
•IPX1200
•IPD2400
•IPD1200

Seite 8 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
2.3 Items Included
•1 x K&F PIA M speaker
•1 x user guide
2.4 Overview of PIA M Parts
[A] M10 bore for fastening mount-
ing hardware (same at the top
and the base)
[B] Cover plates, rotatable by 180°,
for selecting the bass-reflex or
cardioid modes
[C] Line-array unit
[D] Pattern selector for the line-array
unit. Supports three curving set-
tings for vertical directivity at 5°,
15°, or 25°
[E] Connector panel (2 × SpeakOn
ports, 1 × Phoenix terminal, par-
allel configuration)

© KLING & FREITAG GMBH Version 1.0 Seite 9 von 38
User's Manual K&F PIA M
2.5 PIA M Dimensions
1196
168 139
79,7

Seite 10 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
2.6 PIA M Dimensions (incl. wall mount)
90°
196
1206
139
206
D9,5
D18
45 26,25
1042
4
126

© KLING & FREITAG GMBH Version 1.0 Seite 11 von 38
User's Manual K&F PIA M
2.7 Technical Specifications
Concept 3-way passive system, active equalization for 1 way
Supported amplifiers K&F PLM+ Serie, K&F D Serie, K&F IPX Serie, IPD Serie
Frequency range @-10 dB
85 Hz – 23 kHz, bass reflex FR mode
93 Hz – 22 kHz, bass reflex LCut mode
107 Hz – 23 kHz, cardioid FR mode
116 Hz – 23 kHz, cardioid LCut mode
Frequency range @±3 dB
102 Hz – 22 kHz, bass reflex FR mode
127 Hz – 22 kHz, bass reflex LCut mode
145 Hz – 22 kHz, cardioid FR mode
184 Hz – 22 kHz, cardioid LCut mode
Beamwidth (nom.) (H × V) 100° × 5° – 25° (asymmetrical, configurable)
Power handling 150 W
Program load 325 W
Peak load 650 W
Max. SPL
(peak @ 10% THD max.) 132 dB SPL
Nominal impedance 8 Ohm
Speakers per channel 3
Components
4 x 0.75” compression driver on vertically adjustable horn
2 x 4” midrange driver in cardioid chamber
4 x 4” woofer driver in configurable (bass-reflex / cardioid)
chamber
Connection SpeakOn NL4 (1+/1–) / Phoenix terminal block
Enclosure
Birch multiplex with heavy-duty textured finish, RAL 9005
(black) or RAL 9010 (white)
2 × M10 threaded inserts on the base and the top for
attaching stand adapters, TV spigots, or a recessed U-
mount wall/ceiling bracket
4 × M10 threaded inserts on the rear panel for mounting
clamp adapters
Recessed SpeakOn ports and Phoenix terminal at the rear
panel
Steel grille backed with black acoustic foam
Tweeter array (adjustable from the rear panel)
Selectable bass-reflex and cardioid modes
Dimensions (W × H × D): 139 x 1196 mm × 168 mm (5.47” × 47.09” × 6.61”)
Weight 12.2 kg

Seite 12 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
Colors
RAL 9005 (black)
RAL 9010 (white)
RAL spot colors available on request
Options 100V option with 50/100/150VA
Toroidal transformer; wall-mount set

© KLING & FREITAG GMBH Version 1.0 Seite 13 von 38
User's Manual K&F PIA M
2.8 Measuring Diagrams

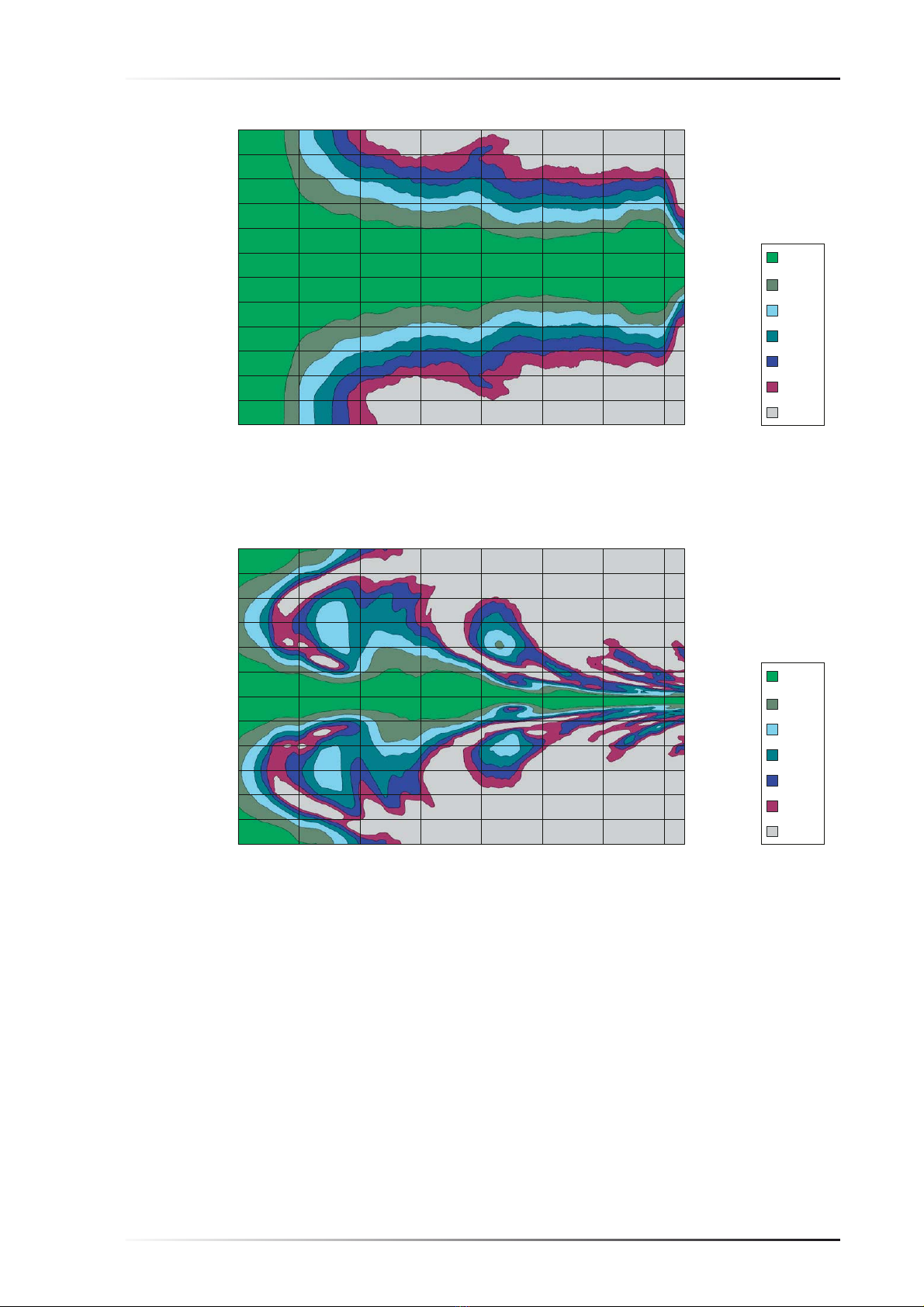

2.8.1 Directivity in bass-reflex mode
Bass reflex mode: Horizontal coverage ‘Narrow’ (5° coverage)
Bass reflex mode: vertical directivity in Narrow mode (5° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

Seite 14 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
Bass reflex mode: Horizontal coverage ‘Narrow’ (15° coverage)
Bass-reflex mode: vertical directivity in Medium mode (15° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

© KLING & FREITAG GMBH Version 1.0 Seite 15 von 38
User's Manual K&F PIA M
Bass reflex mode: Horizontal coverage ‘Narrow’ (25° coverage)
Bass reflex mode: vertical directivity in Wide mode (25° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

Seite 16 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
2.8.2 Directivity in cardioid mode
Cardioid mode: Horizontal coverage ‘Narrow’ (5° coverage)
Cardioid mode: vertical directivity in Narrow mode (5° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

© KLING & FREITAG GMBH Version 1.0 Seite 17 von 38
User's Manual K&F PIA M
Cardioid mode: Horizontal coverage ‘Medium’ (15° coverage)
Cardioid mode: vertical directivity in Medium mode (15° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

Seite 18 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M
Cardioid mode: Horizontal coverage ‘Wide’ (25° coverage)
Cardioid mode: vertical directivity in Wide mode (25° coverage)
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f [Hz]
Attenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

© KLING & FREITAG GMBH Version 1.0 Seite 19 von 38
User's Manual K&F PIA M
2.8.3 Bass reflex mode Frequency Response
Bass reflex mode, frequency response ‘on axis’
2.8.4 Cardioid mode Frequency Response
Cardioid mode: frequency response ‘on axis’
10000100010020 20000
Frequency (Hz)
Frequency response FR
Frequency response LCut
10
0
-10
-20
-30
10000100010020 20000
Frequency (Hz)
Frequency response FR
Frequency response LCut
10
0
-10
-20
-30

Seite 20 von 38 Version 1.0 © KLING & FREITAG GMBH
User's Manual
PIA M1.011.08.20 2208/11/2022
K&F PIA M

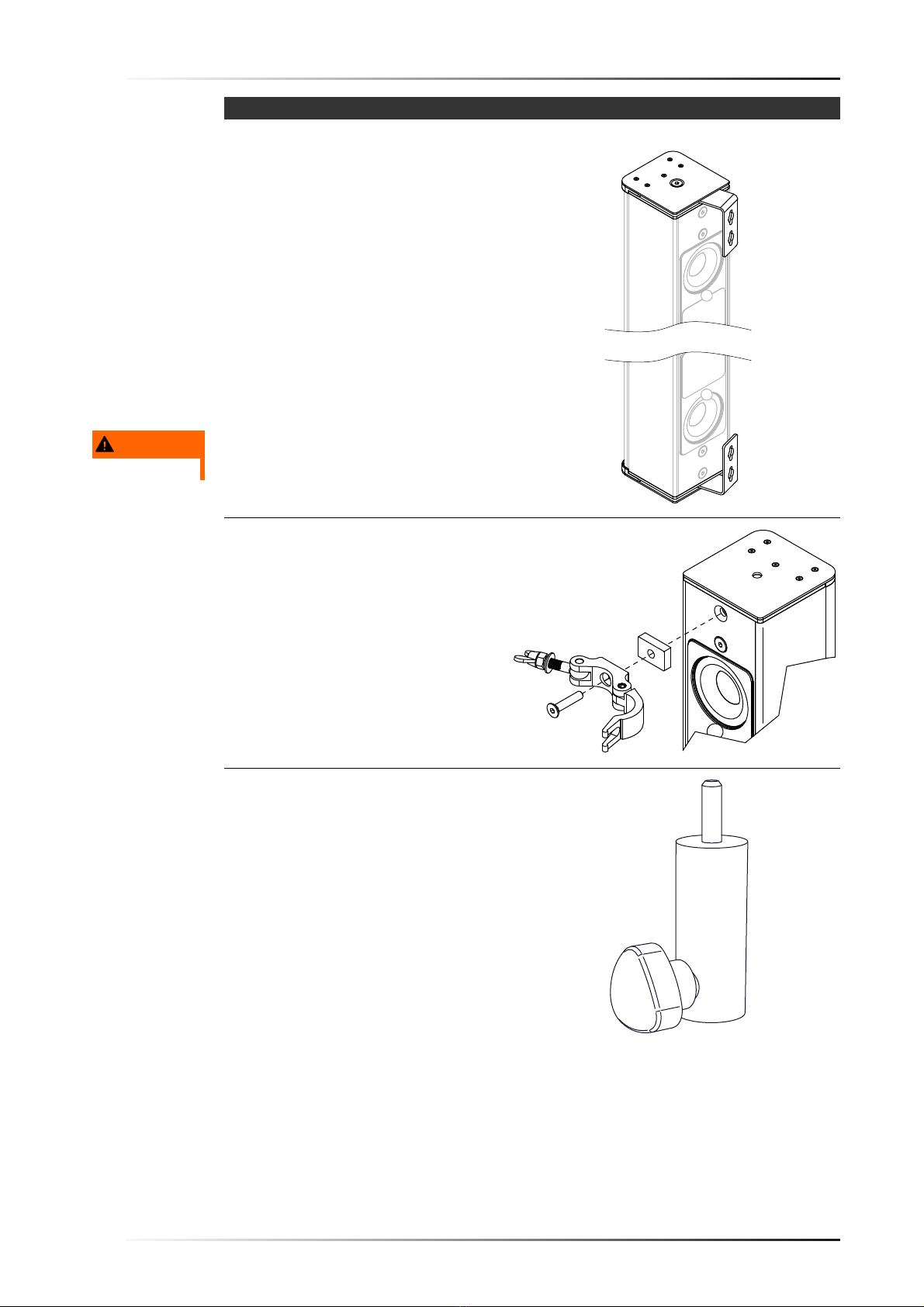

3Accessories,Description and Items Included
K&F PIA M wall mount
You can mount the speaker to a wall
vertically using the wall mount.
Special top and base plates replacing
the respective PIA M standard com-
ponents are included for seamless
rotation by 180°.
Included:
•2 x top / base places for wall-
mount use
•2 x fastening brackets with
keyholes
•2 x M10×50 countersunk screws
WARNUNG
Not suitable for ceiling mounting or
horizontal use!
Colors: black, white; RAL on request
K&F PIA M truss adapter set
Allows for vertical mounting of a PIA
M speaker to a truss or pipe with a
diameter of 48 mm – 51 mm (1.9” –
2").
Included:
•2 x half couplers, incl. M12
spring washer, washer, nut and
wing nut
•2 x spacers
K&F stand sleeve M10 x 30 (incl.
mounting material)
Allows for mounting the PIA M onto
a speaker stand.
Included:
•1 x stand sleeve feat. M10×30
thread
•1 x Locktix® washer incl. rubber
centering disk (not shown).
Colour: black
