KLING & FREITAG Spectra 212i User manual

EN | VERSION 1.1 | 06/17/21
USER‘S MANUAL
K&F SPECTRA 212i Wall Arm

User‘s Manual K&F SPECTRA 212i Wall Arm
©KLING & FREITAG GMBH Version 1.1 Page 3 of 16
Table of Content
Chapter / Content Page
1 Introduction 4
1.1 Icons Used 4
1.2 About this user's manual 4
1.3 Scope of Application 4
2 Product Description 5
2.1 Variants 6
2.2 Intended Use 6
2.3 Items included (L and S versions) 6
2.4 Components 7
2.5 Technical Specifications 8
2.5.1 Overview 8
2.5.2 Wall Arm (L) Dimensions 8
2.5.3 Wall Arm (S) Dimensions 9
2.5.4 Flying Frame Dimensions 10
3 Safety Instructions 11
4 Installation 12
4.1 Required Tools 12
4.2 Preassembling the Speaker 12
4.3 Wall Mounting 12
5 Maintenance 15
6 Transportation and Storage 15
7 Disposal 15

Page 4 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm
K&F SPECTRA 212i W all Arm
1Introduction
1.1 Icons Used
1.2 About this user's manual
© KLING & FREITAG GMBH, all rights reserved.
All specifications regarding the features of the described products and applicable safety guide-
lines provided in this manual are based on information available at the time of publishing.
We assume no responsibility for technical specifications, dimensions, weights, and properties.
All information in this manual is subject to change without notice.
To ensure safe operation, all persons using the product must have access to this man-
ual and all other relevant material during installation. The speaker system may nei-
ther be set up nor used until these user's manual has been read, understood and kept
readily available in site.
All KLING & FREITAG manuals are originally authored in German.
KLING & FREITAG spare manuals are separately available for order or can be downloaded
Contact Us: [e-mail]
KLING & FREITAG GMBH, Junkersstr. 14, D-30179 Hannover
Phone [phone], fax [phone]
1.3 Scope of Application
If you have purchased this product together with other accessories, the instructions of those
accessories including, but not limited to, mounting-accessory instructions become part of
these instructions by reference.
If the wall arm is used in combination with accessories that restrict the use specified in here,
those restrictions will apply.
WARNING
This icon indicates a risk of injury or death. Not following these instructions may result in seri-
ous health problems including potentially fatal injuries.
CAUTION
This icon indicates a possibly dangerous situation. Not following these instructions may cause
minor injuries or damage.
NOTICE
This icon marks instructions for proper use of the described products. Not following these in-
structions may cause malfunctions or damage.
TIP
This icon marks information provided for simplified use of the described products.

© KLING & FREITAG GMBH Version 1.1 Page 5 of 15
User's Manual K&F SPECTRA 212i Wall Arm
2 Product Description
The wall arm allows for vertical wall installation of 1 K&F SPECTRA 212i speaker or for hori-
zontal wall installation of up to 2 K&F SPECTRA 212i speakers.
The following installation options are available:
1 speaker
Vertical installation 
using the SPECTRA 212i flying
frame:
1 speaker
Horizontal installation 
using the SPECTRA 212i flying
frame:
2 speakers
Horizontal installation
using a SPECTRA 212i flying
frame and a cluster plate set
(point source) or connector set
(line source)

Page 6 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm
2.1 Variants
The wall arm is available with either an S (short) or L (long) boom. The two variants differ in
boom length.
Unless explicitly stated, the information in this manual refers to both variants.
2.2 Intended Use
This wall arm is designed exclusively for suspending K&F SPECTRA 212i speakers on a wall. Be
sure to achieve plumb vertical installation. Setting up the cluster requires additional accesso-
ries. See “The wall arm allows for vertical wall installation of 1 K&F SPECTRA 212i speaker or
for horizontal wall installation of up to 2 K&F SPECTRA 212i speakers.” on page 5. No other
use is permitted.
Also, be sure to use accessories to the SPECTRA 212i speaker system for stationary indoor in-
stallations only. The system is not designed for repeated assembly, reconfiguration, disassem-
bly, or transport.
Any use not described in this User’s Guide is not an intended use.
Unauthorized changes to the product are not permitted.
2.3 Items included (L and S versions)
•1 wall bracket, completely preassembled, with swivel mount
•1 x SPECTRA 212i flying frame including load adapter install
•3 x mounting-hole caps
•1 Wall Arm instruction manual
•1 Flying Frame instruction manual
(The screws required for mounting the accessories to the speaker are supplied with the speak-
er.)
Wall Arm L Wall Arm S
595 mm
[23.425 inch]
405 mm
[15.945 inch]

© KLING & FREITAG GMBH Version 1.1 Page 7 of 15
User's Manual K&F SPECTRA 212i Wall Arm
2.4 Components
[A] Wall arm: wall profile
[B] Wall arm: support plate
[C] Wall arm: boom
[D] Swivel mount
[E] Split pin with linch pin
[F] Load Adapter Install
[G] Screw connection
[H] SPECTRA 212i Flying Frame

Page 8 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm
2.5 Technical Specifications
2.5.1 Overview
2.5.2 Wall Arm (L) Dimensions
Load capacity 2 SPECTRA 212i speakers (max.), flying frame, and
mounting accessories
Weight Wall arm (S): 7.1 kg
Wall arm (L): 7.9 kg
Colors
RAL 9005 (black), standard
RAL 9010 (white), standard
RAL spot color, on request
40 mm
[1.575 inch]
595 mm
[23.425 inch]
380 mm
[14.961 inch]
258 mm
[10.157 inch]
258 mm
[10.157 inch]
86 mm
[3.386 inch]
3 x ?10.5 mm
3 x ?24 mm
610 mm
[24.016 inch]
20.5 mm
[0.807 inch]
[Ø 0.413 inch]
[Ø 0.945 inch]

© KLING & FREITAG GMBH Version 1.1 Page 9 of 15
User's Manual K&F SPECTRA 212i Wall Arm
2.5.3 Wall Arm (S) Dimensions
40 mm
[1.575 inch]
405 mm
[15.945 inch]
190 mm
[7.48 inch]
258 mm
[10.157 inch]
258 mm
[10.157 inch]
86 mm
[3.386 inch]
3 x D10.5 mm
[D0.413 inch]
3 x D24 mm
[D0.945 inch]
610 mm
[24.016 inch]
20.5 mm
[0.807 inch]

Page 10 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm
2.5.4 Flying Frame Dimensions
Refer to our website at http://www.kling-freitag.de for a detailed dimensional drawing.
322.5 mm
[12.697 inch]
321.6 mm
[12.66 inch]
96 mm
[3.781 inch]
48 mm
[1.89 inch]
30 mm
[1.181 inch]
9 x 30mm(=270 mm)
[10.63 inch]
281.4 mm
[11.079 inch]
50 mm
[1.969 inch]
152.4 mm
[6.002 inch]
[Ø 0.866 inch]
[Ø 0.492 inch]
[10 x Ø 12.5 mm]
[Ø 22 mm]

© KLING & FREITAG GMBH Version 1.1 Page 11 of 15
User's Manual K&F SPECTRA 212i Wall Arm
3 Safety Instructions
WARNING
Risks imposed by falling or overturning parts
•Be sure to install, suspend, fasten, and use Kling & Freitag speaker accessories only using
the designated fixtures as specified in this document.
•Install the item only in a place that poses no risks in operation, for example, by people
climbing on the speaker, attaching additional items to the suspension, or placing objects
on the speaker.
•Make sure no wind loads or equivalent horizontal loads act upon the speaker and the
accessories.
•Not suitable for outdoor use.
•Not designed for use in corrosive environments.
•When mounting on a wall, ensure plumb vertical installation.
•Be sure to use only the screws supplied with the speaker for mounting accessories. The
screws are specifically designed for accessory mounting. Be sure to use self-locking screws
no more than five times. Using them more often may result in screws loosening in opera-
tion. If in doubt, use new screws. Never use other types of screws.
•During installation, be sure to cordon off the installation site to prevent any risks caused
by falling parts.
•Be sure to only use original parts supplied. Never use other parts (in particular, parts not
made by KLING & FREITAG).
•Make sure all fittings used are suitable for the task at hand and meet all relevant safety
requirements.
•Ensure that all connections are secured against coming loose and that only authorized,
statically tested and correctly sized supports, mounting equipment, wire ropes and chains
are used.
•Be sure to always visually inspect all safety-related speaker and accessory components be-
fore use. If there are signs of wear, cracks, or deformation, etc., replace the affected parts
immediately. Visual inspection also includes checking all screwed connections of support-
ing components.
•The information described here does not relieve the user of the duty to follow the given
safety requirements and legal regulations.

Page 12 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm
4 Installation
4.1 Required Tools
4.2 Preassembling the Speaker
Mount the flying frame including the load adapter onto the speaker. For mounting instructions
and information on adjusting the desired tilt angle, refer to the
SPECTRA 212i Flying Frame instruction manual.
4.3 Wall Mounting
Required Tools Required mounting material
IS5 hexagon socket wrench for mounting the
flying frame on the speaker
Suitable wall anchors with corresponding ac-
cessories. The wall-anchor screw must not ex-
ceed a maximum diameter of 10 mm. Extrac-
tion force: 3.3 kN; shear force: 1.2 kN.
IS10 hexagon socket wrench for mounting the
load adapter install
IS8 hexagon socket wrench for mounting the
wall bracket.
SW17 screwdriver or socket wrench
Depending on your selected type of wall an-
chor, you might need additional tools.
WARNING
Risks imposed by falling parts
Be sure to use appropriate wall anchors with regard to the wall specifics. Be sure to account
for the following extraction and shear forces:
•Extraction force: 3.3 kN
•Shear force: 1.2 kN
The anchors must withstand those forces permanently. The specified values are actual loads;
depending on the application at hand and the anchor properties, you may have to consider
safety margins.
1. Install three wall anchors vertical-
ly with 258 mm spacing each.
2. Mount the wall profile to the
wall.
3. Cover the three mounting holes
with the supplied caps.
258258

© KLING & FREITAG GMBH Version 1.1 Page 13 of 15
User's Manual K&F SPECTRA 212i Wall Arm
4. Screw the boom with the sup-
port plates to the wall profile.
5. Hand-tighten all five bolt con-
nections on the support plates.
6. Remove the linch pin [A] from
the split pin [B].
7. Remove the split pin [B] from the
swivel mount [C].

Page 14 of 15 Version 1.1 © KLING & FREITAG GMBH
User's Manual
SPECTRA 212i Wall Arm1.117.06.20 2106/17/21
K&F SPECTRA 212i Wall Arm

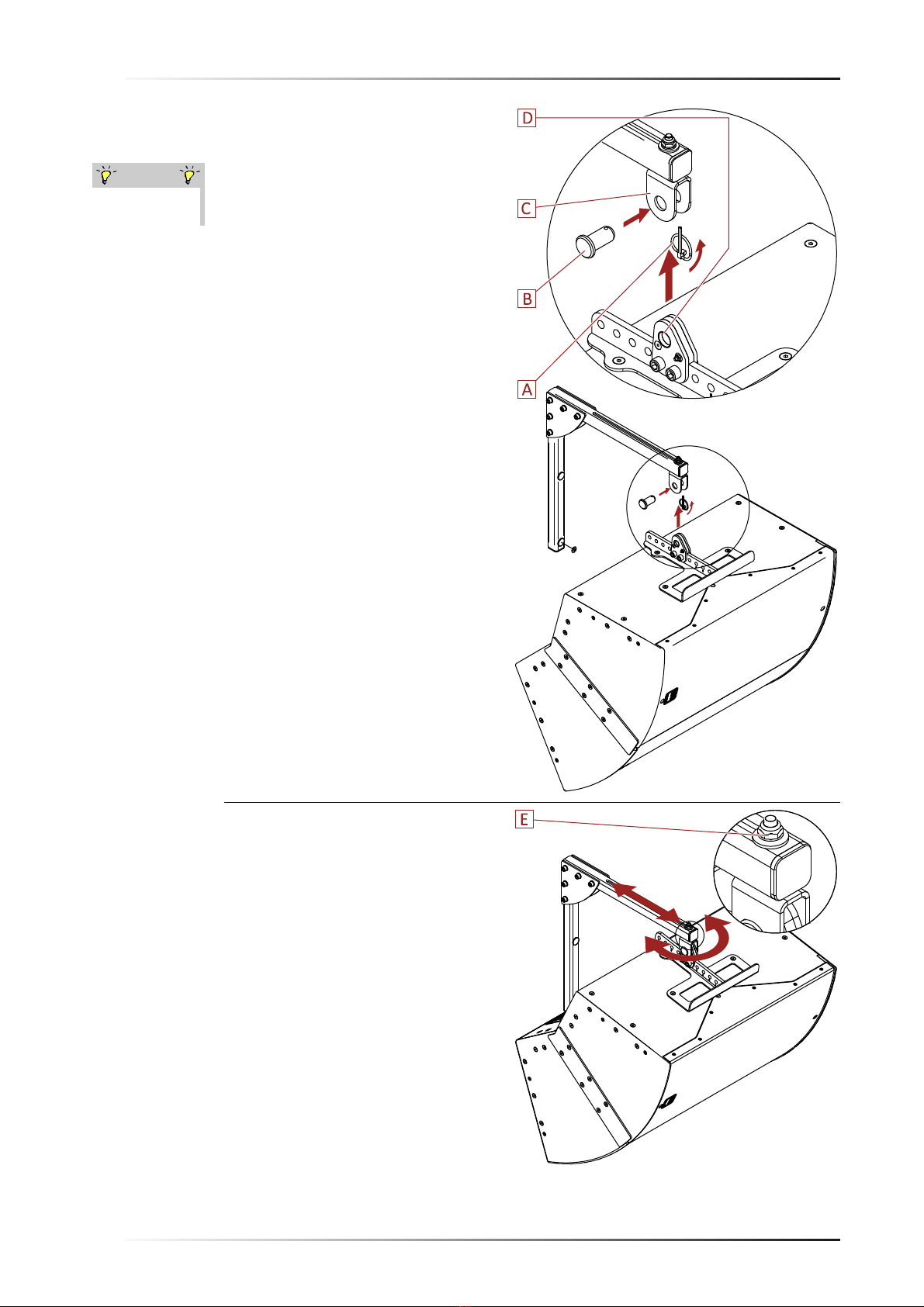

8. Place the speaker unit with the
premounted flying frame on a
suitable lift.
TIP
To facilitate attachment, we rec-
ommend using a lift with an ac-
cessible platform.
9. Lift the speaker to the required
height, then insert the load
adapter [D] into the swivel
mount [C].
10. Slide the split pin [B] through the
swivel mount [C] and the load
adapter [D].
11. Secure the split pin using the
linch pin [A].
12. Secure the linch pin [A] by pull-
ing the ring over the pin.
13. Loosen the nut [E] at the top of
the wall-arm boom.
14. Move across the slot to adjust
the desired wall distance and ro-
tate the speaker unit as desired.
15. Hand-tighten the screw [E].

© KLING & FREITAG GMBH Version 1.1 Page 15 of 15
User's Manual K&F SPECTRA 212i Wall Arm
5 Maintenance
•Perform a visual inspection before each installation.
•Visually inspect the entire setup every six months.
•When performing those checks, particularly look for deformations, cracks, dents, damage
to threads, and corrosion. Also check slings and lifts (e.g. shackles, chains, and steel ropes)
carefully for wear and deformation.
•Many countries require regular inspection of mounting components and accessories. An
additional annual inspection is typically required to be performed by a technical expert.
Moreover, a legally certified or official authority must perform a detailed inspection every
four years.
•Therefore, be sure to maintain an inspection log. Enter the values determined for each
speaker and accessory during the periodic checks into this log. This way, relevant data are
always at hand in case of inspection. This inspection log book shall be updated with the
inspection steps, test intervals and parts lists.
•If necessary, use multifunction oil for care.
6 Transportation and Storage
This product is protected against the effects of temporary humidity and moisture, etc. Never-
theless, be sure to store, transport, and use it in dry
Make sure that the system is adequately ventilated during longer storage periods so any resid-
ual moisture can escape from the equipment.
In addition, make sure that the prpduct is protected from mechanical strains in order to prevent
damage.
To protect the speaker from the above impacts, we recommend using suitable transport and
storage equipment.
7Disposal
Dispose of this product according to local ordinance regulations.
WARNING
Risks imposed by undetected damages
•The inspection must be carried out by a qualified expert.
•If as a result of these checks any uncertainty should arise with regard to safety or defects
are found, don’t use the speaker any longer. Contact your retailer.
•Be sure to use self-locking screws no more than five times. Using them more often may
result in screws loosening in operation. If in doubt, use new screws. Never use other types
of screws.
•All repair work must be performed by Kling & Freitag after evaluation carried out by
engineering.

16
THANK
YOUFOR
CHOOSING
K&F.
KLING & FREITAG GmbH
Junkersstrasse 14 · D-30179 Hannover
Phone [phone]
www.kling-freitag.de · [email protected]
