KLING & FREITAG SPECTRA 212 User manual

EN | VERSION 2.0 | 06/16/21
USER‘S MANUAL
K&F SPECTRA 212

User‘s Manual K&F SPECTRA 212
©KLING & FREITAG GMBH Version 2.0 Page 3 of 40
Table of Content
Chapter / Content Page
1 Introduction 5
1.1 Icons Used 5
1.2 About this user's manual 5
1.3 Scope of Application 5
2 Product Description 6
2.1 Intended Use 6
2.2 System requirements 7
3 Items Included 8
3.1 Components 8
3.2 Connectors and Controls 8
3.3 Accessories 9
3.4 Dimensions 11
4 Technical Specifications 12
4.1 K&F SPECTRA 212 N Specifications 12
4.2 K&F SPECTRA 212 XW Specifications 13
5 Measuring Diagrams 14
5.1 SPECTRA 212 N 14

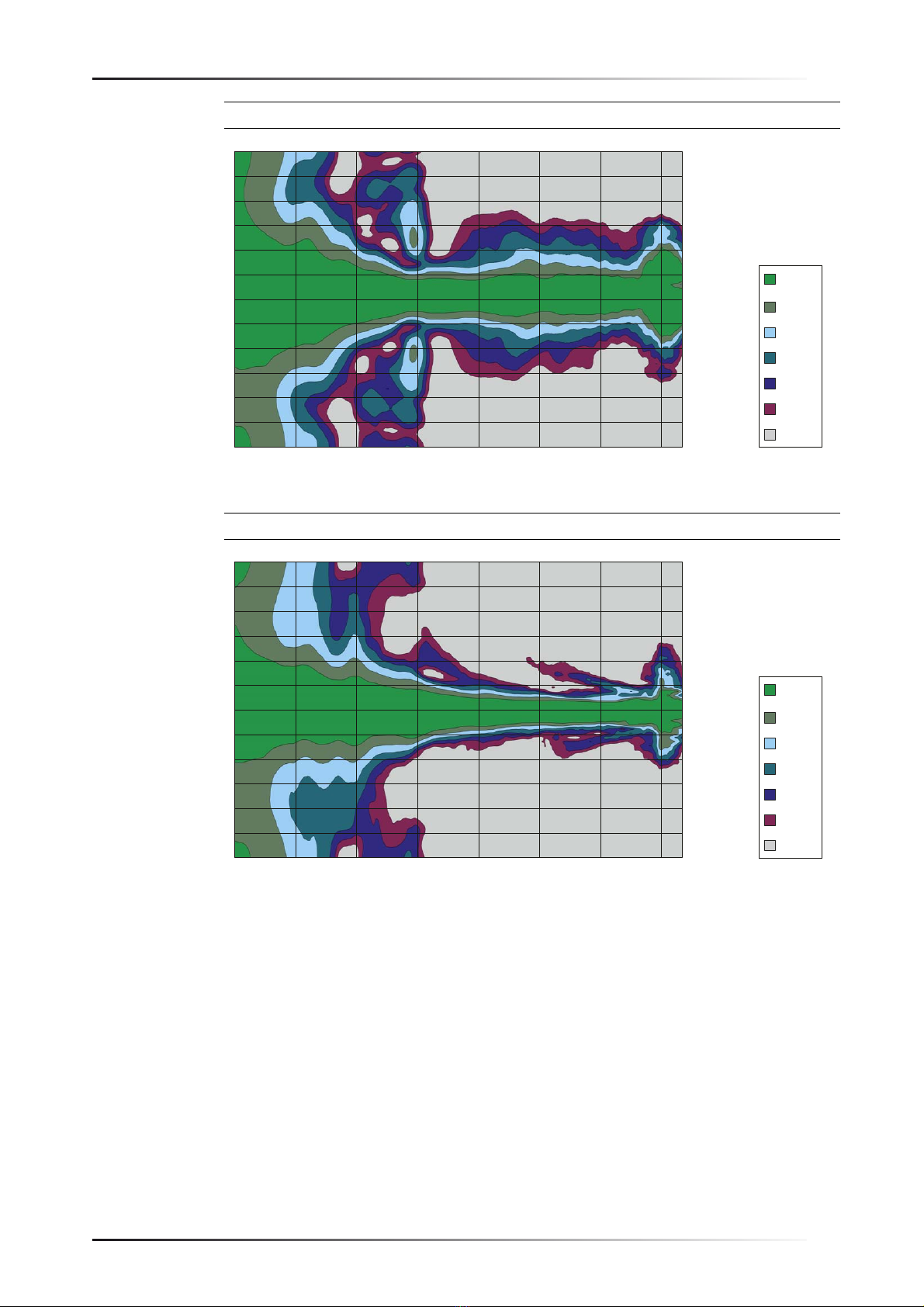

5.1.1 Line source, horizontal directivity 14
5.1.2 Line source, vertical directivity 14
5.1.3 Point source, horizontal directivity 15
5.1.4 Point source, vertical directivity 15

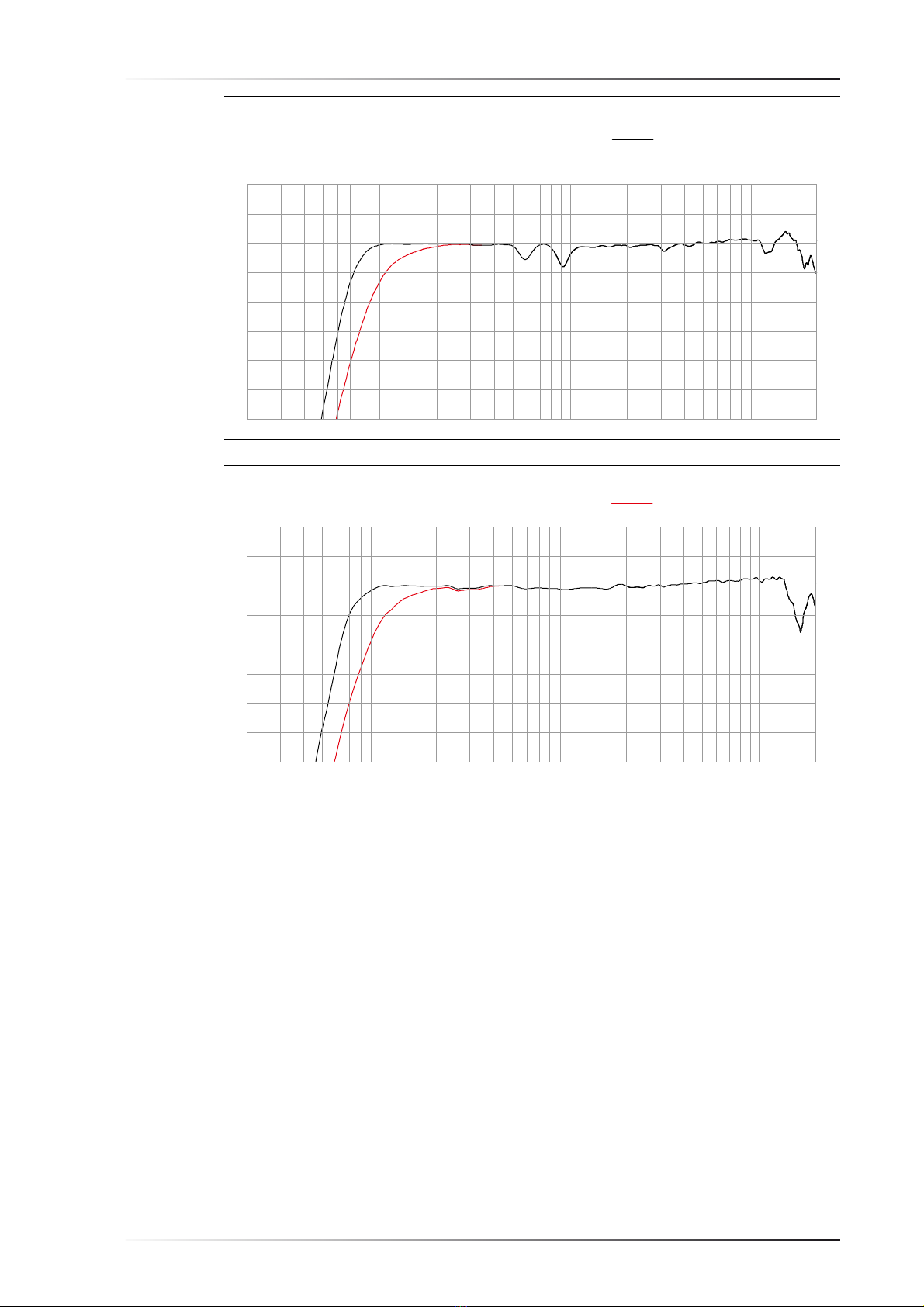

5.1.5 Line source, on-axis frequency response 16
5.1.6 Point source, on-axis frequency response 16
5.2 SPECTRA 212 XW 17

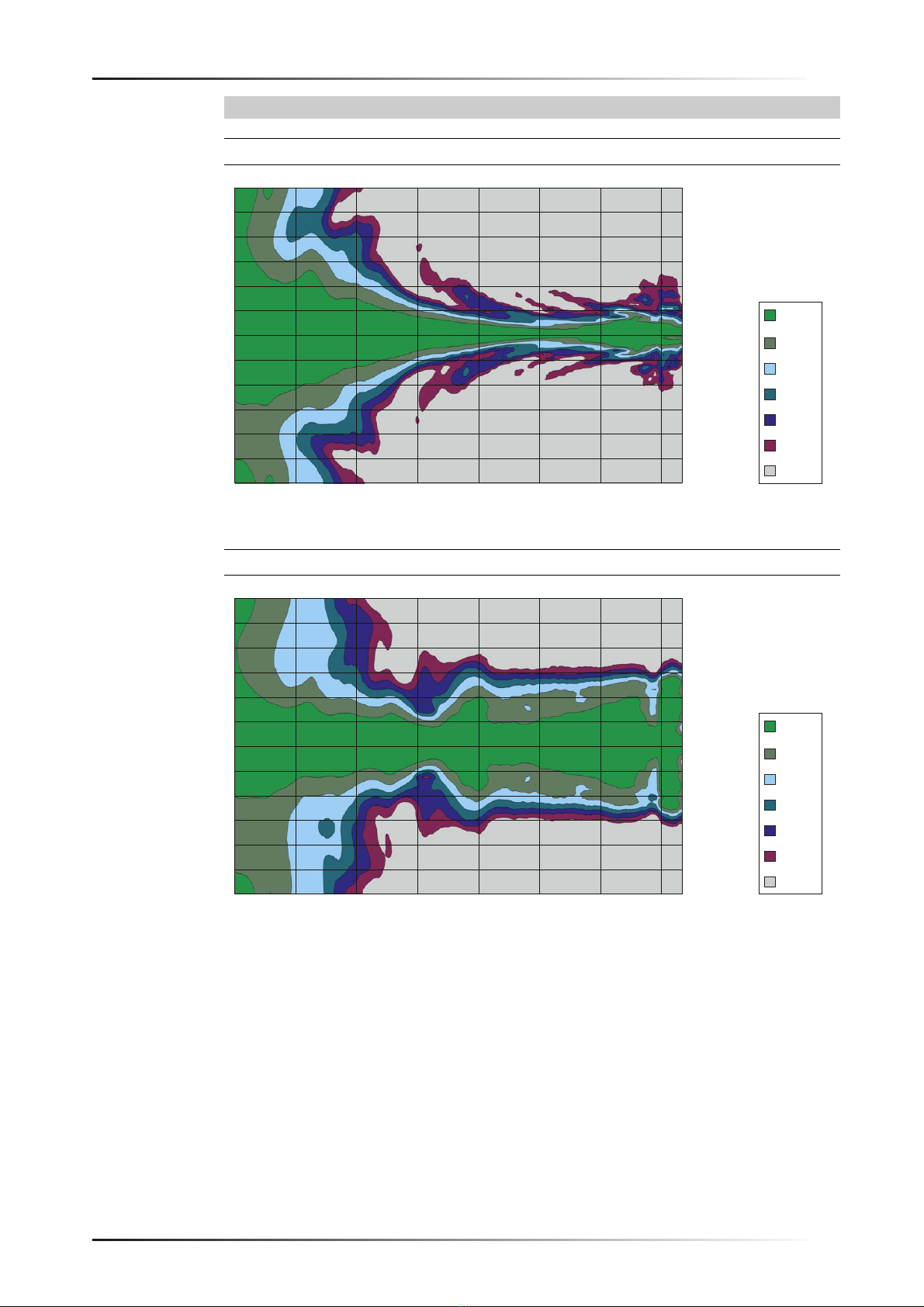

5.2.1 Line source, horizontal directivity 17
5.2.2 Line source, vertical directivity 17
5.2.3 Point source, horizontal directivity 18
5.2.4 Point source, vertical directivity 18
5.2.5 Line source, on-axis frequency response 19
5.2.6 Point source, on-axis frequency response 19
6 Safety Instructions 20
6.1 Notes on Upright Operation 20
6.2 Preventing Hearing Damage 20
6.3 Protecting the Speakers, Reliability 21
7 Operating Modes 22
7.1 Line-Source Mode 22
7.2 Point-Source Mode 22
7.2.1 Point Source with Down-Tilt 22
7.2.2 Point Source with Up-Tilt 22

User‘s Manual K&F SPECTRA 212
Page 4 of 4 Version 2.0 ©KLING & FREITAG GMBH
7.3 Determining the Selected Operating Mode 23
7.3.1 Midrange/Tweeter Unit Orientation 24
7.3.2 The position of the operating-mode switch 25
7.4 Changing the Operating Mode 26
7.4.1 Rotating the VariQ Unit 26
7.4.2 Setting the Operating-Mode Switch 29
8 Horizontal and vertical arrays 30
9 Wiring 31
9.1 Terminal assignment 31
10 Initial Operation 32
11 Setups and Use Cases 33
11.1 Setup 1: 1x SPECTRA 212 Point Source in Full Range Mode 33
11.2 Setup 2: 1× K&F SPECTRA 212 point source with additional subwoofer 34
11.3 Setup 3: 2× K&F SPECTRA 212 line source in full range mode 35
11.4 Setup 4: 3× SPECTRA 212 line source with additional subwoofer 36
12 Maintenance 37
13 Transportation and Storage 37
14 Disposal 38
14.1 Germany 38
14.2 EU, Norway, Iceland, and Liechtenstein 38
14.3 All Other Countries 38
15 EC Declaration of Conformity 39

© KLING & FREITAG GMBH Version 2.0 Page 5 of 39
User's Manual K&F SPECTRA 212
1Introduction
1.1 Icons Used
1.2 About this user's manual
© KLING & FREITAG GMBH, all rights reserved.
All specifications regarding the features of the described products and applicable safety guide-
lines provided in this manual are based on information available at the time of publishing.
We assume no responsibility for technical specifications, dimensions, weights, and properties.
All information in this manual is subject to change without notice.
To ensure safe operation, all persons using the product must have access to this man-
ual and all other relevant material during installation. The speaker system may nei-
ther be set up nor used until these user's manual has been read, understood and kept
readily available in site.
All KLING & FREITAG manuals are originally authored in German.
KLING & FREITAG spare manuals are separately available for order or can be downloaded
Contact Us: [e-mail]
KLING & FREITAG GMBH, Junkersstr. 14, D-30179 Hannover
Phone [phone], fax [phone]
1.3 Scope of Application
If you have purchased this product together with other accessories, the instructions of those
accessories including, but not limited to, mounting-accessory instructions become part of
these instructions by reference.
If the SPECTRA 212 speaker is used together with accessories that restrict the use specified in
here, those restrictions will apply.
WARNING
This icon indicates a risk of injury or death. Not following these instructions may result in seri-
ous health problems including potentially fatal injuries.
CAUTION
This icon indicates a possibly dangerous situation. Not following these instructions may cause
minor injuries or damage.
NOTICE
This icon marks instructions for proper use of the described products. Not following these in-
structions may cause malfunctions or damage.
TIP
This icon marks information provided for simplified use of the described products.

Page 6 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
2 Product Description
The SPECTRA 212 is a compact 3-way, convertible line array speaker with equalization in two
ways. Separate K&F power amplifiers are required for driving the SPECTRA 212.
The connection system and the optionally available K&F rigging system allow for creating and
suspending either a horizontal line of up to six SPECTRA 212 or a vertical array of up to four
SPECTRA 212.
The speaker is available in two versions:
•XW (extra wide) with 120° × 30° directivity
•N (narrow) with 60° × 30° directivity
These versions can be used both in a line array (in line-source mode) or as a point source (in
point-source mode). To change the operating mode, you need to rotate the internal mid-
range/tweeter unit.
Various point-source modes are available:
•Point source with a VariQ midrange/tweeter unit down-tilt by –10°
Asymmetrical vertical directivity (30°× +5 °…–25 °)
In point-source mode with down-tilt, the asymmetrical vertical directivity simplifies orien-
tation towards the audience while reducing unwanted ceiling reflections.
•Point source with a VariQ midrange/tweeter unit up-tilt by 10°
Asymmetrical vertical directivity (30°× +25 °…–5 °)
In point-source mode with up-tilt, the asymmetrical vertical directivity simplifies orientation
towards the audience if they are positioned above the speaker.
2.1 Intended Use
Be sure to use the K&F SPECTRA 212 only with system amplifiers or controllers approved by
KLING & FREITAG.
The product and any optional accessories are suitable for indoor use (exhibition halls, event
halls, etc.). This product is not designed for prolonged use in corrosive environments. Outdoor
operation is permitted, provided that the speaker is protected against direct weather impact.
For outdoor installation, you will need to manufacture appropriate custom fastening equip-
ment with regard to the place and purpose of use. Be sure to take outdoor effects (wind, snow
loads, etc.) into account. The use of standard accessories for temporary or permanent outdoor
installation is not permitted.
When using the optional K&F SPECTRA 212 subwoofer adapter, you can use K&F subwoofers
as a pedestal provided the required stability is ensured. Refer to the manual for K&F SPECTRA
212 accessories for more information. The connection system and the optionally available K&F
rigging system allow for creating and suspending either a horizontal line of up to six SPECTRA
212 or a vertical array of up to four SPECTRA 212. In outdoor use, if the product is suspended
using the optional K&F rigging system, be sure to guy it and to end operation at wind forces
of 8 bft or more. People may safely stand below the structure during operation.
Installation and operation must be performed by qualified event technicians or appropriately
trained persons. Planning must be performed and responsibility be taken by qualified person-
nel only.
Any other use not described in this document is not an intended use.

© KLING & FREITAG GMBH Version 2.0 Page 7 of 39
User's Manual K&F SPECTRA 212

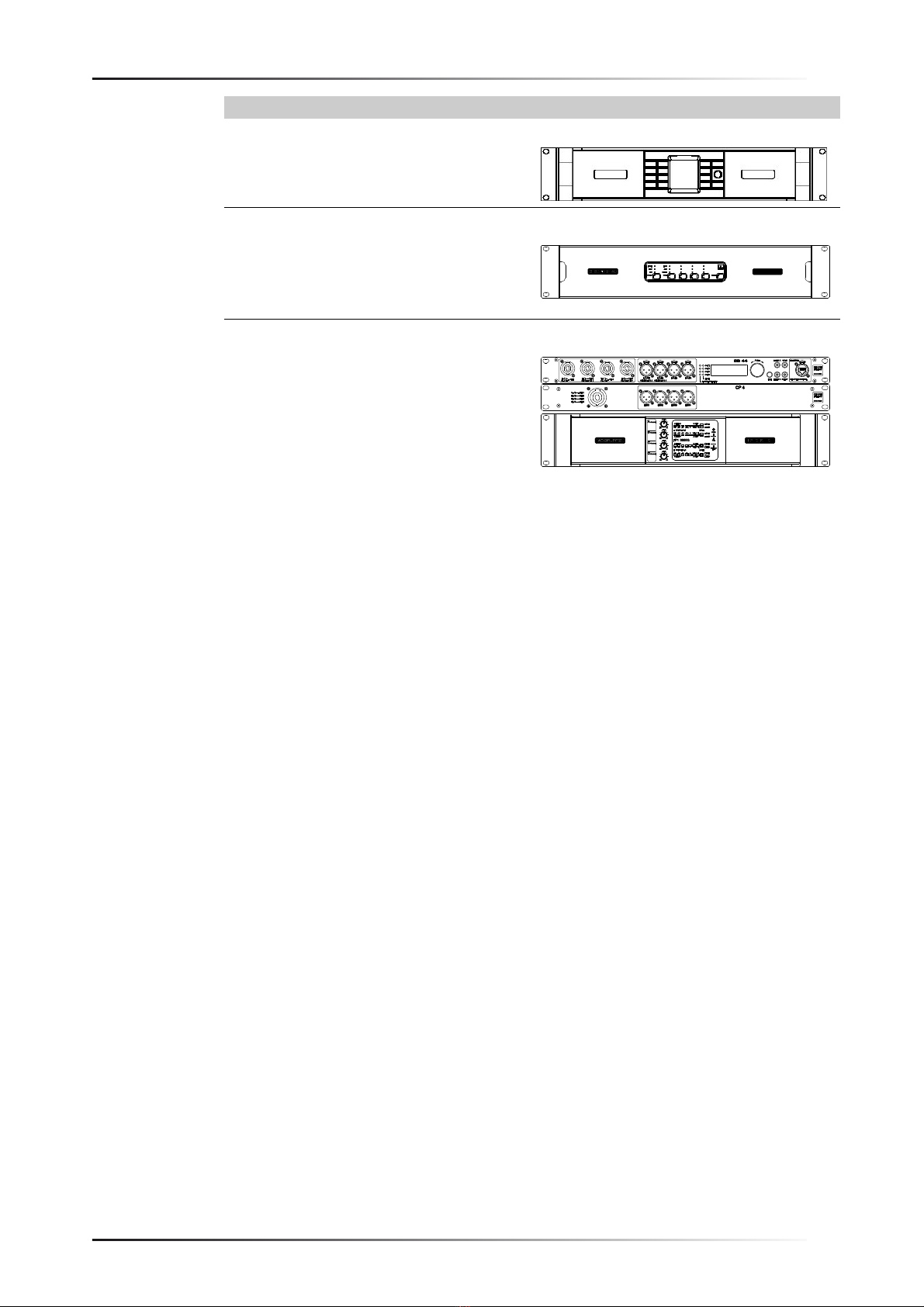

2.2 System requirements
Recommendation:
K&F PLM+ 20k44 (SystemAmp, ProRental)
K&F PLM+ 12k44 (SystemAmp, ProRental)
or
Recommendation:
K&F D200:4 (SystemAmp, InstallSound)
K&F D120:4 (SystemAmp, InstallSound)
K&F D80:4 (SystemAmp, InstallSound)
or
K&F SystemRack:
K&F D200:4

Page 8 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
3 Items Included
•K&F SPECTRA 212 speaker (1 item)
•User's manual (1 item)

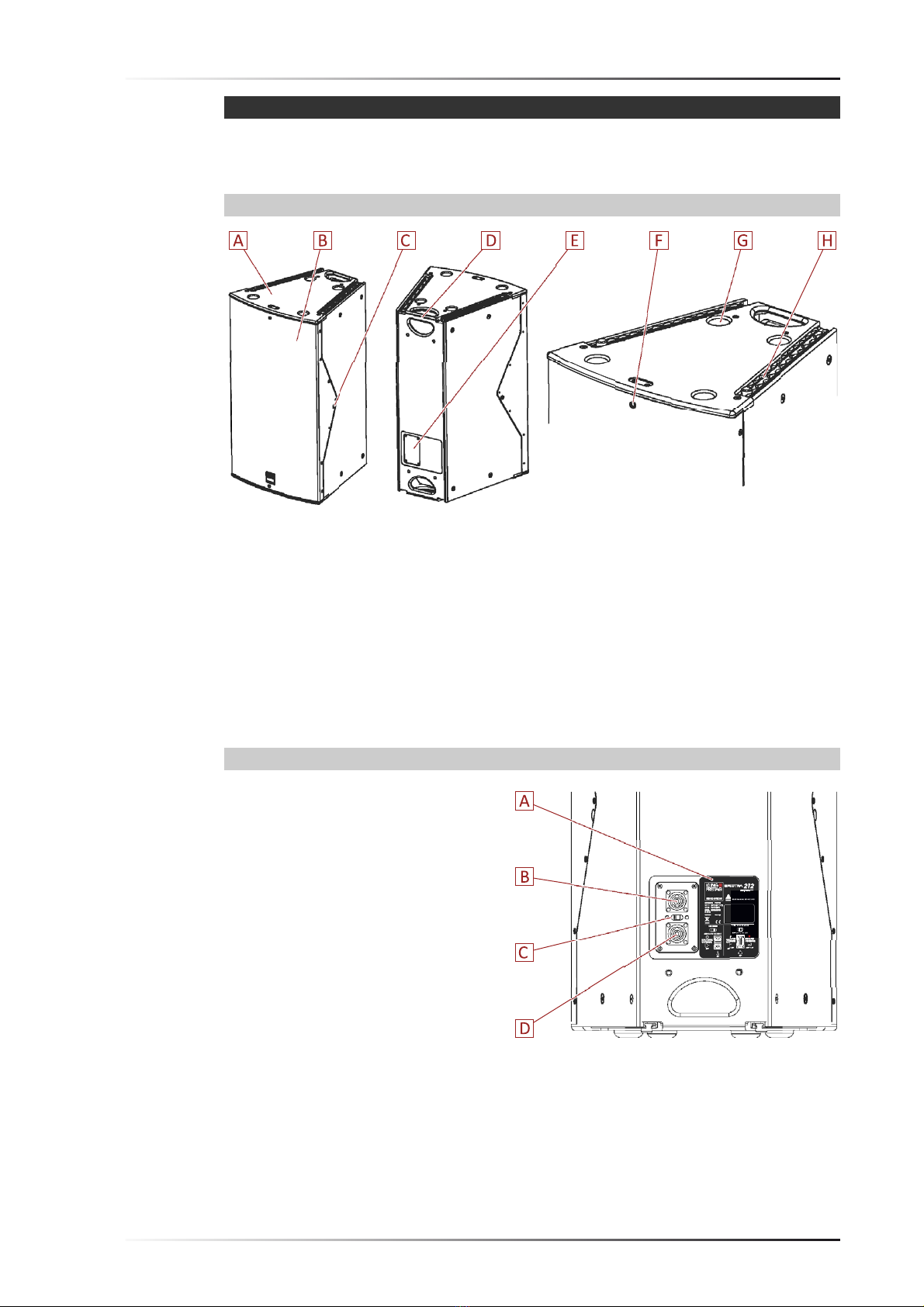

3.1 Components
[A] Housing
[B] grille
[C] Inspection opening for identifying the orientation of the VariQ unit (operating-mode iden-
tification)
[D] handle
[E] Connector panel
[F] ‘Camlock'-fixture for transportation cover
[G] Stacking grooves at cover, adjacent: stacking feet at bottom
[H] Flybar
3.2 Connectors and Controls
[A] Nameplate sticker with serial
number and switch details
[B] SpeakOn port 1
[C] Switch for toggling between
point-source and line-source op-
erating modes
[D] SpeakOn port 2

© KLING & FREITAG GMBH Version 2.0 Page 9 of 39
User's Manual K&F SPECTRA 212

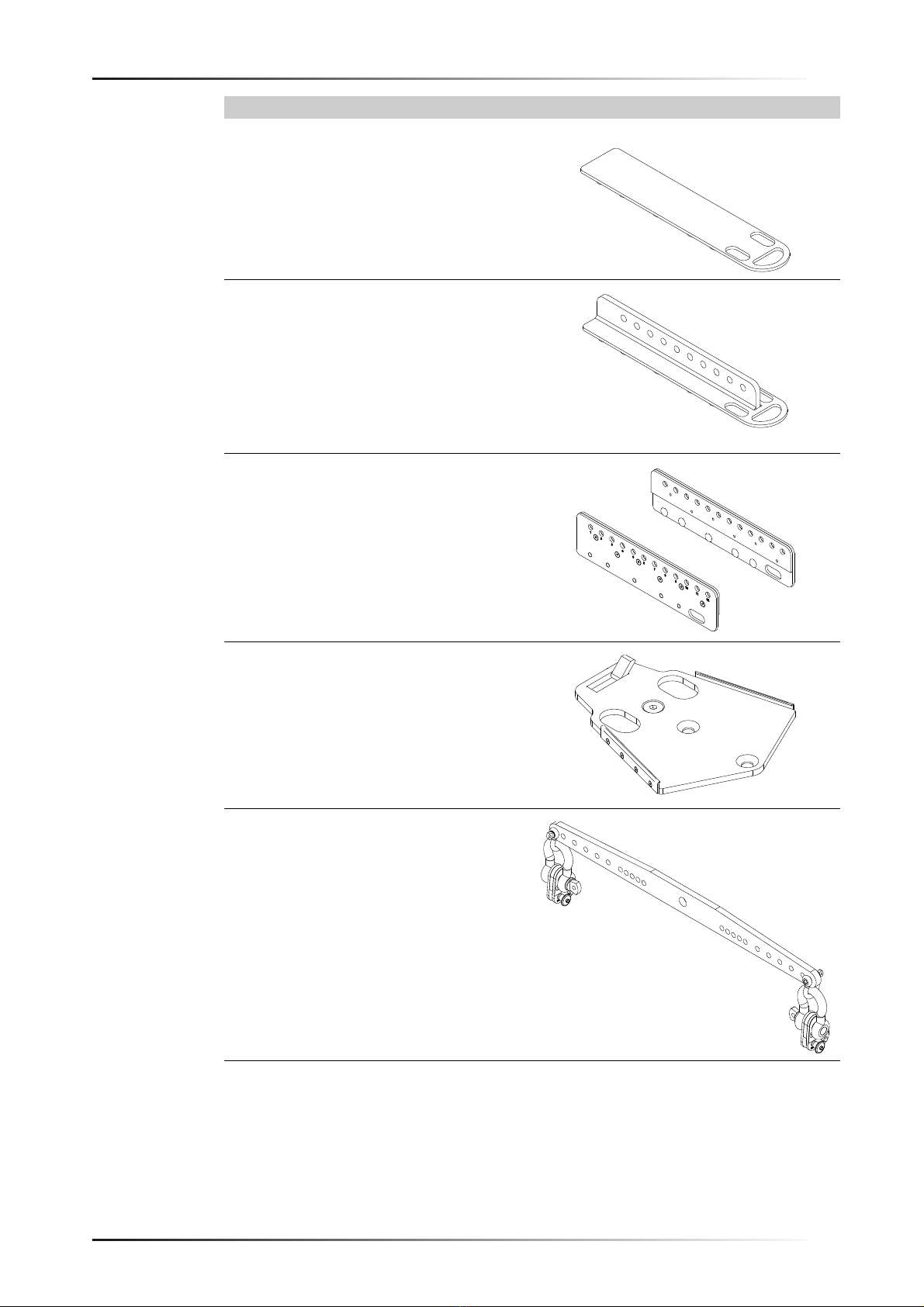

3.3 Accessories
K&F SPECTRA 212 Connector
Connecting element between two K&F SPEC-
TRA 212
Allows for creating a horizontal array from
several K&F SPECTRA 212.
Weight: 1.3 kg
K&F SPECTRA 212 Flybar Connector hori-
zontal
Connecting element between two K&F SPEC-
TRA 212 with fixture for K&F SPECTRA 212
flybar and K&F VIDA L load adapter
Allows for creating a horizontal array from
several K&F SPECTRA 212.
Weight: 2.6 kg
K&F SPECTRA 212 Flybar Connector verti-
cal
For installation at the top K&F SPECTRA 212
speaker to adapt the K&F SPECTRA 212 flybar
for a vertical array.
Weight: 4.5 kg
K&F SPECTRA 212 Subdapter
For mounting a K&F SPECTRA 212 onto a K&F
subwoofer
Weight: 3.1 kg
K&F SPECTRA 212 Flybar
Connector for a single strand suspension of a
K&F SPECTRA 212 array, in conjunction with
‘K&F SPECTRA 212 Flybar Connector horizon-
tally’ or with ‘K&F SPECTRA 212 Flybar Con-
nector’ vertically.
Weight: 7.4 kg

Page 10 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212

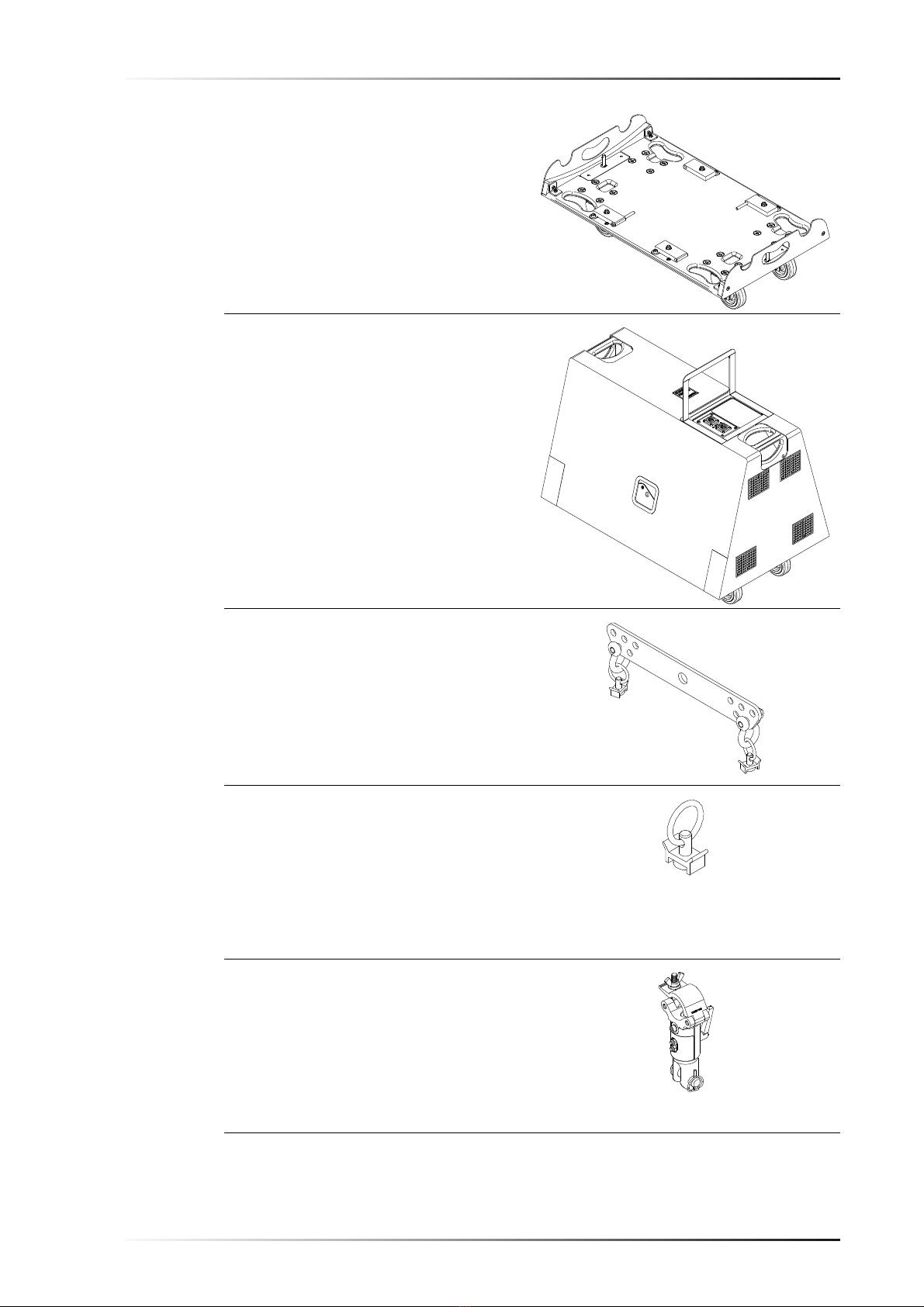

K&F SPECTRA 212 Transport Cover
Transport with castors for the safe transport
of a K&F SPECTRA 212 loudspeaker and for a
more comfortable setup of a vertical K&F
###var### array.
Weight: 11.3 kg
K&F SPECTRA 212 Protective Cover
Weatherproof protective cover for the trans-
port of a K&F SPECTRA 212 loudspeaker.
K&F SPECTRA 212 Single Bar (1 item)
Connector for a single strand suspension of a
single K&F SPECTRA 212 loudspeaker.
Weight: 1.0 kg
K&F Single Stud Fitting
Used for fastening to the fly track for a two-
strand suspension of a single speaker. (2
pieces per single speaker necessary!)
K&F Rotation Clamp 450
With 50-mm clamp for mounting to a truss or
pipe (diameter: 48 – 51 mm)
A 60-mm version of the K&F 450 swivel
clamp is also available.
Weight:
50 mm type: 2,9 kg,
60 mm type: 3,1 kg

© KLING & FREITAG GMBH Version 2.0 Page 11 of 39
User's Manual K&F SPECTRA 212
3.4 Dimensions
K&F VIDA L Load Adapter
Used for mounting on a ‘K&F SPECTRA 212
Flybar Connector Horizontal’ or ‘K&F SPEC-
TRA 212 Flybar Connector vertikal’.
789 mm
[31.063 inch]
460 mm
[18.110 inch]
12.5 mm
[0.492 inch]
15°
456.4 mm
[17.968 inch]
229.7 mm
[9.044 inch]

Page 12 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
4 Technical Specifications
4.1 K&F SPECTRA 212 N Specifications
Concept Passive 3-way system, 2-way active equalized, LF bass reflex,
MF Closed, HF waveformer horn loaded
Supported amplifiers K&F PLM+ Serie, K&F D-Serie (recommended)
K&F SystemRack (supported)
Frequency range @-10 dB 70 Hz – 20 kHz
Frequency range @±3 dB 86 Hz – 18 kHz
Coverage angles nominal
(hor. x vert.)
Line Source: 30° x 60°
Point Source: 60° x +5°/-25°
Convertible trough rotation of the K&F VariQ unit
Power handling 500 W
Program load 1000 W
Peak load 2000 W
SPL (1 m, max.)
Point Source: 141 dB SPL
(1x) Line Source (30°): 143 dB SPL
(2x) Line Source (60°): 145 dB SPL
(3x) Line Source (90°): 146 dB SPL
(4x) Line Source (120°): 147 dB SPL
Impedance (nominal) 2 x 8 ohm
Speakers / channels 2 per channel recommended, max. 3 per channel
Components (2x) 12“ LF, (6x) 5“ MF, (4x) 1“ HF
Connection SpeakOn NL4 (1+/1- LF+HF, 2+/2- MF)
Enclosure
Frame-reinforced 15 mm Multiplex enclosure with 30°
angle for ideal cluster setups with highly resistant Polyurea
synthetic coating in black, convertible between line source
and point source through rotation of integrated VariQ unit,
integrated flying track system, ergonomic handles on top
and bottom for horizontal and vertical transport, sunk-in
connector panel, 4 non-abrasive plastic sliding feet on
bottom, ball proof steel grille with black acoustic foam
behind the grille.
Dimensions (W × H × D)
456.4 mm × 789 mm × 460 mm
Colors black
special finish in RAL colours
Weight 48 kg

© KLING & FREITAG GMBH Version 2.0 Page 13 of 39
User's Manual K&F SPECTRA 212
4.2 K&F SPECTRA 212 XW Specifications
Concept Passive 3-way system, 2-way active equalized, LF bass reflex,
MF Closed, HF waveformer horn loaded
Supported amplifiers K&F PLM+ Serie, K&F D-Serie (recommended)
K&F SystemRack (supported)
Frequency range @-10 dB 70 Hz – 20 kHz
Frequency range @±3 dB 86 Hz – 18 kHz
Coverage angles nominal
(hor. x vert.)
Line source: 30° × 120°
Point source: 120° × +5°…–25°
Convertible trough rotation of the K&F VariQ unit
Power handling 500 W
Program load 1000 W
Peak load 2000 W
SPL (1 m, max.)
Point source: 138 dB SPL
(1×) line source (30°): 140 dB SPL
(2×) line source (60 °): 142 dB SPL
(3×) line source (90 °): 143 dB SPL
(4×) line source (120 °): 144 dB SPL
Impedance (nominal) 2 x 8 ohm
Speakers / channels 2 per channel recommended, max. 3 per channel
Components (2x) 12“ LF, (6x) 5“ MF, (4x) 1“ HF
Connection SpeakOn NL4 (1+/1- LF+HF, 2+/2- MF)
Enclosure
Frame-reinforced 15 mm Multiplex enclosure with 30°
angle for ideal cluster setups with highly resistant Polyurea
synthetic coating in black, convertible between line source
and point source through rotation of integrated VariQ unit,
integrated flying track system, ergonomic handles on top
and bottom for horizontal and vertical transport, sunk-in
connector panel, 4 non-abrasive plastic sliding feet on
bottom, ball proof steel grille with black acoustic foam
behind the grille.
Dimensions (W × H × D)
456.4 mm × 789 mm × 460 mm
Colors black
special finish in RAL colours
Weight 48 kg

Page 14 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
5 Measuring Diagrams
5.1 SPECTRA 212 N
5.1.1 Line source, horizontal directivity
5.1.2 Line source, vertical directivity
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

© KLING & FREITAG GMBH Version 2.0 Page 15 of 39
User's Manual K&F SPECTRA 212
5.1.3 Point source, horizontal directivity
5.1.4 Point source, vertical directivity
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

Page 16 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
5.1.5 Line source, on-axis frequency response
5.1.6 Point source, on-axis frequency response
Frequency response
Frequency response LCut
10
0
-10
-20
-30
10000100010020 20000
Frequency (Hz)
Frequency response
Frequency response LCut
10
0
-10
-20
-30

© KLING & FREITAG GMBH Version 2.0 Page 17 of 39
User's Manual K&F SPECTRA 212
5.2 SPECTRA 212 XW
5.2.1 Line source, horizontal directivity
5.2.2 Line source, vertical directivity
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

Page 18 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
5.2.3 Point source, horizontal directivity
5.2.4 Point source, vertical directivity
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3
125 250 500 1k 2k 4k 8k 16K
-180°
-150°
-120°
-90°
-60°
-30°
0°
30°
60°
90°
120°
150°
180°
f[Hz]
A
ttenuation (dB)
3 - 6
6 - 9
9 - 12
12 - 15
15 - 18
> 18
< 3

© KLING & FREITAG GMBH Version 2.0 Page 19 of 39
User's Manual K&F SPECTRA 212
5.2.5 Line source, on-axis frequency response
5.2.6 Point source, on-axis frequency response
Frequency response
Frequency response LCut
10
0
-10
-20
-30
10000100010020 20000
Frequency (Hz)
Frequency response
Frequency response LCut
10
0
-10
-20
-30

Page 20 of 39 Version 2.0 © KLING & FREITAG GMBH
User's Manual
SPECTRA 2122.016.06.20 2106/16/21
K&F SPECTRA 212
6 Safety Instructions
6.1 Notes on Upright Operation
6.2 Preventing Hearing Damage
WARNING
Installation and operation must be performed by qualified event technicians or appropriately
trained persons. Planning must be performed and responsibility be taken by qualified person-
nel only.
K&F SPECTRA 212 speakers are to be flown by qualified personnel (riggers) only! For instruc-
tions for flying speakers, handling arrays, pickpoint tables, and other information, refer to the
relevant accessory manuals. The manuals are available for free download on our website at
www.kling-freitag.de.
With regard to its weight of 48 kg, two people are required for handling the K&F
SPECTRA 212.
For safety instructions on the various installation options, refer to the respective manuals.
WARNING
If you use your speakers in an upright position, ensure sufficient stability. To avoid injury or
damage, always be sure to mount the speakers securely so that they do not fall.
Note that the speakers can move as a result of vibrations. To prevent them from falling from
their mounted position, they must be secured properly.
Mounted speaker(s) must not tilt even at an inclination angle of 15°. If necessary, use extra
fastenings.
Be sure to follow the relevant national specifications, norms, and safety regulations.
When laying the connecting cables, make sure that nobody can trip.
CAUTION
Keep your distance from operating speakers. This equipment is capable of delivering sound
pressure levels in excess of 90dB SPL, which may cause permanent hearing damage.
Be sure to comply with your local noise regulations.
If possible, install the speakers in a place where nobody can stand right in front of them. If nec-
essary, limit the maximum volume level.
