KoamTac KDC 470 User manual

®
Quick Manual
What’s in the Box? Additional Accessories
KDC470 Series
Mini Guide
•KDC470 or KDC475
•Micro USB Cable
•Hand Strap or tablet strap
•Quick Manual
•KOAMTACON Guide
•SmartSled Cases for Apple
and Android
•SmartSled Custom Cases
•General and uniVERSE
Case Adaptors
•1-Slot and 4-Slot Charging
Cradles
•1130mAh Hardpack Battery
•HF RFID Companion
•0.5W UHF Companion
•1.0W UHF Companion
•KDC600 mPOS Companion
•Pistol Grip Companion
•Extended Battery
Bluetooth Proles Explained
Powering On/Off
Press both SCAN and DOWN buttons for 3 seconds.
The KDC will beep when turned ON or OFF. The KDC
will sound a long beep when it is ready to use.
Basic Operation
1. Aim the KDC directly at the barcode and press either
of the SCAN buttons located on each side of the
device ensuring the beam covers the barcode
horizontally.
2. A successful scan will sound 1 beep amd show a
green LED. An unsuccessful scan will sound 2 beeps
and show a red LED.
Available Models
OR
Allows one-way Bluetooth communication
with an Android, Mac, and Windows host
device. The KDC only transmits data to the
host device.
HID
Normal
Allows two-way Bluetooth communication.
The KDC transmits data to host device and
the host can transmit data back to the KDC.
SPP
Allows one-way Bluetooth communication
with an iOS host device. The KDC only
transmits data to the iOS host device.
HID
iOS
MFi
Allows two-way Bluetooth communication
with an iOS host device. The KDC transmits
data to an iOS host device and the iOS host
can transmit data back to the KDC.
HID inputs data directly into an application. Both SPP
and MFi require KOAMTAC KTSync
®
app or integration
of the KOAMTAC SDK to input data into an application.
1. Navigate to the Bluetooth setting on the host PC, Mac,
Smartphone, or Tablet.
2. Ensure that Bluetooth is enabled on the host device and
searching for devices.
3. Using the KDC, scan the pairing barcode that corresponds
to your desired Bluetooth profile. If you are unsure which
Bluetooth profile is right for you, please refer to the
previous panel.
3a. If KDC does not have a barcode scanner, hold any SCAN button on
the KDC for 5 seconds until you hear a beep to begin pairing (Select
Bluetooth Profiles from KTSync Windows using USB cable).
4. Check the list of available Bluetooth devices on your host
device.
5. From the list, select KDC listed by serial number in brackets
that matches the serial number found on the back side of
the KDC.
6. In HID mode, the KDC is now ready to use.
7. To complete connection in SPP/MFi mode, launch KTSync
or your application and select the KDC.
* The KDC will beep when successfully connected.

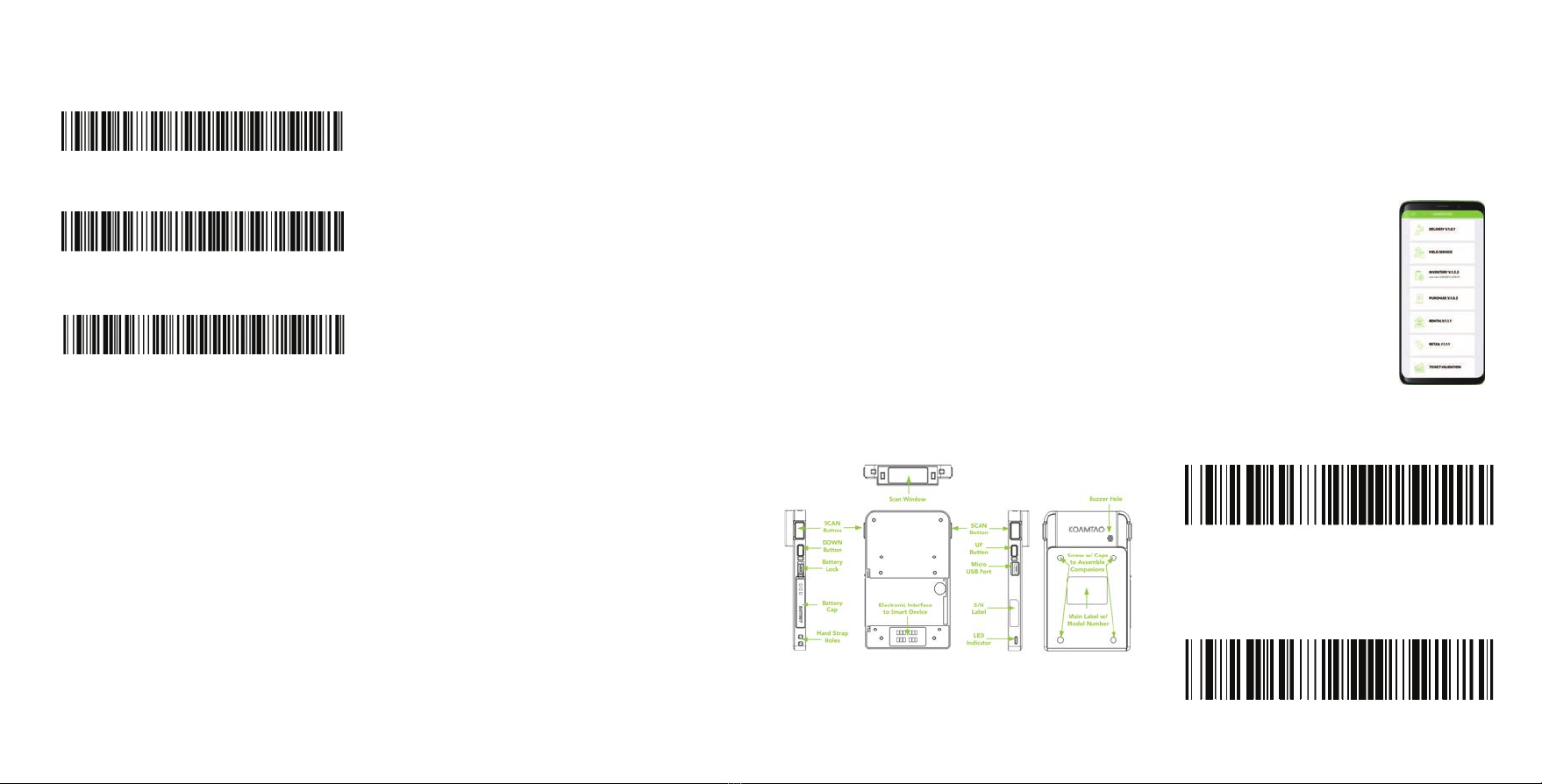

Pairing & Connecting Classic Pairing Barcodes
Android, Mac, Windows: HID Normal
SPP & MFi
iOS: HID iOS
For all KDC470, KDC470-BLE, KDC475, and KDC475-BLE models
•KDC470Li 1D Laser
•KDC470Di 1D CCD
•KDC470Ci 2D Imager
•KKDC475Si 1D Laser
•KDC475Hi 2D Imager
•KDC470Li-BLE 1D Laser
•KDC470Di-BLE 1D CCD
•KDC470Ci-BLE 2D Imager
•KDC475Si-BLE 1D Laser
•KDC475Hi-BLE 2D Imager
•KDC470i-BLE No Barcode
3s
3s
KDC470 Models
3s
3s
KDC475 Models

BLE Pairing Barcodes Using Keyboard Wedge KTSync & SDK KOAMTACON
Specs Specs KDC470 Diagram Helpful Barcodes
Functionality
Memory Flash ROM: 256KB Program, 8MB User Data
Memory RAM: 64KB
Can store more than 400,000 Barcodes (EAN-13)
Wedging & Synchronization
Keyboard wedge function
Add-on prefixes and suffixes
Barcode option selection
Scan Range (10mil Code39)
KDC470 Laser: 1.97”to 7.48“(50 mm to 190 mm)
KDC470 CCD: 2.17”to 11.81“(55 mm to 300 mm)
KDC470 Imager: 1.81”to 9.68”(46 mm to 246 mm)
KDC475 Laser (20mil Code39): 1.4”to 52.0”(36 mm to
1321 mm)
KDC475 Imager: 1.1“to 13.3”(28 mm to 338 mm)
Supporting OS
Android / iOS / Mac OS X / Windows
Interfaces
Bluetooth
®
V2.1+EDR (Class2): HID, SPP/MFi
Bluetooth
®
Low Energy 4.1: HID (Android/iOS/Windows),
SPP for KDC470-BLE/475-BLE
Micro USB/Type-C USB: USB HID, USB Serial (Android
with an integrated case)
Lightning: Serial (iOS with an integrated case)
Electrical Characteristics
Battery: Lithium-ion (3.7V DC, 1130 mAh)
Charging: via Micro USB connector, Charging Cradle
User Environment
Ingress Protection Rating: IP65
Drop Spec: 5' (1.5 m)
Operating: 14˚F to 122˚F (-10˚C to 50˚C)
Storage: -4˚F to 140˚F (-20˚C to 60˚C)
Humidity: 5% to 95% (non-condensing)
Enable Beep Sound
Disable Beep Sound
MG_KDC470_20201014
Keyboard wedge allows you to use your KDC as a
keyboard. The HID profile works as keyboard wedge by
default. When using SPP or MFi, KTSync provides a
keyboard wedge function when KTSync keyboard is
enabled. Please refer to the KDC Reference Manual for
detailed instructions to enable KTSync keyboard.
1. Ensure that the KDC is connected to the host using
the HID profile or the KDC is connected via KTSync
keyboard using SPP/MFi profiles.
2. Open any application on the host device that
contains a text field you want to populate.
3. Tap the text field in the application.
4. Scan any barcode with the KDC.
5. The barcode data will then populate in the text field.
KTSync
®
is a program which communicates with the
KDC via Bluetooth. It enables users to read and store
data. KTSync is compatible with iOS, Android,
Windows, and Mac. It also supports wedging and
downloading data from the KDC.
For more information about KTSync, please visit:
www.koamtac.com/support/downloads/applications
The Software Development Kit (SDK) is the perfect
solution for creating a custom application to collect
data utilizing your KDC. The KOAMTAC SDK covers all
major development platforms: Android, iOS, Tizen,
Windows, Xamarin, and Cordova. Developers may take
advantage of the complimentary SDK and enjoy the full
benefits of the KOAMTAC Developer Program.
For more information regarding the KOAMTAC
Developer Program or to request the latest SDKs, visit:
www.koamtac.com/support/downloads/sdk
or e-mail [email protected].
KDC475 models are identical except for their angled
scan engines.
HID
HID Windows
SPP
The first application suite of its kind, KOAMTACON is a
data collection cloud suite designed specifically to be
used with KDC Bluetooth barcode scanners, RFID
readers, and Magnetic Stripe Readers (MSR) to collect
data in any situation.
With apps ranging from ticketing to warehouse
management, KOAMTAC has you covered. It’s never
been so easy to collect data via barcodes, RFID, or
Magnetic Stripe.
KOAMTACON is:
•Simple to maintain
•Easy to use
•Cloud-based
•Compatible with any device
For more information please visit:
www.koamtacon.com
KDC470-BLE and KDC475-BLE models can pair via
Bluetooth Low Energy (BLE) with the barcodes below:
