KoamTac KDC380 QG User manual

©2020-2022 KOAMTAC, Inc.
QG_KDC380_20220624
KDC380 QG
Quick Guide
116 Village Blvd, Suite 305, Princeton, NJ 08540 USA
T: + 1-609-256-4700 F: [phone]
[email protected] www.koamtac.com
Type-C USB Version

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p1
Contents
Product Introduction ............................................................................................................................................. 2
1.1 KDC380 Diagram ........................................................................................................................................... 2
1.2 How to turn on and off .................................................................................................................................. 2
Pairing (Bluetooth or NFC).................................................................................................................................... 3
2.1 Bluetooth Profiles Explained......................................................................................................................... 3
2.2 Bluetooth Pairing a KDC380 to your smart device with special barcodes ................................................ 4
2.3 Bluetooth Pairing a KDC380 to your smart device with NFC (Android Only) ........................................... 5
Usage...................................................................................................................................................................... 6
4.1 Using Keyboard Wedge (HID Keyboard) ..................................................................................................... 6
4.2 Using KTSync –Android/iOS ........................................................................................................................ 6
4.3 Using KTSync Keyboard –Android............................................................................................................... 8
4.4 Using KTSync Keyboard –iOS ...................................................................................................................... 9
4.5 Using other Developed Applications with SDK –Android/iOS ............................................................... 10
Product Specifications......................................................................................................................................... 11
Social Distancing Feature ................................................................................................................................... 13
6.1 Social Distancing Feature Parameters........................................................................................................ 13
6.2 Enabling the Social Distancing Feature via the KDC Menu ..................................................................... 14
6.3 Enabling the Social Distancing Feature via Social Distance Barcodes.................................................... 14
6.4 Enabling the Social Distancing Feature via the KTSync application........................................................ 16
6.5 Examples of Social Distance Alerts & Social Distance Alert Data............................................................ 17

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p2
Product Introduction
The KDC380 Bluetooth barcode scanner is a 1D Laser/CCD or 2D Imager Bluetooth Barcode Data Collector
supporting Bluetooth Low Energy (BLE) v5.0.
1.1 KDC380 Diagram
1.2 How to turn on and off
Refer to the figure in section 1.1 to locate the SCAN and DOWN buttons.
a) Press and hold the SCAN + DOWN buttons simultaneously for 3 seconds.
b) The KDC will beep when it is turned ON.
c) Press and hold the SCAN + DOWN buttons simultaneously for 3 seconds again to turn off
the KDC.
Type-C USB
Port

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p3
Pairing (Bluetooth or NFC)
Connecting your KDC using Bluetooth is made easy with the below pairing barcodes.
If using an Android device, pairing via NFC is even easier: just approaching the KDC to the back of the host
device’s NFC area is enough for pairing. For more details, see section 2.3
2.1 Bluetooth Profiles Explained
a. HID Profile: Allows one-way Bluetooth communication with an Android or iOS host
device. The KDC only transmits data to the host device.
b. SPP Profile: Allows two-way Bluetooth communication. The KDC transmits data to the
host device and the host device can transmit data back to the KDC.
c. HID Windows Profile: Allows one-way Bluetooth communication with a Windows PC. The
KDC only transmits data to the Windows PC.
Note:HID inputs data directly into an application. SPP requires the KOAMTAC KTSync®
app or integration of KOAMTAC SDK to input data into an application. To gain access to
the SDK, please complete the form here: https://www.koamtac.com/sdk/

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p4
2.2 Bluetooth Pairing a KDC380 to your smart device with special barcodes
Bluetooth Profile & Pairing
#1. HID-BLE & Pairing (Android, iOS, Mac)
#2. HID-Windows & Pairing (Windows)
#3. SPP-BLE & Pairing (Android, iOS, Mac, Windows)
a. Navigate to the Bluetooth setting on the host device and ensure that Bluetooth is both
enabled and searching for devices.
b. Using the KDC, scan the pairing barcode above that corresponds to your desired
Bluetooth profile. If you are unsure which Bluetooth profile is right for you, please refer
to Chapter section 2.1.
•If you use an Android, iOS, or Mac device and desire an HID connection, then scan
barcode #1 above.
•If you use a Windows device and desire an HID connection, then scan barcode #2
above.
•If you desire an SPP connection for any device, then scan barcode #3 above.
c. In HID or HID Windows Profile, check the list of available Bluetooth devices on your host
device. From the list, select the KDC 380 listed by serial number in brackets that matches
the serial number found on the back side of the KDC380. KDC380 will beep upon
connection and display “BLE HID Connected” on its screen. Now it is ready to use.
d. In SPP Profile for non-iOS, check the list of available Bluetooth devices on your host
device. From the list, select the KDC380 listed by serial number in brackets that matches
the serial number found on the back side of the KDC380. KDC380 will beep upon
connection and display “BLE SPP Connected” on its screen, but you should launch
KTSync or your application and select KDC380 within the application to complete the
connection. Now it is ready to use.

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p5
e. In SPP Profile for iOS, the KDC is NOT listed on your host device, so you should launch
KTSync or your application and select the KDC380 listed by serial number in brackets that
matches the serial number found on the back side of the KDC 380. KDC380 will beep upon
connection and display “BLE SPP Connected” on its screen. Now it is ready to use.
2.3 Bluetooth Pairing a KDC380 to your smart device with NFC (Android Only)
This feature applies only to Android. KDC may be paired in either HID or SPP only.
Also, this feature is NOT available for KDC380 Wi-Fi Models.
a. Navigate to the NFC setting on the host device and ensure that NFC is enabled.
b. On the KDC, make sure NFC pairing is enabled by navigating to KDC MENU →BLE
Config →NFC Pairing →Enabled →Save & Exit.
c. On the KDC, select the pairing profile by navigating to KDC MENU →BT Config →
Connect Device →Select HID or SPP →Save & Exit.
Or, select the profile using the special barcodes below:
d. Approach the NFC area on the back of the host device with the KDC to complete pairing.
Select Bluetooth Profile
#1. HID Profile (w/ NFC Enable)
#2. SPP Profile (w/ NFC Enable)

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p6
Usage
4.1 Using Keyboard Wedge (HID Keyboard)
This option is only available using Bluetooth connection with HID profile.
Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any
barcode and it will populate in the text field.
4.2 Using KTSync –Android/iOS
You can use KTSync to utilize your KDC alone or with a native application. This is only available using
Bluetooth connection with SPP.
a) Download and install KTSync from the Google Play Store or the Apple App Store.
b) Open KTSync and tap on the “Connect” option on the bottom left to view a list of available devices.
(Fig. 1)
c) In case of Android, the pairing should be established from Settings of the phone and in case of iOS,
“START BLE SCANNING” menu should be run from “Connect” menu.
d) From the device list, select your KDC –ensuring that the serial number displayed in brackets matches
the serial number on the back of your KDC. (Fig. 2)
e) Upon successful connection, KTSync will display “Connected” next to the name of your KDC at the top
of the application. (Fig. 3)
f) To test your connection, scan any barcode. If the connection is successful, the barcode data will display
on the screen. (Fig. 3)
< Fig. 1 > < Fig. 2 > < Fig. 3 >

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p7
In Always-pairing mode, an application can connect to a KDC without reading a pairing barcode, so the
connection procedure is a little different.
a) In the KTSync app, tap the Connect icon at the bottom left of the app.
b) In KTSync, tap “START BLE SCANNING” in the top right.
c) In KTSync, check the list of found devices.
d) In KTSync, tap the KDC380 listed by serial number in brackets followed by [BLE] that matches the serial
number found on the back side of the KDC380. The format will look like this, KDC380[xxxxxx] [BLE],
where xxxxxx is the serial number.
e) The KDC380 will beep upon connection and display “BLE SPP Connected” on its screen. Now it is
ready to use.
< Fig. 4>

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p8
4.3 Using KTSync Keyboard –Android
Once your KDC is connected to KTSync, you can use your KDC as a keyboard.
a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual
Keyboard > Manage keyboards
b) Tap on “KTSync Keyboard” to enable it.
c) Change “KTSync Keyboard” to the default keyboard. (Fig. 5)
To switch back to the previous keyboard, simply change the default keyboard again. Or, when a text field is
selected swipe down from the top of the screen to bring up the notification panel. Select ‘choose input
method’ and you can select the default keyboard from here. (Fig. 6)
< Fig. 5 > < Fig. 6 >

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p9
4.4 Using KTSync Keyboard –iOS
Once your KDC is connected to KTSync, you can use your KDC as a keyboard.
a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard...

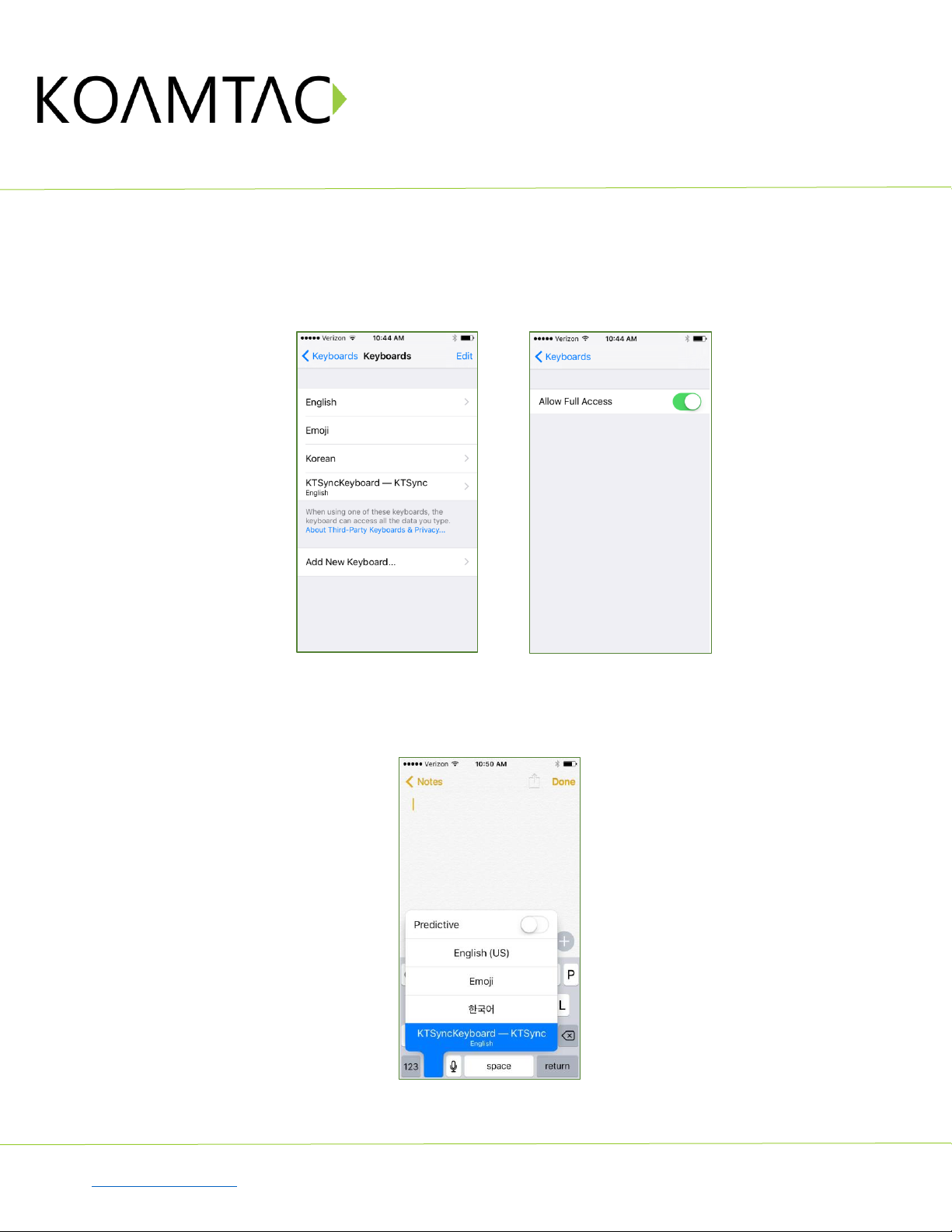

> Select the KTSync keyboard to be added. (Fig. 7)
b) Select the KTSync Keyboard and toggle the switch to Allow Full Access. (Fig. 8)
< Fig. 7 > < Fig. 8 >
c) Open the application you want to scan into and tap on the screen, so the on-screen keyboard appears.
d) Press and hold the globe icon located to the left of the spacebar.
e) Select the KTSync Keyboard and begin scanning. (Fig. 9)
< Fig. 9 >
Note: The KDC must be connected to KTSync & the KTSync keyboard must be selected for this to work.

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p10
4.5 Using other Developed Applications with SDK –Android/iOS
A Software Development Kit (SDK) for Android
and iOS is available to all KOAMTAC
customers to ensure smooth development of
applications that work seamlessly with a KDC
scanner. It’s easy to request the SDK from the
KOAMTAC website:
a) On any web browser, open
www.koamtac.com
b) Navigate to SUPPORT > Downloads > SDK
c) Complete the form and submit it.
After submission, a KOAMTAC representative
will reach out regarding next steps for
completing the SDK Agreement.
The SDK package will have libraries, documents,
a sample application, and its source code.

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p11
Product Specifications
Physical
Design
Companion Bluetooth Barcode Scanner
Size
1.7” x 3.7” x 0.9”
(43 mm x 94 mm x 24 mm)
Weight
3.0 oz (85 g)
Functionality
Supporting OS
Android / iOS / Windows / Mac OS X
Keys
19 Keys including Scan Key, Up/Left Key,
Down/Right Key, Shift Key, Function Key, Mode Key,
and Keypad (1,2,3,4,5,6,7,8,9,0,*,#)
Buzzer
Yes
LED Indicator
1 Status LED (Red / Amber / Green)
USB Port
1 Type-C USB Port
Memory
RAM
SDRAM 64KB
ROM
Program Flash ROM 512KB
User Data Flash ROM 8MB
Barcode Storage
400,000+ Barcodes (EAN-13)
Power
Battery (Standard)
1100 mAh Lithium-ion
Charging Solution
USB Connector / Charging Cradle
Charging Time
4 Hours
Communication
Bluetooth
Bluetooth Low Energy V5.0, HID/SPP
Type-C USB
Flash Memory (Windows),
USB HID,
USB Serial (Android with OTG cable / Windows)
Barcode Reader
1D/2D Symbology
Yes
# of scans per charge
(1 sec interval)
KDC380L Laser: 50,000+
KDC380D CCD: 33,000+
KDC380C Imager: TBD
# of scans per charge
(10 sec interval)
KDC380L Laser: 17,500+
KDC380D CCD: 11,000+
KDC380C Imager: TBD
Scan Range
(20mil Code39)
KDC380L Laser: 1.40” to 52.00” (35 to 1320 mm)
KDC380D CCD: 1.97" to 17.72" (50 mm to 450 mm)
KDC380C Imager: 1.73” to 31.5” (44 to 800 mm)
Screen Reading
Laser: No, CCD/Imager: Yes
Postal Code / OCR Passport
Yes / No
Environment
Drop Spec
5 ft (1.5 m)
IP Rating
IP65
Operating Temp.
-4 ˚F to 122 ˚F (-20 ˚C to 50 ˚C)
Storage Temp.
-4 ˚F to 140 ˚F (-20 ˚C to 60 ˚C)
Humidity Spec
5% ~ 95% (non-condensing)
Regulatory
Conformance
Laser Safety
IEC60825-1 (Class II)
LED Safety
IEC62471:2006

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p12
Regulatory
CE, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Accessories
Charging Cradle
Yes (1-slot / 4-slot)
Finger Trigger Glove / Ring
No
Protective Boot
Yes

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p13

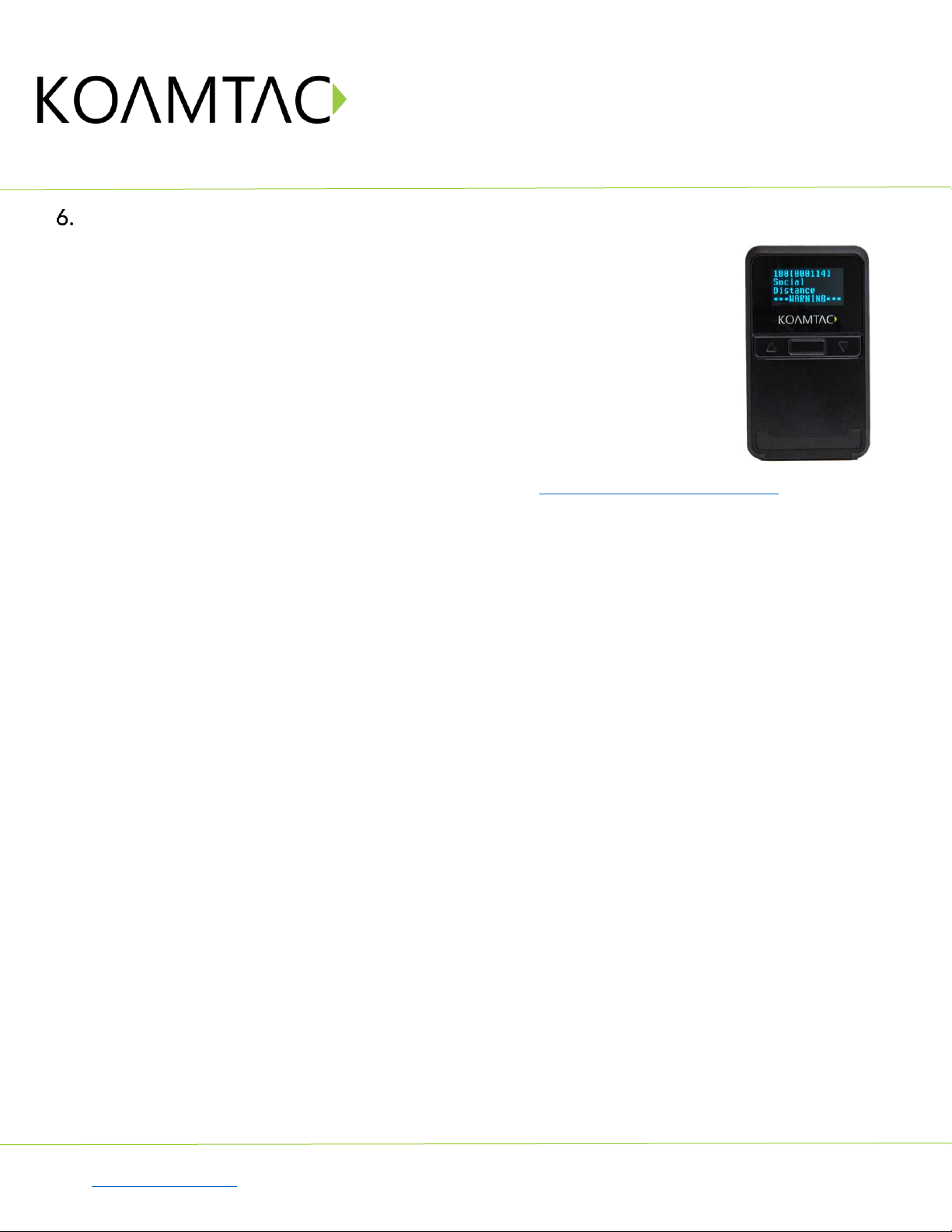

Social Distancing Feature
The COVID-19 pandemic has added a new challenge to every workplace - warehouses,
manufacturing lines, and even retail store floors - the need to maintain distance between
people for their health and safety. Reopening your business is already an undertaking
but ensuring social distance among your workers is made easy with the KOAMTAC social
distancing feature.
Whether you’re a small or enterprise business, the KOAMTAC social distancing feature
works with the technology and systems you already have in place so you, and your
workers, can have peace-of-mind as you adjust to the new normal.
➢Supported on all Bluetooth Low Energy (BLE) 5.0 KDC devices.
➢For more on the social distancing feature, please watch: https://youtu.be/m4Manx9vK68
There are three ways to enable and control the settings for the social distancing feature:
1. Enable via the KDC menu
2. Scan the special Social Distance barcodes that correspond with the settings you wish to enable
3. Enable via the KTSync application
6.1 Social Distancing Feature Parameters
The following parameters can be changed:
➢Distance: Set the acceptable social distance range with values between 1 to 10 meters (Default:
Disabled).
➢Host Alert: This setting will forward distance alerts to the connected host device (Default: Disabled).
➢KDC Alert: This setting allows the user to enable/disable an audible beep sound (Default: Enabled),
vibration (Default: Disabled), and data storage (Default: Disabled) settings for distance violations on the
KDC.
➢Security Key: Choose keys between devices. Only KDC devices using the same key will be able to
detect and report the distance between devices. If the security key is “Disabled”, the KDC won’t use
any key. If “Fixed Key” is selected, the KDC will use a predefined key. If you prefer to set your own
custom key by selecting “Custom Key”, the custom key can only be set through KTSync (Default: Fixed
Key).

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p14
6.2 Enabling the Social Distancing Feature via the KDC Menu
If you prefer to enable the social distancing feature by navigating through the KDC menu, then follow the
instructions below:
a) From KDC BLE Config menu, select Social Dist. to configure
b) Set the Distance from 1m to 10m
c) Set the Host Alert to enable/disable
d) Set the KDC Alert: Beep, Vibrator, and Data Store to desired settings
e) Set the Security Key: Disabled, Fixed Key, or Custom Key
6.3 Enabling the Social Distancing Feature via Social Distance Barcodes
If you prefer to enable the social distancing feature via special barcodes, scan the special social distance
barcodes that correspond with the settings you wish to enable:

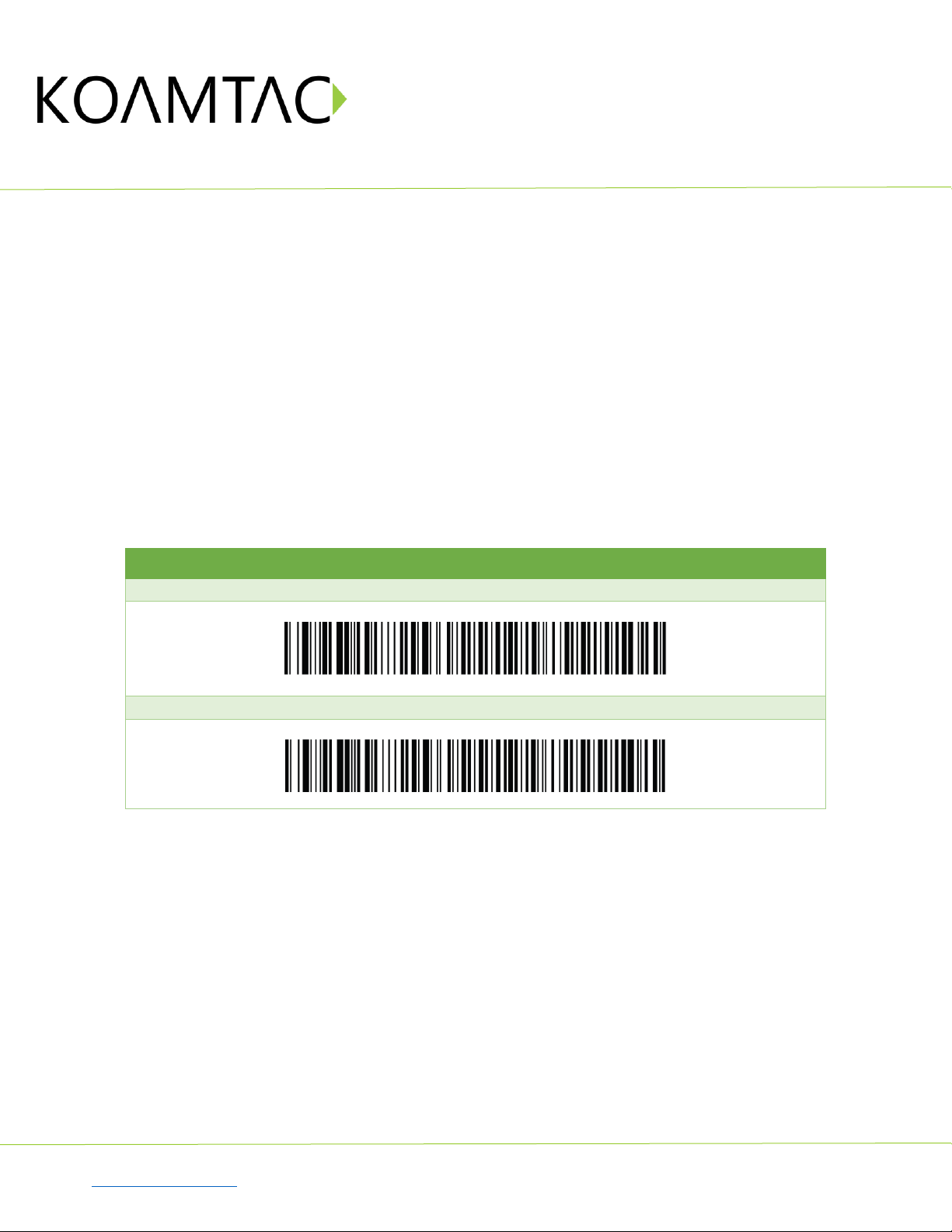

Social Distance Range
Disable
1.0M
2.0M
3.0M
4.0M
5.0M
7.0M
10.0M

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p15

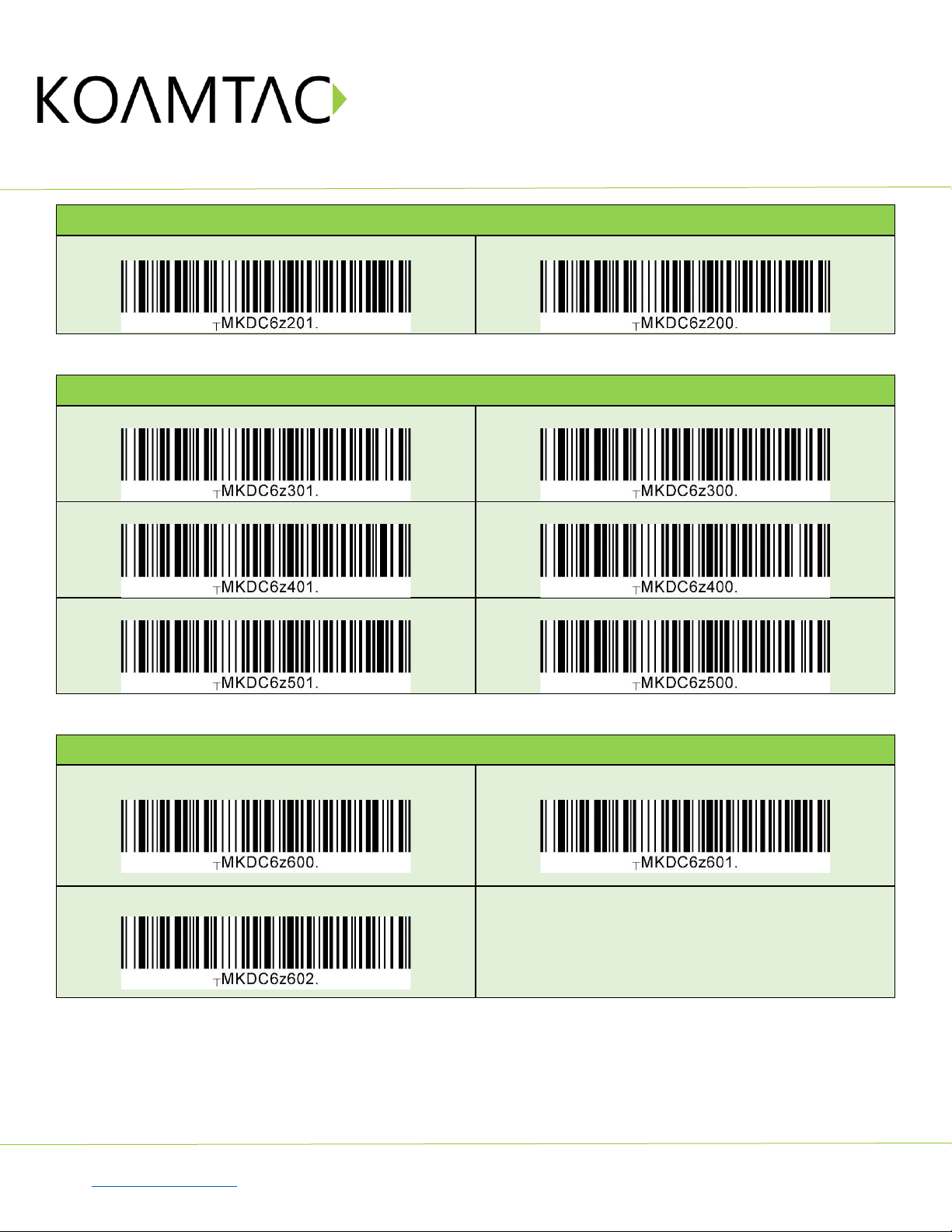

Host Alert
Enable
Disable
KDC Alert
Beep Enable
Beep Disable
Vibrate Enable
Vibrate Disable
Store Data Enable
Store Data Disable
Security Key
Disabled
Fixed Key
Custom Key

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p16

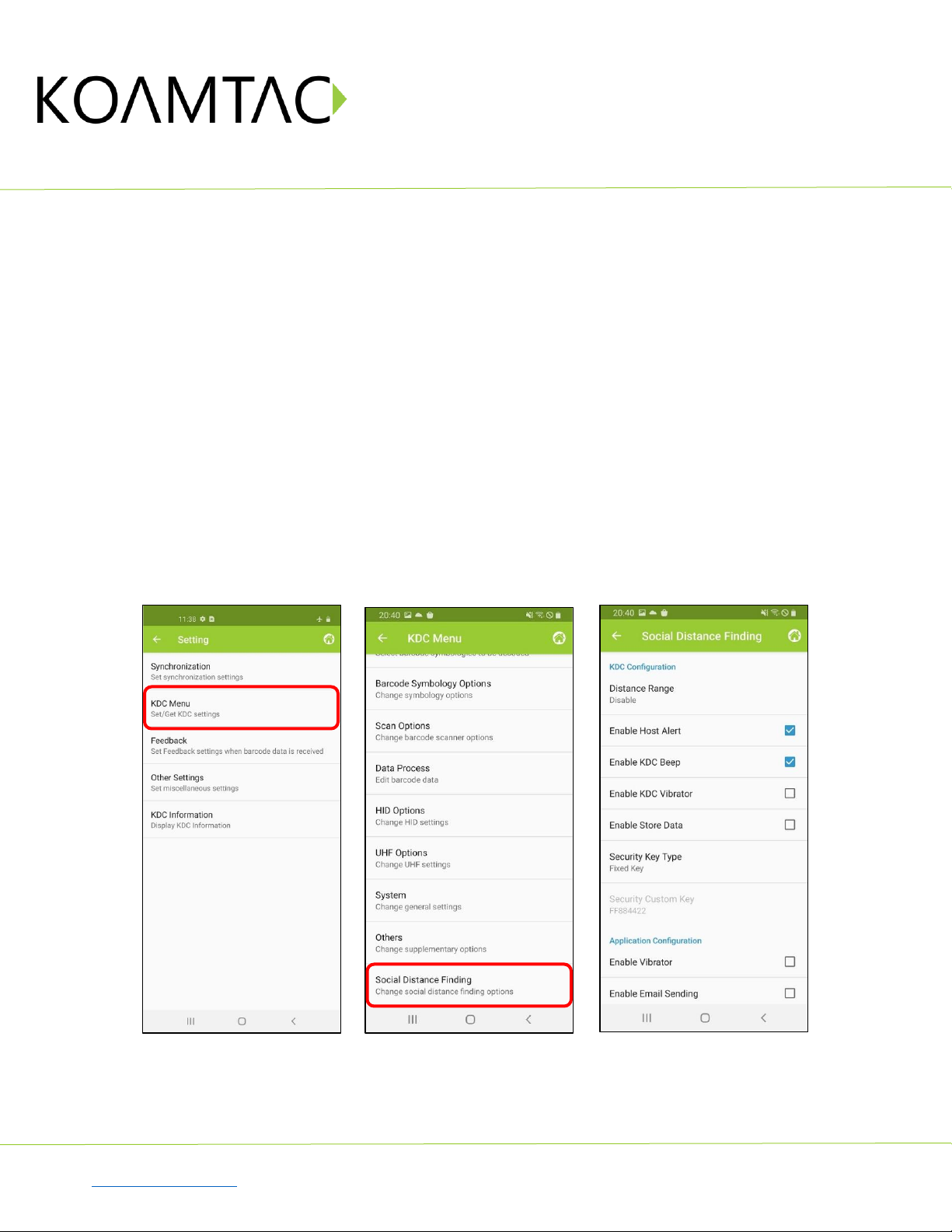

6.4 Enabling the Social Distancing Feature via the KTSync application
The social distancing feature can also be configured in the KTSync application.
* Note: This menu is only shown when KTSync is connected to a KDC BLE device running firmware version
050025 or higher.
a) Open KTSync and tap the Setting icon
b) Select KDC Menu (Fig. 10)
c) Select Social Distance Finding (Fig. 11)
d) Choose your Social Distance settings. Settings listed in the KDC Configuration section are the same
settings available to you as if you were setting parameters on the KDC itself. These settings will be
saved when you exit this screen. (Fig. 12)
e) Additional Application Configuration settings can be set on this screen as well. (Fig. 12)
• Enable Vibrator : If enabled, the host device vibrates when receiving social distance alert data.
• Enable Email Sending : If enabled, email application is launched instead of a social distance
data pop up when receiving social distance alert data.
• Email Address: Register and email address to send social alert events.
< Fig. 10 > < Fig. 11 > < Fig. 12 >

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p17

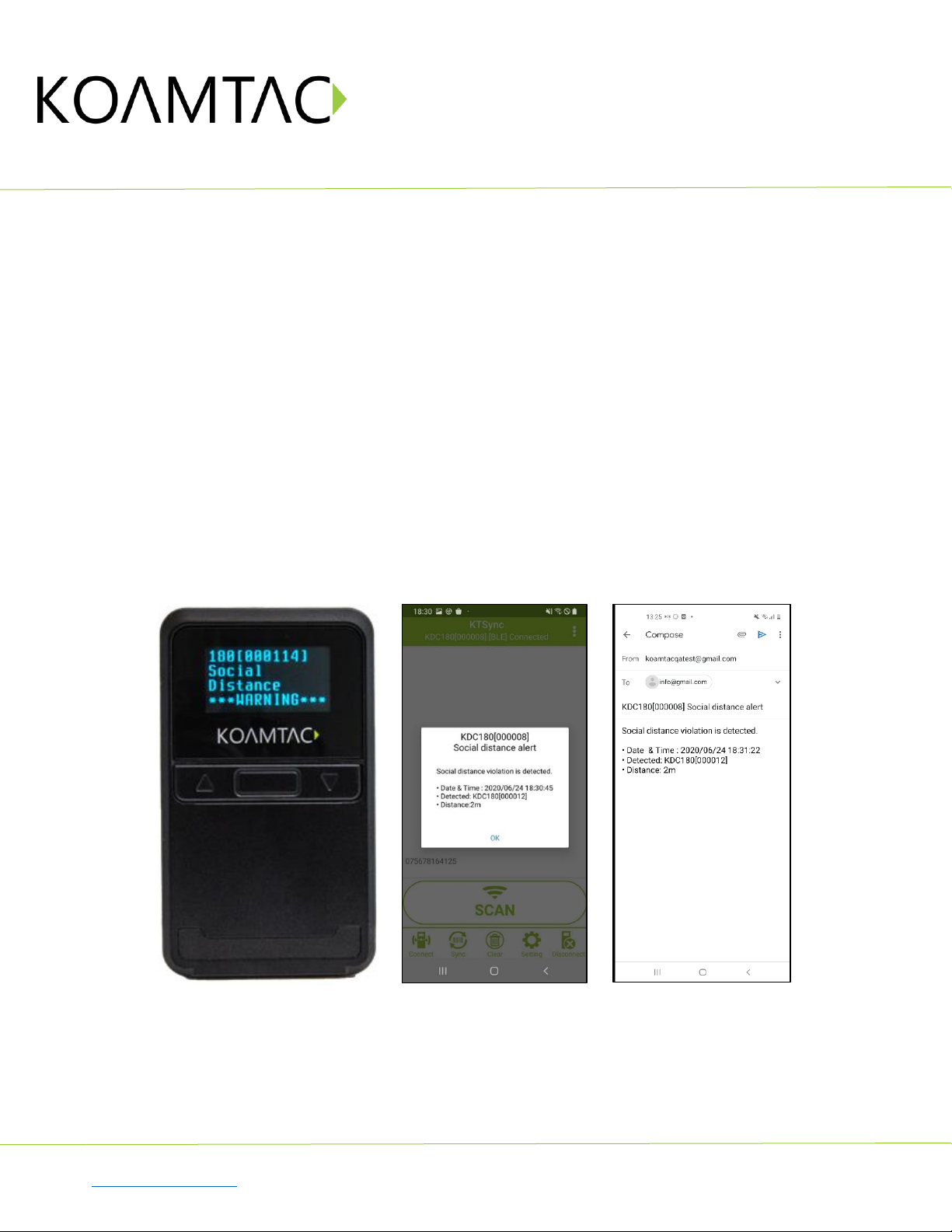

6.5 Examples of Social Distance Alerts & Social Distance Alert Data
Whenever the KDC is connected, the KDC is sending social distance alert data to host device if host alert is
enabled and another KDC is found within the selected distance range.
When a social distance violation occurs, you may receive these alerts, depending on settings:
1. Social distance warning on KDC, showing your KDC serial number accompanied by beep/vibrate if
selected. (Fig. 13)
2. Social distance pop-up in KTSync showing your KDC serial number, the date & time of the violation,
the serial number of the other detected KDC, and the distance if using the host alert setting. (Fig. 14)
3. Social distance email showing your KDC serial number, the date & time of the violation, the serial
number of the other detected KDC, and the distance if using the enable email sending setting. (Fig. 15)
*Note: When reconnected, the KDC will send social distance data to the host device even if the same KDC is
found within distance.
*Note: Only one social distance data alert is sent to the host device when multiple KDC devices are detected if
social alert is already being displayed as a pop-up or email application is already launched.
< Fig. 13 > < Fig. 14 > < Fig. 15 >

KDC380 QG
Quick Guide
See Reference Manual for more detailed information.
Visit store.koamtac.com to purchase additional products and accessories.
QG_KDC380_20220624 p18
KOAMTAC devices and accessories are not designed or intended to prevent, mitigate, treat, diagnose, or cure
any disease or health condition, including COVID-19/Coronavirus. KOAMTAC devices and accessories are
intended for general public use only.
KOAMTAC devices and accessories are not medical devices and are not intended for use in any medical or
inherently infectious setting, or where exposure to bodily or hazardous fluids may be expected, or where the
risk of exposure through inhalation is high.
KOAMTAC DEVICES ARE PROVIDED AS-IS WITH ALL FAULTS, AND KOAMTAC SPECIFICALLY DISCLAIMS
ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING (WITHOUT LIMITATION) IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. KOAMTAC SPECIFICALLY DISCLAIMS
THAT KOAMTAC DEVICES WILL PREVENT INFECTION OR THE TRANSMISSION OF VIRUSES OR DISEASES.
KOAMTAC DEVICES ARE NOT A SUBSTITUTE FOR PROFESSIONAL MEDICAL ADVICE, DIAGNOSIS, OR
TREATMENT, AND ANY MEDICAL QUESTIONS SHOULD BE DIRECTED TO YOUR HEALTHCARE PROVIDER.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE SOCIAL DISTANCING FEATURE OF
THE PRODUCT IS WITH THE BUYER. SHOULD THE QUALITY OR PERFORMANCE OF THE SOCIAL
DISTANCING FEATURE OF ANY KOAMTAC PRODUCTS PROVE DEFICIENT FOLLOWING ITS PURCHASE,
THE BUYER ALONE, AND NOT THE MANUFACTURER, DISTRIBUTOR, OR RETAILER ASSUMES THE RISK OF
ANY INFECTION OR DISEASE TRANSMISSION THAT MAY RESULT DURING BUYER USAGE. KOAMTAC
ASSUMES NO LIABILITY FOR INACCURACIES OR MISSTATEMENTS BY THIRD-PARTY SELLERS.
