KOBE SBD370 User manual

COMBINATION BELT/DISC
SANDER 1 /
2 HP 370W
WARNING: THE SAFETY INFORMATION GIVEN INSIDE MUST BE READ AND UNDERSTOOD BY
ANY PERSON USING, INSTALLING, REPAIRING OR MAINTAINING THESE PRODUCTS.
OPERATOR’S MANUAL
Please retain this information for future reference.
ORDER CODE:
KBE-271-4140K
MODEL:
SBD370

SAFETY INSTRUCTIONS
You have purchased a quality product that is designed for high performance and long service life. If
correct use, safety and maintenance procedures are observed this machine will last for many years.
• Always adhere to the processes and safety
warnings, which are stated in the instruction
manual.
GENERAL OPERATING HAZARDS
• Always ensure the mains power supply
corresponds to the power rating on the
specification label on the machine.
• Always plug the battery charger into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes
and ordinances. Check with a qualified
electrician if you are in doubt as to whether the
outlet is properly grounded.
• Always ensure the maintenance of electrical
components is carried out by a suitably
qualified person.
• Never allow routine to lead to mistakes.
• Never operate if any parts are missing or
damaged.
• Never allow untrained persons to operate
the tool.
WORKPLACE HAZARDS
• Always ensure your working area is clean
and well lit.
• When working at height make sure that the
tool is safely secured and be aware of objects
falling below. Make sure that no persons are
working directly below the working area.
• Do not operate in explosive atmosphere, for
instance extreme dust, gases and liquids.
• Keep children and bystanders away while
operating the tool. Distractions can cause you
to lose control.
• Always ensure all users are physically able
and competent to handle the size and weight
of items/components being drilled and have
received appropriate training to per form
the task.
• Never run the tool in areas exposed to water
or in damp conditions.
PERSONAL PROTECTION
• Always wear approved eye protection during
operation. Use safety glasses or goggles
which conform to BSEN136 or CE equivalent
that provide protection from the front and side.
The operator of the power tool is responsible
for following accepted eye, face, respiratory,
hearing and body protection.
• Always ensure that all long hair and loose
clothing, ties, scarves, jeweller y, etc., are
secured or removed.
• Always consult a doctor if numbness, tingling,
pain or whitening of the skin occurs. Repetitive
work motions, awkward positions and exposure
to vibration can cause
“Repetitive Strain Injuries”.
• When operating the tool stay alert and use
common sense, especially when it comes to
working at height. Be aware of what’s
below you.
• Do not overreach. Keep a proper balance and
footing at all times.
• Remove any adjusting key or wrench before
turning the power tool on.
• If devices are provided for the collection of
dust, ensure these are connected and
properly used.
• Do not use the tool if under the influence of
alcohol, drugs or medication.
SPECIFIC SAFETY INSTRUCTIONS
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
• Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts,breakage of parts
and any other condition that may affect the
power tools operation. If damaged,have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
KOBE INDUSTRIAL POWER TOOLS have been specifically designed to help you work
SAFELY and EFFICIENTLY. Your care and good judgement are the best protection against injury, but
always ensure that the appropriate safety equipment is worn. All possible hazards cannot be covered here,
but the most important ones have been highlighted..
2
KOBE
INDUSTRIAL
POWER TOOLS

ELECTRICAL INFORMATION
SPECIFICATIONS
In the United Kingdom, the ELECTRICITY AT WORK ACT 1989 requires all por table electrical
appliances, if used on business premises, to be tested by a qualified electrician, using a Portable
Appliance Tester (PAT), at least once a year. The HEALTH & SAFETY AT WORK ACT 1974
makes owners of electrical appliances responsible for the safe condition of the appliance and the
safety of its operator. If in any doubt about electrical safety, contact a qualified electrician.
ELECTRICAL SAFETY
• An RCCB (Residual Current Circuit Breaker) should be fitted in the mains electricity distribution
board. If the power supply is not protected by an RCCB, it is highly recommended that an RCD
(Residual Current Device) is used with all portable electrical products.
• Do not use any adaptor plugs.
• Do not carry or yank the tool by the cord/hose.
• Never expose power tools to rain or wet conditions as this will increase the risk of electric shock.
• Use an outdoor extension cord when operating a power tool outside.
EXTENSION REELS
When a cable extension reel is used it should be fully unwound before being connected. Use at least
1.5mm2 section cable or to be absolutely sure use 2.5mm2 section cable.
3
KOBE
INDUSTRIAL
POWER TOOLS
KOBE
INDUSTRIAL
POWER TOOLS
MODEL NUMBER: ............................................................................................................. SBD370
MOTOR (Induction): ................................................................................... 230V AC, 50Hz, 370W
MOTOR SPEED (No load): .............................................................................................. 2850RPM
DISC SIZE (Diameter): ...................................................................................................... 150mm
DISC TYPE: ......................................................................... PSA type (Pressure sensitive adhesive)
BELT SIZE: ...............................................................................................................100 x 914mm
BELT SPEED: ............................................................................................. 580m/min (1900 SFM)
BELT TILT: .......................................................................................................................... 0 - 90°
WORK TABLE TILT: ............................................................................................................. 0 - 45°
SOUND PRESSURE (LPA): ................................................................................................ 79.9dBA
SOUND POWER (LWA): .................................................................................................... 91.1dBA
NET DIMENSIONS: ......................................... 285 - 620 (H) with belt vertical x 450(W) x 365(D)mm
NET WEIGHT: ..................................................................................................................... 18.6kg
Supplied with:
1 x 150mm P80 sanding disc
1 x 100 x 914mm A80 sanding belt

4
KOBE
INDUSTRIAL
POWER TOOLS
IDENTIFICATION
COMPONENTS
Drive belt
cover
Belt sanding
area
Sanding
stop
Drive drum
Belt tracking
adjustment knob
Idler drum
Belt tensioning
lever
Dust port
(not visible)
see
Fig.4c
Base
fixing
flange
NO VOLT
On/Off switch
Disc
sanding area
Sanding
table
Mitring
attachment
Table adjuster
(not visible)
see
Fig.4b
Fig. 1

UNPACKING/ASSEMBLY
5
KOBE
INDUSTRIAL
POWER TOOLS
Your sander has been shipped assembled with the exception
of the sanding disc, disc guard, mitre gauge, sanding stop, and
worktable. Carefully remove all par ts from the box.
Do not discard the packaging until the parts have been
checked against the list in Fig.2 and the sander has been fully
assembled and tested to make sure it is working correctly.
Unless you need to move the sander regularly it is always best
to securely mount it on a workbench using hexagon bolts,
washers and locking nuts (not supplied) to fix it using the holes
in the base mounting flanges.
ASSEMBLY
WARNING Always ensure the sander is
unplugged before attempting assembly, installation
or changing parts or accessories.
1. Remove the disc guard as shown in Fig.3.
2. Remove the backing paper from the sanding disc (10) and
carefully place centrally on the sanding plate, aligning with
edges and making sure it is pressed firmly into place all
over, leaving no loose edges.
3. Replace the disc guard as shown in Fig. 3.
4. Fix the worktable (2) to the support arm (3) using the
Hex. bolts and washers (4). Attach the work table assembly
to the main body of the sander by (a) placing the spigot
of the support arm into the hole in the body and (b) screw
the fixing screw into the threaded hole next to it to secure
it at the required angle a shown in Fig.4.
5. Attach the sanding stop (6) to the rear of the machine using
the M8 Hex, head cap screws (7) as shown in Fig.5. Loosely
attach with the minimum of clearance above the sanding
belt then tighten with the hexagon key supplied (8).
1. Sander
2. Work table
3. Work table support arm
4. M6 x 12 Hexagon bolts
& washers (3)
5. Work table fixing screw
6. Sanding stop
7. M8 x 16 Hexagon cap
screws (2)
8. M8 Hexagon key
9. Mitre Gauge
10. Sanding disc 150mm 80grit psa
type (pressure sensitive adhesive)
2.
3.
4.
5.
6.
7.
8.
9.
10.
Fig. 2
Fig. 3
Fig. 4
a
b
Fig. 5
1.
UNPACKING

OPERATING INSTRUCTIONS
6
KOBE
INDUSTRIAL
POWER TOOLS
WARNING Some dust created by power sanding contains chemicals that may cause
cancer, birth defects or other harm. Some examples of these chemicals are: lead from lead-
based paint, and arsenic and chromium from chemically treated timber.
DUST EXTRACTION
Sanding operations are inherently dusty. To reduce the amount of dust pervading the air,
the sander has a dust extraction port which is 57mm (21/4”) in diameter which can easily be
connected to a dust collection system. It is strongly recommended that users employ a dust
collection system when using this sander.
Use of a mask or respirator is still required even
when a dust collection system is in use.
ON/OFF SWITCH
The ON/OFF switch is situated bottom right on the front of the
machine. The buttons are marked with international convention
being green for on and red for off. The green “ON” button is
recessed into the switch making it difficult to accidentally switch
the machine on, whereas the red “OFF” button stands out from
the switch making it easy to locate and press should emergency
require it.
NO VOLT RELEASE SWITCH
In the event of a power failure, the NO VOLT RELEASE SWITCH
automatically reverts to the OFF position. This eliminates
accidental start up of the machine when mains power is restored.
BELT SANDING – HORIZONTAL or VERTICAL
This sander can be used in vertical or horizontal mode.
To change the position of the belt sanding bed:
1. Using the Hexagon Key supplied, loosen the 6m cap screw
which clamps the drive mechanism as shown in Fig.17.
2. Raise the belt sanding bed as shown in Fig. 18.
3. With the belt sanding bed in the vertical position as shown
in Fig.19, tighten the cap screw in order to lock the bed in
place as shown in Fig 20.
Note: When sanding long workpieces, with the belt in the vertical
position, place the workpiece on the sanding stop and work
evenly across the belt. Fig. 21
Fig. 17
Fig. 18
Fig. 19
Fig. 20

OPERATING INSTRUCTIONS
7
KOBE
INDUSTRIAL
POWER TOOLS
BELT SANDING – HORIZONTAL
When sanding flat, broad sur faces on the belt sander, hold
the workpiece firmly but lightly onto the surface of the belt
and against the sanding stop, Fig.22 keeping fingers away
from the belt. Apply only enough pressure to remove material
from the workpiece. Too much pressure will cause undue
load on the machine’s motor, create heat on the bed and
shorten the lifeof the belt.
Note: Use extra caution when sanding very thin pieces and
when sanding long pieces, remove the sanding stop.
BELT SANDING – CURVED PIECES
When sanding inside curves on the belt sander, always sand
on the idler drum (right hand) end of the bed Fig.23. Hold the
workpiece firmly, keeping fingers away from the sanding belt.
Keep the curve pressed firmly against the idler drum, moving
the work evenly back and forth across the drum.
DISC SANDING – CURVED PIECES
When sanding outside curves on the disc sander, remove
the mitre gauge and work with the workpiece flat on the
table. The point of contact between the disc and the
workpiece should always be on the left hand side of the
disc so that it is in the downward motion, decreasing the
chance of wood splintering away from the main body of the
workpiece.
DISC SANDING – MITRED ANGLES
To sand mitred angles on the disc sander, set the mitre
gauge to the required angle (up to 60°to the left or right)
and tighten the locking knob as shown in Fig.24.
DISC SANDING – COMPOUND MITRES
A compound angle can be achieved by setting the angle
of the work table to the horizontal plane first (up to 45°to
the horizontal) and then setting the angle of the mitre gauge
(up to 60°to the left or right) to the disc as shown in Fig.25.
DISC SANDING – SMALL END GRAINS
Use of the sliding mitre gauge is recommended for sanding
small end grain surfaces on the sanding disc.
Note: Always move the workpiece across the sanding disc
from left to right holding the workpiece tightly onto the
surface of the work table.
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25

CHANGING CONSUMABLES
8
KOBE
INDUSTRIAL
POWER TOOLS
WARNING Always ensure the sander is unplugged before attempting assembly,
installation or changing parts or accessories.

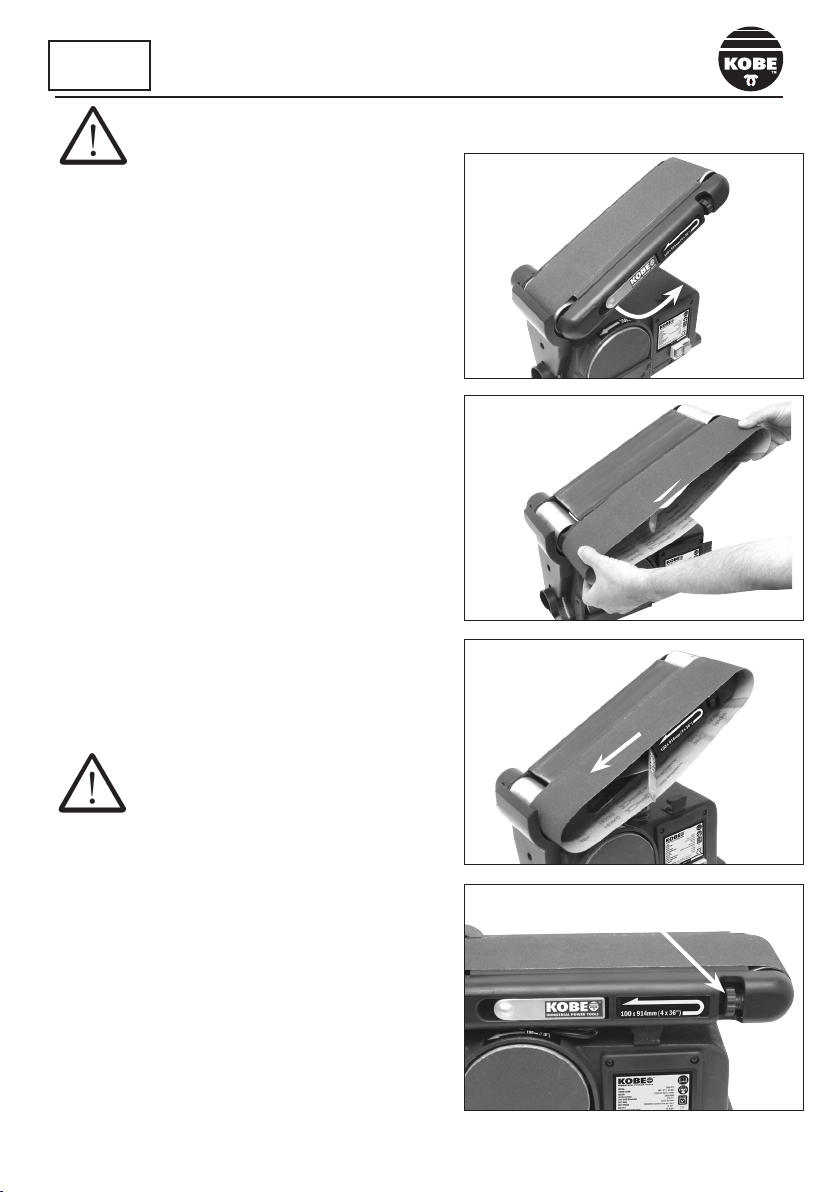

SANDING BELT
The belt will wear at different rates depending on the
type of material being sanded and the pressure being
applied to the workpiece.
1. Slide the tensioner to the right to release belt tension
as in Fig. 6.
2. Remove the worn belt from the drive mechanism as
shown in Fig. 7, taking note of the direction of travel
of the belt (towards the left hand end of the machine
denoted by the dust extraction port).
3. Place the new belt in position over the drums as
shown in Fig.8, with the edge of the belt aligned with
the rear of the drums then release the tensioner to
grip the belt.
4. Before using, check the tracking as described in
“Belt Tracking“ and adjust as necessar y.
BELT TRACKING
The belt-tracking adjustment is set at the factory so that
the abrasive belt will run true on the drums. If however,
the belt should track to one side or the other, an
adjustment can be made by turning the tracking knob,
which is located on the top right hand side of the front of
the machine Fig. 9. Turn the knob clockwise to make the
belt track onto the back of the machine or anti clockwise
to track towards the front of the machine.
WARNING Be careful if turning anti
clockwise as this could make the belt
track off the side of the machine and
possibly cause personal injury.
To properly track the sanding belt:
1. Plug in the sander.
2. Turn the power switch on and then off, taking note of
whether the belt moves in its track to one side or the
other or stays with it’s edge against the rear of the
drums.
3. If it does not move then the tracking is set correctly.
4. If the belt moves towards the front of the machine,
turn the tracking knob clockwise a 1/4turn.
5. Turn the power switch on and then off again, taking
note of any belt movement.
6. Readjust the tracking knob another 1/4turn, as
necessary.
Fig. 6
Fig. 8
Fig. 7
Fig. 9

CHANGING CONSUMABLES
9
KOBE
INDUSTRIAL
POWER TOOLS
SANDING DISC Note: Hook and loop sanding discs cannot be used with this machine.
Follow steps 1 to 8, Figs.10-16
1. Remove the mitre gauge, work table & disc guard.
2. Remove the self adhesive sanding disc from the plate.
3. Clean off any adhesive remaining on the plate with
a suitable cleaning spirit.
4. Spread your thumb and middle finger on the edge
of the plate as a guide for placing the disc.
5. Carefully align the edge of the disc with the edge
of the plate before pressing it firmly in place.
6. Refit the disc guard
7. Refit the Work table, making sure the gap between
the table and disc is no more than 1.6mm when
horizontal.
8. Replace the mitre gauge. Fig. 10
Fig. 14
Fig. 12
Fig. 16
Fig. 13
Fig. 11
Fig. 15

TROUBLESHOOTING
10
FAULT
Sanding grains easily rub off
belt/disc.
Deep sanding grooves or
scars in the workpiece.
Sanding surface clogs
quickly.
Burns on workpiece
Motor will not start.
Motor will not start – fuses
or circuit breaker tripping or
blowing.
Motor overheats
Motor stalls (resulting in
blown fuses or tripped
circuit breaker)
Machine slows when
operating.
Machine vibrates
excessively.
Workpiece frequently gets
pulled out of operator’s
hands.
Workpiece lifts up from the
sanding disc/table.
POSSIBLE CAUSE
1. Incorrect storage.
2. Belt/disc has been damaged
or folded.
1. Sanding Belt grit is too
coarse.
2. Workpiece has been sanded
across the grain.
3. Too much force applied to
the workpiece.
4. Workpiece held against the
belt/disc for too long.
1. Too much pressure against
the belt/disc.
2. Sanding softwood.
1. Using a sanding grit that is
too fine.
2. Using too much pressure
3. Work held still for too long.
1. Low voltage.
2. Open circuit in motor or
loose connections.
3. Blown fuse or breaker.
1. Short circuit in line, cord or
plug.
2. Short circuit in motor or
loose connections.
3. Incorrect fuses or circuit
breakers in power line.
1. Motor overloaded.
2. Extension cord too long and
or insufficient gauge (weight)
1. Short circuit in motor or
loose connections.
2. Low voltage.
3. Incorrect fuses or circuit
breakers in power line.
4. Motor overloaded
1. Feed rate too great.
2. Undersized circuit or use of
undersized extension cord.
1. Incorrect motor mounting.
2. Incorrect sanding belt tension.
3. Weak or broken tension
spring.
4. Idler roller is too loose.
5. Broken/defective sanding
accessories.
1. Not supporting the workpiece
against the stop.
2. Attempting to sand (unaided)
a workpiece that is too small
1. Sanding on the “up” side of
the wheel.
SOLUTION
1. Store away from extreme heat/dry temperature.
2. Store flat – do not bend or fold.
1. Use a finer grit sanding accessory.
2. Sand with the grain of the wood.
3. Reduce pressure on workpiece.
4. Keep workpiece moving while sanding on the sanding
accessory.
1. Reduce pressure on workpiece while sanding.
2. Use different stock, different sanding accessories, or
accept that this will happen and plan on cleaning and
replacing belts/discs frequently.
1. Use a coarser grit sanding accessory
2. Reduce pressure on workpiece while sanding.
3. Do not keep workpiece in one place for too long.
1. Check power source for proper voltage.
2. Inspect all lead connections on motor for loose or
open connections.
3. Improper match between tool and circuit, fuse or breaker.
1. Inspect cord or plug for damaged insulation and
shorted wires.
2. Inspect all connections on motor for loose or shorted
terminals and/or worn insulation.
3. Install correct fuses or circuit breakers or switch tool
to an appropriately sized circuit.
1. Reduce load on motor (pressure on object being sanded)
2. Use an extension of the appropriate gauge and
length or plug tool directly into socket outlet.
1. Inspect connections on motor for loose or shorted
terminals or worn insulations.
2. Correct low voltage conditions for example improper
extension cord length or gauge.
3. Install correct fuses or circuit breakers or plug into
an appropriate circuit, matched to an appropriate
circuit breaker.
4. Reduce the load on the motor.
1. Reduce the rate at which the workpiece is fed into
the working area of the tool.
2. Ensure circuit wires or extension cords are proper
gauge, or eliminate use of extension cords.
1. Have motor mountings inspected by a service
technician.
2. Adjust tension adjustment knob. Follow belt
tensioning/tracking instructions in this manual.
3. Have tension spring replaced by ser vice technician.
4. Have service technician adjust idler drum.
5. Replace sanding belt/disc.
1. Use the platen (back stop) or mitre gauge to suppor t
the workpiece.
2. Use another hand tool or jig to grasp or hold the
workpiece.
1. Sand on right side of sanding disc (as operator faces
the disc).
Repairs must be performed in a dir t-free environment by a qualified person who is familiar
with this type of equipment.

SERVICE & REPAIR
11
THE ENVIRONMENT
Always dispose of unwanted tools, accessories and packaging materials in an environmentally
friendly manner.
A comprehensive repair and
service facility is available
through your local Kobe agent for
all your electric tools.
This sander requires little
maintenance other than clean or
vacuum dust any from around the
motor housing, extraction port
and other sander parts.
Dress sanding surfaces and replace discs/belts as required - a worn belt or disc leads to inefficiency and
extra wear on the machine due to increased pressure required to do the job.
For EU and EEA countries only.
In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE) and its implementation in accordance with national law, electrical goods that have reached
the end of their life must be collected separately and returned to an environmentally compatible
recycling facility.
Do not dispose of electrical goods with domestic waste materials as inappropriate disposal may
cause potential hazards to the environment and human health.
For further information, please contact your local authority or the retailer from whom you purchased
the product.
This product does not contain any restricted substances in concentrations and applications which
are banned by the European RoHS Directive.

THE ENVIRONMENT
DECLARATION OF CONFORMITY
We hereby certify that Combination Belt/Disc Sander
(ORDER CODE: KBE-271-4140K)
complies with all the relevant provisions of the
EMC Electromagnetic Compatibility Directive 2014/30/EC
Standards Applied:
EN55014-1:2006+A1+A2, EN55014-1:2017, EN55014-2:1997+A1+A2,
EN55014-2:2015, EN6100-3-2:2014, EN61000-3-3:2013
Signed:
Date: 1st February 2018
Name: Keith Read
Position: HSQE Manager
QUALITY GUARANTEE & WARRANTY
KOBE INDUSTRIAL POWER TOOLS carry a one year manufacturer’s warranty.
KOBE INDUSTRIAL POWER TOOLS are designed & manufactured
to the highest standards & specifications
Assuring the quality and performance required by all sectors of industry.
KOBE INDUSTRIAL POWER TOOLS are fully guaranteed against
faulty materials & workmanship.
Should they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
Please retain supplier invoice as proof of purchase.
THE KENNEDY GROUP, WIGSTON. LEICESTER, ENGLAND. LE18 2FS
© The Kennedy Group Ltd. 02/18
KOBE TOOLS
THE KENNEDY GROUP LTD, WIGSTON,
ENGLAND, LE18 2FS
Always dispose of unwanted tools, accessories and packaging materials in an
environmentally friendly manner.
In observance of European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE) and its implementation in accordance with national law, electrical goods
that have reached the end of their life must be collected separately and returned to an
environmentally compatible recycling facility.
Do not dispose of electrical goods with domestic waste materials as inappropriate disposal
may cause potential hazards to the environment and human health.
For further information, please contact your local authority or the retailer from whom you
purchased the product.
This product does not contain any restricted substances in concentrations and applications
which are banned by the European RoHS2 Directive.
KOBE
INDUSTRIAL
POWER TOOLS
