KOBE Brillia RAX2130SQB-1 Troubleshooting guide

KOBE Range Hoods
Brillia Series
Model No.
Under Cabinet: RAX2130SQB-1 (30”)
RAX2136SQB-1 (36”)
RAX2142SQB-1 (42”)
Wall M unt: RAX2130SQB-WM-1 (30”)
RAX2136SQB-WM-1 (36”)
RAX2142SQB-WM-1 (42”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[email protected] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1
COMPONENTS OF PACKAGE.................................................................................................. 3
INSTALLATION.......................................................................................................................... 5
OPERATING INSTRUCTIONS..................................................................................................11
MAINTENANCE........................................................................................................................12
SPECIFICATIONS....................................................................................................................13
MEASUREMENTS & DIAGRAMS.............................................................................................14
PARTS LIST..............................................................................................................................16
CIRCUIT DIAGRAM..................................................................................................................20
TROUBLE SHOOTING.............................................................................................................21
WARRANTY .............................................................................................................................22
WARRANTY INFORMATION FORM.........................................................................................24
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W I RI NG MUST B E DO NE BY A PRO FESSIONAL AND IN
ACCORDANCE W I TH NATIONAL AND LOCAL ELECTRICAL CODES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
For Under Cabinet Application
Model No.: RAX2130SQB-1 (30”)
RAX2136SQB-1 (36”)
RAX2142SQB-1 (42”)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Baffle Filter x 2 (30” hood)
x 3 (36” & 42” hood)
{E} 6” Round Plastic Collar
{F} Wire Cap x 3
{G} Screws Package
{A}
{B}
{C}
{D}
Knob is attached to baffle filter
{E}
* Pre-installed
{F}
{G}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Wire caps (3)
M4 x 1-1/2” (4)

4
(Must keep all material for returns or refunds)
For Wall Mounted Application
Model No.: RAX2130SQB-WM-1 (30”)
RAX2136SQB-WM-1 (36”)
RAX2142SQB-WM-1 (42”)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Baffle Filter x 2 (30” hood)
x 3 (36” & 42” hood)
{E} 6” Round Plastic Collar
{F} Duct cover Mounting Bracket
{G} Adjustable Duct Cover
{H} Screws Package
{I} Wire Cap x 3
{J} Screws Package
{A}
{B}
{C}
{D}
Knob is attached to
baffle filter
{E}
* Pre-installed
{F}
{G}
{H}
{I}
{J}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
3/16
“
x 3/8
”
(8PCS)
Wire caps (3)
M4 x 1-1/2” (4)

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

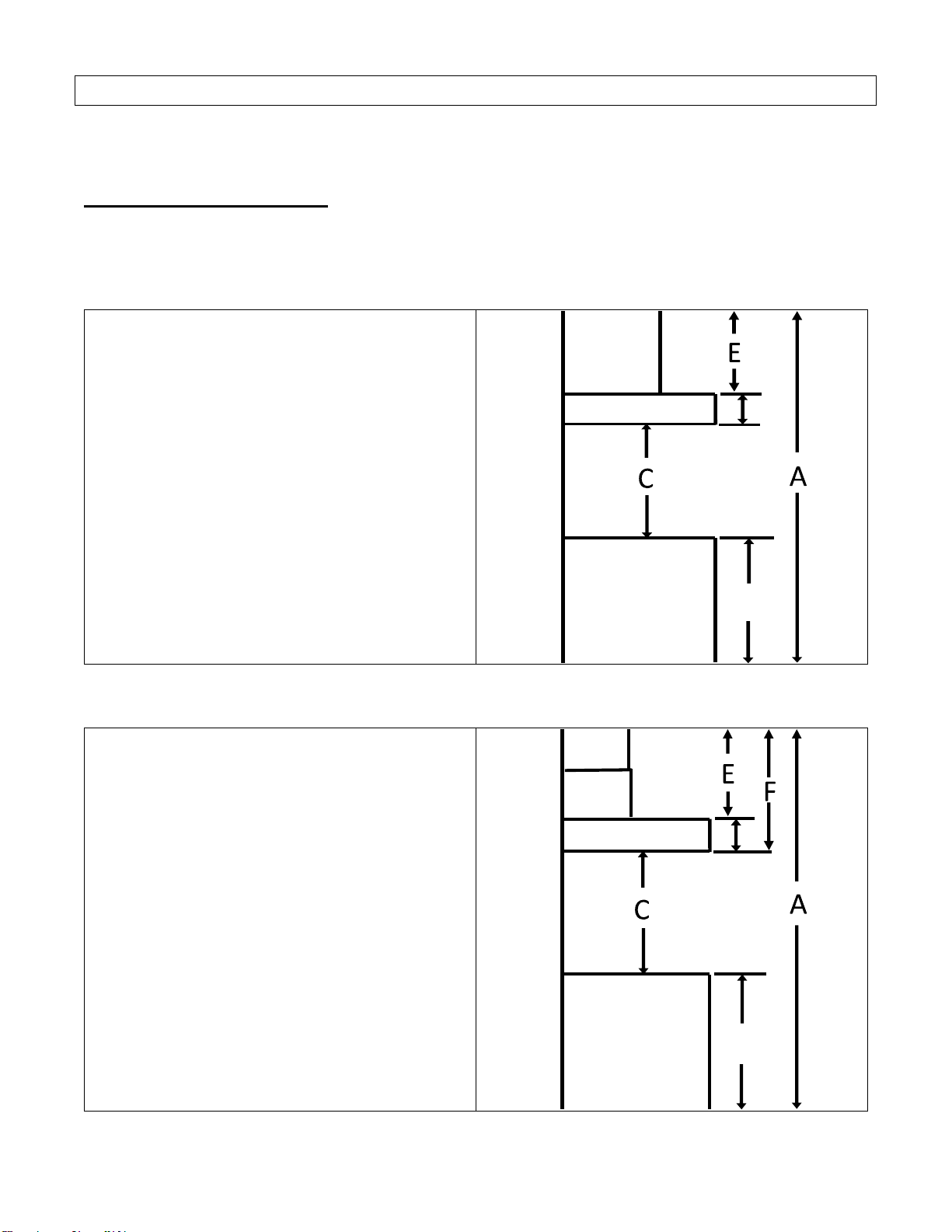

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1

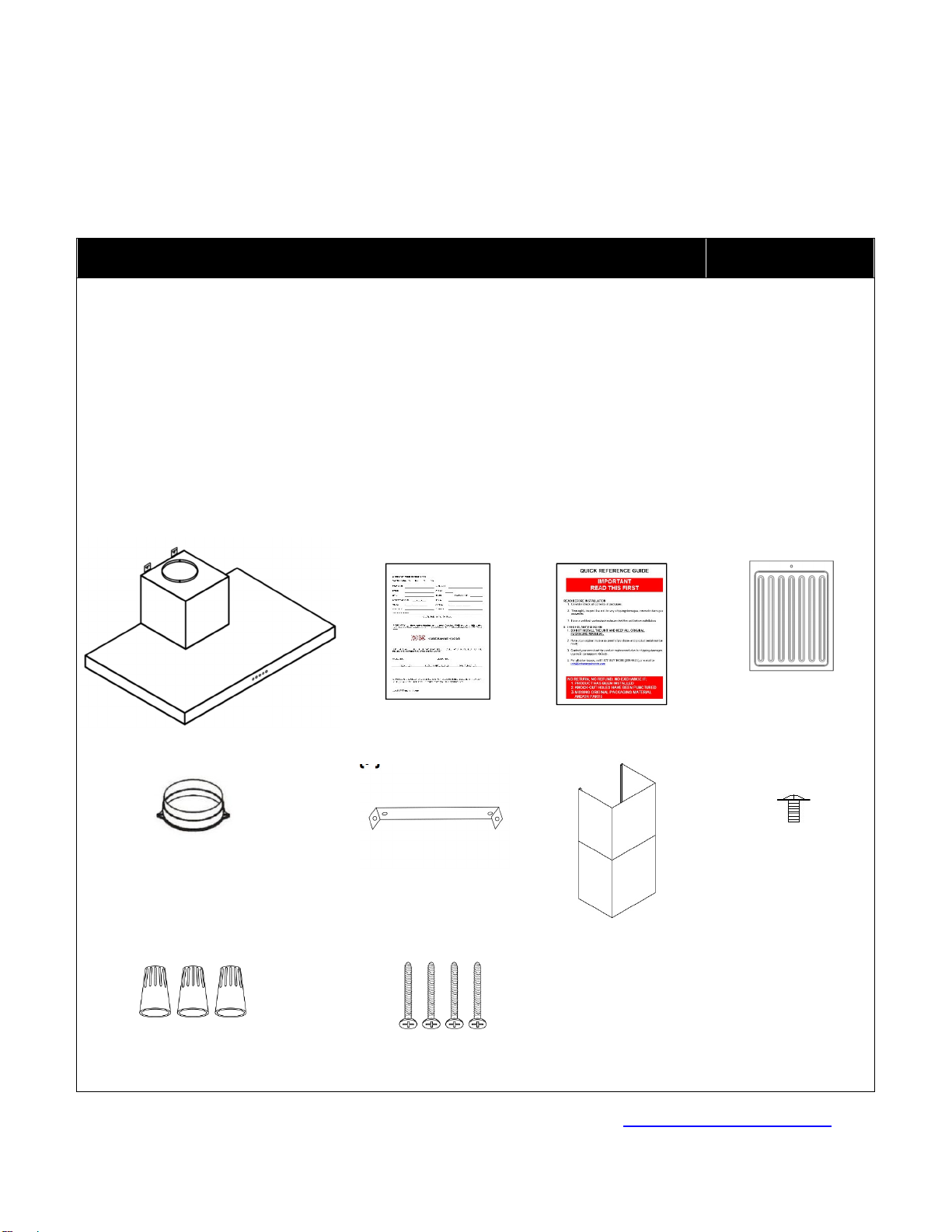

A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26"to 30")
D = Height of Hood
E = Height of the Cabinet
- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26"to 30")
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]
D
B
Cabinet
Hood
D
B
Hood

6
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
OCCUR.
Installation Contents
UNDER CABINET
WALL MOUNT
7
9

7
UNDER CABINET INSTALLATION
For Model No.: RAX2130SQB-1 / RAX2136SQB-1 / RAX2142SQB-1
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from the hood
to the outside. (Figure 1)
- A straight, short vent run will allow the hood to perform
more efficiently.
- Try to avoid as many transitions, elbows, and long run
as possible. This may reduce the performance of the
hood.
- Temporarily wire the hood to test for proper operation
before installing. If the hood does not operate,
check the circuit breaker or house fuse. If the
hood is still not working, disconnect power supply
and check the continuity of all wire connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal joints between pipe sections.
- Make sure the cabinet has full access opening for the
hood as shown on Figure 2.
- Using reference on Page 14 to measure and create
access opening for electrical wires and exhaust under
the cabinet.
Hood I
nstallation
CAUTION: USE HAND TOOLS ONLY. DO NOT
OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE
TO THE HOOD.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF
THE GAS BEFORE MOVING A GAS RANGE. And use
a protective covering to protect cooktop and/or
countertop from damage.

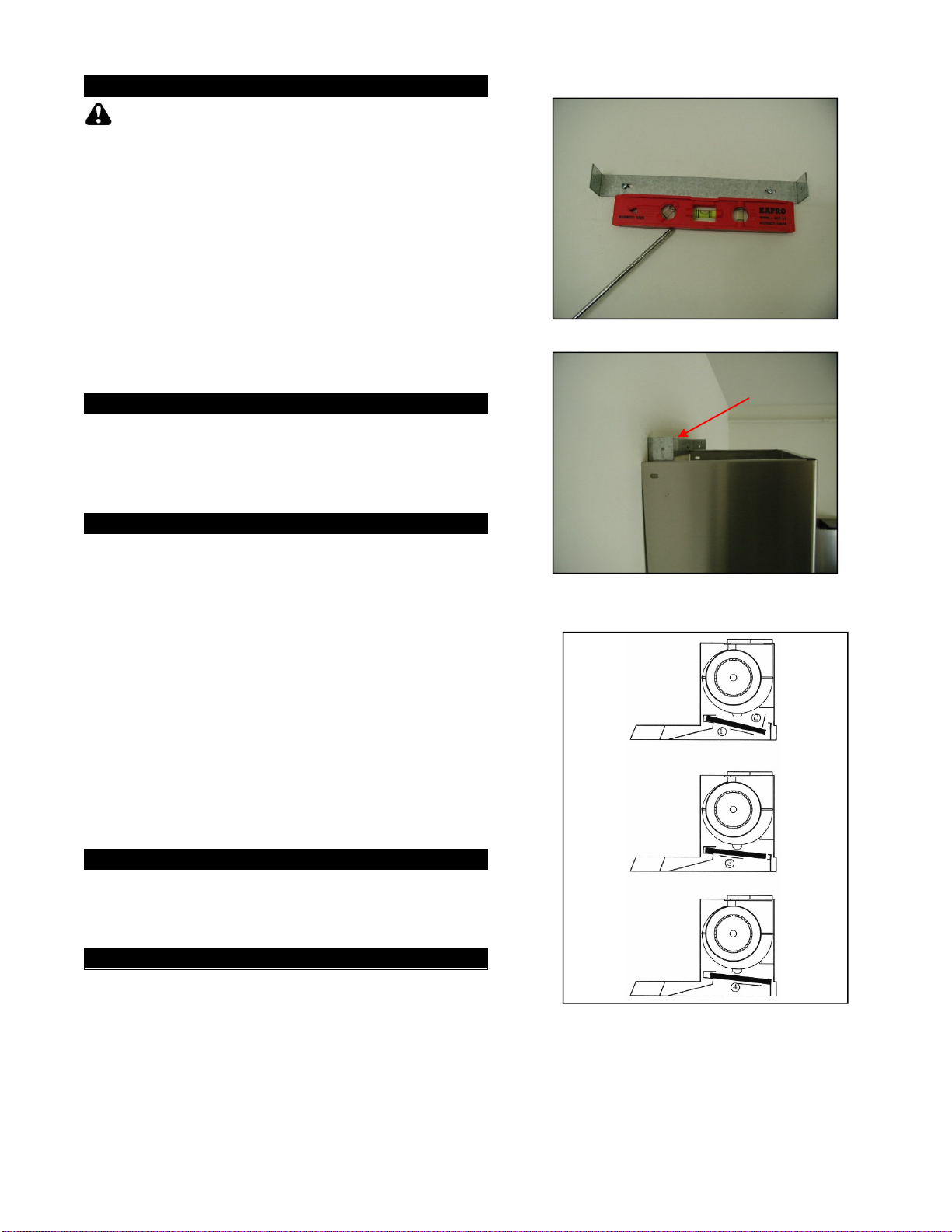

1. Using references on Table 1 and measurements on
page 15 mark the leveling point for hood-mounting
bracket inside the cabinet.
2. Secure two hood mounting screws (provided) inside
the cabinet leaving 1/8” away from the cabinet as
shown on Figure 3.
3. Optional step for adjusting hood-mounting bracket
height:
- Loosen hood-mounting brackets at the back of the
hood, adjust brackets and tighten screws as
shown in Figure 4.
4. Refer to Figure 5. Align hood-mounting bracket to the
mounting screws inside the cabinet and hook hood
into place. Secure and tighten the mounting screws.
CAUTION: MAKE SURE THE HOOD IS SECURE
BEFORE RELEASING.
Figure 1
Figure 2
Figure 3
Figure 4

8
Ductwork Installation
5. Use steel pipe to connect the 6” round plastic collar
{E} on the hood to the ductwork above. Use duct
tape to make all joints secure and air tight. Refer to
Figure 6
Wiring to Power Supply
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.
- If hood is operating normally, connect three wires
(black, white and green) to house wires and cap
with wire connectors.
- Store wires in the wiring box.
Install
/ Uninstall
Accessories
6. Place baffle filters underneath the hood. (Figure 7)
Final Assembly
7. Turn power ON in control panel. Check all lights and
fan operation.
8. Leave this Installation Instructions and Operation
Manual for the homeowner.
Figure 5
Figure 6
Figure 7

9
WALL MOUNT INSTALLATION
For Model No.: RAX2130SQB-WM-1 / RAX2136SQB-WM-1 / RAX2142SQB-WM-1
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 8.
- A straight, short venting run will allow the hood to
perform more efficiently.
- Try to avoid as many transitions, elbows, and long
run as possible. This may reduce the performance
of the hood.
- Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuitbreaker or house fuse.
If the hood is still not working,disconnect power
supply and check the continuity of all wire
connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal the joints between pipe
sections.
- If necessary, prepare back wall frame with cross
framing lumber for secure installation. Using
references on Table 2 and measurements on page
14-15, decide the level of the lumber. Refer to
Figure 9.
Hood Installation
CAUTION: USE HAND TOOLS ONLY. DO NOT
OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE
TO THE HOOD.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
And use a protective covering to protect cooktop
and/or countertop from damage.
1. Using references on Table 2 and measurements
on page 14-15, mark the leveling point of the hood.
Position mounting screws (provided) on the wall,
leaving 1/8” away from the wall as shown in Figure
10.
2. Optional step for adjusting hood-mounting bracket
height:
- Loosen hood-mounting brackets at the back of
the hood, adjust brackets and tighten screws
as shown in Figure 11.
3. Align Hood-Mounting Bracket to the two screws on
the wall and hook hood into place. Tighten screws
to secure hood to the wall.
CAUTION: MAKE SURE THE HOOD IS SECURE
BEFORE RELEASING.
Figure 8
Figure 9
Figure 10
Figure 11
Mounting Screws

10
Wiring to
Power Supply
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE
WITH ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
- If hood is operating normally, connect three
wires (black, white and green) to house wires
and cap with wire connectors.
- Store wires in the wiring box.
Ductwork Installation
4. Use steel pipe to connect the exhaust on the
hood to the ductwork. Use duct tape to make all
joints secure and air tight.
Duct Cover Installation
5. Mark the position of the Duct Cover-Mounting
Bracket {F}. Use reference Efrom Table 2 and
measurements on page 14-15. Attach and
secure Duct Cover-Mounting Bracket {F} with
two screws (provided). Refer to Figure 12.
NOTE: Inner duct cover will cover the Duct
Cover-Mounting Bracket.
6. Remove the Baffle Filters. Position the entire
duct cover up onto the hood and secure with six
(3/16” x 3/8”) screws {H} from inside the hood
towards the outer duct cover.
7. Secure the inner duct cover with two (3/16” x
3/8”) screws {H} to the Duct Cover-Mounting
Bracket {F}. Shown in Figure 13.
Install / Uninstall
Accessories
8. Place baffle filters underneath the hood. (Figure
14)
Final Assembly
9. Turn power ON in control panel. Check all lights
and fan operation.
10. Leave this Installation Instructions and Operation
Manual for the homeowner.
Figure 12
Figure 13
Figure 14
Attach Together

11
OPERATING INSTRUCTIONS
Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while
cooking. Adjust speed as needed.
To operate the fan function
•Press button to choose from speed.
oQ = QuietMode™ speed
oL = Low speed
oH = High speed
•Press “OFF” to turn fan off.
To operate the light function
•Press the Light Control to turn lights on and off.

12
MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allowsalt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO
PREVENT OVERFLOW.
1. Remove all the baffle filters, spacers and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES
(Note: Baffle Filters are top rack dishwasher safe.)

13
SPECIFICATIONS
MODEL
/
SIZE
For Under Cabinet Application For Wall Mount Application
RAX2130SQB-1 (30”) RAX2130SQB-WM-1 (30”)
RAX2136SQB-1 (36”) RAX2136SQB-WM-1 (36”)
RAX2142SQB-1 (42”) RAX2142SQB-WM-1 (42”)
COLOR
18-Gauge Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
300W / 2.5A
NUMBER OF
BLOWER
1
DESIGN
Seamless / Satin Finish
BLOWER
TYPE
Single Horizontal Squirrel Cage
EXHAUST
Top 6
"
Round
CONTROLS
3-Speed Mechanical Push Control
LIGHTS
3-Watt LED light x 2
HOOD
DIMENSION
(W x D x H)
RA
X21
30SQB
-
1 and
RA
X21
30SQB
-
WM
-
1
29-3/4” x 20” x 12-3/16”
RAX2136SQB-1 and RAX2136SQB-WM-1 35-3/4” x 20” x 12-3/16”
RAX2142SQB-1 and RAX2142SQB-WM-1 41-3/4” x 20” x 12-3/16”
OPTIONAL ACCESSORIES
(W x D x H) 1) 30
"
Stainless Steel Back Panel
SSP30 (30"x 1/10"x 32")
2) 36"Stainless Steel Back Panel
SSP36 (36"x 1/10"x 32")
WEIGHT (lbs) Net Gross
RAX2130SQB-1 (30”) 33.0 42.0
RAX2136SQB-1 (36”)
RAX2142SQB-1 (42”) 35.5 37.5 44.0 48.5
RAX2130SQB-WM-1 (30”) 40.0 48.5
RAX2136SQB-WM-1 (36”)
RAX2142SQB-WM-1 (42”) 42.0 44.0 51.0 55.0
SPEED
QuietMode™ Low High
Air Capacity (cfm)
300 440 750
Sone* (dB)
1.0 2.2 5.6
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

14
MEASUREMENTS & DIAGRAMS
*** All inch measurements are converted from millimeters. Inch measurements are estimated.
*** All measurements in ( ) are millimeters.
-FOR UNDER THE CABINET-
MODEL NO.:
RA
X21
30SQB
-
1 (30”) / RA
X21
36SQB
-
1 (36”)
/ RAX2142SQB
-
1 (42”)
- FOR WALL MOUNT -
MODEL NO.:
RA
X21
30SQB
-
WM
-
1 (30”) / RA
X21
36SQB
-
WM
-
1 (36”)
/ RAX2142SQB
-
WM
-
1 (42”)

15
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket

16
PARTS LIST
MODEL NO.:
RA
X21
30SQB
-
1 (30”)
RAX2136SQB-1 (36”)
RAX2142SQB-1 (42”)
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
6” Round Plastic Exhaust L1-0505-0003
2
Capacitor x 1 pc L1-0401-0120-24
3
LED Light Driver L1-0402-D001
4 LED Light Support
RAX2130SQB-1 B101-2130B-06
RAX2136SQB-1 B101-2136B-06
RAX2142SQB-1 B101-2142B-06
5
LED Light (3W) L1-0403-0301
6
Control Switch L1-0405-0301
7
Blower system L1-0302-0120-802RO
8
Baffle Filter L1-0214-0122

17
MODEL NO.:
RAX2130SQB
-
1
(30”)
RAX2136SQB-1 (36”)
RAX2142SQB-1 (42”)
