KOBE IN2730SF-1 Troubleshooting guide

KOBE Brand Range Hood
Model No. / Nos de modèles / Modelo No. IN2730SF-1
IN-027 SERIES
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH] ......................................................................................................................2
[FRENCH].....................................................................................................................25
[SPANISH] ....................................................................................................................46

1
READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original proof of purchase and product serial
number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR
PARTS
IMPORTANT
READ THIS
FIRST

2
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................................................... 3
COMPONENTS OF PACKAGE................................................................................................. 5
INSTALLATION......................................................................................................................... 6
OPERATING INSTRUCTIONS................................................................................................ 10
MAINTENANCE ...................................................................................................................... 11
SPECIFICATIONS................................................................................................................... 13
MEASUREMENTS & DIAGRAMS........................................................................................... 14
PARTS LIST............................................................................................................................ 16
CIRCUIT DIAGRAM ................................................................................................................ 18
TROUBLE SHOOTING............................................................................................................ 19
WARRANTY............................................................................................................................ 20
PRODUCT REGISTRATION................................................................................................... 22
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W IRING MUST B E DO NE B Y A PROFESSI O NAL AN D I N
ACCORDAN CE W ITH NATI O NAL A ND LO CAL ELE C TRICAL CO DES

3
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
- Always turn hood ON when cooking.
- Use high settings on cooking range ONLY when necessary.
- Do not leave cooking range unattended when cooking.
- Always use cookware and utensils appropriate for the type and amount of food prepared.
- Use this unit only in the manner intended by the manufacturer.
- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
- Clean ventilating fan frequently.

4
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UP A BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch on may cause ignition or an explosion.
5. Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

5
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Range Hood Box
Liner (Sold Separately)
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Instruction Manual
{D} Aluminum Filter –2
{E} Exhaust Plate –1
{A}
{B} {C}
{D} {E}
{F} Liner

6
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame
Bottom (Recommended 27"to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

7
- For Insert installation -
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT
DEBRIS FROM ENTERING THE VENT OPENING.

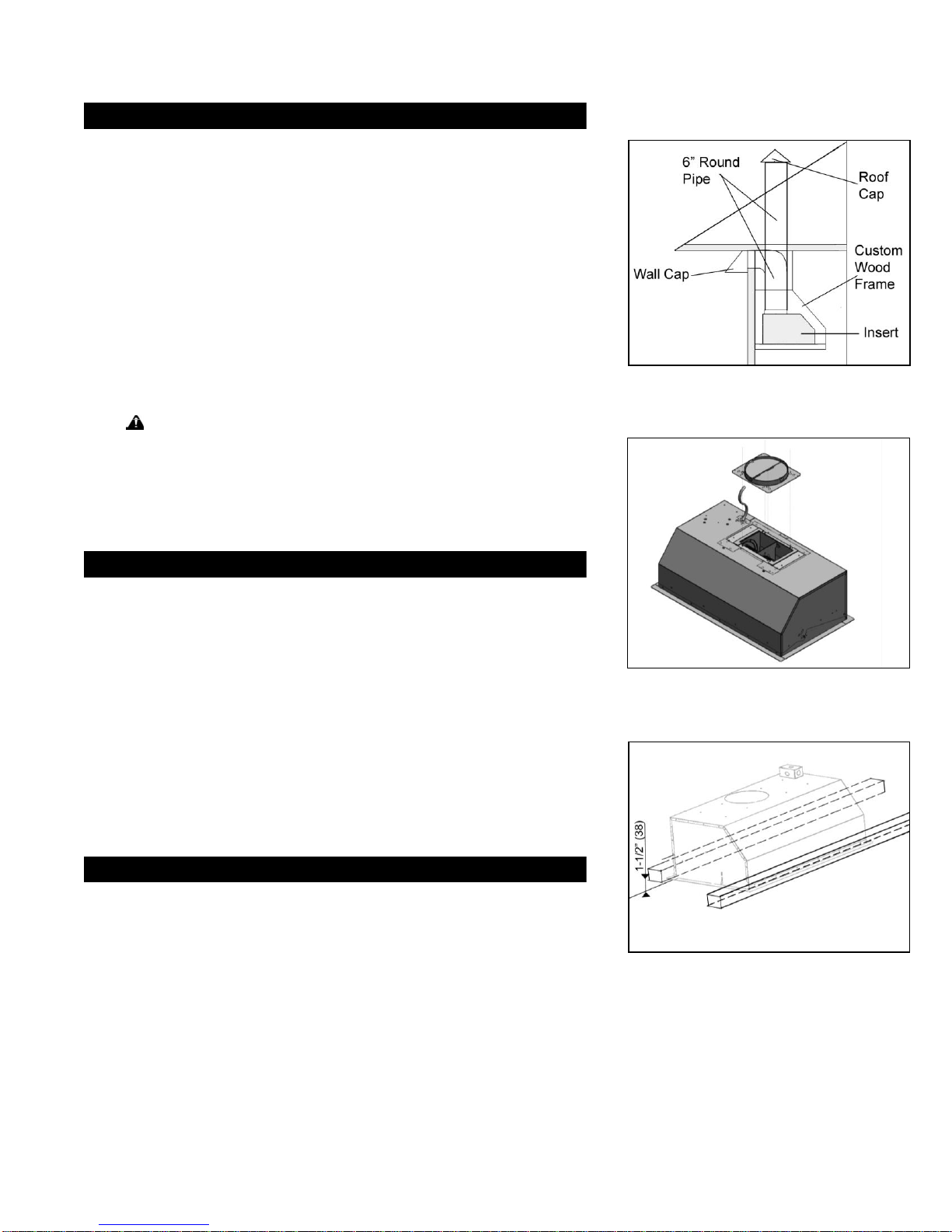

Decide the location of the venting pipe from the hood to
the outside. Refer to Figure 1.
A straight, short vent run will allow the hood to perform
more efficiently.
Try to avoid as many transitions, elbows, and long run
as possible. This may reduce the performance of the
hood.
Temporarily wire the hood to test for proper operation
before installing.
Important: Peel protective film off the hood, if any.
Use duct tape to seal joints between pipe sections.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF
THE GAS BEFORE MOVING A GAS RANGE. And use a
protective covering to protect cooktop and/or
countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be sized to shape and the

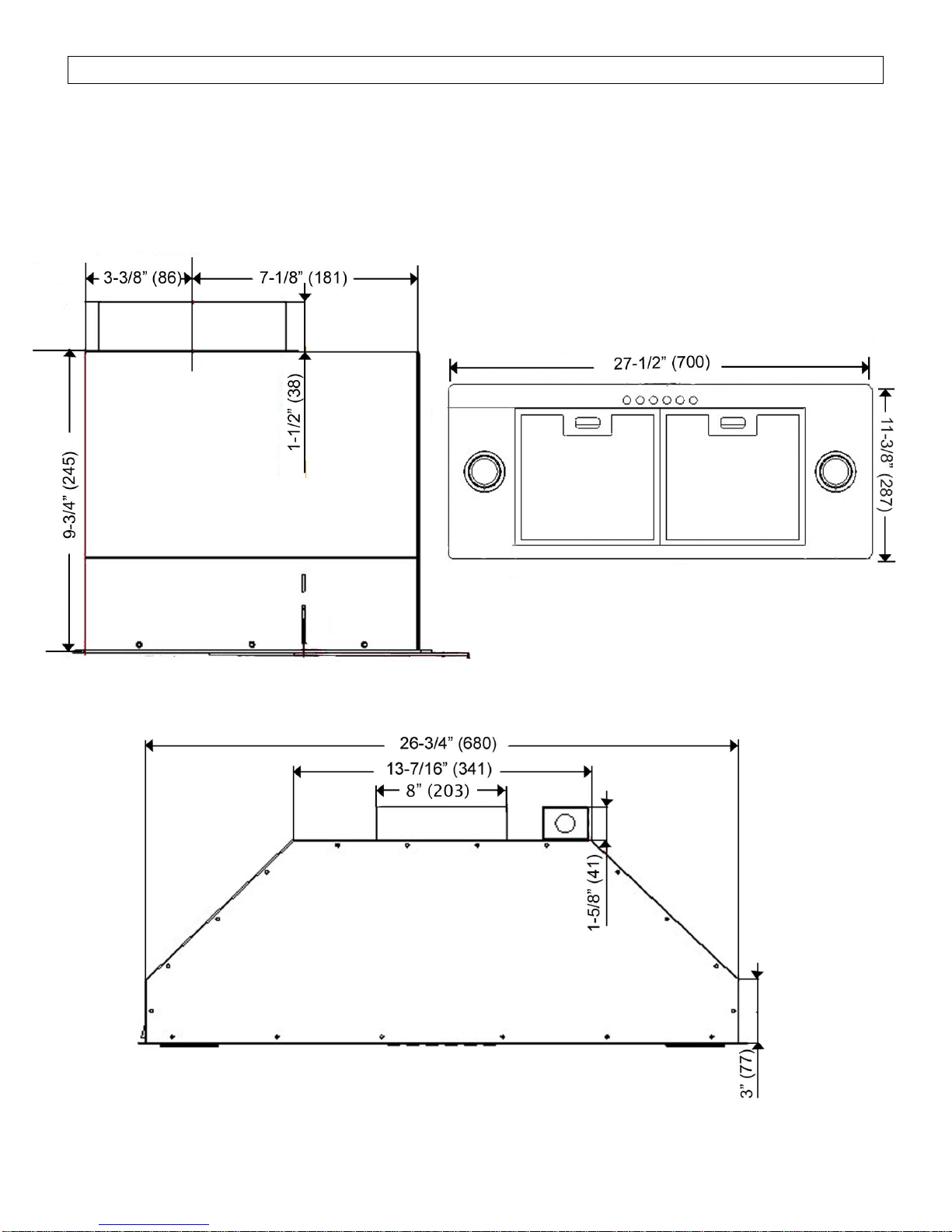

weight of the insert. Refer to Measurements and
Diagrams on Page 13.
2. Install the Exhaust Plate using 4 screws. Refer to
Figure 2.
3. It must have a sturdy base (1/2 inch thick plywood
recommended) to sustain the weight of insert.
4. If an optional liner will be installed, the side of the wood
cabinet must be sturdy (1/2 inch thick plywood
recommended).
5. It is recommended to install a rear and front stud
support. Refer to Figure 3. The stud supports are
located 1-1/2” up from the base of the wood frame.
Liner Installation
6. The custom/wood hood must have a sturdy base to
accommodate the cut-out for the inset. The base must be

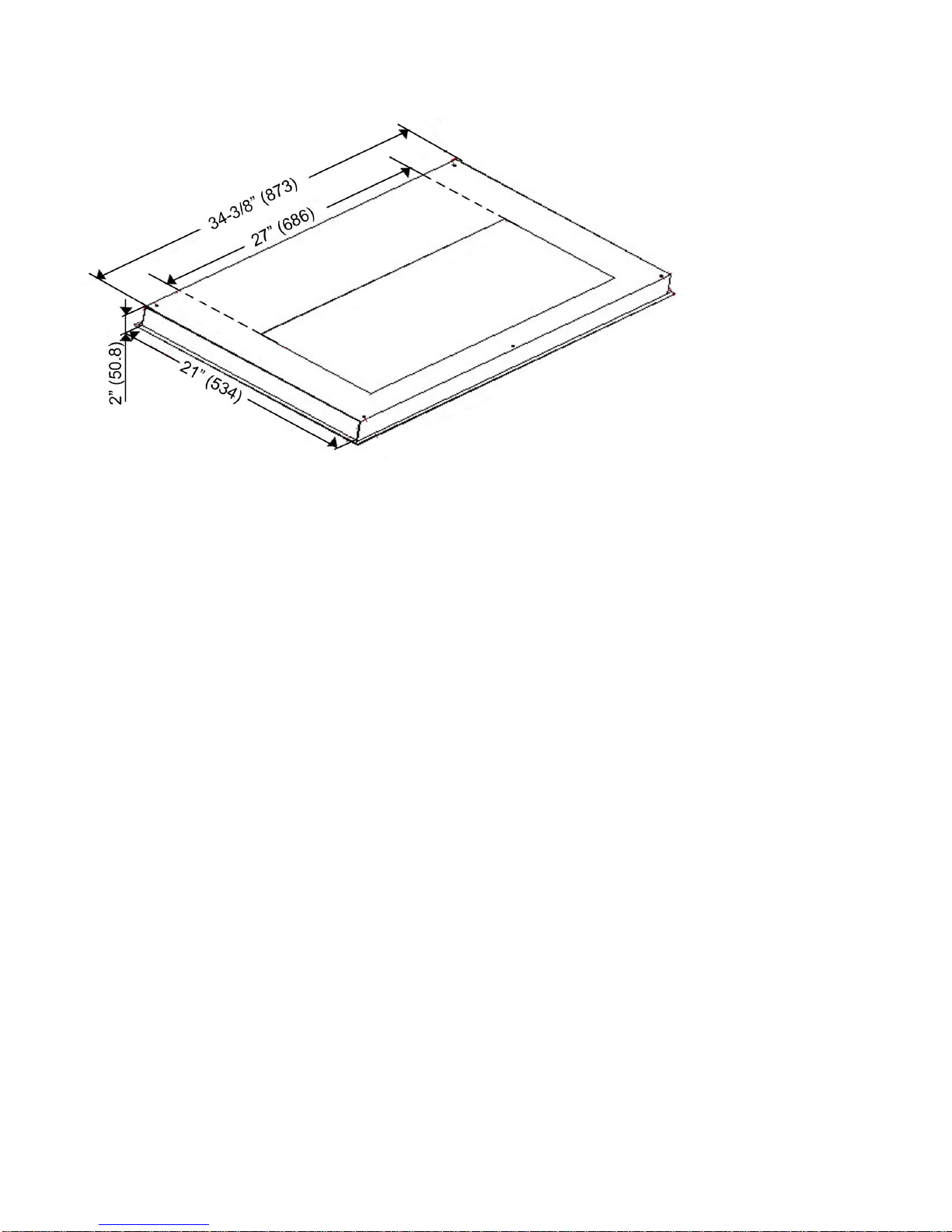

recessed to accommodate the height of the liner (See
liner dimension on Page 14)
7. Secure the liner to the bottom of the base using screws
(not included) appropriate for the size and material of your
wood frame.
8. Position the liner so that it aligns with the back edge of
the custom wood frame. Use a pen to trace the outline of
the pre-cut area. Remove the liner and proceed to Hood
Preparation Before Installation on Page 6.
9. Install the liner with 5 screws (not provided).
Figure 1
Figure 2
Figure 3

8
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST
BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE
BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES, SWITCH POWER
OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
10. Temporarily wire the hood to test for proper operation
before installing. If the insert does not operate, check
the circuit breaker or house fuse. If the insert is still not
working, disconnect the power supply and check the
continuity of all wiring connections.
11. Connect electrical wires.
12. Connect three wires (black, white and green) to house
wires and cap with wire connectors. Connect wires
according to their colors (i.e. black to black, white to

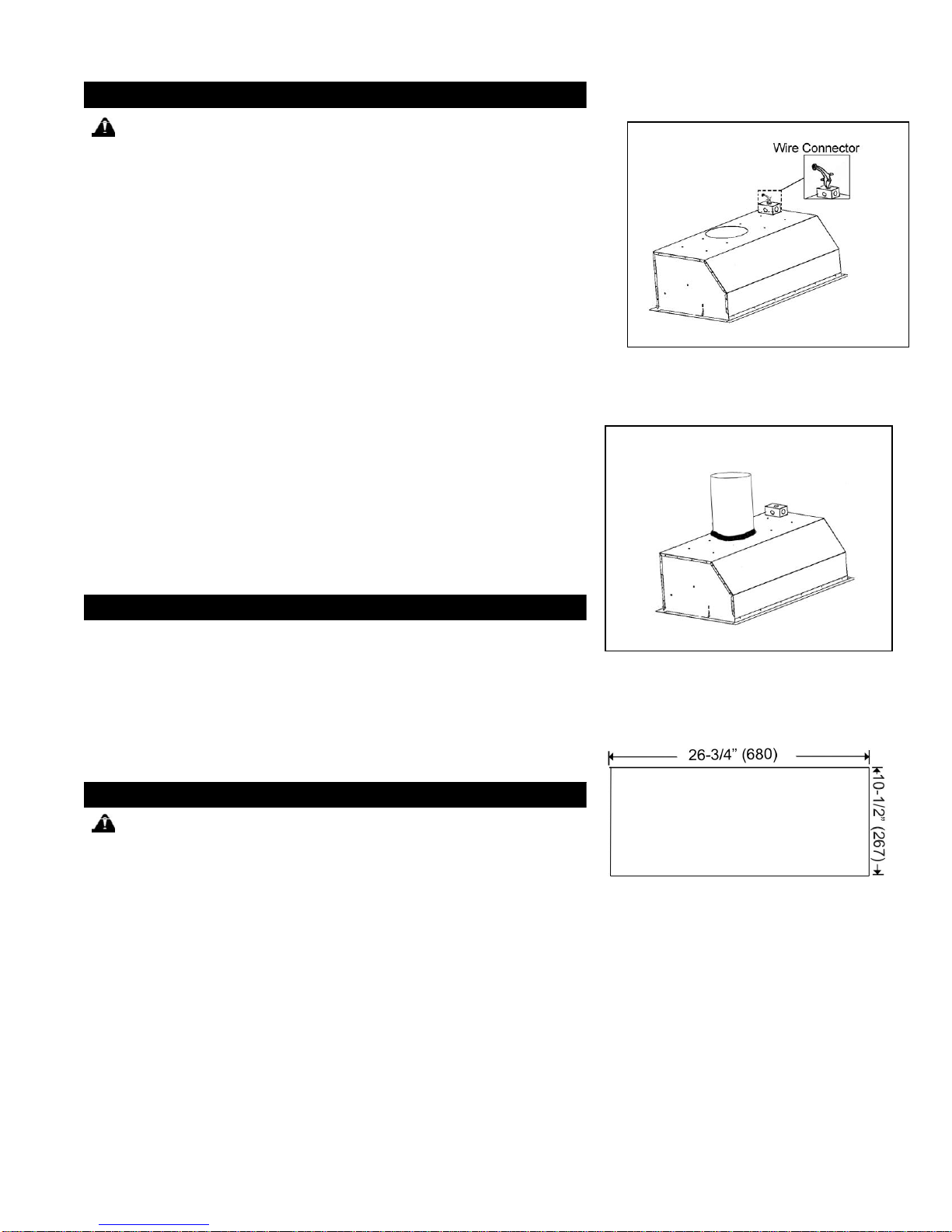

white, and green to green). See Figure 4.
13. Store wires in the wiring box.
Note: Connect all electrical wires before installing insert.
DO NOT turn on the power until installation is complete.
Duct Work Installation
14. Use 8” steel pipe (follow building codes in your area) to
connect the ducting on the hood to the ductwork above.
Use duct tape to seal and secure joints as shown in
Figure 5.
15. Please refer to local codes for the usage of the damper
(included). If necessary, remove the damper
mechanism and install as exhaust connector.
Hood Preparation Before Installation
CAUTION: If moving the cooking range is necessary
to install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.
16. Determine and mark the centerlines on the base of the
wood frame where the insert will be installed.
17. Determine and make all necessary cuts in the wall or
ceiling for the ductwork. Note: Install the duct work
before installing the insert.
18. Cut out the opening where the insert will be installed.
(Figure 6)
Figure 4
Figure 5
Figure 6

9
Hood Installation
19. Release the screws located on each side of the insert.
Adjust the level of the hood casing support according to
the thickness of the base (1/2 thickness plywood
recommended). Tighten the screws to secure as shown
on Figure 7.
20. Install the insert inside the custom wood frame.
21. Make sure the hood casing support is secure before
releasing.
22. For a more secure installation, use the mounting holes
for the rear support which are located at 1-1/2” (38mm)
up from the insert base (screws not provided).
CAUTION: MAKE SURE HOOD IS SECURE BEFORE
RELEASING.
Final Assembly
23. Install Aluminum Filters. Insert the filters towards the
back of the unit and push up.
24. Make sure the Aluminum Filters are secure before
releasing.
Figure 7

10
OPERATING INSTRUCTIONS
This KOBE hood is equipped withfive electronic push buttons with LED indicator, double powerful centrifugal
squirrel cage with aluminum filter, two bright 12-volt 20-watt halogen lights.

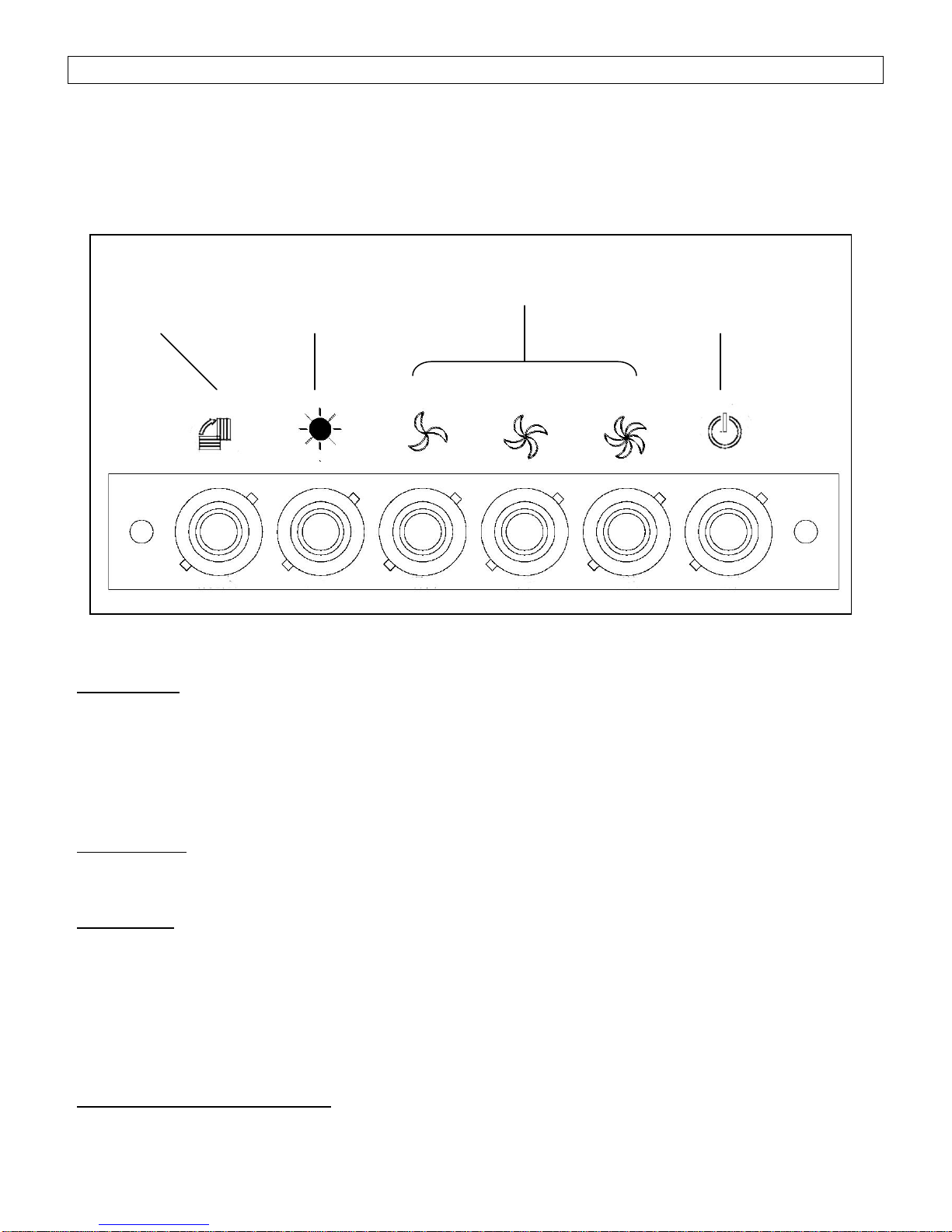

The five control buttons are Power Control (On/Off), Speed Control (High, Medium, & Low), and Light
Control. Refer to Figure 7.
Figure 7
Note: For best results, turn hood to Low prior to any preparation or cooking. Adjust speed as needed.
Power Control
Press Power Control to turn On/Off the hood.
This unit equipped with 3-minute delay shutoff. To activate this feature, press Power Control
button once, panel LED lights will flash and power will be completely shut off after 3 minutes.
Press Power Control button twice, the fans will be shut off immediately.
Speed Control
Press Speed Control to activate Low, Medium, & High Speed.
Light Control
(Light control is separate from ON/OFF control. Turning power off will not turn lights off.)
Press Light control to turn lights ON.
(Each press of Light Control will cycle the light intensity through high, low, and off.)
Aluminum Filter Change Indicator
Change Filter
Indicator
Halogen Light
Control
Speed
Control
Power Control

11
The indication under symbol will indicate when aluminum filter needs cleaning.
Remove to clean the aluminum filter.
(To purchase replacement filters, please contact your local KOBE dealer or call 626-775-8880)
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Aluminum Filter
1. Remove all the aluminum filters.
2. Wash with warm soapy water. Dry thoroughly before returning into place.

12
Replacing Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.

1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing. 
3. Pop out the halogen light glass covering. 
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W maximum. 
5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing. 
7. Turn range hood ON to test for operation.

13
SPECIFICATIONS
MODEL / SIZE
IN2730SF-1
COLOR
18-Gauge Commercial Stainless Steel
CONSUMPTION / AMPERE
120W / 3.3A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
FAN TYPE: CENTRIFUGAL
Double Horizontal Squirrel Cage
EXHAUST
Top 8"Round w/ Damper
CONTROLS
5 Push-Button
- 3-Minute Delay Shutoff
HALOGEN LIGHTS
12V 20W Max. x 2
HOOD DIMENSION
(W X D X H)
27-1/2” x 11-3/8” x 9-3/4”
OPTIONALACCESSORIES
(W X D X H)
Liner: INL36211A (36” X 21” X 2”)
HOOD WEIGHT (lbs)
Net
Gross
IN2730SQB-1
24
32
Blower Air Capacity (cfm)
Low
Medium
High
350
400
700
Sone
3.0
4.0
5.5
dB
56
60
65
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

14
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: IN2730SF-1
Side View Bottom View
Front View
Stainless Steel Liner (Sold Separately)

15
Model No. INL36211A

16
PARTS LIST
MODEL NO: IN2730SF-1
NO.
DESCRIPTION
MODEL/SIZE
PART NO.
1
Exhaust Plate
Q0229
2
Wiring Box
Q0119
3
Hood Casing
GP061507
4
Hood Casing Support
XP00173-6
5
Blower System
MT023
6
Electronic Support Panel
GP062307
7
Processor Board
XP31415
8
Light Transformer
XP31416
9
Capacitor (27 µf 250V)
XP22424
10
Halogen Light Housing
XP31422
11
Indicator Sensor
XP23003
12
Bottom Casing
GP061626
13
Control Unit Support Panel
GP061707
14
Control Unit
XP31414
15
Aluminum Filters
XP26717
Optional Liner
Model No.
16
Liner
INL36211A
IN2730-11-01

17
Optional Liner (Sold Separately)

18
CIRCUIT DIAGRAM
MODEL NO.: IN2730SF-1
