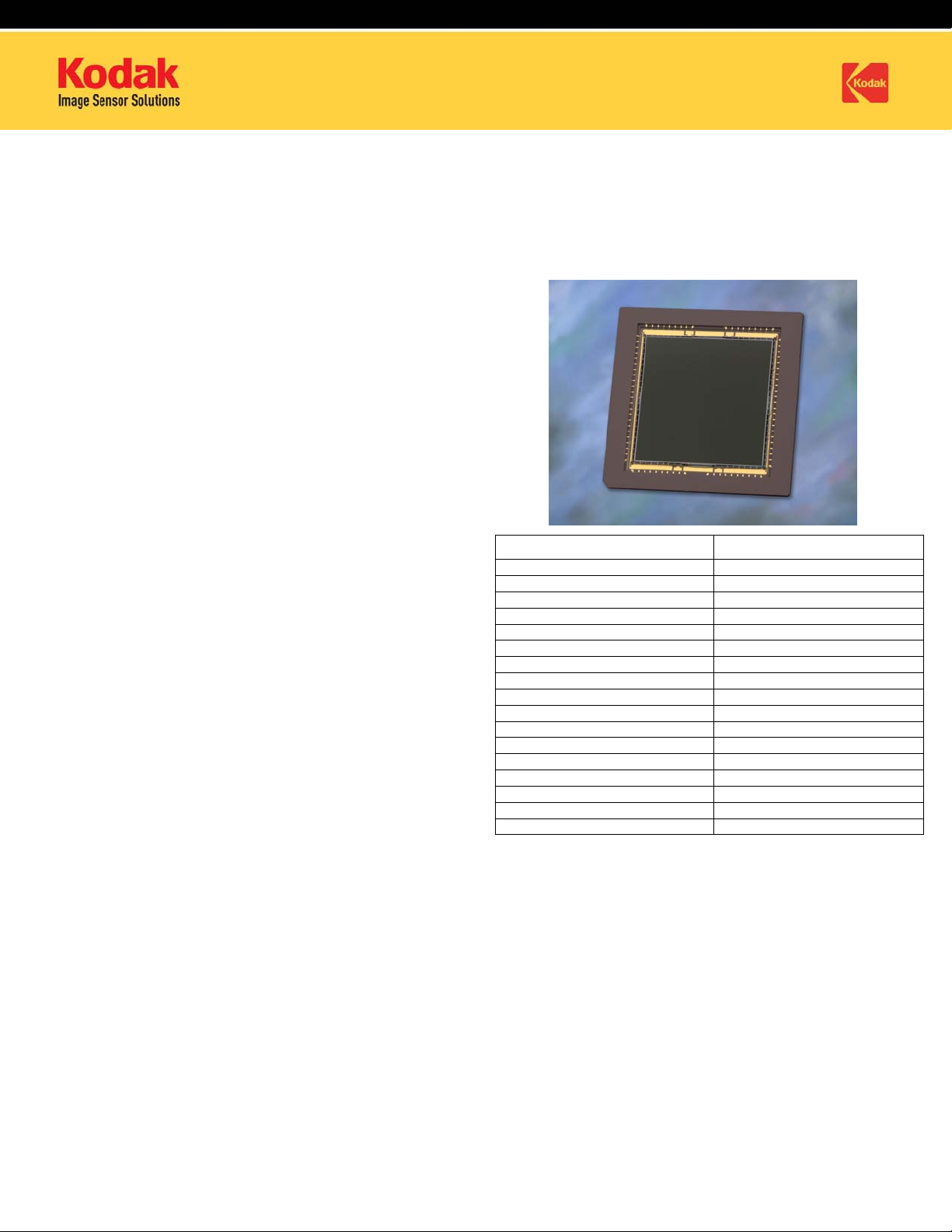

KODAK KAF-4320 IMAGE SENSOR
2084 (H) X 2085 (V) FULL FRAME CCD IMAGE SENSOR
DESCRIPTION
The KODAK KAF-4320 Image Sensor is a high
performance monochrome area CCD (charge-coupled
device) image sensor with 2084H x 2085V photoactive
pixels. It is designed for a wide range of image sensing
applications in the 350 nm to 1000 nm wavelength band.
A dynamic range of >32,000:1 is possible with read out
time less than 0.5 seconds.
The sensor is built with a true two-phase CCD technology
employing a transparent gate. This technology simplifies
the support circuits that drive the sensor, reduces the
dark current without compromising charge capacity, and
significantly increases to optical response compared to
traditional front illuminated full frame sensors.
Twenty-four micron pixels are arranged into an array of
2084x2085 photosites. One quarter of the image is read
from each of four outputs. Each output is driven by a low
impedance two stage source follower that provides a
high conversion gain, allowing low noise at pixel rates of
3MHz per output (net readout rate of 12MHz).
APPLICATIONS
•Medical Imaging
•Scientific Imaging
Parameter Typical Value
Architecture Full-Frame CCD
Total Number of Pixels 2092 (H) x 2093 (V)
Number of Active Pixels 2084 (H) x 2085 (V) = approx. 4.3M
Pixel Size 24 µm (H) x 24 µm(V)
Imager Size 50.02 mm (H) x 50.02 mm (V)
Die Size 8.4mm (H) x 5.5mm (V)
Output Sensitivity 10µV/e-
Saturation Signal 500,000 electrons
Readout Noise 20 electrons (3 MHz)
Outputs 4
Dark Current (T = 25° C) <15pA/cm2
Dark Current Doubling Temperature 6.4° C
Dynamic Range 20,000: 1
Blooming Suppression None
Maximum Data Rate 3 MHz
Package PGA Package
Cover Glass Clear
www.kodak.com/go/imagers

ORDERING INFORMATION
Catalog
Number
Product Name Description Marking Code
4H0476 KAF- 4320-AAA-JP-B1 Monochrome, No Microlens, PGA Package, Taped Clear Cover Glass, no
coatings, Grade 1
4H0477 KAF- 4320-AAA-JP-B2 Monochrome, No Microlens, PGA Package, Taped Clear Cover Glass, no
coatings, Grade 2
4H0478 KAF- 4320-AAA-JP-AE Monochrome, No Microlens, PGA Package, Taped Clear Cover Glass, no
coatings, Engineering Sample
KAF- 4320-AAA
(Lot Number)
4H0475 KEK-4H0475-KAF-4320-16-3 Evaluation Board (Complete Kit) N/A
Please see the User’s Manual (MTD/PS-0563) for information on the Evaluation Kit for this part.
Please see ISS Application Note “Product Naming Convention” (MTD/PS-0892) for a full description of naming convention
used for KODAK image sensors.
For all reference documentation, please visit our Web Site at www.kodak.com/go/imagers.
