KODAK 10-Inch Touchscreen Digital
Photo Frame / WiFi Enabled
User Manual RWF108
Introduction
Thank you for for purchasing the KODAK 10-Inch Touchscreen Digital Photo Frame from our
company! We hope you will enjoy this method of displaying all your digital photos!
Before operating the unit, please read this manual thoroughly and retain it for future
reference. This manual will help you use many of the exciting and useful features to make
your KODAK 10-Inch Touchscreen Digital Photo Frame viewing more enjoyable.
This KODAK 10-Inch Touchscreen Digital Photo Frame lets you view digital photos directly
from your smartphone & memory cards. You will be able to create a slideshow using multiple
transition effects or display one photo at a time. No computer, digital camera or cable
connection is required.
Let’s start to keep your photos displaying every day in this KODAK 10-Inch Touchscreen
Digital Photo Frame.
Important safety precautions
Always follow these basic safety precautions when using your KODAK 10-Inch Touchscreen
Digital Photo Frame. This will reduce the risk of fire, electric shock, and injury.
Warning: To reduce the risk of fire or shock hazard, do not expose this product to rain or
moisture.
Warning: To prevent risks of electric shock, do not remove the cover. There are no user-
serviceable parts inside. Refer all servicing to qualified personnel.
The KODAK 10-Inch Touchscreen Digital Photo Frame is for indoor use only.
Unplug the KODAK 10-Inch Touchscreen Digital Photo Frame before performing care &
maintenance.
Do not block the ventilation holes on the back of the KODAK 10-Inch Touchscreen Digital
Photo Frame at any time.
Keep your KODAK 10-Inch Touchscreen Digital Photo Frame out of direct sunlight and
away from heat sources.

2
Protect the power cable. Route power cables so that they are not likely to be walked on
or pinched by items placed on or against them. Pay particular attention to the point where
the cable attaches to the KODAK 10-Inch Touchscreen Digital Photo Frame.
Only use the supplied AC adapter with the KODAK 10-Inch Touchscreen Digital Photo
Frame. Using any other adapter will invalidate your warranty.
Unplug the power cable from the wall outlet when the unit is not in use.
Cleaning the screen.
Treat the screen gently.
To clean fingerprints or dust from the LCD screen, it is recommended to use a soft, non-
abrasive cloth such as a camera lens cloth.
If you use a commercial LCD cleaning kit, do not apply the cleaning fluid directly to the LCD
screen. Clean the LCD screen with the cleaning solution applied to the cleaning cloth.
Cleaning the KODAK 10-Inch Touchscreen Digital Photo Frame
Clean the outer surface of the KODAK 10-Inch Touchscreen Digital Photo Frame （
excluding the screen), with a soft cloth.
Table of Content
• What’s in the box
• Features
• Control Illustration
• Buttons Illustration
• Connection Illustration
• Getting Started
• How to get the Phone Application
• How to use the KODAK 10-Inch Touchscreen Digital Photo Frame
• Main Menu
• Specifications

3
What’s in the box
1 x KODAK 10-Inch Touchscreen Digital Photo Frame 1 x AC Adapter 1
x Quick Start Guide
Features
-Easy & instant sharing photos from your smartphone to KODAK WIFI Photo
Frame.
-With 10” High-Definition (1280x 800）Touchscreen, it is easy to view photos on
the display.
-Connects fast & easily to WIFI wireless network, small frame to see a big world.
-Create your family members album, one WIFI Photo Frame is available for
several accounts.
-One app can be connected to several WiFi photo.
-Auto slideshow photos in various modes with Clock, Calendar & background
music.
-Music playback with different kinds of playing modes .
-Weather forecast & Clock, practical functions for daily life.
-Light-sensor makes the panel automatically adjust its brightness to the ambient
environment.
-Night mode clock will be auto-activated at night after the lights are off, it’s more
comfortable for your eyes to read the time in a dark environment.
-
-Supports SD/SDHC/USB flash drive (up to 32G), easy to plug & play.
-With auto-turn on/off timer, and several alarm setup options.
-Built-in 4000mAh rechargeable li-battery
-Free 10G cloud storage in 5 years

4
Control Illustration
Connecting Illustration
Getting Started
Step 1: Plug in the power adapter.
Connect the adapter to DC socket, the KODAK 10-Inch Touchscreen Digital Photo Frame
will auto power up.
Step 2: Follow the instruction to setup KODAK WIFI Photo Frame
After the KODAK 10-Inch Touchscreen Digital Photo Frame displays the boot
animation, please follow the instructions to start the setup.

5
Select your language.
Select your local time zone.
Select the available WIFI connection and enter the password.

6
1. When the WIFI is connected, you can scan the QR code or search “Kodak WIFI
Photo Frame” from APP store or Google Play store to download the Phone
Application.
2. Open the Phone Application to register a new account and connect this account
with KODAK WIFI Photo Frame by scanning the device QR code or enter
device code. (You can find the device QR code from Setup>Device Sync.)
3. After successfully connecting your device, you can send photos from your
mobile phone to the KODAK 10-Inch Touchscreen Digital Photo Frame. Start
sharing your happiness with your family.

7
How to get the Phone Application
4. Download the application “KODAK Photo Frame” either scan the QR code on the
frame or search from APP store/Google Play.
Open the Application and start to sign up a new account. If you have account, please
sign in directly.

8
5. Scan the device QR code on the frame or enter device code to connect the
phone & the frame. After successfully connecting, you can send photos!
6. Press Album to choose sending photos from a local album or press Camera to
take a new photo. If you want to connect another frame, press the icon on the
top left. Also, you can check the sending history from the icon on the top right.

9
7. You can send 6 photos at one time.
8. If one phone is connected to several frames, you can send the same photos to
those frames all at the same time.

10
9. In the System Settings, you can access the options.

11
How to use the WIFI Photo Frame
Main Menu
The main menu is shown below, you can touch the icons on the panel to enter different
functions.

12
The menu consists of Album, Photos, Music, Video, Calendar, Settings, Information , Clock
and Weather.

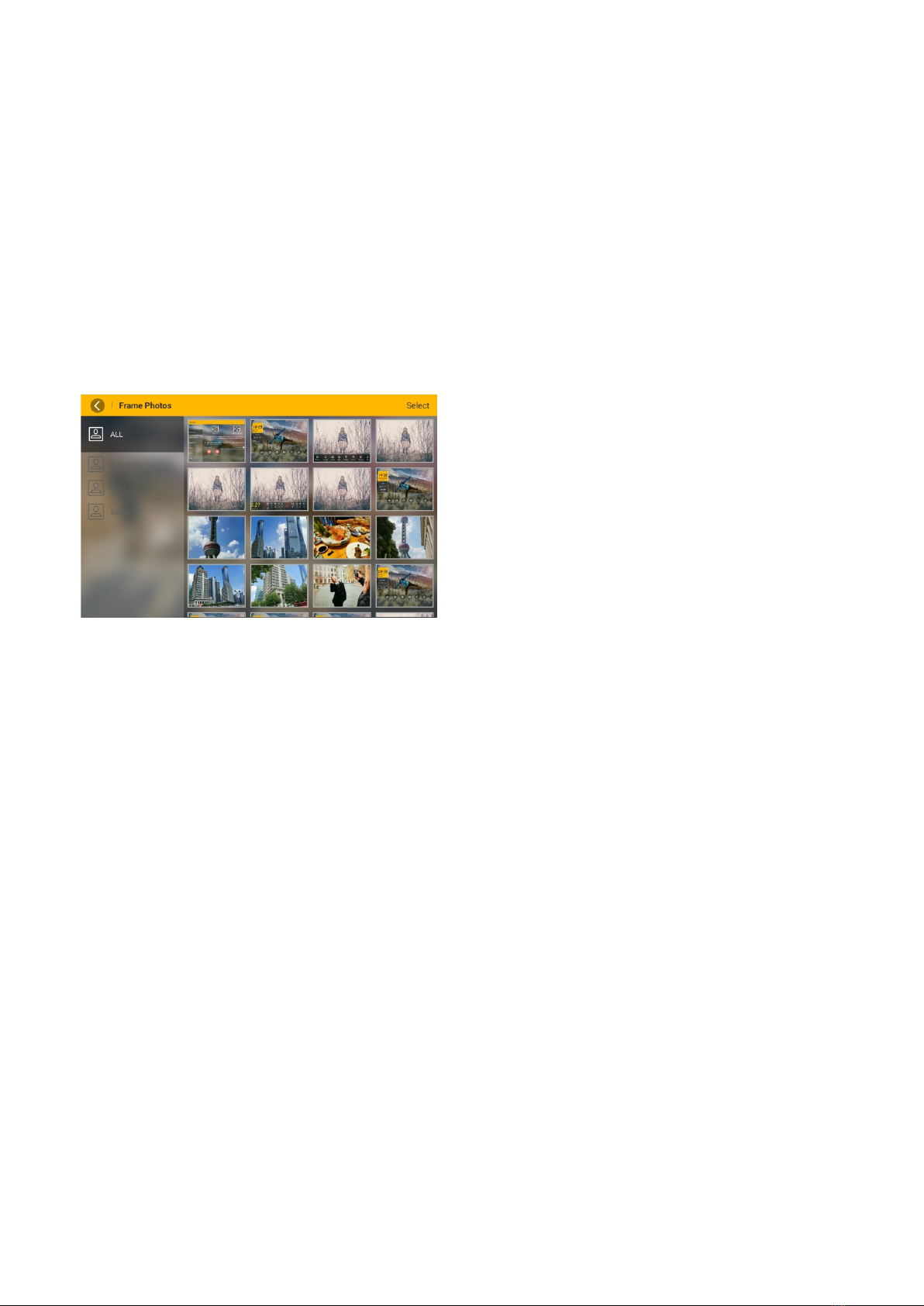

Album
In the Album, you can find those photos sent from mobile devices or computers which are
categorized by different accounts. This way, it’s easy for you to locate each family member’s
photos.
Select & touch one category, you can review and start this album’s slideshow.

13

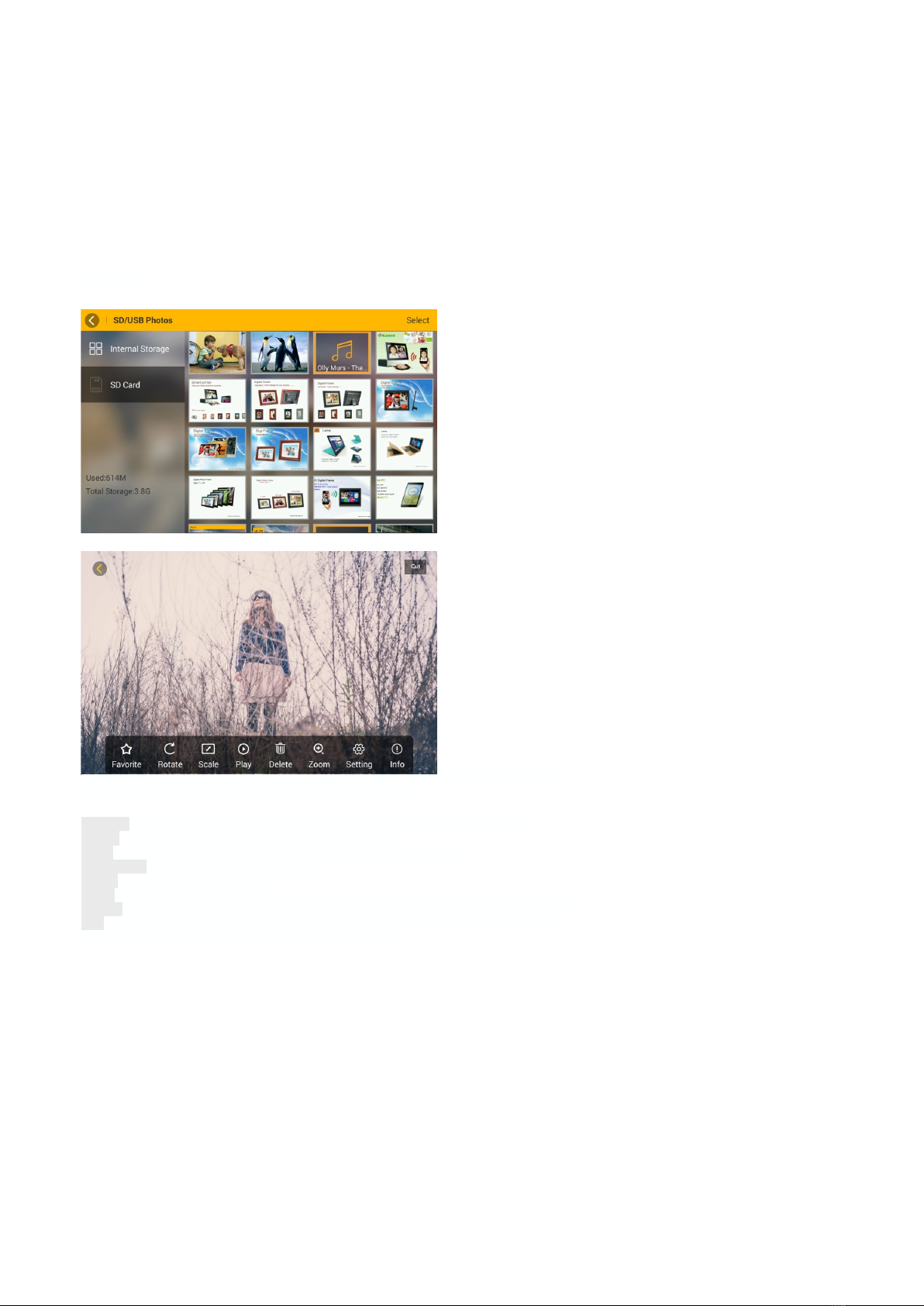

Photos
When you touch the Photo function, the slideshow begins automatically. Touch the panel
during slideshow, the Frame will pause and pop up a menu.
Favorite - Highlight your favorite photos or set your favorite photos as wallpaper.
Rotate - Adjust photo to suitable angle by tapping this icon.
Scale - Select to display photo in Original ratio or Auto-set full screen.
Play/Pause - Play or pause the slideshow.
Delete - Delete the current photo.
Zoom - Zoom in the current photo.
Setting - Set up the Calendar , Transition Effects, Slideshow Interval & Background Music.
Info - Check the current photo information. Tapping the left arrow on the top left to exit
slideshow, and choose to display from different categories.

14

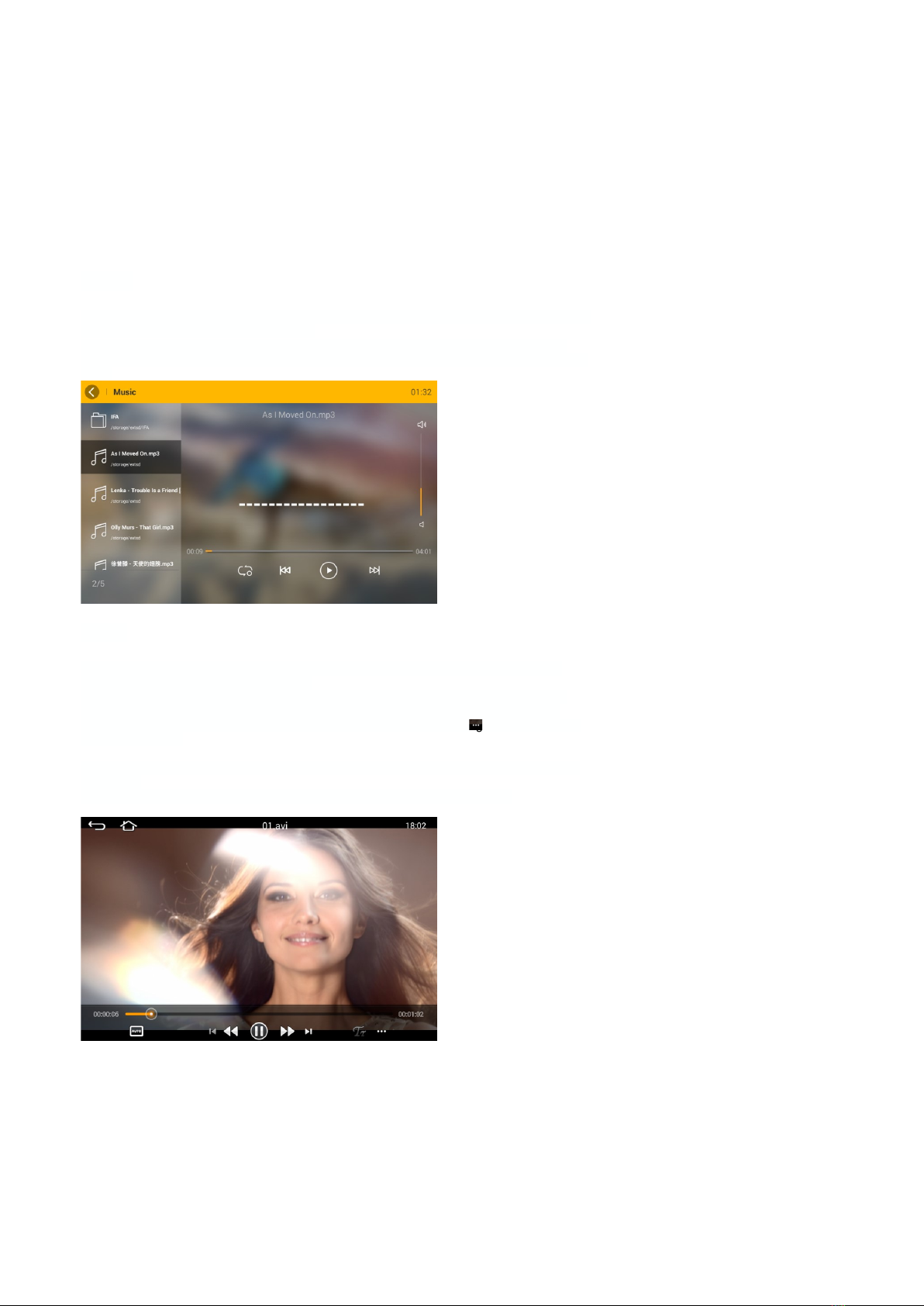

Music
Tap the Music icon from the main menu to active the music player, which supports playing
music only from an SD card or USB Drive.
Select the playlist from the left side and tap on the function icons on the bottom to switch
play mode/previous song/pause/next song. Control volume by touching the sound bar on the
right.
Video
Tap the Video icon from main menu to activate the video player, which supports playing
video only from an SD card or USB Drive.
Select the playlist from the left side and tap on the function icons on the bottom to switch
video proportion/previous video/fast backward/pause/fast speed/next video. Control the
volume by swiping up and down on the left side of the screen. Touch to get more functions
like loop/audio/info
Tapping the left arrow on the top left to exit video play, and choose to display from different
categories.
Tapping the home icon on the right side of the arrow to back to the Main menu.

15

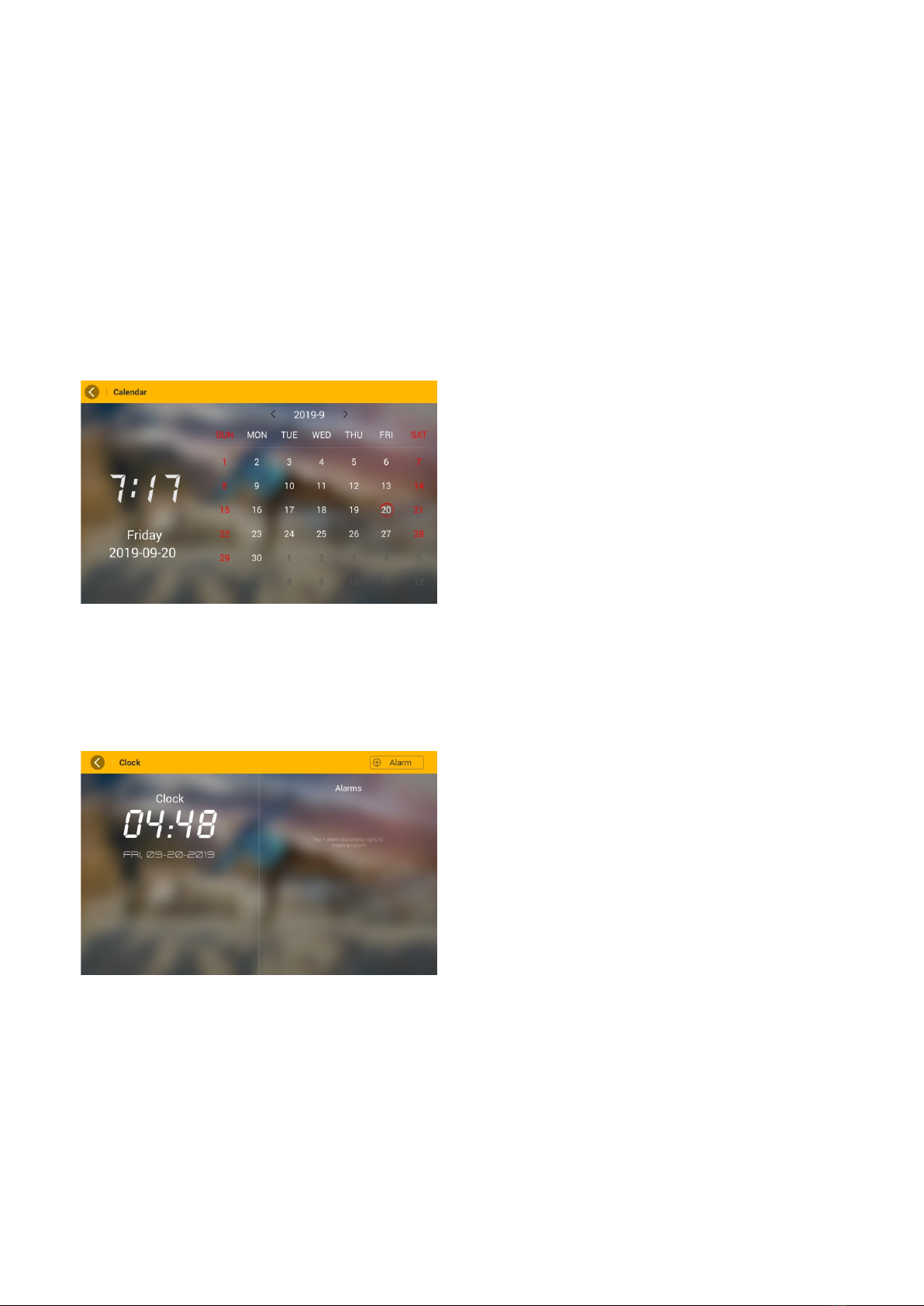

Calendar
Tap the Calendar icon from main menu to read Clock & Calendar. Taping on the right & left
arrow on the top to switch months.
Clock
In the Clock & Alarm function, you can adjust the time setting and set up different alarms.

16

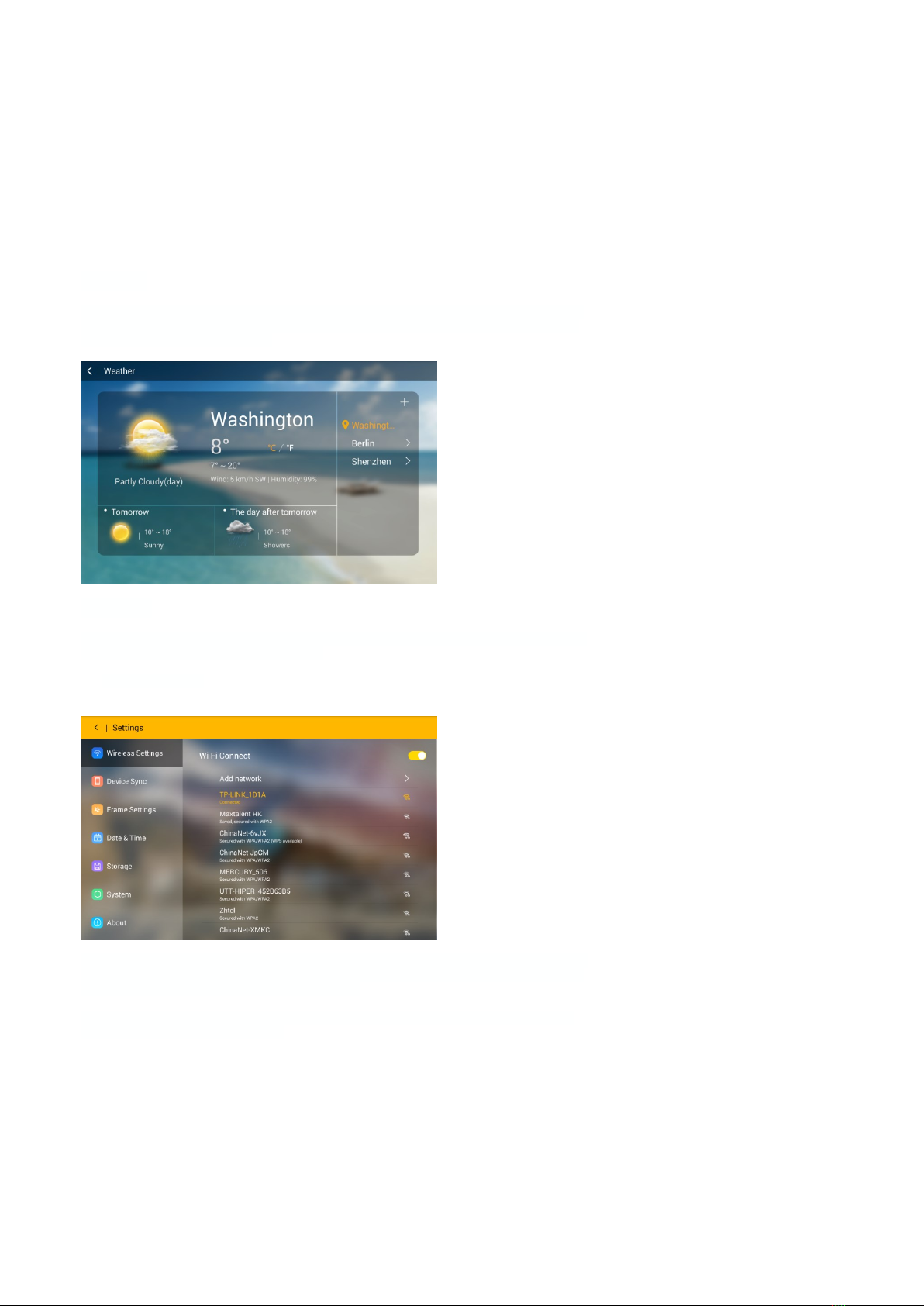

Weather
When you set up your location, the weather forecast will automatically show 3 days weather
of your local city. You can see different cities weather by adding other cities, tap on the city
name to switch the city’s weather.

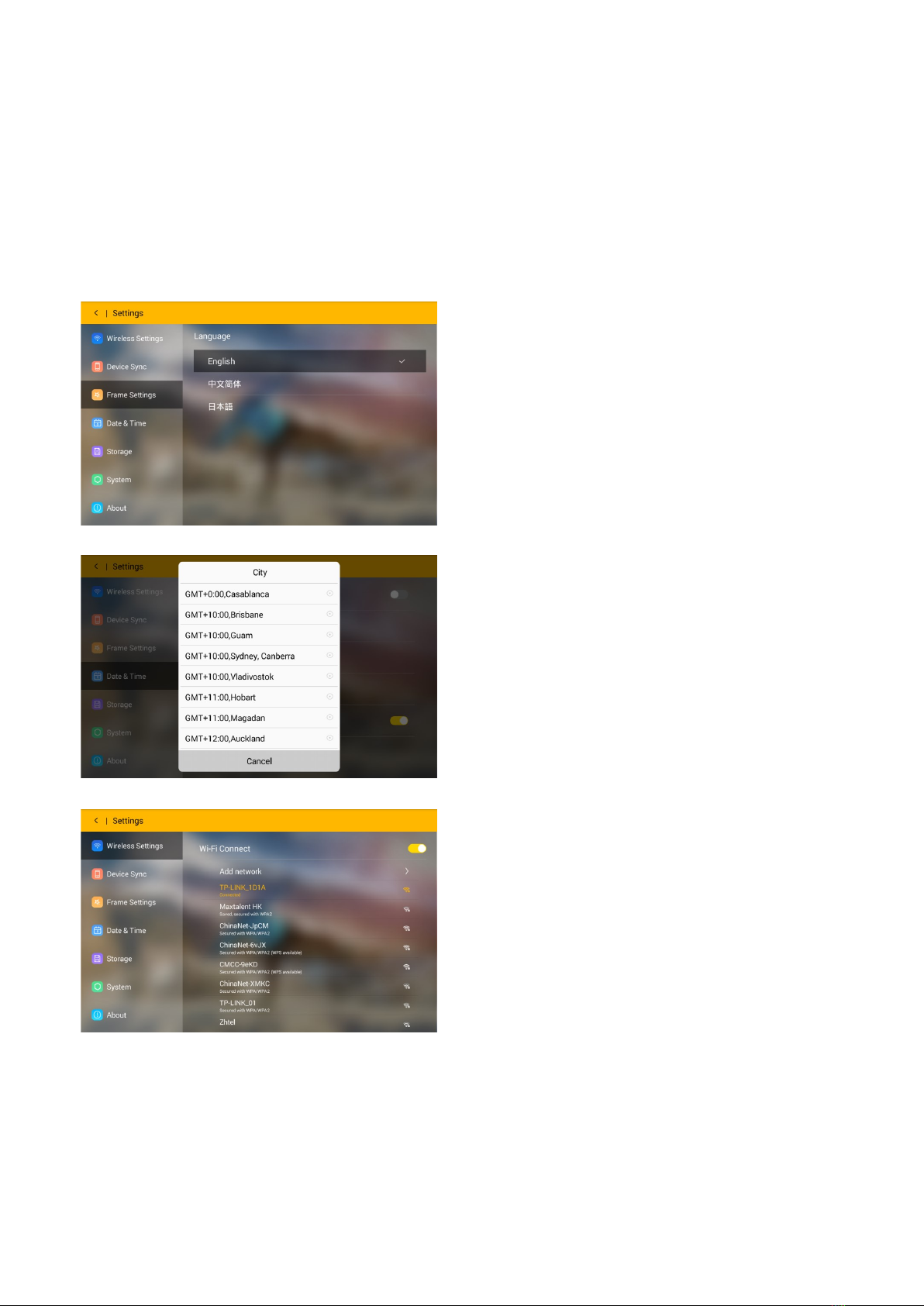

Settings
In the settings menu, you will have many options to customize the way your KODAK 10-Inch
Touchscreen Digital Photo Frame operates.
10. Wireless Settings
You can enable or disable the WIFI connection in this setting. When the WIFI is enabled, the
frame will scan all available WIFI networks and show a list, choose the your WIFI and enter
the password to connect the Frame to the internet.
If the WIFI is set to invisible, you can build the connection by selecting Other Network and
entering the WIFI name & password.

17

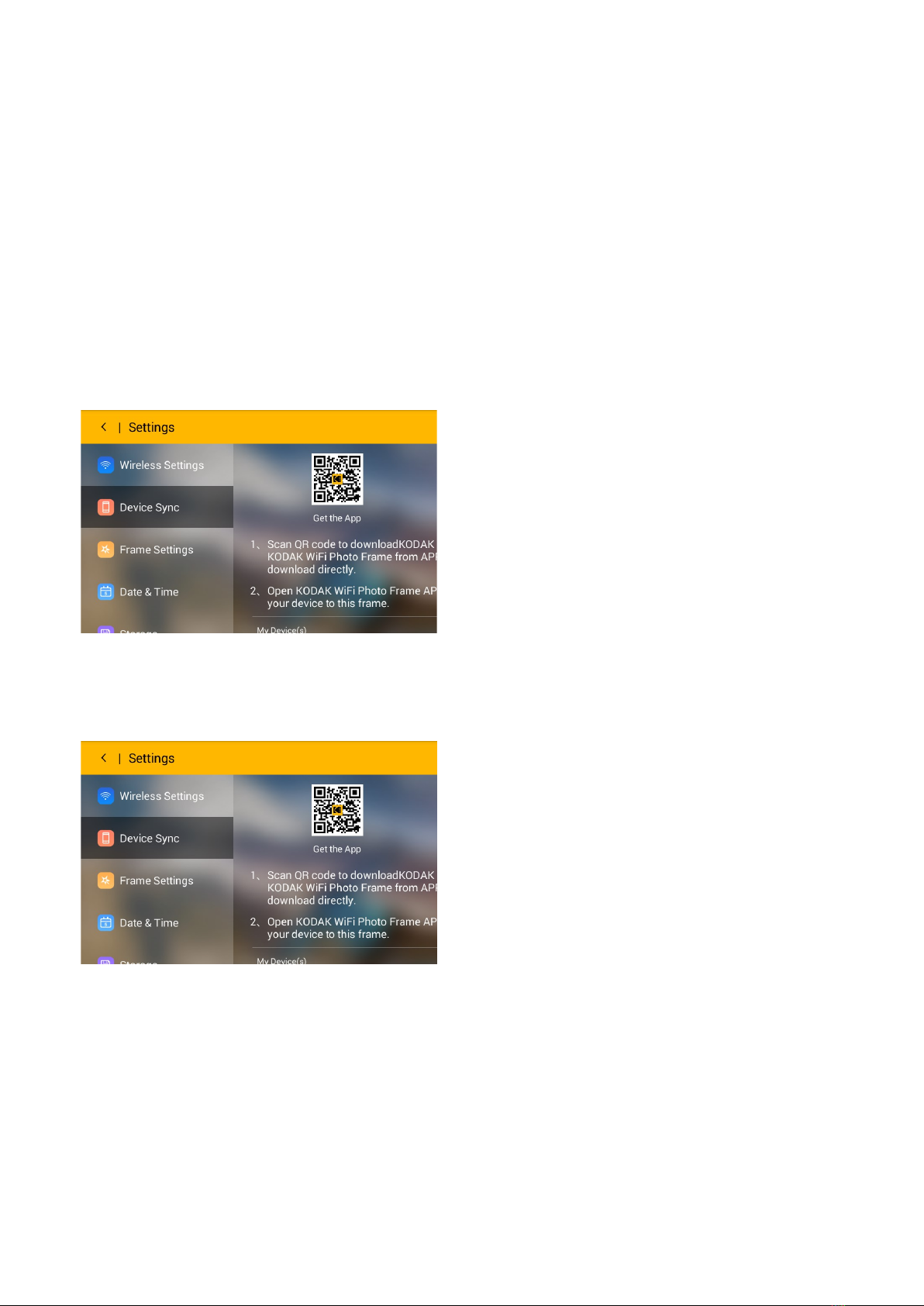

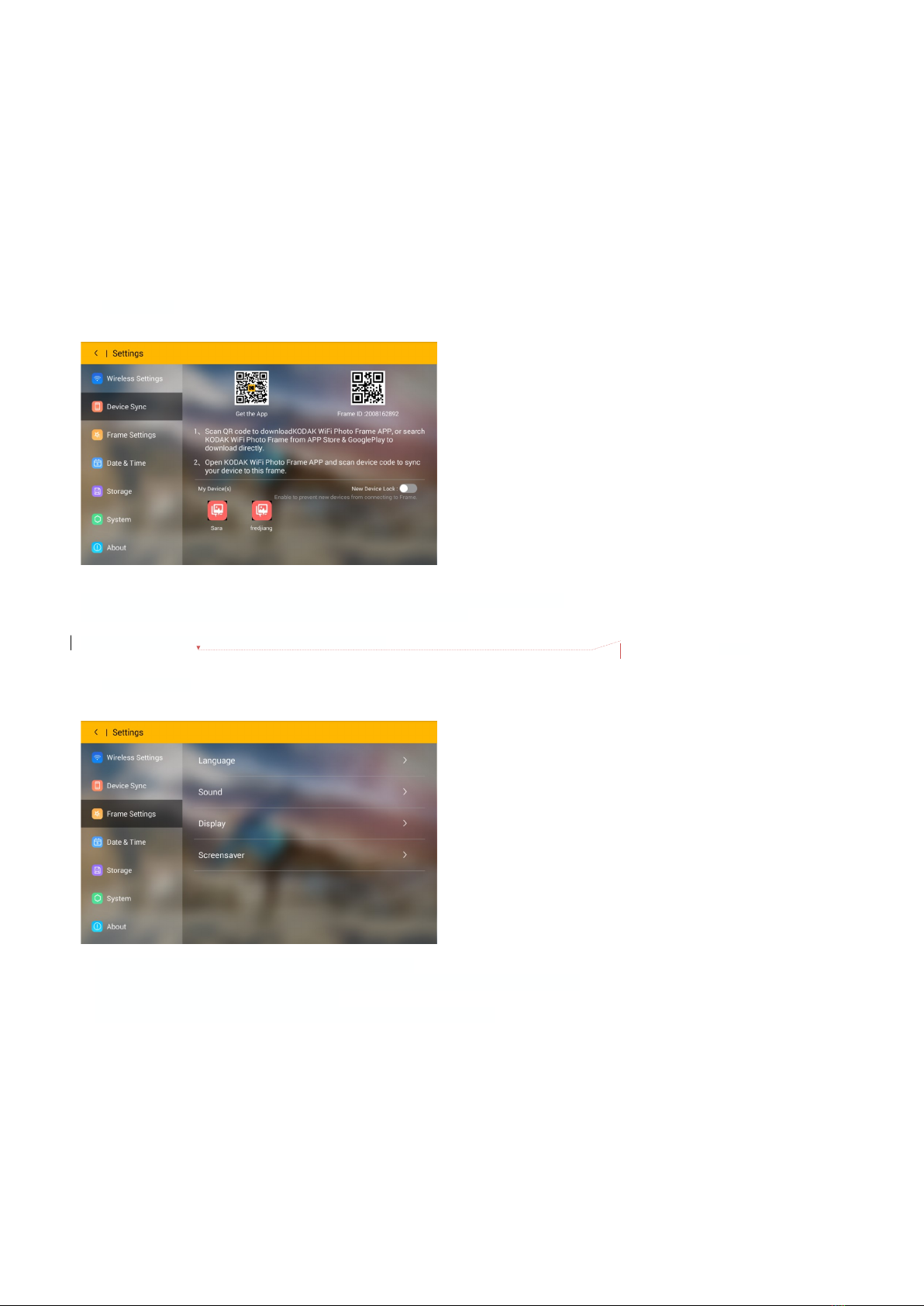

11. Device Sync
In this setting, you can find the Application download QR code and the Device QR code.
Follow the instructions to sync your phone with the WIFI Photo Frame.
You can manage the accounts connected to this frame.
12. Frame Settings
-Language: There are several Different languages options.
-Sound: adjust the system volume , turn on/off the System Alert Sound and Touch Sound.
-Display: adjust the brightness of the display.
-Screensaver: turn on/off the screensaver and adjust the relative settings.
phone
删除[Mingan Wang]:

18

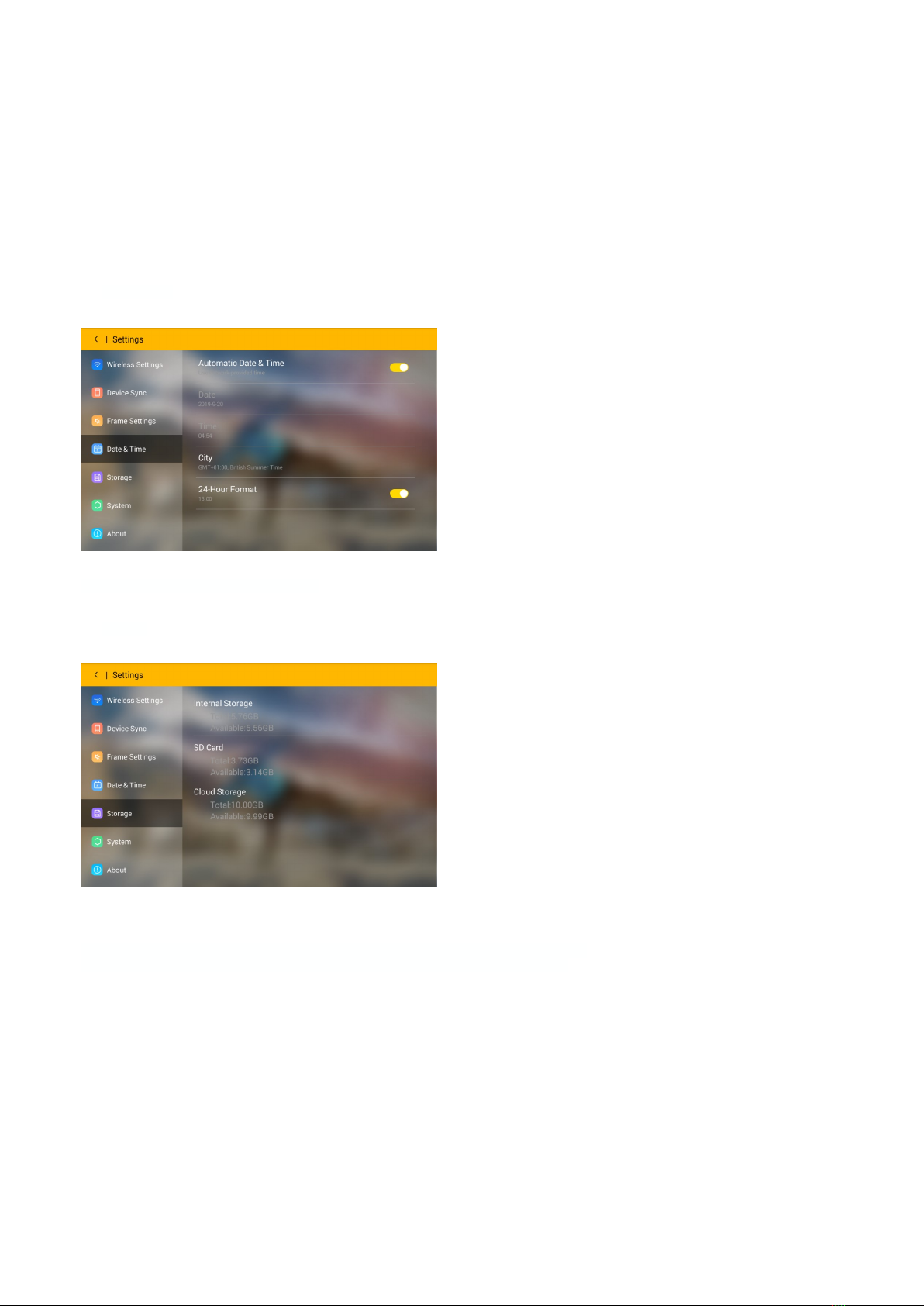

3. Date & Time
Adjust the date & time setting for the frame.
4. Storage
You can find the frame internal memory storage information here, as well as SD card & USB
drive if available. The cloud storage & service condition are available to check from here.

19

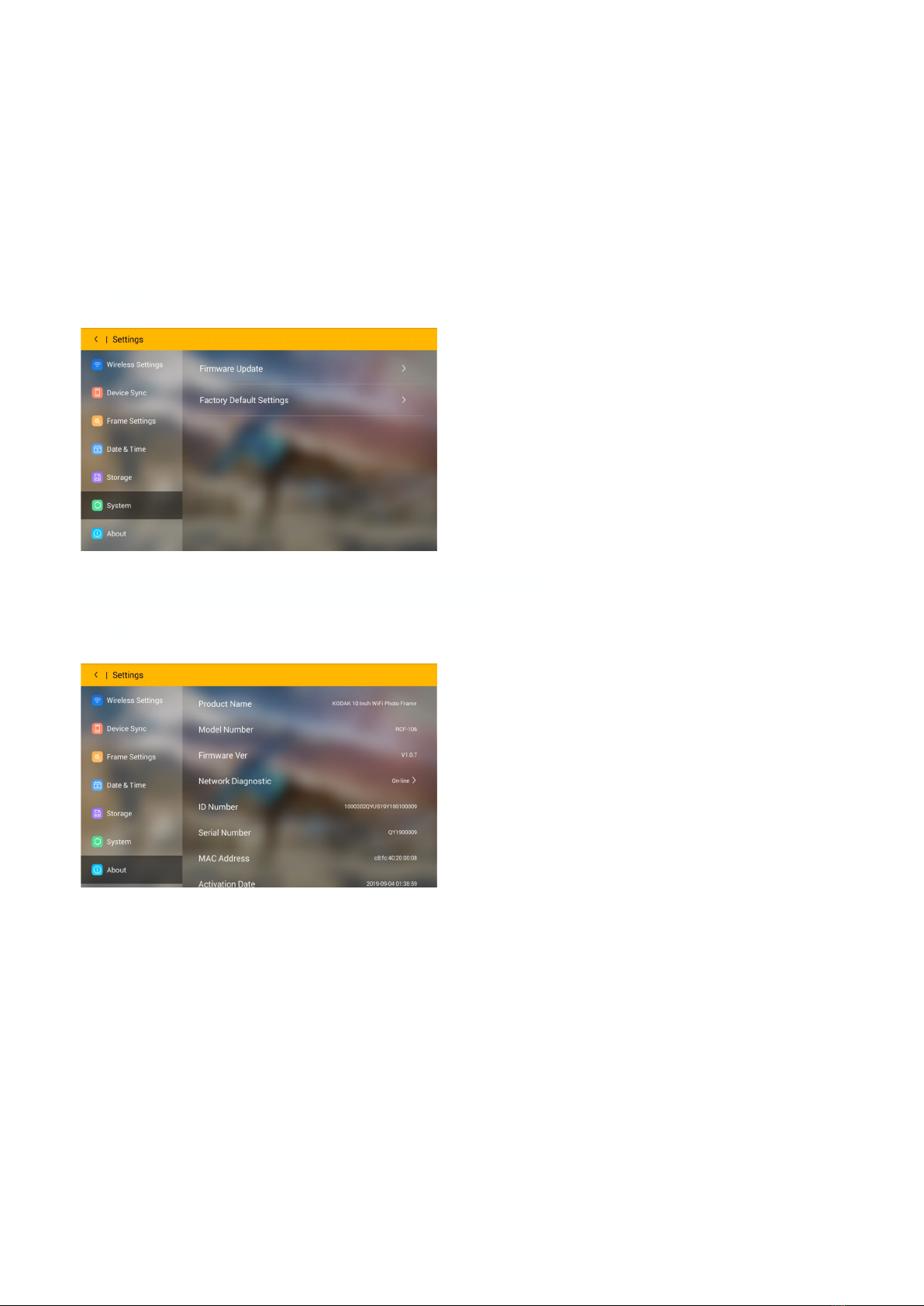

5. System
You can update the system online or restore the system to default settings. Once you
restore to factory default settings, all the data & settings will be cleared.
6. About

20
This option displays system information of the frame.
Specifications
Panel Size 10” 16:10 LCD (1280x800)
Memory 8G
WIFI 802.11 b/g/n
Media Slots SD（SDHC）/ USB Drive Max 32G
Photo Formats JPG /JPEG
Music Formats MP3
Video Formats AVI,MP4,DGVI
Adapter Power Input AC110-240 ~ 50/60HZ
Adapter Power Output DC 5V 2A
Power Consumption ≦10W
For more information, please visit: www.maxtdigital.com/kodakframes
All information contained in this document is subject to change without notice
