Koden KGP-925 User manual

Amendment History
KGP-925 Operation Manual
Doc No: 0093192502
No. Doc. No.-Rev. No. Revised Date
Y/M/D Revised Content
0 0093192502-00 2011/10/27 First issue
1 0093192502-01 2012/08/16 Add internal beacon receiver type
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Amendment policy
When any change is applied in the document, only the document number of the relevant sheet(s) and
cover sheet are modified and the rest of the sheets are not changed. The document number is shown in
the footer area, right or left bottom of each sheet.
○
c2011- 2012 Koden Electronics Co.,Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, translated in any form by any means without
the written permission of Koden Electronics Co., Ltd. The technical descriptions contained in this
publication are subject to change without notice. Koden assumes no responsibility for any errors,
incidentals or consequential damages caused by misinterpretation of the descriptions contained in this
publication.

KGP-925 Preface
0093192502-01 (1)
Safety Precautions
Disconnect Main Power
It is still possible to receive an electric shock caused by unintentionally switching on the power during
repair work. To prevent this from happening, make sure to completely disconnect the unit from the
ship’s main supply before attempting any inspection and repair.
Dust
Dust can accumulate inside the unit after long periods of use. Allergies can result from the inhalation of
this dust, therefore during inspection and cleaning it is advisable to use a mask.
Static Electricity
Static sensitive semiconductor devices are used in this unit. Before changing the printed boards be
careful not to damage any of these devices due to electrostatic build up from carpet, clothes, seats, etc
Liquid Crystal Display
A Liquid Crystal Display contains mercury, which is harmful to the human body when touched. When
you attempt to discard this device, follow the proper disposal procedures.

Preface KGP-925
(2) 0093192502-01
Symbols used in this manual
The following symbols are used in this manual. You are requested to be fully aware of the meaning of
each symbol before carrying out inspection and maintenance of this equipment.
Alarm mark
Caution mark
Warning High Voltage mark
Prohibition mark
To handle the equipment ignoring this sign may lead to injury to the
human body or damage to the equipment.
Alarm
To handle the equipment ignoring this sign may lead to electrical
shock to the human body.
This sign indicates that a specified action is prohibited. The
prohibited action will be shown in the vicinity of the mark.
To handle the equipment ignoring this sign may lead to a
malfunction of the equipment.
Caution

KGP-925 Preface
0093192502-01 (3)
How to use this manual
Scope of this manual
This manual contains information about installation, operation and maintenance of the KGP-925
GPS/GLONASS navigator.
Structure of this manual
This manual is divided into sections according to the contents as described below. This arrangement
will help you overview the whole contents as well as refer to detailed information for your specific
requirement.
Chapter 1: General Information
-About GPS and GLONASS
-Outline of the equipment
-Equipment composition
-Software type name
-Corresponding with Technical Regulations
Chapter 2: Equipment Composition
-Standard equipment list
-Optional items list
Chapter 3: Specification
-GPS/GLONASS receiver section
-Display section
-Data Input/Output
-Power requirements
-Compass safe distance
-Environmental conditions
-External dimensions and weight
Chapter 4: Installation
-Installation consideration
-Unpacking of the goods
-Inspection of the goods
-Siting the units
-Display unit installation
-Antenna unit installation
-Cable connections to the KGP-925
-Connector pin outs
-Inspection after installation

Preface KGP-925
(4) 0093192502-01
Chapter 5 : Basic Operation
-The name and function of each part
-Power On/Off
-Adjusting display contrast and brightness
-Selecting the screen
-Storing present position (EVENT)
-Using MOB (Man over-board) key
-Recalling event or MOB position
-Displaying average speed, average bearing and elapsed time
Chapter 6: Various Navigation
-Storing waypoint (LAT/LONG) data
-Setup of waypoint navigation
-Cross track error and course deviation angle
-Storing and erasing routes
-Route setup
-Setting an anchor position
-Track display
Chapter 7: Alarms
-Kinds of alarms
-Alarm explanation
-Setting and canceling
Chapter 8: Setup Procedure
-Menu options
-Menu 3: GNSS
-Menu 4: Differential GNSS (DGNSS)
-Menu 5: Compensation
-Menu 8: Initial setting
-Menu 9: Interface
-Initialization
Chapter 9: How to use LOPs
-Initial setup for LOPs display
-Storing waypoints (LOPs data)
-Correcting your position (LOPs)
-Calculating LOPs based on LAT/LONG data

KGP-925 Preface
0093192502-01 (5)
Chapter 10: Maintenance and Troubleshooting
-Periodic inspection and cleaning
-Troubleshooting
Chapter 11: Technical Reference
-Digital interface (IEC 61162-1 Ed.4)
Chapter 12: Communication with external navigation system
-Changing to the EXTERNAL mode
-Route data transfer
Annex
-Menu Tree
-DGNSS beacon reference stations list
-Decca zone

KGP-925 Chapter 1 General Information
0093192502-00 Contents
Chapter 1 General Information
Page No.
1.1 About GPS and GLONASS......................................................................1-1
1.1.1 General.............................................................................................................1-1
1.1.2 Positioning by GPS/GLONASS ......................................................................1-1
1.1.3 Time required for position fix.........................................................................1-1
1.2 Outline of the equipment.........................................................................1-2
1.3 Equipment composition..........................................................................1-2
1.4 Software type name.................................................................................1-2
1.5 Corresponding with Technical Regulations ..........................................1-4

KGP-925 Chapter 1 General Information
0093192502-01 1-1
Chapter 1 General Information
1.1 About GPS and GLONASS
1.1.1 General
GPS is a navigation system using 24 satellites (21 plus 3 in service) orbiting 20,183 km high from the
earth every 11 hours 58 minutes. And GLONASS is orbiting 19,100 km high from the earth 11 hours 15
minutes.
1.1.2 Positioning by GPS/GLONASS
Your position is determined by calculating the distance from two satellites (in 2-dimensional positioning)
or three satellites (in 3-dimensional positioning) to your position. The distance is determined by the time
taken for a message to be sent from the satellites to the receiver. In 2-dimensional positioning, your
position (latitude and longitude; height is preset) is determined at the intersection point of three spheres
formed by three satellites. In 3-dimensional positioning, your position (latitude, longitude and height) is
determined at the intersection point of four spheres formed by four satellites.
1.1.3 Time required for position fix
In the following circumstances, your GPS/GLONASS receiver takes more time to fix position:
(1) When you turned the GPS/GLONASS receiver for the first time.
(2) The stored orbital data is not suitable for the available satellite, or purged due to lengthy storage.
(3) When you use it after moving a long distance
The GPS/GLONASS receiver first turned on starts to store the orbital data sent from the satellite. It
takes about 2 or 3 minutes before the first fix is available. After this, the receiver can fix your position
within a minute by using the previously stored data.
NOTE
The GPS system is based on a geodetic system called WGS-84 and The GLONASS system is
based on a geodetic system called PZ-90. In conventional world map, one coordinate system
differs from others with region, and this causes the position fix made on the map and GPS
measurement to differ to a certain extent.

Chapter 1 General Information KGP-925
1-2 0093192502-01
1.2 Outline of the equipment
The KGP-925 of GPS/GLONASS navigator is designed and manufactured to meet the carriage
requirement of the latest IMO/SOLAS regulation and its harmonized IMO resolution MSC.115(73) and
IEC technical standards, shown below.
IEC 60945 4th Edition 2002-08, General
IEC 61108-1 Ed.2.0 2003-07: Ship borne GPS-Receiver
IEC 61108-2 Ed.1.0 1998-06: Ship borne GLONASS-Receiver
IEC 61162-1 Ed.4.0 2010-11: Digital Interface
1.3 Equipment composition
The equipment composition of KGP-925 is shown in Figure 1.1.
1.4 Software type name
The following software type is used in KGP-925 GPS/GLONASS navigator.
Software type Application
KM-F14A Main logic board

KGP-925 Chapter 1 General Information
0093192502-01 1-3
Figure 1.1 Equipment composition of KGP-925
10.8 to 31.2VDC
100/115VAC
200/230VAC
DC Power cable
Power
rectifier
PS-010
AC Power cable
Junction Box
JB-10
NOTE: Connecting cable is option
*If connected more than two units,
JB-10 is required
Chart plotter
Marine radar
Echo sounder
Auto pilot
AIS
(Other brand)
Chart plotter
GTD-110/150
Plotter sounder
CVG-80/200
Echo sounder
CVS-841series
CVS-842/852series
Marine radar
MDC-900series
MDC-1800series
MDC-2000series
MDC-2200series
MDC-2500series
MDC-2900series
Marine radar
MDC-700series
MDC-1000series
MDC-1500series
MDL-1100series
Chart plotter
Marine radar
Echo sounder
Auto pilot
AIS
(Other brand)
Echo sounder
CVS-126/128series
AIS transceiver
KAT-100
Standard configuration
Option
Prepared by a customer
Legend
Echo sounder
CVS-1410 series
CVS-FX series
Antenna unit
MA-620G
Beacon antenna
coupler
BA-02L-K
(Option)
Whip antenna
BA-03(*RA-14)
(Option)
*RA-14 is a name in the KODEN

Chapter 1 General Information KGP-925
1-4 0093192502-01
1.5 Equipment composition
1.5.1. « Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» meets the
requirements of Technical Regulations about safety of internal water transport objects, approved by
Resolution of the Russian Federation Government #623 dated August 12, 2010 and requirements of
Technical Regulations about safety of Maritime transport objects, approved by Resolution of the
Russian Federation Government #620 dated August 12, 2010.»
1.5.2. « Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» determined as
objects of Technical Regulation.»
1.5.3. «According to the article 27 FZ of Federal Law 184-FZ «About Technical Regulation» dated
December 12, 2002 and Resolution of the Russian Federation Government dated 19.11.03 :0696
Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» has an appropriate
marking.

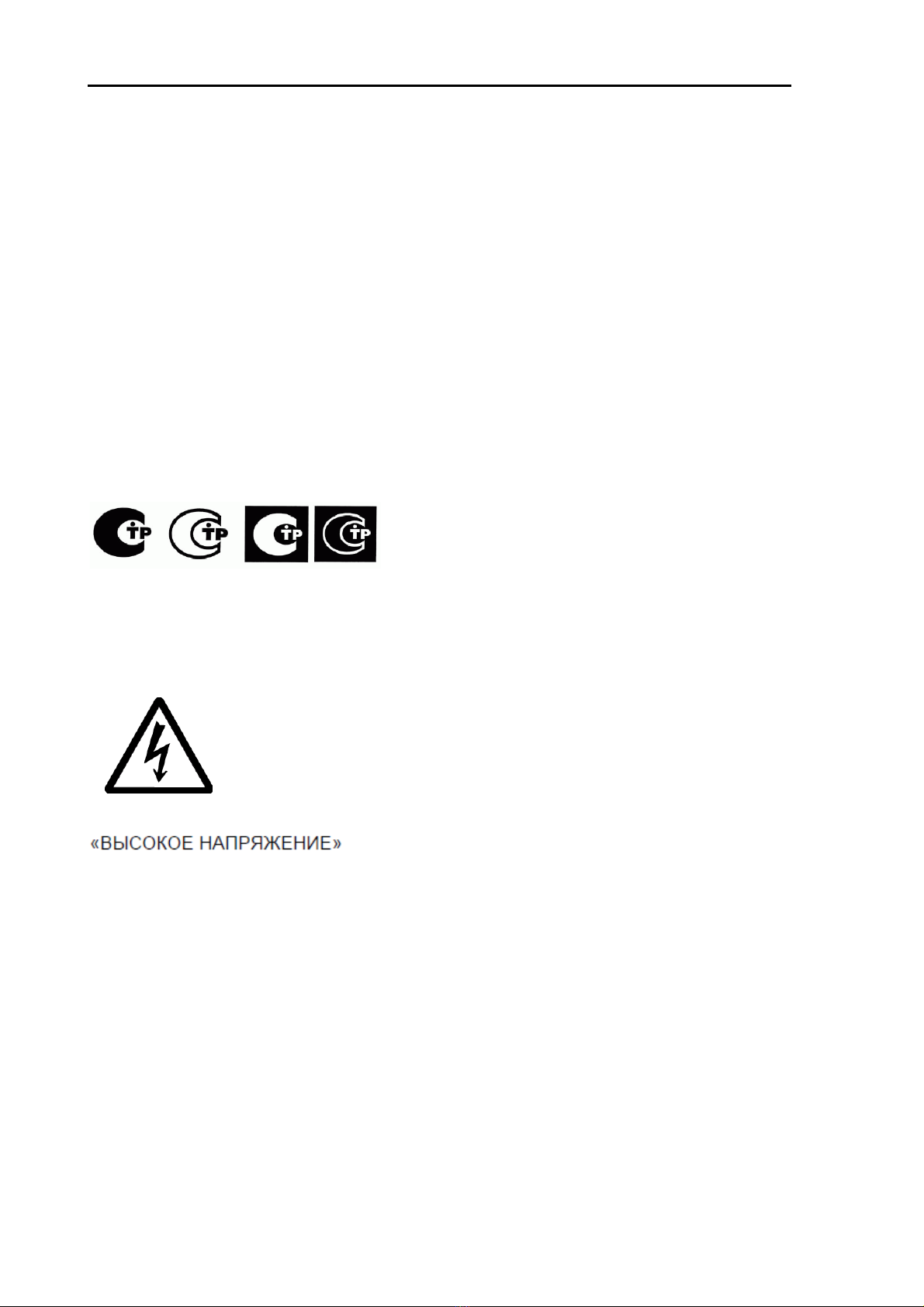

The marking can be performed by one of four variants, depending on surface color of equipment.
The marking of navigation should be done by the manufacturer (supplier) and should be applied right to
device surface.»
1.5.4. « Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» has marking by
caution plates in Russian and English.»
«HIGH VOLTAGE»
1.5.5. « Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» is tested
according to international standard and meet the requirements of International standard IEC 60945.
According to the requirements of clause 4.9. of the International Standard IEC 60945 Shipborne
combined GPS/GLONASS Receiver Equipment, type «KGP-925» is marked externally with the
following information, where practicable:
- identification of the manufacturer;
- equipment type number or model identification under which it was type tested;
- serial number of the unit;
- supply voltage;
- minimum safe distance at which it may be mounted from
main or steering magnetic compasses (according to sub clause 4.5.3. of IEC 60945);

KGP-925 Chapter 1 General Information
0093192502-01 1-5
- Production date;
- Power consumption;
- Weight;
- Recycling method;
- IP;
- Compliance with IEC 60945.»
1.5.6. « Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» has appropriate
marking about the recycling method.
Recycling of navigation and should be organized according to the Federal Law about industrial
waste :89-FZ dated 24.06.98 in the acting edition. Recycling of Shipborne combined GPS/GLONASS
Receiver Equipment, type «KGP-925» , accumulator batteries and other equipment should be done
only by organizations registered in Assay Chamber and approved for utilization of the defined type of
products with mentioning the owner of the waste.
Guidelines for recycling:
1. Shutting off the equipment from power supply source, pulling out of accumulator batteries;
2. Disassembling of the equipment by hand, extracting dangerous elements and material suitable for
repulping (unsoldering of radioelements, precious metals, disassembling of plastic parts and etc.);
3. Separating of elements by hazard class and material type;
4. Delivering of separated elements for recycling to specialized collection station.
1.5.7. «Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925» is produced
according to the advanced technologies and meet the requirements of the Federal Law of the Russian
Federation # 261-FZ
«About power saving and of energy efficiency and about making amendments in separate acts of
legislation of the Russian Federation» dated November 23, 2009 in current version.»
An example of label of Shipborne combined GPS/GLONASS Receiver Equipment, type «KGP-925»

KGP-925 Chapter 2 Equipment Composition
0093192502-00 Contents
Chapter 2 Equipment Composition
Page No.
2.1 Standard equipment list ........................................................................2-1
2.2 Option items list.......................................................................................2-1

KGP-925 Chapter 2 Equipment Composition
0093192502-01 2-1
Chapter 2 Equipment Composition
2.1 Standard equipment list
No. Item Type name Remarks Weight/Length Q’ty
KGP-925.MU
With mounting bracket and vinyl cover
0.86kg 1
01 Display unit
KGP-925.MUD
With mounting bracket and vinyl cover
0.95kg
02 Antenna unit MA-620G
TNC(M)+10mRG58+BNC(M)
0.18kg
Without cable
1
03 DC power cable CW-266-1.8M
With 3-pin connector, other end
plain 1.8m
1
04 Connector CBD-L206SA 6 pin water resistant connector -- 1
05 Connector CBD-L208SA 8 pin water resistant connector -- 1
06 Truss tapping screw TPT5X20U For mounting bracket -- 2
07 Operation manual KGP-925.OM.E English 1
2.2 Optional items list
No. Item Type name Remarks Weight/
Length
01 CW-373-5M
6 pin water resistant connectors both
ends 5m
02 CW-376-5M
A 6 pin water resistant connector and
other end plain 5m
03
Connecting cable
CW-391-1-5M A 8 pin water resistant connector and
other end plain w / EMI core 5m
04 Junction box JB-10 1 input,3 outputs X 2 circuits 0.4kg
05 Power rectifier PS-010 With 5A fuses 2pcs 3.5kg
06 AC power cable VV-2D8-3M For PS-010, both ends plain 3m
07 Flush mount kit FMK-1 Flush mount frame with bolts, washers
and screws --
08 Internal beacon receiver kit INT-DGPS KIT Receiver PCB, connector, harness
(install at the factory)
09 Beacon antenna
coupler BA-02L-K For beacon reception, with antenna
cable. Connected to BA-02L/BNC
connector.
1.2kg
15m
10 Whip antenna *BA-03(RA-14) 2.45m, for BA-02 0.3kg
11 Operation manual KGP-925.OM.E English
12 Service manual KGP-925.SM.E English
*About Whip antenna: BA-03 is a name in the MT Electronics LLC, but RA-14 is a name in the KODEN
Electronics Co.,Ltd.

KGP-925 Chapter 3 Specifications
0093192502-01 Contents
Chapter 3 Specifications
Page No.
3.1 GPS/GLONASS receiver section ............................................................3-1
3.2 Beacon receiver section (Internal beacon receiver type only) ............3-1
3.3 Display section ........................................................................................3-1
3.4 Data Input/Output.....................................................................................3-2
3.5 Power requirements ................................................................................3-2
3.6 Compass safe distance...........................................................................3-2
3.7 Environmental conditions.......................................................................3-2
3.8 External dimensions and weight............................................................3-3

KGP-925 Chapter 3 Specifications
0093192502-01 3-1
Chapter 3 Specifications
3.1 GPS/GLONASS receiver section
Receiving frequency 1575.42 MHz(GPS) 1597.5 - 1609.5MHz(GLONASS)
Receiving channel
32 channel parallel
Satellite access mode All-in-view
Sensitivity
-160dBm(tracking and reacquisition) -143dBm(acquisition)
Position 2.5m RMS(autonomous), 1m RMS(differential) Accuracy
Velocities 0.1 kt rms
Note: Accuracy is subject to change in accordance with DoD civil GPS user policy.
3.2 Beacon receiver section (Internal beacon receiver type only)
Receiving frequency 283.5 to 325.0kHz
Channel separation
500Hz step
Modulation MSK: 50, 100, 200bit/sec.
Sensitivity
2.5uV/m or less
Signal detection (S/N) Better than 6 dB
Dynamic range 92dB
3.3 Display section
Display LCD with backlight (128 x 64 dot’s, effective picture area: 85.71 x 54.35 mm)
Display mode NAV1, NAV2, NAV3, PLOT, MOB (Man Over Board)
Display range
0.025, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20 nm (sm, km)
Usable ground Within 80° in latitude
Plotting interval 10, 20, 30 seconds, 1, 3, 5 minutes, 0.1, 0.5, 1 nm (sm, km)
Track
display
Plotting capacity
2,000 points
Position data display Latitude/longitude in increments of 0.0001 minute, converted Loran C
LOPs, converted Loran A LOPs, converted Decca LOPs,
Navigational display Speed, course, velocity made good/course made good/elapsed time,
altitude, distance/bearing/cross track error/course deviation/time to go to
waypoint, total time to go and distance on route, DOP value, present time
(UTC or LTC), satellite status, beacon receiving status, distance/bearing
between two points, MOB display
Instant (event) memory 200 points
Waypoint memory 200 points
Route memory 20 routes (Max. 400 waypoints) reverse trail possible
Alarm Proximity, cross track error, CDI, anchor watch
Position compensation Latitude/longitude, LOPs, Datum
Magnetic compensation Auto or manual
Parameters
Loran C LOPs conversion, Loran A LOPs conversion, Decca LOPs
conversion, memory of waypoints and name (up to 10 letters), selection
of measuring unit (nm, sm, km), antenna height unit (ft, m), antenna
height, averaging (smooth) factor, position mode (2D or 3D automatic
selection), beacon stations selection

Chapter 3 Specifications KGP-925
3-2 0093192502-01
3.4 Data Input/Output
Output data format
(DATA connector) IEC 61162-1/ NMEA 0183 Ver.1.5 (NMEA1, 2)/ CIF/ SHIPMATE
(AAM, APB, BOD, BWC, DCN, DTM, GBS, GGA, GLC, GLL, GNS, GSA, GSV,
MSS, RMB, RMC, Rnn, RTE, SGR, VTG, WDC, WPL, XTE, ZDA)
Output data format
(DATA2 connector) IEC 61162-1
(AAM, APB, BOD, BWC, DCN, DTM, GBS, GGA, GLC, GLL, GNS, GSA, GSV,
MSS, RMB, RMC, Rnn, RTE, SGR, VTG, WDC, WPL, XTE, ZDA)
3.5 Power requirements
Input voltage: 10.8 - 31.2 VDC
Power consumption: Less than 4.0 W (at 24VDC)
Less than 4.5 W (at 24VDC) : Internal beacon receiver type
AC Operation: AC/DC rectifier P
S-010 is required.
Input voltage range: 115 VAC or 230 VAC
3.6 Compass safe distance
Standard: 0.8m
Steering: 0.4m
3.7 Environmental conditions
(1) Temperature and humidity
Display unit: - 15° to + 55°C
Operating temperature
Antenna unit: - 40° to + 85°C
Humidity 93% (+40°C)
(2) Vibration
The equipment operates normally under the following vibrating conditions.
2 - 5 Hz - 13.2 Hz: Amplitude ±1mm ±10 % (Maximum acceleration of 7 m/s
2
at 13.2 Hz)
13.2 Hz - 100 Hz: Maximum acceleration of 7 m/s
2
being applied
(3) Water proof
Display unit: IPX4
Antenna unit: IPX6

KGP-925 Chapter 3 Specifications
0093192502-01 3-3
3.8 External dimensions and weight
External dimensions: Width x Height x Depth
Dimensions (WxHxD): 220 x 131 x 90 (mm)
Weight: 0.86 kg / 0.95kg (Internal beacon receiver type)
Refer to Figure 3.1 for the exterior with dimensions.
Refer to Figure 3.2 for service space required.
Refer to Figure 3.3 for exterior of antenna unit with dimensions.
Refer to Figure 3.4 for exterior of beacon antenna coupler with dimensions. (Internal beacon receiver
type only)
Figure 3.1 The Exterior of KGP-925 with dimensions
Fi
g
ure 3.2 Service s
p
ace re
q
uired for KGP-925 Unit: mm (inch)
Unit: mm (inch)

Chapter 3 Specifications KGP-925
3-4 0093192502-01
Unit: mm (inch)
Figure 3.3 The Exterior of antenna unit with dimensions
MA-620G: with cable (10m)
Weight
Without cable : 0.18kg
Figure 3.4 The Exterior of beacon antenna coupler with dimensions (Option)
Weight
Without cable : 0.4kg
BA-02L-K : with cable (15m)
