Kogan ZENITH 2 User manual

ZENITH 2 FOLDABLE 4K
WI-FI DRONE
INCLUDING 2 BATTERIES
KAZEN2DRONA

2
Safety and warnings
3
Components list
4
Overview
5
Installation
5
Operation
7
App installation
13
Functions
14
Specifications
16
Troubleshooting
16
Notes
18

3
• Ensure to read all instructions and warnings in this user guide prior to first use. Retain
this user guide for future reference.
• Do not attempt to touch the drone whilst it is operating under any circumstances.
• This drone is not a toy and can be dangerous when used incorrectly. Follow all
instructions while operating. Disassembling or modifying the drone, operating
improperly, or being unfamiliar with this product may lead to an accident and possible
injuries.
• This drone is intended for use by persons aged 14 years or older. It is recommended that
people between 14-18 years operate the drone under adult supervision.
• Ensure the drone is always operated in a safe environment.
• It is recommended that you seek the assistance of an experienced drone pilot before
attempting to fly the drone for the first time. Asking a local expert is the best way to
properly assemble, setup, and fly your drone for the first time. It requires a certain
degree of skill to operate and is subject to normal wear and tear.
• Do not fly multiple drones simultaneously. Only one drone can be flown at any given
time.
• Do not allow the drone to fly out of visible range.
• Ensure the drone is flown at least 30 metres away from any people.
• Do not fly the drone over populated areas (for example, beaches, parks, and event
venues).
• Do not fly drones within 5.5km of airports. Many locations are considered
no-fly zones and you must ensure that you fly in areas that align with local laws and
ordinances.
• Do not record or photograph people without consent.
• Drones are prone to accidents and failures when piloted incorrectly. Operators are
responsible for their actions as well as any damage or injury caused by pilot error and
radio interference.
• If this drone or any of its components show any signs of damage, cease use
immediately and contact help.Kogan.com for support.
• Do not operate the drone in unsafe conditions and keep clear of heat sources, wires, or
electric power sources.
SAFETY & WARNINGS
WARNING: This drone may need to be registered. Check with your
local authority on the rules for registration.

4
• Do not fly the drone over areas affecting public safety or where there are emergency
operations taking place.
• This drone contains electrical components. Always keep this drone away from water
and other liquids. Exposure to water or moisture in any form can cause this drone to
malfunction resulting in a crash.
• This drone is composed of metal, plastic, electronic components, and other materials.
To avoid deformation or potential damage caused by high temperatures do not expose
it to sources of heat (fire, radiators, extended direct sunlight etc).
• Do not place heavy objects directly onto the drone or any of its components.
• Images used in this user guide are for reference only, actual product may differ slightly.
• During flight, always keep this drone away from people, high-rise buildings, high-
voltage wires and other potentially dangerous environments.
• Avoid flying in bad weather such as wind, rain and thunderstorm so as to ensure the
safety of people and property around the pilot.
• Always operate the drone in a way that it is within your own flight skills. Fatigue, the
effects of alcohol and other substances or improper operation will increase the
likelihood of accidents.
• The drone’s propellers rotate at a very high speed. To avoid personal injury, do not
touch any moving parts during operation.

5
Battery warnings
• If battery leakage occurs, avoid contact with your eyes or skin. If there is contact, wash
your eyes with water and seek medical care immediately.
• During charging, if you experience any abnormal smells, noise, or smoke, remove the
plug immediately any contact help.Kogan.com for support.
• Do not use third-party chargers.
• Do not overcharge the battery. Unplug the charger once fully charged.
• Do not charge the battery on inflammable object (carpet, timber floors, wooden
furniture, or on the surface of electro-conductive items).
• Always keep an eye on the battery when charging.
• Do not charge the battery if it has not had sufficient time to cool after use.
• The ambient temperature for charging is 0–40°C.
• To avoid a potential fire hazard, do not short, reverse the polarity, or puncture batteries.
Battery charging must be done under supervision and in a location out of reach of
children and pets.
• If the drone will not be used for an extended period, remove the batteries.
• Always dispose of batteries according to your local environmental authorities.
• If there is an increase in battery temperature after operation, cease use immediately
and allow it to cool down. Continuous use of this battery may cause it to expand,
deform, explode, or result in potential fire hazards.

6
Drone
Remote control
Spare battery
Spare propellers (x2)
USB charging cable
Screwdriver
User guide
COMPONENTS

7
Remote control
OVERVIEW
Speed control / (long press the button to enter the obstacle avoidance mode)
Headless mode
Tuning button
Left joystick
Power button
Take-off/land button
Rollover
Camera up
Camera down
Right
joystick
Capture button
Short press for
Long press for
video for (3
seconds)

8
Install remote control batteries
1. Remove the screw on the battery cover and open the battery cover.
2. Noting the polarity markings (+/–), insert x3 AA (non-rechargeable) batteries into
the remote control.
3. Reattach the battery cover.
Charge the battery
1. Remove the battery from the underside of the drone.
2. Connect the USB charging cable to the charging port on the battery and a USB
power adapter (not supplied). Plug the power adapter into an electrical outlet.
3. During charging the indicator is RED. Once fully charged the indicator will turn
GREEN.
BEFORE FIRST USE
Notes:
• Do not mix old and new batteries together.
• Do not mix different types of batteries.

9
Install the battery
1. Install the charged battery in the battery compartment on the drone. Ensure to
align the battery with the power input socket on the drone.
2. Test the battery by pressing and holding the power button for 3 seconds to turn
the drone on. The drone indicators will turn on.
Attach your phone to the remote
1. Lift the bracket on top of the remote control and insert your phone.
2. The bracket will hold your mobile phone securely in place.
3. Follow the instructions in the “App Installation” section.
Power button
Note:
Do not remove the battery when the drone is powered on.

10
Connecting the remote to the drone
1. Press and hold the drone’s power button for 3 seconds and place the drone on a
flat, even surface.
2. The drone's indicators will begin flashing.
3. Press the power button on the remote. The remote will emit a “tick” sound.
4. The drone's indicator will turn solid. The remote is now connected to the drone.
Starting the drone
1. Move and hold the left and right joysticks on the remote control for 3 seconds in
the positions indicated (left joystick 7 o’clock, right joystick 5 o’clock).
2. The remote and drone are both now ready for take-off and operation.

11
Take-off /Landing
Press the take-off/land button, the drone propellers will start rotating and the drone will
automatically fly up.
There are two methods to land the drone:
1. Use the left joystick to decrease altitude manually in a desired location and land.
2. Press the take/off land button. The drone will then automatically slow down and
land at its current location.
Flight control
Push up on the left
joystick
The drone ascends
Push down on
the left joystick
The drone descends
Throttle (camera is facing forwards)
Push up on the right
joystick
Drone moves
forwards
Push down on the
right joystick
Drone moves
backwards
OPERATION

12

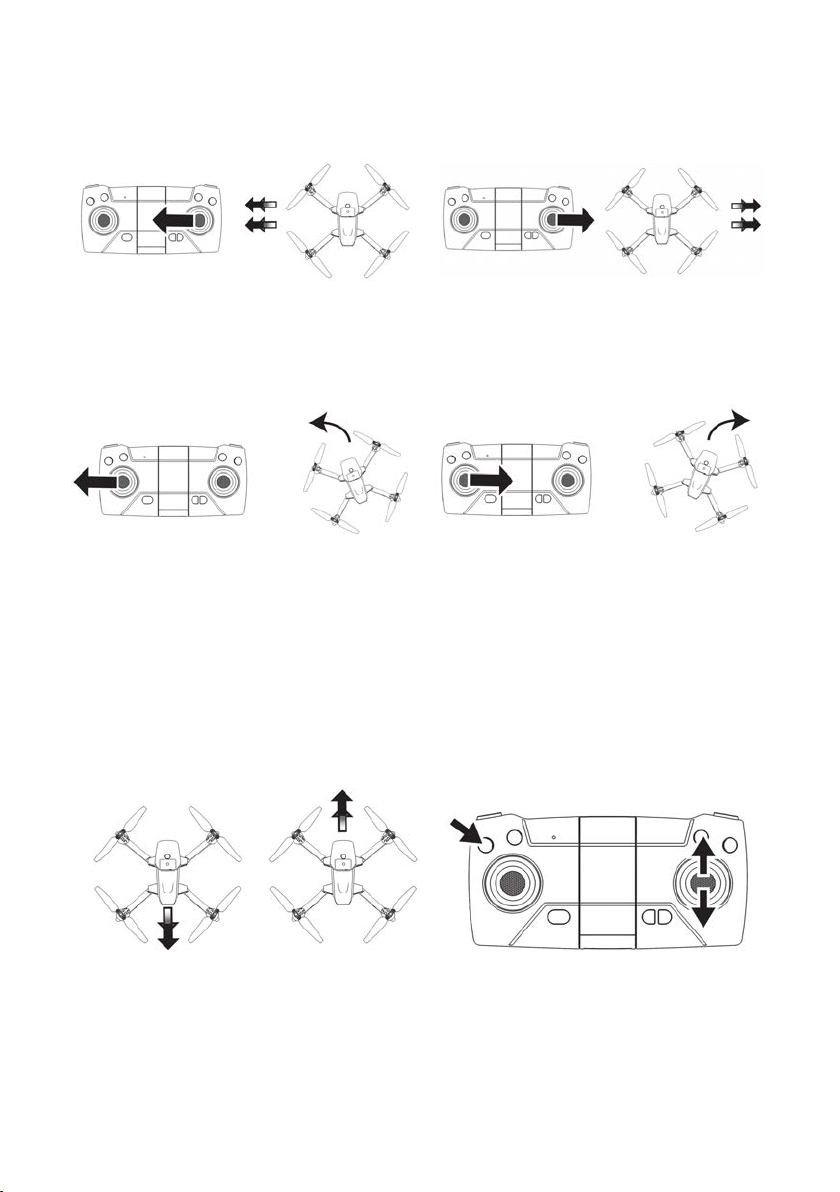

Bank left and right (camera is facing forwards)
Push the right joystick
leftward
Drone banks to
the left
Push the right
joystick rightward
Drone banks to the
right
Rotate left and right (camera is facing forwards)
Push the left joystick
leftward
The drone turns
left
Push the left joystick
rightward
The drone turns
right
Fine Turning Control (camera is facing forwards)
• When drone takes off, if it drifts backward:Press and hold the tuning button, push the
right joystick forward until the drone is stable and then release the tuning button to exit.
• When drone takes off, if it drifts forward:Press and hold the tuning button, push the
right joystick backward until the drone is stable and then release the tuning button to
exit.
Backward
Forward

13

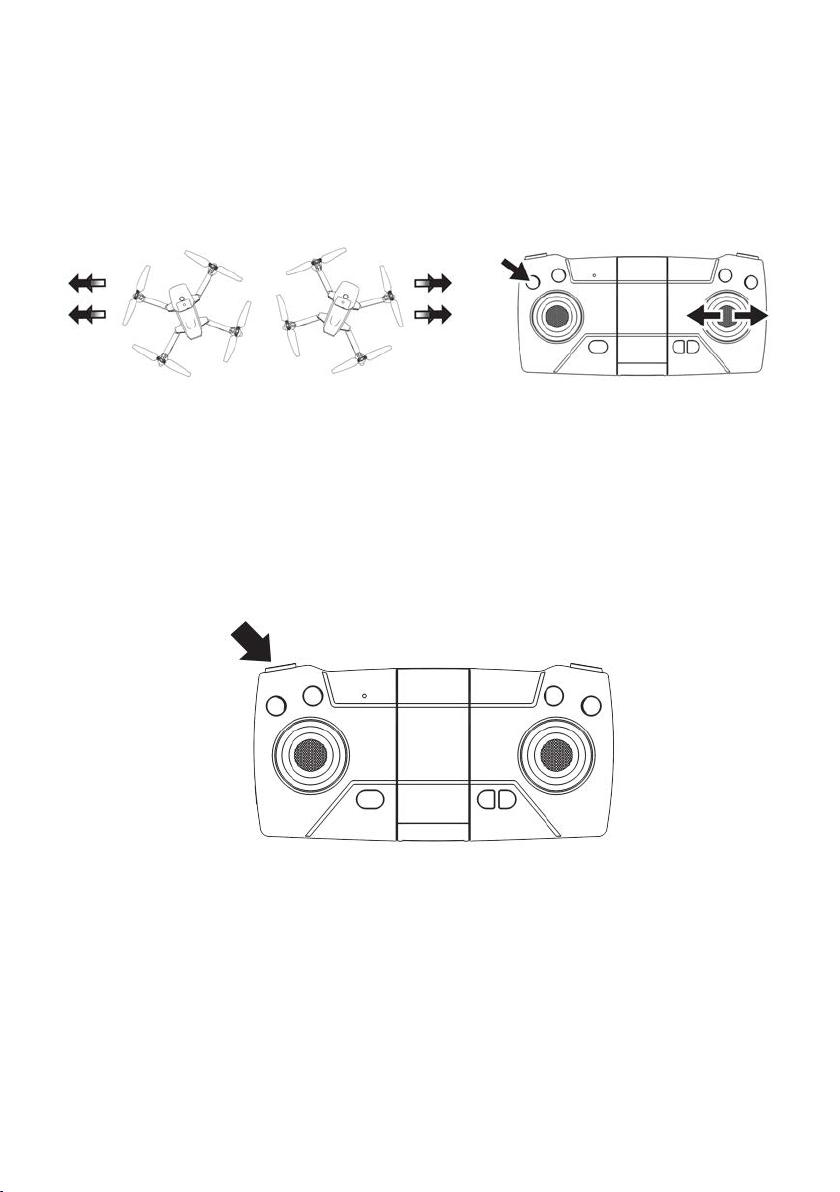

• When drone takes off, if it drifts rightward: Press and hold the tuning button, push the
right joystick leftward until the drone is stable and then release the tuning button to
exit.
• When drone takes off, if it drifts leftward: Press and hold the tuning button, push the
right joystick rightward until the drone is stable and then release the tuning button to
exit.
Speed control
• This drone features three speed settings. By default, the drone will be in low speed. This
setting is recommended for beginners.
• Pressing the speed control button will cycle between the three speeds.
• The remote will beep once for low speed, beep twice for middle speed and beep three
times for high speed.
Leftward
Rightward

14

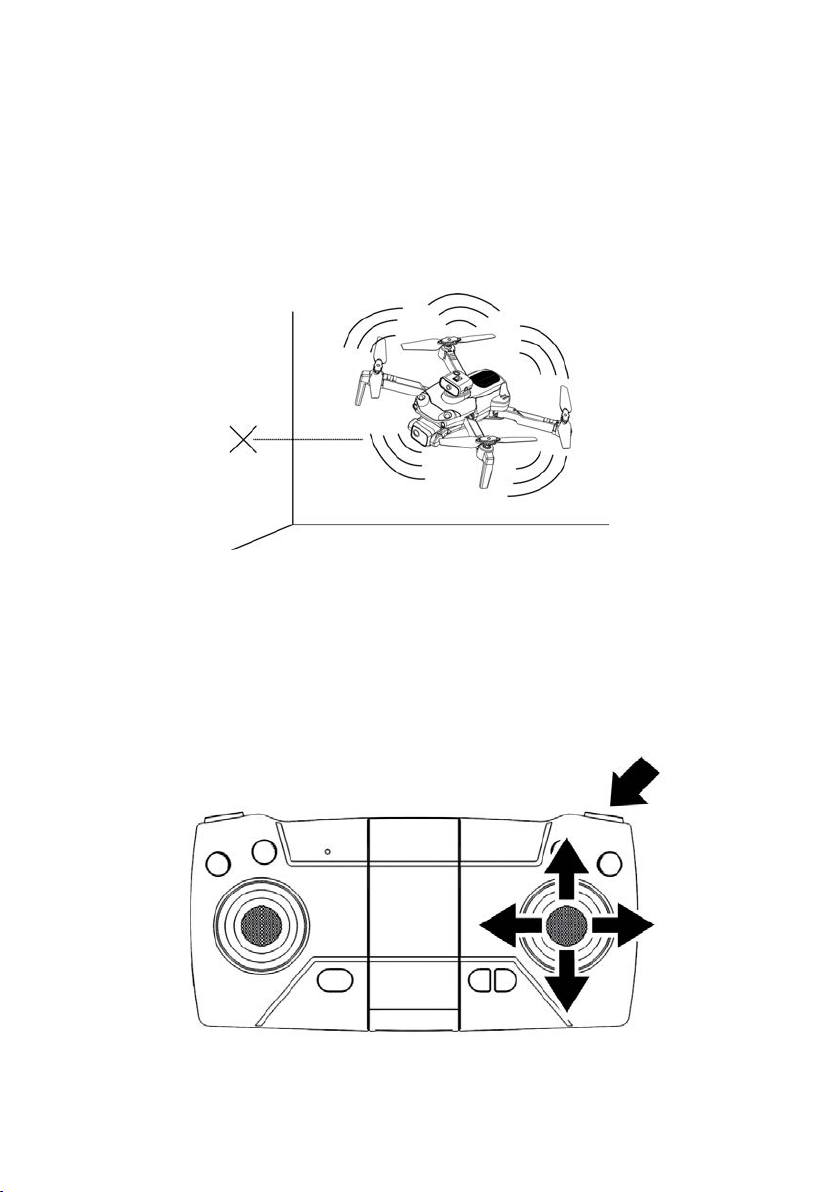

Obstacle avoidance mode
Enabling obstacle avoidance mode is recommended when flying a drone indoors or in
confined spaces to reduce the risk of collisions with obstacles and ensure safe operation.
When turned on, if the drone approaches an obstacle (for example, walls), it will retreat and
move in the opposite direction to avoid contact with the obstacle.
To enable obstacle avoidance mode, press and hold the speed control button for 3
seconds.
Rollover
• This feature allows the drone to automatically perform a flip.
• Press the rollover button, the remote will beep twice.
• Push the right joystick either left, right, up or down and the drone will flip over in the
respective direction.

15
Taking photos and recording videos
• Press the capture button and the drone will
take a photo and save it to your phone.
• Press and hold the capture button for 3
seconds and the drone will begin recording
video footage.
• Press and hold the capture button for 3
seconds to finish recording and save the
footage to your phone.
Adjusting the camera
• Press the camera up button on the remote
control to move the camera lens upward by
approximately 10 degrees.
• Press the camera down button on the
remote control to move the camera lens
downward by approximately 10 degrees.
Level correction
If the drone is unstable after take-off or is drifting in one direction, you may need to perform
a level correction.
1. After powering on and connecting the remote to the drone, place the drone on a
flat surface.
2. Press and hold both joystick to the lower right corner at the same time. The
remote will beep and the drone lights will flash. The level correction is complete.
Camera
up
Camera
down

16
Headless mode
By default, the flight controls of the drone are based on the position of the nose of the drone
at any given time. For beginners, this may make the drone difficult to control if the drone
changes its orientation.
Activating headless mode allows easier control of the drone as it will move according to the
joystick controls regardless of where the nose is facing.
1. Place drone directly in front of you (the side with the camera is facing forward),
align the remote control to the rear of the drone and then the press take-off
/landing button. The drone will rise into the air.
2. Press the headless mode button. The remote control will beep twice to confirm.
3. To exit headless mode, press the headless mode button again. The remote control
will beep once to confirm.
1
1
2

17
Download and install the App
1. Find the “Fly Plus” app by scanning the QR code below or by searching for “Fly
Plus” on the Google Play Store (android) or the App Store (iOS).
2. Turn on the drone. Enter the Wi-Fi settings on your phone and search for the Wi-Fi
network, "WIFI-4K-***”. Tap to connect.
3. Open the "Fly Plus" app your mobile phone and enter the control interface.
APP INSTALLATION
Note:
The drone can only be connected to one phone at a time.

18
Virtual joystick
After connecting to the drone, enable “Rocker” to use virtual joysticks to control the drone.
Virtual joystick controls
FUNCTIONS
Slide up/down:
The drone will
ascend /descend
Swipe left/right: The
drone will rotate
left/right
Swipe left/right: The
drone will bank left/right
Swipe up/down:
The drone will
move forward
/backward

19
Flight modes
Gravity sensing mode:Enable this mode and tilt the phone to control the aircraft to fly
forward, backward, left and right.
360° flip: After clicking the 360° flip mode, slide the right joystick in any direction and the
drone will flip in the respective direction.
Notes:
• This feature can only be done if you have enough airspace.
• This function cannot be used when the drone’s battery is low.
Notes:
• Only execute flip when you have sufficient airspaces. The drone can only perform
flips when it is at least 2m above the ground.
• This function cannot be used when the drone’s battery is low.

20
Track mode: Draw a line on the screen and the drone will fly according to the drawn
trajectory.
Notes:
• This feature can only be done if you have sufficient airspace.
• This function cannot be used when the drone’s battery is low.
