Kogan KAZENTDRONA User manual

FOLDABLE ZENITH DRONE
WITH FPV WI-FI CAMERA
KAZENTDRONA & KAZENTDBATA

WARNING
•Read these instructions thoroughly before use.
•Do not discard of these instructions.
•Improper operation may cause serious personal injury or property damage.
•The product is not suitable for children below 14 years of age. It is not a toy.
•Ensure the device is operated with care at all times, and used only as directed in
these instruction.
•The flight site must be a legal remote control model flight site. Check the rules and
regulations for your local area before operating this device.
•Do not operate near crowds of people.
•Assess all potential obstacles prior to operation. This includes, but is not limited to,
high-rise buildings, power lines, traffic, etc.
•Do not operate in extreme heat or cold weather. Suited only for use in 0° - 40° C
temperatures.
•Do not use during high wind or rain. Check weather conditions prior to operation.
•Do not operate around bodies of water (lakes, creeks, etc) or damp ground. Water
damage to the device may cause component failure, resulting in safety risk. Keep
the device dry at all times.
•Do not touch the high-speed rotating parts (propellers) while in use.
•Do not operate the device if it is damaged. In the event of damage, discontinue use
immediately and contact help.kogan.com for assistance.
Battery Safety
This device contains a Lithium Polymer (Li-Po) battery. As such, extra care should be taken
to avoid risk of property damage or personal injury.
•Do not operate while charging battery.
•Remove battery when not using for long periods of time.
•Do not leave battery in device when fully charged or above 50%.
If disposing of this product, take care to dispose of the battery correctly. Do not
throw battery in general waste. Please take the device to a recycling centre and
ensure the battery is recycled separately. For further information, please contact
your local council office or waste disposal service.
SAFETY & WARNINGS

Number
Name
Qty
Number
Name
Qty
1
Main body cover
x1 8
Protective frame
x4
2
Main body under cover
x1 9
PCB board
x1
3
Propellers
x4 10
Motor
x4
4
Front left arm
x1 11
Gear
x4
5
Front right arm
x1 12
Battery
x1
6
Rear left arm
x1 13
USB Charger
x1
7
Rear right arm
x1 14
Camera Board
x1
COMPONENTS

Remote Control
OVERVIEW
Photo / Video
360 Degree Roll /
Emergency stop
ON / OFF Switch
Speed switch
Backward micro adjusts
Forward micro adjusts
Leftward micro adjusts
One key landing
One key takes off
Rightward micro
adjusts
Headless mode / One key Return

1. Remote Control Battery
Insert batteries in remote control, paying attention to the battery polarity (+/-) as per the
illustration below.
2. Connect the USB cable to the computer to charge
To charge the device, connect the battery plug to the USB
charging cable, and insert the USB end into a computer or
compatible USB adapter. The indicator light will be on when
charging, and off once full. Do not leave on charge when full.
3. Connecting the drone power supply
Put the charged battery into the battery holder of the drone and then connect the power
supply’s battery plug to the vehicle socket for power connection.
INSTALLATION
Note:
Refer to the battery safety information in this guide’s Safety & Warnings page.
Switch

1. Folding function
When folding, begin by folding each arm at the centre point and then folding the complete
arm toward the body as one. When expanding, complete the same steps in reverse.
2. Arm and propeller installation
The ‘A’ arms should be installed to the upper left and the lower right corners of the drone.
The ‘B’ arms should be mounted to the upper right and the lower left corners of the drone.
At the corner of each arm, install the propellers.
ASSEMBLY

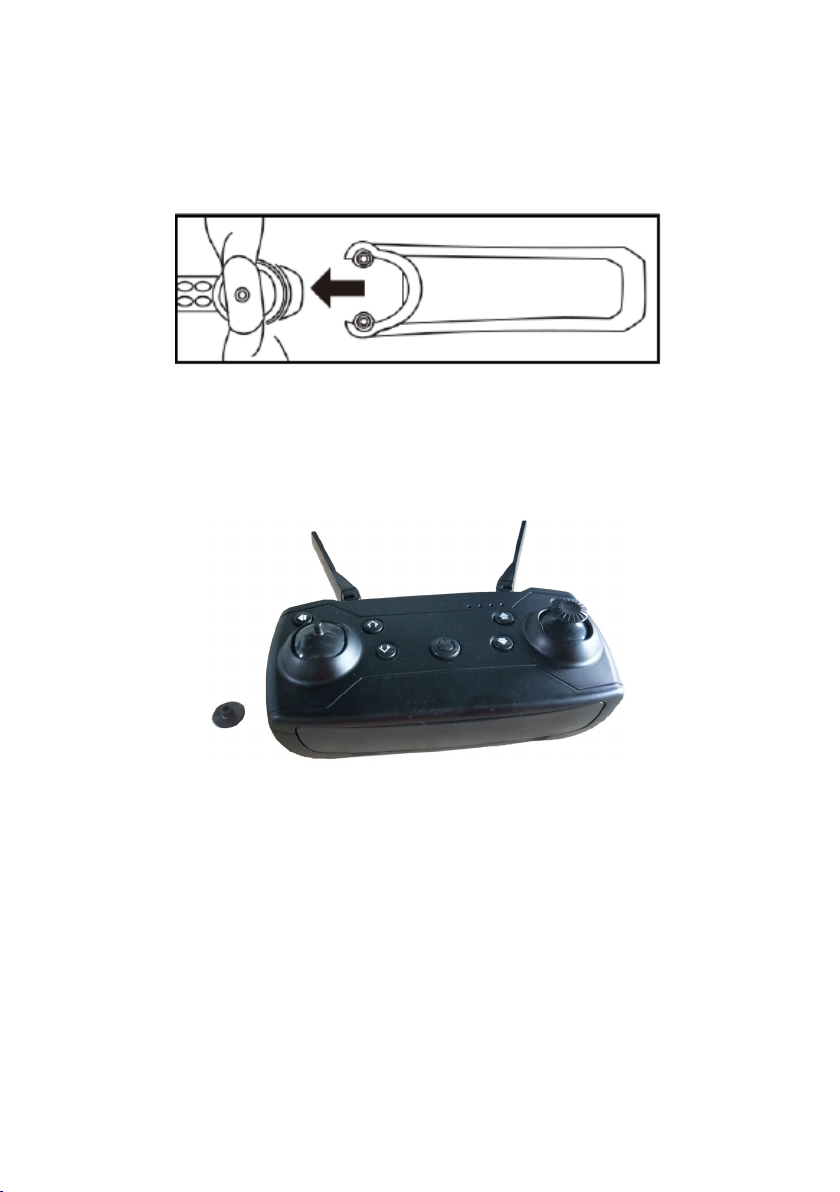

3. Protective frame installation
Position the protective frame at the drone’s arm and install fastening, as per below image.
Repeat these steps for all four arms.
Please note, the drone will not lift off if the protective frames are not securely attached.
Ensure they are tightly installed before operating the device.
4. Attaching remote control thumbsticks
The remote control will arrive with the thumbsticks separate, as shown below. To attach,
simply line the joystick shafts up with each pad and press firmly to secure.

1. Install mobile phone client
Please scan the corresponding QR code to download and install the app.
Open in web browser
(Apple iOS and Android)
Google Play Store
(Android)
2. Operation instruction
Enter the Settings, open the Wi-Fi option and find the device Wi-Fi hotspot name
“YD_XXX_UFO_XXXXX” and connect. After successful connection, return to the desktop,
open the downloaded app and enter the program.
INSTRUCTION

Remote Control
1. Mobile phone rack
Pull out the remote control lower bracket to clamp the phone.
2. Turning on
Place the drone on a flat surface, and then turn the power switch on. The drone indicator
light will flash.
Turn on the remote control, push the throttle joystick to the highest and then pull to the
lowest. You will hear a “tick” sound. The drone indicator light is on, match the right frequency
to complete (2.4G frequency), then you can take off.
If unable to take off, ensure that the installation and assembly steps have been completed
as specified in this guide. Check that the protective frame is tightly secured to each arm.
3. One key to start; One key to land
Tip: This product is determined by the barometer. In a variety of environmental temperature
and other factors, the drone will automatically start.
One Key landing mode when flying or low voltage. Appear high and low changes are
normal.
OPERATION
One key takes off
One key landing

4. Flight Control
A. Throttle (left lever)
Push the left lever upwards
Drone rises
Push the left lever down
Drone descends

B. Forward and backward (right lever) (with camera front side)
Push the right lever upwards
The aircraft is advancing
Push the right lever down
The aircraft is backwards
C. Left and right-side fly
Push the right lever to the left
The plane flew to the left
Push the right lever to the right
The plane flew to the right

D. Turn left and right (with camera front side)
5. Fine-tuning control (with camera front side):
Turn the left lever to the left
Aircraft turn left
Aircraft turn left
Turn the left lever to the left
Partial Rear
Partial Front
Forward and backward fine tuning
Take off when the body
forward offset, after the
micro adjustment is correct
Take off the body when the
offset, according to the former
micro adjustment is correct

Directional definition, selecting headless mode
Headless Mode sets the front of the drone to be in one direction, regardless of the
orientation of the drone. Typically, you will activate headless mode so that the 'front' of the
drone is facing away from you. If the drone pivots to the side, for example, the front of the
drone will still be considered directly in front of you.
As an example, if the drone turns ninety degrees to the left, the right side of the drone, which
is furthest from you, becomes the drones 'front', and when you direct the drone forward it will
still move away from you, but in actuality, it is moving to the side.
When Headless Mode is activated, push the right lever to forward to have the drone fly away
from you, regardless of its orientation. Pull the right lever to back, the drone will fly towards
you.
To activate Headless Mode, first set the drone in front of you, with the camera facing away
from you in line with the remote.
Take off the body when the
left shift, according to the
right micro adjustment is
correct
Take off the body when the
right shift, according to the left
micro adjustment is correct
Left side
Right side
About fine tuning
Front
Head Forward

Once you are ready, press the Headless Mode button on the top left of the remote.
Once you take off, the flight heading will be set.
When flying in headless mode, the remote control will play a “flute” sound twice to indicate.
The drone lights flashes. Press the remote controller button, a “flute” sound prompts and
exits Headless Mode.
One Key Return
One Key Return Mode returns the drone by travelling backward from its current position.
Because it travels backward, it is best used in conjunction with Headless Mode, otherwise, it
is essential that the drone is orientated away from you before One Key Return is activated.
To activate One Key Return, press the button on the top of the remote
Speed Selection
The drone has three speed settings, to cater to all pilots skill levels. By default, the drone will
be set to the slowest speed.
To change the speed, press the top right button on the remote. It will play a “flute” sound
twice to indicate the speed is set to the mid-level.
Press three times to activate the fastest speed. Press again to return to the slow speed
setting.
It is highly recommended that beginners operate the drone at a slow speed.
Note:
Using the right control thumbstick will cease the One Key Return function.

The Remote Controller
The photo/video button, or the mobile phone app, can be used to take pictures or record
video. You can view your video on your mobile and also start filming video or tale pictures
through the app using Wi-Fi.
Wi-Fi aerial version of the phone can find Wi-Fi connection and remote control to start the
video or take pictures.
When there is no connection to the app, you can use the SD card for later viewing.
Drone Reset Settings
The reset setting is a horizontal reset of the six-axis gyroscope on the drone and the micro-
adjustment of the remote control.
Push the sticks to the bottom right for 2 seconds, as the picture shows. You will hear a flute
sound, and the drone will flash quickly a few times to indicate that the reset is successful.
Note:
This function is generally not necessary, and should be used only for drone
maintenance adjustment or when drone faces a serious offset.

Emergency landing:
1. During the flying time, if it needs an emergency stop, press the button (as picture
shows), the drone will stop working. (Please do not attempt this operation while the
drone is flying in high altitude)
2. When the drone leans over 45 degrees, it will stop to protect the engine.
3. When using the app to control the drone, slide the throttle down and press the one
key take-off button for an emergency landing.
Interface:

Button instruction:
1. Return
8. Switch
15. Emergency stop
21. Throttle
2. Take photo
9. Extra Settings
16. Landing
22/23. Left/Right roll
3. Record video 10. Camera flip 17. 360 rolls
24/25.
Forward/Backward
4. Media
11. VR mode
18. Marking flight
26/27. Left/Right
5. Speed level 12. Headless 19. Speech
Recognition
28/29.
Forward/Backward
trim
6. Gesture photo 13. Gyro calibrate
20. Lens pitch angle
control (camera
without servos does
not respond by
pressing this button)
30/31. Left/Right roll
trim
7. Gravity control 14. Take off
32/33. Left/Right
trim

Gravity sensor mode:
Click on the icon to enter the gravity sensor mode, after entering the mode successfully, the
icon shows the yellow indication, so that you can shake the phone to control the drone
forward, back, left fly, the right side fly. Click the icon again to return to normal mode.
Take pictures:
Control the direction to the drone to the location where you need to take pictures; click the
camera icon, each shot a picture. After shooting, control the direction of the remote bar to
change the camera target. Each time the camera takes 0.5-1 seconds to take a picture.
Note:
Before using this feature, you must be skilled to operate the drone.

Voice command control-axis drone
Turn on the drone power switch, click on the high icon in Figure 1 and then click on the
button in Figure 2 for Voice command control.
Figure 1
Figure 2
Note:
The camera lens of the drone indicates the front of the drone.
