Kogan KA4KGLXDRNA User manual

WIDE ANGLE 4K GALAXY
DRONE
KA4KGLXDRNA

• Read these instructions thoroughly before use.
• Do not discard of these instructions.
• Improper operation may cause serious personal injury or property damage.
• The product is not suitable for children below 14 years of age. It is not a toy.
• Ensure the device is operated with care at all times, and used only as directed in
these instruction.
• The flight site must be a legal remote control model flight site. Check the rules and
regulations for your local area before operating this device.
• Do not operate near crowds of people.
• Assess all potential obstacles prior to operation. This includes, but is not limited to,
high-rise buildings, power lines, traffic, etc.
• Do not operate in extreme heat or cold weather. Suited only for use in 0° - 40° C
temperatures.
• Do not use during high wind or rain. Check weather conditions prior to operation.
• Do not operate around bodies of water (lakes, creeks, etc) or damp ground. Water
damage to the device may cause component failure, resulting in safety risk. Keep
the device dry at all times.
• Do not touch the high-speed rotating parts (propellers) while in use.
• Do not operate the device if it is damaged. In the event of damage, discontinue use
immediately and contact help.Kogan.com for assistance.
Battery Safety
This device contains a Lithium Polymer (Li-Po) battery. As such, extra care should be taken
to avoid risk of property damage or personal injury.
• Do not operate while charging battery.
• Remove battery when not using for long periods of time.
• Do not leave battery in device when fully charged or above 50%.
If disposing of this product, take care to dispose of the battery correctly. Do not
throw battery in general waste. Please take the device to a recycling center and
ensure the battery is recycled separately. For further information, please contact
your local council office or waste disposal service.
SAFETY & WARNINGS

ON/OFF Switch
OVERVIEW
Front button:
Behind button:
Short press to 360°Roll
Long press to Emergency Stop
Tu r n Right fine tuning
Forward fine tuning
Backward fine tuning
One key landing
One key take off
Tu r n Left fine tuning
Front button:
Short press to Headless mode
Long press to one key return

Remote Battery Installation
Insert x3 AA batteries, paying careful attention to the polarity symbols (+ / -).
Drone Battery
1. Connect the USB cable to a USB outlet:
To c h a r g e t h e d e v i c e , c o n n e c t t h e b a t t e r y p l u g t o t h e U S B c h a r g i n g c a b l e , a n d
insert it into a computer or compatible USB adapter. The indicator light will be on
when charging, and off once full. Do not leave on charge when full. Charging time
is 100-120mins.
2. Connecting the drone power supply:
Put the charged battery into the battery holder on the drone and then place the
battery plug into the drone’s power supply. Once connected, the drone lights will
turn on.
INSTALLATION
Switch

Drone
1. Folding function:
To fold the drone, please first fold the back arms and then fold the front arms. To
unfold do the same process in reverse order.
2. Drone fan installation:
The ‘A’ arms should be installed to the upper left and the lower right corners of the
drone. The ‘B’ arms should be mounted to the upper right and the lower left corners
of the drone.
At the corner of each arm, install the propellers.
3. Drone protection rack installation:
Position the protective frame at the drone’s arm and install fastening, as per below
image. Repeat these steps for all four arms.
Please note, the drone will not lift off if the protective frames are not securely
attached. Ensure they are tightly installed before operating the device.

1. Install app on Your Mob i le P hone :
Please scan the below QR code to download the app according to your phone’s system.
2. Connect Devices:
Enter the Settings, open the Wi-Fi option and find the device Wi-Fi hotspot name
“M8_XX_***/HF_XX***/ WIFI-XX-1”and connect. After successful connection, return to the
desktop, open the downloaded app and enter the program.
3. First Interface:
1) Connection to the WIFI hotspot
2) WIFI settings
3) Settings
4) Start
APP INSTALLATION
iOS
Android

4. Start Interface:
Functions:
1
Exit
10
Split screen
18
Take photo
2
Gravity mode
11
Headless mode
19
Entertainment
3
Roll
12
Flip
20
Video
4
Gesture control (take
picture ; video or )
13
Flip preview
21
Left remote
5
Switch camera
14
Menu
22
Right remote
6
Follow mode
15
Calibration
23
Take-off and landing
7
Picture in picture
16
Speed
25
Rocker open
8
Palm control flight
17
Album
26
Virtual head control
9
Panorama
When closing the rocker: pinch the blank to zoom.
Note:
Some functions of different UAV models cannot be used or displayed in app.
When the app is operated and used, it will prompt that the device does not
support this function.
<Such as: 6,7,8, 9 and other functions.>
fits appropriately.

Palm Control Flight
Click the palm control button, then raise the palm vertically, aiming at the camera of the
drone, the video will be automatically recognised to the palm and when a red frame
appears, the palm control mode is entered;
• Facing the camera of the drone, one-handedly
• When the palm is in the red box of the app, move the palm gently
• At this point, the drone will follow the palm up and down
• The best distance between the palm and the camera is about 1.2m.
Gesture Mode
Click gesture button, the system will automatically recognise different gesture to take pics or
videos. Gesture as below:
Gesture
Description
Will take photos, in the range of lm-4mm in front of
the camera of the drone, one-handed flat. After the
gesture is successfully recognised, the countdown
will start 3, 2, 1 and begin to take pictures.
Will record video. Within the range of lm-4mm in
front of the camera of the drone, the five fingers are
separated by one hand; after the gesture is
successfully recognised, the video recording will
start.To e nd the recording repeat the gesture.
Will record video. Within the range of lm-4mm in
front of the camera of the drone, the five fingers are
separated by one hand; after the gesture is
successfully recognised, the video recording will
start.To e nd the recording repeat the gesture.
Picture in Picture Mode:
• In picture-in-picture mode, you can view live video images of the lens below the
drone in real time.
• On the control page, click on the PIP switch to display the video footage captured
by the lens. You can freely switch the size of the preview image of the two lenses.

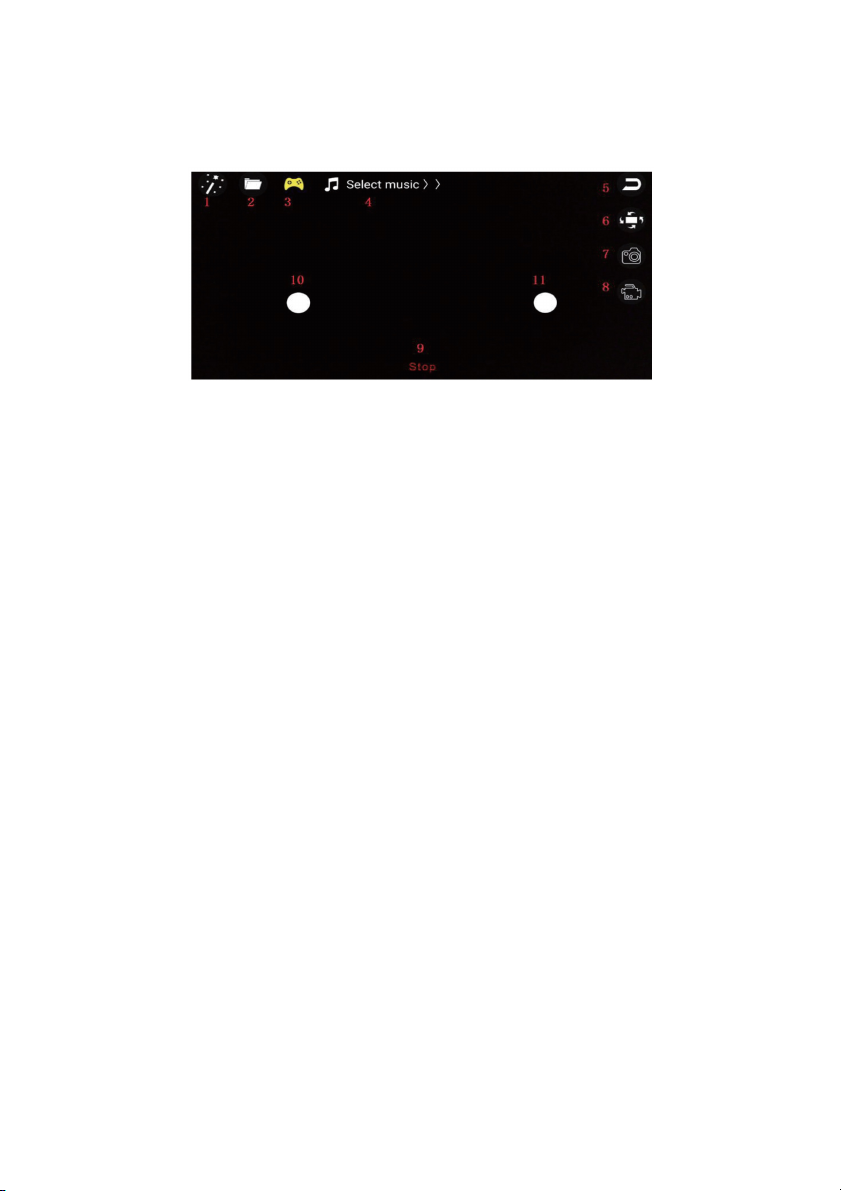

5. Entertainment Mode:
Click on the Entertainment Mode button and you will be taken to the following function:
1
Camera lens filter
5
Return
9
Emergency stop
2
Album
6
Rotating
10
Left remote
3
Rocker open
7
Ta k i n g pics
11
Right remote
4
Select music
8
Video
6. Follow Mode:
• Click the follow button on the main interface to enter the tracking interface. This
feature can recognise and follow a human figure.
• The human figure will be recognised by the green box on the screen. You can track
it by tapping the target person with your finger. If there are multiple people on the
screen, you can select one. When the tracking target person is not on the screen,
the system will enter the waiting mode and the system will automatically re-enter
the tracking mode when there is another tracking target in the screen.
Recommended Devices: iPhone 7 and above or Android 7.0 mobile devices.

Remote Control
1. Mobile phone grip:
Pull out the remote-control lower grip, clamp the phone securely in place.
2. 2.4G frequency:
Tu r n o n t h e r e m o t e c o n t r o l , p u s h t h e t h r o t t l e j o y s t i c k t o t h e h i g h e s t a n d t h e n p u l l t o t h e
lowest. You will hear a “tick” sound. The drone indicator light is on, match the right
frequency to complete (2.4G frequency), then you can take off.
If unable to take off, ensure that the installation and assembly steps have been
completed as specified in this guide. Check that the protective frame is tightly secured to
each arm.
3. One key take off and one key landing:
This feature is determined by the barometer and a variety of other environmental factors.
The drone will automatically go into one key landing when flying if the battery gets low.
Changes to the drone’s flying height are normal.
OPERATION
One key take off
One key landing

4. Flight control:
Throttle (left lever)
Push the left lever
upwards
The drone rises
Push the left lever
down
The drone descends
Forward and backward (right lever) (with camera front side)
Push the right lever
upwards
The drone will move
forward
Push the right lever
down
The drone will move
backwards
Left and right-side fly
Push the right lever
to the left
The done will fly to
the left
Push the right lever
to the right
The done will fly to
the right
Tu r n l e f t a n d r i g h t (w i t h c a m e r a f r o n t s i d e )
Tu r n t h e l e f t l e v e r t o t h e
left
Drone will rotate left
Tu r n t h e l e f t l e v e r t o t h e
right
Drone will rotate
right

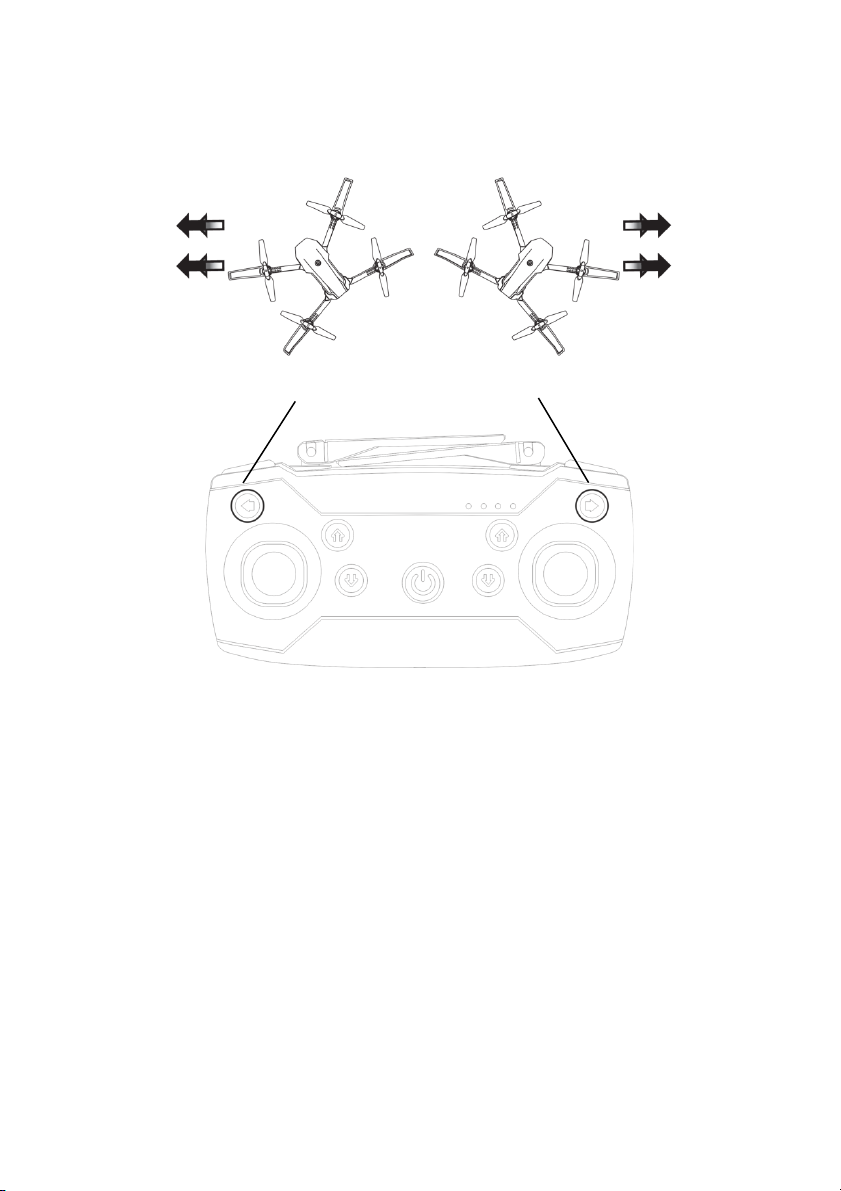

5. Fine-tuning controls (with camera front side):
Forward and backward fine tuning
Partial rear
Partial front

Rotating fine tuning
Tu r n L e f t
Tu r n R i g h t

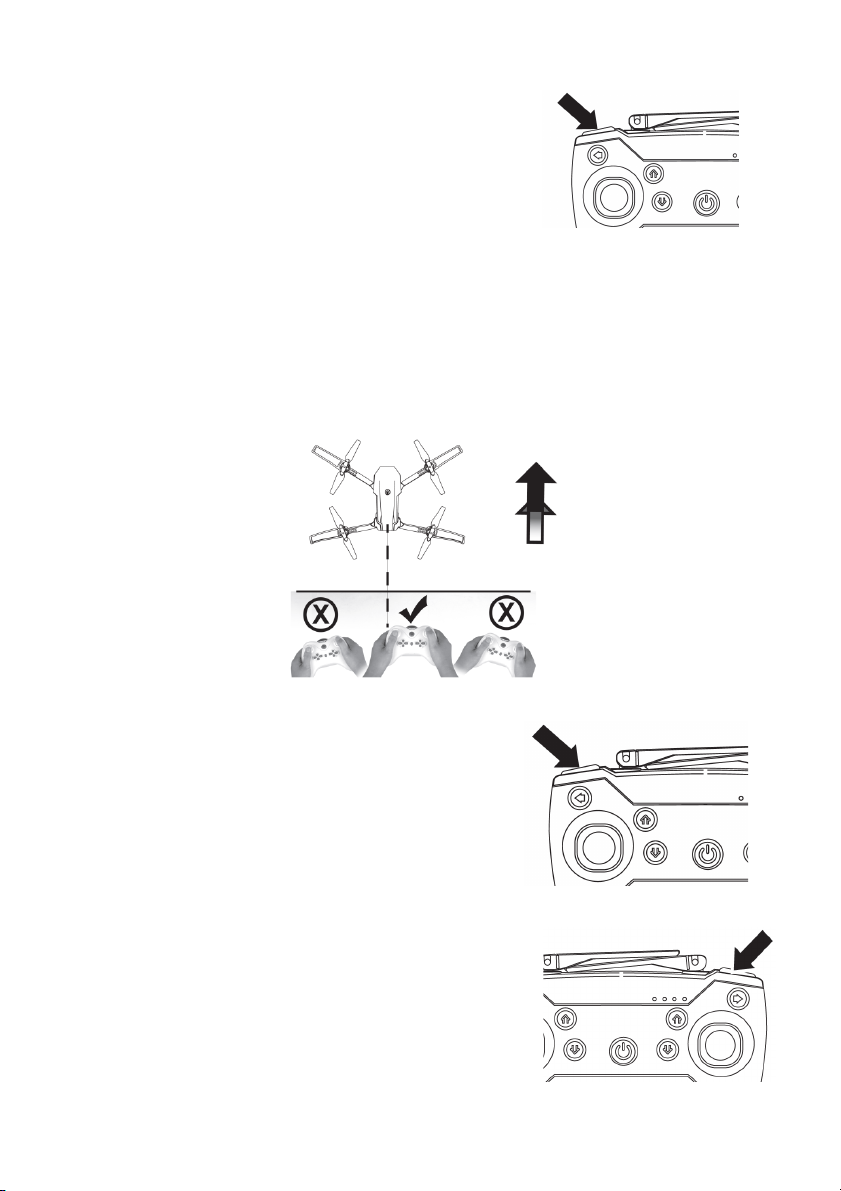

Headless mode
When switching to headless mode, the drone will override
its front and rear azimuths and reposition the front and rear
using the remote control as a reference point. Such as:
when the right lever is pushed forward, the drone will fly
away from the remote control; when the right lever to pull
back, the drone will fly towards the remote control (camera
front side).
1. The drone must be positioned with the camera facing you and the remote control
directly in-line with the drone. Short press the top left button and you will activate
headless mode.
2. When headless mode is active of the remote control will sound “Di Di Di...” and the
drone lights will. Short pressing the top left button again will deactivate headless
mode and the remote control will play a "flute" sound.
One key return
Press and hold the top left button to activate one key
return feature. The drone will override the current front
and rear left and right directions, automatically defined
by the headless mode and move towards the remote
control. Touching the right lever will stop this function.
Speed selection
Short press the top right button to cycle through the drone
speeds;
• Slow - drone plays "flute" sound
• Medium - drone plays "flute" sound twice
• Fast - drone plays "flute" sound twice
(Recommended beginners start with slow speed).
front
Head forward

Reset settings
1. To r e s e t t h e d r o n e , push the sticks (Figure 1), 2 seconds after the remote control will
plays “flute” sound. The drone’s lights will quickly flash a few times if the reset reset
was successful.
Emergency landing
1. During the operation of the drone, if need to urgently stop. Press and hold the top
left button. The drone will stop flying and land. (Please do not attempt this
operation while flying at high altitudes)
2. When the drone leans over 45 degrees, it will stop for protect the engines.
3. When using the app controls the drone, slide the throttle down and press the one
key take off button, it will perform an emergency landing.
Figure 1

Symptom
Cause / Issue
Solution
The drone batteries are
inserted and the five
indicator lights are
flickering.
Remote control and drone
connection are not successful
Please re-perform the remote
control and the flying drone
connection
The drone batteries are
inserted and the five
indicator lights stop
flickering. The drone has
no response.
Check if the remote control and
the flying drone are powered
on.
Check whether the remote
control and the drone battery
are in a low power state.
Is the battery positive and
negative terminal or placed
correspondingly.
Tu r n o n t h e r e m o t e c o n t r o l
and insert the drone battery.
Use full charged battery.
Reinsert the battery and
confirm that the battery
positive and negative pole
piece of contact is normal.
When the throttle lever
is used, the motor does
not turn and the drone
does not fly. The
indicator light on the
disc starts flashing.
Lithium battery power
shortage.
Charge the battery or replace
with another fully charged
battery.
The drone main rotor
continues to run but
cannot take off.
The main rotor deformation.
Drone battery power shortage.
Replace the main rotor.
Charge or replace the battery
with another battery.
The drone is not level.
The main rotor deformation.
Replace the main rotor.
The flying drone will still
go on or on after
moving.
The gyroscope is not at all right
Drone engine malfunctioned.
The remote control can be
automatically corrected or
restart the re-frequency.
Ensure that the drone is placed
on a flat ground surface before
take-off. Do not launch the
drone from an incline or from
hand.
The drone was not
stable and fell.
Drone will not take off.
Protective frame is not secured
tightly.
Re-perform assembly and
installation steps, ensuring
protective frame is secured.
TROUBLESHOOTING

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
