Kogan 9 RT9230 Series User manual

(KALED55RT9230SVA)
SERIES 9 RT9230
55" SMART HDR 4K UHD LED TV
QUICK START GUIDE

COMPONENTS
3

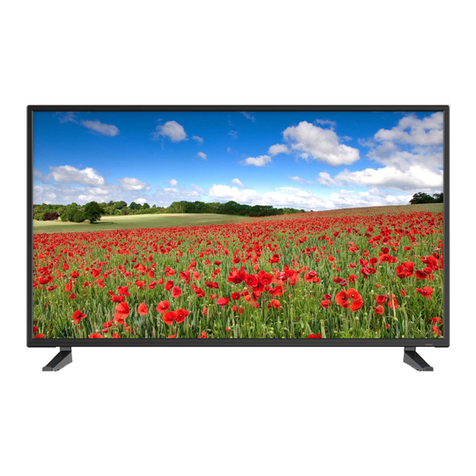

A Kogan 55” Smart HDR
4K UHD LED TV
B Remote control
C Stand (x2)
D Ba4 x 18mm screw (x4)
E AAA battery (x2)
F Quick-start guide
G Warranty card
B C D
E G
NOT INCLUDED
Phillips head screwdriver, antenna cable, broadband internet connection.
(KALED40RT92 20SVA)
SERIES 9 RT9220
43" SM ART HDR 4K UH D LED TV
QUICK START GUIDE
F
A

4
REMOTE CONTROL OVERVIEW
Figures 0-9 are used to directly input
channel number
Press to display Electronic Program Guide
and select the favorite channel
Increase the volume
Decrease the volume
Increase the program
Decrease the program
Displays the OSD(On Screen
Display) menu
To confirm the choice with
program the highlighted menu
item
Press to start recording the program
EPG
IN FO
VOL +
VOL
CH +
CH
Press to info the source and channel’s info
Switches the TVbetween on and standby
mode
Mute or restore TV sound
Display/Select signal source
options
Microphone hole
Displays the home screen

5
REMOTE CONTROL OVERVIEW
Press these buttons to select items
Press these buttons to select and
adjust items
Accesso diretto a Amazon Prime
Video
To open app homepage
Go back to the previous step
Press to exit the OSD menu Press to play the video and press again to
pause the video
Press these buttons according
Press to fast forward in USB mode
Press to fast reverse in USB mode
Hold on or off for current page display
Press to change the language when
playing the stream which contains
multi-language
to different prompts
Press to enter Teletext when play the
program
AUDIO
SU BT
SUBT
EX IT
BA CK
Connects to NETFLIX for viewing
online TVshows and films(internet
connection required).
Connects to YouTube (internet
connection required).
Google Assistant

BA4X18 (4 PCS)
1b
Spread cushioning flat to lay the TV on. This will help to prevent damage.
Insert two 18 mm screws for each stand, and use Phillips head screwdriver
(not supplied) to tighten.
BEFORE YOU GET STARTED
1. Stand assembly
a. Attach stands to base of TV.
b.
2. Remote control assembly
a. Open the battery compartment cover on the back side.
b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings
(+ / -) of the batteries with the diagram inside the compartment.
c. Replace battery compartment cover.
2a2b2c
6
ASSEMBLY AND INSTALLATION
1a

7
ASSEMBLY AND INSTALLATION
3a
Antenna cable
(not supplied)
3. Connect to antenna
a. Connect an antenna cable (not supplied) via the 'ANT' input port at the back
of the TV.
b. Ensure the antenna cable is also connected to a working antenna,either via
an antenna wall socket in your home, or directly.
4. Turning TV on
Plug the power cord into a suitable power outlet, then press the POWER ( )
button on the remote control, making sure to aim it at the sensor at the front of
the TV. Alternatively, you can press the power button on the lower side of the
back panel on the TV.
Press the POWER ( ) button on the remote control to enter standby mode.
To power down the TV completely, unplug the power cord from the power
outlet.
Do not leave your set in standby mode for long periods of time. If you will
not use the TV for a long time, it is recommended to unplug the set from
both the power outlet and aerial.
TURNING TV OFF
3b
Antenna
wall socket

8
INITIAL INSTALLATION
The first time you switch the TV on, the initial step screen appears which guides you through the initial
proces.Please according to the Text Tips to inish initial installtion.
1. Initial Installation
1. 1 Language select
>Press / remote control to select the language option,then click【OK】to confirm.
Quickly set up your TV with your Android phone? (Continue/skip) Steps:
1.2
1. On your Android Phone, open the Pre-installed app "Google".
2. Type or say, "Ok Google, set up my device".
3. Tap the model name on the list.
Configure the network
>Select wired or wireless to connect to internet.
>If you select skip,it could be performed in homepage or settings menu.
Google Account Sign in
Sign in to get new apps,recommendations,movies,the Assistant,and more from Google.Two ways to
login Google account:
1.3
1.4
->Use your phone or computer:
1. Visit androidtv.com/setup on your phone or computer, Make sure your other device is on the same
Wi-Fi network as your Android TV ™

INITIAL INSTALLATION
9
2.Enter the display code on your phone or computer
->Use your remote:
Use the remote to enter your Google account and password to sign in to Google account.
In these steps you will setup the Terms of Service,Location,Help improve Android, Google Assistant and
additional Google functions.
Select install or un-install he recommended apps and Google apps by using this process.
->Press "Continue" to the next setting page.
Google setting
1.5
Play Auto Installs
1.6
1.7 Pairing Bluetooth Remote
-> Press'BACK 'and ' VOL- ' simultaneously on remote control to enter the Bluetooth pairing mode.
The Indicator light on remote control will flash when enter the pairing mode.
-> Press【OK】to begin pairing.
-> Press on remote control to skip the pairing mode.

10
INITIAL INSTALLATION
Country select
1.8
1.9
1.10
1.11
1.12
1.13
->Press / on remote control to select the country option,then click【OK】to confirm.
Set the TV password for Parental Controls,"0000" is invalid.
Select TV mode(Home/Retail)
Home mode is optimized for efficient energy usage for home use.
Retail mode is optimized to store demo with fixed settings.
Chromecast built-in™
Select On/Off to make Chromecast built-in available.
TV Channel Setting
->Select Antenna/Cable/Satelite to scan TV channel.
->If you select skip, the channel scan could be performed in menu.
Setup completed and Disclaimer Terms

11

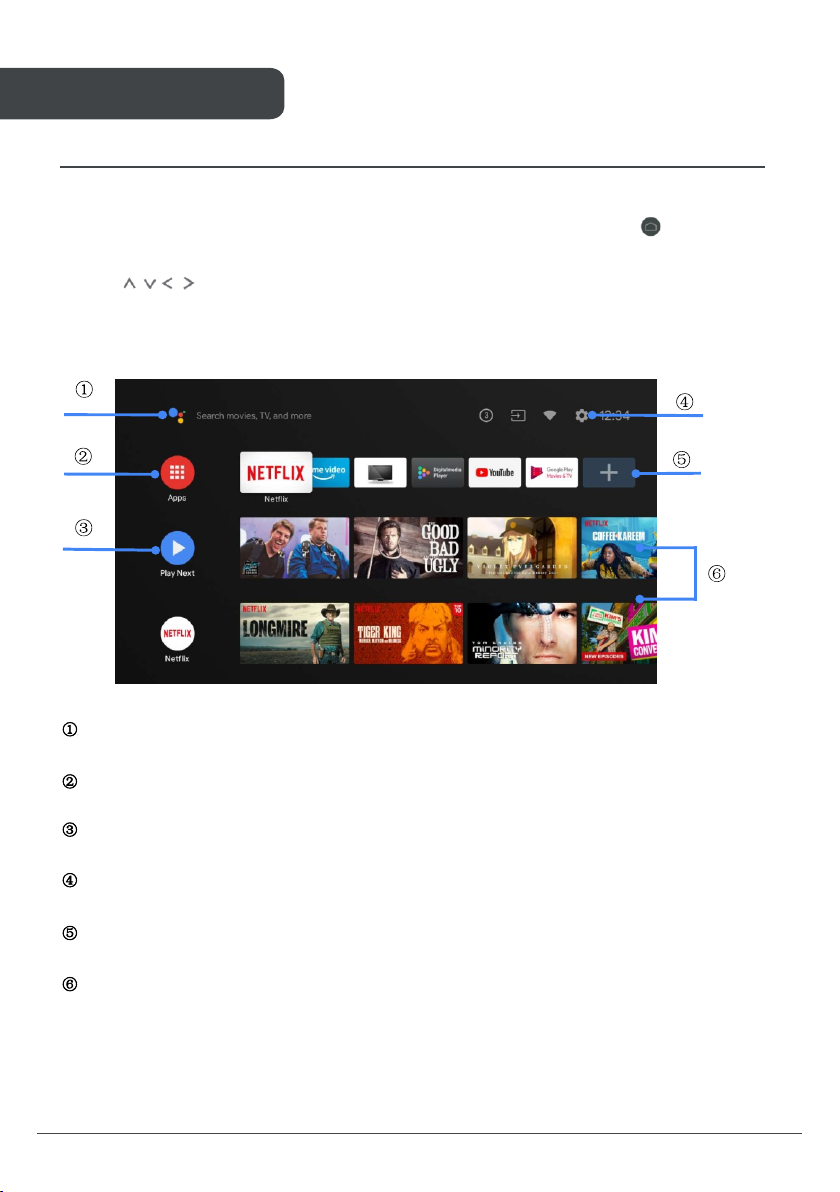

2. HOME
When initial setup is complete,the TV will enter the homepage by defaul t,or press on remote control
to display the homepage.
->Press / / / on remote control to switch between Google Assistant,Apps,Play Next,Netflix,
YouTube, and more on the Homepage.
-> Press【OK】to enter.
Google Assistant
Use your voice to jump to shows,control devices,and more—with Google Assistant
Apps
Play Next
List of downloaded and pre-loaded apps on your device
Based on your watch history and includes next episode in a series or unfinished movies
Settings
Favorite apps
Channels
Manage apps and TV controls, changepreferences, sounds,and account
Quick access to frequently used apps
For easy content discovery
SETTINGS

12
CONNECTING TO THE INTERNET
3.Settings
Allows to set various performance of your TV.
-> Press / on remote control to select "Settings"which is in the upper right corner of the screen.
-> Press / on remote control to select the option which you want to adjust in the Settings menu.
-> Press【OK】to enter.
3.1 Network&internet
3.2 Channel
Adjust all network setting and check connection if you have connection problems.
-> Press / remote control to select "Network&internet" in the settings menu.
-> Press / remote control to select:Wi--Fi/Add new network/Scanning always available/Proxy
settings/IP settings.
-> Press / on remote control to select "Channel" menu.
->Press【OK】to enter"Parental Controls", then click / or use the number buttons on remote
control to enter your PIN(Password for Parental Controls).
3.3 Device Preferences
-> Press / on remote control to select "Device Preferences".
-> Press / on remote control to select the options of About, Date&time, Timer, Language, Inputs,
Picture, Sound, Google Assistant, Reset,etc.

13
TUNING
->Press【OK】to jump to the corresponding sub-option.
3.3.1 About
-> Press / on remote control to select "About".
-> Press / on remote control to check additional information such as System update,Device name,
Restart, Status, and more.
-> Press on remote control to return to the previous menu.Press on remote control to exit the
menu.
3.3.2 Reset
If select reset, it will erase all data from your device's internal storage,including:your Google account,
System and app data and settings, and downloaded apps.
-> Press / on remote control to select "Reset".
-> Press / on remote control to select "Cancel" or "Erase everything".

14
APP INSTALL/MOVE/UNINSTALL
4 App Install/Move/Uninstall
->Press / on remote control to select"Apps"on Homepage,then click【OK】to enter.
-> Select "Get more apps"and input app name.
->Select "search"which is in the upper right corner of the page.
Example for "Facebook"
4.1 Install
->Input "Facebook", find "Facebook"App will show in the list,then click【OK】to select it.
->Select "Install",when completed select to open or Uninstall.
4.2 Move
->Select"Facebook", press and hold【OK】on remote control, then click / remot e control to
select"Move"
-> Press / / / on remote control to move,then click【OK】to confirm.
4.3 Uninstall
->Select "Facebook", press and hold【OK】on remote control, then click / on remote control to
select"Uninstall".
-> press【OK】to uninstall.

15
TV SOURCE SETTING

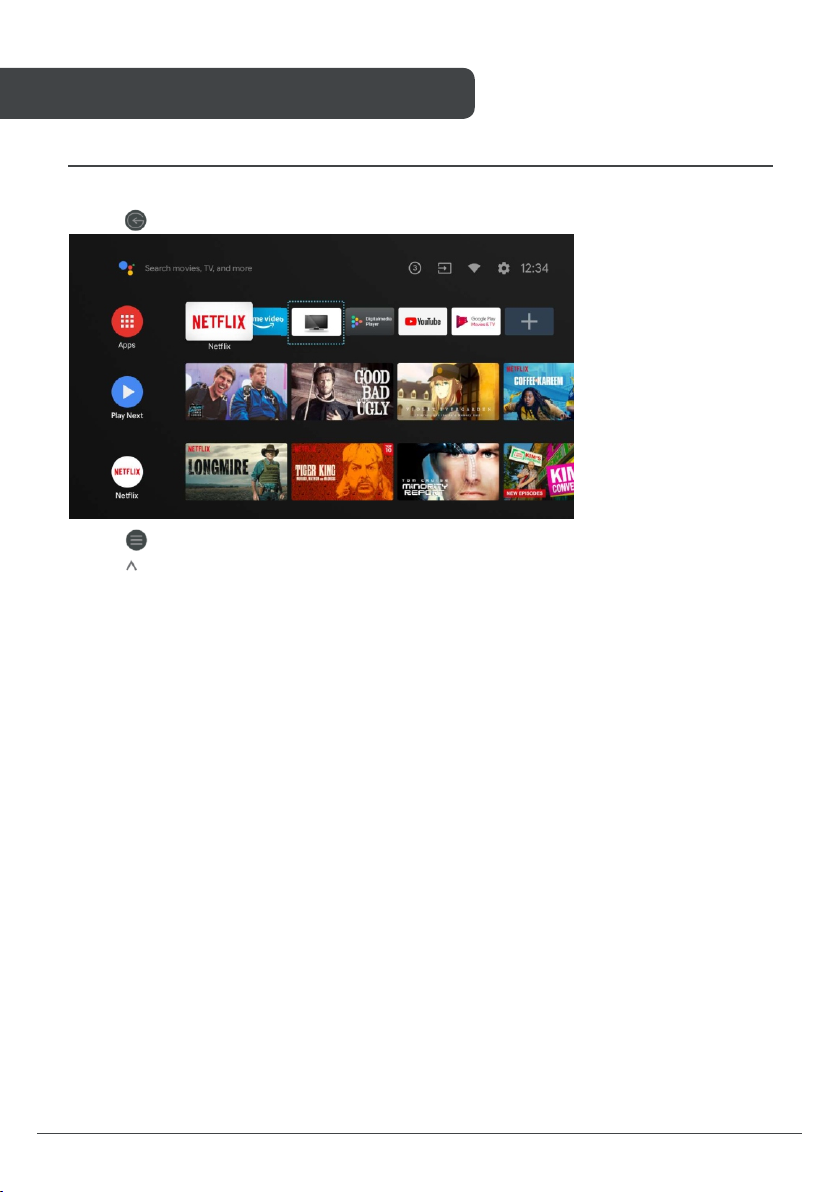

5 TV source setting
The way to enter TV source in Homepage:
->Press on remote control or Select"Live TV"on Homepage.
->Press on remote control.
->Press on remote control to select"Channels"and select"New Channels Available"to enter.

16

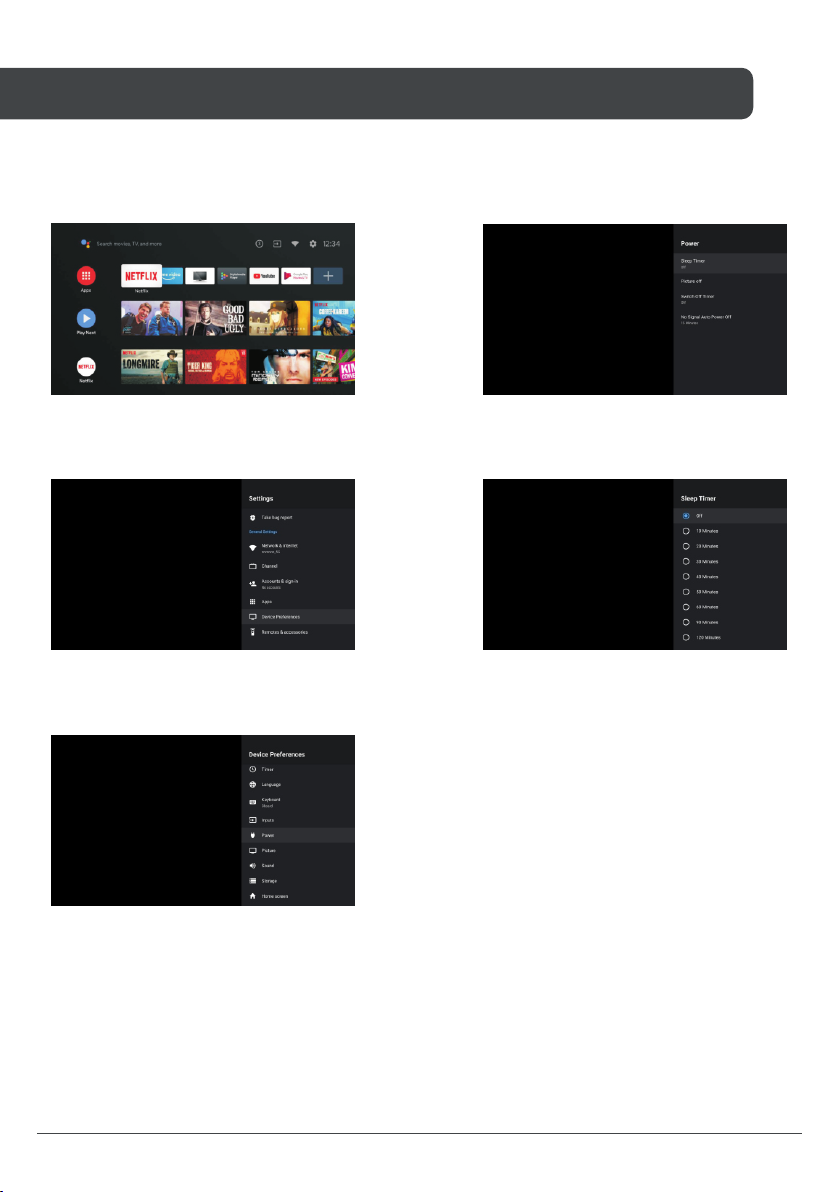

HOW TO TURN OFF AUTO SLEEP FUNCTION
Menu
Menu - > Settings - > Device Preferences -> Power - > Off
Settings
Device Preferences
Power
Off

17
BASIC TROUBLESHOOTING
Poor picture and sound quality
No picture or sound in TV status
No sound or sound is too low at
maximum volume
No colour, wrong colour or tints
Picture rolls vertically
Blurred or snowy picture, distorted
sound
Try a different channel
Adjust the antenna
Check all connections
Try another channel
Press the TV/AV button
Make sure TV is plugged in
Check the antenna connection
Check the volume settings on any
external speakers connected to
your television
Adjust the TV volume accordingly
Check another channel or input
Check that MUTE hasn't been
turned on
Make sure the program itself is
broadcast in colour
Select the picture menu, then
adjust the colour and tint submenus
Check all connections
Issues may be caused by the use of
an indoor antenna (poor signal)
Check direction, location and
connections to your antenna
Replace remote control batteries
Check battery terminals
Remote is out of range, move closer
to TV
Remove any obstructions between
remote and IR sensor of TV
Remote control malfunctions
Image is not centred on the screen
"No Signal" on HDMI source
For our full TV troubleshooting
guide and extended User Manual
for this TV, head online to
help.kogan.com
Make sure the power cord to your TV
is plugged in and turned on
Adjust the horizontal and vertical
position
Test the device with a different HDMI
cable
Plug the device into another HDMI
port
Try a different device connected to
the same cable and port
Perform a factory reset on your TV

18
NOTES

Need more information?
This is a Quick Start Guide
