Kogan KALED24QF7000VA User manual

1
Contents
Introduction
Warning
Caution
Main Unit Description
Remote Control
OSD basic adjustment
DTV Features
USB Features
PVR Operation
Specifications
Trouble Shooting

2
Introduction
Thank you very much for your purchase of our product of LED TV. It serves as a normal color
TV and PC monitor. To enjoy your TV to the full from the very beginning, read this manual
carefully and keep it handy for ready reference.
INSTALLATION
①Locate the TV in a room where direct light does not strike the screen. Total darkness or a
reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for
comfortable viewing.
②Allow enough space between the receiver and the wall to permit ventilation.
③Avoid excessively warm locations to prevent possible damage to the cabinet or premature
component failure.
④This TV can be connected to
⑤Do not install the TV in a location near heat sources such as radiator, air ducts, direct sunlight,
or in a place somewhere like close compartment and close area. Do not cover the ventilation
openings when using the TV.
⑥The indicator light will last about 30 seconds to go out after cutting off the electricity, during
this period, you cannot repower it on until the indicator light goes out, thanks a lot for your
attention!
IMPORTANT SAFETY INSTRUCTIONS
① Read these instructions.
②Keep these instructions.
③Heed all warnings.
④Follow all instructions

3
Warning
This symbol is intended to alert the user to avoid the risk
of electric shock, do not disassemble this equipment by anyone
except a qualified service personnel.
This symbol is intended to alert the user to the presence
of important operating and maintenance instructions in
the literature accompanying the equipment.
Class I structures of equipment should be connected to the grid
power output with a protective earth connection on the socket.
Power plug as a broken appliance，broken installations should be
easy to operate.
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

4
Caution
Caution
High voltages are used in the operation of this product.
Do not open the product's casing. Refer servicing
to qualified service personnel .
Caution
To prevent fire or electrical shock hazard, do not expose
the main unit to rain or moisture，do not place objects
filled with liquids, such as vases, on the apparatus.
Caution
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Caution
Avoid exposing the main unit to direct sunlight and other
sources of heat. Do not stand the television receiver
directly on other products which give off heat. E. g. video
cassette players, Audio amplifiers. Do not block the
ventilation holes in the back cover. Ventilation is essential
to prevent failure of electrical component. Do not squash
power supply cord under the main unit or other heavy objects.

5
Caution
Caution
Never stand on, lean on, push suddenly the product
or its stand. You should Pay special attention to
children.
Caution
Do not place the main unit on an unstable cart stand,
shelf or table. Serious injury to an individual, and
damage to the television, may result if it should fall.
Caution
When the product is not used for an extended period
of time, it is advisable to disconnect the AC power
cord from the AC outlet.
Caution
The LED panel used in this product is made of glass.
Therefore, it can break when the product is dropped
or applied with impact. Be careful not to be injured
by broken glass pieces in case the LED panel breaks.

Main unit description
Control Panel Button Function

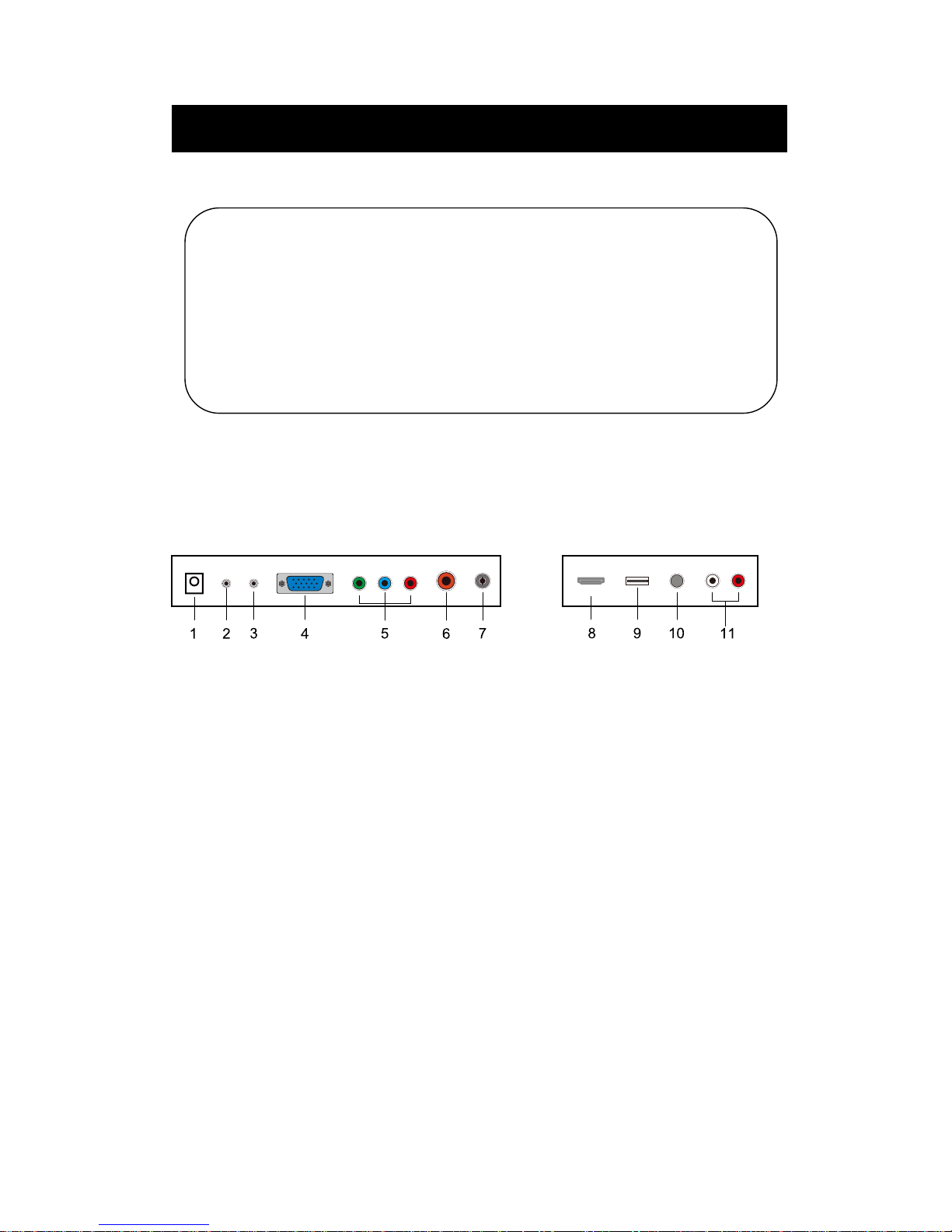

TV Terminal Connections
1. DC input terminal.
2. EARPHONE output terminal.
3. PC AUDIO input terminal.
4. VGA input terminal.
5. YPbPr input terminal.
6. COAX output terminal.
7. RF antenna.
8. HDMI/MHL input terminal.
9. USB input terminal.
10. VIDEO input terminal.
11. AUDIO input terminal.
VOL+ : Volume up.
VOL- : Volume down.
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Turn the TV on or off.
6

7
Optional Configuration as below:

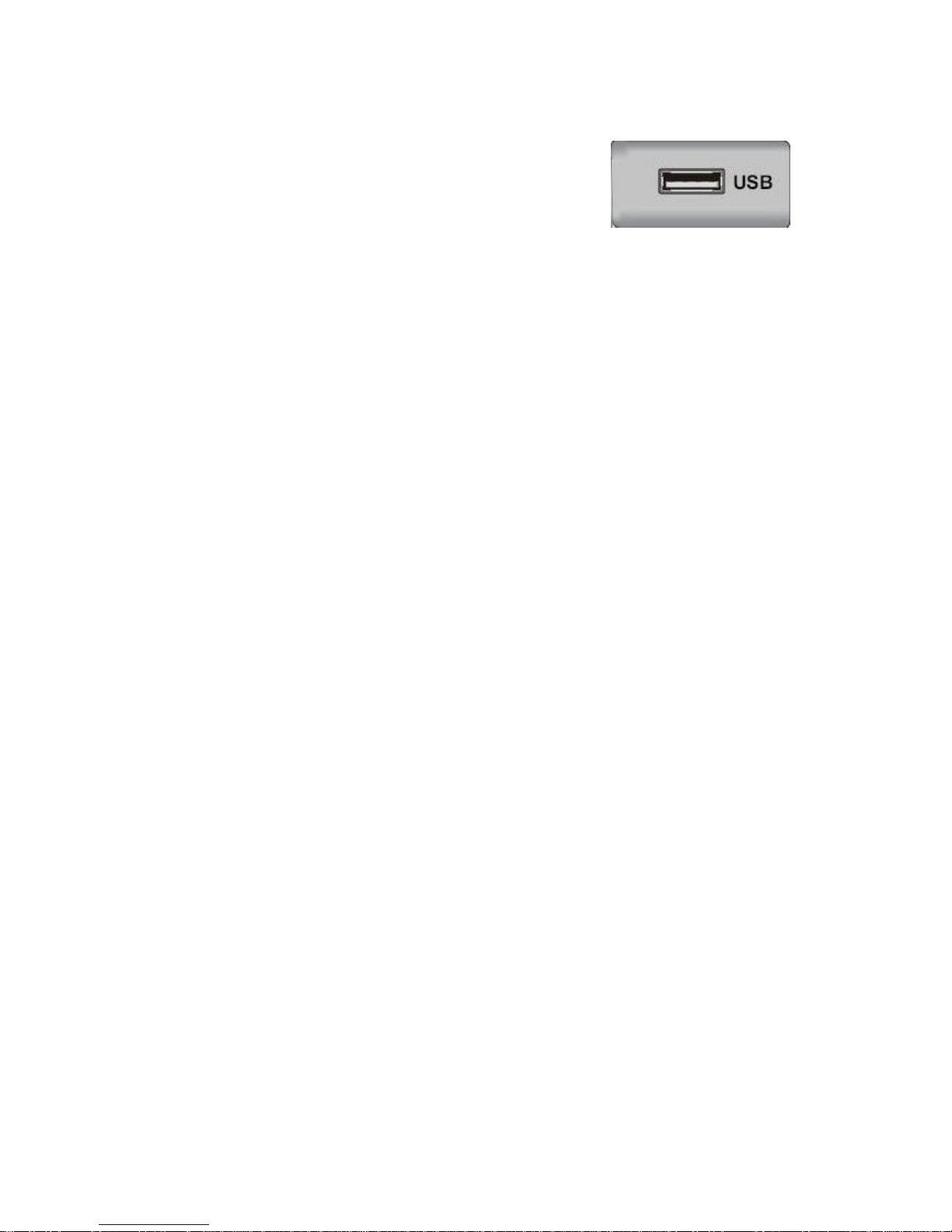

Connect the USB to the USB jack on the set.
NOTE
● It is only 500 mA MAX of DC current output when you connect with USB jack
● To ensure the Mobile HD works well, you should use other power supply for the Mobile HD.
Anddo not use the USB jack in the same time.
● It supports Mobile HD by connecting with USB jack (must more than 2 GB). The partitions of
the Mobile HD can’t be more than 4 partitions. The max partition is 2TB. It supports FAT/FAT32
document. The maxFAT document is 4GB andthe maxFAT32 document is 2TB.

Remote Controller
previous
DTV/ATV: Switch between AQaOog and Digital TV
MTS
ENTER:
Open the main menu.
Press to view and select available
input sources
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
8

Remote Controller
Note: Teletext is not currently broadcast in Australia.
TV/RADIO 1.When watching a channel,allows you to switch between TV and Radio modes.
GUIDE:1. Launches the EPG (Electronic Program Guide)
2. Fast reverse in PVR or Media Player mode.
2.Previous chapter in PVR or Media Player mode
1.
2.fast forward in PVR or Media Player mode.
2.Next chapter in PVR or Media Player mode.
REC LIST: .list of PVR recordings
In the on-screen menus, these
buttons have different functions as specified by the
colours shown on-screen. See next page for their
DVD-playback functionality.
1.
:
SUB.PG
SUBTITLE:To show subtitles when watching
DTV (broadcast-dependent)
Switch the teletext on and off.
TEXT:
32.
REC: Begin recording current program to connected
USB memory device, in PVR mode
33.
press to ‘
cast continues in background)
pause' the picture (actual broad
TIMESHIFT:
1.DTV channel time shift Function.
2.Play / Pause during PVR or media playback.
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle
Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
33
32
9

Remote Controller
34．:DVD EJECT。
35．:Play/pause DVD program.
36． :DVD previous chapter.
37．:DVD next chapter.
38．:DVD fast reverse.
39． :DVD fast forward.
40． :Stop DVD program.
41. D.setup:DVD system setup.
42. ZOOM: In DVD source adjust DVD picture size.
43.Angle:Select DVD picture angle.
44.Audio:Select DVD disc language.
45.Subtitle:Select DVD disc subtitle language.
46.D.MENU: DVD disc menu - press this to access
the menu.
47.D.Title:Press to select the DVD title.
48.GOTO:Play your favorite title/chapter/track.
49.D.DISP:Press to display the source and channel's info.
50.PROG:Press this button to change the playback
order .It varies according to the different discs.
51.STEP: Entrance of DVD OSD features.
52.REPEAT:Repeat playing the title or chapter.
53.A-B:Whilst watching a DVD, press this button
Button functionality when watching DVD
(Note that some features are disc-dependent):
the start and again at the end of a desired section
to watch it repeatedly.
47
5
9
6
0
7
4
8
D.Menu D.Title Goto D.Disp
PROG STEP REPEAT A-B
1 2 3
MENUMENU SOURCE
ENTERENTER
VOL
+
-
CH
+
-
Zoom Angle Subtitle Audio
EXIT DISPLAY
SLEEPSLEEP
P.MODE S.MODE
MTS
INDEX
RED GREEN YELLOW CYAN
REVEAL SIZE
CANCEL
HOLD TEXT
GUIDE ASPECT FAV/LIST
FREEZE
DTV/ATVDTV/ATV
D.setup
TV/RADIO
REC TIMESHIFT
SUB.PG SUBTITLE
RECLIST
37
35
40
34
39
38
42
46
50
43
53
49
48
44
45
36
52
51
41
10

11
OSD basic adjustment
Installation Guide
If this is the first time you are turning on the TV and there are no programs in the TV
memory, the installation Guide menu will appear on the screen.
1. Press the “///” button to select the local language.
2. Press the “///” button to select energy mode.
3. Press the “///” button to select the local country you want to
4. Press the “///” button to select Air or cable.
5. Press the “///” button to select mode :DTV+ATV,DTV,ATV.
6. Press the “///” button to select LCN“ON”or “OFF”.
Note: Searching for platform will take a long time, please be patient!

12

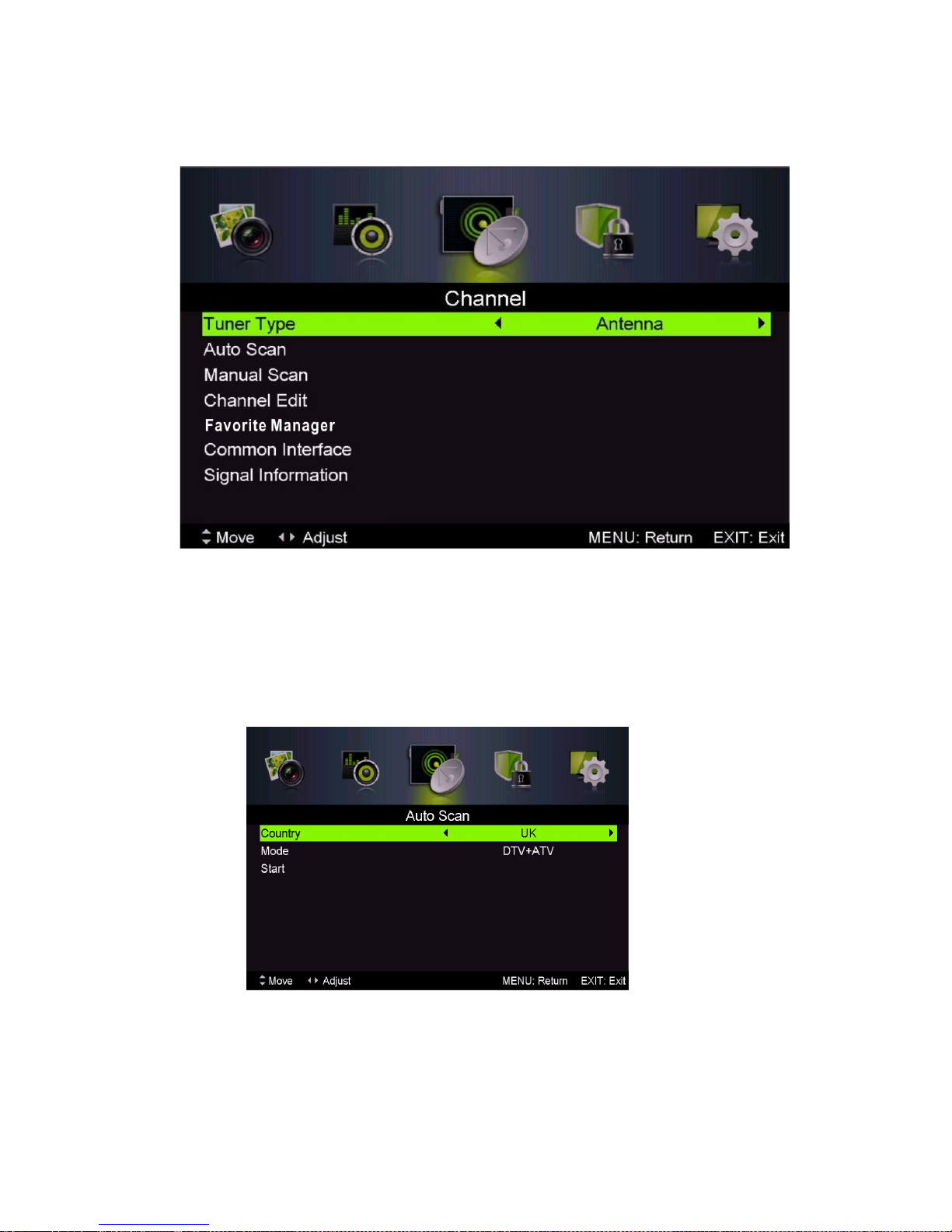

1.Auto Scan
Press “/” button to select “Auto Scan”
Press “/” button to select country and press the“/”button to select mode.
Press “/”button and then press “”button to start scanning. Press “MENU” or “EXIT”button
to stop.
Note: Searching for platform will take a long time. Please be patient!
Channel
Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the
main menu

13
2.Analog Manual Scan
Press “/” button to select “Manual
scan” and press the “”button to Analog
manual scan.
Press “MENU” button to return the
previous menu. Press “EXIT” button to exit
the menu.
3.Digital Manual Tuning
Press “/” button to select “Diigital
Manual Scan” and press the “” button to
start.
Press “MENU” button to return the
previous menu.
Press “EXIT ” button to exit the menu.
4. Channel Edit
Press “/” button to select “Channel Edit” and press the “ENTER” button to enter.
a. DELETE
Press “/” button to select the program and press “RED” button once to delete the program.
b. SKIP
Press “/” button to select the channel which you want to skip and press the “GREEN”
button to skip . Press “GREEN” button again to cancel the setting.

14
c. MOVE
Press “/” button to select the
channel and press the “BLUE” button to
move . Then press the “/” button to
select the channel with which you want to
move. Press “BLUE” button again to
confirm.
5. Signal information (only use in DTV)
Press “/” button to select “Signal
information” and press the “ENTER”
button . Press “MENU” button to return
the previous menu. Press “EXIT” button
to exit the menu.

15

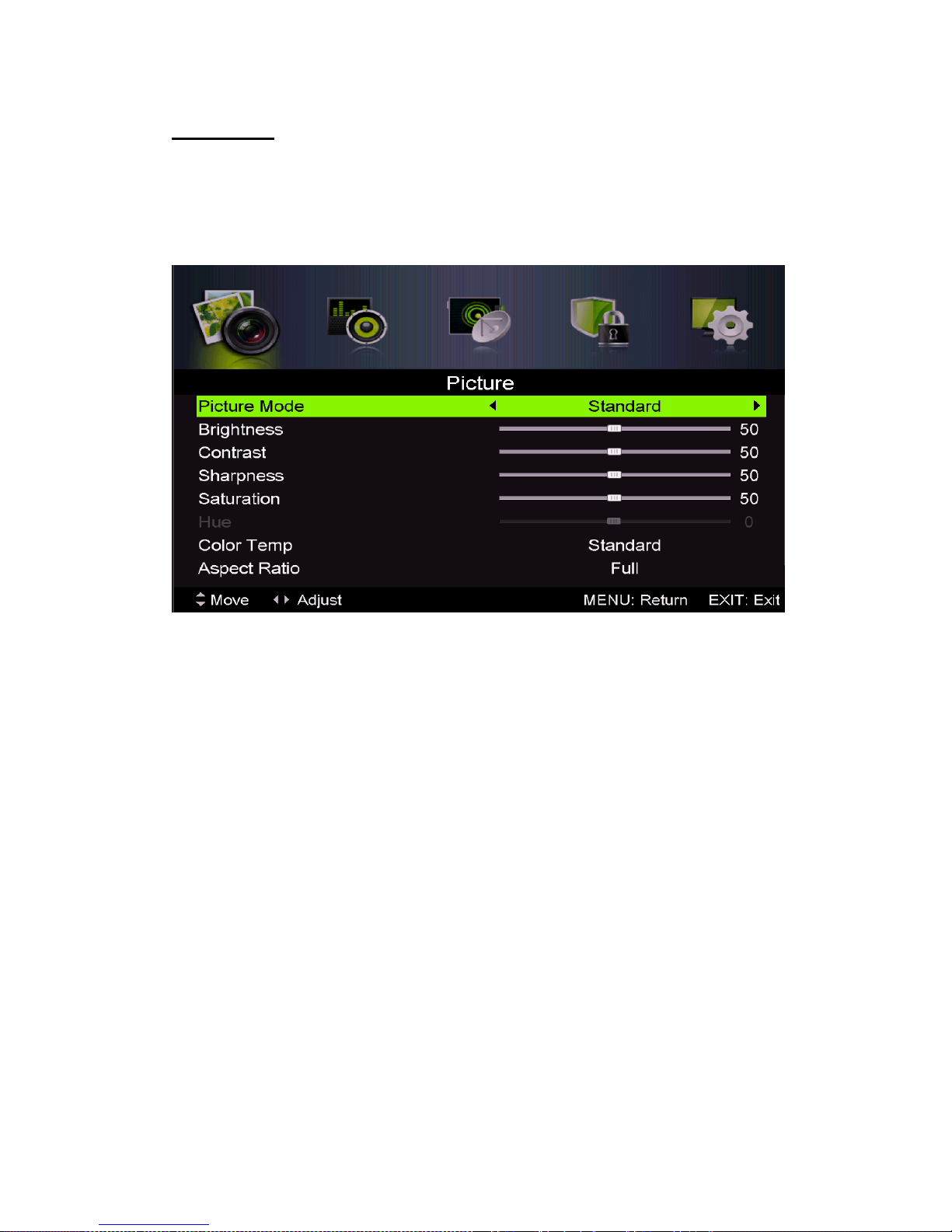

You can select the type of picture, which best corresponds to your viewing.
Press the “MENU” button to enter the OSD menu. Then press “/” button to select the
“PICTURE” menu. Press “/” button to select “Picture Mode” and press the “/” button to
select.
1. Press “/” button to select “Brightness” and press the “/” button to enter brightness
adjustment menu to adjust brightness.
2. Press “/” button to select “Contrast” and press the “/” button to enter contrast
adjustment menu to adjust contrast.
3. Press “/” button to select “Sharpness” and press the “/” button to enter sharpness
adjustment menu to adjust sharpness.
4. Press “/” button to select “Saturation” and press the “/” button to enter Saturation
adjustment menu to adjust saturation.
5. Press “/” button to select “Hue’’ and press the “/” button to enter hue adjustment menu
to adjust hue.
Note: The 'hue' item is used in NTSC mode only.
6. Press “/” button to select “Color Temp” and press the “/” button to select mode:
Standard, Cood, Warm
7. Press “/” button to select “Aspect Ratio” and press the “/” button to select.
8. Press “/” button to select “Screen Mode” and press the “/” button to select.
Note: The 'Screen Mode' item is used in HDMI mode only.
9. Press “/” button to select “Advanced Settings” and press the “” button to enter Advanced
Settings adjustment menu to adjust.

16

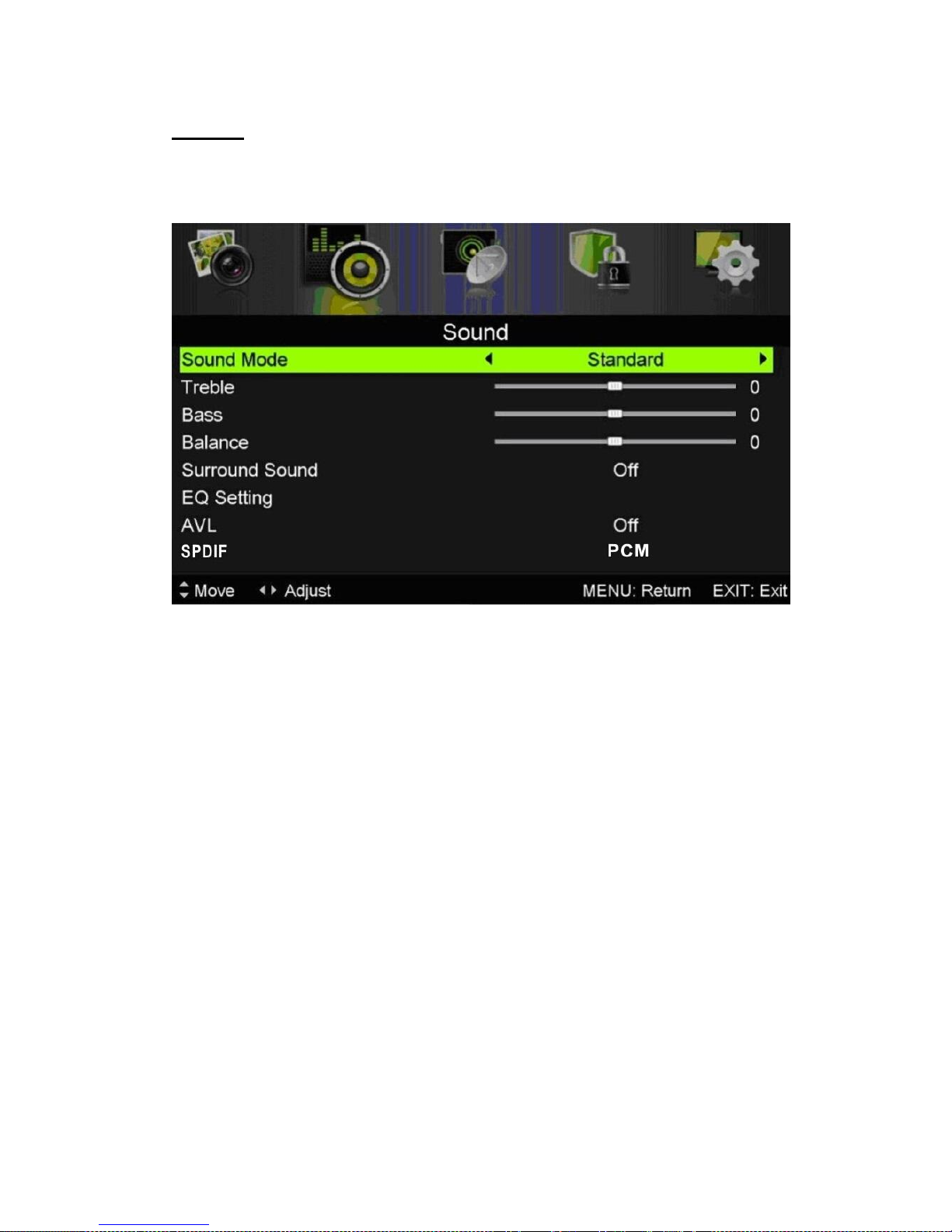

SOUND
You can select the type of sound, which best corresponds to your listening.
Press the “MENU” button to enter the OSD menu. Then press “/” button to select the
“SOUND” menu.
1. Press “/” button to select “Sound Mode” and press the “/” button to select mode.
2. Press “/” button to select “Treble” and press the “/” button to adjust.
3. Press “/” button to select “Bass” and press the “/” button to adjust.
4. Press “/” button to select “Balance” and press the “/” button to adjust. Press “/”
5. Button to select “Surround sound” and “/”button to select “ON” or “OFF”.
6. Press “/” button to select “EQ Setting’’and“/” button to enter EQ Setting adjustment
menu to adjust EQ.
7. Press “/” button to select “AVL” and press the “/” button to select “On” or “Off”.
8. Press “/” button to select “SPDIF” and press the “/” button to select .
9. Press “/” button to select “Audio Description” and press the “” button to enter sub-menu
to select .
10.Press “/” button to select “Sound Type” and press the “/” button to select.

17

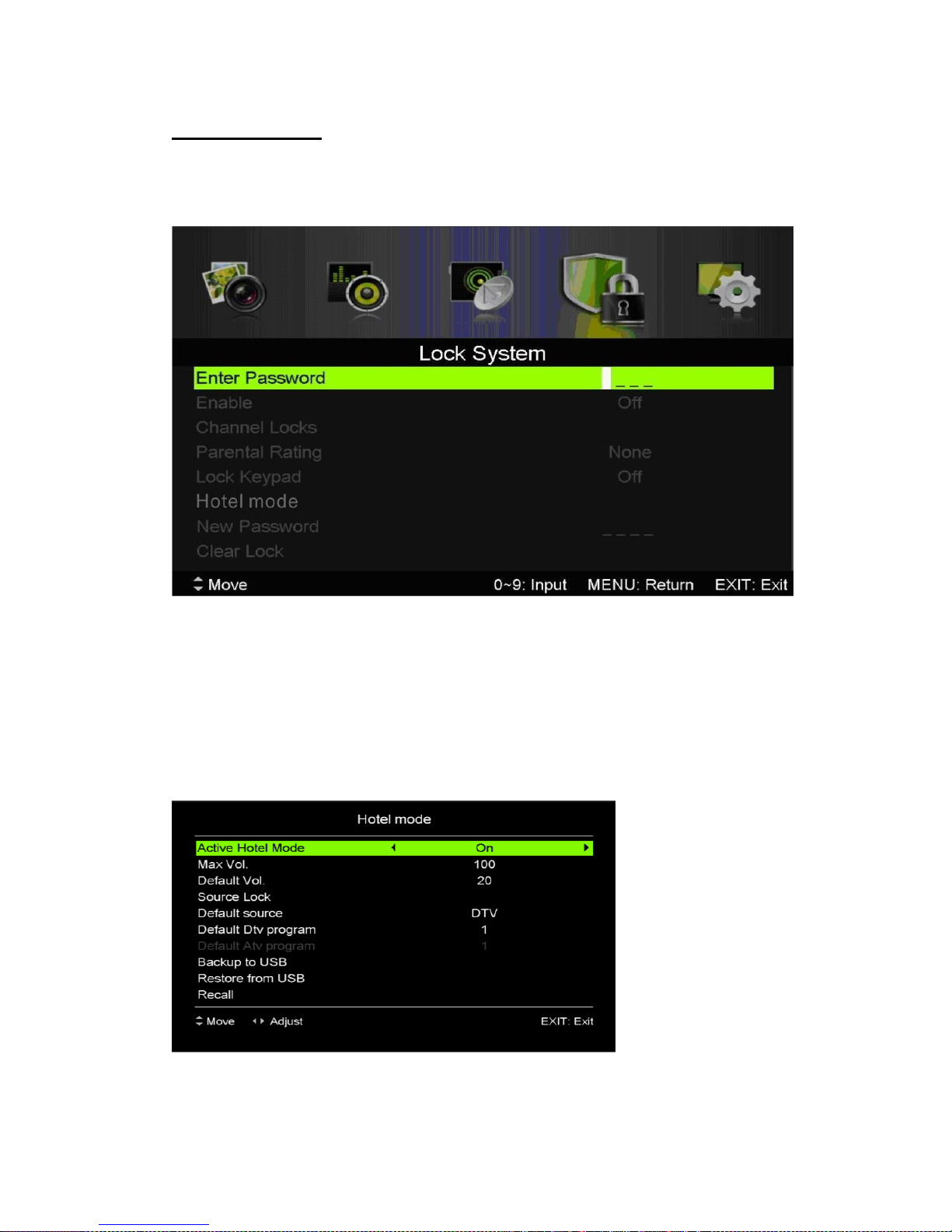

LOCK SYSTEM
Press the “MENU” button to enter the OSD menu. Then press “/” button to select the
“Lock System” menu. The default password is “0000”.
Note: The administrator password is “8899’’.
1. Press “/” button to select “Enable’’and then press “/” button to select “On” or “Off”.
2. Press “/” button to select “channel locks” and press the “” button to select channe to
lock.
3. Press “/” button to select “Parental Rating” and press the “/” button to set.
4. Press “▼/▲” button to select “Lock Keypad”, then press button to select “On” or “Off”, The
key board will be invalid if you set Lock Keypad “On”.
5. Press ▼/▲ button to select “Hotel Mode”and press the “” button to enter the sub-menu to
set.
6. Press ▼ / ▲ button to select “New Password”and set your new password.
7. Press ▼ / ▲ button to select“Clear Lock”and then press the “” button to clear.

18

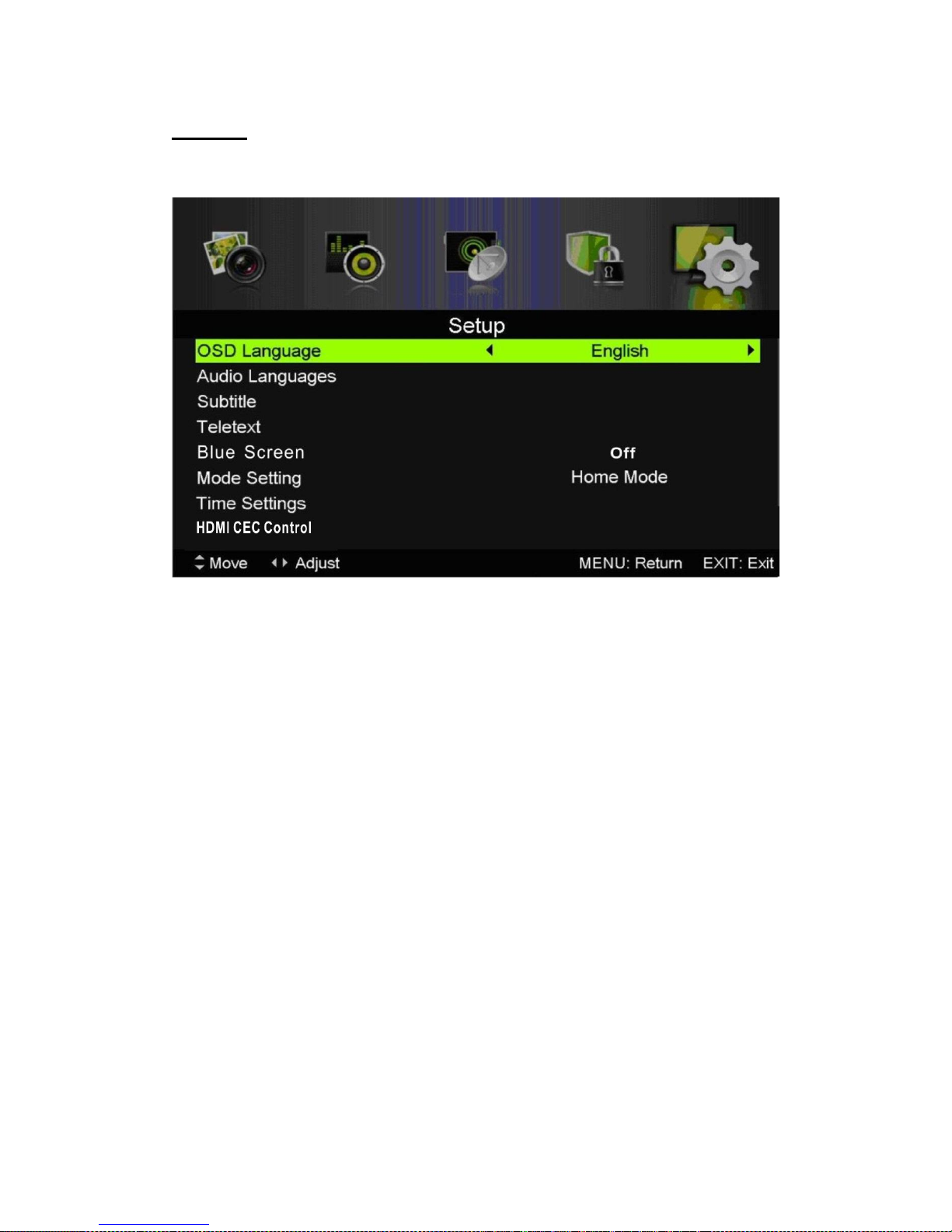

SETUP
Press the “MENU” button to enter the OSD menu. Then press“/” button to select the “SETUP”
menu.
1. Press “/” button to select “OSD Language” and press the “/” button to select the OSD
language which you desire.
2. Press “//” button to select “Audio Language” and press the “” button to enter the Audio
language adjustment menu to select the Audio language which you desire.
3. Press “/” button to select “Subtitle” and press the “” button to select “On” or “Off”.
Note: This function is only used for DTV source.
4. Press “/” button to select “Teletext ” menu and press the “” button to enter
5. sub-menu.Press /button to select “Blue Screen” and press the “/’’ button to select
“On”or “Off”.
6. Press “///”button to select Mode Setting.
7. Press “///” button to select “Time Setting”.
8. Press “///” button to select “HDMI CEC Control”.
9. Press “///” button to select “PVR Settings”.
10. Press “/”button to select “First Time Installation”, then press “ENTER” button to set
relevant options including OSD language, country and tuning.
11. Press “/”button to select “Reset”, then press “ENTER” a dialogue. Press “”button
selecting “Yes” to restore all setting to default setting.

19

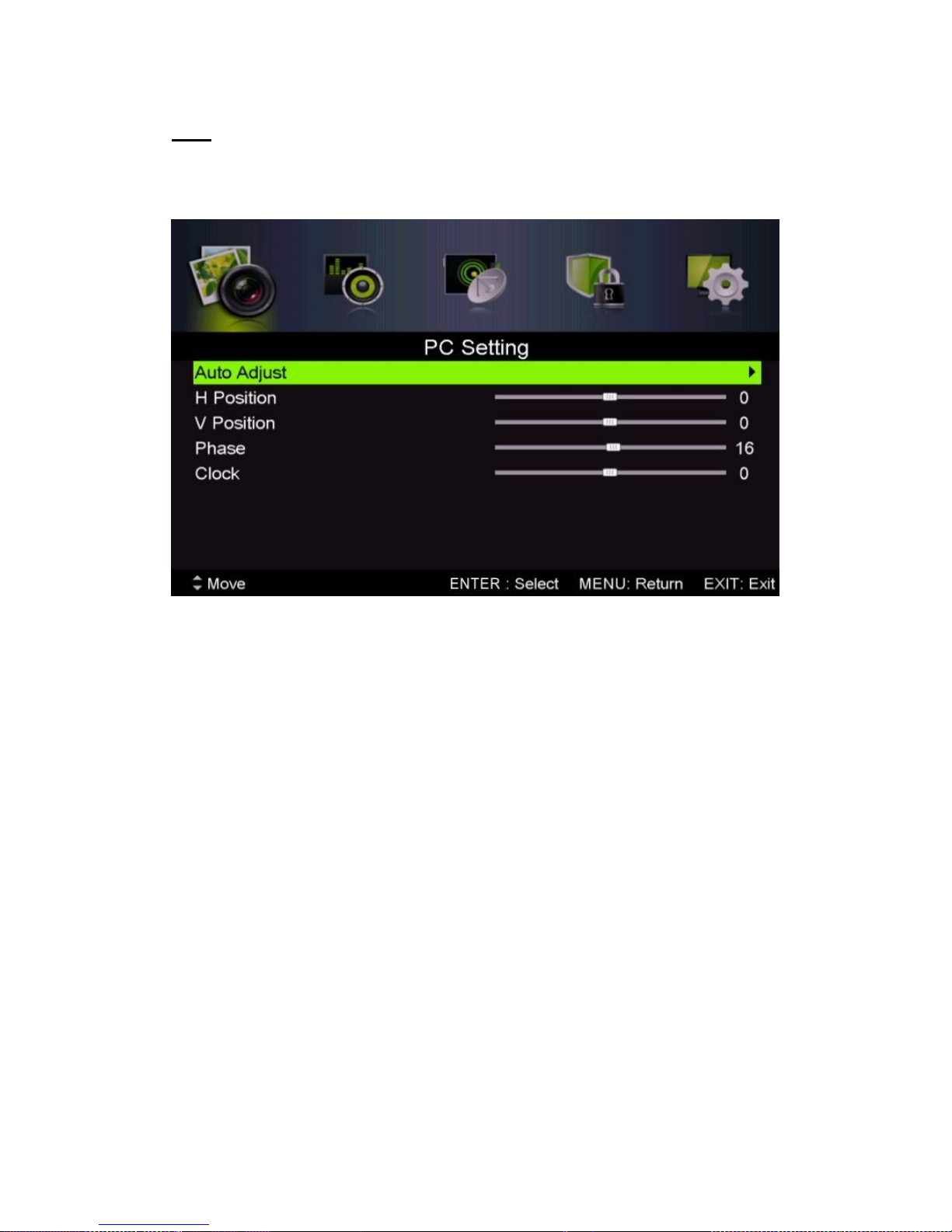

PC
Press the “MENU” button to enter the OSD menu. Then press “/’’ button to select the
“PC Setting” menu. (Only available in PC mode).
1. Press “/” button to select “Auto Adjust” menu and press the “”button to auto adjustment.
2. Press “/” button to select “H Position” and press the “/” button to adjust.
3. Press “/” button to select “V-Position” and press the “/” button to adjust.
4. Press “/” button to select “Phase” and press the “/” button to adjust.
5. Press “/” button to select “Clock” and press the “/” button to adjust.
