Kogan XP8 User manual

XP8 WATERPROOF PORTABLE
WIRELESS BLUETOOTH SPEAKER
KAXP8SPKBKA

•Read all warnings and instructions in this user guide prior to using the device.
•Do not charge the speaker with voltage above 5V as this may cause
overcharging and damage to the battery and device.
•Keep the product away from direct heat sources, such as radiators, hot air
regulators, stoves or other heat generating instruments as it may cause damage
to the device.
•Do not insert foreign items into the ports of the speaker as this may damage
their use.
•It is not recommended to have the speaker play at maximum volume for
extended periods of time due to potential hearing damage for the listener and
damage to the speaker unit itself.
•Do not attempt to repair the speaker yourself. If you need help, contact
help.Kogan.com for assistance.
SAFETY & WARNINGS

ABluetooth Speaker (x1)
B Charging Cable (x1)
C Audio Cable (x1)
D User Guide (x1)
COMPONENTS

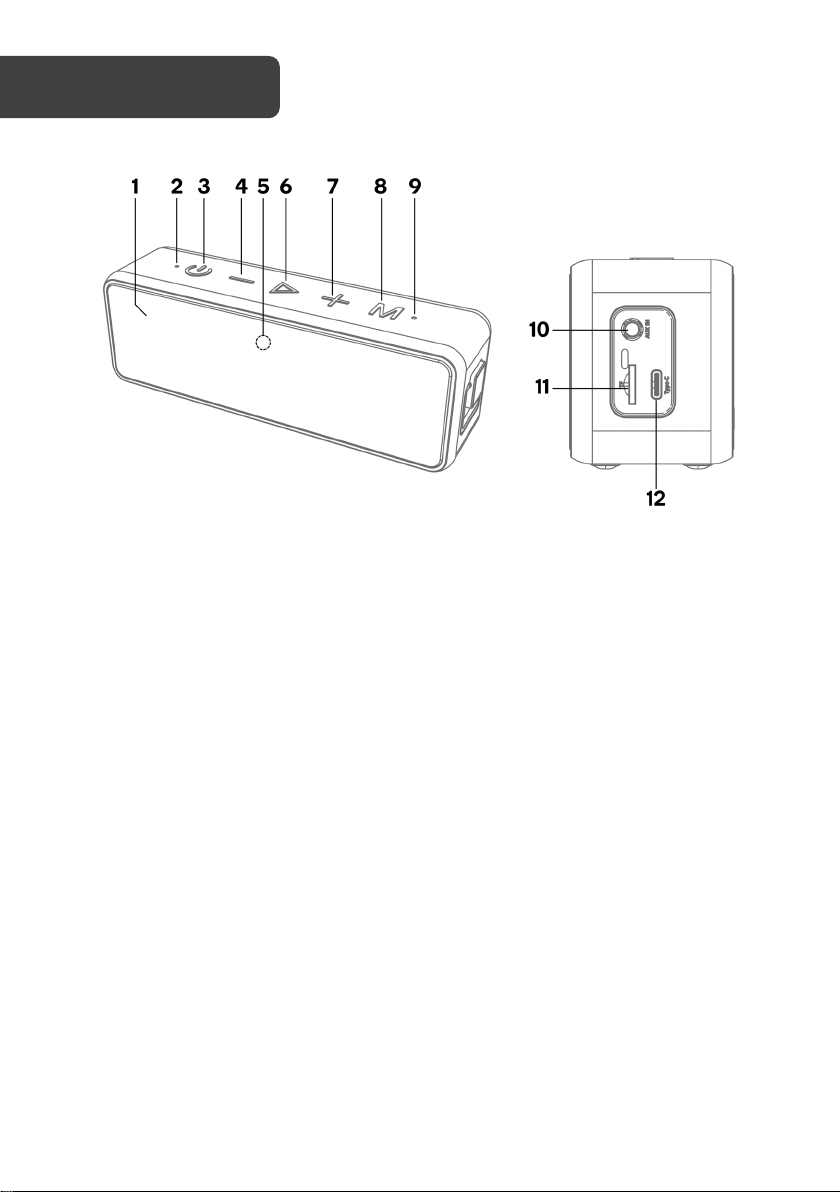

1
Speaker Grille
7
Next/Vol +
2
Power LED indicator
8
Mode switching button
3
Power switch
9
LED status indicator
4
Previous/Vol -
10
AUX in
5
Microphone
11
microSD card slot
6
Multi-function button (MFB)
12
USB Type-C charging port
OVERVIEW

Power ON/OFF
1. Press and hold the power switch for 2 seconds to turn the speaker on. The LED status
indicator will be flashing blue, and the power LED indicator will be flashing white.
2. Press and hold the power switch for 2 seconds to turn the speaker off. The LED status
indicator will turn off.
Sources
The speaker can play audio output from 3 different sources/modes:
•Bluetooth
•microSD card
•AUX
Mode switching
To switch between any of the 3 modes, press the mode switching button repeatedly until
you reach the desired mode.
Bluetooth Mode
This mode allows you to connect to any Bluetooth device to the speaker for audio output.
1. Power the speaker on. If this is your first time using the speaker the LED status
indicator will then be flashing blue, signalling the speaker is ready to pair with your
device.
If the device has been used before in a different mode, press the mode switching
button to switch between the modes until you see the LED status indicator
flashing blue.
2. Switch on the Bluetooth on your device. Ensure your device is set to be visible to all
nearby Bluetooth devices.
3. Search for "KAXP8SPKBKA" on your device and tap to connect. If you are unable
to find the speaker, try refreshing the list of available devices on your device. If the
connection is successful, the LED status indicator will stop flashing and turn to a
solid blue. Any media you play from your device now will have its audio emit from
the speaker via Bluetooth.
4. To disconnect your device, press and hold the MFB button for 2 seconds.
OPERATION

If you do not wish the speaker to automatically pair to your device when the Bluetooth
mode is turned on, the pairing record can be erased by pressing and holding mode
switching button down for 5 seconds. The speaker will power off when the pairing record
has been erased successfully.
microSD card mode
This mode allows you to play the audio output of files from a microSD card.
1. Lift the protective covering located on the side of the speaker to reveal the
microSD card slot.
2. Insert a microSD card, chip side facing down into the microSD card slot located on
the side of the speaker.
3. If successfully inserted and recognised, the speaker will then sound a voice prompt
and start playing MP3 files from the microSD card.
If no voice prompt is heard and files do not start playing, eject the microSD card
and try re-inserting it into the speaker.
AUX mode
This mode allows you to play audio output from a device via the 3.5mm audio cable.
1. Connect one end of the included 3.5mm audio cable into the 3.5mm headphone
jack of your device.
2. Connect the other end into the AUX in port. Any media you play from your device
now will have its audio emit from the speaker.
Notes:
•When reconnecting your device in the future, switch on the Bluetooth on your
device then power the speaker on. It will automatically reconnect to its last
paired device.
•If the speaker stops playing, press and hold the MFB button to reset, power
off and restart the speaker.
Note:
The speaker is compatible with microSD cards up to 64GB in storage.

Button Controls
•Press the MFB button to pause or play.
•Press the “-” to decrease volume.
•Press the “+” to increase volume.
•Press and hold the “-’’ to play the previous track.
•Press and hold the “+” to play the next track.
Calls
The speaker features an in-built microphone and has the capability to answer, reject, end,
and redial calls.
•To answer an incoming call, press the MFB button.
•To reject an incoming call, press and hold the MFB button for 2 seconds.
•To end a call, press the MFB button again.
•To redial the most recent number in your call log, press the MFB button twice.
Charging
Charging is required if the power LED indicator lights up red.
The speaker can be charged by connecting the USB Type-C end of the charging cable into
the USB Type-C charging port, with the other end plugged into a powered device with a
USB port.
Once the power LED indicator turns off, the speaker is fully charged.
•The charging voltage and current is 5V/2.4A. Ensure any adapter used with this
charger is correctly rated to match.
•The battery performance may decrease after extended use. This is normal for all
devices powered by rechargeable batteries.
Note:
Some mobile phones default to answering calls via their own device speaker. Refer to
the instructions of your phone to enable calls to be answered using external devices.

True Wireless Stereo (TWS) using two speakers
You can connect to two XP8 speakers simultaneously for a stronger stereo and surround
sound effect.
1. Ensure Bluetooth is turned off on your connecting device.
2. Place the speakers side by side and power them both on.
3. Press and hold the mode switching button down on either one of the speakers for 2
seconds. A sound prompt will play to confirm both speakers are preparing to enter
TWS pairing mode.
4. Wait for the LED status indicator on the left channel speaker flashes, and the LED
status indicator on the right channel speaker turns a solid blue. Once this happens,
the TWS connection is successful.
5. Switch on the Bluetooth on your device. Ensure your device is set to be visible to all
nearby Bluetooth devices.
6. Search for "KAXP8SPKBKA" on your device and tap to connect. If you are unable
to find the speaker, try refreshing the list of available devices on your device. The
LED status indicators on both speakers will turn a solid blue if the connection is
successful.
7. To disconnect, press and hold the mode switching button down for 2 seconds.
If previously connected, the two speakers can automatically re-connect to each other with
TWS for future use. If you do not wish for both speakers to automatically re-connect, press
and hold the mode switching button down for 5 seconds. This will reset and restart the
speaker.
Notes:
•The speakers must enter TWS pairing mode prior to connecting to any
Bluetooth device. The TWS function will not work otherwise.
•When using the TWS connection between speakers, only the left channel
speaker will have the function of the calling controls.

Waterproof rating
IPX7
Bluetooth version
V5.0
Product size
186 x 50 x 62mm
Net weight
530g
Wireless working range
18m (without obstacles)
Input voltage
DC5V/2.4A
Rated power
8W x 2
Battery
3600mAh
Speaker
48mm
Profiles supported
A2DP, AVRCP, HFP & HSP
Signal to noise ratio
Greater than or equal to 80dB
Frequency response
115Hz-15kHz
Play time
15 hours
Talk time
15 hours
Charge time
3 hours
Voice chat
Supported
SPECIFICATIONS

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
