Kohler K-1360-H2 Assembly instructions

Homeowners Guide
Bath Whirlpool
Write model number here:
Écrire le numéro du modèle ici:
Escriba el número de modelo aquí: ___________________
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
K-1360-H2, K-1360-H3, K-1365-F2,
K-1365-F3, K-1365-H2, K-1365-H3
1022211-5-F

Operating Instructions
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of personal injury. To reduce the risk of injury, do not permit children to use this
unit unless they are closely supervised at all times.
WARNING: Risk of personal injury. To avoid injury, exercise care when entering or exiting the
whirlpool.
WARNING: Risk of electric shock. Do not permit electric appliances (such as a hair dryer, lamp,
telephone, radio, or television) within 5’ (1.5 m) of this whirlpool.
WARNING: Risk of hyperthermia. People using medications and/or having an adverse medical
history should consult a physician before using a whirlpool equipped with a heater.
WARNING: Risk of scalding. Do not allow the water temperature in the whirlpool to exceed
104°F (40°C).
Use this whirlpool only for its intended purpose as described in this manual. Do not use attachments not
recommended by the manufacturer.
Never drop or insert any object into any opening. Keep small objects such as bath toys and bathing
accessories out of the whirlpool while the unit is running.
Do not operate this unit without the guard (cover) over the suction fitting.
The whirlpool must be connected only to a supply circuit that is protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD). Such a GFCI or RCD should be provided by
the installer and should be tested on a routine basis. To test the GFCI or RCD, press the test button. The
GFCI or RCD should interrupt power. Press the reset button. Power should be restored. If the GFCI or RCD
fails to operate in this manner, the GFCI or RCD is defective. If the GFCI or RCD interrupts power to the
bath without the test button being pressed, a ground current is flowing, indicating the possibility of an
electric shock. Do not use this whirlpool bath. Disconnect the whirlpool and have the problem corrected by a
qualified service representative before using.
WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia. Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs
when the internal temperature of the body reaches a level several degrees above the normal body
temperature of 98.6°F (37°C). The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia
include: (a) failure to perceive heat, (b) failure to recognize the need to exit the bath, (c)
unawareness of impending hazard, (d) fetal damage in pregnant women, (e) physical inability to
exit the bath, and (f) unconsciousness resulting in the danger of drowning.
Flush your whirlpool system twice a month or more depending upon usage, as described in the ″Flush
System″section.
Repeated use of personal care products containing oils can damage plastic whirlpool components. Do not use
heavy, vegetable-based shampoos or bath oils.
Whirlpool hydro-massage action can cause even a small amount of bubble bath, bath soap, shampoo, or bath
oil to foam excessively. For this reason, please don’t use these products during whirlpool operation.
1022211-5-F 2 Kohler Co.

Your Kohler Whirlpool
The whirlpool is equipped with the following components:
•Bath - The bath acts as a reservoir for water and provides a location for the hydro-massage action.
•User Keypad - Located within easy reach, the keypad allows you to turn the whirlpool on and off.
It also allows you to access all the whirlpool modes and regulate the water flow or pulse speed.
Available modes will be illuminated in blue. Active modes will be illuminated in green.
•Pump Motors - The pump motors provide quiet, variable speed power to circulate the water and
create the soothing hydro-massage action. Your whirlpool uses two pump motors. One pump motor
powers the Waterfall and the second pump propels water through the Flexjets and Riverjets.
•Heater - The heater is designed to automatically help maintain the temperature of the water up to
104°F (40°C) to enhance your hydro-massage experience. The heater turns on automatically when
the Flexjet/Riverjet pump is operating, and turns off when the pump motor is turned off. The heater
may be turned off through the keypad at any time while the pumps are operating.
•Pillows - The pillows provide a comfortable place to rest your head as you relax.
•Remote Control - The waterproof remote control brings all the whirlpool features to your fingertips.
•Chromatherapy (H2 Models) - Add ambience to your bath with lights that automatically and
continuously cycle through the eight colors, or select just one color: white, violet, indigo blue, aqua
blue, green, yellow, orange, and red. One cycle through all eight colors takes approximately one
minute. This mode may be used with all modes of operation and also when the pumps are not
operating.

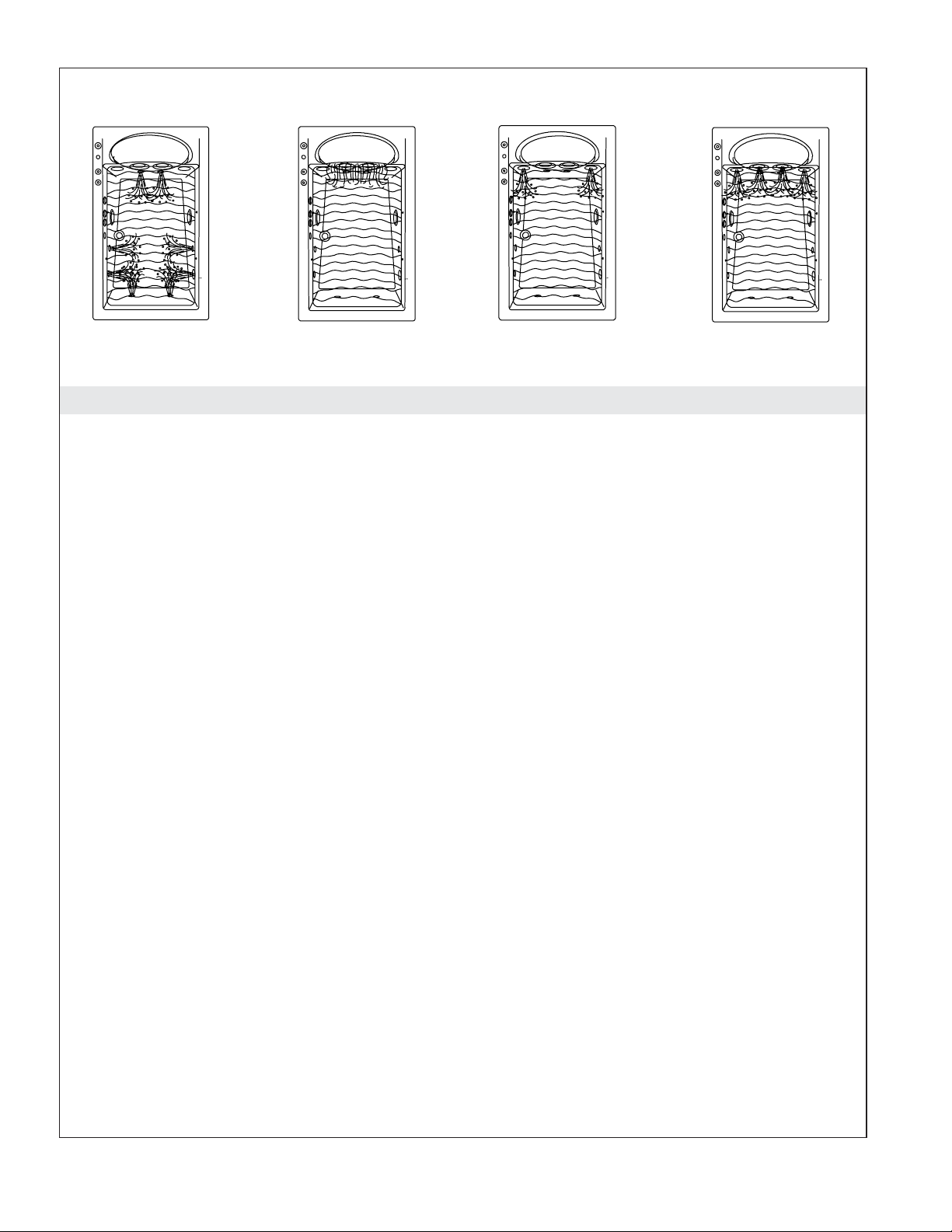

Your bath offers several distinct whirlpool experiences:
•Waterfall Mode - A continuous stream of water (less heat) flows behind the neck at a medium
volume within seconds. This mode may be used alone or with the Flexjet Flow Mode, Riverjet -
Whitewater Mode, or Riverjet - Rapids Mode.
•Whirlpool Flexjet Mode - An immediate invigorating whirlpool action is created at a medium
volume. The eight Flexjets are located lower in your whirlpool than the Riverjets. Positioned to
optimize their hydro-massage effect, the jets allow you to adjust the air and water flow and control
the flow direction as you desire.
•Riverjets - Whitewater Mode - A swirling action from the two outside Riverjets is created behind
the neck at a medium volume.
•Riverjets - Rapids Mode - A swirling action from all four Riverjets is created behind the neck.
•Tidepool - Turns off the air flow to the jets for a soothing, relaxing effect (not illustrated). This mode
may be used at any time while any of the jets are operating. This mode does not affect the Waterfall
mode.
Whirlpool Flexjet Mode Waterfall Mode Riverjets - Whitewater Mode Riverjets - Rapids Mode
Kohler Co. 3 1022211-5-F

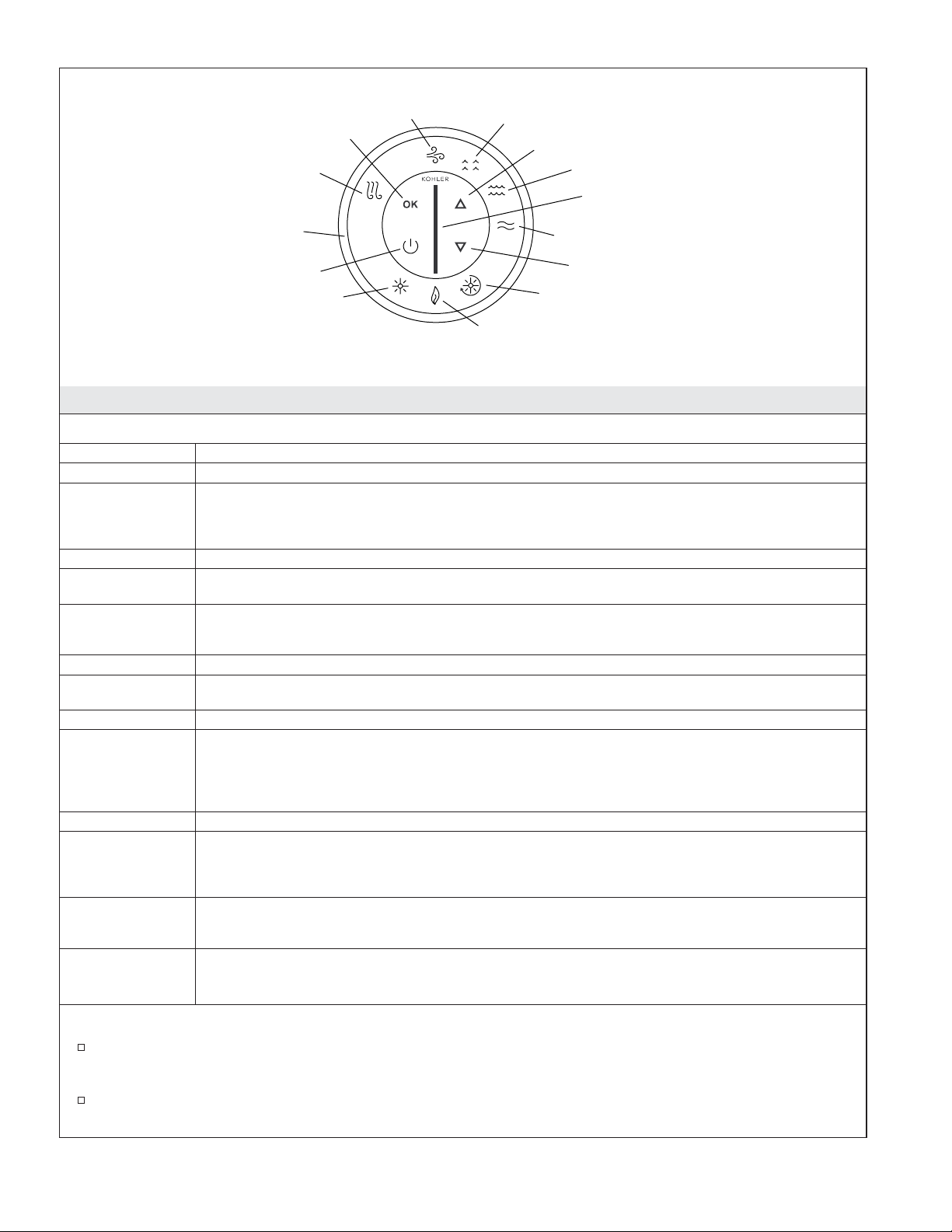

User Keypad
Available modes will be illuminated in blue. Active modes will be illuminated in green.
Power Turns the whirlpool pump on and off.
Outer Ring Rotate the outer ring to the desired mode. The selected mode will flash blue.
Waterfall Mode Rotate the outer ring to select this mode, then press OK. Press the up or down arrow icons
to increase or decrease the water flow. The indicator bar will display the water flow volume.
This mode may be used alone or with the Flexjet Flow, Riverjet Whitewater, or Riverjet
Rapids mode.
OK Activates the desired mode.
Flexjet Flow
Mode Rotate the outer ring to select this mode, then press OK. Press the up or down arrow icons to increase or decrease the water flow. The indicator bar will display the water flow volume.
Riverjet
Whitewater
Mode
Rotate the outer ring to select this mode, then press OK. Press the up or down arrow icons
to increase or decrease the water flow. The indicator bar will display the water flow volume.
Up Arrow Increases the water flow.
Riverjet Rapids
Mode Rotate the outer ring to select this mode, then press OK. Press the up or down arrow icons to increase or decrease the water flow. The indicator bar will display the water flow volume.
Indicator Bar Displays the water flow volume.
Tidepool Rotate the outer ring to select this mode, then press OK. Press the up or down arrow icons
to increase or decrease the water flow. The indicator bar will display the water flow volume.
This mode may be used at any time while any of the jets are operating. This mode does not
affect the Waterfall mode. Some air may flow from one or more jets for a short time after
this mode has been activated.
Down Arrow Decreases the water flow.
Chromatherapy
Cycle H2 models: Rotate the outer ring to select this mode, then press OK. The chromatherapy lights will automatically and continuously cycle through eight colors. One cycle through all
eight colors takes approximately one minute. Only one of the two keypads controls this
mode.
Heater Automatically engages when the power icon is selected. Rotate the outer ring until the
heater mode is flashing, then press OK to turn the heater off. Press OK again to turn the
heater back on.
Chromatherapy
Specific Color H2 models: Rotate the outer ring to select this mode, then press OK. Press the up or down arrow to select a color, then press OK again. Only one of the two keypads controls this
mode.
Sleep Mode
Approximately 15 seconds after user keypad inactivity, only the last mode selected on the user
keypad will illuminate. Press any mode or turn the outer ring to illuminate the entire user keypad.
Approximately 60 seconds after the whirlpool is powered off, the keypad will darken completely to
conserve power. Press the power button or turn the outer ring to reactivate the user keypad.
Activates Mode Selected
Waterfall Mode
Rotate outer ring to
access desired mode.
Chromatherapy-Specific Color
(H2 models only) Heater
Chromatherapy Cycle
(H2 models only)
Decreases Flow
Tidepool
Indicator Bar - Shows
water flow volume
Riverjet Rapids Mode
Increases Flow
Riverjet Whitewater Mode
Power On/Off
Flexjet Flow Mode
Lighted User Keypad
1022211-5-F 4 Kohler Co.

Operation
Fill Whirlpool
Turn the jet trim fully counterclockwise. Position the jet nozzles so they face down toward the basin.
NOTICE: Do not allow the water temperature in the whirlpool to exceed 104°F (40°C). The heater will
automatically maintain the water temperature when the whirlpool is running, as long as the water
temperature does not exceed 104°F (40°C). The heater will disengage at higher temperatures.
Close the drain, then fill the whirlpool with water. For ″Waterfall″mode only, fill the whirlpool at
least 2″(5.1 cm) above the top of the suction covers. For ″Waterfall″or ″Flexjet″mode less
″Riverjets″, fill the whirlpool at least 2″(5.1 cm) above the top of the highest Flexjet. For all modes,
fill the whirlpool above the water-level sensors on either side of the Riverjets.
Using your hand, test the water temperature for comfort and safety. Carefully enter the bath.
Press the power icon to turn on the whirlpool pump and heater or rotate the outer ring to access a
desired mode.
Press the up or down arrow icons to increase or decrease the water flow. The indicator bar will
display the water flow volume.
Adjust the jets for optimum air/water mixture (when ″Tidepool″mode is not activated). Turn the jet
trim clockwise to reduce the flow or counterclockwise to increase the flow. If desired, position the jet
nozzles to direct the water flow to maximize your hydro-massage experience.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
If desired, turn the heater off by rotating the outer ring until the heater button is flashing and
pressing ″OK.″Press ″OK″again to turn the heater back on.
Press the power icon a second time to turn off the whirlpool pump and heater.
Carefully exit the bath, then open the drain to empty the whirlpool.
NOTE: If the whirlpool is not operating properly, consult the ″Troubleshooting″section of this guide
before calling a qualified service representative.
Remote Control
Refer to the Homeowners Guide packed with the remote control for proper operation.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Flush System
NOTE: Flush your whirlpool system twice a month or more, depending upon usage.
Turn the jet trim rings fully clockwise to remove air induction.
Fill the whirlpool with warm water above the backjet level probes or leave water in the whirlpool
after using.
Kohler Co. 5 1022211-5-F

Flush System (cont.)
Add 2 teaspoons (10 ml) of a low-foaming, powder automatic dishwasher detergent and 20 ounces
(590 ml) of household bleach (5% - 6% sodium hypochlorite) to the water.
Run the whirlpool for 5 to 10 minutes. Turn off the whirlpool and drain the water.
If desired, rinse the bath surfaces with water.
Rinse the surfaces of the jets, faucet, handrails, and drain, and wipe them dry with a soft cloth.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI
53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how
long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You
may also have other rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Warranty
For Mexico
KOHLER CO.
It is recommended that at the time of purchase, you verify that all accessories and components are complete
in this package.
This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the
date of purchase as shown on the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its authorized distributors.
2. To obtain warranty service, please present the invoice and corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair the defective product or provide a new
replacement or an equivalent model (in those cases that the model has been discontinued) when the product
is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the date the product is received.
5. It is recommended that the consumer save the invoice or receipt as additional protection, as it may
substitute the warranty in the case that there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1022211-5-F 6 Kohler Co.

Warranty (cont.)
1. When the product is not operated in accordance with the instructions concerning use and operation set
forth in the owner’s manual or installation instructions, and when the recommendations and warnings
included are not observed.
2. When the product has been modified or dismantled partially or totally; or has been used in a negligent
fashion and as a consequence has suffered damages attributable to the consumer, individual, or hardware not
authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster such as fire or acts of God, including
flooding, earthquake, or electric storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-800-456-4537.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Troubleshooting
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power
button is pressed or outer
ring is rotated.
A. No power to control. A. Check wiring and connect power. If
problem persists, refer to the
installer/dealer.
B. GFCI or RCD tripped. B. Reset GFCI or RCD.
C. Wiring harness from user
keypad to control is loose,
disconnected, or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary. Refer to the
installer/dealer.
D. User keypad does not work. D. Replace user keypad. Refer to the
installer/dealer.
E. Control does not work. E. Replace control. Refer to the
installer/dealer.
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is
illuminated, but does not
respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected, or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary. Refer to the
installer/dealer.
C. User keypad does not work. C. Replace user keypad. Refer to the
installer/dealer.
D. Control does not work. D. Replace control. Refer to the
installer/dealer.
Kohler Co. 7 1022211-5-F

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
4. User keypad indicator bar
keeps scanning at
power-up.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected, or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary. Refer to the
installer/dealer.
C. User keypad does not work. C. Replace user keypad. Refer to the
installer/dealer.
D. Control does not work. D. Replace control. Refer to the
installer/dealer.
5. User keypad is
illuminated, but pump
will not start.
A. Power cord from pump to
control is loose, disconnected, or
damaged.
A. Check wiring for proper
connections. If problem persists,
Refer to the installer/dealer.
B. Pump does not work. B. Replace pump. Refer to the
installer/dealer.
C. Control does not work. C. Replace control. Refer to the
installer/dealer.
6. Motor runs but pump will
not prime (cavitates). A. Motor/Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on intake
side of pump.
C. Motor/pump does not work. C. Replace motor/pump. Refer to the
installer/dealer.
D. Control does not work. D. Replace control. Refer to the
installer/dealer.
7. Little or poor water flow
from dual fill ports (if
included).
A. Water supply lines blocked A. Remove blockage.
B. Transfer valve not fully open. B. Rotate transfer valve handle.
8. Little or poor water flow
from Waterfall. A. Suction or harness blocked. A. Remove blockage.
B. Pump does not work. B. Replace pump. Refer to the
installer/dealer.
C. Control does not work. C. Replace control. Refer to the
installer/dealer.
9. Flexjets operate, but
Riverjets do not operate
as described.
A. Insufficient water in whirlpool
basin. A. Fill whirlpool so water covers
water-level sensors.
B. User keypad does not work. B. Replace user keypad. Refer to the
installer/dealer.
C. Butterfly valve does not work. C. Check wiring. Replace butterfly
valve. Refer to the installer/dealer.
D. Control does not work. D. Replace control. Refer to the
installer/dealer.
10. Up/down volume control
arrows do not change
water flow as described.
A. User keypad does not work. A. Check wiring. Replace user keypad.
Refer to the installer/dealer.
B. Pump does not work. B. Replace pump. Refer to the
installer/dealer.
C. Control does not work. C. Replace control. Refer to the
installer/dealer.
11. Air flow through jets does
not stop when Tidepool
mode is activated.
A. User keypad does not work. A. Check wiring. Replace user keypad.
Refer to the installer/dealer.
B. Butterfly valve does not work. B. Check wiring. Replace butterfly
valve. Refer to the installer/dealer.
C. Control does not work. C. Replace control. Refer to the
installer/dealer.
1022211-5-F 8 Kohler Co.

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
12. Air continues to flow
through one or more jets
for several seconds after
Tidepool mode is
activated.
A. Normal operation - air will stop
flowing in a short time. A. No action required.
13. Pump stops before 18
minutes. A. GFCI or RCD tripped. A. Identify source of fault, and correct. Reset GFCI or RCD.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage and
allow motor to cool.
14. Pump does not
automatically stop after 22
minutes.
A. 20-minute timer inadvertently
disabled. A. See Service Manual.
15. Pump will not turn off
when the power button
on user keypad is
pressed.
A. User keypad does not work. A. Replace user keypad. Refer to the
installer/dealer.
B. Control does not work. B. Replace control. Refer to the
installer/dealer.
16. Pump operates but
variable speed feature
does not work.
A. Motor/pump does not work. A. Replace motor/pump. Refer to the
installer/dealer.
B. Control does not work. B. Replace control. Refer to the
installer/dealer.
17. Bath water cools while
pump is operating. A. Water temperature above 104°F (40°C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected, or
damaged.
C. Check wiring for proper
connections. Refer to the
installer/dealer.
D. Heater does not work. D. Replace heater. Refer to the
installer/dealer.
E. Control does not work. E. Replace control. Refer to the
installer/dealer.
18. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin
snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall jet.
19. Remote control does not
work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness. Refer to the installer/dealer.
C. Remote control not
programmed correctly. C. See Homeowners Guide or Service Manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control. Refer to the
installer/dealer.
Chromatherapy Lights (H2 Models Only)
Kohler Co. 9 1022211-5-F

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
1. Chromatherapy lights do
not work. A. Loose, disconnected, or damaged wiring/connections. A. Check wiring for proper connections. Replace wiring if
necessary. Refer to the
installer/dealer.
B. Control does not work. B. Replace control. Refer to the
installer/dealer.
1022211-5-F 10 Kohler Co.

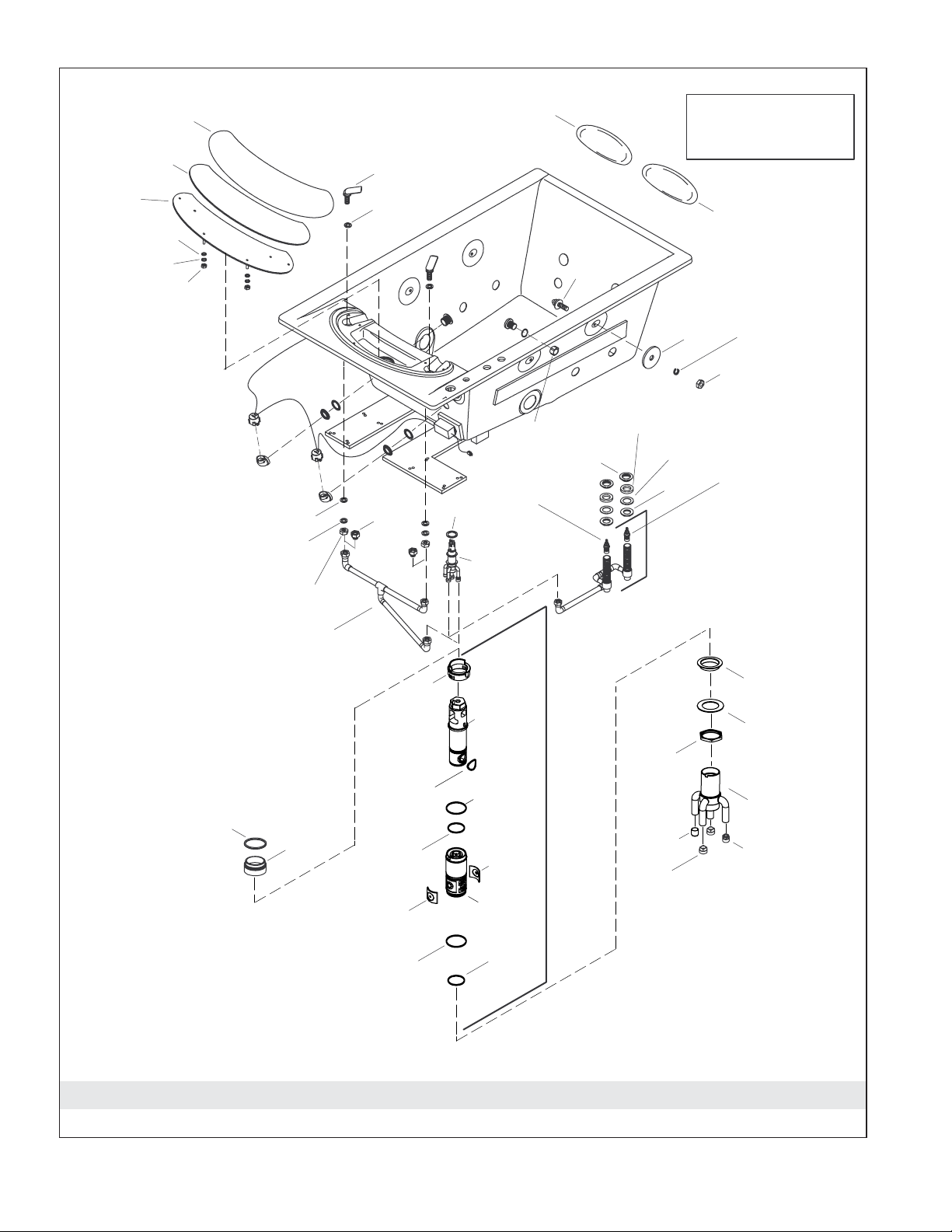

Service Parts
For all unidentified parts
see the following pages
for details.
95462**
Pillow
95462**
92622
Pillow
Grommet
32593
Washer Washer
Washer
Washer
60043
60044
Nut
Nut
Nut
Nut
56446
65157
58280
Collar
22352
58380
1000187
Valve
(Counterclockwise
Close)
1001689
2-Way Transfer Valve
1000188
Valve (Clockwise
Close)
41800
Gasket
Gasket
See below for
transfer valve
detail.
85969
Plug
34033
Washer
21293
97816
1001690
Supply
75763**
Nut
38618
O-Ring
**Finish/color code must be specified when ordering
97747**
Pillow
97744
Spout
34033
Gasket
97558-A
97558-B
97558-C
(White)
(Bone)
(Black)
Cover
97560
Plate 67095
Washer
65218
Washer
23094
Nut
1141213-C
Cartridge
76965
Cap
85962
Union
85728
Adapter
76425-B
Valve Body
55002
Nut
54994
Washer
75764
Collar
55925
O-Ring
21159
O-Ring
75762
Check
51469
O-Ring
1021037
O-Ring
75754
Collar
1130101-B
75762
Check
51469
O-Ring
Transfer
Tube
Cartridge
1140067-B
Kohler Co. 11 1022211-5-F

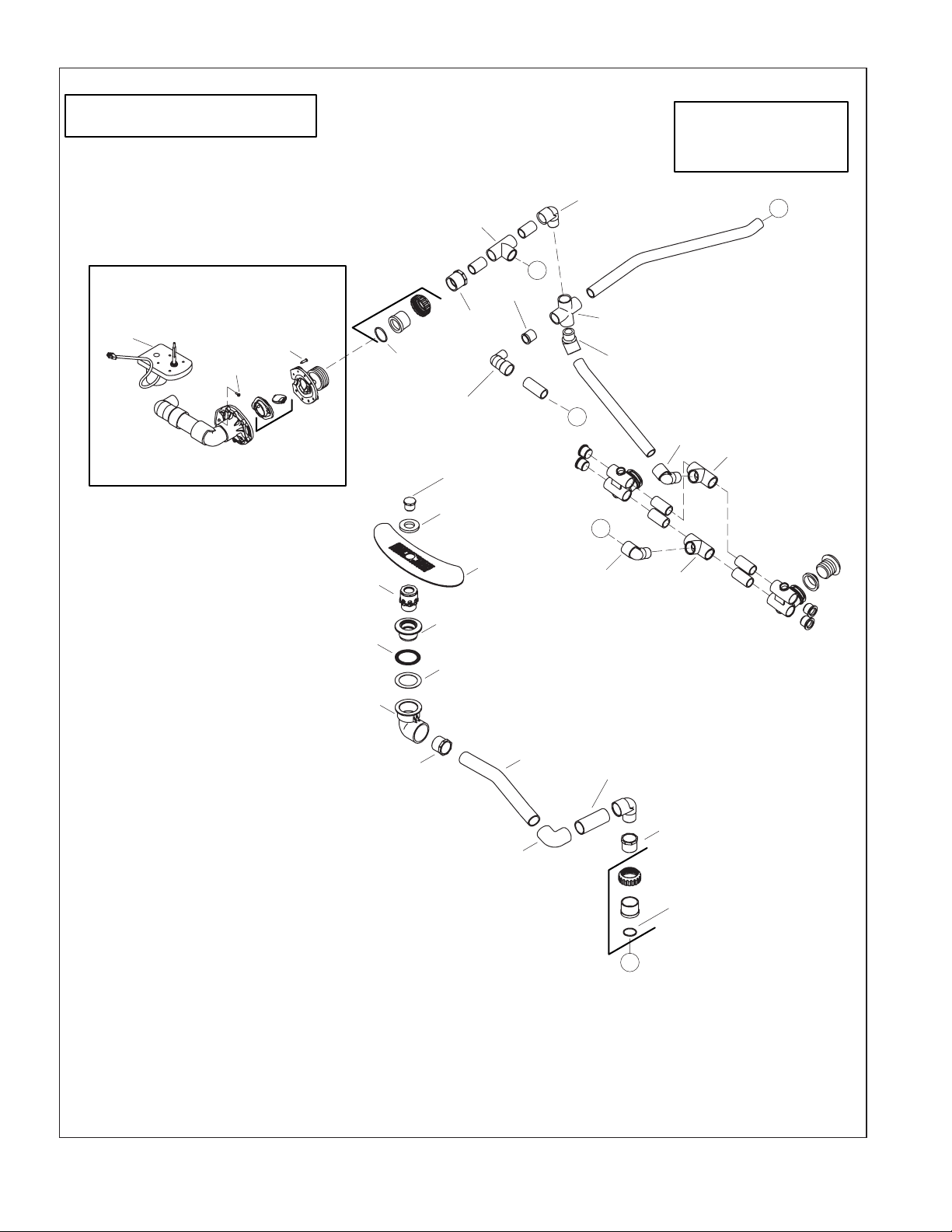

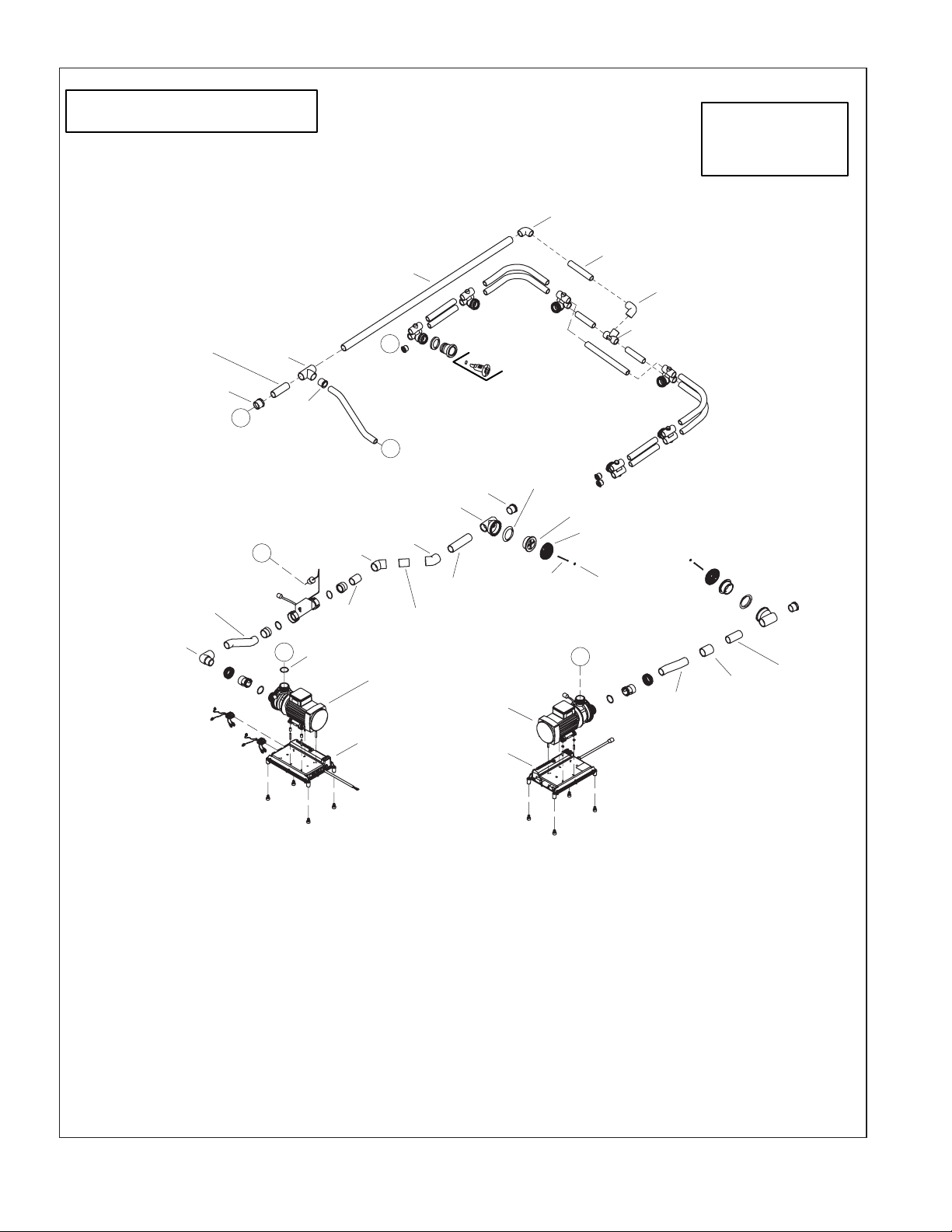

Control Control
Waterfall Pump
61567
Elbow
96708
Suction Flange
65054**
Screw
65226**
Plug
65061** (Metal Finishes)
96895** (Colored Finishes)
Cover
65886
Gasket
61249
Coupling
94132
Elbow
94132
Elbow
93685
Suction Housing
73518
Plug
60545
Reducer
94797
94409
Reducer

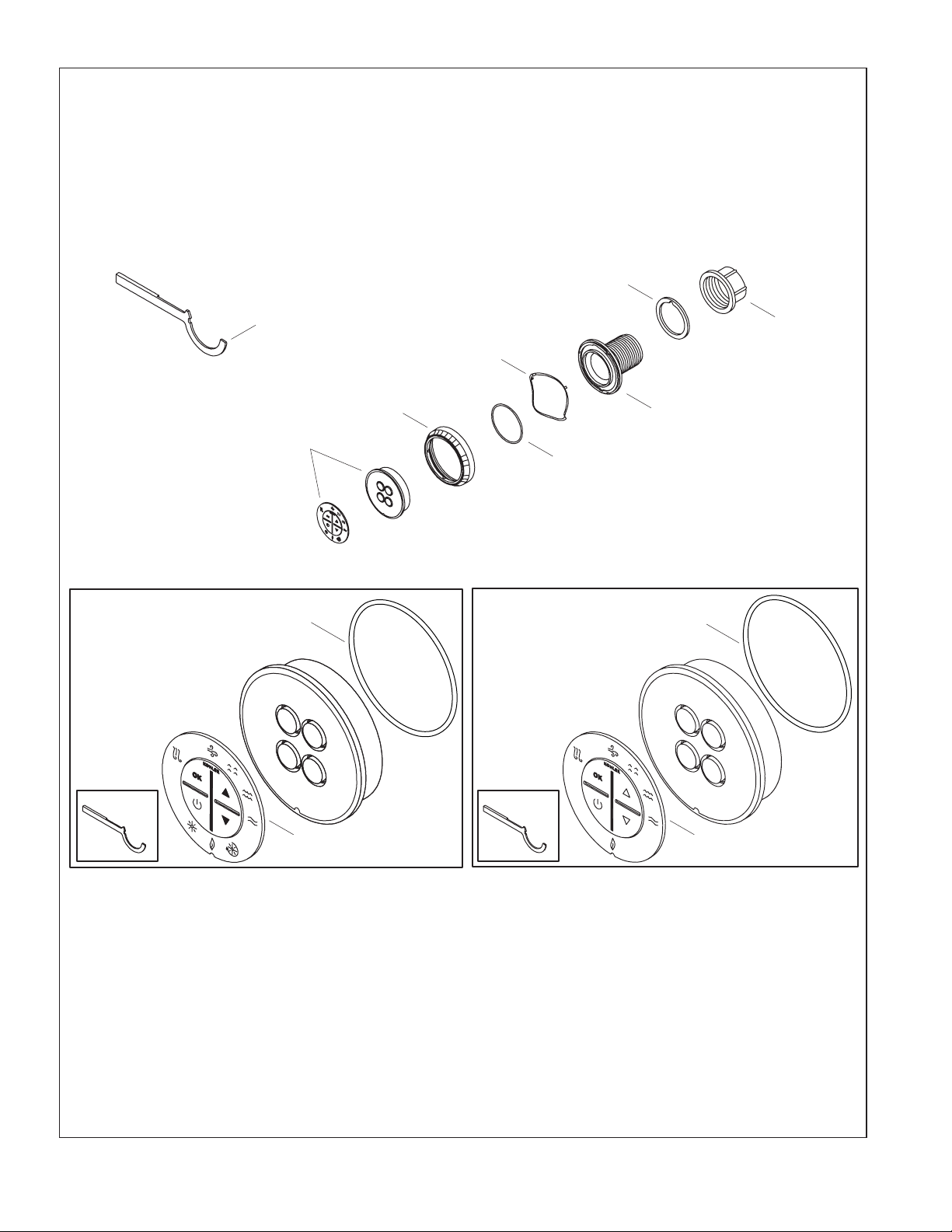

See flexjet detail.
60714
Elbow
94313
60559
Elbow
L
A
D
C
B
G
94821
O-Ring
**Finish/color code must be specified when ordering.
*Note: For all unidentified
parts see the following
pages for details.
1-1/4" Tubing
1-1/4" Tubing
1-1/4" Tubing
1-1/2" Tubing
1-1/2" Tubing
1-1/2" Tubing
1-1/2" Tubing
1-1/2" Tubing
1-1/2" Tubing
Tee Tee
1018665 1018666
Flex/River
Jet Pump
All tubing 1" unless otherwise noted.
1022211-5-F 12 Kohler Co.

61536
Elbow
97883
Flange
61425
Reducer
1022368
Reducer 1001040
Cross
94256
Elbow
61536
Elbow
1003603-A
Butterfly/Check Valve Assy
1016466
Motor
63149
Screw
50506
Screw
96956
Butterfly Kit
97542
Adapter
97539
Washer
60545
Reducer
97885
Washer
60545
Reducer
60559
Elbow
97884
Gasket
97886
Elbow
97538
Plate
61563
Tee
61563
94821
O-Ring
91967
Check Valve
97540
Plug
61536
Elbow 61563
Tee
L
K
H
G
C
94821
O-Ring
1080774
*Note: For all unidentified
parts see the following
pages for details.
Tee
1-1/4" Tubing
1-1/4" Tubing
All tubing 1" unless otherwise noted.
Union
Assy
**Finish/color code must be specified when ordering.
1080774
Union
Assembly
Kohler Co. 13 1022211-5-F

1080774
Union Assy
94821
O-Ring
94821
O-Ring
1080774
Union Assy
1023672
Butterfly Valve Kit
50506
Screw
1016466
Motor
96956
Butterfly
63149
Screw
1022368
Reducer
61536
Elbow
94256
Elbow
61536
Elbow
94821
O-Ring
1022368
Reducer
94256
Elbow
61563 94256
Elbow
61563
91967
Check Valve
61425
Reducer
69228
Elbow
D
A
B
H
K
97767
Housing
97769**
85860
97768**
Flange
67665
Plug
67665
Plug
*Note: For all unidentified
parts see the following
pages for details.
Tee
Tee Jet Assembly
Gasket
All tubing 1" unless otherwise noted.
**Finish/color code must be specified when ordering.
1080774
Union Assembly
1022211-5-F 14 Kohler Co.

Controls vary depending
on pump application.
See harness detail for
proper identification.
**Finish/color code must be specified when ordering.
1022495
Nut Wrench
61845-K
Copper Grounding Wire
61776
Lock Washer
90154
Nut
93192
60320
67065
Ground Lug
93892-A
1033678
93003
93893
1019432
90153
1018964
1018964
1016957
Pump
(Qty. 2 Used)
1016958
Motor
1010548
Volute
1010673
Seal
1010677
Screw
1010675
O-Ring
1016960
Impeller
1010676
Cover
94821
O-Ring
1019719
Connector
1019444-A [3/4" (19 mm)]
1019444-M [1/4" (6 mm)]
Spacer
1019447-A [1/4" (6 mm)]
1019447-M [1/2" (13 mm)]
Isolation Mount
1019445-A [1-3/4" (44 mm)]
1019445-M [1-1/4" (32 mm)]
Stud
1012855
Nut
Screw
Screw
Screw
Cover
Strain Relief Bracket
Bracket
Locknut
Carriage Bolt
Electrical Box
Kohler Co. 15 1022211-5-F

1019933
93192
63270
93836
93838
93839
94853
(1/2")
(1")
(1-1/4")
(1-1/2")
**Finish/color code must be specified when ordering
1032545
Housing
1012916
Nut (w/Screws)
Chromatherapy Lights
Screw
Washer
73519
Water Level Probe
60129
Nut
60129
Nut
1021777
Wire Harness
1012821
Light Housing
1033675
Heater
1012653
Adapter
1012653
Adapter
94821
O-Ring
94821
O-Ring
1015023
Plug/Wire Assembly
1010618
Elbow
1015012
Plug/Wire Assembly
Tube (w/Couplings)
63270
Washer
1022211-5-F 16 Kohler Co.

See below for
cover/circuit
board detail.
1020678-L
1023381
Wrench
1013452**
Dial Trim
1013453
Spring
1020677
Gasket
65157
Nut
1013499
Housing
91639
O-Ring
1013497-F
Decal
1013497-L
Decal
Cover/Circuit Board
(w/Wrench)
1020678-F
Cover/Circuit Board
(w/Wrench)
**Finish/color code must be specified when ordering
91639
O-Ring 91639
O-Ring
Kohler Co. 17 1022211-5-F

Guide du propriétaire
Baignoire à hydromassage
Instructions d’opération
INSTRUCTIONS RELATIVES AUX RISQUES
D’INCENDIE, D’ÉLECTROCUTION OU DE
BLESSURES CORPORELLES
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS
CONSERVER CES INSTRUCTIONS
AVERTISSEMENT: Lors de l’utilisation des produits électriques, des précautions de base
doivent toujours être observées, incluant ce qui suit:
DANGER: Risque de blessures corporelles. Afin de réduire les risques de blessures, ne jamais
permettre à un enfant d’utiliser cet appareil sans surveillance.
AVERTISSEMENT: Risque de blessures corporelles. Pour éviter les blessures corporelles, entrer et
sortir avec précaution de la baignoire à hydromassage.
AVERTISSEMENT: Risque d’électrocution. Ne pas amener les appareils électriques (tels que des
sèche-cheveux, des lampes, des téléphones, des radios ou des télévisions) dans un rayon de 5’ (1,5
m) de cette baignoire à hydromassage.
AVERTISSEMENT: Risque d’hyperthermie. Les personnes sous médicaments ou qui sont en
observation médicale doivent consulter leur médecin avant d’utiliser des baignoires à hydromassage
équipées de chauffe-eau.
AVERTISSEMENT: Risque de brûlures. Ne pas laisser la température de l’eau de la baignoire à
hydromassage dépasser 104°F (40°C).
Utiliser cette baignoire à hydromassage uniquement pour un usage tel que décrit dans ce manuel. Ne pas
utiliser des fixations non recommandées par le fabricant.
Ne jamais faire tomber ou insérer d’objet quelconque dans les ouvertures. Ne pas laisser de petits objets tels
que des jouets ou accessoires pour le bain dans la baignoire à hydromassage lorsqu’elle est en marche.
Ne pas utiliser cet appareil sans ses protecteurs (couvercles) sur ses raccords d’aspiration.
La baignoire à hydromassage doit être raccordée uniquement à une prise de terre, protégée par un
disjoncteur différentiel (GFCI) ou un appareil de courant résiduel (RCD). De tels disjoncteurs GFCI ou RCD
devraient être fournis par l’installateur et vérifiés régulièrement. Appuyer sur le bouton de test pour tester
les disjoncteurs GFCI ou RCD. Le GFCI ou RCD devraient couper le courant. Appuyer sur le bouton de
ré-initialisation. L’alimentation devrait être restituée. Si les disjoncteurs GFCI or RCD ne fonctionnent pas de
cette façon, l’un ou l’autre est défectueux. Si les disjoncteurs GFCI ou RCD stoppent l’alimentation électrique
à la baignoire sans que le bouton test ne soit utilisé, il y a donc un court circuit indiquant la possibilité de
choc électrique. Ne pas utiliser pas cette baignoire à hydromassage. Débrancher la baignoire à hydromassage
et la faire réviser par un technicien qualifié avant son utilisation.
AVERTISSEMENT: La consommation d’alcool, de drogues ou de médicaments peuvent
augmenter considérablement le risque fatal d’hyperthermie. Une immersion prolongée dans l’eau
chaude peut provoquer l’hyperthermie. Une hyperthermie a lieu lorsque la température corporelle
interne atteint un niveau dépassant de plusieurs degrés la température corporelle normale de 98,6°F
Kohler Co. Français-1 1022211-5-F

Instructions d’opération (cont.)
(37°C). Les symptômes d’hyperthermie comprennent la hausse de la température corporelle,
l’étourdissement, la léthargie, la somnolence et l’évanouissement. Les effets de l’hyperthermie
comprennent: (a) défaut de percevoir la chaleur, (b) défaut de s’apercevoir du besoin de sortir de la
baignoire, (c) incapacité de reconnaître le danger, (d) dommages au foetus dans le cas des femmes
enceintes, (e) incapacité physique de sortir de la baignoire et (f) inconscience et danger conséquent
de noyade.
Purger le système d’hydromassage deux fois par mois ou plus souvent selon la fréquence d’usage, tel que
décrit dans la section ″Purger le système″.
L’utilisation répétée de produits d’hygiène et de beauté contenant des huiles peut endommager les
revêtements en plastique des composants de la baignoire à hydromassage. Ne pas utiliser de shampoings ou
d’huiles de bains à bases végétales.
L’action de la baignoire à hydromassage peut considérablement faire mousser une quantité de produit
moussant, même très petite, de savon, de shampoing ou d’huile pour le bain. Pour cette raison, nous vous
conseillons de ne pas utiliser ces produits dans votre baignoire à hydromassage.
Kohler Co. Français-2 1022211-5-F

Votre baignoire à hydromassage Kohler
Le dispositif d’hydromassage comprend les composants suivants:
•Baignoire - La baignoire agit comme un réservoir d’eau et fournit un espace pour l’action
d’hydromassage.
•Clavier de l’utilisateur - Simple d’accès, le clavier de l’utilisateur vous permet de démarrer ou
d’arrêter votre baignoire à hydromassage. Il vous permet aussi d’accéder à tous les modes de la
baignoire à hydromassage et au réglage du débit d’eau ou de la puissance d’impulsion. Les modes
disponibles sont allumés en bleu. Les modes activés sont allumés en vert.
•Moteurs de pompe - Les moteurs de la pompe procurent une énergie silencieuse et à vitesse
variable pour la circulation d’eau et crée l’action d’hydromassage. Votre baignoire à hydromassage
utilise deux moteurs de pompes. Un moteur de pompe alimente le mode cascade, et une deuxième
pompe propulse l’eau par les Flexjets et les Riverjets.
•Chauffe-eau - Le chauffe-eau est conçu pour aider à maintenir automatiquement la température de
l’eau jusqu’à 104ºF (40ºC) et pour améliorer votre expérience d’hydromassage. Le chauffe-eau
s’active automatiquement lorsque la pompe des Flexjet/Riverjet est en marche, et il s’arrête lorsque
le moteur de la pompe s’arrête. Le chauffe-eau peut être arrêté par le clavier à tout moment quand
les pompes sont en marche.
•Oreillers - Les oreillers fournissent l’endroit parfait pour reposer la tête et se relaxer.
•Télécommande - La télécommande étanche apporte toutes les fonctions d’hydromassage à portée de
mains.
•Chromathérapie (modèles H2) - Ajouter de l’ambiance à la baignoire avec des lumières qui est cyclé
automatiquement et continuellement par huit couleurs, ou sélectionner une seule couleur: blanc,
violet, bleu indigo, aigue-marine, verte, jaune, orange et rouge. Un cycle des huit couleurs dure à
peu près une minute. Ce mode peut être utilisé avec tous les modes de fonctionnement et également
lorsque les pompes ne fonctionnent pas.
Votre baignoire offre plusieurs expériences distinctes d’hydromassage:
•Mode cascade - Un flux continuel d’eau (moins de chaleur) s’écoule à l’arrière du cou, à un volume
moyen en l’espace de quelques secondes. Ce mode peut être utilisé seul ou avec le mode de débit
de Flexjet, Riverjet - eaux vives, ou le mode Riverjet - rapides.
•Mode Flexjet d’hydromassage - Une action d’hydromassage immédiate et tonifiante est créée à un
volume moyen. Les huit Flexjets se trouvent plus bas dans la baignoire à hydromassage que les
Riverjets. Positionnés de manière stratégique pour optimiser l’effet d’hydromassage, ils permettent
d’ajuster le débit d’air et d’eau, ainsi que de contrôler la direction du jet selon le désir.
•Mode Riverjets - eaux vives - Une action de tourbillonnement en provenance des deux Riverjets
extérieurs est créée à l’arrière du cou à un volume moyen.
•Mode Riverjets - rapides - Une action de tourbillonnement des quatre Riverjets est créée à l’arrière
du cou.
•Baignoire à vague - Cette option coupe le débit d’air aux jets pour un effet apaisant et relaxant (non
illustré). Ce mode peut être utilisé à tout moment quand les jets sont en marche. Ce mode n’affecte
pas le mode cascade.
Mode cascade
Mode Flexjet d’hydromassage Mode Riverjets - eaux vives Mode Riverjets - rapides
1022211-5-F Français-3 Kohler Co.
