Kohler K-1388 User manual

Installation Guide
Drop-In Bath Whirlpool
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-1110 K-1338 K-1339
K-1375 K-1388 K-1418
K-1457
1022365-2-B

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). The GFCI or ELCB protect against line-to-ground shock hazard. Use a 220 - 240 V, 20
A, 50/60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool system,
as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not
be liable under its warranty or otherwise for personal injury or damage caused by any such
unauthorized modification.
Features
″CT″Relax Package: Components include a pump, heater, control, effervescence ports, chromatherapy lights
and illuminated keypad with remote control.
″AH″Spa Package: Components include a pump, Flexjet whirlpool jets, heater, control, effervescence ports,
chromatherapy lights and illuminated keypad with remote control.
″H2″and ″M″Massage Package: Components include a pump, heater, control, backjet system, neckjet
system, Flexjet whirlpool jets and illuminated keypad with remote control.
″V″Spa/Massage Package: Components include a pump, heater, control, backjet system, neckjet system,
1022365-2-B 2 Kohler Co.

Product Information (cont.)
Flexjet whirlpool jets, effervescence ports, chromatherapy lights and illuminated keypad with remote control.
Connections and Service Access
Before installation, ensure proper access to the final connections.
NOTICE: Provide generous, unrestricted service access to the pump. You must provide access for
servicing the pump and controls. The access must be located immediately next to the pump. Study the
roughing-in information packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Features ..................................................................... 2
Connections and Service Access ................................................... 3
Thank You For Choosing Kohler Company .............................................. 3
Before You Begin ................................................................. 4
Tools and Materials ............................................................... 4
Prepare the Site ................................................................. 5
Prepare the Site ................................................................. 6
Prepare the Whirlpool ............................................................. 6
Secure the Whirlpool to the Subfloor .................................................. 7
Cut the Pump Banding Straps ....................................................... 8
Install the Plumbing ............................................................... 8

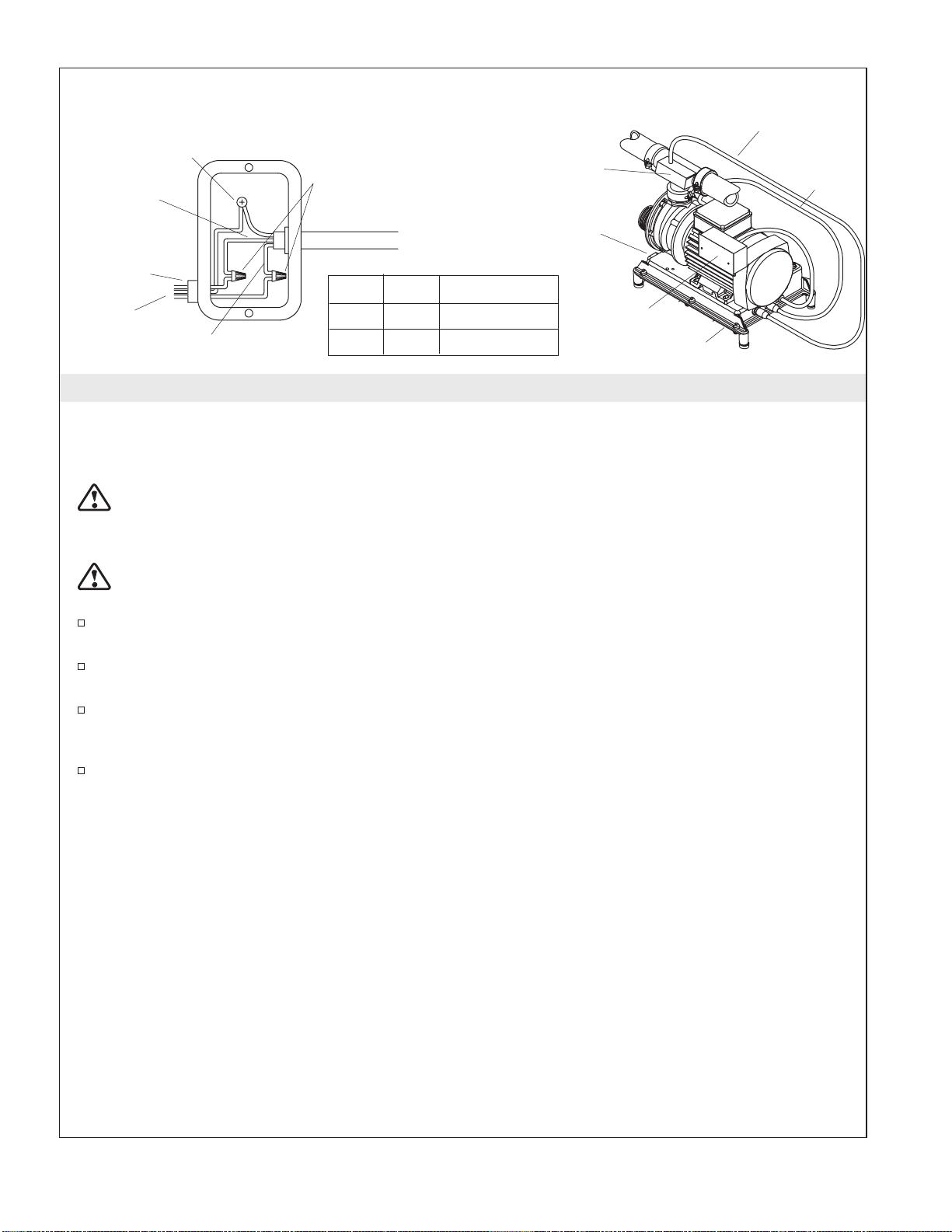

Make Electrical Connections ......................................................... 9

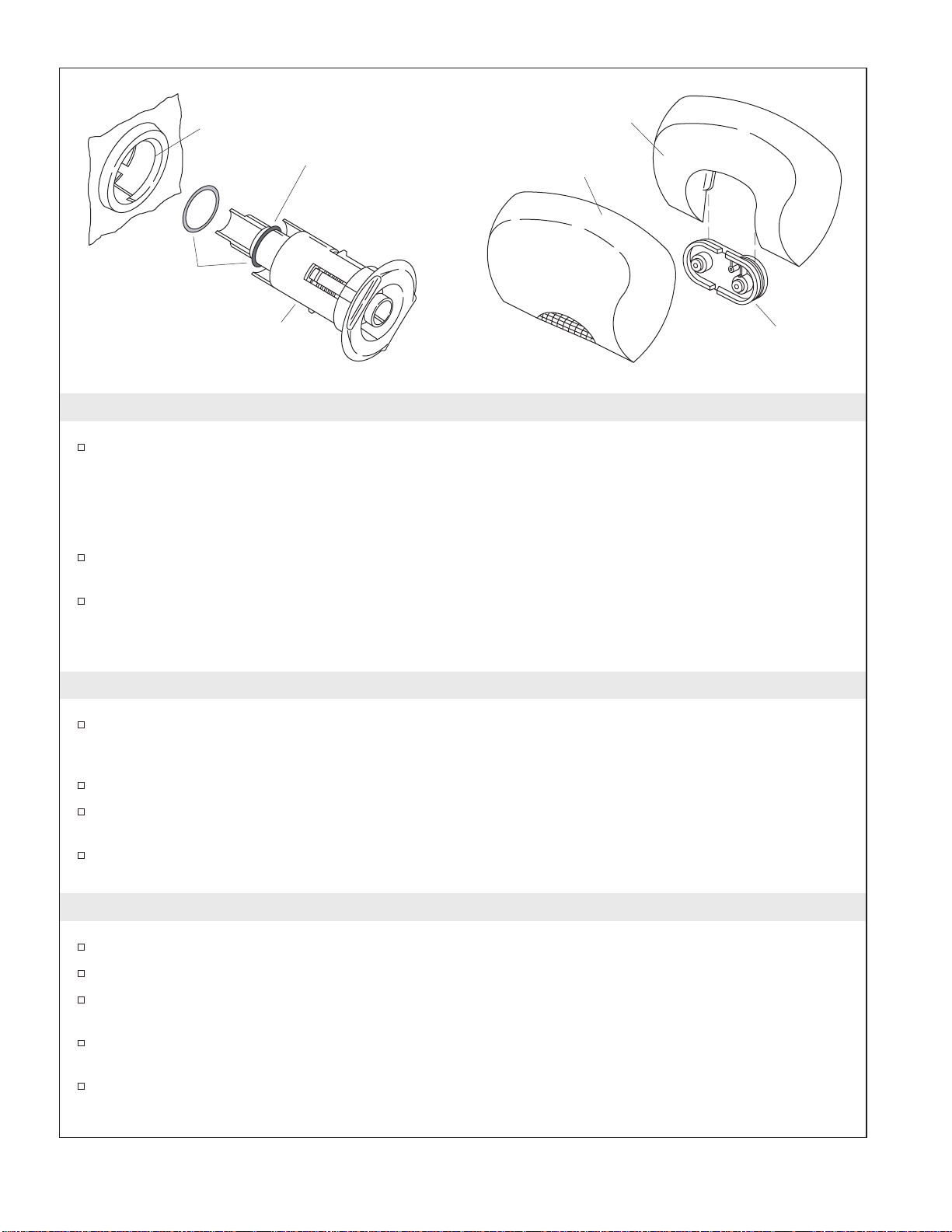

Install the Whirlpool Trim Kit ........................................................ 10
Install the Neckjet Pillow (if Equipped) ................................................ 10
Test Run the Whirlpool ............................................................ 10
Complete the Finished Wall/Deck .................................................... 12
Complete the Concrete Installation ................................................... 12
Clean-Up After Installation ......................................................... 12
Confirm Proper Operation .......................................................... 13
Operating Sequence ............................................................. 13
Neckjet and Backjet Operation (if Equipped) ............................................ 14
Effervescence Operation (if Equipped) ................................................ 14
Chromatherapy Operation (if Equipped) ............................................... 14
Remote Control Operation ......................................................... 15
Troubleshooting Procedures ........................................................ 15
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.
Kohler Co. 3 1022365-2-B

Before You Begin
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
We recommend this whirlpool for drop-in, corner, or alcove installation.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Confirm adequate support for a rim-mounted faucet; large faucets that may be inadvertently used
as a means of support are not appropriate or safe for this installation.
Tools and Materials
• Conventional woodworking or concrete
installation tools and materials
• Drop cloth
Plus:
Silicone Sealant Measuring Tape Pencil Level
Safety Glasses Pipe Wrench
1022365-2-B 4 Kohler Co.

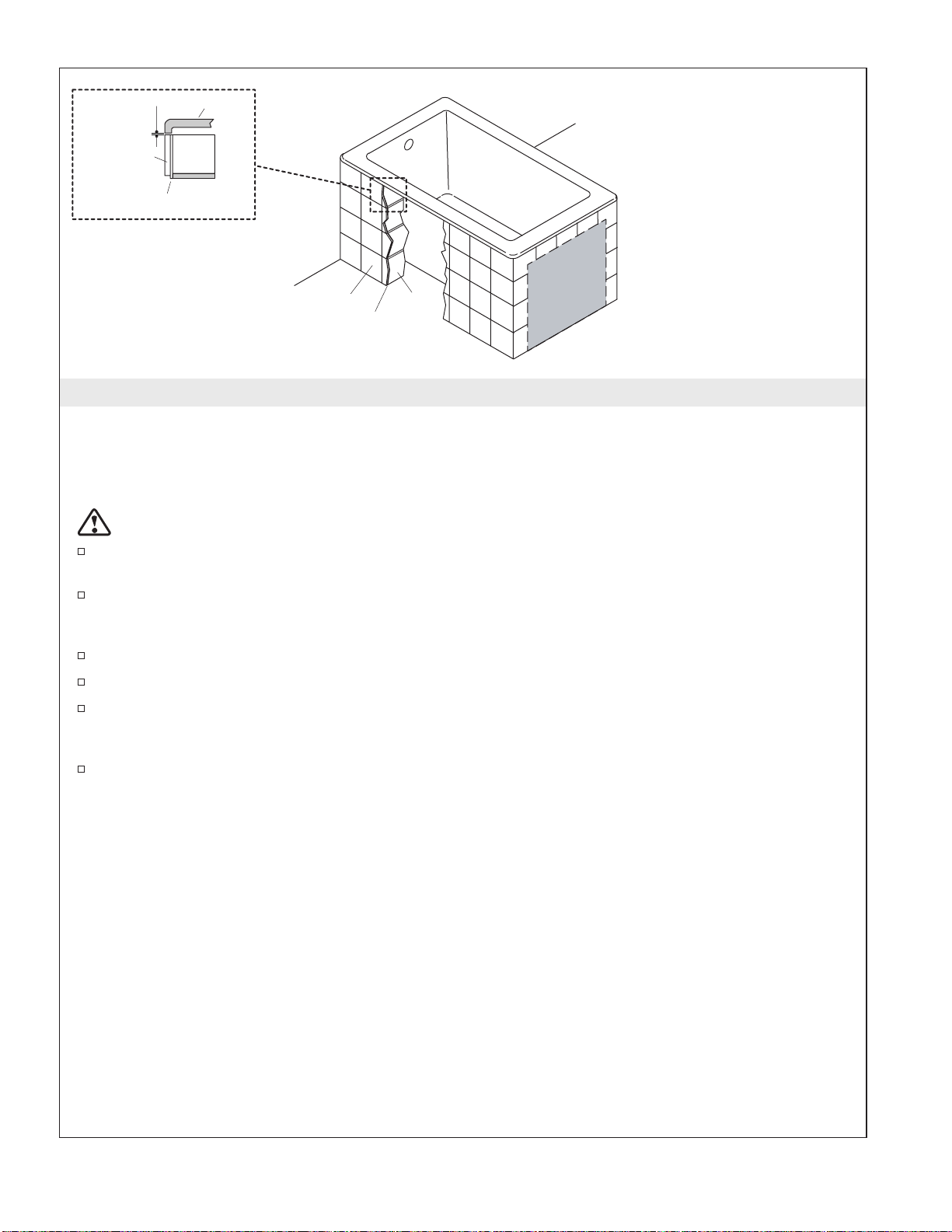

1. Prepare the Site
Concrete Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
This whirlpool may be installed next to the wall or in an island installation. An island installation
requires a four side surround. In both instances, make sure the deck is supported by brick or
concrete.
Install an access panel to allow the pump to be serviced.
Construct brick or concrete supports.
Provide a 1/16″(2 mm) gap between the whirlpool rim and the concrete or brick framing. Frame
the floor, or construct a frame for a raised installation, in accordance with the roughing-in
information packed with the whirlpool.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Brick
Bath
1/16"
(2 mm)
Tile
Approved
Tile Backing
Typical
access
panel
Tile
Approved
Tile Backing
Brick
Whirlpool may be installed
next to the wall or as an
island installation
Install an access panel to allow
the pump to be serviced
Kohler Co. 5 1022365-2-B

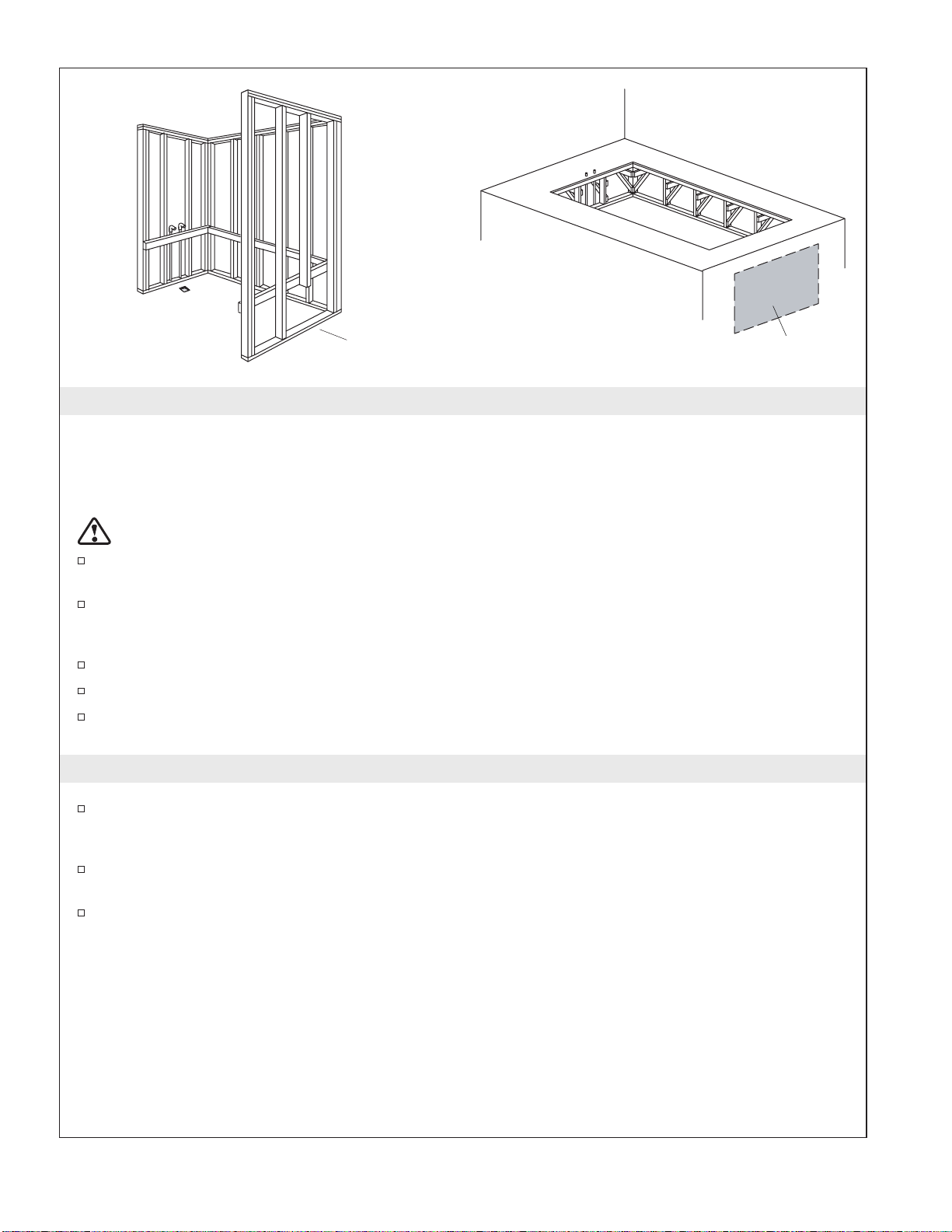

2. Prepare the Site
Wood Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool may be used in a drop-in, corner, or alcove installation. Construct 2x4 stud framing
designed for your particular installation. Frame the floor, or construct a frame for a raised
installation in accordance with the roughing-in information packed with the whirlpool.
Use the roughing-in cut-out information to carefully lay out and cut the rough deck material.
Install an access panel to allow the pump to be serviced.
Position the plumbing according to the roughing-in information. Cap the supplies, and check for
leaks.
3. Prepare the Whirlpool
We recommend a tiling-in bead for straight-rimmed whirlpools, if one or more sides of the
whirlpool contact a wall. This bead prevents water from seeping between the whirlpool rim and the
wall. Follow the instructions packed with the tiling-in bead to install the bead now.
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Construct 2x4
stud framing
according to
the roughing-
in information.
Position
the rough
plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
Typical access panel
Frame the floor according to
the roughing-in information.
Position the
rough plumbing.
Verify that the subfloor offers
adequate support, and is flat
and level.
Typical access panel
1022365-2-B 6 Kohler Co.

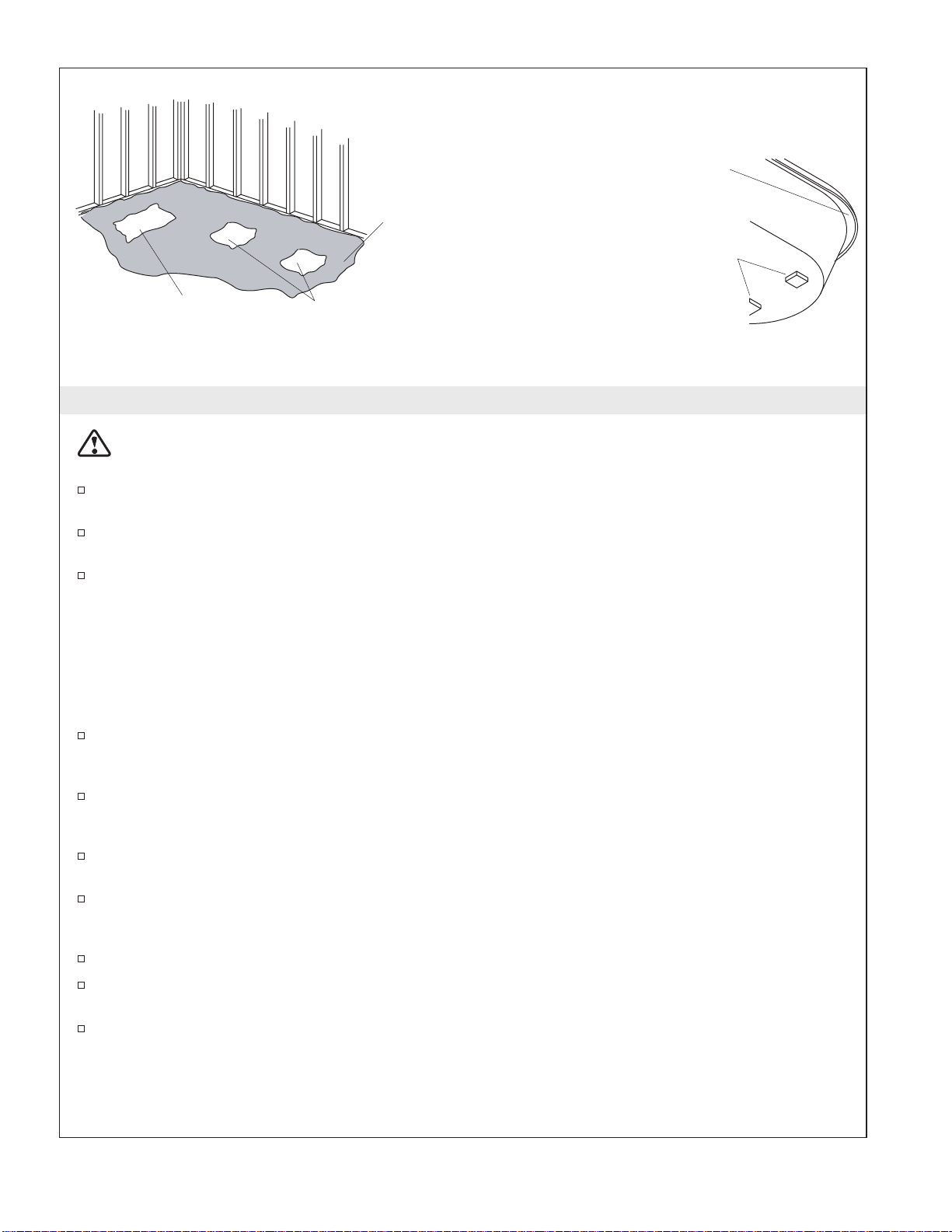

4. Secure the Whirlpool to the Subfloor
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the whirlpool support blocks as necessary.
Option for Using a Cement or Mortar Bed
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit. Clear all the material away from the pump control
and support block locations.
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
NOTE: The pump control (when the pump banding straps are cut) and support blocks must rest
directly on the subfloor.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place, and make sure the pump control and support blocks do not
rest in the bed material.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Option for Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Option for Using Silicone Sealant
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.
Clear spaces
for support
blocks.
Apply a bead of
silicone sealant
around the entire rim
or
Apply construction
adhesive to the
support blocks.
Spread a 2" (5.1 cm)
layer of cement or
mortar bed material.
Clear space for
pump.
Kohler Co. 7 1022365-2-B

5. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.
Use tin snips to cut the two pump banding straps from the whirlpool pump.
NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is
raised too high, it will not prime properly. Make sure the rubber isolation feet are in place.
To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the
shipping bracket after the pump banding straps are cut. The pump control contains rubber isolation
feet to reduce pump noise.
6. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
If your whirlpool requires grip rails, install them now according to the installation instructions
packed with the grip rails.
Pump
Wiring
Harness
Rubber Isolation Feet
Control
Cut the pump banding straps.
1022365-2-B 8 Kohler Co.

7. Make Electrical Connections
NOTE: The whirlpool model number is printed on a label near the whirlpool pump. This label also
identifies the electrical rating of the whirlpool. All whirlpools come equipped with a wiring junction box
and will only operate at 220 V through 240 V and at 50 Hz or 60 Hz.
WARNING: Risk of electric shock. To reduce the risk of electric shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
This will provide additional protection against line-to-ground shock hazard. A 220 - 240 V, 20 A, 50/60
Hz dedicated circuit is required.
WARNING: Risk of electric shock. Make sure the power has been disconnected before performing the
following procedures.
The whirlpool controls and system have been prewired at the factory. A licensed electrician should
make a routine service connection to the junction box.
Connect service to the junction box. The junction box contains blue, brown and green with a yellow
stripe colored wires and a ground lug.
Provide a separate equipment earthing conductor for the earth lug located inside the junction box.
The earthing conductor must not be connected to any current-carrying conductor. Follow local
electrical codes. Bond in accordance with national and local codes.
A wiring harness has been prewired at the factory, allowing communication between the keypad, all
features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
NOTE: Your wiring harness includes an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Ground (Green with
Yellow Stripe)
Blue
Supply 60 Hz 50 Hz From Control
L1 L1 Brown
L2 N Blue
Electrician to
provide suitable
strain relief.
The junction box should be
wired as shown. Bond in accordance with
national and local codes.
Wire
Connectors
From Control
Brown
Heater (models may
vary) T-style (shown)
or inline (not shown)
Heater Electrical Cord
Wiring
Harness
Junction
Box Control
Pump
Electrical
Cord
Kohler Co. 9 1022365-2-B

8. Install the Whirlpool Trim Kit
Install the whirlpool trim kit according to the instructions packed with the trim kit. Pay particular
attention to the jet installation steps below - they are very important and are included here to help
you obtain smooth, trouble-free jet operation.
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
9. Install the Neckjet Pillow (if Equipped)
The whirlpool is supplied with one pillow and two slip covers. The pillow includes a built-in
magnetic reed switch. The neckjets will not operate unless the pillow is installed. Always use a slip
cover to prevent water from spraying from the whirlpool.
Choose a slip cover, and fit it over the pillow.
Carefully slide the pillow down onto the neckjet body grooves until it is secure. The neckjets are
now ready for use.
We recommend periodic cleaning of the slip cover. Follow the cleaning instructions on the label
attached to the slip cover.
10. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool is turned on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut, and that the pump control is resting directly on
the subfloor. Ensure that the rubber isolation feet are in place.
Fill the whirlpool until the water level sensors (if equipped) are submerged. If your whirlpool does
not have sensors, fill the whirlpool to a level at least 2″(5.1 cm) above the highest jet.
Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all
whirlpool piping connections, on the back side, for leaks.
Slide the O-Ring
onto the first
shoulder of the jet.
Inspect and
lubricate the
O-Ring.
Insert the jet into the housing,
and lightly push and rotate
until it snaps in position.
Housing
Slide the pillow onto
the neckjet body.
Fit the slip cover
over the pillow.
Neckjet Body
1022365-2-B 10 Kohler Co.

Test Run the Whirlpool (cont.)
Turn on each of the whirlpool features and verify proper function. Check for any water leakage on
the whirlpool’s back side.
Turn on the chromatherapy cycle and allow it to sequence through all eight colors; white, violet,
indigo blue, aqua blue, green, yellow, orange and red. It takes approximately 1 minute to cycle
through all eight colors.
Verify functions using the remote control. Refer to ″Remote Control Operation″section.
For additional information on whirlpool operation, see ″Confirm Proper Operation″section.
Kohler Co. 11 1022365-2-B

11. Complete the Finished Wall/Deck
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant wall/deck material. Seal the joints between the whirlpool
rim edge and the water-resistant wall/deck material with silicone sealant.
Tape and mud the water-resistant wall/deck material. Install the finished wall/deck to the
water-resistant wall/deck material. Seal the joints between the whirlpool rim and the finished
wall/deck material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
12. Complete the Concrete Installation
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Apply mortar and tile to the wall, deck and surround material as needed.
Apply a bead of sealant where the tile meets the whirlpool surface.
Install the faucet trim according to the instructions packed with the trim.
13. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad and remote control.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Apply silicone sealant to the
edges of the water-resistant
deck material and the
finished deck.
Finished Deck
Material
Water-Resistant
Deck Material
Framing Material
Whirlpool
Drop-In Installation
1022365-2-B 12 Kohler Co.

14. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Turn the jet trim rings fully counterclockwise. Position the jet nozzles so they face down toward the
basin.
Fill the whirlpool until the water level sensors (if equipped) are submerged. If your whirlpool does
not have sensors, fill the whirlpool to a level at least 2″(5.1 cm) above the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104° F (40° C). The heater will
automatically turn off as the water temperature approaches 104° F (40° C) and will remain off until the
water cools.
15. Operating Sequence
NOTE: A built-in heater automatically helps to maintain the water temperature when the whirlpool is
running, as long as the water temperature does not exceed 104° F (40° C). The heater will disengage at
higher temperatures.
IMPORTANT! Please refer to your Homeowners Guide for detailed instructions on the user keypad and
optional remote control.
NOTE: The keypad above shows features for all models. Your keypad may vary based on your whirlpool
model.
Press the Power On/Off button to turn on the whirlpool. The whirlpool will start at medium flow.
Increase or decrease the water flow by pressing either the up or down arrow buttons on the keypad.
An indicator bar in the center of the keypad shows the water flow volume.
Adjust each jet for optimum air/water mixture. Turn the jet trim clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
Rotate the outer ring until the heater button is flashing. Press ″OK″to turn the heater off. Press
″OK″again to turn the heater back on. The heater will help to maintain the water temperature up to
104° F (40° C).
Press the Power On/Off button a second time to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
Activates Mode
Selected
Indicator Bar - Shows water
flow volume or pulse rate
Turn the jet trim
clockwise to
decrease the flow.
Turn the jet trim
counterclockwise to
increase the flow.
Power On/Off
Neckjet Mode -
Adjust Pulse
Backjet Mode -
Adjust Pulse
Chromatherapy -
Specific Color
Rotate outer
ring to access
desired mode.
Chromatherapy Cycle
Heater On/Off
Lighted User Keypad
Decreases Flow or Pulse
Effervescence Mode
Increases Flow or Pulse
Flexjet Flow Mode
Kohler Co. 13 1022365-2-B

16. Neckjet and Backjet Operation (if Equipped)
Make sure the slip cover is in place on the pillow, and the pillow is attached to the neckjet body.
NOTE: If the pillow is not properly installed the neckjets will stop. The neckjet icon and indicator bar on
the user keypad will flash. The neckjets will automatically restart when the pillow is properly installed.
With the whirlpool operating, rotate the outer ring until the neckjet icon is flashing. Press ″OK″to
activate the neckjets. The neckjet pulsing action will start at medium speed.
To increase or decrease the neckjet pulsing action, press either the up or down arrow buttons on the
keypad, while the neckjet mode is active.
To increase or decrease the flow volume to the neckjets, rotate the outer ring to the Flexjet mode,
press ″OK″to activate the mode, and press either the up or down arrows on the keypad. This also
increases or decreases the flow to all modes.
Rotate the outer ring until the backjet mode is flashing and press ″OK″. The backjet pulsing action
will start at medium speed. The backjets pulse from the bottom of the whirlpool toward the top,
with water flow and pulse action occurring from two backjets at a time.
NOTE: If the water level falls below the water level sensors, the backjets will stop. The backjet icon and
indicator bar on the user keypad will flash. The backjets will automatically restart when the water level
covers the sensors.
To increase or decrease the backjet pulsing action, press either the up or down arrow buttons on the
keypad, while the backjet mode is active.
To increase or decrease the flow volume to the backjets, rotate the outer ring to the Flexjet mode,
press ″OK″to activate the mode, and press either the up or down arrows on the keypad. This also
increases or decreases the flow to all modes.
NOTE: To activate or deactivate different modes while the neckjets and/or backjets are operating, rotate
the outer ring until the desired mode is flashing and press ″OK″. (Example: To turn the heater off, rotate
the ring until the heater icon is flashing and press ″OK″).
Press ″OK″while the neckjet mode is flashing, to turn off the neckjets.
Press ″OK″while the backjet mode is flashing, to turn off the backjets.
17. Effervescence Operation (if Equipped)
With the whirlpool operating, rotate the outer ring until the effervescence icon is flashing. Press
″OK″to activate the effervescence ports. The effervescence action will start at the flow volume last
set in the Flexjet flow mode.
Increase or decrease the flow volume by pressing either the up or down arrow buttons on the
keypad.
NOTE: The effervescence mode is intended to be a relaxing, soothing experience. The Flexjet mode,
backjets and neckjets will automatically turn off when the effervescence mode is activated. Chromatherapy
may be used with this and all modes of operation.
Press ″OK″while the effervescence mode is flashing, to turn off the effervescence ports.
18. Chromatherapy Operation (if Equipped)
NOTE: Chromatherapy may be used with all modes of operation. Chromatherapy may also be used when
the pump is not operating.
Chromatherapy Cycle: When this mode is activated, the chromatherapy lights will automatically
and continuously cycle through the eight colors; white, violet, indigo blue, aqua blue, green, yellow,
orange and red. One cycle through all eight colors takes approximately one minute. Rotate the outer
ring to select this mode and press ″OK″to activate it. Press ″OK″while the chromatherapy mode is
active, to turn off the lights.
1022365-2-B 14 Kohler Co.

Chromatherapy Operation (if Equipped) (cont.)
Chromatherapy Specific Color Selection: When this mode is activated, you may choose a specific
color for the bath. Rotate the outer ring to select this mode, press ″OK″to activate and use the
up/down arrows to reach the desired color. Press ″OK″while the chromatherapy mode is active, to
turn off the lights.
19. Remote Control Operation
NOTE: Refer to your Homeowners Guide for detailed instructions on your remote control.
The remote control places the whirlpool functions at your fingertips. You may access and modify all
modes/features from the remote control. The waterproof remote control is designed to be used in
the bath and will float in the water. The remote control uses two AAA batteries.
The mode selector button functions in the same way as the outer ring. When ″M″is pressed, one of
the modes will flash on the user keypad. If ″M″is pressed again, the next mode in clockwise order
will flash. When the desired mode is flashing, press ″OK″to activate it.
When the Flexjet mode is active, the arrows will increase or decrease the water flow volume. When
the neckjet or backjet mode is active, the arrows will increase or decrease the neckjet or backjet
pulse speed.
20. Troubleshooting Procedures
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power button
is pressed or outer ring is
rotated.
A. No power to control. A. Check wiring and connect
power.
B. GFCI or ELCB tripped. B. Reset GFCI or ELCB.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
2. Motor starts, but all jets are not
functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is illuminated, but
does not respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at power-up. A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
Kohler Co. 15 1022365-2-B

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
D. Control does not work. D. Replace control.
5. User keypad is illuminated, but
pump won’t start. A. Power cord from pump to control is loose, disconnected
or damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump won’t
prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on
intake side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Pump stops before 18 minutes. A. GFCI or ELCB tripped. A. Identify source of fault, and
correct. Reset GFCI or ELCB.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage
and allow motor to cool.
8. Pump does not automatically
stop after 22 minutes. A. 20-minute timer inadvertently disabled. A. See service manual.
9. Pump won’t turn off when the
power button on user keypad
is pressed.
A. User keypad does not work. A. Replace user keypad.
B. Control does not work. B. Replace control.
10. Pump operates but variable
speed feature does not work. A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
11. Bath water cools while pump
is operating. A. Water temperature above 104° F (40° C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or
damaged.
C. Check wiring for proper
connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
12. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall
jet.
13. Remote control (if equipped)
does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
C. Remote control not
programmed correctly. C. See homeowners guide or service manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
Troubleshooting the Neckjet System
1022365-2-B 16 Kohler Co.

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
14. Keypad does not respond
when neckjet mode is selected. A. User keypad does not work. A. Replace user keypad.
15. Pump operates but neckjets do
not turn on. Indicator bar on
user keypad is flashing.
A. Pillow is not installed. A. Make sure the pillow is
properly attached to the neckjet
body.
B. Reed switch does not work. B. Check reed switch wiring and
replace if necessary.
C. Wiring harness from neckjet to
control is loose, disconnected
or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
16. Pump operates but neckjets do
not turn on. Indicator bar on
user keypad is NOT flashing.
A. Neckjet line is blocked. A. Disconnect neckjet hoses and
remove blockage.
B. Wiring harness from neckjet to
control is loose, disconnected
or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. Butterfly valve does not work. C. Replace butterfly valve.
D. Control does not work. D. Replace control.
17. Water flows from neckjets, but
neckjets do not pulse. A. Wiring harness from neckjet pulse cannister to control is
loose, disconnected or
damaged.
A. Check wiring for proper
connections. Replace wiring
harness if necessary.
B. Pulse cannister does not work. B. Replace pulse cannister.
C. Control does not work. C. Replace control.
Troubleshooting the Backjet System
Symptoms Probable Causes Recommended Action
18. Backjets do not operate. A. Whirlpool pump is not
operating. A. Turn on pump.
B. Backjet butterfly valve does not
open. B. Check for loose connections or wires leading from backjet
pulse cannister to control.
Replace backjet pulse canister
or control if necessary.
C. Not enough water in
whirlpool. C. Fill whirlpool so water level sensors are covered.
D. Actuator switch does not work. D. Replace actuator switch.
E. Power from pump motor to
control is off. E. Check for loose connections or wires leading from pump
motor to control.
F. Backjet pipe is blocked. F. Remove blockage.
G. Switch wire from switch to
control is disconnected. G. Reconnect or replace switch wires that use modular plug.
19. Backjets do not pulse. A. Pulse cannister does not work. A. Check for loose connections or
wires leading from pulse
cannister to control. Replace
pulse canister or control if
necessary.
B. Switch does not work. B. Replace switch.
C. Switch wire from switch to
control is disconnected. C. Reconnect or replace switch wires that use modular plug.
Troubleshooting the Effervescence Jets
Symptoms Probable Causes Recommended Action
20. Effervescence ports do not
work. A. Whirlpool pump is not operating. A. Turn on pump.
Kohler Co. 17 1022365-2-B

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Butterfly valve does not work. B. Replace butterfly valve.
C. Pump does not work. C. Refer to the service manual to
troubleshoot the system. Refer
to installer/dealer.
D. Control does not work. D. Replace control.
21. Effervescence ports do not
bubble. A. Air intake on suction line is blocked. A. Remove blockage.
B. Water flow is too low. B. Increase water flow.
Troubleshooting the Chromatherapy Lights
Symptoms Probable Causes Recommended Action
22. Chromatherapy lights do not
work. A. Loose, disconnected or damaged wiring/connections. A. Check wiring for proper connections. Replace wiring if
necessary.
B. Control does not work. B. Replace control.
1022365-2-B 18 Kohler Co.

Guide d’installation
Baignoire à hydromassage encastrée
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
toujours être observées, incluant ce qui suit :
DANGER : Risque d’électrocution. Raccorder uniquement à des circuits protégés par un Disjoncteur
de Fuite de Terre (GFCI) ou à un Disjoncteur de Mise à la Terre (ELCB).
Les matériaux de construction et le câblage doivent être posés loin de la pompe et des autres composants
conducteurs de chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Terre/Masse″est fourni dans le compartiment de câblage.
Afin de réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du panneau de
service électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui alimente cet
équipement.
Un connecteur à pression par câble est prévu à l’extérieur de la boîte de jonction de la pompe ou de la
commande de cet appareil afin de permettre la connexion entre l’appareil et toutes autres surfaces de métal
avoisinantes, tel que requis par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous plaît
lire avec attention toutes les instructions avant de commencer l’installation, y compris les conditions
suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Information sur le produit
Branchements électriques requis
Cette installation électrique doit avoir deux Disjoncteurs-Interrupteur de Fuite de Terre (GFCI) ou deux
Disjoncteurs mis à la Terre (ELCB). Les disjoncteurs GFCI ou le ELCB protègent contre un risque
d’électrocution. Raccorder la baignoire à hydromassage à une alimentation indépendante de 220/240 V, 20
A, 50/60 Hz.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car celà
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kohler Co. décline
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
Kohler Co. Français-1 1022365-2-B

Information sur le produit (cont.)
Caractéristiques
Option relaxation ″CT″:Les composants comprennent une pompe, un chauffeau, un contrôle, des ports
d’effervescence, des lumières de chromothérapie et un clavier de l’utilisateur lumineux avec télécommande.
Option Spa ″AH″:Les composants comprennent une pompe, des Jets Flexjets de la baignoire à
hydromassage, un chauffeau, un contrôle, des ports d’effervescence, des lumières de chromothérapie et un
clavier de l’utilisateur lumineux avec télécommande.
Option massage ″H2″et ″M″:Les composants comprennent une pompe, un chauffeau, un contrôle, des jets
dorsaux, des jets pour le cou, des Jets Flexjets de la baignoire à hydromassage et un clavier de l’utilisateur
lumineux avec télécommande.
Option Spa/massage ″V″:Les composants comprennent une pompe, un chauffeau, un contrôle, des jets
dorsaux, des jets pour le cou, des Jets Flexjets de la baignoire à hydromassage, des lumières de
chromothérapie et un clavier de l’utilisateur lumineux avec télécommande.
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
AVIS : Fournir un large accès non restraint de service à la pompe. Prévoir suffisamment d’accès pour
l’entretien futur de la pompe et des commandes. L’accès doit être situé tout près de la pompe. Étudier le
plan de raccordement qui accompagne la baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Information sur le produit ........................................................... 1
Branchements électriques requis ................................................... 1
Notices du produit .............................................................. 1
Caractéristiques ................................................................ 2
Connexions et accès pour l’entretien ................................................ 2
Merci d’avoir choisi la compagnie Kohler ............................................... 3
Avant de commencer .............................................................. 4
Outils et matériels ................................................................ 4
Préparer le site .................................................................. 5
Préparer le site .................................................................. 6
Préparer la baignoire à hydromassage ................................................. 6
Sécuriser la baignoire à hydromassage au sol brut ........................................ 7
Sectionner les sangles de retenue de la pompe .......................................... 8
Installer la plomberie .............................................................. 8
Faire les raccordements électriques ................................................... 9
Installer le kit de garniture de la baignoire à hydromassage ................................. 10
Installer le coussin du jet pour le cou (si équipé) ......................................... 10
Tester la baignoire à hydromassage .................................................. 10
Compléter le mur/comptoir fini ...................................................... 12
Compléter l’installation en béton ..................................................... 12
Nettoyage après installation ........................................................ 12
Confirmer le bon fonctionnement .................................................... 13
Séquence d’opération ............................................................ 13
Opération du jet pour le cou et dorsal (si équipé) ........................................ 14
Opération bulles effervescentes (si équipé) ............................................. 14
Opération chromathérapie (si équipé) ................................................. 15
Opération de la télécommande ...................................................... 15
Procédures de dépannage ......................................................... 15
1022365-2-B Français-2 Kohler Co.
