Kohler K-1151P User manual

Installation Guide
Bath with Airjets and Integral Apron
Canada
K-1112P, K-1114P, K-1124P,
K-1151P, K-1160P, K-1244P,
K-1257P, K-1357P
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
1040293-2-E

Important Information
Read all instructions before using or installing this product.
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a ground-fault
circuit-interrupter (GFCI) or residual current device (RCD). Grounding is required. The unit should
be installed by a qualified service representative and grounded.
WARNING: Risk of electric shock. A licensed electrician must route all electrical wiring and
connections for this product. Improper installation will create an electrical hazard and may not
comply with local building and electrical codes.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
WARNING: Risk of property damage. Building materials and wiring should be routed away from
the blower motor body and other heat-producing components of the unit.
NOTICE: Follow all local plumbing and electrical codes.
NOTICE: A pressure wire connector marked ″Ground″is provided within the wiring compartment. To
reduce the risk of electric shock, connect this connector to the grounding terminal of your electric service
or supply panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
NOTICE: Pressure wire connectors are provided on the exterior of the pump or control within this unit to
permit connection of a bonding conductor between this unit and all the other exposed metal in the
vicinity, as needed to comply with local requirements.
NOTICE: An access panel is required to service the pump/control. The access panel size must be a
minimum of 20″(50.8 cm) in width, and 15″(38.1 cm) in height.
Save these instructions.
Product Information
Electrical Requirements
WARNING: Risk of burns, fire, electric shock, or injury to persons. Do not operate the pump if
the pump supply cord is damaged. For proper guidance to have this product repaired, please call:
1-800-4-KOHLER from within the USA, 1-800-964-5590 from within Canada, or 001-877-680-1310
from within Mexico.
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD). The GFCI or RCD protects against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated
service for the bath with airjets.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of
electrical shock, this terminal must be connected to the grounding means provided in the electric supply
panel with a conductor equivalent in size to the circuit conductors supplying this equipment.
Install this unit in accordance with Canadian Electrical Code, Part I.
1040293-2-E 2 Kohler Co.

Product Information (cont.)
Product Notices
NOTICE: Keep the area around the blower motor clean and free of debris. Ensure that the area around the
blower motor is free of sawdust, insulation, dirt, or other small loose debris. Such material could clog the
blower motor air ducts and reduce the air flow through the blower.
Factory-Assembled Features
Factory installed components include blower motor with power supply cord, check valve, air piping, user
keypad, and keypad cable. Other than power wiring and plumbing, no assembly is needed.
Connections and Service Access
NOTICE: Provide unrestricted service access to the blower motor and check valve. The access must be
located immediately next to the blower motor. Study the roughing-in information packed with the bath.
Before installation, ensure that there is proper access to the blower motor and final connections. If the blower
motor is installed in an enclosed area, an access panel is required at the blower motor. This panel should be
18″(45.7 cm) wide and 14″(35.6 cm) high minimum.
Kohler Co. 3 1040293-2-E

Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 3
Factory-Assembled Features ...................................................... 3
Connections and Service Access ................................................... 3
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 4
Prepare the Site ................................................................. 6
Prepare the Site - Concrete Construction ............................................... 7
Prepare the Bath with Airjets ........................................................ 7
Secure the Unit .................................................................. 8
Option Using a Cement or Mortar Bed ............................................... 8
Option Using Construction Adhesive ................................................. 8
Secure the Bath with Airjets ......................................................... 9
Install the Plumbing ............................................................... 9
Make Electrical Connections ........................................................ 10
Test Run the Bath with Airjets ....................................................... 11
Complete the Finished Wall ........................................................ 12
Removing the Apron .............................................................. 12
Clean-Up After Installation ......................................................... 12
Confirm Proper Operation .......................................................... 13
Fill the Bath .................................................................. 13
Troubleshooting Procedure ......................................................... 15
Troubleshooting Guide .......................................................... 15
Tools and Materials
Before You Begin
NOTICE: Do not lift the bath with airjets by the piping or blower motor, or use the piping or blower
motor for structural support of the bath.
NOTICE: Do not lift the bath with airjets by the integral apron.
We recommend this bath with airjets for alcove installation.
Pencil
Safety Glasses Level
Silicone Sealant Measuring Tape
Pipe Wrench
Plus:
• Conventional Woodworking Tools
and Materials
• Drop Cloth
• Construction Adhesive (Optional)
• Cement or Mortar (Optional)
• #6 Large-Head Galvanized Nails
• 2x4's or 2x6's
Claw
Hammer
Blade
Screwdriver
1040293-2-E 4 Kohler Co.

Before You Begin (cont.)
Please read these instructions carefully to familiarize yourself with the required tools, material, and
installation sequences. Follow the sections that pertain to your particular installation. This will help
you avoid costly mistakes. In addition to installation instructions, read all operating and safety
instructions.
Inspect the bath with airjets for damage before you begin installation.
You must install this bath to an adequately supported, level subfloor.
Confirm adequate mounting and connection space for the faucet specified for your installation.
An optional accessories kit is available for relocating the blower motor. Refer to the back cover for
contact information if this kit is desired but was not ordered. If relocating the blower motor, follow
the instructions that came with the kit while performing this installation.
Kohler Co. reserves the right to make revisions in the design of products without notice, as specified
in the Price Book.
Kohler Co. 5 1040293-2-E

1. Prepare the Site
NOTICE: Do not support the bath by the rim.
NOTICE: Refer to the Roughing-in Guide packed with this product for proper minimum lbs/square foot
(kg/square meter) floor support loading.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the floor offers adequate support for your bath, and verify that the subfloor is flat and
level.
Construct 2x4 or 2x6 stud framing designed for your particular installation.
Install an access panel to allow the blower motor to be serviced.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Showerhead
Blocking
Supply
Valves
Spout
Header
Over
Opening
Remove
bottom plate.
1040293-2-E 6 Kohler Co.

2. Prepare the Site - Concrete Construction
NOTICE: Do not support the bath by the rim.
NOTICE: Refer to the Roughing-in Guide packed with this product for proper minimum lbs/square foot
(kg/square meter) floor support loading.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the flooring offers adequate support for your bath, and verify that the subfloor is flat and
level.
Construct brick or concrete supports.
Provide a 1/16″(2 mm) gap between the bath rim and the concrete or brick framing. Frame the
floor, or construct a frame for a raised installation, in accordance with the roughing-in information
packed with the bath.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
3. Prepare the Bath with Airjets
Install the drain to the bath according to the drain manufacturer’s instructions. Do not connect the
trap at this time.
Position a clean drop cloth or similar material in the bottom of the bath to protect the finish. Be
careful not to scratch the surface of the bath.
Brick
Bath
1/16"
(2 mm)
Tile
Approved Tile Backing
Tile
Approved Tile Backing
Apron Side
Brick
Kohler Co. 7 1040293-2-E

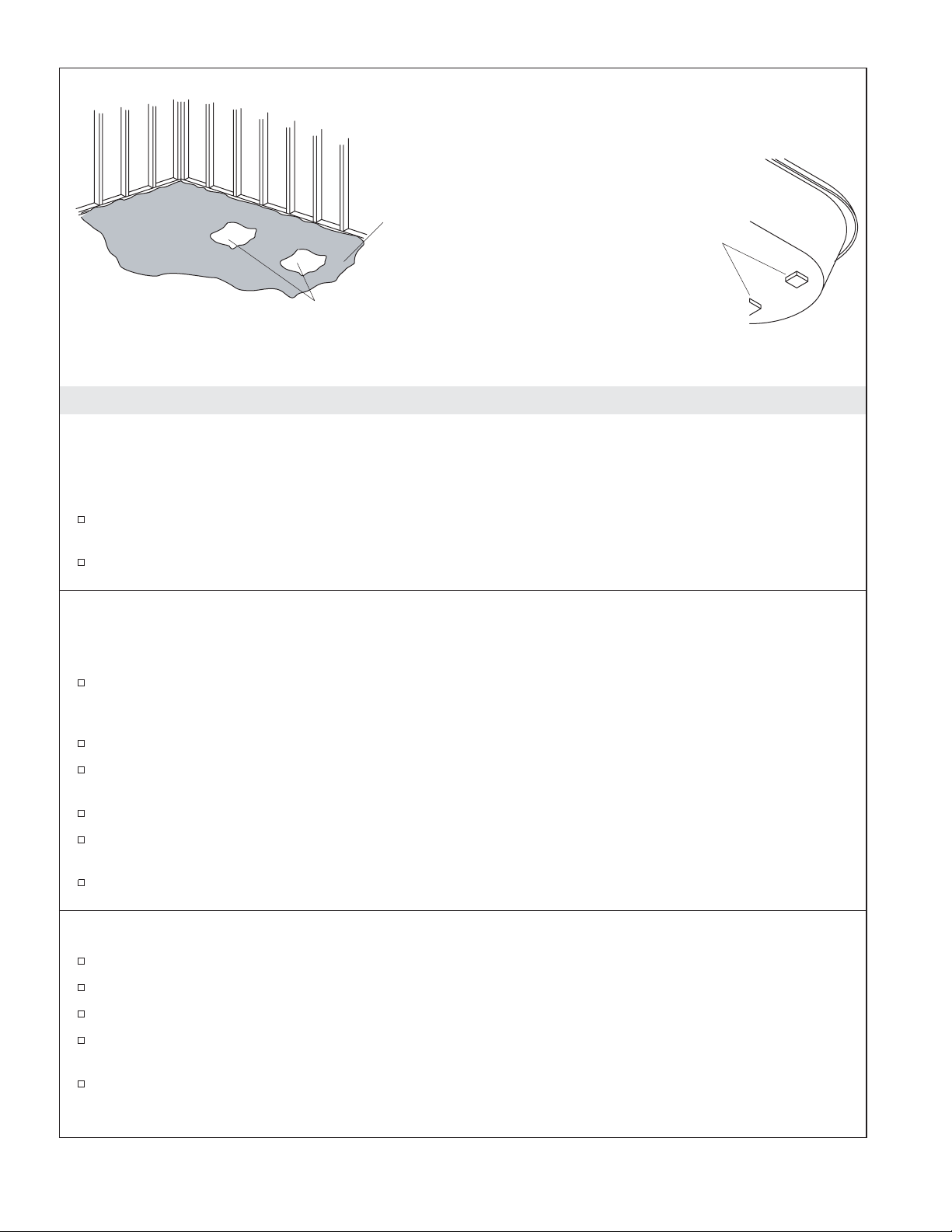

4. Secure the Unit
NOTICE: Do not lift the bath with airjets by the air channels or blower motor, or use the piping or blower
motor for structural support of the bath.
NOTICE: Do not support the bath by the rim.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the bath support blocks as necessary.
Option Using a Cement or Mortar Bed
NOTICE: Do not use gypsum cement or drywall compound for this application, as they will not provide
an acceptable, durable bond.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the bath will be set. This
will help secure, level, and support the unit. Clear all the material away from the support block
locations.
Position a piece of plastic drop cloth material on top of the cement or mortar bed.
With help, carefully lift the bath into place, and make sure the support blocks do not rest in the bed
material.
Insert the drain tailpiece into the trap. Make sure the bath is level and resting on all support blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the bath.
Allow the sealant to cure according to the manufacturer’s instructions.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the bath into position.
Insert the drain tailpiece into the trap. Make sure the bath is level and resting on all support blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the bath.
Allow the sealant to cure according to the manufacturer’s instructions.
Clear spaces
for support
blocks.
Apply construction
adhesive to the
support blocks.
Spread a 2" (5.1 cm)
layer of cement or
mortar bed material.
1040293-2-E 8 Kohler Co.

5. Secure the Bath with Airjets
Wood Construction
Drill a small pilot hole through the nailing-in flange at each stud. Add shims between the nailing-in
flange and the studs as needed to eliminate gaps.
Nail 1/4” (6 mm) thick furring strips to the studs to shim out to the edge of the nailing-in flange.
Use #6 large-head galvanized nails to secure the nailing-in flange to the studs.
Concrete Construction
NOTE: We recommend that the flange be secured to the wall for support.
Drill pilot holes through the nailing-in flange so they are about 16” (40.6 cm) apart.
Install concrete wall anchors to the wall at the pilot hole locations.
Secure the nailing-in flange to the wall anchors with screws.
6. Install the Plumbing
WARNING: Risk of property damage. Ensure a watertight seal on the bath drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the bath, and check the drain connections for leakage.
Stud
Nail 1/4" (6 mm)
thick furring strips
to the studs.
Drill a small hole
through the nailing-in
flange at each stud.
Use #6 large-head
galvanized nails to secure
the nailing-in flange to the
studs.
Kohler Co. 9 1040293-2-E

7. Make Electrical Connections
DANGER: Risk of electrical shock. Connect the bath with airjets to a properly grounded
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD). This will provide
additional protection against line-to-ground shock hazard. A 120 V, 15 A dedicated circuit is
required.
DANGER: Risk of electrical shock. Make sure the power has been disconnected before performing
the following procedures.
WARNING: Risk of electrical shock. A licensed electrician must route all electrical wiring and
connections for this product. Improper installation will create an electrical hazard and may not
comply with local building and electrical codes.
A 120 V, 15 A dedicated circuit is required. Provide a Class A Ground-Fault Circuit-Interrupter
(GFCI) and route service to the blower motor.
Provide a separate equipment grounding conductor for the ground lug. The conductor must not be
connected to any current-carrying conductor.
A junction box is supplied at the blower motor air outlet. This is the shipping position. Cut the
cable tie and remove the cover.
Mount the junction box 1-1/2″(3.8 cm) above floor level within 24″(61 cm) of the blower motor.
If required, route the blower motor pigtail lead to the junction box.
Connect electrical service to the junction box according to the wiring detail. Provide adequate strain
relief.
Bond to either ground lug on the junction box in accordance with national and local codes.
Install the junction box cover.
Clean the area of all dust and debris.
Ground (Green with Yellow Stripe)
Black
Supply
Electrician to
provide suitable
strain relief
The junction box should be
wired as shown
Bond in accordance with
national and local codes
Wire Connectors
From Blower Motor
White
Blower Motor
Electrical Cord
From Blower Motor
L1 Black
N White
GND Green with Yellow Stripe
1040293-2-E 10 Kohler Co.

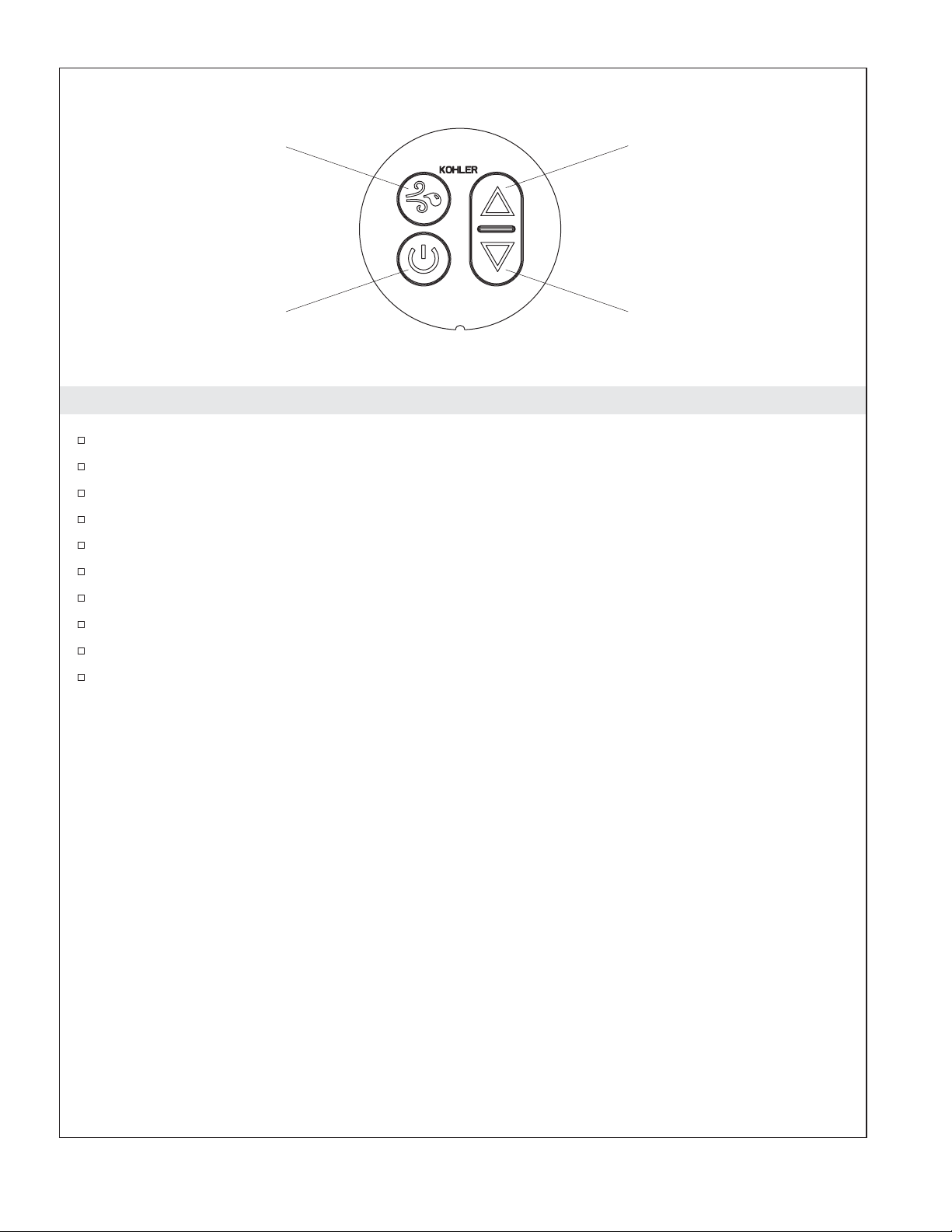

8. Test Run the Bath with Airjets
For information on unit operation, refer to the ″Confirm Proper Operation″section.
Check all electrical connections, and make sure the electrical power to the bath with airjets is on.
Make sure all piping connections in the air harness are secure.
Verify that the blower motor is secure.
Temporarily remove the plastic drop cloth or other protective sheeting from the bath.
Fill the bath to a level at least 2″(5.1 cm) above the top of the highest airjet.
Check the drain piping for leaks. Repair any leaks.
Operate the bath and check for air flow through the airjets. Check the air piping for air leaks.
Stop the bath and drain the water.
Return the plastic drop cloth or other protective sheeting to the bath.
Purge Mode
On/Off
Increases Flow
Decreases Flow
Kohler Co. 11 1040293-2-E

9. Complete the Finished Wall
NOTE: Your bath with airjets has an integral apron. It is designed so the finished wall material [1-1/2” (3.8
cm) maximum] will overlap the apron columns. The finished floor material [2” (5 cm) maximum] should
butt against the apron.
If you have not already done so, carefully remove the protective tape from the bath rim.
If necessary allow for deck-mounted valves and spout.
Cover the bath framing with water-resistant wall material. Seal the joints between the rim edge and
the water-resistant wall material with silicone sealant.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material. Seal the joints between the bath rim and the finished wall material with silicone sealant.
Install the faucet trim according to the trim manufacturer’s instructions.
10. Removing the Apron
To remove the apron panel, insert the edge of a flat blade screwdriver or dull knife under the edge
of the panel. Be careful not to scratch the visible surfaces. Gently pry up at one end. Carefully pull
the apron panel off.
To reinstall, bow the apron panel slightly so both ends can be inserted at the same time. Gently
press in the center of the panel to secure it in place.
11. Clean-Up After Installation
Clean the area around the blower motor of all dust and debris.
Use warm water and a liquid detergent to clean the surface of the bath with airjets. Do not use
abrasive cleansers, as they may scratch and dull the surface. Do not use powdered cleaners unless
the cleaner is fully dissolved in water. Solid substances could block the airjets. Do not use bleach
or ammonia cleaning solutions. Chemically active cleaning solutions can damage the bath surface.
Refer to the homeowners guide for normal cleaning recommendations.
Framing
Bath
Finished Wall
Water-Resistant
Wall Material
Apply silicone sealant to the
joint between the bath and
the finished wall.
On models with an integral apron,
access the pump by gently prying
at the apron edge with a
screwdriver or dull knife to remove.
1040293-2-E 12 Kohler Co.

12. Confirm Proper Operation
Fill the Bath
NOTICE: Ensure that the area around the blower motor is free of sawdust, insulation, dirt, or other small
loose debris. Such material could clog the blower motor air ducts and reduce the air flow through the
blower motor.
NOTE: Please read these steps carefully before you operate your bath with airjets. Troubleshoot any
problems using the ″Troubleshooting″section.

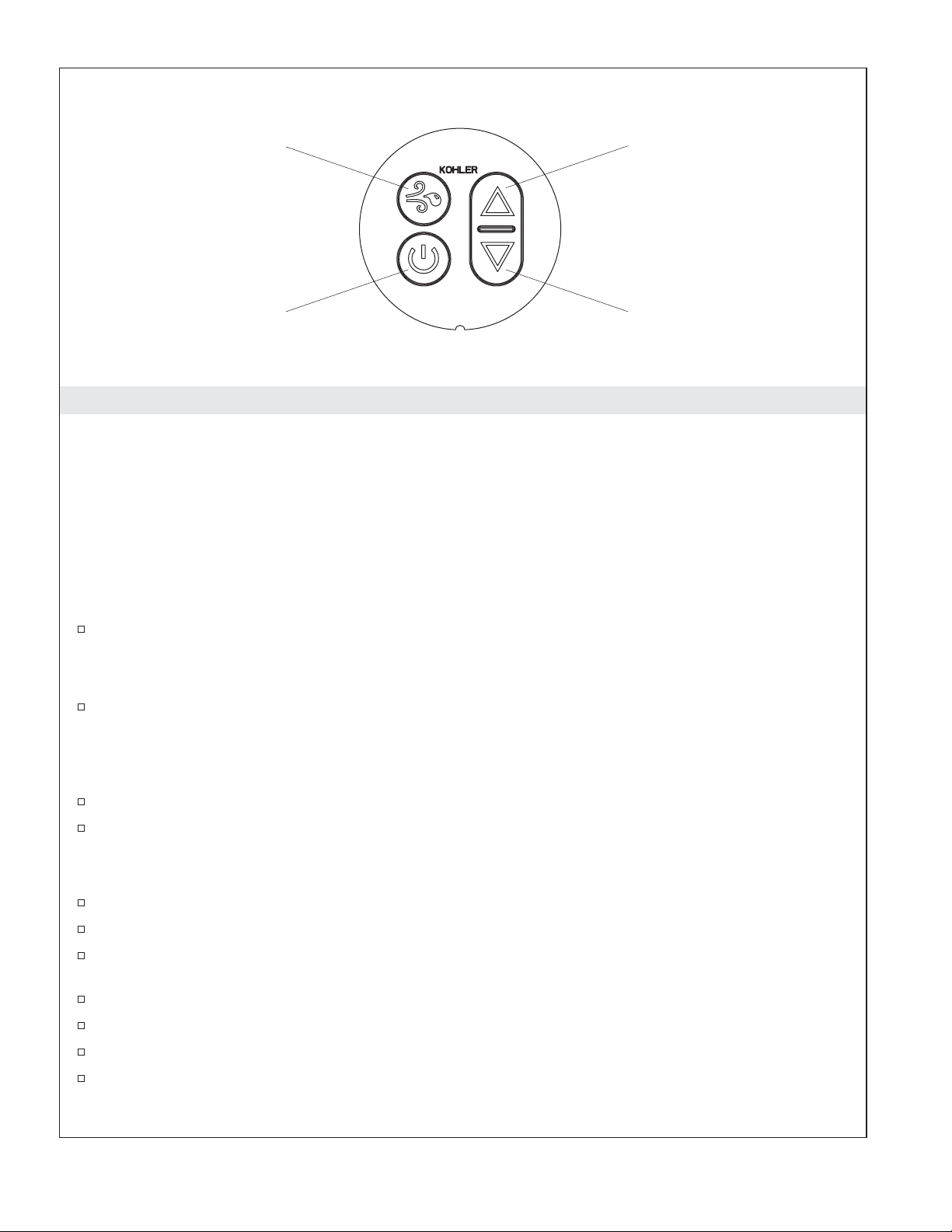

Keypad Operation
On/Off - Turns the blower motor on and off. Pressing the switch once starts the blower motor at a
midrange speed. Pressing the button again stops the blower motor. The blower motor automatically
stops after about 20 minutes of operation. The blower motor can be restarted by pressing the
On/Off button.
Purge Mode - Initiates the purge cycle manually. The purge cycle blows any residual water out of
the air channels after the bath has been drained. Pressing the button once starts the blower motor at
low-speed. The blower motor stops automatically after about two minutes. Pressing the button
again before the cycle ends will stop the blower motor. Note that this product also has an automatic
purge cycle, which initiates about 30 minutes after the blower has stopped.
Increases Flow - Increases the air flow.
Decreases Flow- Decreases the air flow.
Preliminary Checks
Temporarily remove all access panels.
Verify that the union connection at the check valve is securely hand tightened.
Verify that the screws are installed in the PVC air piping at the blower motor and at the check
valve.
Verify that cable ties support the air piping.
Verify that the blower motor is secure.
Verify that the keypad cable is securely connected at the user keypad and at the blower motor.
Fill the bath to a level at least 2″(5 cm) above the top of the highest airjet.
Confirm Air System Operation
Purge Mode
On/Off
Increases Flow
Decreases Flow
Kohler Co. 13 1040293-2-E

Confirm Proper Operation (cont.)
Press the power button on the user keypad.
Observe that the blower motor starts at a midrange speed.
Observe that air is blowing through all of the airjets.
Press the up button on the user keypad.
Verify that the air flow increases.
Press the down button on the user keypad.
Verify that the air flow decreases.
Press the power button on the keypad to stop the blower motor.
Confirm Manual Purge Operation
Drain the bath.
When the bath has drained, press the purge button once.
Observe that the blower motor starts at low speed and blows any residual water from the air
channels.
Observe that air comes out of the airjets.
Verify that pressing the purge button again stops the blower motor.
Press the purge button to restart the manual purge.
Observe that the blower motor stops automatically after about two minutes.
Confirm Automatic Purge Operation
Press the power button.
Press the power button again to turn off the blower. Note the time.
If filled, drain the bath.
Observe that the blower motor starts in the purge cycle after about 30 minutes.
Observe that the blower motor stops automatically after about two minutes.
1040293-2-E 14 Kohler Co.

13. Troubleshooting Procedure
Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. Bath with airjets does not
start. A. No power to blower motor. A. Set/reset GFCI or ELCB breaker; check wiring.
B. User keypad cable loose or
damaged. B. Check wire connections. If necessary, replace user keypad
cable.
C. User keypad does not work. C. Check wire connections. Replace
user keypad.
D. Blower motor does not work. D. Replace blower motor.
2. Blower motor starts, but
there are few or no
bubbles.
A. Blower motor is disconnected. A. Connect blower motor to air
harness.
B. Blower motor air flow is
restricted. B. Clean the area around the blower motor. Ensure adequate
ventilation.
3. Bath stops automatically
before 18 minutes. A. GFCI or ELCB trips. A. Identify source of fault and correct.
B. Motor overheated and protection
device activated. B. Check for blockage at motor vents. Remove blockage and
allow motor to cool.
4. Bath does not stop
automatically after 22
minutes.
A. Blower motor does not work. A. Replace blower motor.
5. Blower motor does not
stop when power button
on user keypad is
pressed.
A. User keypad cable loose or
damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
6. Blower motor operates
but variable speed feature
does not work.
A. User keypad cable loose or
damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
C. Blower motor does not work. C. Replace blower motor.
Purge Mode
On/Off
Increases Flow
Decreases Flow
Kohler Co. 15 1040293-2-E

Troubleshooting Procedure (cont.)
Symptoms Probable Causes Recommended Action
7. Automatic purge cycle
does not occur. A. Blower motor does not work. A. Replace blower motor.
8. Manual purge cycle does
not work. A. User keypad cable loose or damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
C. Blower motor does not work. C. Replace blower motor.
1040293-2-E 16 Kohler Co.

Guide d’installation
Baignoire à jets d’air encastrée avec bandeau intégré -
Canada
INSTRUCTIONS IMPORTANTES
Lire toutes les instructions avant d’utiliser ou d’installer ce
produit.
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base
devraient toujours être observées, incluant ce qui suit:
DANGER : Risque d’électrocution. Raccorder uniquement à une prise de terre protégée par un
disjoncteur différentiel (GFCI) ou appareil de courant résiduel (RCD). Une mise à la terre est
requise. L’unité doit être installée et mise à la terre par un électricien qualifié.
AVERTISSEMENT : Risque d’électrocution. Un électricien agréé doit effectuer tout le câblage
électrique et les connexions pour ce produit. Une installation incorrecte créera un risque
d’électrocution et pourrait ne pas être conforme aux codes locaux de bâtiment et électriques.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous
plaît lire avec attention toutes les instructions avant de commencer l’installation, y compris les
conditions suivantes:
AVERTISSEMENT : Risque d’endommagement du matériel. Les matériaux de construction et le
câblage devraient être acheminés loin du corps du moteur-souffleur et des autres composants
producteurs de chaleur.
AVIS : Respecter tous les codes de plomberie et électriques locaux.
AVIS : Un connecteur à pression pour câbles marqué ″Ground″est fourni dans le compartiment de
câblage. Afin de réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du
panneau de service électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui
alimente cet équipement.
AVIS : Des connecteurs à pression par câble sont fournis à l’extérieur de la pompe ou du contrôle de cet
appareil afin de permettre la connexion d’un conducteur à la masse entre cet appareil et toutes autres
surfaces métalliques exposées avoisinantes, tel que requis par les normes locales.
AVIS : Un panneau d’accès est requis pour le service de la pompe/contrôle. La taille du panneau d’accès
doit être à un minimum de 20″(50,8 cm) de largeur et 15″(38,1 cm) de hauteur.
Conserver ces instructions.
Information sur le produit
Branchements électriques requis
AVERTISSEMENT : Risque de brûlures, d’incendie, d’électrocution ou de blessures. Ne pas
opérer la pompe si le cordon d’alimentation de la pompe est endommagé. Pour une bonne
assistance dans la réparation de ce produit, veuillez appeler: 1-800-4-KOHLER à partir des É.U., le
1-800-964-5590 à partir du Canada, ou le 001-877-680-1310 à partir du Mexique.
Kohler Co. Français-1 1034591-2-E

Information sur le produit (cont.)
L’installation doit avoir un disjoncteur de fuite de terre de classe A (GFCI) ou appareil de courant résiduel
(RCD). Le GFCI ou le RCD protège contre le risque d’électrocution par la mise à la terre. Utiliser une
alimentation dédiée de 120 V, 15 A, 60 Hz pour la baignoire à jets d’air.
Une borne de mise à la terre est incluse dans le boîtier du câblage. Afin de réduire les risques de choc
électrique, raccorder la borne à la terre du panneau de service électrique, avec un fil ayant la même
dimension du fil conducteur qui alimente cet équipement.
Installer l’unité conformément au code électrique canadien, Partie I.
Notices du produit
AVIS : Garder l’espace autour du moteur-souffleur propre et exempt de débris. S’assurer que l’espace
autour du moteur-souffleur soit exempt de sciure, insulation, poussière, ou autres petits débris volatiles.
De tels matériaux pourraient boucher les conduits d’air du moteur-souffleur et réduire le débit d’air à
travers le souffleur.
Pièces assemblées en usine
Les composants installés en usine comprennent le moteur-souffleur avec câble d’alimentation, valve clapet de
non retour, conduits d’air, clavier d’utilisateur, et câble du clavier. Aucun montage n’est nécessaire excepté
celui du câblage électrique et de la tuyauterie.
Connexions et accès pour l’entretien
AVIS : Prévoir un accès total de service au moteur-souffleur et la valve clapet. La panneau d’accès doit être
placé juste à côté du moteur-souffleur. Etudier le plan de raccordement qui accompagne la baignoire.
Avant l’installation, s’assurer qu’il y ait un bon accès au moteur-souffleur et aux connexions. Si le
moteur-souffleur est installé dans un espace fermé, un panneau d’accès au moteur-souffleur est requis. Ce
panneau devrait être de 18″(45,7 cm) de large et de 14″(35,6 cm) de haut minimum.
1034591-2-E Français-2 Kohler Co.

Sommaire
INSTRUCTIONS IMPORTANTES ..................................................... 1
Information sur le produit ........................................................... 1
Branchements électriques requis ................................................... 1
Notices du produit .............................................................. 2
Pièces assemblées en usine ...................................................... 2
Connexions et accès pour l’entretien ................................................ 2
Outils et matériels ................................................................ 3
Avant de commencer .............................................................. 3
Préparer le site .................................................................. 5
Préparer le site - Construction en béton ................................................ 6
Préparer la baignoire à jets d’air ...................................................... 6
Sécuriser l’unité .................................................................. 7
Option pour utilisation de lit de ciment ou de mortier ..................................... 7
Option pour l’utilisation d’adhésif de construction ........................................ 7
Sécuriser la baignoire à jets d’air ..................................................... 8
Installer la plomberie .............................................................. 8
Faire les connexions électriques ...................................................... 9
Tester la baignoire à jets d’air ....................................................... 10
Compléter le mur fini ............................................................. 11
Retirer le bandeau ............................................................... 11
Nettoyage après installation ........................................................ 11
Confirmer la bonne opération ....................................................... 12
Remplir la baignoire ............................................................ 12
Procédure de dépannage .......................................................... 14
Guide de dépannage ........................................................... 14
Outils et matériels
Avant de commencer
AVIS : Ne pas soulever la baignoire à jets d’air par les tuyaux ou le moteur-souffleur, ou utiliser ceux-ci
comme support de la baignoire.
AVIS : Ne pas soulever la baignoire à jets d’air par le bandeau intégré.
Nous recommandons cette baignoire à jets d’air pour une installation en alcôve.
Niveau à bulle
Joint en silicone Mètre ruban
Clé à griffes
Plus:
• Outils et matériels
conventionnels pour le bois
• Chiffon
• Adhésif de construction (optionnel)
• Ciment ou mortier (optionnel)
• Clous galvanisés #6 à tête large
• 2x4 ou 2x6
Marteau de
charpentier
Tournevis plat
Crayon à
papier
Lunettes de
protection
Kohler Co. Français-3 1034591-2-E

Avant de commencer (cont.)
Veuillez lire avec attention ces instructions pour connaître les outils et matériels requis, ainsi que les
étapes d’installation. Suivre les étapes qui s’appliquent particulièrement à votre installation. Ceci
vous évitera des erreurs coûteuses. En plus d’instructions d’installation, lire toutes les instructions
d’utilisation et de sécurité.
Inspecter la baignoire à jets d’air pour déceler tout dommage avant de commencer l’installation.
Cette baignoire doit être installée sur un support adéquat, et sur un sol nivelé.
S’assurer que l’espace de montage et de raccordement du robinet soit adéquat pour l’installation.
Un jeu d’accessoires optionnel est disponible pour relocaliser le moteur-souffleur. Consulter le dos
de la couverture pour les coordonnées si le kit désiré n’a pas été commandé. Suivre les instructions
incluses avec le kit lors de l’installation si le moteur-souffleur est relocalisé.
Kohler Co. se réserve le droit d’apporter toutes modifications sur le design des produits et ceci sans
préavis, tel que spécifié dans le catalogue des prix.
1034591-2-E Français-4 Kohler Co.
