BODYSPA
PERSONAL HYDRO-MASSAGE SYSTEM
10-JET ALCOVE
K-1000, K-1015/16, K-5161-L
IMPORTANT! READ THIS BEFORE YOU BEGIN
ThisBodySpaoperatesat flow rates upto80 gallons per
minute. To achieve a watertight installation, it is critical
that you follow all the installation instructions carefully.
Pay particular attention to leveling and sealing details to
obtain a satisfactory installation.
IMPORTANT INFORMATION
WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
DANGER: Risk of electrical shock.Connectonly
to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI).
Install to permit access for servicing.
Grounding is required. The unit should be installed and
grounded by a qualified service representative.
Buildingmaterials and wiring should be routed away from
the pump body and other heat-producing components of
the unit.
TABLE OF CONTENTS
PRODUCT NOTICES 2. . . . . . . . . . . . . . . . . . . . . . . . .
PRODUCT REQUIREMENTS 2. . . . . . . . . . . . . . . . . .
SITE REQUIREMENTS 3. . . . . . . . . . . . . . . . . . . . . . . .
BEFORE INSTALLING FOOTBATH 4. . . . . . . . . . . . .
INSTALL THE FOOTBATH 4. . . . . . . . . . . . . . . . . . . . .
BEFORE INSTALLING TOWER 7. . . . . . . . . . . . . . . . .
ELECTRICAL CONNECTIONS 9. . . . . . . . . . . . . . . . .
INSPECT CONNECTIONS 9. . . . . . . . . . . . . . . . . . . . .
DOOR ENCLOSURE PREPARATION 10. . . . . . . . . . .
INSTALL THE ENCLOSURE 10. . . . . . . . . . . . . . . . . . .
INSTALL THE TOWER 19. . . . . . . . . . . . . . . . . . . . . . . .
COMPLETE INSTALLATION 21. . . . . . . . . . . . . . . . . . .
INSTALL THE SEAT 23. . . . . . . . . . . . . . . . . . . . . . . . . . .
WATER TEST FOOTBATH AND TOWER 23. . . . . . . .
CLEAN-UP AFTER INSTALLATION 23. . . . . . . . . . . . .
CONFIRM PROPER OPERATION 24. . . . . . . . . . . . . .

116290-2-AB 2Kohler Co., Kohler WI U.S.A.
1. PRODUCT NOTICES
A. INSTALLER HAZARD NOTIFICATION
WARNING: Risk of electrical shock. A licensed
electrician should make all electrical connections.
WARNING:Riskofelectricalshock.Connectonly
to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI).
WARNING: Risk of electrical shock. Disconnect
power before servicing.
WARNING: Risk of injury or property damage.
Please read all instructions thoroughly before
beginning installation, including the following
Product Requirements.
NOTICE: Follow all local plumbing and electrical
codes.
B. FACTORY-ASSEMBLED FEATURES
Factory installed components include pump with integral
heater, control, and power supply cord.
The pump and piping are factory-assembled.
C. PRODUCT MODIFICATIONS
All information in this manual is based upon the latest
product information available at the time of publication.
Kohler Co. reserves the right to make changes in product
characteristics, packaging, or availability at any time
without notice.
WARNING: Unauthorized modification may
cause unsafe operation and poor performance
oftheBodySpa. Donotrelocatethepumpormake
other modifications to the BodySpa system, as this
could adversely affect the performance and safe
operation of the unit. Kohler Co. shall not be liable
underitswarrantyorotherwiseforpersonalinjuryor
damage caused by any such unauthorized
modification.
The BodySpa is not designed for steam applications, and
may not perform satisfactorily as a steam unit.
2. PRODUCT REQUIREMENTS
A. PRODUCT INSPECTION
The BodySpa door enclosure, footbath, and tower are
specifically designed for this installation. Before
proceeding with the installation, check the model
numbers of the footbath, tower, and door enclosure. The
door enclosure, tower, and footbath model numbers are
provided in the roughing-in information packed with the
product.
Carefully unpack and inspect the footbath and tower for
damage. Do not unpack the door enclosure until
instructed to do so. Leave all materials in the cartons
during construction to prevent damage.
NOTICE: Make sure the union connection to the
pump inlet is securely tightened.
B. CONNECTIONS AND SERVICEACCESS
Before installation, ensure proper access to the final
connections.
NOTICE: Provide unrestricted service access to the
pump. An access panel must be constructed to allow for
sufficient clearance for servicing the pump or controls.
Theaccesspanelmustbelocatedimmediatelynexttothe
pump. Refer to the roughing-in information packed with
the product and the stud framing preparation on Page 3.

116290-2-AB
3
Kohler Co., Kohler WI U.S.A.
C. ELECTRICAL REQUIREMENTS
The installation must have a Class A Ground-Fault
Circuit-Interrupter (GFCI). The GFCI protects against
line-to-ground shock hazard. Use a 120 V, 20 A, 60 Hz
dedicated service for the BodySpa.

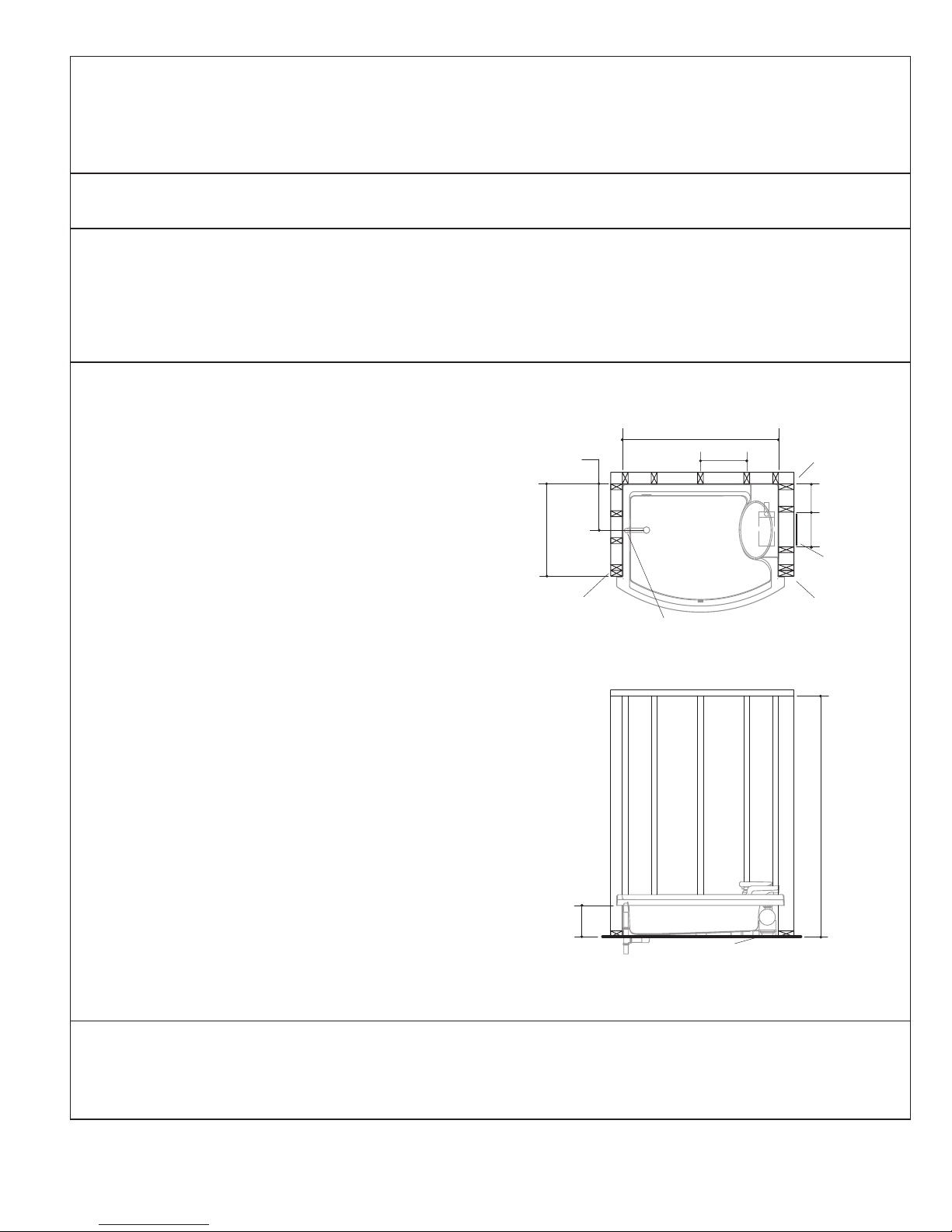

3. SITE REQUIREMENTS
A. CLEARANCE REQUIREMENTS
Thedistance from therough floortothe finishedceiling or
header must be between 83-1/2” and 84” to provide
adequateclearancewhenassemblingthedoorenclosure
to the footbath. Be sure the ceiling and header are level.
B. STUD POCKET PREPARATION
NOTE: Carefully study the illustration at right before you
begin construction of the stud pocket. Follow the framing
details provided to ensure correct installation.
Use 2x6 framing for the tower wall to provide sufficient
space for the tower mounting frame and wiring, and
minimum2x4framingfortherestofthestudpocket.Make
sure you allow for access to the pump in the event the
BodySpa requires service.
Provide double stud support for the door enclosure wall
jambs. You must secure the door enclosure wall jambs
directly to the studs to obtain proper support and correct
opening dimensions. Expanding wall anchors will not
provide adequate support for the door enclosure
assembly.
You must install these stud supports to be within 3/8”
of plumb for proper door enclosure installation. Maintain
this tolerance to ensure a satisfactory, watertight
installation.
The footbath requires no additional bottom support when
the rough floor is plumb and level with respect to the stud
framing. If the rough floor is not level, shim it as needed.
Verifythatthedistance from the rough floor to the finished
ceiling is between 83-1/2” and 84”.
IMPORTANT: Leave studs exposed. You must secure
thedoorenclosurewalljambsdirectlytothestuds.Under
no circumstances install the finished wall material until
instructed.
If grab bars will be installed, provide backing to the
framing.
83-1/2”
to 84”
15-11/16”
12”
PUMP/
CONTROL
ACCESS
9-3/4”
54”
31-7/8”
16”
DOUBLE STUD
(REQUIRED FOR
ENCLOSURE
INSTALLATION)
PROVIDE
ACCESS
TO DRAIN
10-3/4”
ROUGH FLOOR
DOUBLE STUD
(REQUIRED FOR
ENCLOSURE
INSTALLATION)
2x6 STUDS
C. PLUMBING PREPARATION
Position the plumbing according to the roughing-in
dimensions. Cap the supplies, and check for leaks.

116290-2-AB 4Kohler Co., Kohler WI U.S.A.
4. BEFORE INSTALLING FOOTBATH
Install the drain to the footbath according to the drain
manufacturer’s instructions. When installing the drain
overflowtube andhood, besure toadequately sealalong
the edges of the hood to prevent leakage.
5. INSTALL THE FOOTBATH
A. CONFIRM STUD POCKET ROUGH-IN
The door enclosure is specifically designed for this
footbath. For proper installation, make sure the double
studsforthewalljambsareinpositionbeforeinstallingthe
unit. Proper door enclosure assembly depends upon
installation of the footbath against square and plumb (to
within 3/8”) studding. Verify this before proceeding with
the installation.
B. INSTALL THE FOOTBATH
1. The variable flow valve assembly is attached to the
suctionline ofthe footbathharness forshipping, and
the wires are connected to the pump. Cut the
strapping, and remove the variable flow valve
assembly. Remove and discard the plug on the end
of the pump union. Then temporarily connect the
variable flow valve to the pump by loosely threading
the union nut to the pump discharge union.
2. Set the footbath on the subfloor. Align the trap with
the tailpiece.
3. Position a clean drop cloth in the footbath to prevent
damage.
4. Leveltheunitusingthefootbathrimsurfaces.Donot
use the nailing-in flange to level the unit. The
footbathmustbe level toproperly install andoperate
the door enclosure.
Pump
Variable Flow
Valve Assembly
5. Securely shim under the wood blocks as needed.
Secure the footbath to the studding using the
nailing-inflange and galvanized drywall screws.Drill
and countersink pilot holes halfway up the nailing-in
flange. Drill from the finished side of the nailing-in
flange to prevent chipping of the acrylic.
6. Add furring strips to the stud framing inside the
recess area. This will make the studs even with the
footbath nailing-in flange.
Nailing-In
Flange

116290-2-AB
5
Kohler Co., Kohler WI U.S.A.

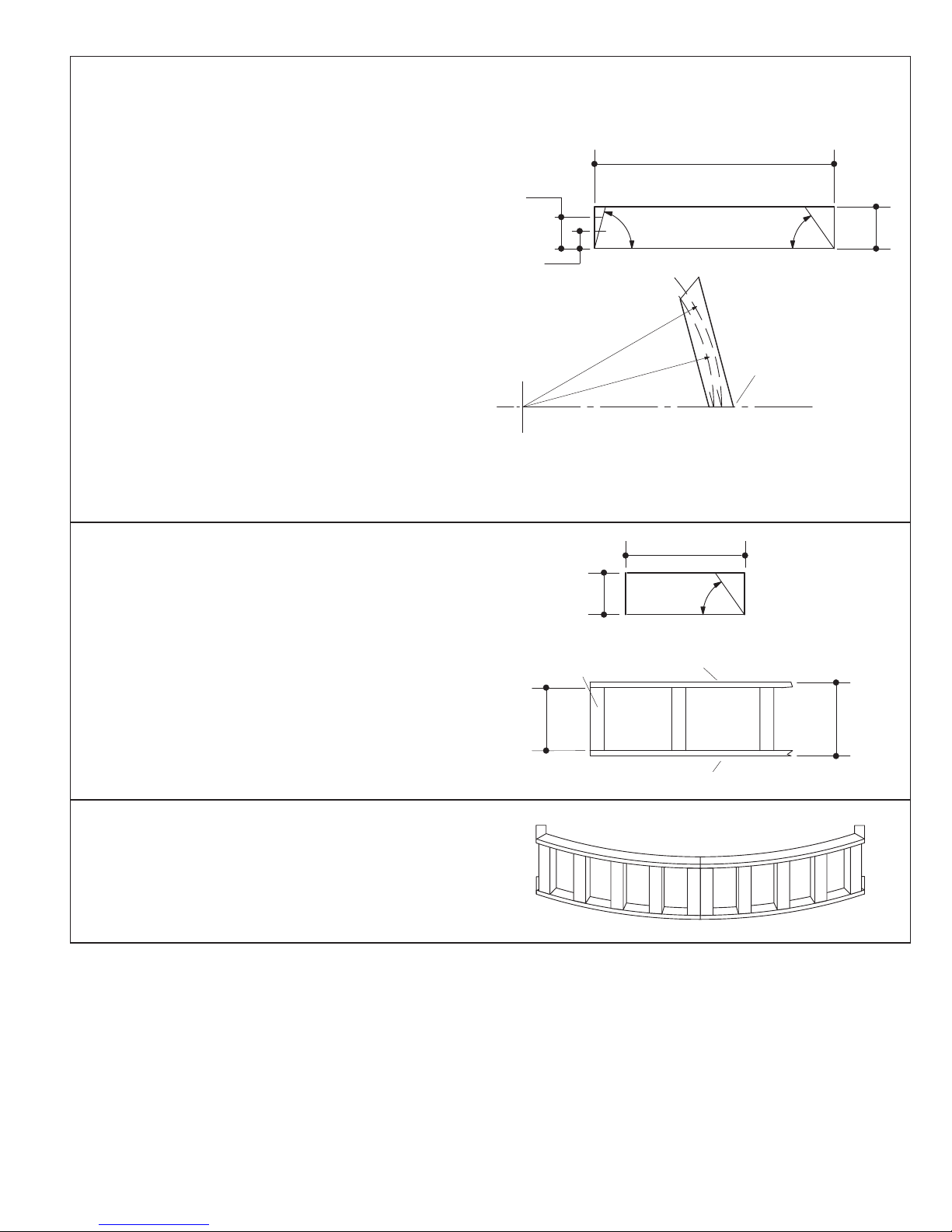

C. CONSTRUCT THE APRON
NOTE: Kohler Co. recommends this procedure for
constructing a BodySpa apron. Other methods can be
used to obtain an acceptable result.
1. Cut four 3/4” plywood boards to 6” x 34-1/4”.
Measure and cut a 55taper at one end of each
board, and a 75taper at the other end. Both ends
must taper to the same side.
2. Drawapencilmark3”fromthelongsideofoneofthe
boardsat the 75taperend. Draw asecond mark 5”
from the long side, as shown.
3. Use a pencil, string, and nail to carefully draw a
51-1/4”radius(for 1/2” thickfinished wall) acrossthe
full length of the board at the 3” pencil mark. For
different finished wall thickness, adjust this radius
accordingly. Draw a 49-1/4” radius across the 5”
pencil mark.
4. Use a saber saw to cut the plywood along the radius
lines.
5. Use this board as a template to mark and cut the
other three plywood boards.
3”
5”
Measure 3” and 5”
Down From This
Edge
6”
7555
34-1/4”
51-1/4” R.
49-1/4” R.
6. Cut four 3/4” plywood boards to 2” x 6”, with a 50
taper on one end.
7. Cut twelve 2x2 studs 9” long.
8. Assemble the apron frame sections as shown.
9”
3/4” Plywood
3/4” Plywood
2x2 Studs
10-1/2”
50
6”
2”
9. Positiontheapronframesectionsunderthefootbath
rim so the 75tapered ends of the curved sections
touch. Align the apron frame sections so they are
recessed correctly for the finished apron wall
thickness. Make sure the sections are plumb.
10. Secure the apron frame sections to the floor.

116290-2-AB 6Kohler Co., Kohler WI U.S.A.

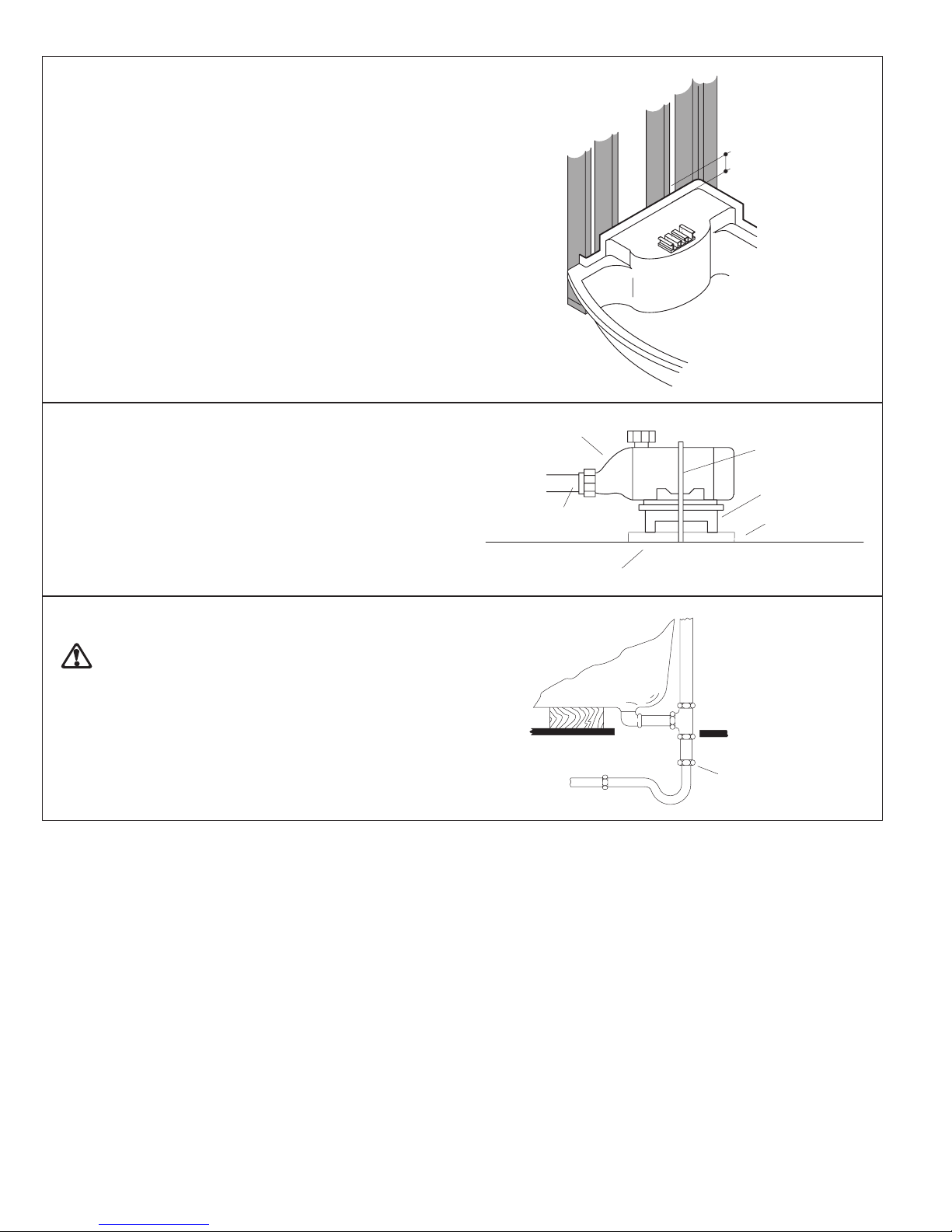

D. TOWER MOUNTING FRAME PREPARATION
On one of the tower mounting studs, draw a pencil line
exactly2-3/8”upfromtheflatsurfaceoftheseatdeck.You
will use this mark to position the tower mounting frame at
the correct height. Be precise with this measurement. 2-3/8”
E. PUMP BANDING STRAP CUT
NOTICE: This step is necessary to make your Kohler
BodySpa operate more quietly.
Use tin snips to cut the banding strap. When the banding
strap is cut, the pump base and pump will continue to rest
upon the plywood ledge that extends from under the
footbath.
Suction Line
Pump
Subfloor
Banding Strap
Pump Base
Plywood
Ledge
F. INSTALL PLUMBING
CAUTION: Risk of damage to footbath bottom
and subfloor. Ensure a watertight seal on the
footbath drain connections.
When the footbath is securely positioned, connect and
leak test the drain and fittings.
NOTE: An access panel will simplify future
maintenance. Connect Here

116290-2-AB
7
Kohler Co., Kohler WI U.S.A.

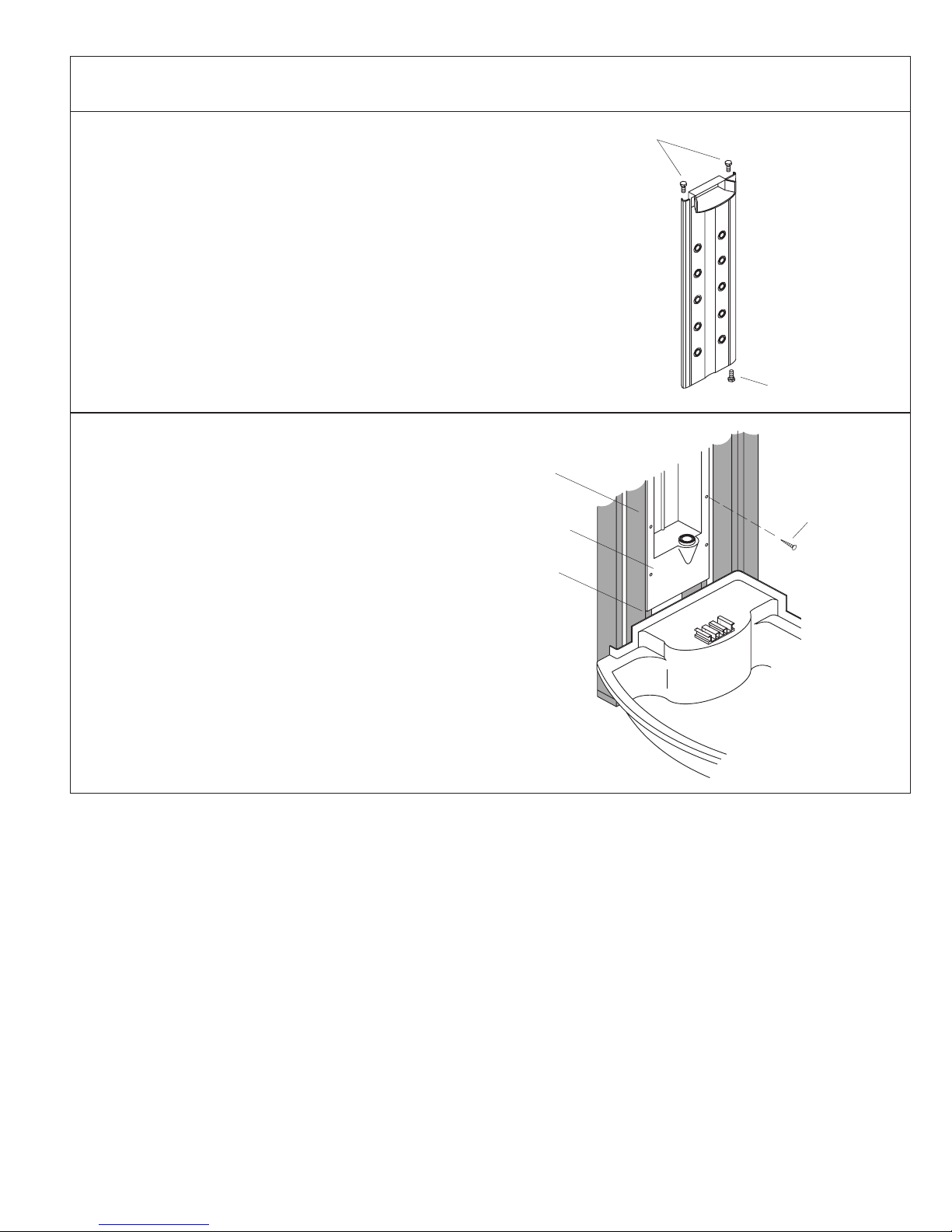

6. BEFORE INSTALLING TOWER
A. INSTALL THE MOUNTING FRAME
Remove three 3/8” tower bolts from the locations shown,
and carefully lift the tower out of the mounting frame.
Carefullysetthetowerasidewhereitwillnotbedamaged.
Bolts
Bolt
Set the mounting frame between the tower mounting
studs, and line up the bottom metal edge with the pencil
line you drew on one of the studs.
Secure the mounting frame to the tower mounting studs
with ten stainless steel drywall screws provided.
Mounting
Stud
Mounting
Frame
Pencil
Line
Stainless
Steel Drywall
Screw

116290-2-AB 8Kohler Co., Kohler WI U.S.A.

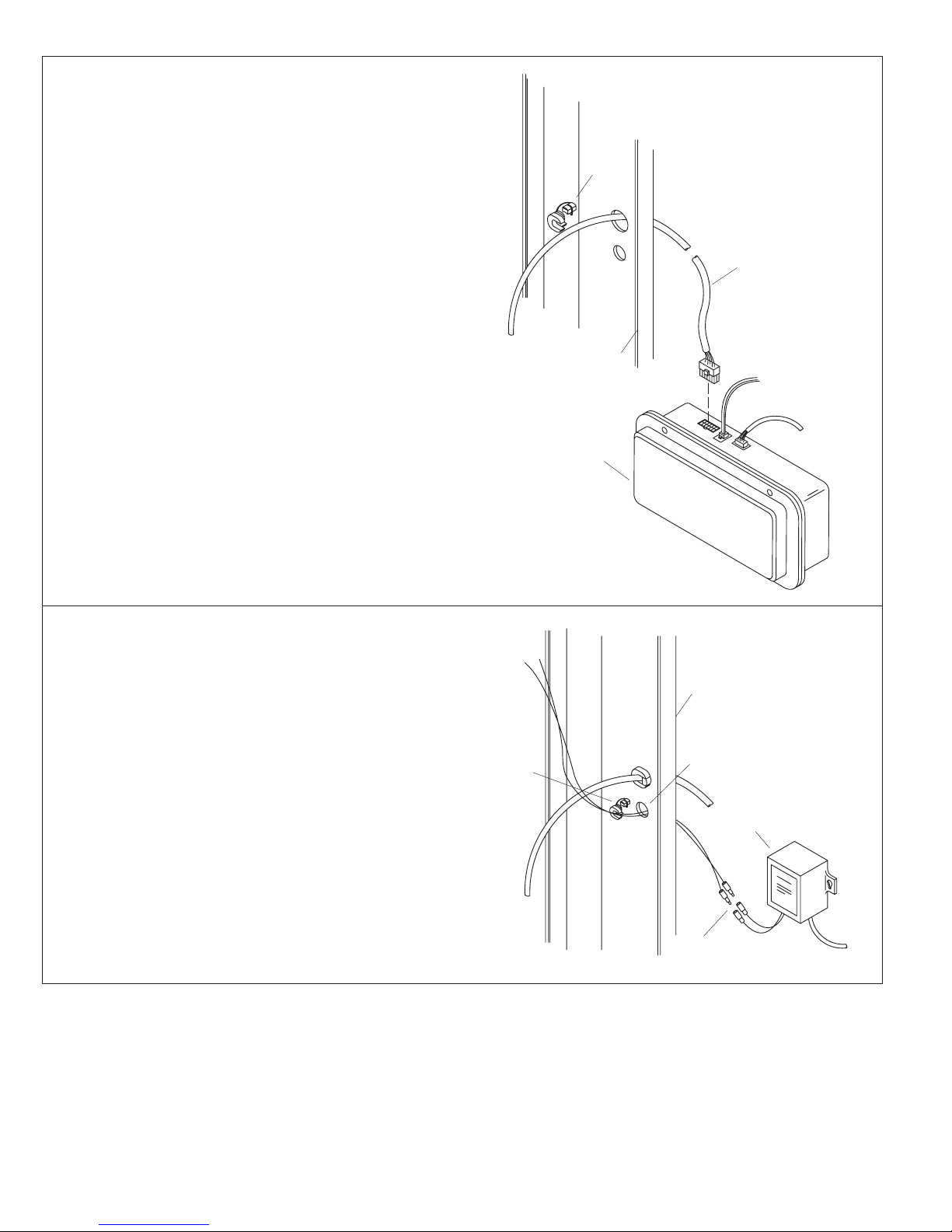

B. INSTALL CABLE USING OUTLET BOX
NOTE: Ifthe desired keypadlocationdoes not permityou
tosecuretheprovidedoutletboxdirectlytoastud,youcan
route the control cable directly through the wall material
without using an outlet box. Proceed to Step C. to install
the keypad without an outlet box.
Plugthecontrolcableintothe right jack of thecontrolbox.
Positionthesuppliedoutletboxinsidetheenclosureatthe
chosen control mounting location so the metal plate (not
shown) will be flush with the finished wall or slightly
recessed when installed. Install the outlet box so the 10’
control cable is within reach of the control box. Do not
stretch or pull on the control cable. Install the outlet box
58” to 60” up from the floor of the footbath.
Secure the outlet box to the nearest stud.
Route the control cable from the control box to the outlet
box,and insert thelooseconnectorintotheknockouthole
in the outlet box. Create a drip loop in the cable.
NOTE: National Electrical Code requires that you
permanently separate the high- and low-voltage cables.
Stud
Outlet Box
SIDE VIEW
Stud
Outlet
Box
Control
Cable
Control Box
58” To 60”
From Floor
Drip Loop
C. INSTALL CABLE WITHOUT OUTLET BOX
Plugthecontrolcableintothe right jack of thecontrolbox.
Route the control cable directly through the large hole in
the center of the metal plate. Temporarily tape together
the control cable and the metal plate. Also tape the two
screws to the metal plate to prevent them from becoming
lost. Create a drip loop in the cable to prevent water from
following the cable down to the control box.
Temporarily secure the control cable and metal plate to
the stud nearest your chosen keypad mounting location.
Position the metal plate 58” to 60” up from the floor of the
footbath.
Leave the control cable and metal plate attached here
untilthefinishedwallisconstructed.Atthattime,themetal
plate will be permanently attached flush to the outside
surface of the finished wall with two screws. The control
cable will then be secured to the metal plate with a cable
tieloopedbetween the large andsmallcenter holes in the
metal plate.
NOTE: National Electrical Code requires that you
permanently separate the high- and low-voltage cables.
Control Cable
Control Box
To Metal Plate
Metal Plate
Control Cable
Drip Loop

116290-2-AB
9
Kohler Co., Kohler WI U.S.A.

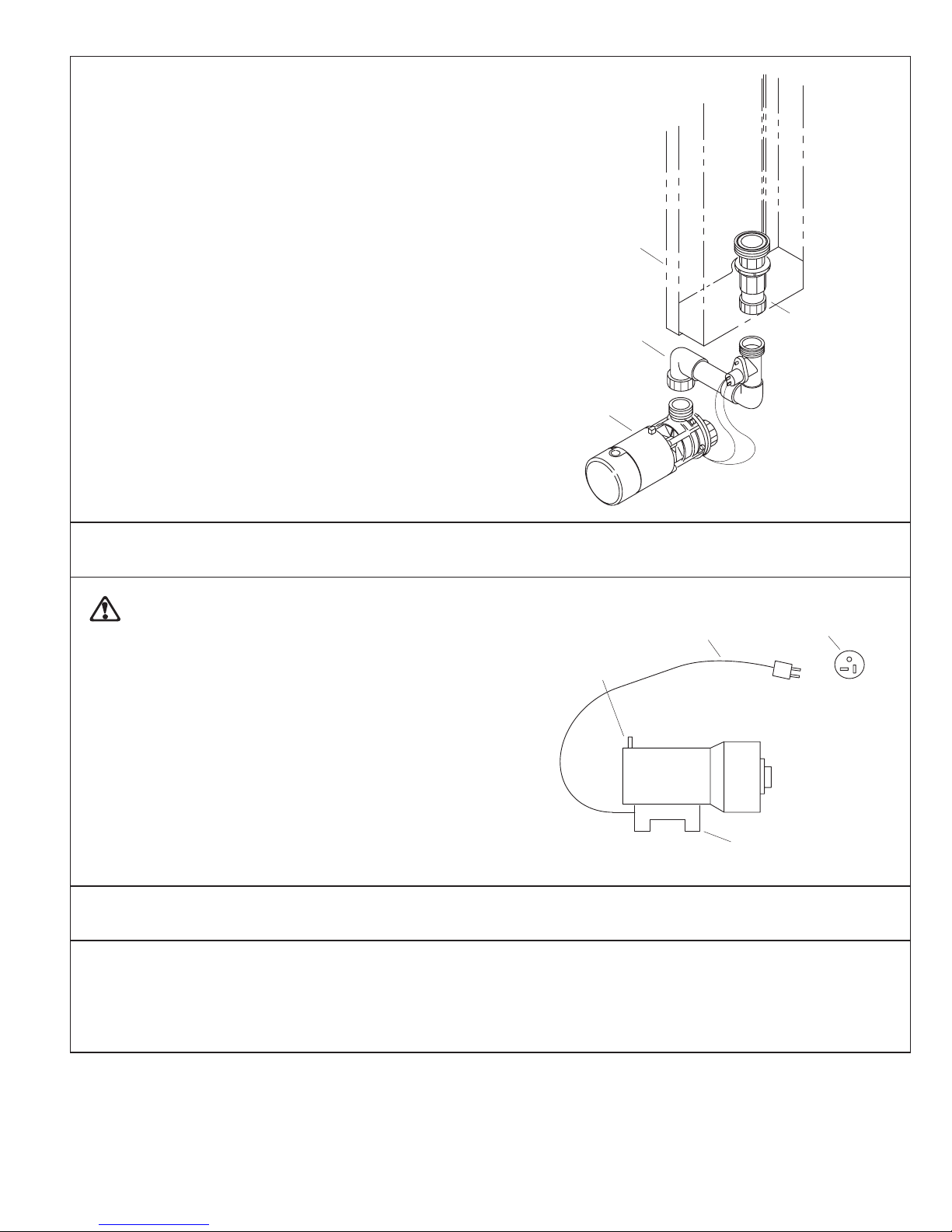

D. CONNECT VARIABLE FLOW VALVE
ASSEMBLY TO PUMP
Loosen the variable flow valve assembly by unthreading
theunionnut.Repositionthevariableflowvalveassembly
sotheoutlet union lines upwiththe mounting frame union
nut.Securelyhandtightentheunionnut.Besuretheunion
O-ring is in place. Do not apply sealant to the union.
Handtighten the mounting frame union nut to the variable
flow valve union. Be sure the union O-ring is in place. Do
not apply sealant to the union.
Pump
Mounting
Frame
Union Nut
Mounting
Frame
Variable Flow
Valve Assembly
BACK VIEW
7. ELECTRICAL CONNECTIONS
WARNING: Risk of electrical shock. To reduce
theriskofelectricshock,connectonlytoaproperly
grounded, grounding-type receptacle, protected
by a Ground-Fault Circuit-Interrupter (GFCI). Do
not remove the plug’s grounding pin. Do not use a
grounding adapter.
The Kohler BodySpa is equipped with a cord and plug.
All wiring of the pump and control has been completed
at the factory. A licensed electrician must install a
GFCI-protected, 120 V, 20 A, grounded outlet. The
BodySpa may then be plugged into this outlet. No other
load should be on this circuit. Locate the outlet behind
the BodySpa, and within 24” of the pump.
* For bonding in accordance with national and local
codes.
Bonding
(Earthing)
Lug*
Pump
Plug-in
Cord 20 A
Receptacle
Control Box
8. INSPECT CONNECTIONS
Check all electrical connections.
Openthehotandcoldwatervalves,andcheckallsupply
connections for leaks. Fill the footbath to the overflow,
and check the overflow and drain connections for leaks.

116290-2-AB 10 Kohler Co., Kohler WI U.S.A.
9. DOOR ENCLOSURE PREPARATION
The BodySpa door enclosure is designed to fit only the
BodySpa footbath. Proper door enclosure assembly
depends upon installation of the footbath against square
and plumb studding. The stud supports must be within
3/8” of plumb.
IMPORTANT: Leave studs exposed. The door
enclosure wall jambs must be secured directly to the
double stud wall frame to achieve proper support of the
door enclosure. Expanding wall anchors in a hollow wall
will not provide adequate support for the door enclosure
assembly. Under no circumstances install the finished
wall material until instructed.
NOTE: The door enclosure components are identified
with removable labels. Refer to these labels to correctly
identify and install the enclosure components.
10. INSTALL THE ENCLOSURE
A. INSTALL THE WALL JAMBS
Removethewalljambkitfromthecarton,andremovethe
wall jambs. Leave the wall jamb protective tape in place.
Do not remove any other components from the carton at
this time.
Install one of the wall jambs by setting it against the
footbath locating pin, as shown. The wall jambs are not
interchangeable.
Use a level, and adjust the wall jamb to be exactly plumb.
Secure the wall jamb to the double stud framing and
furring strips with four 2” stainless steel flathead screws
(provided).
Repeat for the other wall jamb. 2” Stainless
Steel Flathead
Screw
Wall
Jamb
Footbath Locating Pin
Level

116290-2-AB
11
Kohler Co., Kohler WI U.S.A.
CAUTION: Risk of property damage and
concealed leakage. The application of silicone
sealant as instructed is essential to ensure a
correct, watertight installation. Follow all sealing
instructions exactly.
Apply a continuous bead of silicone sealant to the inside
of the wall jamb where it contacts the footbath, as shown.
Repeat for the other wall jamb.
Apply
Silicone
Sealant
TOP VIEW
INSIDE OF
WALL JAMB
B. INSTALL THE CENTER EXPANDERS
Remove and discard the thread caps from the center
expanders. Fit a center expander into one of the wall
jambs, as shown. The projection on the center expander
fits behind the footbath locating pin, as shown. Push the
bottomofthe centerexpanderalltheway intothewall
jamb. Plumb the center expander by turning the top
buttonhead screw in or out with the balldriver tool.
Check for plumb with a level. When the center expander
isplumb,turninthecenterbuttonheadscrewuntilyoufeel
it just contact the wall jamb. Recheck for plumb, then
secure the center expander to the wall jamb with three
3-1/2” stainless steel flathead screws (provided).
Remove the protective tape from the inside of the wall
jamb. Do not remove the tape from the outside of the wall
jamb at this time.
Repeat for the other center expander.
Complete the finished wall according to the following
instructions. Wall
Jamb
Center Expander
Footbath Locating
Pin
3-1/2”
Stainless Steel
Flathead Screw
Wall
Jamb
Center
Expander
Locating Pin
TOP VIEW
Top
Buttonhead
Screw

116290-2-AB 12 Kohler Co., Kohler WI U.S.A.
IMPORTANT! You have now completed the initial roughing-in phase of the
BodySpa installation. Keep these instructions with the door enclosure so they
are readily available following the completion of finished wall construction.
C. COMPLETE THE FINISHED WALL
CAUTION: Risk of product damage. Use
extreme care to avoid scratching the wall jambs.
NOTE: Thetotal finishedwall thickness, including furring
strips, cement board, and finished wall material, must not
be more than 1-1/2”.
Install cement board no more than 1/4” above the top of
the footbath rim.
Apply a bead of silicone sealant to the seam between the
cement board and the footbath.
Install the finished wall material.
Forkeypadinstallationsthatdonotusethesuppliedoutlet
box, refer to Step C. on Page 8 for installation
requirements.
Use a sharp utility knife to carefully score and remove the
protectivetapefromthewalljambsandcenterexpanders.
1/2” Cement
Board
1/4”
MAX.
Galvanized
Nail Or
Screw
Finished
Wall
1-1/2”
MAX.
TOP VIEW
Furring Strip
Bead of
Silicone
Sealant
Between
Cement
Board and
Footbath

116290-2-AB
13
Kohler Co., Kohler WI U.S.A.
D. INSTALL THE HEADER
With assistance, lift the header between the center
expanders so the bottom dimpled holes in the header
brackets fit over the adjustment screws. Check the
alignment of the side holes in both header brackets to the
adjustment screw heads. If the holes do not line up with
the adjustment screw heads, loosen the header
bracket(s) setscrews, and realign the header bracket(s)
until the holes line up with the adjustment screw heads.
Retighten the header bracket setscrews.
Add a 1/4” flat washer to each of the two buttonhead
screws. Thread a buttonhead screw and washer through
each header bracket top hole, and into the center
expander. Securely tighten each buttonhead screw with
the supplied hex socket tool and a ratchet wrench.
Header
Center Expander
Header
Bracket
1/4-20 x 5/8”
Buttonhead
Screw
1/4” Washer
Setscrew
Adjustment
Screw
Measure the header height from the footbath rim at the
end, and again in the center, as shown. Compare the
distance. The header should be 1/4” higher at the center.
The combined weight of the door panels will pull the
header down until it is level or close to level.
Adjust the level of the header by first loosening the
buttonhead screw securing the header to the center
expander. Nowback out the adjustment screw one or two
turns.Retightenthebuttonheadscrewwiththehexsocket
toolandratchet.Thiswillcausetheheadertopivotslightly
upward.
Alternate this procedure on both ends of the header, and
again measure the header height at the end and the
center.Repeatuntiltheheaderis1/4”higheratthecenter.
Be sure to securely tighten the buttonhead screws with
the hex socket tool and ratchet when the adjustments are
complete.
Very Important! The header must be 1/4” higher at the
center before proceeding. The center of the header must
not sag downward or the door panels will not operate
correctly.
Header
Buttonhead Screw
Adjustment Screw
Center
End
Tape
Measure

116290-2-AB 14 Kohler Co., Kohler WI U.S.A.
E. HANG THE SIDE DOOR PANELS
Fit a bushing over each outside track roller in the header.
With assistance, lift one of the side doors into place, and
fit an outside track roller into each of the two holes in the
glass.
Insert another bushing into each hole from the opposite
side of the glass. Thread a roller nut into each roller.
Carefully handtighten each roller nut. Do not tighten with
a wrench at this time, and do not try to level the door yet.
Repeat for the other side door.
Bushing
Header
Roller
Roller Nut
Bushing
Side Door
Panel
F. HANG THE CENTER DOOR PANEL
Fit a bushing over each inside track roller in the header.
With assistance, lift the center door panel into place, and
fit an inside track roller into each of the two holes in the
glass.
Insert another bushing into each hole from the opposite
side of the glass. Thread a roller nut into each roller.
Carefully handtighten each roller nut. Do not tighten with
a wrench at this time, and do not try to level the door
panels yet.
Bushing
Header
Roller
Roller Nut
Bushing
Center Door
Panel

116290-2-AB
15
Kohler Co., Kohler WI U.S.A.

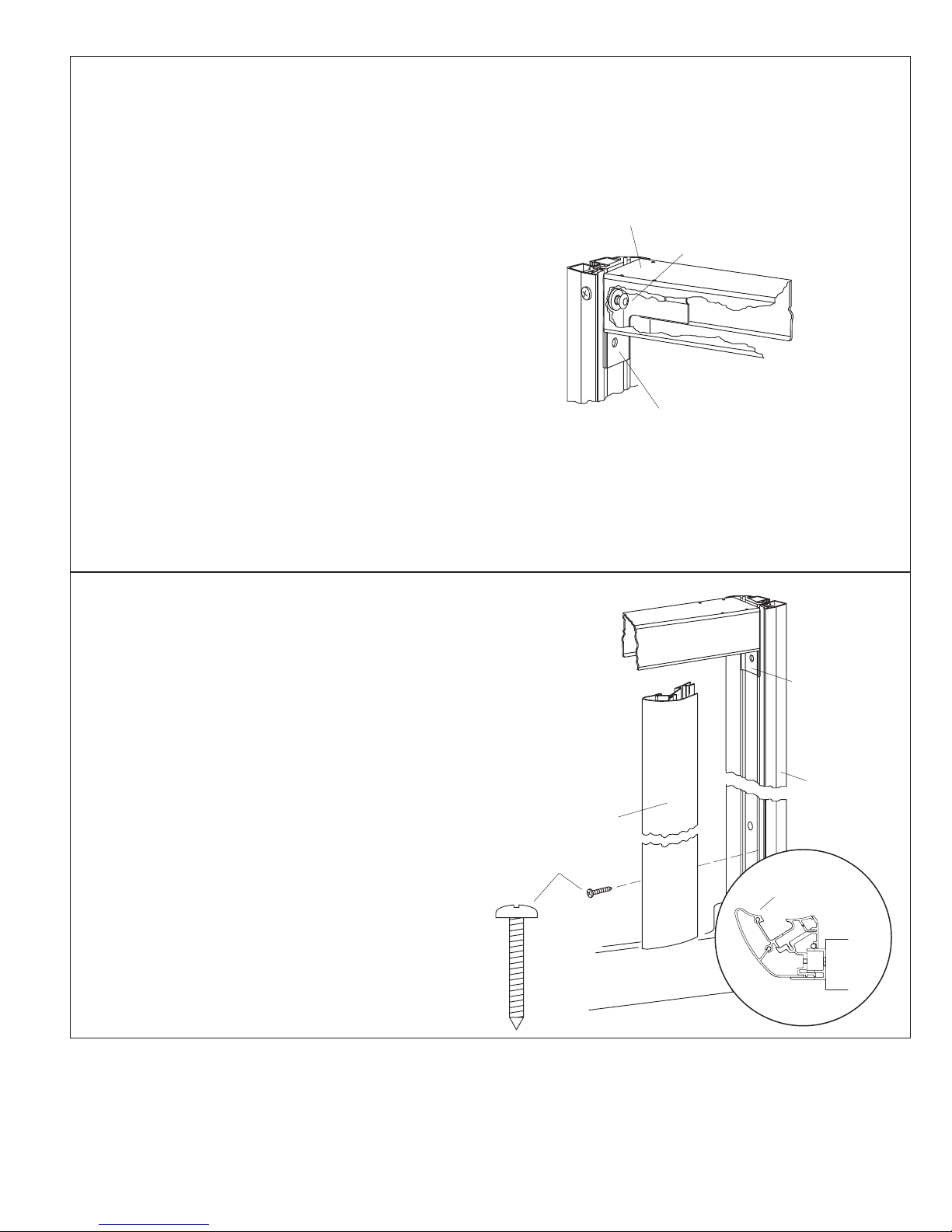

G. ADJUST HEADER HEIGHT
Slideallthreedoorpanelsto thecenter,andmeasureand
record the distance from the footbath curb to the header
at three locations:
the left corner, along the wall jamb;
the right corner, along the wall jamb;
the center, along the center door panel.
If the three measurements are the same, no header
adjustment is required. Occasionally, the center height
measurement will be different from the corner measure-
ments. In these cases, adjust the header in this manner:
Loosenoneofthebuttonheadscrewsabouttwocomplete
turns. Next loosen the corresponding adjustment screw a
completeturnortwo,andretightenthebuttonheadscrew.
Check the center height measurement. Repeat this
procedure until half the needed height correction is
obtained.
Repeat this adjustment procedure on the other end of the
header.
NOTE: Remember that the center height measurement
must be the same as the corner measurements when the
doors are in the center.
Header
Buttonhead Screw
Adjustment Screw
H. INSTALL THE CENTER JAMB ASSEMBLIES
Press a center jamb assembly against the center
expander.Securewithsix#8x1”panheadscrews.Donot
overtighten.
Repeat for the other side.
Center Jamb
Header Bracket
#8 x 1” Panhead
Screws
Center
Expander
Center Jamb
TOP VIEW

116290-2-AB 16 Kohler Co., Kohler WI U.S.A.

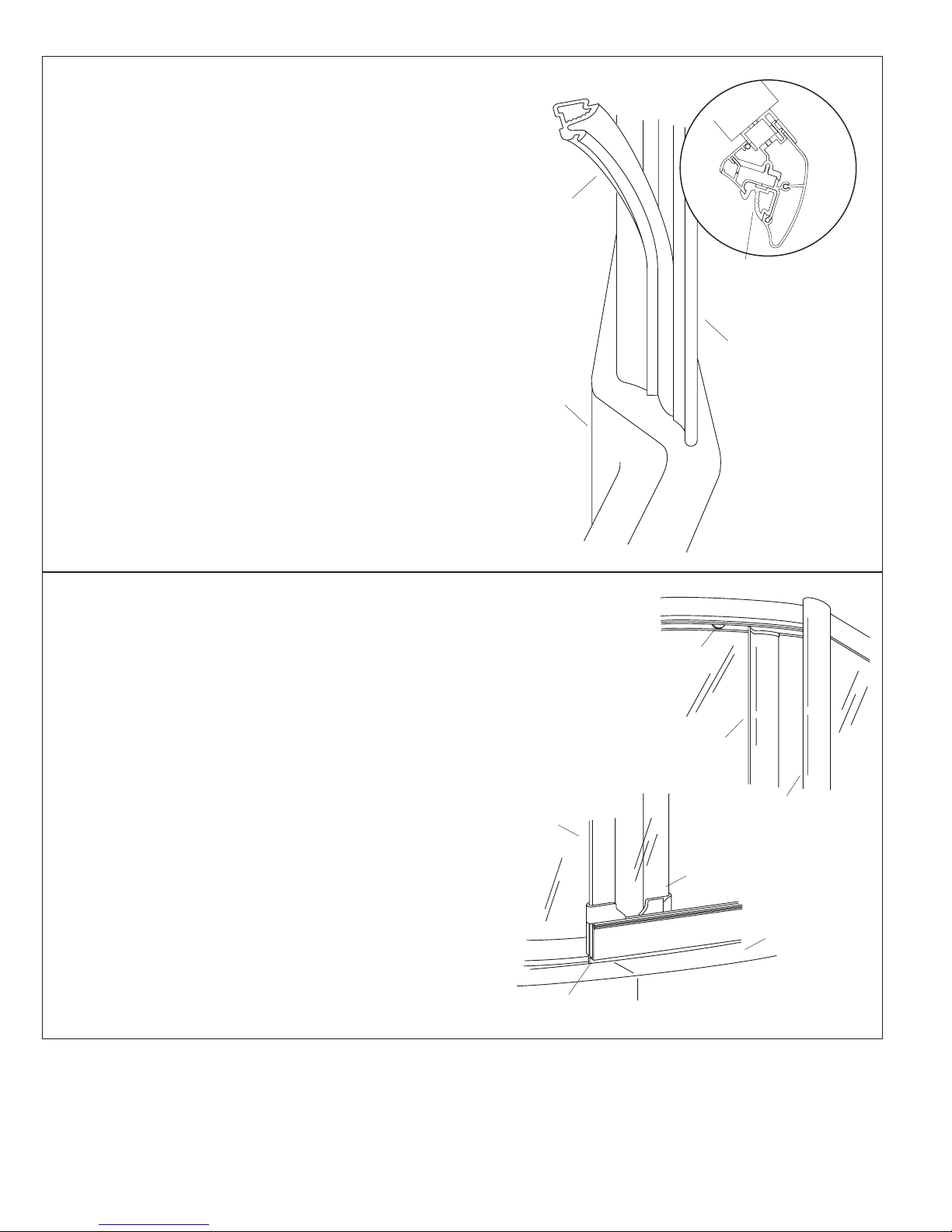

I. INSTALL THE SIDE JAMB SEALS
Lubricate one of the side jamb seals with glass cleaner.
Startingatthebottomofoneofthecenterjambs,insertthe
side jamb seal into the center jamb groove. Trim the top
of the seal as needed.
Repeat for the other side jamb seal.
Center Jamb
Side Jamb Seal
Footbath
Side
Jamb
Seal
TOP VIEW
J. ADJUST THE SIDE DOOR PANELS
Use the wrench provided to loosen a roller nut on one of
the side door assemblies. Adjust the height of the door
panel by turning the cam roller with the wrench so the
corner of the bottom deflector just rests on the acrylic
surface of the footbath. Tighten the roller nut.
Now loosen the other roller nut, and adjust the side door
heightbyturningthecamrollerwiththewrenchsotheside
door edge lines up perfectly with the side jamb seal.
Tighten the roller nut.
Check that the bottom deflector just rests on the acrylic
surface of the footbath across the entire deflector length.
Adjust the side door cam roller as needed to ensure:
proper contact of the bottom deflector with the acrylic
surface of the footbath,
parallel alignment between the side door handle edge
and the side jamb seal.
Repeat for the other side door assembly.
Roller Nut
Side Door Assembly
Bottom
Deflector
Footbath
Side Jamb
Seal
Center
Door Panel
Side Door
Assembly

116290-2-AB
17
Kohler Co., Kohler WI U.S.A.

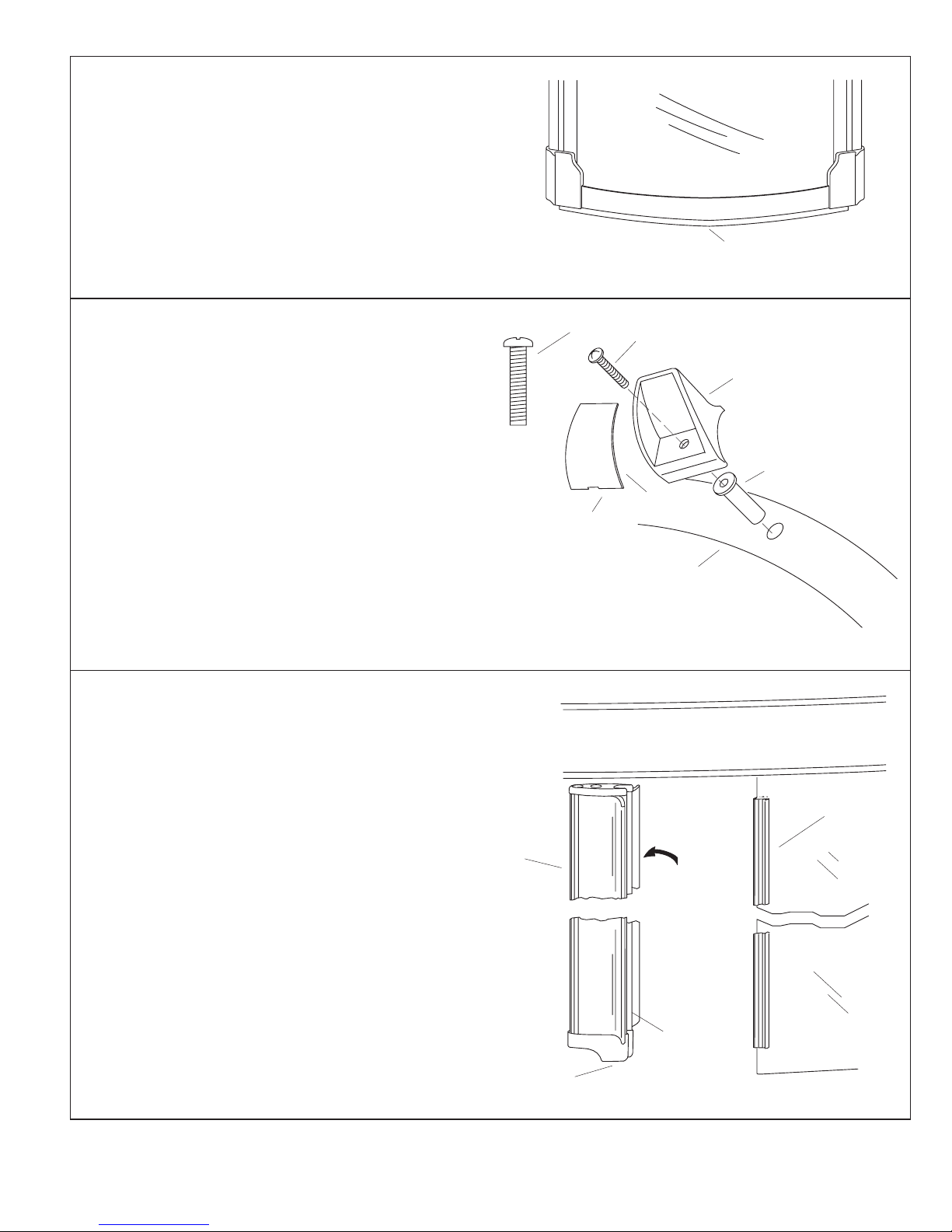

K. ADJUST THE CENTER DOOR PANEL
Check if the center door panel hangs parallel with both
side door assemblies. Also check that the bottom
deflectorjust makes contactwiththeacrylicsurfaceofthe
footbath.
Loosenone or both roller nuts, and adjustthe center door
panel by turning the cam roller with the wrench to obtain
proper fit. Tighten any loose roller nuts.
Center Door Panel
Bottom Deflector
L. INSTALL THE BACKSTOP
Choose a backstop and cover to match the color of the
door frame.
Insert the well nut into the pre-drilled hole in the center of
the footbath curb.
Attach the backstop to the footbath curb by securely
threading a #10 x 1” panhead screw into the well nut. Do
not overtighten.
Apply silicone sealant to the backstop cap, then press it
onto the backstop.
Well Nut
Backstop
Curb
Backstop
Cap
#10 x 1” Panhead Screw
Apply
Sealant
M. INSTALL THE DOOR HANDLES
Fitthegasketoverthegrooveinthesideofthedoorpanel.
Loosen the six handle clamp screws. Press the handle
overthegasketsotheclampandscrewsareontheinside.
Thread in one or two screws to temporarily hold the
handle in place. Note that the handle protrusion fits into
thegroove in theglasspanel.Slidethehandleupor down
so the bumper flat rests on the footbath curb. Carefully
tighten all six screws. Use care to avoid stripping the
screws.
Repeat this procedure for the other handle.
Handle
Clamp
Gasket
Handle
Side Door Panel
Handle
Clamp
Screws
Bumper
Flat

116290-2-AB 18 Kohler Co., Kohler WI U.S.A.
N. ADJUST THE STOP BLOCKS
NOTE:Thisstepiscriticaltopreventthesidedoorpanels
from accidentally slamming against one another.
Withthe doors all closed,opentheleftsidedoor.Slide the
loosestopblockupagainsttheexposedcenterdoorroller.
Close the left side door so it rests against the side jamb
seal.Slowlyopentherightsidedooruntilitnearlytouches
the left side door. A 1/4” gap between the side door panel
edges is sufficient.
Opentheleftsidedoortoexpose thestopblock.Carefully
securethestop block in placebytightening the stop block
setscrew.
Repeat this procedure for the other stop block.
Inside
Track
Stop Block
Setscrew
Header
Roller
Center Door Panel
Stop Block
O. APPLY SEALANT
Door seals are an integral part of this door. However,
sealing with a quality clear silicone sealant is necessary
to ensure a properly functioning, watertight unit.
The required sealing procedure follows:
Mask both edges of joint to be sealed, maintaining a
joint width of 1/8” to 3/16”.
Apply a uniform bead of sealant. Smooth the bead with
your finger.
Remove the tape from the sealed joints immediately
after smoothing the bead.
Repeat for all areas to be sealed.
Very Important! Apply silicone sealant to the outside
bottom edge ofthecenterjambsandwalljambsonly.On
theinside,applyabeadofsiliconesealantverticallyalong
the seam between the wall jambs and finished wall
surface. Do not apply sealant to the inside bottom of the
center jambs and wall jambs.
Footbath
1/8” to 3/16”
Joint Width
Apply
Sealant
Masking Tape
Apply
Sealant
INSIDE UNIT
Center
Jamb
Wall
Jamb
IMPORTANT! You have now completed the door enclosure installation phase
of the BodySpa installation. Keep these instructions with the tower so they are
readily available for the final installation procedures.

116290-2-AB
19
Kohler Co., Kohler WI U.S.A.

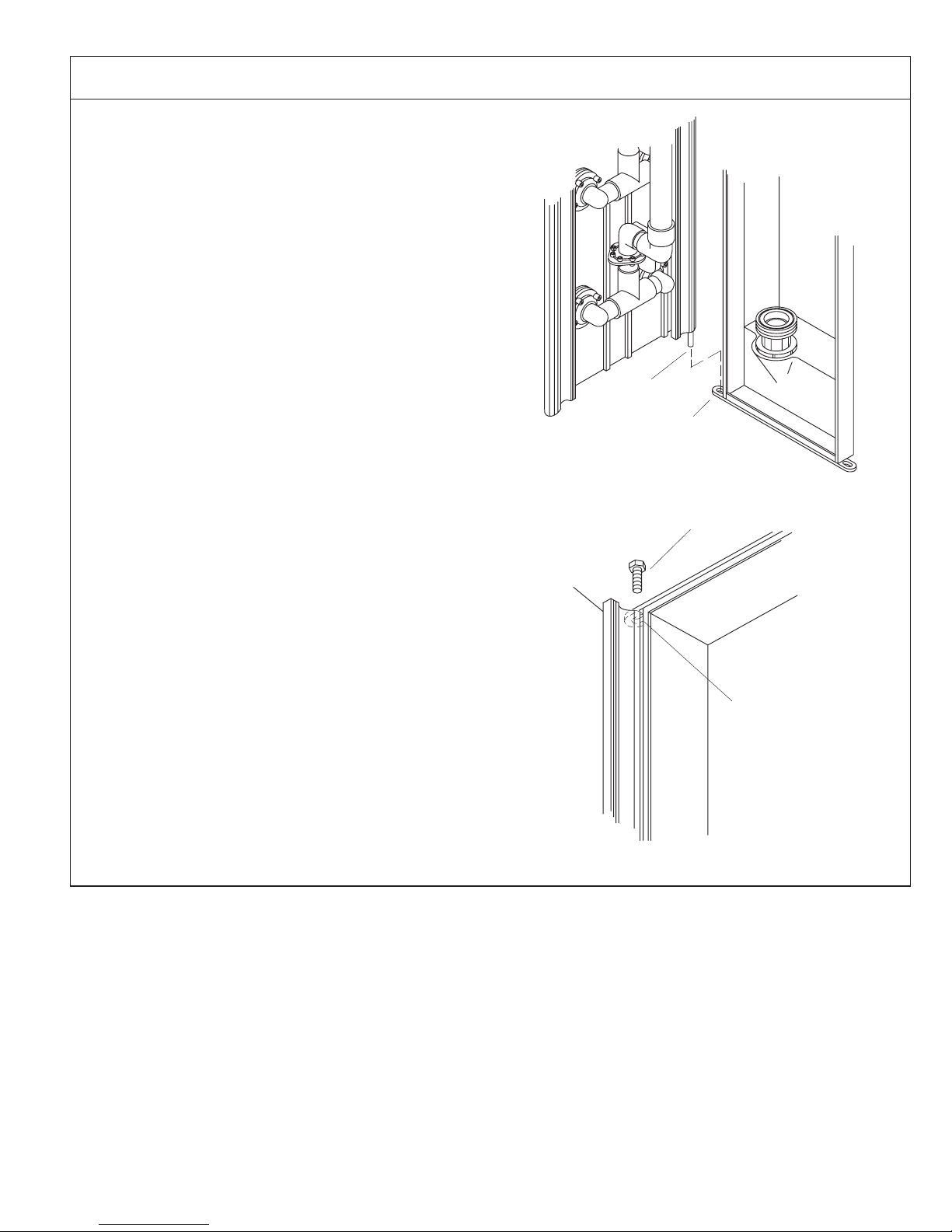

11. INSTALL THE TOWER
NOTE: Before you proceed, be sure the door enclosure
installation is complete and the finished wall materials
have been installed.
Line up the pin at the bottom left corner of the tower with
theholeinthemountingframe,andsetthepininthehole.
Nowlineup the holeatthe top leftcornerofthe tower with
the slotted hole in the mounting frame, and thread a 3/8”
bolt through the mounting frame and into the tower.
Tighten the bolt securely.
Tower
PinMounting
Frame
Hole
BOTTOM LEFT CORNER VIEW
Mounting Frame
Slotted Hole
Bolt
Tower
TOP LEFT CORNER VIEW

116290-2-AB 20 Kohler Co., Kohler WI U.S.A.
Routethe towercableintothelargeholein thebackofthe
mounting frame. Snap the modular plug on the end of the
tower cable into the left jack of the control box. Install the
largestrain reliefbushing overthe towercable, andinsert
it into the large mounting frame hole.
NOTE: National Electrical Code requires that you
permanently separate the high- and low-voltage cables.
Tower Cable
Control Box
Mounting Frame
Large
Strain
Relief
Routethewaterfalllightwiresthroughthesmallholeinthe
back of the mounting frame. With the pump access panel
removed, connect the waterfall light wire connectors to
the transformer terminals – white to white; black to black.
Installthesmallstrainreliefbushingoverthewaterfalllight
wires, and insert it into the small mounting frame hole.
Mounting Frame
From
Waterfall
Light
Small
Hole
Small
Strain
Relief
Bushing
To Control Box
Snap
Transformer
