Installation and User’s Guide
K-14675X
Loure Desk-mount Bath Faucet



1114993-X2-A 2 Kohler Co.
Before You Begin
This document contains the lastest product information available at time of
publication. Kohler reserves the right to make changes in product characteristics,
packaging or availability at anytime without notice.
The product pictured in the installation steps may differ from the model being
installed.
IMPORTANT NOTICE TO INSTALLERS
Please leave these instructions for the consumer. They contain important
information.
• Flush the water supply pipes thoroughly to remove debris.
• Inspect the supply tubing for damage. Replace as neccessary.
• If possible, install this faucet before installing the tub.
• The diameter of mounting hole for valve kit not less than 39 mm. and mounting
hole for faucet not less than 26 mm.
• The highest working pressure for faucet is 0.4Mpa. (4 bars). If it exceeds
0.4Mps (4 bars), a pressure reducer is needs.





•
•
•
•
•


Kohler Co. 3 1114993-X2-A
Standard Applicable
Special model meets or exceeds the following at date of manufacture: TIS
Handle Operation
Lift the hand gently. Turn left for hot water, right for cold water.
Roughing-In Dimension





ø 26-52
45°
149
260
57 ø 39-48
79
53
367
100-200
53
114
480
80
107
G-1/2"
Dimension are approximate. Unit: mm.
ขนาดระยะแสดงคาประมาณ หนวย: มม.
45 Max 53

1114993-X2-A 4 Kohler Co.

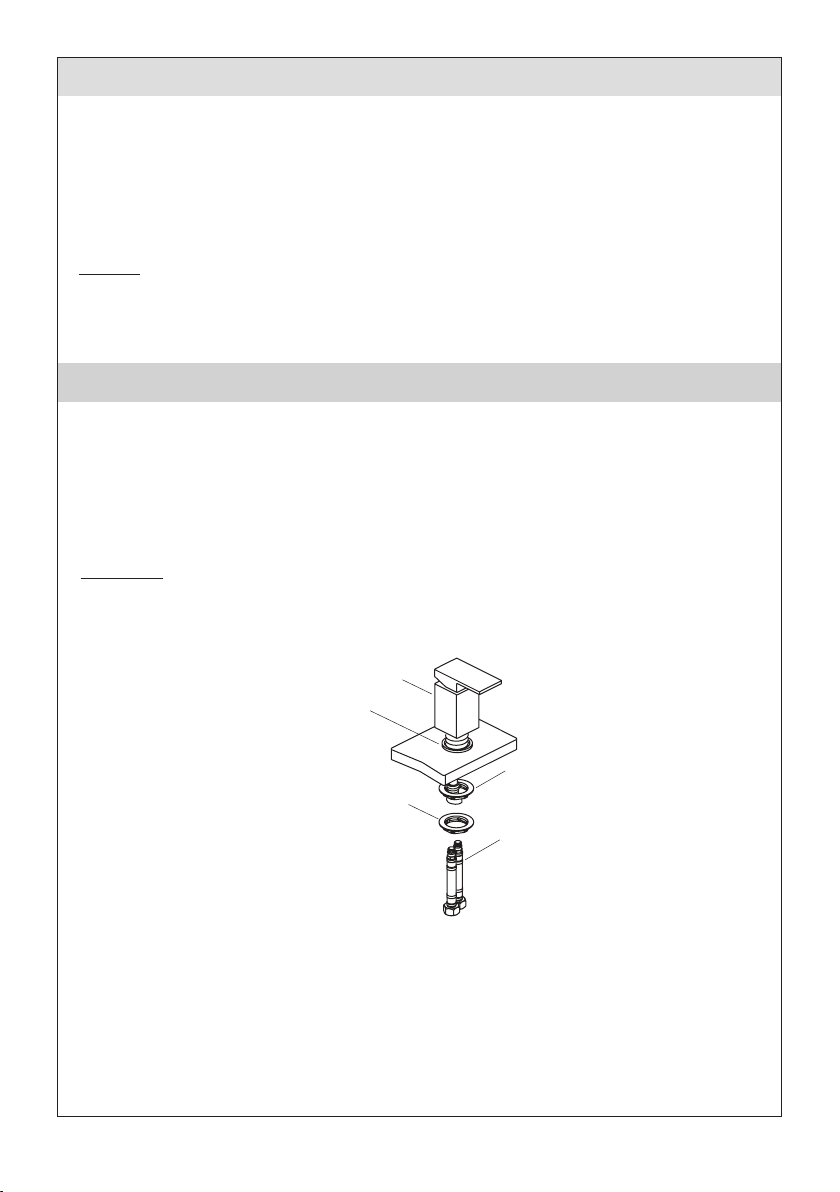

Installation the Valve
• Put the rubber washer into the bottom groove of the valve kit.
• Fit the valve kit to the hole of the bath tub.
• From underside, install the nuts. Position the valve kit. Secure the valve kit
by tightening nuts.
• Install hoses onto the valve kit.
NOTE: The hose with “COLD” mark is on the right
• Attatch the hoses to water supplies. The hose with “COLD” mark connects
to the cold water.

•
•
•
•

•
Valve
วาลว
Rubber Washer
แหวนรองยาง
Nut
นอต
Nut
นอต
Hose
สายนํ้าดี

Kohler Co. 5 1114993-X2-A

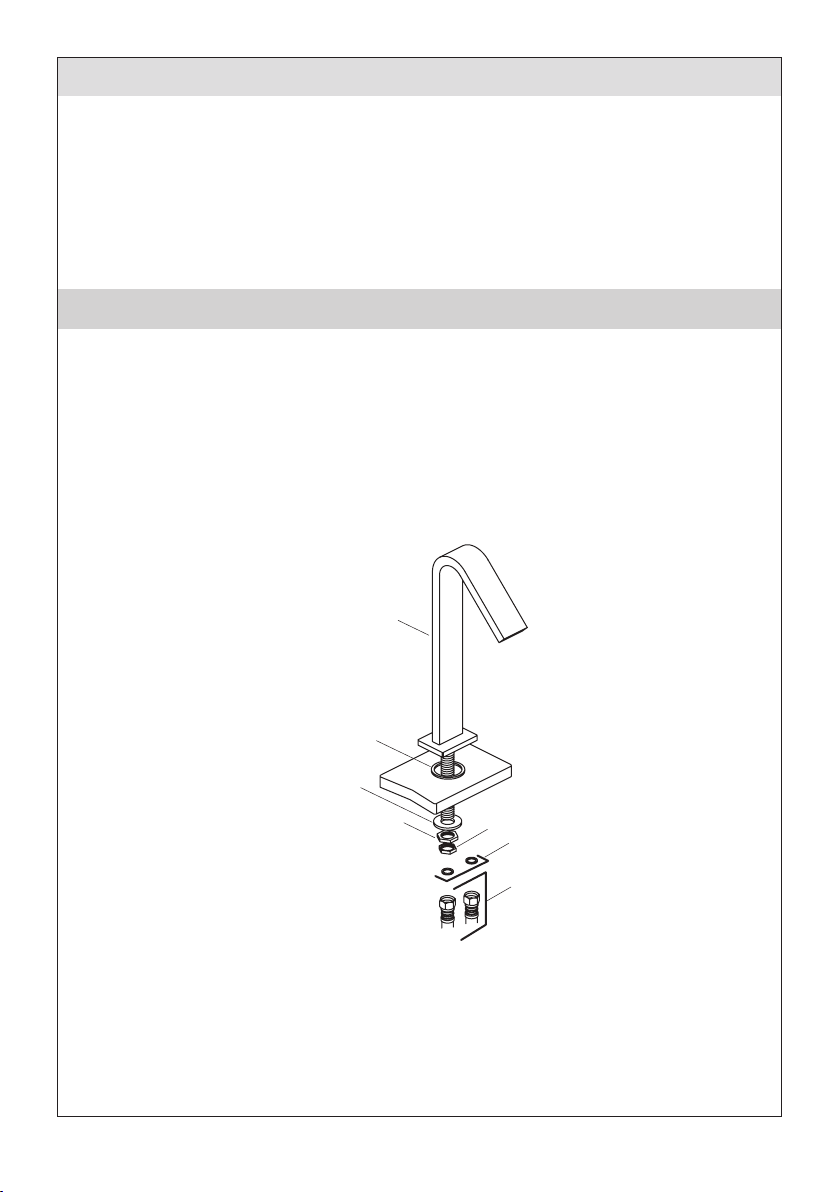

Installation the Spout
• Put the foam washer into the bottom groove of the spout kit escutcheon.
• Then t the spout kit to the hole of bath tub.
• From underside of the bath tub, install the steel washer, nuts. Position the
spout. Secure the spout kit by tightening nuts.
• Connect the connector of valve kit and spout with the hose & washers.

•
•
•

•
Foam Washer
แหวนโฟม
Spout
หัวกอก
Steel Washer
แหวนรองโลหะ
Nut
นอต
Nut
นอต
Washer
แหวนรอง
Hose
สายนํ้าดี

1114993-X2-A 6 Kohler Co.

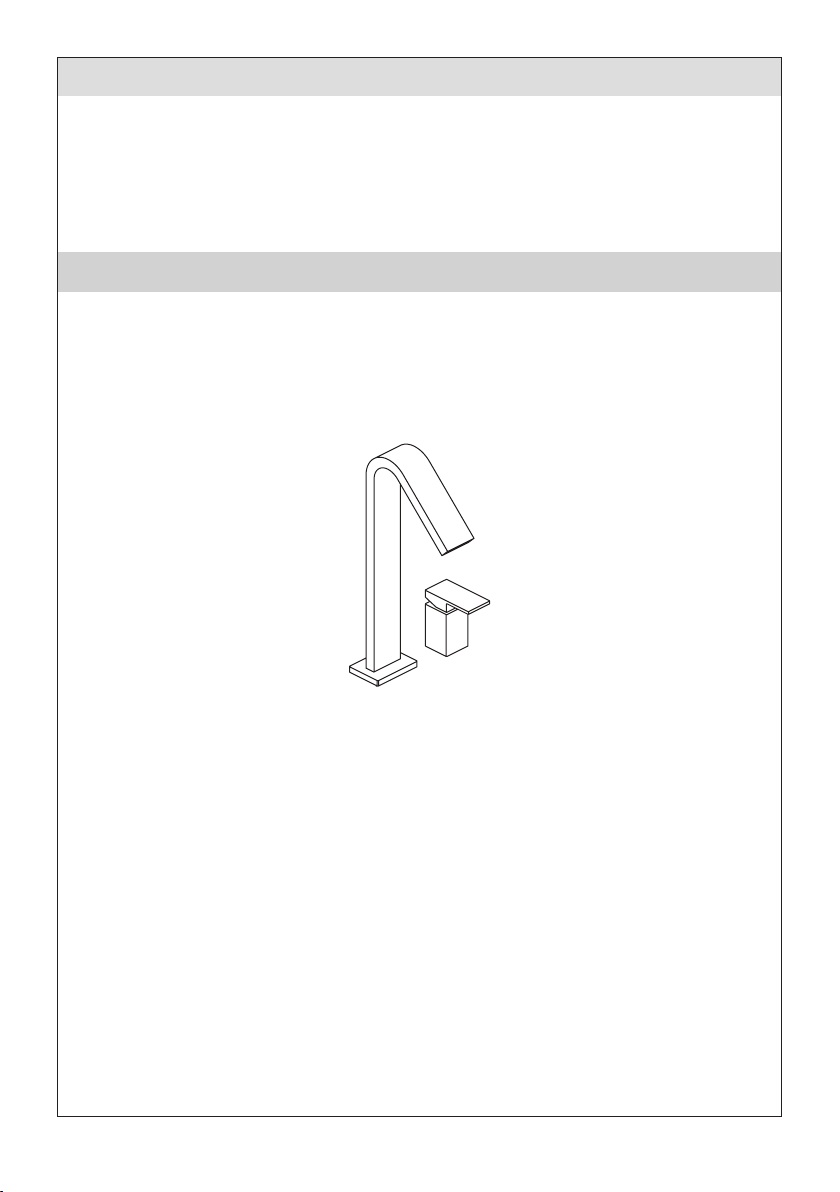

Installation Checkout
• Ensure all connections are tight and the handle is in the off positions.
• Turn on the main water supply and check for leaks. Adjust as needs.
• Rotate the faucet handle to the open position. Run water through the spout
for about one minute to remove any debris.

•
•
•

Kohler Co. 7 1114993-X2-A
Limited Warranty
Kohler (Thailand) Public Company Limited warrants to the original products, which are purchased
from authorized distributors and dealers within Kingdom of Thailand only, to be free of defects in
material and workmanship.
Within the below mentioned periods from the date of purchase, Kohler (Thailand) Public
Company Limited will at its election, repair, replace or make appropriate adjustment where company’s
inspection disclose any such defect occurring in normal usage and maintenance but is not
responsible for labor charges, removal charges, installation, or other incidental or consequential
costs. In no event shall the liability of Kohler (Thailand) Public Company Limited exceed the
purchase price of the product. This warranty applies only to Kohler Faucets installed in Thailand.
• Ceramic Valve (leak/drip)
- Lifetime Limited Warranty* for residential use
- and Five (5) Years for commercial use
• Finish One (1) Year
• Fitting Three (3) Years
• Automatic faucet One (1) Year
• Hygiene spray (leak/drip Five (5) Years for selected models
from hygiene spray body) only
• Shower One (1) Year
• Bathroom Accessories One (1) Year
This limited warranty DOES NOT COVER the defect or damage caused by accident, natural
disasters such as re, ood, or earthquake, misuse or abuse of products. Improper care and
cleaning will avoid the warranty. Consumers are responsible for the cost of service parts and
service fee for such cases.
To ensure continuous product quality and performance, as well as product durability and lifetime,
without any damage to the product, consumers should purchase and use only genuine service
parts and after-sales services from Kohler (Thailand) Public Company Limited or company’s
authorized service centers, distributors, or dealers only.
*KOHLER® Faucet Lifetime Limited Warranty
Kohler (Thailand) warrants its faucets manufactured after January 1, 1997, to be leak and drip
free during normal residential use for as long as the original consumer purchaser owns his or her
home. If the faucet should leak or drip during normal use, Kohler (Thailand) will, free of charge;
replace the new cartridge necessary to put the faucet in good working condition.
Kohler (Thailand) also warrants all other aspects of the faucet or accessories (brass) to be free
of defects in material and workmanship during normal residential use for as long as the original
consumer purchaser owns his or her home. If a defect is found in normal residential use, Kohler
(Thailand) will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment. Damage to a product caused by accident, misuse, or abuse is not covered by this
warranty. Improper care and cleaning will also void the warranty.
Proof of purchase (original sales receipt) must be provided to Kohler (Thailand) with all warranty
claims. Kohler (Thailand) is not responsible for labor charges, installation, or other incidental or
consequential costs. In no event shall the liability of Kohler (Thailand) exceed the purchase price
of the Faucet.

1114993-X2-A 8 Kohler Co.
Important: Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes,
alcohol, solvents or other products not recommended for chrome. This will void the warranty.
To obtain warranty service, please contact your dealers or contact the KOHLER (Thailand) Call
Center, together with proof of purchase at;
Call Center
KOHLER (Thailand) Public Company Limited
16th Floor, Jasmine City Building 2
Soi Sukhumvit 23, Sukhumvit Road
Wattana, Bangkok 10110
Tel: [phone] Fax: [phone]
Email: [email protected]
COPYRIGHT ©2010 BY KOHLER (THAILAND) PUBLIC COMPANY LIMITED.

Kohler Co. 9 1114993-X2-A










  
   
   
   
   
   
   
  
   
   
 






















1114993-X2-A 10 Kohler Co.













Kohler Co. 11 1114993-X2-A
Service Part
**Finish/color code must be specied when ordering
**ระบุรหัสวัสดุเคลือบผิว/สีในการสั่งซื้อผลิตภัณฑ์

1070967
Foam Washer
865099
Nut
835726
Steel Washer
860091
Nut
835696
Washer
834361
Hose
1109687
Handle
3006930
Nut
3006927
Bonnet
3006991
Valve
880002-CP
Plug Button Kit
1043069
Rubber Washer
1093949
Nut
3006376
Hose
แหวนโฟม
นอต
แหวนรองโลหะ
นอต
แหวนรอง
(x 2)
สายนํ้าดี
(x 2)
มือจับกานโยก
นอต
ฝาครอบวาลว
วาลว
ชุดนอตยึดมือจับกานโยก
แหวนรองยาง
นอต
สายนํ้าดี
(x 2)
