Kohler K-T10594 Assembly instructions

Homeowners Guide
Thermostatic Valve Trim
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-T10593 K-T10594
K-T10595 K-T10596
1049066-5-A

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
CAUTION: Risk of scalding hazard. This device has been
calibrated at the factory to ensure a safe maximum water
temperature. Any variance in settings or water inlet conditions
from those used during factory calibration may raise the
discharge temperature above the safe limit, and may present a
scalding hazard.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
The installer is responsible for adjusting the maximum water
temperature of this valve according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the temperature adjustment
instructions in this document, in the United States please contact our
Customer Service Department at 1-800-4-KOHLER. Outside the U.S.,
please contact your distributor.
IMPORTANT NOTICE: Please fill in the blanks below and on the
valve label. Retain this Homeowners Guide for future reference.
•The valve is calibrated to 104° F (40° C) at the first stop position,
and the maximum temperature limit stop is positioned so the
outlet water temperature does not exceed 120° F (49° C).
•Factory calibrated inlet conditions are:
Hot and cold water pressure = 45 psi (3.2 kgcm
2
)
Hot water supply temperature = 145° F (63° C)
Cold water supply temperature = 65° F (18° C)
•If inlet conditions differ from those used during factory
calibration, it may be necessary to re-calibrate the valve after
installation. The installer must check the mixed flow
temperature after installation, and adjust the valve as needed
according to the instructions.
1049066-5-A 2 Kohler Co.

IMPORTANT INSTRUCTIONS (cont.)
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Bath Faucet
Your new bath and shower trim blends elegant styling and beauty
with exceptional performance and reliability. Each trim kit is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
Like anything of lasting quality, Kohler faucets and fittings require a
certain amount of periodic care to preserve their lustrous finish. Clean
your new Kohler faucet and fittings with a mild soap, rinse thoroughly
with warm water and dry with a clean, soft cloth. The ideal cleaning
technique is to always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will form water deposits. It is
important to use a dabbing action to dry metal, not an abrasive or
rubbing action.
Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, or chemicals that can damage the finish. By taking the time to
dry your faucet often, soap and water deposits can be prevented.
Kohler Co. 3 1049066-5-A

Care and Cleaning (cont.)
If your chrome or Vibrant
®
color/finish faucet gets excessively dirty,
consider using the following cleaners: Windex
®
Original, Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr. Clean
®
Springtime
Fresh Scent. For solid color faucets and fittings, consider using these
cleaners: Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr.
Clean
®
Springtime Fresh Scent.
Failure to comply with these cleaning instructions may void Kohler’s
warranty obligations.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
1049066-5-A 4 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
Kohler Co. 5 1049066-5-A

One-Year Warranty — Mexico (cont.)
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
1049066-5-A 6 Kohler Co.

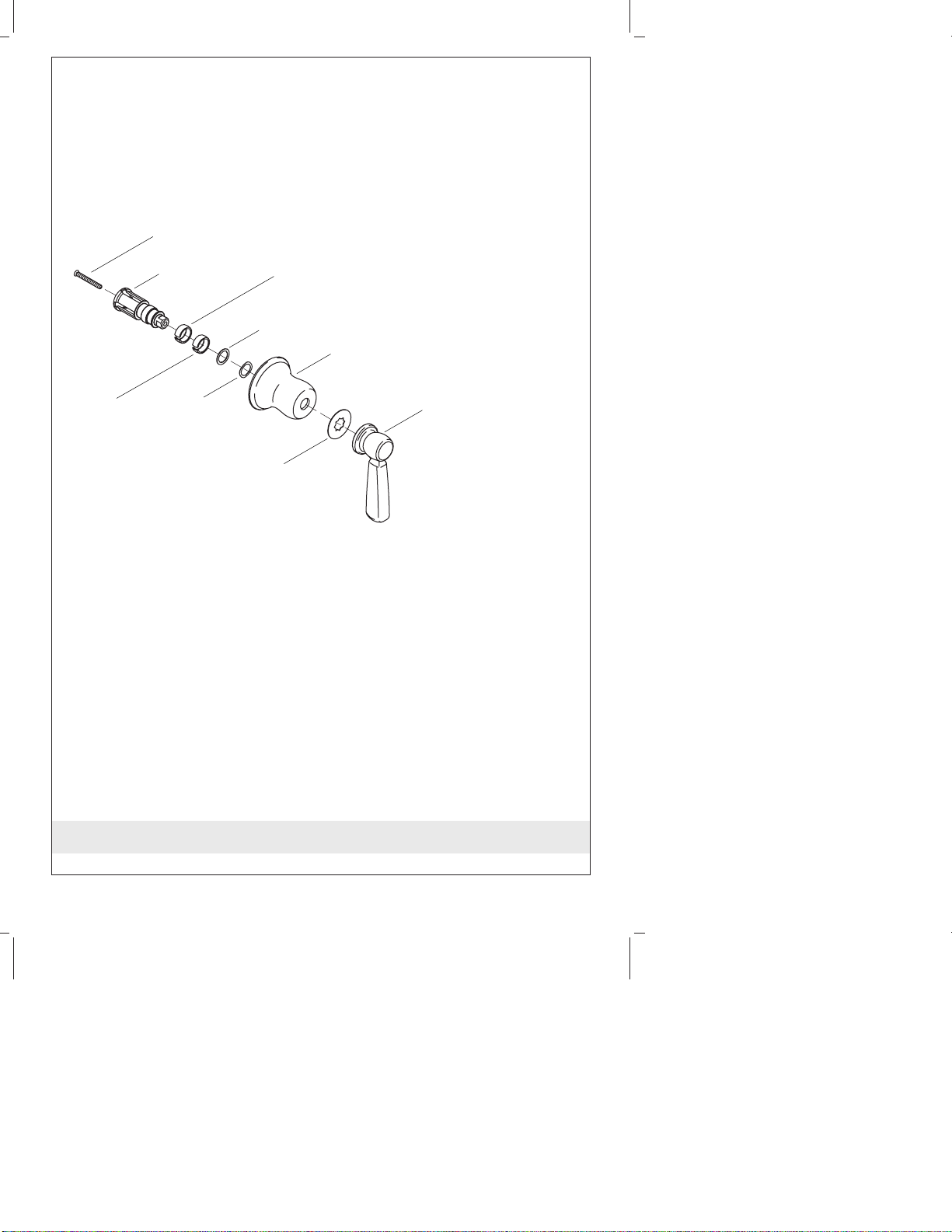

Service Parts
1015190
1043578**
1006719
1006720
75604
1033047
1030451
Washer
Bonnet
Spring Washer
1034705**
1037044** (Metal) (Ceramic)
Handle
Washer
Bearing
Stem Extension
Screw
**Finish/color code must be specified when ordeing.
75604
Bearing
Kohler Co. 7 1049066-5-A

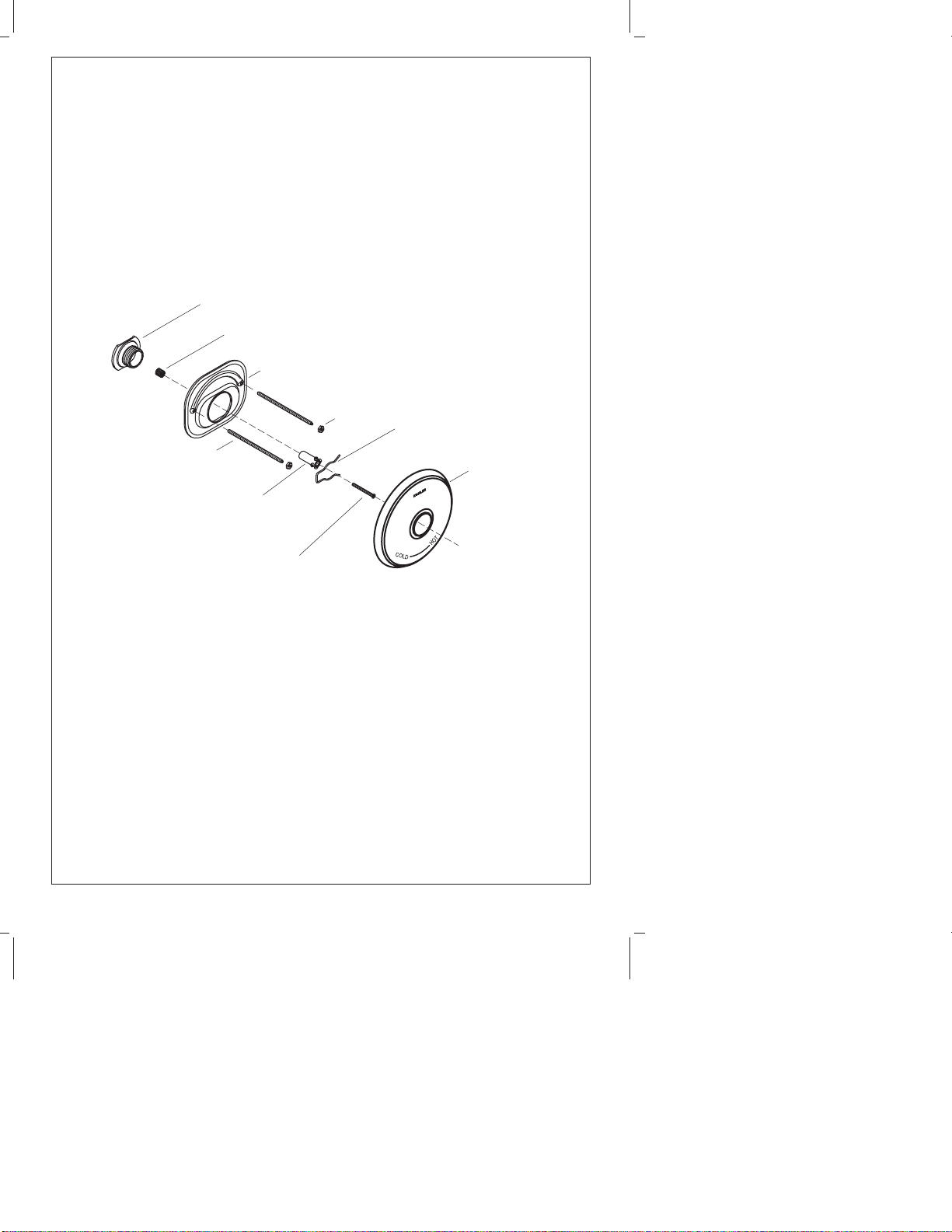

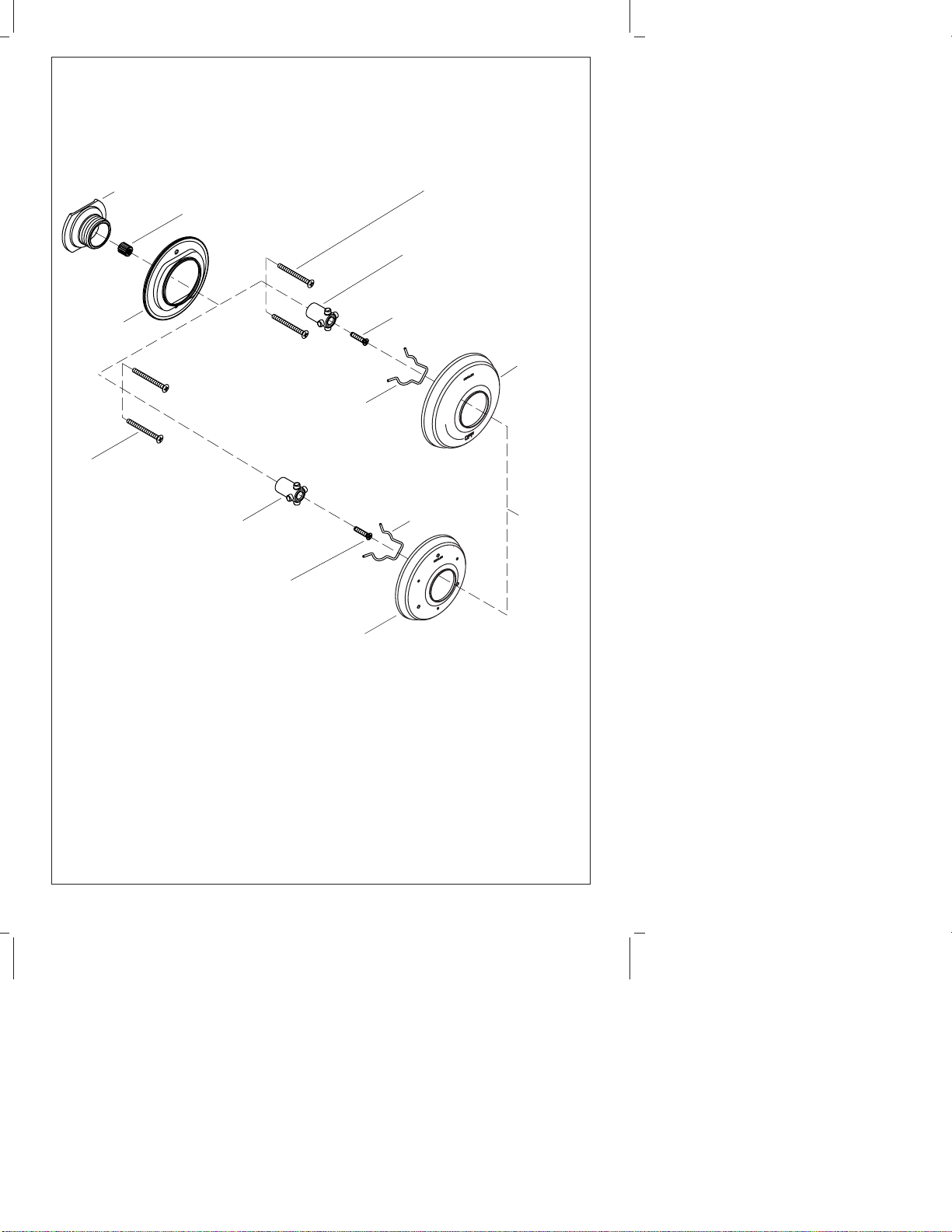

1046294**
Escutcheon
1036331**
Escutcheon
**Finish/color code must be specified when ordeing.
1024419
Hub 78125
Spline Adapter
1032290
Seal
1050806 [1-3/4" (4.4 cm)]
1050807 [2-1/2" (6.4 cm)]
Screw
1041322 [1-3/4" (4.4 cm)]
1047054 [2-1/2" (6.4 cm)]
Screw
1012476 [13/16" (2.1 cm)]
1035311 [1-3/8" (3.5 cm)]
Screw
1031782** [7/8" (2.2 cm)]
1032871** [1-3/8" (3.5 cm)]
1030840** [1/2" (1.3 cm)]
Stem Adapter
To Handle
1034484
Retaining Clip
1034484
Retaining Clip
1032872**
1032871** [1-3/8" (3.5 cm)]
[1-7/8" (4.8 cm)]
1031782** [7/8" (2.2 cm)]
Stem Adapter
1041322
1013970 [1-3/8" (3.5 cm)]
[1-3/4" (4.4 cm)]
1032960 [3/4" (1.9 cm)]
Screw
1049066-5-A 8 Kohler Co.

[7/8" (2.2 cm)]
1031782**
[3/4" (1.9 cm)]
1032960
1024419
Hub
78125
Spline Adapter
1035854
Seal 1034484
Retaining Clip
1046296**
Escutcheon
41517
Nut
1038645
Stud
To Handle
1013970 [1-3/8" (3.5 cm)]
1041322 [1-3/4" (4.4 cm)]
Screw (#8-32 US Thread)
[1-3/8" (3.5 cm)]
1035311
1035320 [1-3/4" (4.4 cm)]
1048476 [2-3/8" (6 cm)]
Screw (M4 Metric Thread)
1032872**
1032871** [1-3/8" (3.5 cm)]
[1-7/8" (4.8 cm)]
Stem Adapter
**Finish/color code must be specified when ordeing.
Kohler Co. 9 1049066-5-A

To Handle
1046295**
Escutcheon
1024419
Hub78125
Spline Adapter
1035783
Seal
1034484
Retaining Clip
1031782**
1032872**
1032871**
[7/8" (2.2 cm)]
[1-7/8" (4.8 cm)]
[1-3/8" (3.5 cm)]
Stem Adapter
1035311
1048476
1035320
[1-3/8" (3.5 cm)]
[2-3/8" (6 cm)]
[1-3/4" (4.4 cm)]
Screw
41517
Nut
1038645
Stud
**Finish/color code must be specified when ordeing.
1049066-5-A 10 Kohler Co.
