Kohler K-1106 User manual

Installation Guide
Drop-In 120 V Bath Whirlpool
Canada
K-1106, K-1112, K-1114,
K-1126, K-1131, K-1139,
K-1144, K-1146, K-1148,
K-1154, K-1157, K-1160,
K-1162, K-1164, K-1209,
K-1224, K-1239, K-1244,
K-1246, K-1248, K-1257,
K-1337
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page“ Français-1”
Español, página“ Español-1”
1010914-2-D

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI).
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
A pressure wire connector marked ″Ground″is provided within the wiring compartment. To reduce the risk
of electric shock, connect this connector to the grounding terminal of your electric service or supply panel
with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the pump or control within this unit to permit
connection of a bonding conductor between this unit and all the other exposed metal in the vicinity, as
needed to comply with local requirements.
Install to permit access for servicing.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electrical shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electrical shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI). The GFCI protects against
line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated service for the whirlpool.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of
electrical shock, this terminal must be connected to the grounding means provided in the electric supply
panel with a conductor equivalent in size to the circuit conductors supplying this equipment.
Install this unit in accordance with the Canadian Electrical code, Part I.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool system,
as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not
be liable under its warranty or otherwise for personal injury or damage caused by any such
unauthorized modification.
Factory-Assembled Features
Factory installed components include pump and air switch transmitter. No installation is needed.
The whirlpool pump and piping are factory-assembled.
Connections and Service Access
Before installation, ensure proper access to the final connections.
1010914-2-D 2 Kohler Co.

Important Information (cont.)
NOTICE: Provide unrestricted service access to the pump. You must provide access for servicing the
pump and controls. The access must be located immediately next to the pump. Study the roughing-in
information packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Thank You For Choosing Kohler Company .............................................. 4
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 4
Prepare the Site ................................................................. 5
Prepare the Whirlpool ............................................................. 5
Secure the Unit — Models With Support Blocks .......................................... 6
Secure the Unit — Models With Whirlpool Base .......................................... 7
Cut the Pump Banding Straps ....................................................... 8
Install the Plumbing ............................................................... 8
Install a Rim-Mounted Faucet ........................................................ 9
Make Electrical Connections ........................................................ 10
Test Run the Whirlpool ............................................................ 11
Complete the Finished Deck ........................................................ 12
Clean-Up After Installation ......................................................... 12
Confirm Proper Operation .......................................................... 12
Troubleshooting Procedure ......................................................... 13
Kohler Co. 3 1010914-2-D

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start your installation. If you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing
Kohler Company.
Tools and Materials
Before You Begin
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
We recommend this whirlpool for drop-in installation.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Confirm adequate mounting and connection space for the faucet specified for your installation.
Sealant Pencil
Level
Pipe Wrench
Plus:
• Conventional woodworking tools
and materials
• Drop Cloth
• Construction adhesive (optional)
• Cement or mortar (optional)
• 2x4's or 2x6's
Safety Glasses
Tape Measure
1010914-2-D 4 Kohler Co.

1. Prepare the Site
NOTICE: Unless otherwise specified, floor support under the whirlpool must provide for a minimum of
80 lbs./square foot (390 kg/square meter) loading.
NOTICE: Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool should be installed in a drop-in installation. Construct 2x4 or 2x6 stud framing
designed for your particular installation. Provide for a 1/16″(2 mm) gap between the bottom of the
whirlpool rim and the stud framing. Frame the floor, or construct a frame for a raised installation in
accordance with the roughing-in information packed with the whirlpool.
Carefully lay out and cut the rough deck material. Use the cut-out template if one is provided, or
refer to the roughing-in cut-out information.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
2. Prepare the Whirlpool
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Position the rough
plumbing.
Frame the floor
according to the
roughing-in information.
Verify that the subfloor
offers adequate support,
and is flat and level.
Provide a 1/16" (2 mm) gap
between the whirlpool rim
and framing.
Construct 2x4 or 2x6
stud framing according
to the roughing-in
information.
Kohler Co. 5 1010914-2-D

3. Secure the Unit — Models With Support Blocks
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the whirlpool support blocks as necessary.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
NOTE: The pump support bracket (when the pump banding straps are cut) and support blocks must
rest directly on the subfloor.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit. Clear all the material away from the pump
support bracket and support block locations.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place, and make sure the pump support bracket and support blocks
do not rest in the bed material.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Clear space for pump.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Clear spaces for
support blocks.
Apply a bead of silicone sealant around the entire rim.
Apply construction adhesive to the support blocks.
or
1010914-2-D 6 Kohler Co.

4. Secure the Unit — Models With Whirlpool Base
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the whirlpool base as necessary.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts to
secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool base as needed.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the whirlpool base.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts to
secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool base as needed.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Apply a bead of
silicone sealant
around the entire
rim.
or
Apply construction
adhesive to the
whirlpool base.
Kohler Co. 7 1010914-2-D

5. Cut the Pump Banding Straps
NOTE: If your pump model does not have banding straps, proceed to the next section.
IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.
NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is
raised too high, it will not prime properly.
Use tin snips to cut the two pump banding straps. When the banding straps are cut, the pump
support bracket and pump will drop about 1/2″(1.3 cm) until they rest on the subfloor. If the pump
drops more than 1/2″(1.3 cm), shim under the pump support bracket so there is a 1/2″(1.3 cm)
gap between the pump and bracket to allow for proper drainage.
To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the
shipping bracket after the pump banding straps are cut.
Secure the pump support bracket to the subfloor with screws or lag bolts (not provided).
6. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
Drainage Suction Line
Pump
Cut the pump
banding straps.
NOTE:
Pump model illustrated may differ from your
actual product.
1010914-2-D 8 Kohler Co.

7. Install a Rim-Mounted Faucet
Measure and cut a piece of 1/2″exterior grade plywood 4″(10.2 cm) x 11-1/2″(29.2 cm) for the
K-1226, or 4″(10.2 cm) x 15-1/2″(39.4 cm) for the K-1231.
The faucet should be located in the center of the flat area of the rim. Refer to the faucet
manufacturer’s instructions. Use a pencil to mark the faucet centerlines for drilling.
NOTE: The K-1226 will accept faucets with 4″(10.2 cm) centers, and the K-1231 will accept faucets with 4″
(10.2 cm) or 6″(15.2 cm) centers.
CAUTION: Risk of product damage. Position a thin piece of cardboard on the finished surface of the
whirlpool before clamping the plywood in place. Make sure the clamps do not make direct contact
with the finished surface of the whirlpool.
Set a thin piece of cardboard on the finished surface of the whirlpool rim. Position the plywood on
the bottom of the rim, and carefully clamp the plywood in place. Make sure the clamps are in
contact with the cardboard, not the finished surface of the whirlpool.
Carefully drill the faucet holes to the size required by the faucet manufacturer. Remove the clamps
and cardboard.
Install the faucet to the rim and plywood according to the faucet manufacturer’s instructions.
Open the hot and cold water supplies, and check the supply connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
4" (10.2 cm)
Measure, cut, and drill a piece of 1/2" exterior
grade plywood 4" (10.2 cm) x 11-1/2" (29.2 cm) for
the K-1226, or 4" (10.2 cm) x 15-1/2" (39.4 cm) for
the K-1331.
Whirlpool Rim
Install the faucet to the rim and
plywood according to the faucet
manufacturer's instructions.
Kohler Co. 9 1010914-2-D

8. Make Electrical Connections
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI). This will provide additional protection
against line-to-ground shock hazard. A 120 V, 15 A dedicated circuit is required.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before performing
the following procedures.
Locate and secure the supplied junction box a minimum of 1-1/2″(3.8 cm) above the subfloor.
The whirlpool controls and system have been prewired at the factory. A licensed electrician should
make a routine service connection to the junction box.
Connect service to the junction box. The 60 Hz model junction box contains black and white wires
and a ground lug.
A 120 V, 15 A dedicated circuit is required. Provide a Class A Ground-Fault Circuit-Interrupter
(GFCI).
Provide a separate equipment grounding conductor for the inside ground or ground lug. The
conductor must not be connected to any current-carrying conductor.
Bond in accordance with national and local codes.
Pump
Electrical
Cord
Make sure air actuator tubing is
securely attached to the pump.
Bond in accordance with applicable codes.
NOTE:
Pump model illustrated may differ from your
actual product.
Neutral
Neutral
(White)
Ground
Line
(Black)
From Pump
Line
Wire Connectors
Electrician to
provide suitable
strain relief.
Junction box should be
wired as shown.
1010914-2-D 10 Kohler Co.

9. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool and heater (if
equipped) is on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut (if applicable), and that the pump is resting
directly on the subfloor or whirlpool base.
Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes, and check all whirlpool piping connections for leaks.
For additional information on whirlpool operation, refer to ″Confirm Proper Operation″.
Fill with water 2" (5.1 cm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow.
Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air actuator to turn
on and off the whirlpool.
Kohler Co. 11 1010914-2-D

10. Complete the Finished Deck
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant deck material. Seal the joints between the whirlpool rim
edge and the water-resistant deck material with silicone sealant.
Tape and mud the water-resistant deck material. Install the finished deck to the water-resistant deck
material. Seal the joints between the whirlpool rim and the finished deck material with silicone
sealant.
Install the faucet trim according to the trim manufacturer’s instructions.
11. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
12. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104° F (40° C).
Operating Sequence
Press the air actuator to turn on the whirlpool jets.
Adjust each jet for optimum air/water mixture. Turn the trim ring clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
If equipped with a heater, the heater will engage automatically when the pump is turned on and
will disengage when the pump is turned off. The heater will not turn on if the water temperature
exceeds 104° F (40° C).
Press the air actuator a second time to turn off the whirlpool.
Whirlpool
Framing
Water-Resistant
Deck Material
Apply silicone sealant to the
edges of the water-resistant
deck material and the
finished deck
Finished Deck
Material
1010914-2-D 12 Kohler Co.

13. Troubleshooting Procedure
Remove the Factory Installed Jets
NOTE: A special tool is provided with the replacement jets that will allow you to remove the jets from the
whirlpool. This tool is also supplied with each trim kit.
Position the jet ball nozzle so it is pointing upward.
NOTE: The nozzle must remain pointed up or the tool will slip off.
Insert the removal tool, hooked end up, into the opening of the jet and hook the inside top of the
nozzle.
Grasp the tool firmly and place your thumb against the whirlpool wall. Pull steadily on the tool
until the jet assembly pulls free of the hole. Be careful not to lose the O-ring.
Reinstall the Jets
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. Whirlpool does not start or
stop. A. No power to motor. A. Set/reset the GFCI or ELCB; check wiring.
B. Air actuator does not work. B. Replace air actuator.
C. Air actuator tubing is
disconnected, loose, kinked,
plugged, or damaged.
C. Connect, straighten, clean, or
replace air actuator tubing.
D. Motor/pump does not work. D. Rebuild or replace
motor/pump.
2. Motor starts, not all jets are
functioning. A. Jet is closed. A. Rotate jet trim ring counterclockwise to open.
Remove the Jets
Insert the tool hook as shown and pull the jet out of the
housing. The jet should be facing up when this is done.
Housing
Re-install the Jets
Insert the jet into the housing, and lightly
push and rotate until it snaps in position
Slide the O-ring
onto the first
shoulder of the jet
Inspect and
lubricate the O-ring
Kohler Co. 13 1010914-2-D

Troubleshooting Procedure (cont.)
Symptoms Probable Causes Recommended Action
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. Whirlpool stops automatically
before 18 minutes. A. The GFCI or ELCB trips. A. Identify source of fault, and correct.
B. Suction blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at motor vents. Remove blockage and
allow motor to cool.
Check for suction blockage.
Remove blockage and allow
motor to cool.
Check for jet blockage. Remove
blockage and allow motor to
cool.
4. Pump does not prime. (Models
with support blocks only.) A. Pump shimmed too high. A. Lower pump support bracket.
5. Noisy operation. A. Pump banding straps have not
been cut. (Models with support
blocks only.)
A. Cut pump banding straps with
tin snips.
B. Jet O-ring dislodged. B. Remove jet, replace and
lubricate O-ring, and reinstall
jet.
6. Heater does not operate. (“H”
models only) A. No power to heater. A. Reset the GFCI or ELCB.
B. Water temperature exceeds
104° F (40° C). B. Allow water to cool and heater will reengage.
C. Heater does not work. C. Replace heater.
1010914-2-D 14 Kohler Co.

Guide d’installation
Baignoire à hydromassage 120 V encastrée - Canada
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
toujours être observées, incluant ce qui suit:
DANGER : Risque d’électrocution. Raccorder uniquement à une prise de terre protégée par un
disjoncteur différentiel (GFCI).
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Ground″est fourni dans le compartiment de câblage. Afin de
réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du panneau de service
électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui alimente cet
équipement.
Des connecteurs à pression par câble sont fournis à l’extérieur de la pompe ou du contrôle de cet appareil
afin de permettre la connexion d’un conducteur à la masse entre cet appareil et toutes autres surfaces
métalliques exposées avoisinantes, tel que requis par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous plaît
lire avec attention toutes les instructions avant de commencer l’installation, y compris les conditions
suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Information sur le produit
Branchements électriques requis
L’installation doit avoir un disjoncteur de fuite de terre de classe A (GFCI). Le disjoncteur GFCI protège
contre les risques de chocs. Utiliser une alimentation de 120 V, 15 A, 60 Hz dédiée à la baignoire à
hydromassage.
Une borne de mise à la terre est incluse dans le boîtier du câblage. Afin de réduire les risques de choc
électrique, raccorder la borne à la terre du panneau de service électrique, avec un fil ayant la même
dimension du fil conducteur qui alimente cet équipement.
Installer l’unité conformément au code électrique canadien, premiére partie.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car celà
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kohler Co. décline
Kohler Co. Français-1 1010914-2-D

Renseignements importants (cont.)
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
Pièces assemblées en usine
Les composants installés en usine comprennent la pompe et un interrupteur d’air. Aucune installation n’est
nécessaire.
La pompe et la tuyauterie de la baignoire à hydromassage ont été assemblées en usine.
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
AVIS : Fournir un panneau d’accès libre à la pompe. Il faut prévoir un accès pour l’entretien de la pompe
et des contrôles. L’accès doit être situé tout près de la pompe. Étudier le plan de raccordement qui
accompagne la baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Merci d’avoir choisi la compagnie Kohler ............................................... 3
Outils et matériels ................................................................ 3
Avant de commencer .............................................................. 3
Préparer le site .................................................................. 4
Préparer la baignoire à hydromassage ................................................. 4
Sécuriser l’unité - Modèles avec blocs de support ......................................... 5
Sécuriser l’unité - Modèles avec base de baignoire à hydromassage ........................... 6
Couper les sangles de retenue de la pompe ............................................. 7
Installer la plomberie .............................................................. 7
Installer un robinet monté sur rebord .................................................. 8
Faire les raccordements électriques ................................................... 9
Tester la baignoire à hydromassage .................................................. 10
Compléter le comptoir fini .......................................................... 11
Nettoyage après installation ........................................................ 11
Confirmer le bon fonctionnement .................................................... 11
Procedures de dépannage ......................................................... 13
1010914-2-D Français-2 Kohler Co.

Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez lire attentivement ce guide avant de
commencer l’installation. Ne pas hésiter à nous contacter en cas de problème d’installation ou de
fonctionnement. Nos numéros de téléphone et notre adresse du site internet sont au verso. Merci encore
d’avoir choisi la compagnie Kohler.
Outils et matériels
Avant de commencer
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour supporter la baignoire à
hydromassage.
Nous recommandons cette baignoire à hydromassage pour une installation encastrée.
Avant l’installation, inspecter la baignoire à hydromassage pour en déceler tout dommage.
Cette baignoire à hydromassage doit être installée sur un sol nivelé adéquat.
S’assurer que l’espace de montage et de raccordement du robinet soit adéquat pour l’installation.
Mastic d'étanchéité Crayon
Clé à tube
Niveau à
bulle
Plus :
• Toile
• Adhésif de construction (optionnel)
• Ciment ou mortier (optionnel)
• Montants 2x4 ou 2x6
• Outils et matériels habituels du
travail du bois
Lunettes de protection
Ruban à mesurer
Kohler Co. Français-3 1010914-2-D

1. Préparer le site
AVIS : Sauf contre-indications, le support du plancher sous la baignoire à hydromassage doit pouvoir
soutenir une charge minimale de 80 lbs./pied carré (390 Kg/m2).
AVIS : Ne pas soulever la baignoire à hydromassage par le rebord.
S’assurer que le sol constitue un support adéquat pour la baignoire à hydromassage et que le
plancher soit plat et nivelé.
La baignoire à hydromassage devrait être installée dans un espace encastré. Construire un cadre
avec des montants de 2x4 ou de 2x6 pour votre installation particulière. Prévoir un dégagement de
1/16″(2 mm) entre la base du rebord de la baignoire à hydromassage et le cadre. Cadrer le sol ou
construire un cadre pour une installation surélevée en concordance avec le guide de raccordement
fourni avec la baignoire à hydromassage.
Disposer et découper soigneusement le matériau du comptoir brut. Employer le gabarit s’il est
fourni, ou se reporter à l’information de découpe du plan de raccordement.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
alimentations et vérifier s’il y a des fuites.
2. Préparer la baignoire à hydromassage
Installer le drain sur la baignoire à hydromassage selon les instructions du fabricant. Ne pas
connecter le siphon à ce moment.
Placer un chiffon propre ou matière similaire à la base de la baignoire à hydromassage. S’assurer de
ne pas rayer la surface de la baignoire à hydromassage.
Positionner la
plomberie.
Cadrer le sol selon
l'instruction du plan de
raccordement.
Vérifier que le sous-
plancher offre un
support adéquat et qu'il
soit plat et nivelé.
Laisser un dégagement de
1/16" (2 mm) entre le
rebord de la baignoire à
hydromassage et le cadre.
Construire un cadrage de
montants de 2 x 4 ou de
2 x 6 suivant l'instruction
du plan de raccordement.
1010914-2-D Français-4 Kohler Co.

3. Sécuriser l’unité - Modèles avec blocs de support
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour supporter la baignoire à
hydromassage.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par le rebord.
Choisir l’option d’installation qui s’applique le mieux à votre installation. Suivre les instructions
correspondantes.
Si le plancher n’est pas nivelé, placer des blocs de support sous la baignoire à hydromassage, si
nécessaire.
Option pour utilisation de lit de ciment ou de mortier
REMARQUE : Ne pas utiliser de plâtre ou un mélange pour cloison sèche pour cette installation, car ces
produits ne fourniront pas un scellement acceptable, et durable.
REMARQUE : Le support de pompe (une fois les sangles de retenue coupées) et les blocs de support
doivent reposer directement sur le sol.
Étendre une couche de ciment ou mortier de 2″(5,1 cm) d’épaisseur sur le plancher à l’endroit
d’installation de la baignoire. Ceci aidera à sécuriser, niveler et supporter l’unité. Ecarter tout
matériau de l’emplacement du montant de la pompe et des blocs de support.
Positionner une bâche en plastique sur le lit de ciment ou de mortier. Avec de l’assistance, soulever
et mettre soigneusement la baignoire à hydromassage en place et s’assurer que le support de pompe
et les blocs de support ne reposent pas sur le matériau de l’embase.
Insérer la pièce de raccordement du drain dans le siphon. S’assurer que la baignoire à
hydromassage soit nivelée et qu’elle repose sur tous les blocs de support.
Retirer la pellicule protectrice du rebord. Appliquer du mastic à la silicone de bonne qualité tout
autour du rebord de la baignoire à hydromassage.
Option pour l’utilisation de mastic adhésif de construction
Appliquer un adhésif de construction de haute qualité à la base des blocs de support. Avec de
l’assistance, soulever et mettre la baignoire à hydromassage en place avec précaution.
Insérer la pièce de raccordement du drain dans le siphon. S’assurer que la baignoire à
hydromassage soit nivelée et qu’elle repose sur tous les blocs de support.
Retirer la pellicule protectrice du rebord. Appliquer du mastic à la silicone de bonne qualité tout
autour du rebord de la baignoire à hydromassage.

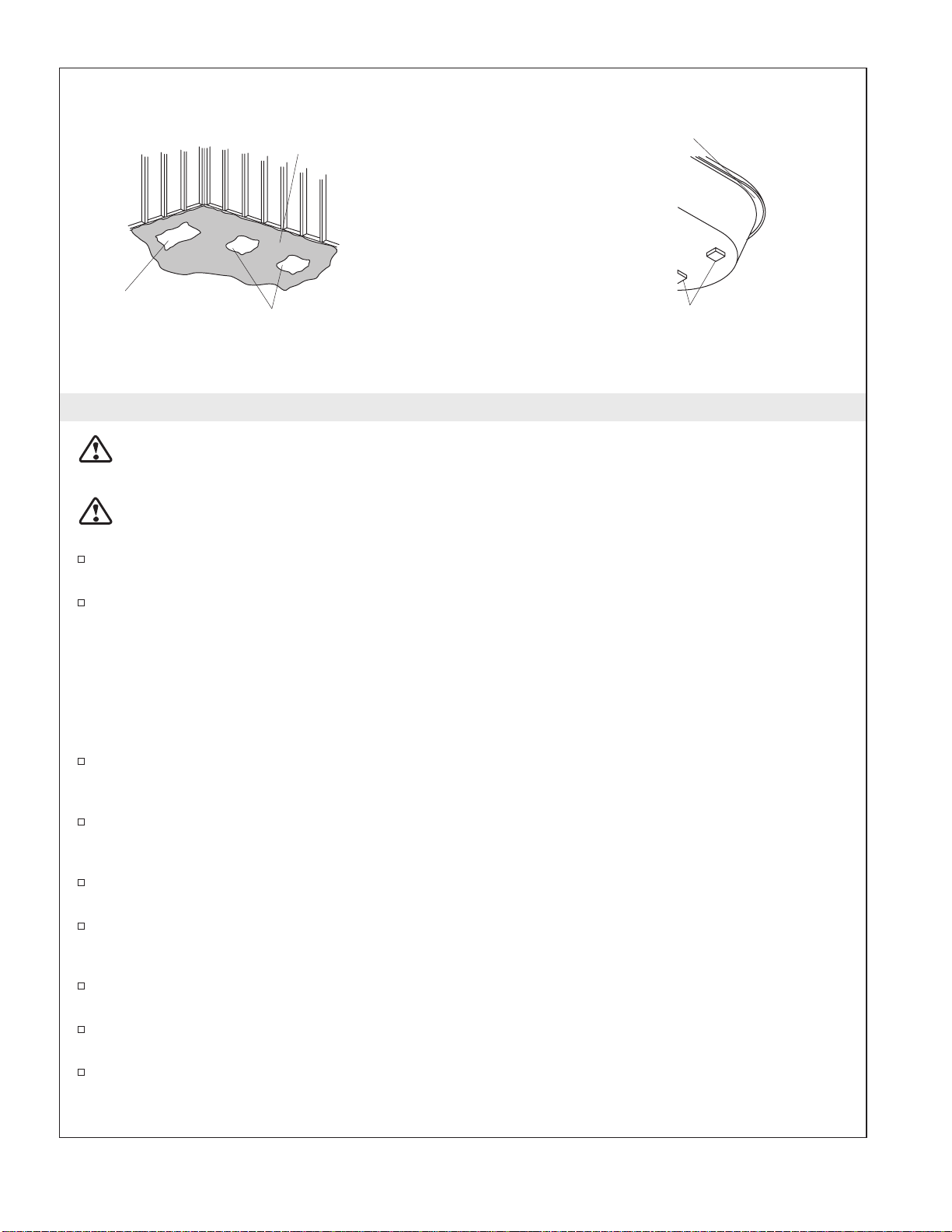

Étendre une couche
de béton ou mortier
de 2" (5,1 cm).
Dégagement pour
les blocs de support.
Dégagement
pour la pompe.
Appliquer un boudin
de mastic à la silicone
autour du rebord
ou
Appliquer du
mastic adhésif de
construction aux blocs
de support.
Kohler Co. Français-5 1010914-2-D

4. Sécuriser l’unité - Modèles avec base de baignoire à hydromassage
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour supporter la baignoire à
hydromassage.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par le rebord.
Choisir l’option d’installation qui s’applique le mieux à votre installation. Suivre les instructions
correspondantes.
Si le sol n’est pas nivelé, placer des cales sous la baignoire si nécessaire.
Option pour utilisation de lit de ciment ou de mortier
REMARQUE : Ne pas utiliser de plâtre ou un mélange pour cloison sèche pour cette installation, car ces
produits ne fourniront pas un scellement acceptable, et durable.
Étendre une couche de ciment ou mortier de 2″(5,1 cm) d’épaisseur sur le plancher à l’endroit
d’installation de la baignoire. Ceci aidera à sécuriser, niveler et supporter l’unité.
Positionner une bâche en plastique sur le lit de ciment ou de mortier. Avec de l’aide, positionner la
baignoire à hydromassage.
Insérer la pièce de raccordement du drain dans le siphon. Vérifier que la baignoire soit nivelée.
Utiliser des vis ou des tire-fonds pour fixer la base de la baignoire au sol. Percer des petits
trous-pilotes dans la base de la baignoire à hydromassage selon le besoin.
Option pour l’utilisation de mastic adhésif de construction
Appliquer du mastic adhésif de construction de haute qualité à la base de la baignoire à
hydromassage. Avec de l’assistance, soulever et mettre la baignoire à hydromassage en place avec
précaution.
Insérer la pièce de raccordement du drain dans le siphon. Vérifier que la baignoire soit nivelée.
Utiliser des vis ou des tire-fonds pour fixer la base de la baignoire au sol. Percer des petits
trous-pilotes dans la base de la baignoire à hydromassage selon le besoin.
Etaler une couche de ciment de 2"
(5,1 cm) ou un matériau de mortier.
Appliquer un
boudin de mastic à
la silicone autour
de rebord
ou
Appliquer de
l'adhésif de
construction.
1010914-2-D Français-6 Kohler Co.
