INSTRUCTION MANUAL
PS3395
IMPORTANT: Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before operating.
HIGH PRESSURE CLEANERS
7109782 PS3395 EuroQuip Manual.indd 1 4/4/2017 9:43:57 AM

2.
WARNING!
READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING.
FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY. GT POWER WILL NOT BE
LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.
www.powerblast.com.au
We Appreciate Your Business.
Thank you and congratulations for choosing Powershot , another quality product by
Powerblast.
This Operating Manual has been designed to instruct you on the correct use and
operation of your Powershot product. Your satisfaction with this product and its safe
operation is our ultimate concern. Therefore please take the time to read the entire
manual, especially the Safety Precautions. They will help you to avoid potential
hazards that may exist when working with this product.
Powerblast is a market leading provider of innovative power equipment solutions
to a wide range of industries across Australia.
Providing exceptional product support is a key component of Powerblast's market
leading customer advantage focus. As part of this program, it is required for all
products to be registered with Powerblast to qualify for product support. Products
not registered with Powerblast are supported by a base 12 month warranty only.
Spare parts and technical support will not be available for an unregistered product
outside of this base warranty period. If a Powerblast dealer has not already
registered your product, please register it online at www.powerblast.com.au. To
request a physical registration form, please contact Powerblast customer service on
1800 812 223
7109782 PS3395 EuroQuip Manual.indd 2 4/4/2017 9:43:57 AM

3.
Table Of Contents
Specications.................................................................................4
Symbol Usage ....................................................................................4
Quick Set-Up Guide ..........................................................................5
Quick Start Guide .............................................................................5
Power Washer Controls & Features...................................................7
Pressure Washer Terminology ...........................................................8
Assembly Instructions .......................................................................8
Operating the Power Washer ..........................................................9
Maintenance .....................................................................................13
Storage .............................................................................................14
Accessories............................................................................14
Service Information...........................................................................14
Troubleshooting ................................................................................15
ImportantSafetyInstructions..............................................................17
Warranty............................................................................................23
7109782 PS3395 EuroQuip Manual.indd 3 4/4/2017 9:43:57 AM

4.
Symbol Usage
This manual contains information that is important
for you to know and understand. This information
relates to protecting your safety and preventing
equipment problems. To help you recognize this
information, we use the symbols below. Please read
the manual and pay attention to these symbols.
DANGER! Indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING! Indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION! Indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
NOTE: Indicates a practice not related to
personal injury which, if not avoided, may
result in property damage.
Specifications
PS3395HD
PSI Max*: 3300psi
L/Minute Max*: 9.5L/min
High Pressure Hose: 10m
Presure of Inlet Water: 20-100psi
Inlet Water: Cold tap
Soap Consumption Rate: 10% max
* Rated Pressure and Rated Water Flow is within
manufacturing tolerance of (+/- 10%).
In a continued commitment to improve quality, the
manufacturer reserves the right to make component
changes, design changes, or specication changes
when necessary and without notice.
7109782 PS3395 EuroQuip Manual.indd 4 4/4/2017 9:43:57 AM

5.

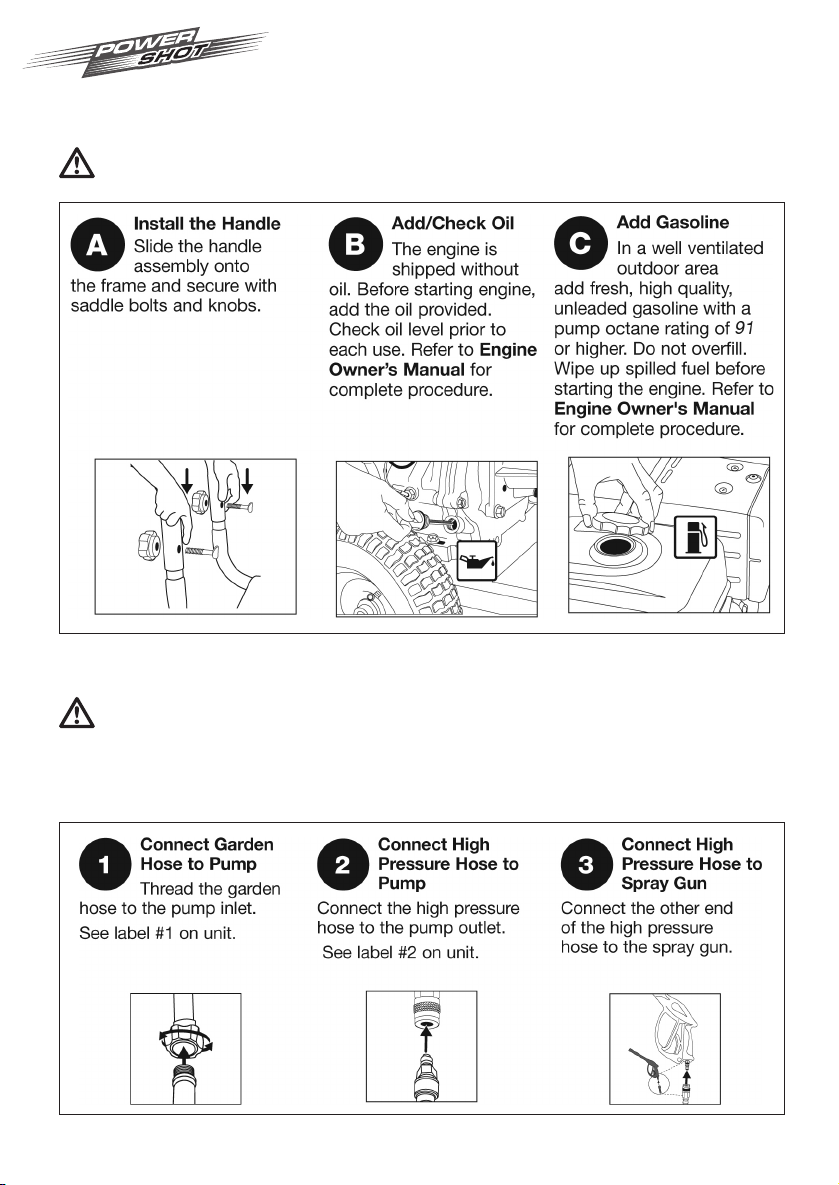

Quick Set-Up Guide
WARNING! To reduce the risk of injury, read the pressure washer instruction manual and
the engine instruction manual before operating pressure washer.
Quick Start Guide
DANGER! Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
Riskofuidinjectionandlaceration.Whenusingthehigh-pressuresetting,DONOTallowthehigh-
pressure spray to come in contact with unprotected skin, eyes or with any pets or animals. Serious
injury will occur.
7109782 PS3395 EuroQuip Manual.indd 5 4/4/2017 9:43:58 AM

6.
WARNING! This Guide is not a substitute for reading the operator’s manual.
User must read and understand operator’s manual before using this product.
7109782 PS3395 EuroQuip Manual.indd 6 4/4/2017 9:43:58 AM

7.

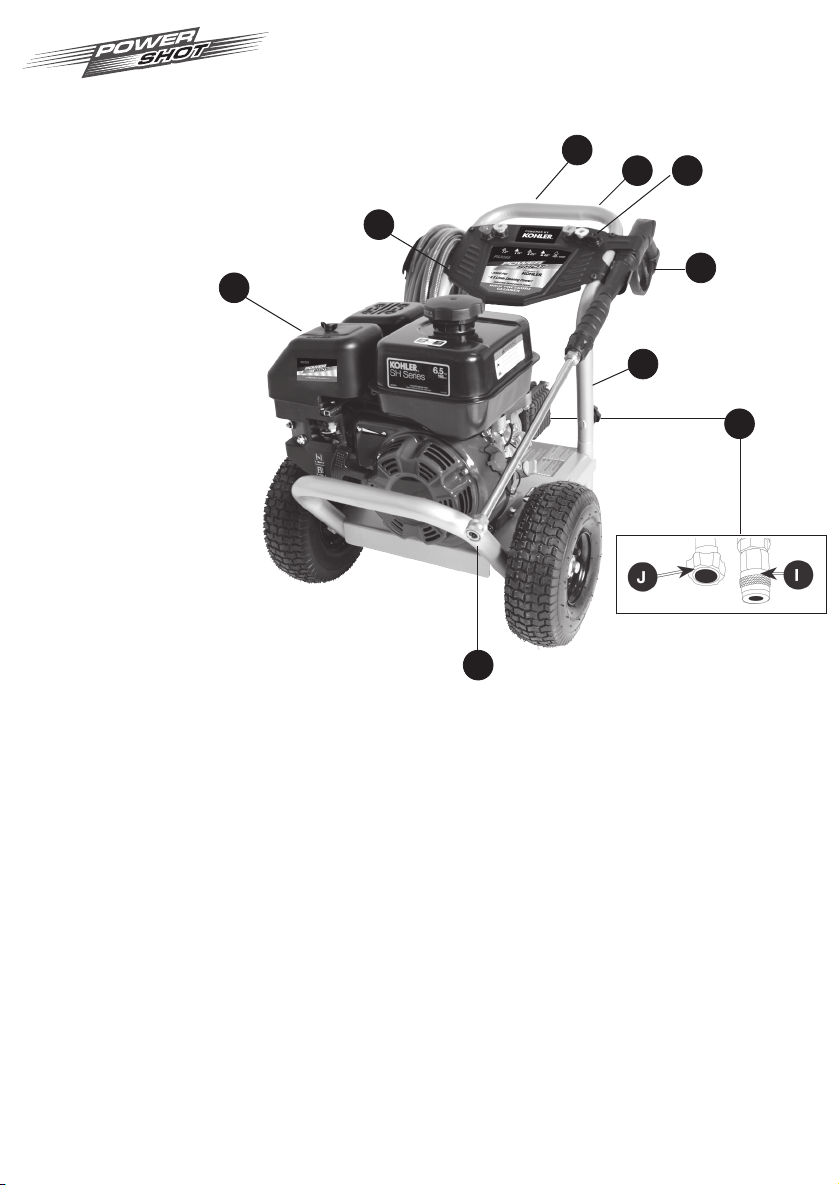

Power Washer Controls and Features
A
B
C
D
E
G
H
K
L
A. High Pressure
Pump: Increases
pressure of the
water supply.
B. Engine: Drives the
high pressure pump. (Refer to
the Engine Owner’s Manual
for location and operation of engine controls.)
C. High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
D. Spray Gun: Connects with spray wand to control
water ow rate, direction and pressure.
E. Quick-Connect Spray Wand: Allows the user to
quickly change out high pressure nozzles. (Refer to
How To Use Spray Wand instructions in Operation
section.)
F. Detergent Siphon Hose (not shown): Feeds
cleaning agents into the pump to mix with the water.
(See How To Apply Chemicals/Cleaning Solvents
instructions in Operation section.)
G. Handle
H. Frame
I. Pump Outlet
J. Pump Inlet
K. Quick Connect Nozzles
L. Nozzle Holder
NOTE: Photographs and line drawings used in this
manual are for reference only and do not
representaspecicmodel.
Compare the
illustrations
with your unit
to familiarize yourself
with the location of various
controls and adjustments.
Save this manual for future
reference.
Basic Elements of an Engine
Refer to the Engine Owner’s Manual for location and
operation of engine controls.
Choke Control: Opens and closes carburetor choke
valve.
Starter Grip: Pulling starter grip operates recoil
starter to crank engine.
Engine Switch: Enables and disables ignition
system.
7109782 PS3395 EuroQuip Manual.indd 7 4/4/2017 9:43:59 AM

8.
Assembly instructions
1. Locate and remove all loose parts from the
carton.
2. Cut four corners of the carton from top to bottom
and lay the panels at.
3. Slide the handle assembly (G) onto the frame (H)
and secure with saddle bolts and knobs.
NOTE: Risk of personal injury. Avoid placing hands
between handle and frame when assembling to
prevent pinching.
4. Remove colored quick connect nozzles (K) from
plastic bag and insert them into nozzle holder (L).
NOTE: Nozzles are color coded to match colored
nozzles on panel.
5. Connect wand (E) to gun (D). Tighten securely.
6. Attach high pressure hose (C) to gun (D). Tighten
securely.
NOTE: The engine is shipped without oil. Before
starting engine, add the correct amount of oil recom-
mendedoil(SAE30).Damagetotheenginewill
occur if the engine is run without oil, this damage will
not be covered under warranty.
NOTE: Thehigh-pressurepumpwaslledwithoilat
the factory. Always check oil level before using (refer
to Maintenance for more information).
Pressure Washer Terminology
PSI (Pounds per Square Inch): The unit of meas-
ure for water pressure. Also used for air pressure,
hydraulic pressure, etc.
LPM (Litres Per Minute): The unit of measure
for the ow rate of water.
CU (Cleaning Units): LPM multiplied by psi
equals CU.
Bypass Mode: Allows water to re-circulate within
the pump when the gun trigger is not pulled. This
feature allows the operator to release the trigger gun
and reposition themselves without having to turn the
engine off in between cleaning actions.
NOTE: Allowing the unit to run for more than two
minutes without the gun trigger being pulled could
causeoverheatinganddamagetothepump.Do
not let the pressure washer run for more than two
minutes in Bypass Mode. Turn off the engine and
relieve the pressure in the gun during these
extended situations.
Thermal Relief Valve (Q): When
the temperature inside the pump
rises too high, this valve will open
and release a gush of water in an
effort to lower the temperature
inside the pump. The valve will
then close.
Detergent Injection System: Mixes cleaners or
cleaning solvents with the water to improve cleaning
effectiveness.
Water Supply: All pressure washers must have a
source of water. The minimum requirements for a
water supply are 20psi and 20 litres per minute.
If your water source is a well, the garden hose length
can only be 30ft. (9m) max.
WARNING: To reduce the possibility of
contamination always protect against
backowwhenconnectedtoapotablewater
system.
7109782 PS3395 EuroQuip Manual.indd 8 4/4/2017 9:44:00 AM

9.
Pressure Adjustments
The pressure setting is preset at the factory to
achieve optimum pressure and cleaning. If you need
to lower the pressure, it can be accomplished by
these methods.
1. Back away from the surface to be cleaned. The
further away you are, the less the pressure will be
on the surface to be cleaned.
2. Use the Dial-N-Wash to increase and decrease
the pressure. Refer to the Dial-N-Wash Adjust-
ment paragraph.
NOTE: DONOTattempttoincreasepumppressure.
A higher pressure setting than the factory set
pressure may damage pump.

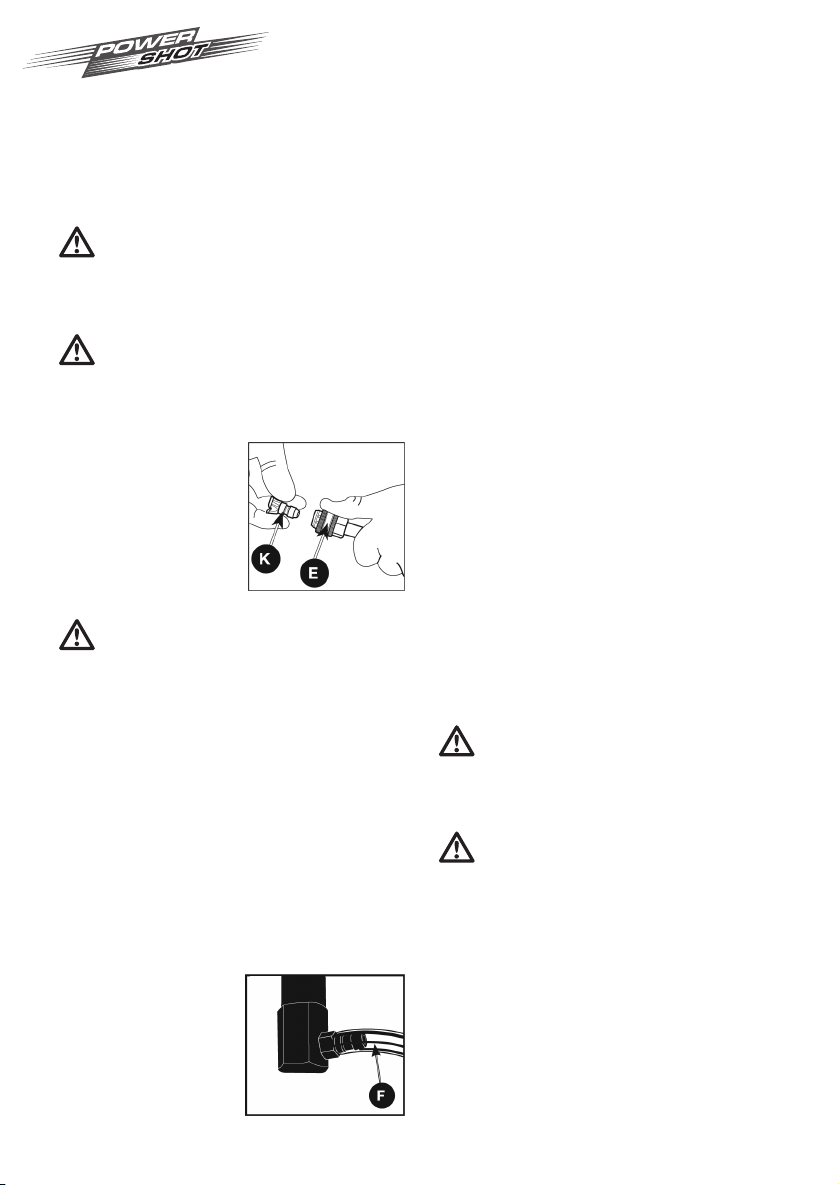

How to use the Spray Wand
The nozzles for the spray wand are stored in the
nozzle holder on the panel assembly. Colors on the
panel identify nozzle spray pattern.
Refer to the following chart to choose the correc
nozzle for the job to be performed.
Operating the Power Washer
NOTE: The high pressure spray from your pressure
washer is capable of causing damage to surfaces
such as wood, glass, automobile paint, auto striping
andtrim,anddelicateobjectssuchasowers
and shrubs. Before spraying, check the item to be
cleaned to assure yourself that it is strong enough to
resist damage from the force of the spray.
Red - 0o
USES: SURFACES:
Powerful pinpoint
for spot cleaning
of hard, unpainted
surfaces or for
high reach areas.
Intense cleaning
of unpainted
hard surfaces.
Standard cleaning
nozzle for most
applications.
Cleaning of
painted or
delicate surfaces.
Applies cleaning
solutions.
Unpainted metal
or concrete.
DO NOT use on
wood.
Grills, driveways,
concrete or
brick walkways,
un-painted brick or
stucco
Yard tools, sidewalks,
unpainted siding, lawn
furniture, stucco,
concrete, gutters and
eaves, brick surfaces.
Auto / RV, marine,
wood, painted brick
and stucco, vinyl,
painted siding.
Low pressure spray is
safe on all surfaces.
Always verify compat-
ibility of cleaning
solution prior to use.
Yellow - 15o
Green - 25o
White - 25o
Black - Low
Pressure
7109782 PS3395 EuroQuip Manual.indd 9 4/4/2017 9:44:00 AM

10.
Changing Nozzles on Spray Wand
The nozzles for the spray wand are stored in the
nozzle holder on the panel assembly. Colors on the
panel identify nozzle spray pattern.
DANGER! Riskofuidinjection.Donotdirect
discharge stream toward persons, unprotect-
ed skin, eyes or any pets or animals. Serious
injury will occur.
WARNING! Flying objects could cause risk of
seriousinjury.Donotattempttochangenoz-
zles while pressure washer is running. Turn
engine off before changing nozzles.
1. Pull quick-connect
coupler (E) back and
insert nozzle (K).
2. Release quick-connect
coupler and twist nozzle
to make sure it is secure
in coupler.
WARNING! Flying object could cause risk of
serious injury. Ensure nozzle is completely
insertedinquickconnectsocketandquick-
connect collar is fully engaged (forward)
before squeezing gun trigger.
Applying Chemicals & Solvents
Applying chemicals or cleaning solvents is a low
pressure operation.
NOTE: Use only soaps and chemicals designed for
pressurewasheruse.Donotusebleach.
1. Ensure detergent siphon hose (F) is attached to
barbed tting location near high pressure hose
connection of pump
as shown.
2. Place other end of siphon
hose (with lter on) into
container holding
chemical / cleaning
solution.
NOTE: For every 7 litres of water pumped
1 litre of chemical/cleaning solution will be used.
3. Install the black low pressure nozzle into the
quick connect tting of the spray wand and rotate
the Dial-N-Wash (M) to the MAX pressure setting
as shown in ‘How To Use Spray Wand’ on the
previous page.
NOTE: To apply chemicals the black low pressure
nozzlemustbeinstalledandtheDial-N-Washmust
be in the MAX pressure setting as shown in ‘How To
UseSprayWand’onthepreviouspage.
4. After use of chemicals, place detergent siphon
hose into container of clean water and draw clean
water through chemical injection system to rinse
system thoroughly. If chemicals remain in the
pump, it could be damaged. Pumps damaged
due to chemical residue will not be covered under
warranty.
NOTE: Chemicals and soaps will not siphon if the
black soap nozzle is not installed on the spray wand.
Starting the Pressure Washer
WARNING! To reduce the risk of injury, read
the pressure washer instruction manual and
the engine instruction manual before starting
pressure washer.
DANGER! Riskofuidinjectionandlacera-
tion.Whenusingthehighpressuresetting,
DONOTallowthehighpressuresprayto
come in contact with unprotected skin, eyes,
or with any pets or animals. Serious injury will
occur.
Your washer operates at uid pressures and veloci-
ties high enough to penetrate human and animal
esh, which could result in amputation or other
serious injury.
Leaks caused by loose ttings or worn or dam-
aged hoses can result in injection injuries. DO NOT
7109782 PS3395 EuroQuip Manual.indd 10 4/4/2017 9:44:00 AM
