Kohler K-4744 Assembly instructions

Installation and Care Guide
Bidet Seat
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page“ Français-1”
Español, pagina “Español-1”
K-4744
1093479-2-A

IMPORTANT INFORMATION
SAVE THESE INSTRUCTIONS
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
DANGER: To reduce the risk of electrocution:
Do not place or store this appliance where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of low-grade burns, electric
shock, fire or injury to persons:
Close supervision is necessary when this appliance is used by or
near the very young, the elderly, or invalids. Children should not
be permitted to use or touch this appliance. Do not leave children
unattended in any room where this product is installed. Adjust
the temperature of the toilet seat for the elderly, those who are
incapacitated, or persons with sensitive skin.
Use this appliance only for its intended purpose as described in
the manual. Do not use attachments not recommended by Kohler
Co.
Never operate this appliance if it has a damaged cord or plug, if
it is not working properly, if it has been dropped, damaged, or
dropped into water.
Install this product properly by following the installation
procedure.
Only authorized persons can install or repair the unit. Do not
attempt to service this appliance yourself, doing so could void the
warranty.
Keep the cord away from heated surfaces.
Never drop or insert any objects into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Always follow the grounding instructions in this manual before
plugging in the unit.
1093479-2-A 2 Kohler Co.

Table of Contents
IMPORTANT INFORMATION ............................. 2
Tools and Materials .................................... 3
Before You Begin ...................................... 3
Wiring Requirements ................................... 6
Specifications ........................................ 6
Install an Electrical Outlet ................................ 9
Install the Mounting Plate ............................... 10
Install the Seat ....................................... 11
Connect the Water Supply .............................. 13
Install the Remote Holder ............................... 14
Installation/Operation Checkout .......................... 16
Care and Cleaning .................................... 16
One-Year Limited Warranty .............................. 17
One-Year Warranty ................................... 18
Test the Functions .................................... 20
Remote/Keypad Diagram ............................... 21
Operation .......................................... 22
Clean the Nozzle ..................................... 24
Remove the Seat ..................................... 25
Clean the Screen ..................................... 26
Drain the Seat ....................................... 27
Servicing Information .................................. 27
Troubleshooting ...................................... 27
Tools and Materials
Before You Begin
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
120 VAC, 60 Hz circuit protected by a minimum 15 Amp
Blade
Screwdriver
Adjustable
Wrench
Drill
Kohler Co. 3 1093479-2-A

Before You Begin (cont.)
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current
Device (RCD).
WARNING: Risk of electric shock or product damage. Do
not immerse or flush the product with water.
IMPORTANT! Risk of product damage. Do not plug in the seat
until all other installation steps have been completed.
IMPORTANT! Risk of product damage. Do not block the air
openings. Keep the air openings free of debris, such as lint and hair.
IMPORTANT! Risk of product damage. Do not install this seat in a
location where water might be splashed on the product.
IMPORTANT! Risk of product damage. Do not install this seat in a
location exposed to excessive moisture where condensation might
form on the product surface. Provide adequate ventilation when
bathing to avoid damage to the electronic components due to high
humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands. Product may break.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during storage during
the winter. Allow the unit to warm to room temperature before
reinstalling or using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed; it could cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
Observe all local plumbing and building codes.
Do not use an extension cord with the product.
1093479-2-A 4 Kohler Co.

Before You Begin (cont.)
Connect to a cold water supply with a pressure of 20-80 psi
(139-551 kPa).
Connect only to cold water supply line carrying water of drinking
quality.
Unplug the seat and drain the seat if the functions of the seat will
not be operated for an extended period of time.
All information in these instructions is based on the latest product
information available at the time of publication. Kohler Co.
reserves the right to make changes at any time without notice.
Kohler Co. 5 1093479-2-A

Wiring Requirements
Preferred Connection
This product is for use on a nominal 120 VAC circuit and has a
grounding plug that looks like the plug illustrated. Using a
higher voltage circuit is dangerous and may result in a fire or
other accident.
Temporary Connection
IMPORTANT! Unless the cover screw is grounded through the
house wiring, attaching the adaptor grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adaptor may be made
where local codes permit, provided that the adaptor is grounded.
Specifications
Water supply pressure 20 psi (139 kPa) - 80 psi
(551 kPa)
Maximum electrical rating 120 VAC / 60 Hz / 1260
W
Power cord length 3.83’ (1.17 m)
Water heater rating 1200 W
Grounded Outlet
Seat
Cover Screw
Adapter
Grounded Outlet Box
Grounding Pin
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
1093479-2-A 6 Kohler Co.

Specifications (cont.)
Cleaning Wand spray
flow Posterior flow, plus aeration .145 gpm (.55 lpm)
Anterior flow,
plus aeration .145 gpm (.55 lpm)
Number of spray wands 2
Spray location adjustment 5 positions
Cleaning water temp Off / 95°F (35°C) / 99.5°F
(37.5°C) / 104°F (40°C)
Oscillation cleaning On/Off
Pulsate cleaning On/Off
Safety
devices In-line heater, overheating
prevention
Water outlet thermal
cut-out, housing thermal
fuse, heating element
thermal cut-out, water
flow sensor
Back-flow
prevention Vacuum breaker
Comfort Heated seat Heater rating 50 watts
Temperature
adjustments Off / 95°F (35°C) / 99.5°F (37.5°C) / 104°F (40°C)
Safety
adjustments Thermal fuse, heating element thermal cut-out
Warm air
blower Fan air flow 7.8 cu ft/min (.22 cu m/min)
Heater rating 250 Watts
Temperature
adjustment Off / 100°F (37.7°C) / 122°F (50°C) / 140°F
(60°C)
Safety devices Thermal fuse, heating
element thermal cut-out
Deodorize Deodorization
type Oxygen deodorizer catalyzing filter
Fan air flow 7.8 cu ft/min (.22 cu
m/min)
Cover closing Slow-close
Seat closing Slow-close
Sanitary Self-cleaning nozzle Automatically performs
rinse cycle before and after
each use
Quick-release body Lever activated by push
button
Anti-microbial material Seat and nozzle parts
Kohler Co. 7 1093479-2-A

Specifications (cont.)
Other Power switch On/Off
Energy save On/Off
Safety/User sensor Touch type - switch
hidden in seat
Night lighted bowl 2 blue LED’s - Auto
On/Off
1093479-2-A 8 Kohler Co.

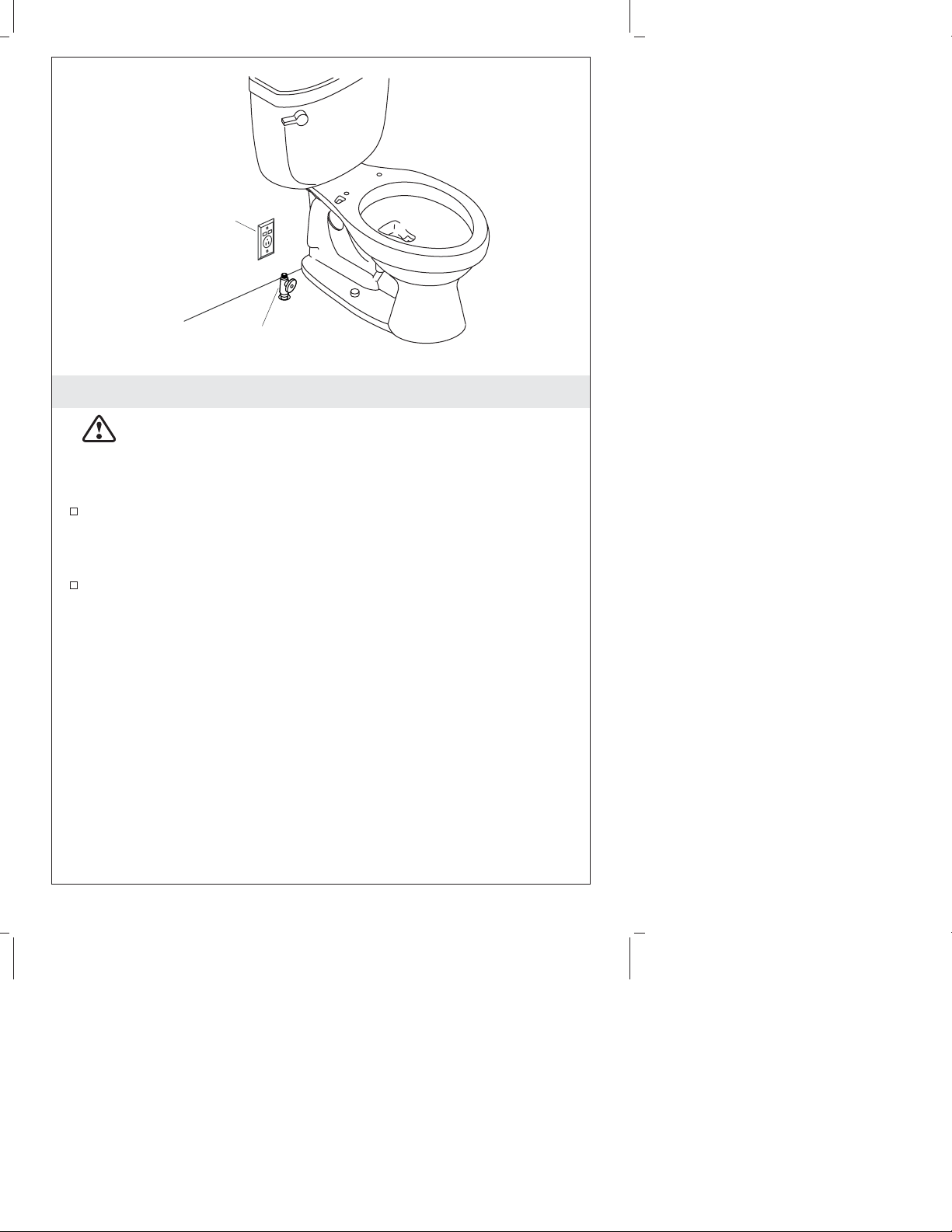

1. Install an Electrical Outlet
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
120 VAC, 60 Hz circuit protected by a minimum 15 Amp
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current
Device (RCD).
Do not use an extension cord with the product.
NOTE: Follow local codes when determining the electrical outlet
location.
Route the electrical and install to a 120 V GFCI- or RCD-protected
receptacle. The electrical outlet should be located within 12″(30.5
cm) of the toilet to accommodate the length of the power cord.
Supply Stop
GFCI/RCD-Protected
Receptacle
Kohler Co. 9 1093479-2-A

2. Install the Mounting Plate
Position the mounting plate over the toilet mounting holes.
Slide a washer onto each of the bolts.
NOTE: Some toilets come with threaded inserts pre-installed in the
mounting holes. For toilets with threaded inserts, the nut is not
required.
For Toilets with Threaded Inserts:
Insert a bolt through the mounting plate and position the washers
so they rest in the grooves of the mounting plates.
Loosely thread the bolts into the inserts. Do not overtighten.
For All Other Installations:
Insert a bolt through the mounting plate and the toilet mounting
holes.
Position the washers so they rest in the grooves of the mounting
plate.
Thread a nut onto each of the bolts. Handtighten the nut.
Mounting Plate
17-1/4"
(43.8 cm)
Bolt
Washer
Nut
1093479-2-A 10 Kohler Co.

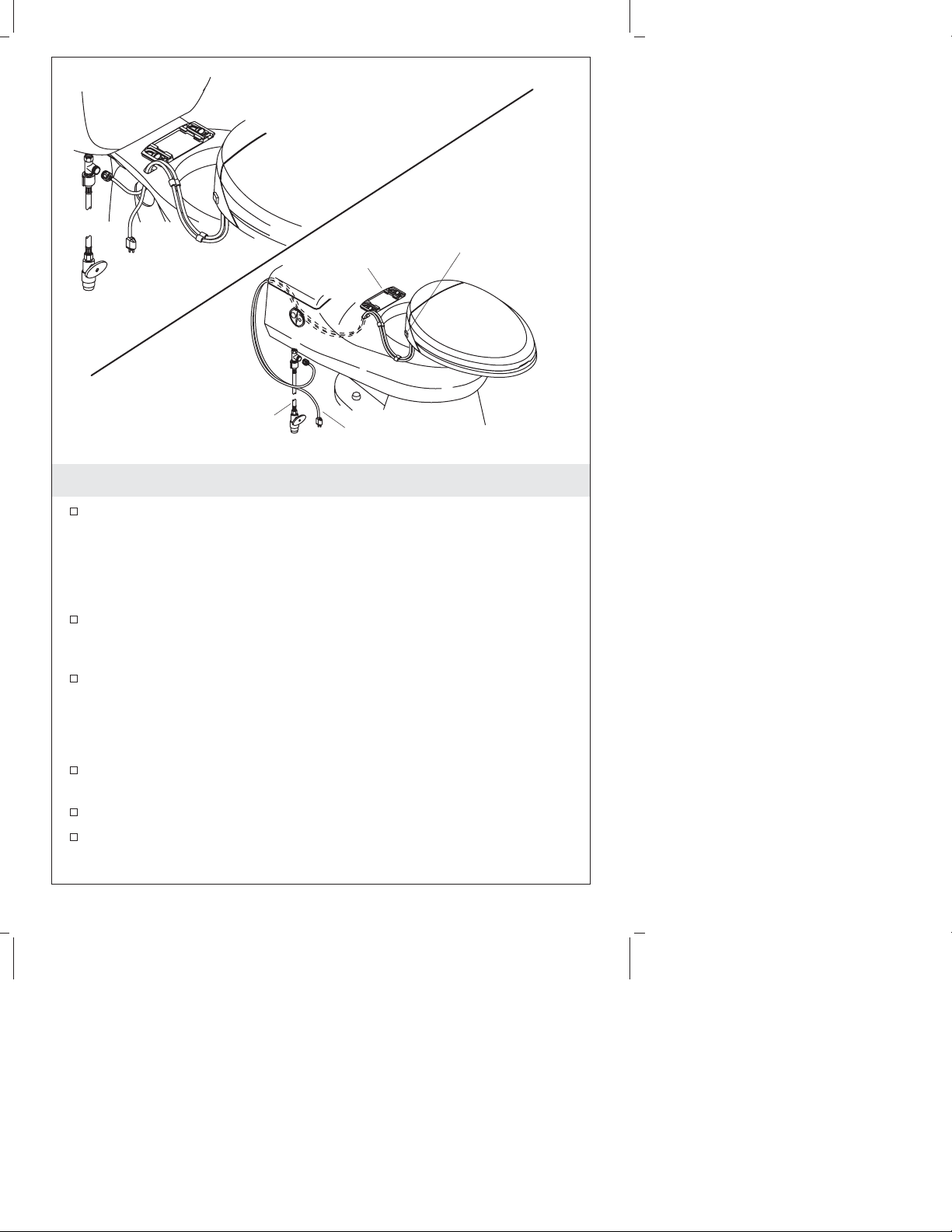

3. Install the Seat
When installing the seat to the K-3608 toilet, run the power cord
and supply line through the opening in the toilet.
NOTE: For the K-3607 toilet, route the cord and supply line
alongside the inside tank wall to not interfere with the fill valve
operation.
When installing the seat to the K-3607 toilet, run the power cord
and supply line through the opening in the tank, through the
tank and out the opening in the back of the tank.
Slide the seat onto the mounting plate until you feel it snap into
place.
NOTE: The mounting plate may need to be adjusted to properly
align the seat.
To adjust the seat position, remove the seat by pressing in the
release button and sliding the seat forward.
Reposition the mounting plate as needed.
Reinstall the seat. Repeat the adjustment procedure as needed
until seat is properly aligned.
Mounting
Plate
Supply Line
K-3607
K-3608
Power Cord
Release Button
Kohler Co. 11 1093479-2-A

Install the Seat (cont.)
Once the seat is positioned as desired, remove the seat and
securely tighten down the mounting plate.
Reinstall the seat.
1093479-2-A 12 Kohler Co.

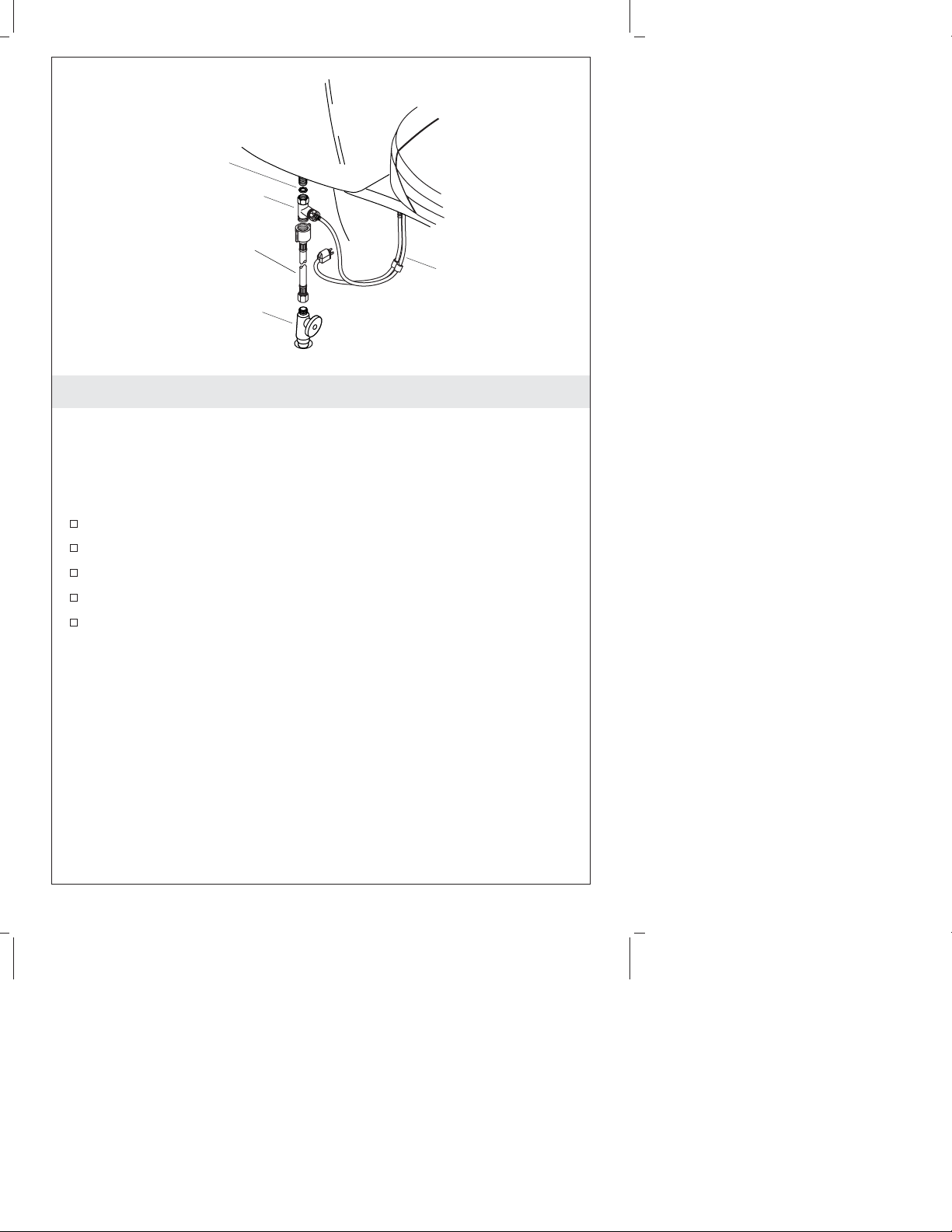

4. Connect the Water Supply
IMPORTANT! Risk of product damage. Use care not to crossthread
or overtighten connections. Hand tighten plus one-quarter turn is
sufficient for tightening.
IMPORTANT! Risk of product damage. Use care not to scratch the
product surfaces.
Connect the T-valve directly to the toilet fill valve.
Connect the T-valve to the toilet seat with the supplied hose.
Connect the water supply to the T-valve.
Turn on the water supply.
Check all connections for leaks and make any adjustments as
needed.
Hose
Supply Stop
T-Valve
Gasket
Hose
Kohler Co. 13 1093479-2-A

5. Install the Remote Holder
Choose a mounting location for the remote holder that is easily
accessible while sitting on the seat.
The remote holder can be installed using screws or double-sided
tape. Choose your preferred method for securing the remote
holder. Follow only the instructions for your chosen installation
method.
Install Using Screws
NOTE: Anchors may not be needed for installation to certain
materials. Use the appropriate mounting hardware for your
particular installation surface.
Position the remote holder at the desired mounting location with
the rectangular indent toward the bottom (as shown).
Using a pencil, mark the two mounting hole locations. Set the
holder aside.
For installation to stud or other wood surface: Drill a 1/16″hole
at each of the marked locations.
For installation using wall anchors: Drill a 1/4″hole at each of
the marked locations. Install the wall anchors into the holes.
Position the remote holder over the mounting holes so the
rectangular indent is toward the bottom.
Secure the remote holder with the screws.
PRESET
FRONTREAR
OSCILLATEPULSATE
STOP
NOZZLE
BACKWARDNOZZLE
FORWARD
DEODORIZER
H2OTEMP.SEATTEMP.
AIRTEMP.AIRSPEED
Remote Holder
If used, apply tape here.
Anchors Screws
Remote
Covers
1093479-2-A 14 Kohler Co.

Install the Remote Holder (cont.)
Install the caps to cover the screws.
Position the remote into the holder with the user preset icons
facing up.
Install Using Double-Sided Tape
Remove the paper from one side of each of the tape squares.
Install a tape square in each of the rectangular areas located on
the back of the remote holder.
NOTE: Before mounting the remote holder, verify the rectangular
indent is toward the bottom.
Remove the paper from the tape squares.
Press the remote holder into place.
Position the remote into the holder with the user preset icons
facing up.
Kohler Co. 15 1093479-2-A

6. Installation/Operation Checkout
Wrap the toilet seat with plastic wrap to prevent water from
spraying from the toilet during testing.
Plug in the power cord.
Attach the clips evenly along the hose and power cord.
The seat is activated by skin-to-seat contact. Unless otherwise
stated, the seat must be occupied to activate the functions. To
activate the seat controls for testing purposes, when facing the
toilet, place your hand or a damp wash cloth on the right side of
the seat approximately 1/3 from the front of the seat (as
illustrated).
Proceed to the ″Remote/KeypadDiagram″and “Operation”
section to test the various seat functions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
Supply Stop
GFCI/RCD-
Protected
Receptacle
1093479-2-A 16 Kohler Co.

Care and Cleaning (cont.)
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Clean surfaces and completely wipe away any cleaner
immediately after cleaner application. Wipe away and dry any
overspray that lands on nearby surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
One-Year Limited Warranty
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs. Use of in-tank
toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the
USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from
within Mexico.
Implied warranties including that of merchantability and fitness for
a particular purpose are expressly limited in duration to the duration
of this warranty. Kohler Co. and/or seller disclaims any liability for
special, incidental or consequential damages.
Some states/provinces do not allow limitations on how long an
implied warranty lasts, or the exclusion or limitation of special,
incidental or consequential damages so these limitations and exclusions
may not apply to you. This warranty gives you specific legal rights.
You may also have other rights which vary from state/province to
state/province.
This is Kohler Co.’s exclusive written warranty.
Kohler Co. 17 1093479-2-A

One-Year Warranty
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
1093479-2-A 18 Kohler Co.

One-Year Warranty (cont.)
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 19 1093479-2-A

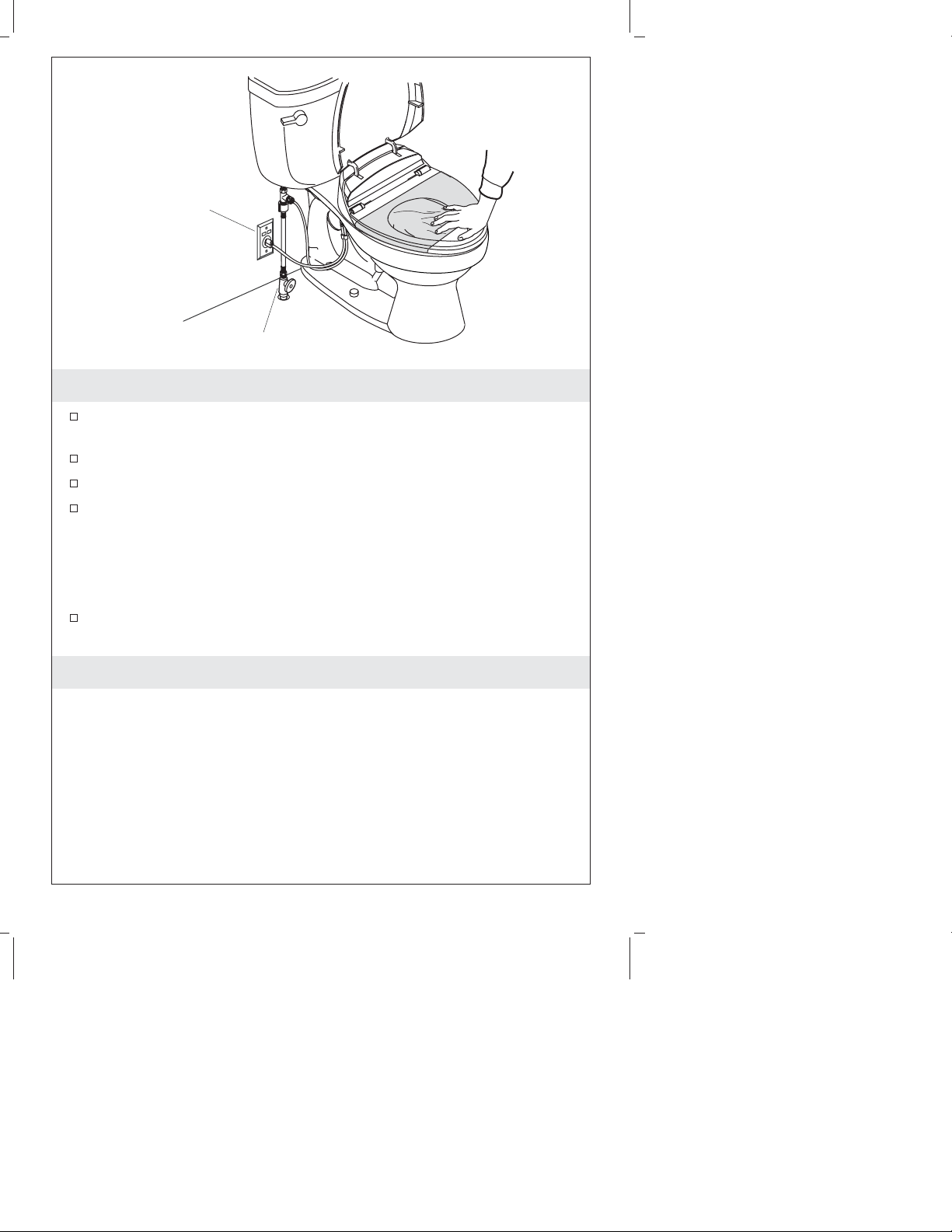

Test the Functions
Wrap the seat with plastic wrap to prevent water from spraying
from the toilet during testing.
The seat is designed not to function without an occupant. To
activate the seat controls for testing purposes, when facing the
toilet, place your hand or a damp wash cloth on the right side of
the seat approximately 1/3 from the front of the seat (as
illustrated).
Proceed to the ″Remote/KeypadDiagram″and “Operation”
section to test the various seat functions.
Supply Stop
GFCI/RCD-
Protected
Receptacle
1093479-2-A 20 Kohler Co.
