INSTALLATION MANUAL
Applied Machine: / /
//
I. Outline of Installation Procedures for bizhub 362/ bizhub 282/ bizhub 222
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
Installation Manual and perform the procedures correctly.
• Once the power switch is turned ON, do not turn it OFF until the installation work has been completed.
• When transporting or moving the machines, assign adequate number of persons. (Machine mass: 74 kg/
169-1/2 lb)
HD-504
PC-108 PC-407PC-206
Dehumidifier Heater 1C
DF-620
JS-502FS-530
SD-507
OT-602
Machine
PU-501
EM-303/
EM-304/
EM-305
FK-503SU-501MT-502
ML-502
EK-502
OC-510
SC-504
DK-506*
MK-709*
SP-501
* Depending on the applicable marketing area.
A11UIXC006MA
A11U-9640-00E.fm 1 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-2

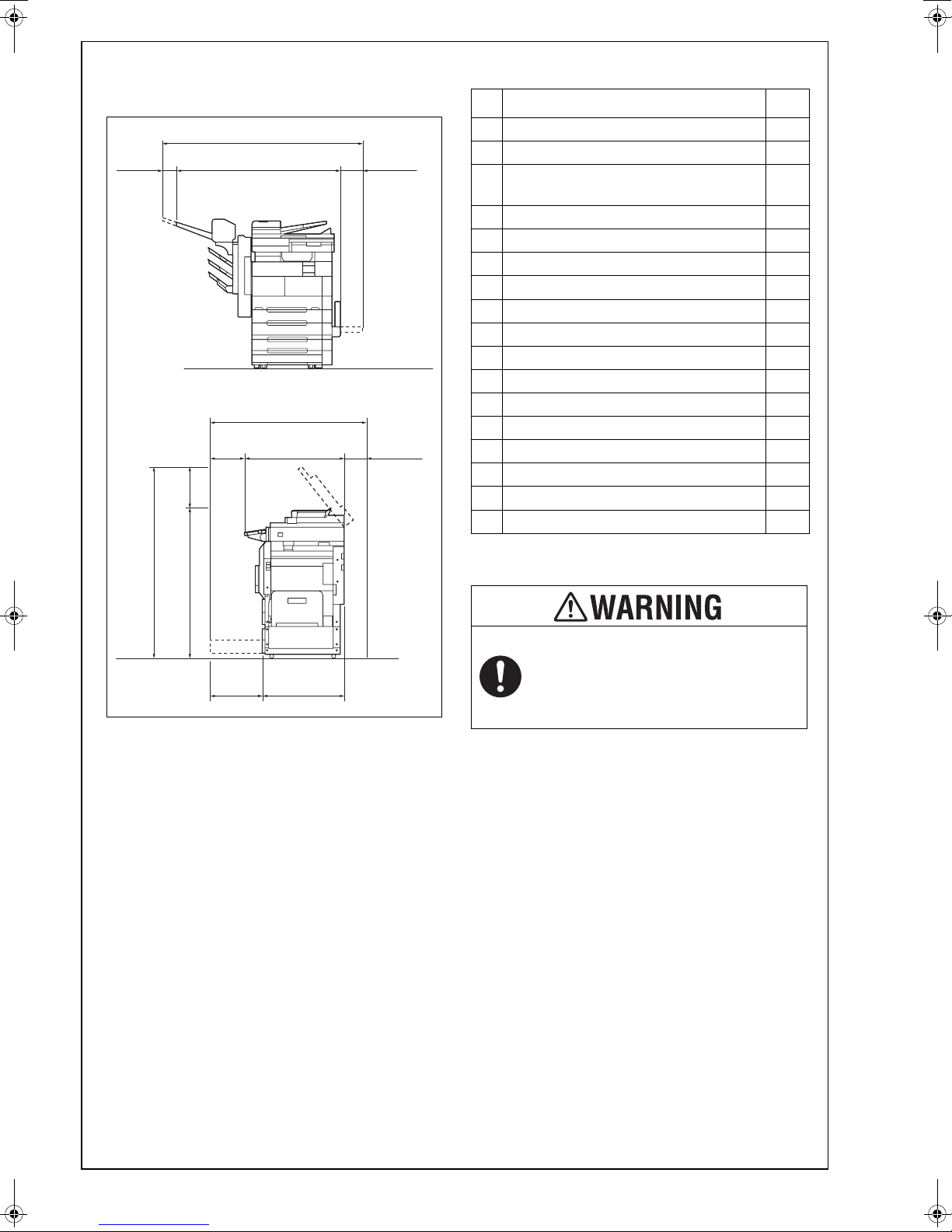

II. Installation Space (unit: mm (inch))
bizhub 362 + PC-206 + SD-507 + DF-620
III. Pre-installation Check Items
1. Select a level and stable place for installing the
machine.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
IV. Accessory Parts
* Varies depending on the applicable marketing
area.
A11UIXC007MA
1757 (69-1/4)
1312 (51-3/4)
324
(12-3/4)
121
(4-3/4)
1138 (44-3/4)
710 (28) 100 (4)
328
(13)
422
(16-1/2)
616
(24-1/4)
1500 (59)
1116 (44)
384 (15)
No. Name Q’ty
1. User’s Guide (Copy Operations)* 1
2. User’s Guide (Box Operations)* 1
3. User’s Guide
(Network Scanner Operations)* 1
4. Quick Guide (Print Operations)* 1
5. Installation Manual (this manual) 1
6. Power Cord Instruction* 1
7. Tray Label 1
8. Scanner Lock Lever Seal 1
9. User’s Guide Holder 1
10. Power Cord* 1
11. Cord Clamp 1
12. Screw 1
13. Stater 1
14. Mylar 1 set
15. CD-ROM* 1 set
16. Banding Band* 1
17. Ferrite Core* 1
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting your head in the wrapper involves
danger of suffocation.
A11U-9640-00E.fm 2 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-3
V. Removing Machine from Packaging Box
1. Unpack the packaging box and remove cushion-
ing materials and plastic bags from the box.
2. Hold the portions indicated in the illustration with
two persons. While keeping the machine level,
take it out from the box.
Note:
Machine mass: 74 kg/169-1/2 lb
When transporting or moving the machine, assign
adequate number of persons.
VI. Removing Protective Tape and Packag-
ing Materials and Unlocking Scanner
1. Remove pieces of protective tape and packaging
materials.
2. Open the right door and remove the protective
tape.
3. Push the lever in the direction of the arrow and
remove the spacer from the transfer roller.
4. Close the right door.
A11UIXC001MA
A11UIXC002MA
A11UIXC003MA
A11UIXC008MA
A11U-9640-00E.fm 3 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-4
5. Slide out the drawer and remove the protective
tape.
6. Slide the drawer back in.
7. Remove the protective sheet.
8. Turn the scanner lock lever to unlock the scan-
ner.
9. Affix the scanner lock lever seal.
VII. Loading the Starter
1. Open the right door and remove the imaging unit
(IU).
2. Remove screws that secure the PC drum unit in
position (two silver screws each on the right and
left sides).
3. Slightly opening the lower part (the shadowed
portion) on both sides of the PC drum unit, take
out the PC drum unit.
Note:
Do not touch or scratch the PC drum.
Cover the PC drum unit, which has been
removed, with a protective cloth or similar mate-
rial.
4. Remove the developing unit cover (three
screws).
A11UIXC004MA
A11UIXC009MA
A11UIXC010MA
A11UIXC011MA
A11UIXC012MA
Developing unit
PC drum unit
A11UIXC013MA
A11U-9640-00E.fm 4 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-5
5. Remove the toner supply port.
6. Remove the liner from the Mylar sheet included in
the machine.
7. Attach the Mylar sheets (two places).
Note:
Make sure that the collar is completely covered
with the Mylar sheet.
8. Ready a packet of starter and cut off one corner
of the aluminum packet with scissors.
9. While turning the gear in the direction of the
arrow, pour the packet of starter evenly into the
developer chamber.
Note:
• Turn the magnet roller in the direction of its nor-
mal rotation, and not the backward.
• Not touching the gear of A side.
• Be sure not to let starter get inside the collar.
10. Remove the Mylar sheets that were attached in
step 7 (two places).
Note:
Discard the removed Mylar sheets.
A11UIXC014MA
A11UIXC060MA
A11UIXC015MA
Collar
Collar
A11UIXC016MA
A11UIXC017MA
A
Collar
A11U-9640-00E.fm 5 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-6
11. Reinstall the toner supply port.
Note:
Make sure of the correct mounting position and
direction.
12. Reinstall the developing unit cover, ensuring
that its tabs are fitted properly into the slits
(three screws).
13. Align the shaft of the developing unit with the
inner guide of the PC drum unit.
14. Slide the PC drum unit along the guide to check
that the positioning pin is properly aligned with
the mating hole.
15. Screw the PC drum unit in position (two silver
screws each on the right and left sides).
Note:
Use care not to touch or scratch the PC drum.
Note:
Do not install the imaging unit (IU) into the
machine. imaging unit (IU) is installed at the ATDC
adjustment.
VIII. Plugging in CSRC Modem Cable
Note:
• This step may not be performed depending on
the applicable marketing area.
• Step 1 and 2 are necessary only when con-
ducting remote diagnosis by CSRC using the
phone line modem.
1. Insert the CSRC modem cable to the machine.
2. Mount the ferrite core to the cable, and mount the
banding band under the ferrite core.
Note:
Mount the ferrite core within 50 mm from the con-
nector.
A11UIXC018MA
A11UIXC019MA
Tighten this screw first
4030U016AD
Positioning pin
Guide
Shaft
Guide
Shaft
4040IXC144DA
A11U-9640-00E.fm 6 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-7
IX. Plugging in Power Cord and Turning
Power ON
1. Plug in the power cord to the machine.
2. Connect the power cord to a power outlet.
3. Fit the cord clamp included in the machine over
the power cord. (one screw included in the
machine).
4. Turn ON the power switch located on the left side
in the rear.
5. Turn ON the sub switch located on the side of the
control panel.
X. Clearing the Counters
1. Call the Tech. Rep. Mode to the screen. (For the
procedure, see the Service Manual.)
2. Select functions in this order: Tech. Rep. Mode →
Counter →Special Parts Counter.
3. Using the Clear key, clear “PC Life” and then “I/C
Life.”
4. Touch “END.”
5. Press the Reset key.
A11UIXC020MA
A11UIXC021MA
A11UIXC022MA
A11UIXC023MA
A11UIXC024MA
A11U-9640-00E.fm 7 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-8

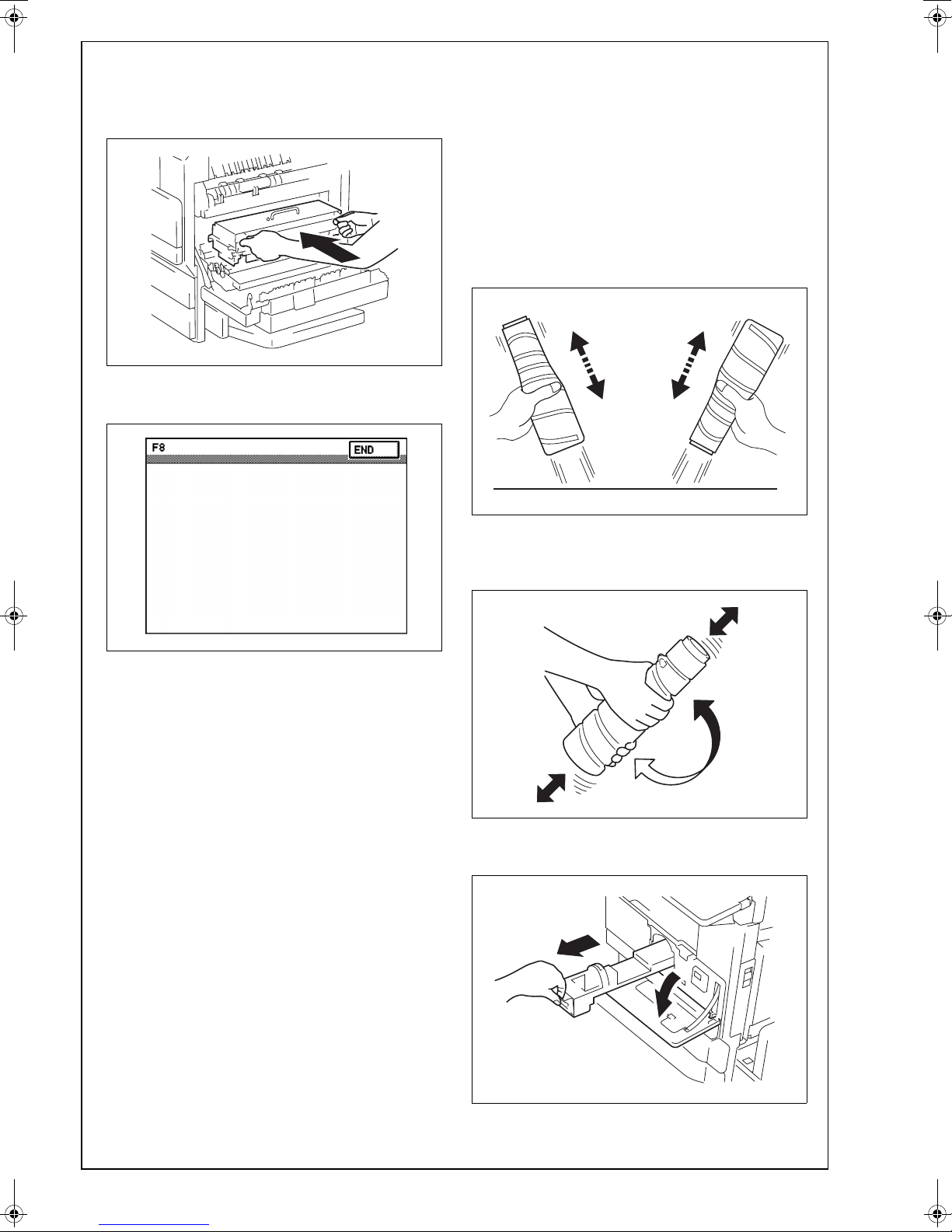

XI. ATDC Adjustment
1. Install the imaging unit (IU) in position.
2. Close the right door.
3. Select functions in this order: Tech. Rep. Mode
→Function →F8.
4. Press the Start key to run an F8 operation. (At
this time, the Start key changes to orange.)
5. When the Start key changes to blue, touch
“END.”
6. Press the Reset key.
7. Touch “Exit” on the Tech. Rep. Mode screen to
go back to the initial screen.
XII. Installing the Toner Bottle
Note:
The toner bottle is not shipped with the machine.
Purchase one that is separately available.
1. From a height of about 10 cm, tap the toner bottle
against a table or other hard object four to five
times. Then turn it upside down and repeat the
same procedure.
Note:
Toner can cake in the toner bottle. Be sure to per-
form this procedure.
2. Shake the toner bottle well about five times in the
vertical direction. Then, turn it over and repeat
the same procedure.
3. Open the front door and slide the toner hopper
out of the machine.
A11UIXC025MA
A11UIXC026MA
A11UIXC027MA
A11UIXC028MA
A11UIXC029MA
A11U-9640-00E.fm 8 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-9
4. Open the toner holder and mount the toner bottle.
Note:
Place the toner bottle so that the tape faces
upward.
5. Close the toner holder.
6. Gently peel the tape toward you from the bottle.
Note:
Perform this procedure slowly, as toner can burst
out when the tape is peeled off the bottle.
7. Slide the toner hopper back into the machine until
it clicks into position. Then, close the front door.
XIII. Affixing the Tray Label
1. Affix the tray label to the 1st and 2nd drawers.
2. Load the drawers with paper.
(For loading the paper as well as setting the
paper type, refer to the User’s Guide.)
XIV. Attaching the User’s Guide Holder
1. Attach the User’s Guide holder to the back sur-
face of the machine.
A11UIXC030MA
A11UIXC031MA
A11UIXC032MA
A11UIXC005MA
A11UIXC033MA
A11U-9640-00E.fm 9 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-10

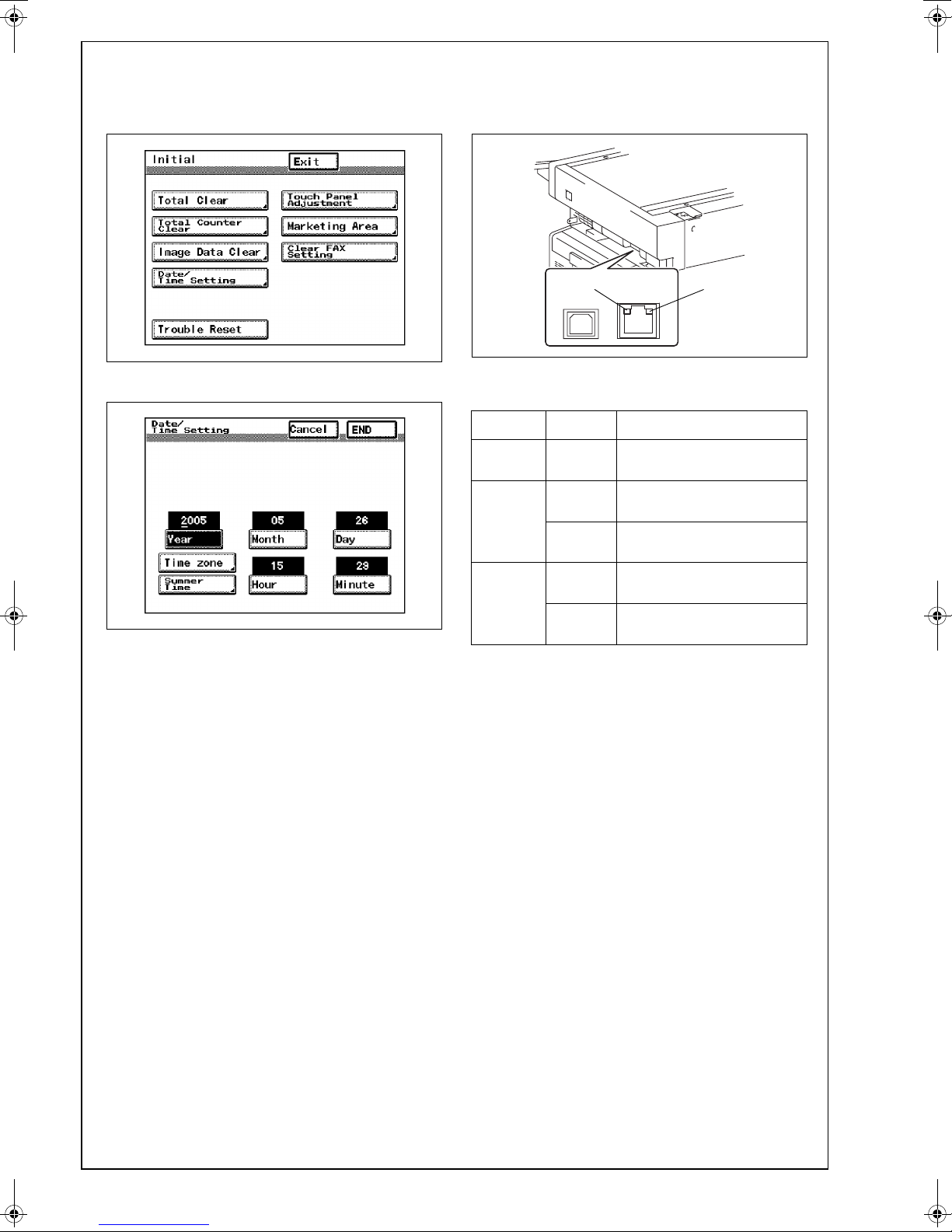

XV. Date/Time Setting
1. Call the Initial Mode to the screen. (For the pro-
cedure, see the Service Manual.)
2. Touch “Date/Time Setting.”
3. Enter the date and time-of-day using the 10-Key
pad.
4. Touch “Time Zone.”
5. Select the time zone using the ▲or ▼key.
6. Touch “END” twice.
7. Touch “Exit.”
8. Turn OFF and ON the main power switch.
Note:
Be sure to turn off the main power and wait for 10
seconds or more before turning on.
XVI. Connecting Cables
1. With the network cable (category 5), connect the
machine to the network device (hub).
2. Check LEDs for lighting conditions.
LED Indications
XVII. Network Setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as
required.
1. Select the function to be used as follows:
Utility/Counter →Admin. Management →Enter
the Administrator Code →Admin. 2 →Network
Settings →Basic Settings.
2. Make the following settings.
IP Address Setting: IP address of the controller
Subnet Mask: Subnet mask of the network, to
which the machine is connected
Gateway: IP address of the default gateway
3. Turn OFF and ON the main power switch.
Note:
Be sure to turn off the main power and wait for 10
seconds or more before turning on.
4. Select the function to be used as follows:
Utility/Counter →Admin. Management →Enter
the Administrator Code →Admin. 2 →Ping, and
make the operation check of TCP/IP.
A11UIXC034MA
A11UIXC035MA
LED Color Status Description
Green
Yellow Lights out Power is OFF Not Connecting with a LAN
Green
Lights Connecting with a LAN
(100 Mbps)
Blinking Transmitting/Receiving the
data (100 Mbps)
Yellow
Lights Connecting with a LAN
(10 Mbps)
Blinking Transmitting/Receiving the
data (10 Mbps)
A11UIXC036MA
LED (Green)
LED (Yellow)
A11U-9640-00E.fm 10 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-11
XVIII. Setting the CSRC
Note:
This step may not be performed depending on the
applicable marketing area.
<When using the phone line modem>
1. Register the Device ID to the application at CS
Remote Care Center. When the Device ID is not
registered, initial connection will not be per-
formed.
2. Turn modem power OFF. Connect the machine
and the modem with the modem cable, and the
modem and the wall jack with the modular cable.
3. Display the Tech. Rep. Mode screen.
(See the Service Manual for how to display the
screen.)
4. Touch “CS Remote Care.”
5. Touch “ID Code.”
6. Enter the seven-digit ID using the ten-key pad,
and touch “ID Code” again.
7. Touch “Detail Setting.”
8. Touch “RAM Clear.”
9. Touch “YES.”
10.Touch “END.”
11.“CS Remote Care” →Select “Modem.”
12. Touch “ID Code.”
13.Enter the seven-digit ID using the ten-key pad,
and touch “ID Code” again.
A11UIXC040MA
A11UIXC041MA
A11UIXC042MA
A11UIXC043MA
A11UIXC041MA
A11U-9640-00E.fm 11 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-12
14.Touch “Detail Setting.”
15.Touch “Date & Time Setting.”
16.Enter the date, time, and the time zone using the
ten-key pad.
17.Touch “Job Start.”
18.Touch “END.”
19.Touch “Basic.”
20.Touch “Center ID.”
21.Enter the Center ID (five digits) and touch
“Enter.”
22.Touch “Center Phone No.”
23.Enter the Center Phone No. using the ten-key
pad as well as P, T, W, and – keys on the screen,
and touch “Enter.”
24.Touch “Fwd.”
25.Touch “Device ID.”
26.Enter the Device ID (nine digits) and touch
“Enter.”
27.Touch “Device Phone No.”
28.Enter the Device Phone No. using the ten-key
pad as well as P, T, W, and – keys on the screen,
and touch “Enter.”
29.Touch “END.”
* Follow the procedure 30 through 34 only for the
PHS communication.
30.Touch “Software Switch Setting.”
31.Touch “Bit Selection.”
32.Select the bit number for DIPSW using the arrow
keys, and change the number as shown below
using the 10-key pad.
10000001 →01100001
33.Touch “Enter” displayed in the lower right corner
of the screen.
34.Touch “Enter” displayed in the upper right corner
of the screen.
35.Touch “Basic.”
A11UIXC042MA
A11UIXC044MA
A11UIXC042MA
A11UIXC045MA
A11UIXC046MA
A11U-9640-00E.fm 12 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-13
36.Touch “Initial Transmission” at the right bottom of
the screen to start initial transmission.
Note:
The Initial Transmission key at the right bottom of
the screen will be displayed only when the Center
ID, the Device ID, the Center Phone No., and the
Device Phone No. are all entered.
37.The CS Remote Care setting screen will be dis-
played when normally connected to the center.
38.Keep touching “END” until the Tech. Rep. Mode
screen is displayed.
39.Touch “Exit” on the Tech. Rep. Mode screen.
Note:
When the Tech. Rep. Mode is finished being dis-
played, turn main power OFF and wait for more
than ten seconds before turning main power back
ON.
<When using an e-mail>
1. Register the Device ID to the application at CS
Remote Care Center. When the Device ID is not
registered, initial connection will not be per-
formed.
2. Remove the phone line modem.
3. Display the Tech. Rep. Mode screen.
(See the Service Manual for how to display the
screen.)
4. Touch “CS Remote Care.”
5. Touch “ID Code.”
6. Enter the seven-digit ID using the ten-key pad,
and touch “ID Code” again.
7. Touch “Detail Setting.”
8. Touch “RAM Clear.”
A11UIXC047MA
A11UIXC040MA
A11UIXC048MA
A11UIXC049MA
A11U-9640-00E.fm 13 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-14
9. Touch “YES.”
10.Touch “END.”
11.“CS remote Care” →Select “E-Mail.”
12.Touch “ID Code.”
13.Enter the seven-digit ID using the ten-key pad,
and touch “ID Code” again.
14.Touch “Detail Setting.”
15.Touch “Date & Time Setting.”
16.Enter the date, time, and the time zone using the
ten-key pad.
17.Touch “Job Start.”
18.Touch “END.”
19.Touch “Basic.”
20.Touch “Center ID.”
21.Enter the Center ID (five digits) and touch
“Enter.”
22.Touch “Device ID.”
23.Enter the Device ID (nine digits) and touch
“Enter.”
A11UIXC043MA
A11UIXC048MA
A11UIXC049MA
A11UIXC044MA
A11UIXC049MA
A11UIXC050MA
A11U-9640-00E.fm 14 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-15
24.Touch “END.”
25.Touch “Respond Timeout.”
26.Enter the responding time using the ten-key pad,
and touch “Enter.”
Note:
• Keep the default setting in normal operation.
• This setting is necessary when changing the
retransmission intervals due to e-mail transmis-
sion error.
27.Touch “END.”
28.Display “Server Setting.”
29.Touch “Server for RX.”
30.Set the POP3 server address, POP3 user name,
POP3 password, and POP3 port number.
31.Touch “END.”
32.Touch “RX Settings.”
33.Set the e-mail address, Auto-RX check, connec-
tion timeout, and APOP authentication.
34.Touch “END.”
35.Touch “TX Settings.”
36.Set the SMTP server address, the SMTP port
number, connection timeout, and authentication
setting.
37.Touch “END.”
A11UIXC049MA
A11UIXC051MA
A11UIXC052MA
A11UIXC053MA
A11UIXC054MA
A11UIXC055MA
A11U-9640-00E.fm 15 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

E-16
38.Touch “TX/RX Test”, and touch the Start key to
perform transmission. Check whether transmis-
sion is performed normally. When transmission
fails, check according to the error message and
try transmitting again.
39.Keep touching “END” until Tech. Rep. Mode is
displayed.
40.Touch “Exit” on the Tech. Rep. Mode screen.
Note:
When the Tech. Rep. Mode is finished being dis-
played, turn main power OFF and wait for 10 sec-
onds or more before turning main power back ON.
A11U-9640-00E.fm 16 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

OC-510 Original Cover (Option)
INSTALLATION MANUAL
E-17
I. Installing the Original Cover Kit
1. Remove the upper rear cover and hinge covers
(three screws).
Note:
While pushing the angle detecting lever of the
reverse automatic document feeder, remove the
cover
.
2. Install the hinge covers (right and left) included in
the kit (five screws).
3. Reinstall the upper rear cover (three screws).
Note:
When reinstalling the upper rear cover, pass the
angle detecting lever into the hole in the cover.
4. Install the Original Cover.
5. Peel the double-sided adhesive tape off the docu-
ment scanning glass cover. Then, affix the docu-
ment scanning glass cover to the position shown
in the illustration.
No. Name Q’ty
1. Original Cover 1
2. Hinge Cover (Right) 1
3. Hinge Cover (Left) 1
4. Document Scanning Glass Cover 1
5. Screw 5
A11UIXC037MA
Angle detecting lever
A11UIXC038MA
Angle detecting lever
A11UIXC039MA
A11U-9640-00E.fm 17 ページ ２００８年１０月２３日 木曜日 午後１２時２６分

Blank.fm 1 ページ ２００８年１０月２１日 火曜日 午後７時４９分

F-1 A11U-9640-00
MANUEL D'INSTALLATION
Machine concernée: / /
//
I. Description générale des procédures d'installation
Lors de l'installation de la machine et des options associées en tant que système, se conformer à l'ordre indiqué ci-dessus.
Remarque:
• En ce qui concerne les procédures d'installation détaillées de chaque option, se conformer aux instructions qui sont
mentionnées dans le manuel d'installation correspondant et exécuter les procédures correctement.
• Une fois l'interrupteur d'alimentation tourné en position de marche, ne pas le ramener sur arrêt tant que les travaux
d'installation ne sont pas complètement terminés.
• Faire en sorte de pouvoir disposer de suffisamment de main-d'œuvre pour pouvoir transporter la machine. (Masse
de la machine: 74 kg/169-1/2 lb)
DF-620
PC-108 PC-407PC-206
JS-502FS-530
SD-507
OT-602
Machine
PU-501
HD-504
EM-303/
EM-304/
EM-305
FK-503
SU-501
MT-502
ML-502
EK-502
OC-510
Déshumidificateur réchauffeur 1C
SC-504
DK-506*
SP-501
MK-709*
* Varie suivant la région de vente applicable.
A11UIXC006MA
4040-9586-03F.fm 1 ページ ２００８年１０月２２日 水曜日 午後６時３分

F-2
II. Espace d'installation (unité: mm
(pouce))
bizhub 362 + PC-206 + SD-507 + DF-620
III. Articles à vérifier en pré-installation
1. Sélectionner un emplacement à la fois stable et à
niveau pour faire l'installation de la machine.
2. Faire en sorte d'utiliser une source d'alimentation élec-
trique ayant la tension et la fréquence indiquées dans
les caractéristiques techniques du produit.S'assurer
que la capacité conductrice de la prise d'alimentation
est au moins égale à l'intensité mentionnée dans la
liste des caractéristiques techniques de produit.
3. Alimenter la machine directement à partir de la prise
d'alimentation dédiée. (Ne pas utiliser de rallonge
électrique)
4. Ne pas brancher ni débrancher le cordon d'alimenta-
tion avec les mains mouillées ou sales, sinon vous ris-
quez de vous exposer à une électrocution.
5. Éviter tout environnement chaud et humide ni un
endroit exposé à la lumière directe du soleil.
6. Éviter tout emplacement poussiéreux ou à proximité
de substances volatiles et inflammables.
7. Éviter tout emplacement insuffisamment ventilé.
IV. Pièces accessoires
* Varie suivant la région de vente applicable.
A11UIXC007MA
1757 (69-1/4)
1312 (51-3/4) 324
(12-3/4)
121
(4-3/4)
1138 (44-3/4)
710 (28) 100 (4)
328
(13)
422
(16-1/2) 616 (24-1/4)
1500 (59)
1116 (44) 384
(15)
N° Dénomination Qté
1. Guide utilisateur
(Opérations de copie)* 1
2. Guide utilisateur
(Opérations de boîte)* 1
3. Guide utilisateur
(Opérations de scanneur réseau)* 1
4. Introduction rapide
(Opérations de impression)* 1
5. Manuel d'installation (ce manuel) 1
6. Instruction relatives au cordon
d'alimentation* 1
7. Autocollant de plateau 1
8. Élément d'étanchéité de levier de
verrouillage de scanneur 1
9. Porte-guide utilisateur 1
10. Cordon d’alimentation*
11. Attache de câble électrique 1
12. Vis de fixation 1
13. Bloc d'amorçage 1
14. Mylar 1 ensemble
15. Disque CD-ROM* 1 ensemble
16. Bande d’attache* 1
17. Noyau de ferrite* 1
Après le déballage, faire en sorte de se débar-
rasser des matériaux d'emballage et les con-
server hors de la portée des enfants.
Le fait de placer la tête dans l'emballage
présente une risque d'étouffement.
4040-9586-03F.fm 2 ページ ２００８年１０月２２日 水曜日 午後６時３分
