Konsung KSOC Series User manual

OXYGEN CONCENTRATOR
[KSOC SERIES]
USER’S MANUAL
Read carefully before use!
断电
报警
运行
正常
报警
低氧

1
Drawing, Symbols,Abbreviation
II Type Equipment
BFType Applied Part
Warning! Access to random to papers
Fragile
Wet
Upper
Power Off
Power On
Adjustment Knob

2
The picture of the fixed bolts on the bottom of oxygen concentrator and tool
as bellow :
The picture is only for reference,please make the object as the standard
Oxygen Concentrator
1. For the first time use, remove the fixed bolts on the bottom of
the oxygen concentrator with tool we offered before using the
device.
2. If do not remove the bolts on the bottom of the oxygen
concentrator , the machine will not work well .
3. Keep the bolts for next transportation.

3
Safety Instruction
1.It uses the power of 220V (50Hz).
2. If any object or liquid enters the machines, immediately disconnect the
power plugs, and have them examed by the expert before re-use.
3. And if the machine is to be left unused for a long time, unplug the plug
from the power outlet; and ensure to withdraw the power plug instead the
power cord.
Warning
To case of possible oxygen machine failures or power shut down. People in urgent
need of oxygen and seriously ill patients must prepare other oxygen-supply devices
for emergency use(etc : oxygen cylinders, oxygen bags, etc.).
！

4
Warning: No smoking while using the oxygen concentrator.
1. Safety tips for oxygen concentrator
A, Don’t use the product near the heat resource or fire
B, The product is not appropriate to use in too humid
environment(such as bathroom). During the operation, ensure
there is no humidification devices within 2 meters around , and
after cleaning filter components , they must be totally dried
before re-use .
C, Don’t operate the product near flammable materials as grease
oil ,detergent , ect. Neither use such materials and their analogue
to the product.
D, Don’t use the product in a confined space, an operate the
product at least 15cm away from the obstacles such as the walls
and windows that prevent the air circulation.
E, The equipment has gotten through the electromagnetic
compatibility test conducted by testing center for TUV product, so
the product won’t produce the harmful RF interference if used in
residential area. But in order to keep normal use, please don’t
use the oxygen concentrator near high frequency disturbing
equipment, such as speaker,MRI or CT etc.
F, Turn off the machine after use.
2. Safety tips for electrical appliance
A, Close the machine before accessing it for different power
outlet.
B, Please pay attention to electricity safety. Don’t turn on the
product if the plug or power lines damaged and ensure to cut off
the power when cleaning the machine or cleaning and replacing
the filters.
CAUTIONS OF KSOC Series Oxygen Concentrator
Oxygen Concentrator

5
C, Install the regulator device when the voltage is higher than the
normal range or in fluctuation.
D, To extend the life span of the machine, reboot 5 minutes after
each shutdown to prevent the compressor to start under
pressure.
E, Don’t operate the machine with open filter window or case.
F, Non-professionals shouldn’t open the shell
G, Children are not allowed to operate the machine alone in case
of accident
3.Safety tips for oxygen Inhale
A, Follow the doctors’ guidance for it is used for medical
treatment.
B, The person allergic to the inhalation of oxygen should use the
product carefully.
C, The oxygen flow rate shouldn’t be too high, but upon the
request of the doctor.
D, Be careful of the work environment, normal temperature range:
5℃－40℃., relative humidity: ≤75%
E, Keep it stable at work and avoid sloping or inverting
F, Don’t pump the equipment as oxygen bag when the bottle
have water.
G, The water in the bottle should not be too much in case of the
overflow(please keep the water level between MAX and MIN),
and change the water often
H, Different bottles may affect the performance of the oxygen
concentrate,please replace the bottle with the original bottle
provided or certified by our company.
I, Clean and replace the filter sponge in case of the block of the
outlet and outlet of oxygen delivery and affect the life of oxygen
concentrator. In order to keep the concentrator in usual use,
please substitute the filter sponge both in outlet and delivery with
those provided or certified by our company.

6
J, The cannula as accessory provided by our company is a
sample for a try. Use the cannula personally to keep it clean
and health; clean and disinfect it frequently; It is suggested using
disposal cannula each time.
1. Working principles
KSOC series of Medical oxygen concentrator is made up of filter
system, compressor, adsorb tower, electrical control system,
humidifier system and the reasonable air course from case
structure. It adopts the current world’s advanced transformation
absorption(PSA) principle. It separates the oxygen and nitrogen
under common temperature and pressure, then obtain the
medical oxygen which consists with the Medical standards. Pure
physical manner of making oxygen, without any additives, no
disposals, pollution-free, fresh and natural.
2、Oxygen Concentrator Working Theory：

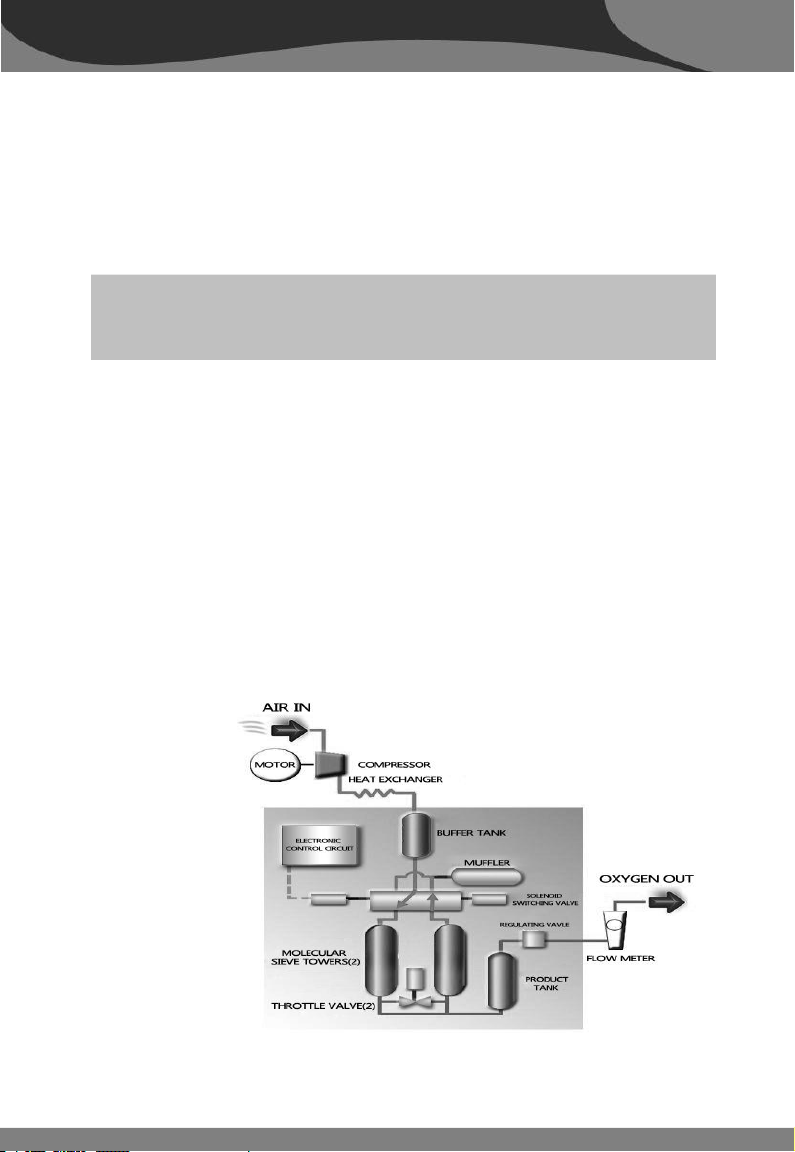

The Working Principles &Flowcharts of KSOC Series
Medical Oxygen Concentrator
Oxygen Concentrator

7
3、Electrical Control Chart
KSOC series oxygen concentrator is designed for the
acquirement of high purity oxygen for medical use。
KSOC Series Oxygen Concentrator Usage

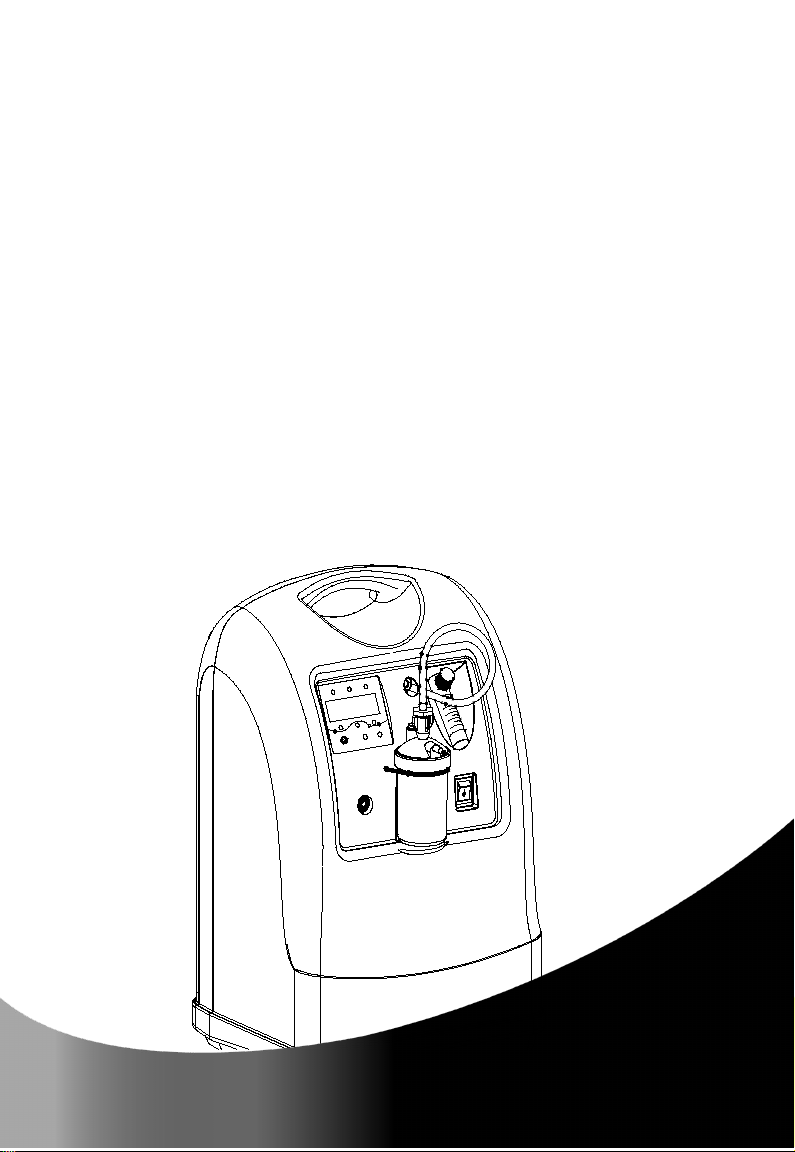

KSOC Series Oxygen Concentrator Construction Picture

8
断电
报警
运行
正常
报警
低氧
Main Structure
Material
Filting system
Foam filter、ABSresin、NoNononwovenn fabric
Compressor
ZL102cast alum,filling PTFE
Absorption chamber
6063 alum alloy、O5 zeolite
Electrical system
PCB、Sillion components
Humidifying system
ABS resin, Polypropylene
Case
ABS resin
Handle
LCD
Power status
indicator
Oxygen outlet
Humidifier
Air filter
Caster

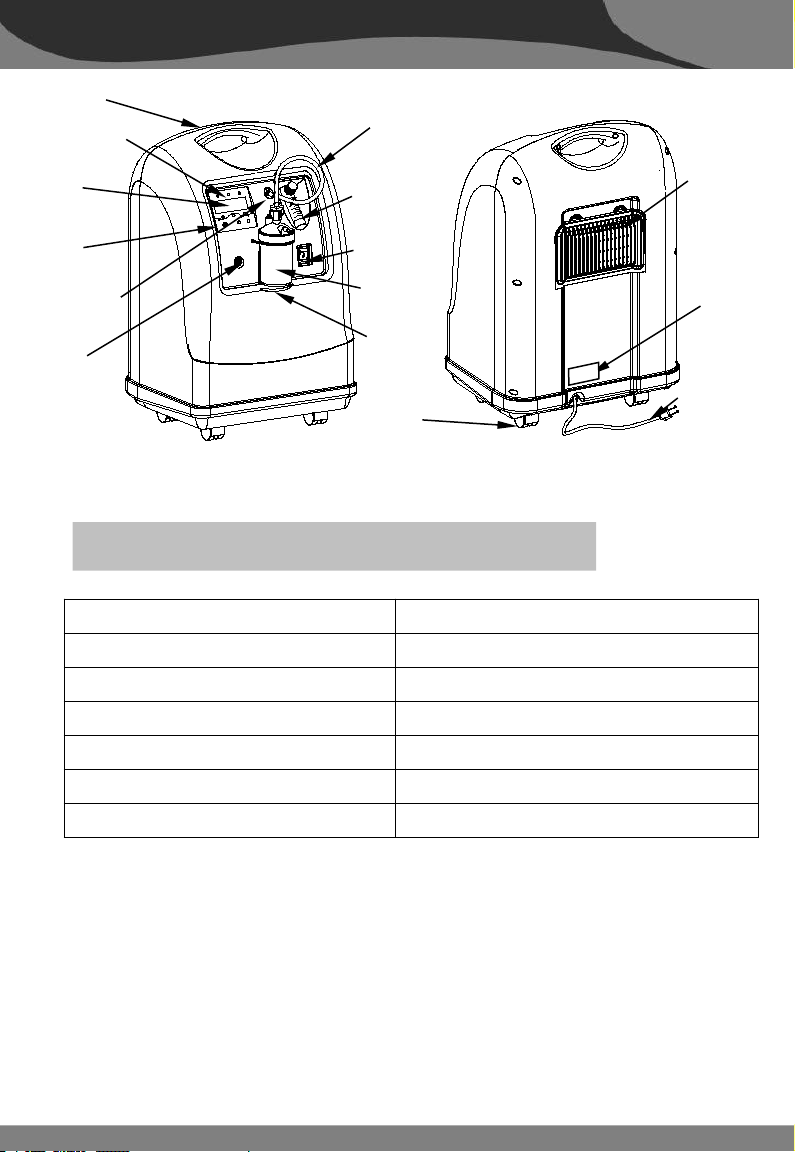

KSOC Series Construction and Main Material
Label
Overload
protector
Power switch
Humidifier
connection tube
Flow meter
Power cable
Front
Back
Oxygen Concentrator
Humidifier
Holder
Oxygen density
indicator

9
Table 1 Main technical specification
The density range output by KSOC-3 series:
0.5 L/min ~3L/min:≥90%; 4L/min:≥82%; 5L/min:≥78%
The density range output by KSOC-5 series:
0.5 L/min ~3L/min:≥92%; 4L/min:≥91%; 5L/min:≥90%
The effect of altitude on oxygen density delivered by oxygen
concentrator：
Altitude
≤800m
800m～1500m
1500m～3000m
3000m～4000m
KSOC-3
≥90%
≥82%
≥75%
≥65%
KSOC-5
≥90%
≥80%
≥72%
≥63%
Item
Max
Flow
(L/min)
O2
density
(V/V)
Noise
dB(A)
Dimension(mm
)
(L*W*H)±10
mm
Power
consu
mptio
n(VA)
Weight(
Kg)
Atomiza
tion
Amout
(mL/min
)
Oxygen
density
indicator
Timin
g
period
Remote
control
distanc
e
KSOC-3
3
93%±
3%
≤53
380X320X590
≤320
19
N/M
optional
10h
N/M
KSOC-3N
≥0.2
optional
10h
N/M
KSOC-3T
N/M
Yes
10h
50m
KSOC-3M
≥0.2
Yes
10h
50m
KSOC-5
5
≤54
≤480
18.3
N/M
optional
10h
N/M
KSOC-5N
≥0.2
optional
10h
N/M
KSOC-5T
N/M
Yes
10h
50m
KSOC-5M
≥0.2
Yes
10h
50m
KSOC Series Oxygen Concentrator Technical Parameters
Oxygen Concentrator

10
Function between Oxygen density of concentrator and rated flow
Models and Performance Instructions:
“N” Model is feature configuration, which is added Atomization
function on the basic functions.
“T” Model is feature configuration, which is added the function of
Remote Control.
“M” Model is feature configuration, which is added the functions
of Atomization and Remote Control.
KSOC series oxygen concentrator has voltage alarm function,
oxygen density indicator, running hours this time, total running
hours ,timing function, sound and light alarm function of power off,
and pressure alarm function.
Classical of electrical safety: II Equipment, BFtype application
part
Running model: continuous operation.
Outlet pressure：0.04 MPa～0.07MPa；
Safety valve pressure range：250 kPa～280 kPa。
Overloading protector specification：KSOC-3: 88-03-P1-B14-P，
250V AC, 3A；
KSOC-5: 88-03-P1-B14-P，250V AC, 5A
KSOC Series Models and Performance Instruction
Oxygen density
Rated flow X100%

11
Working conditions：
Power：AC 220V±22V，50 Hz±1Hz .
Environment temperature：5℃～40℃；
Relative humidity：≤75%；
Air pressure ：86 kPa～106kPa；
Put the oxygen concentrator in a convenient and safe place
where there is air flow and make sure its back case is at least 15 cm
away from the wall, window or any other things that are obstructing
the airflow.
1. The power switch is read “off” .
2. Insert the cable pin of the oxygen concentrator fast into the slot of
the power switch 220V(50Hz) and connect the power.
3. Unscrew the humidifier, put the distilled water or cold water into
the humidifier to its prescribed level from Max and Min level of
humidifier in case of over flow or uneven humidifier for lack of
water as picture 1 shows.
4. Put the humidifier onto the oxygen concentrator and fix it with the
rubber band. Connect the outlet of the oxygen concentrator and
inlet of the humidifier with the soft tube .
5. Connect the oxygen cannula of nasal pipette or oxygen tube with
the humidifier outlet tightly or oxygen outlet of concentrator
directly for fear for leak.
Picture 1
KSOC Series Oxygen Concentrator Operation Instruction
KSOC Series Oxygen Concentrator Working Conditions
Maximum water level
Water level
Minimum water level

12
6. Press the power switch to “ on” position. The power is plug in
when the power indicator turns green. The oxygen concentrator is
in working state. Touch the symbol of “ ” on the showing
panel of Oxygen concentrator, the equipment will turn into
standby mode, or into from standby mode into running mode.In
working state, the LED Monitor will show the single operation
time(four figures for hours and two figures for minutes ) and total
operation time(five figures for hours and two figures for minutes),
timing mode,(The symbol of “---” after “timing shutdown” displays
that the automatical shutdown has not been started; the figures
after the “timing shutdown” show the remaining time before timing
shutdown ). Touch the symbols of “ ” and “ ” on the panel,
and the time of timing shutdown could be increased or reduced.
The indicator code will show in the case of occurrence of
abnormal situation of oxygen concentrator for the professional
repair reference for repairmen, whose meaning could be acquired
through manufacturer by certified repairmen as figure 2.
7. Adjust the meter to proper flow, the scale to which central float
correspondent is the actual flow. In the ready mode, it can not be
adjusted to “0” bit in any time. The patient should use the
equipment under the doctor’s advice,recommended oxygen flow:
1L/min~2L/min.
8. Adjust the cannula to appropriate position for easy inhale of the
pure oxygen and get maximum comfort. The oxygen density could
be reached to 90% within 12 minutes
9. Please shut down the oxygen concentrator after use. Pull out the
power pin and take care of the cannula for another use.
Oxygen Concentrator

13
1、Take out the accompanied nebulizer, pour into proper atomized
liquid by doctor’s advice, fix the water laps and tighten the cover in the
clockwise.
2、Take the wet bottle off the oxygen concentrator, connect threaded
connector of atomization catheter to wet bottle, and connect the other
end of atomization catheter to tipped bottom of nebulizer.
3、Run the oxygen concentrator and adjust the oxygen meter to
proper position (recommended as 3L/min), put the mouthpiece into
mouth and then the inhalation therapy starts.
Picture 2
Timing shutdown
Timing key
Current Flow
Total running hours
Run and standby mode symbol
Running time this time
Power off alarm
Voltage alarm
Power indicator
Oxygen Concentrator
Atomization Function Instruction of Oxygen Concentrator M & N

14
1、Timing operation：
KSOC oxygen concentrator can be shut with timing equipment.
The longest period is 10 hours. The timing interval can be 10
minutes(within 1 hour timing) or 30 minutes( more than 1 hour
timing).Pressing key each time comes with buzzing sound as
indication. When the shut hours is set, the system comes into count
down time and the oxygen concentrator LCD will shows the remaining
time . When Remaining time becomes 0, the oxygen concentrator will
shut automatically and will go to sleeping status.
2、Remote control：
When the oxygen concentrator is in the sleeping status, it can
be restarted by use of wireless remote control launcher.when in the
state of working,the remote control can operate such activities as
timing and shutdown. The remote control distance is 50m the farest.
Pressing key each time will be followed by buzzing sound.
1. Alarm system design aims at monitoring the working oxygen
concentrator in case of such situations as power off, abnormal pressure
or indicator of running condition of the equipment. All alarms of the
machine are technical alarms.
It includes an acoustic alarm system and a visual alarm system.
The power is on, there will be a buzzing sound when power
disconnects at any time together with the red light on, which is called
high priority audible alarm. The yellow light turns on if the voltage is
too low (<190V)or too high(>242V),which is called low priority alarm.
During normal operation, please shut down the concentrator if
there is any alarm. Start again when the voltage returns to normal in
KSOC Series Oxygen Concentrator Alarm and Indicator System
KSOC Series Oxygen Concentrator Timing and Remote Control
Instruction
Oxygen Concentrator

15
case of damage to inside components.
2. The oxygen purity indicator will clearly show current oxygen purity
range
a. green light on: oxygen purity≥ 85%±3%.
b. yellow light on: 73%±3% ＜oxygen purity ＜85%±3%(low priority
alarm)
c. red light on: oxygen purity ≤ 73%±3%(high priority alarm)
If the red light is on, please shut down the oxygen concentrator
and send it to local distributor of the oxygen concentrator to directly to
the manufacturer.
3. Applicable condition for the indicator of oxygen concentrator:
Environmental temperature: 5℃-40℃
Relative humidity: ≤ 80%
Pressure: 86 kPa ~106kPa
4. Settlement of pressure alarm system of concentrator(medium
priority alarm). When the oxygen delivery system appears abnormal
and leads to the airway behaving abnormally, the pressure alarm will
inform the user with buzz and flashing figure “1”(High pressure
indicator) or “0”(low pressure indicator) on the LCD,and the inner
compressor circuit will be cut off as well. Please shut down the
concentrator in the case of pressure alarm, and check and make sure
the cleanness of outlet and inlet of air without any blocks. And then
restart the equipment, please inform the distributor or manufacturer
and shut down the concentrator if the alarm is still on.
Note: In the three seconds before oxygen concentrator restarts,
the system will be automatically on self-check during which time the buzz
and LCD without light belongs to normal situation.
5、Total running time display: The LCD of oxygen concentrator will show
the current running time of each normal operation and total running time
of oxygen concentrator, convenient for user to operate regular
necessarily maintenance. The maximum recording time of total running

16
time is 99999 hours.
1. The cleaning of the case
It’s helpful for normal use to keep the oxygen concentration clean
for long.Use the warm and non-friction detergent and nonfuzzing soft
cloth to wipe the case of the oxygen concentrator. Please cut off the
power to ensure safety.
2. The cleaning of the humidifier: please empty the humidifier
each time after using the equipment.
Wash the humidifier every day.
a. Pull out the connection sofe tube and take out the humidifier.
b. Turn the lid open. Wash it with water. You can use a clean brush
or towel to clean it if there is any besmirch. You can use warm
neutral detergent or vinegar solution( 1 V vinegar with 10 V water
added in will have steriztion effect) to wash the humidifier.Then
put in the clean water to prescribed level.

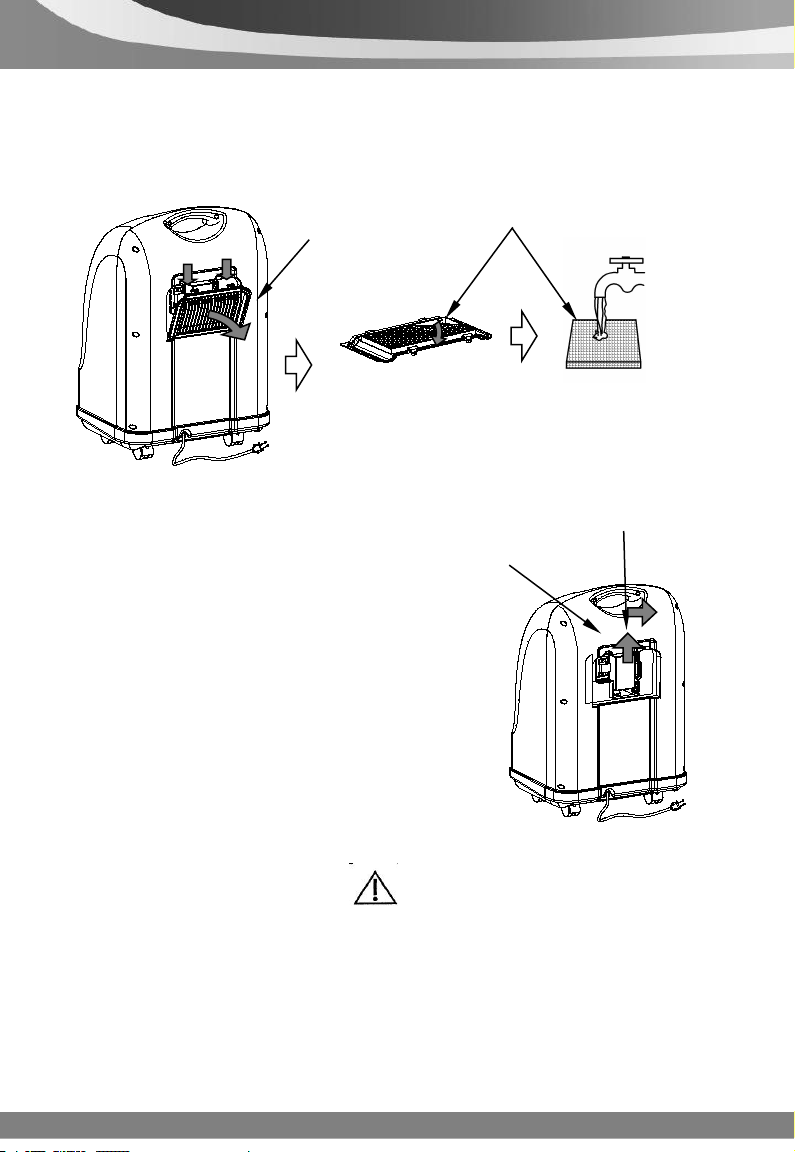

3. The cleanness of filter:
Exposed to the ambient, the filter window of oxygen concentrator
should be cleaned at least once a month. Push downward the
filter window clock, open the filter window, take out the filter
window from which takes out the filter sponge, and then clean the
sponge and dry it as picture4,
Make sure the filtration sponge dried and then fix to use, or it
will influence the use age.
Intake air filter inside oxygen concentrator should be replaced at
least once or twice a year. The inner intake air filter could be seen
The Maintenance and Service of KSOC Series Oxygen Concentrator
Oxygen Concentrator

17
when the transom is removed. Drawn up to remove the old inner
intake air filter to replace a new one as figure 5
4. The replacement of over load protector:
When suspect or identify over load
protector works(Power Link normal
startup, power outage alarms),Press
the reset button which above over load
protector to startup. The overload
protector locates on the back of
concentrator as shown in picture 5.
5.Replacement of battery：please take the batteries out of the
concentrator or controller if unused for a long time.
1、It use 23A 12V battery to do wireless remote control.When it
can not works,the battery may not have sufficient power. Please
replace the battery periodically with the same battery and be careful
of the affirmative and negative pole.
Battery seat
Inlet filter
Air window
Picture 4
Filter sponge
Picture 5

18
2、The power off alarm uses 9V piled battery。When the machine
is disconnected to power, it will not have buzzing sound and the
indicator has not been on,the battery may not have enough
power.Please change it as picture 6 shows.
Please dispose of the disposable cannula, filter sponge and
defective oxygen machine according to local relative laws in case
of environmental pollution
1. The unit should be stored -40℃～55℃, Relative humidity ≤93﹪.
Pressure 50kPa -106kPa,in the nice environment without the
corrosive air and with a good wind.
2. Be careful to transport or convey, don’t let it reversal or thwart, tilt
angle not greater than 5 °.
Problems
Potential Causes
Solutions
After turned on the
switch, the light and
machine don’t work.
1. The plug doesn’t insert
the switch firm.
2. No power.
3. Overload protector
protection
1．Push the plug.
2．Check the power。
3．Press the button of
overload protector.
KSOC Series Oxygen Concentrator Disposable
The
The Storage Storage and and Transportation Transportation of of KS KS Series Series Oxygen Oxygen
Concentrator
Concentrator
The Problems and Solutions of KSOC Series Oxygen Concentrator
Oxygen Concentrator

19
After turned on the
switch, the light
works, but the
machine doesn’t
work.
1．Air compressor
protection.
2．Inlet or outlet jammed.
3．Ambient temperature is
lower than 5 ℃
1. Renew the oxygen
concentrator。
2. Clean the filter and
check if anything
jammed intake.
3. Rise the ambient
temperature.
Can’t obtain the
requested current
capacity.
1. Nose sucker jammed or
damaged.
2. Mask jammed or
damaged；
3. Wet bottles jammed or
damaged；
4. Oxygen tubes surpass the
stipulation or has the
bend.
1. Change or rectify the
oxygen tubes.
2. Take down the wet
bottle, clean or change
it 。
If it’s not in the above cases and there is still no oxygen output,
please contact the distributor or the manufacturer.
In the normal condition of usual use and storage, the company
are responsible for free repair and replacement if the concentrator
can not be used within a week after sold(within 12 month of
commercial storage). The user can take the oxygen concentrator to
the company following service department or agency or distributor for
free repair with the invoice and warranty card if the equipment can not
be used within 12 month after sold. More than 12 month, the company
provides the parts to repair with reasonable charge if it could not be
The Following Service of KSOC Series Oxygen Concentrator after
Sales (400-168-0616)
