KoolMore Undercounter KM-BIR3C-GD User manual

Instruction Manual
Model: KM-BIR3C-GD
Thank you for purchasing our product!
Before returning to retailer, if you are having trouble with your unit, for assembly
assistance, missing or damaged parts.
Please contact customer service Phone: [phone]
Email: [email protected]
We are here to help.
Thank you!
Undercounter 15"
Beverage Cooler

TABLE OF CONTENTS
Product Features..………………………………………………………………………..2
Before Use...................…………………………………………………………………..2
Energy Saving Tips.....……………………………………………………………….…..2
Important Safety Instructions…………………………………………………………….2
Included Parts...........……………………………………………………………………..5
Specifications………………………………………………………………………………6
How To Operate
Storing Wine, Bottles, or Cans..........................................................................6
Starting and Running the Unit………………..........………………………….......7
Button Panel Operation...…………………………..........…………………………7
How To Clean……………………………………………………………………….……...7
How To Install………………………………………………………………………….…...8
Care and Maintenance……………………………………………………………..……..9
Troubleshooting Guide
What To Do………………………………………………………………………….11
Handle Installation Guide...........................................................................................10
1
Limited Service Warranty ….……………………………………………………………….12

PRODUCT FEATURES
1. Transparent glass door, luxurious looking, elegant design, easy operation.
2. Complete with attractive black color.
3. Low noise, high energy efficiency, updated quick cooling system.
4. Wire rack shelves, easy sanitation, storage convenience.
5. Touch-button control panel for operation.
BEFORE FIRST USE
Before connecting the appliance to the power supply, let the unit stand upright for 4 hours,
which will reduce the possibility of the cooling system malfunctioning due to improper handling.
Clean your unit thoroughly before putting into use. (See “How to Clean”)
Use the parts diagram on page 4 to insure proper positioning of internal components.
TIPS FOR ENERGY SAVINGS
Keep the unit doors closed as much as possible, particularly in warm / humid conditions.
Maintain adequate ventilation around the back and sides of the unit.
Allow warm wine bottle to cool to room temperature before placing in the unit.
Do not obstruct the front hot air outlet frame.
IMPORTANT SAFETY INSTRUCTIONS
Before you use your refrigerator, basic safety precaution must be followed to
reduce the risk of fire, electrical shock, and/or injury to person or
property. Before you use your refrigerator, please read this owner’s
manual carefully and observe the following safety tips.
Use this appliance only for its intended purpose as described in this owner’s manual.
-WARNING: This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
The appliance must be correctly installed and connected to the power supply in accordance with
the installation instructions before it is used.. (See: “HOW TO INSTALL”).
The main power supply must be properly grounded.
This refrigerator must be positioned so that the plug is accessible. Never unplug you unit often
by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
Do not use an extension cord as this can negatively affect the performance of the unit. If you
must use an extension cord, use 18AWG minimum size and rated no less than 1875 watts.
When transporting the refrigerator, keep the unit in the upright position. Do not tilt the appliance
beyond 45° or place the unit in upside down position. Do not tip over.
Do not touch the cooled surfaces while the appliance operates, especially not with wet hands,
2

because skin may stick to the cold surfaces.
It is recommended that the refrigerator is positioned away from any combustible sources such
as gas, petrol, alcohol, lacquerandbanana oil, etc. The aforementioned objects should not be
stored in the refrigerator underany circumstances.
If the unit fails to cool properly, dispose of spoiled food as needed.
Unplug yourunit before cleaning or before making any repairs. NOTE: If for any reason this
product requires service, we strongly recommend that a certified technician perform the service.
Repairs made by non-qualified personnel will void the warranty.
Do notdefrost the appliance with other electric devices (hair dryer etc.) andnever scrape the
ice or frost layer with sharp tools. Warning: Do notdamage the refrigerant circuit.
The rating plate is inside the appliance or outside on the rear or side wall.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless theyhave been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Do not run cord over carpeting or otherheat insulators. Do not cover the cord. Keep cord away
from traffic areas, and do not submerge in water. If the supply cord is damaged, it must be
replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid
ahazard. Repair or replace immediately all electric service cords thathave become frayed or
otherwise damaged. Do not useacord that shows cracks or abrasion damage along its length,
the plug or the connector end.
WARNING: Keepventilation openings, in the applianceenclosure or in the built-in
structure, clear of obstruction.
WARNING: Do notuse mechanicaldevice or other meanstoaccelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING: Do notdamage the refrigerant circuit.
WARNING: Do notuse electricalappliances inside the food storage
compartments of the appliance,unless they are of the type recommended by the
manufacturer.
Do notoperate your refrigerator in the presence of explosive fumes.
WARNING--Do not use the flame or catch the fire near the unit.
Please dispose of the appliance according to local regulations as the appliance contains
flammable gas and refrigerant.
Follow local regulations regarding disposal of the appliance due to flammable refrigerant and
gas. All refrigeration products contain refrigerants, which under the guidelines of federal law
must be removed before disposal. It is the consumer's responsibility to comply with federal and
local regulations when disposing of this product.
3

DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. Do Not Use
Mechanical Device To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing
DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. To Be Repaired Only
By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety PrecautionsMust
be Followed.
CAUTION--Risk of Fire or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. FLAMMABLE REFRIGERANT Used.
4
Safety instruction for refrigerant

ollowing is the wine cooler with left-opening door.
⑴
(7)
Operation Panel:
⑵Removable Wine ottle or Can Shelf
⑶Hot Air utlet rame
⑷
⑸
⑹
Height djustable eet
Glass Door
Door Handle (
Lock
）
7
1
2
3
4 5
6
5

SPECIFICATIONS
Product Description Wine cooler, Beverage center
Model No.
Capacity 82 L/2.9 Cu.Ft.
KM-BIR3C-GD
Electrical Rating 115V~/60Hz/0.9 A
Refrigerant R600a, 0.67 Oz/19 g
Unit Dimensions
With Feet (Inches)
Width Depth Height
15.0’’（380mm）22.5”(572mm) 33.8 ”(860mm)
Net Weight (Lbs) 64.00Lbs
HOW TO OPERATE
Storing Wine Bottle & Can
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.

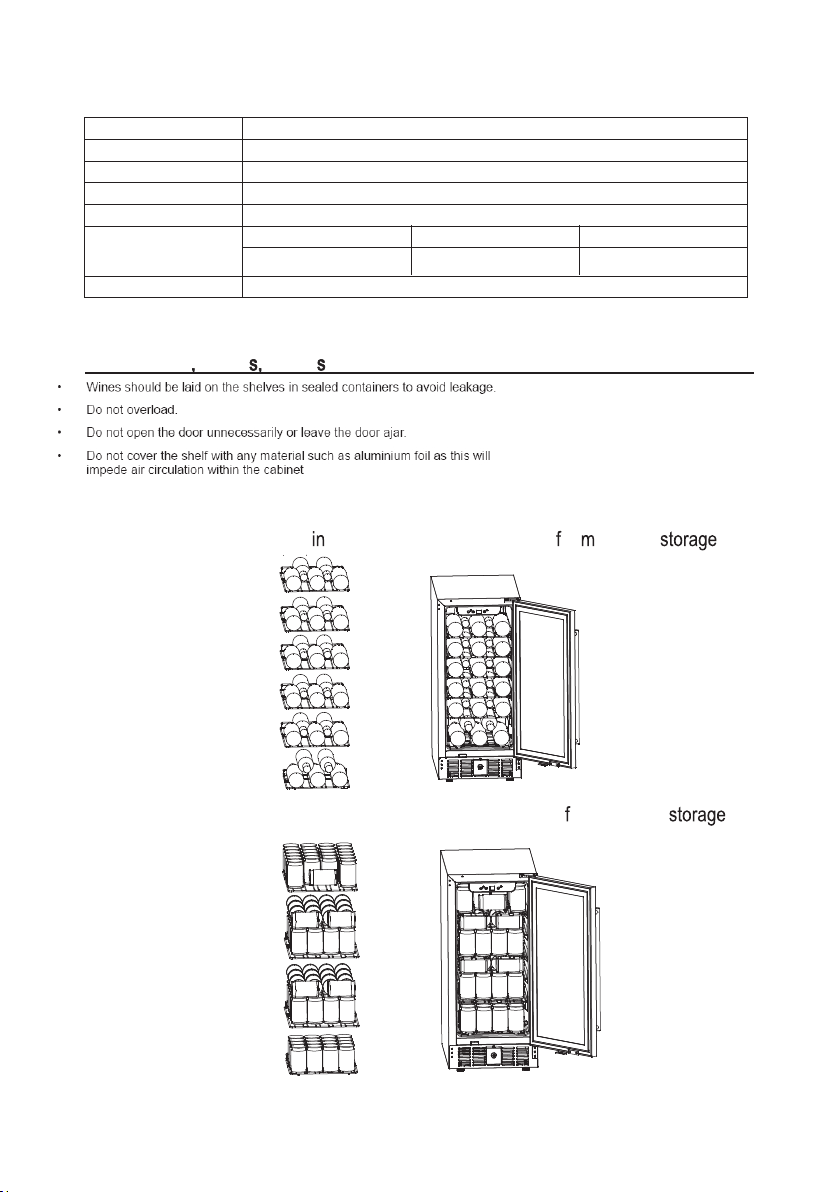

Please place the wine bottles reference to following figure: ( or aximum )
For canned beverage or drink, please see the following figure: ( or maximum )
6

Starting and Running the unit
Important: If the unit is brought in from outside in the winter season, give it a few hours to warm up
to room temperature before plugging it in.
After transportation and moving the unit, please wait for a least 4 hours before plugging
in and operating the unit.
1. Remove the packaging material.
2. Clean the unit thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist
cloth.
3. Connect the power cord to a standard wall outlet. Once powered, you will hear a beep which is
normal. The display on the control panel will revert to current internal temperature.
4. Do not put wines or beverages into the wine cooler within two hours after first powering on.
Operation Button Panel
There are three buttons and a temperature display window on the control panel. These let you operate
you unit and reach your desired running temperature.
Temperature adjustment
Press two buttons " " &"" to adjust the set temperature to your desired
value. Each press will change the temperature 1 Fahrenheit degree.
Setting Range: 36-61 Fahrenheit. The default setting is 39 Fahrenheit.
Interior Light Control
The unit has built in with the LED light in the cooling compartment. When you open
the glass door, the LED light will activate on. Closing the door will shut off the LED
light. Additionally, the LED light is controlled by this button “ ” on the control
panel. Press this button, the LED light will change to half brightness, then after the
glass door is closed, the LED light will be still on. If you press the “ ” button again,
the LED light will recover to default max brightness. It will shut off when the glass
door is closed. For maximum energy efficiency, leave the light off when not viewing
your collection.
Note: Wait 3-5 minutes before restarting if you unplug the refrigerator. The unit
may fail to operate properly if restarted too quickly.
HOW TO CLEAN
IMPORTANT: Do not clean your unit with flammable fluids. The fumes can create a fire hazard or
explosion.
WARNING: Before maintenance or clean to the unit, be sure to unplug the unit first.
DO NOT pour water onto or let the whole unit be submerged in water - this will ruin the
7

inside electrical parts.
Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.
Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing,
use silicon wax.
Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and dry.
Wash interior with baking soda solution (3 tablespoons to I liter of water) or warm sudsy
water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
HOW TO INSTALL
This appliance can either stand alone or be built in. The front grill must be not obstructed.
Install the unit in a convenient location away from extreme heat and cold. This unit should be far
away from the heating source, such as stoves, heaters, or radiators, and from direct sunlight.
Allow sufficient clearance between the unit and sidewall so the door will open without
obstruction.
Place the unit on a level surface that will be strong enough to support the unit when it is fully
loaded. Not recommended for carpeting or other soft / uneven surfaces. To level your fridge,
adjust the front feet located at the bottom of the unit.

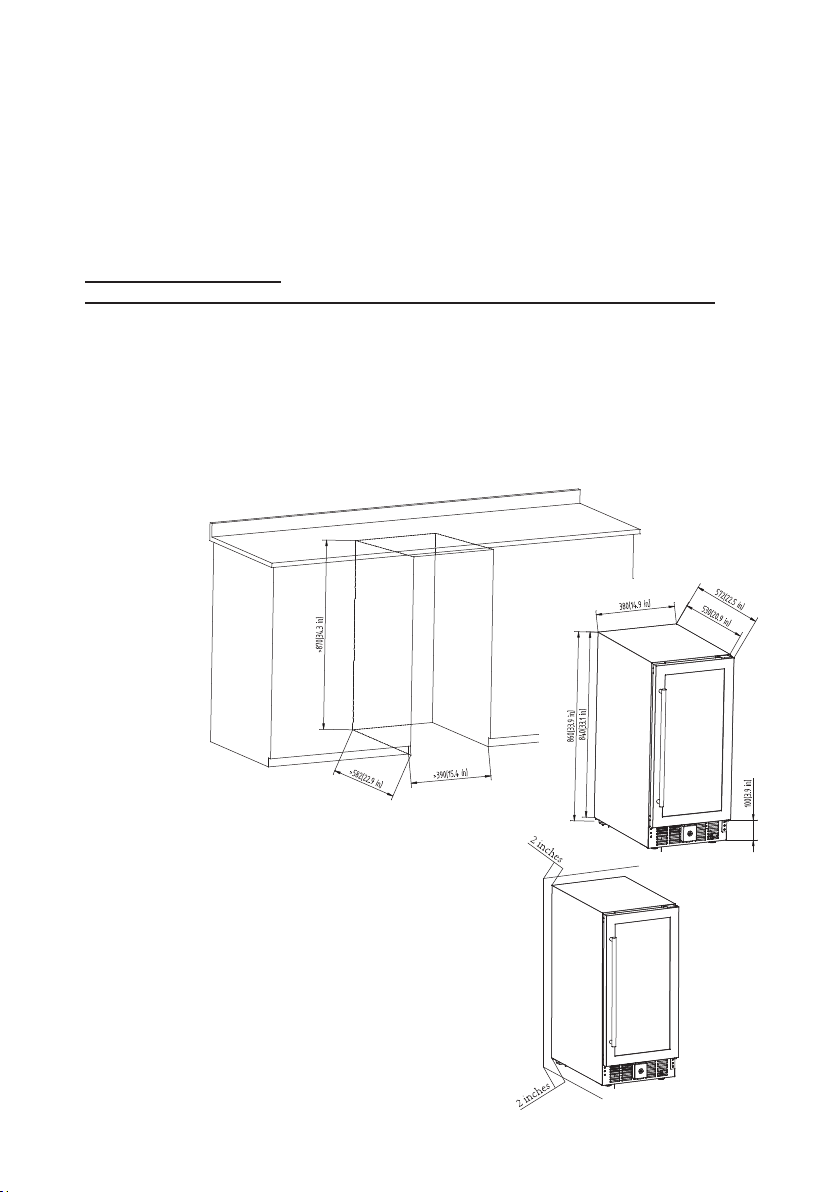

For under-counter built-in installation, please following the following diagram, and leave the
enough space for the unit.
For free standing installation, we suggest to allow 2 inches of
space between the unit’s side, rear, and the wall. In addition,
sufficient clearance (160°) should be maintained to allow the
glass door to open properly and completely.
8

The appliance must be correctly connected to the power supply, 115V/60Hz, and grounded.
CARE AND MAINTENANCE
The unit should be cleaned on a regular basis. (See: “HOW TO CLEAN”)
It is necessary to have an adequate ventilation space around the unit in order to attain
proper performance, dissipation of heat, maintain efficiency, and low power consumption.
Clearance of minimum 2 inches should be maintained at the rear and sides of the unit. And
especially do not obstruct the front hot air outlet frame. (See: “HOW TO INSTALL”)
Do not modify the power cord under any circumstance to allow the unit to be plugged into a
non-grounded outlet. To avoid heat damage to the power cord, please ensure that it does not
come in proximity or in direct contact with the compressor of the unit.
Please avoid installing the unit in a location where the appliance will come in contact with
water or moisture to minimize rusting of metal parts.
The unit should not be installed near any heat source or in a location where it will come in
direct contact with the sunlight.
The components, if need to be replaced, should be replaced with like components, and
should be replaced by the manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard and to minimize the risk of possible ignition and also to decrease the
cooling performance due to incorrect parts or improper service.
The unit is not designed to be installed in an outside area such as a garage or a
porch. Ambient temperatures of below 50°F or above 90°F will hinder the
performance of the appliance.
9
