Koopor Plus KP200 User manual

http://www.koopor.com/plus/ KOOPOR Plus 1
Plus - User Manual
KP200

http://www.koopor.com/plus/ KOOPOR Plus 2
Plus - User Manual
KOOPOR
KOOPOR Plus
Packing List
Verification
Warranty
User Guide
1. Schematic Diagram
2. Install Battery
3. Attach Atomizer
4. Operations
5. TC Mode
6. VW Mode
7. Memory Mode
8. Self-protection
9. Warnings
Appendix 1. Product Specification Table
Appendix 2. Key Function Table
Appendix 3. Screen Prompts Table

http://www.koopor.com/plus/ KOOPOR Plus 3
KOOPOR
KOOPOR [/ˈkubɚ/] = COOL VAPOR !
KOOPOR is an attitude.
KOOPOR is fresh and young. Young is our attitude! We believe that the APV (Advanced
Personal Vaporizer) is a revolution, which brings a healthier life for us. We seek the high
performance, reliable and affordable APVs all the time. KOOPOR is on the way to design and
make great APVs, for everyone, cost-effective and affordable! We firmly oppose extravagant
profits, and insist to feed our customers by highly cost-effective ones.
KOOPOR is a big family.
KOOPOR, when its design and team-boosting from the moment of conception, is deeply
suffering from the impact of global vaping players: we’re talking and sharing with each other in
forums, in Facebook timelines, in tweets. We’re listening and feeling surprise, revelry,
disappointment and frustration among us, finally, we are full of hope again, like a family. Hope,
yeah, we’d love to make better goods for this big family! KOOPOR is born for this big family.
KOOPOR Plus
KOOPOR Plus features Dual Driver System and HFDMR (High-frequency Dynamic
Monitoring Resistance) Technology, which can bring the temperature control effect to the next
level! Recently, most devices on the market have “single driver system”, which means that it’s only
one option, either boost or buck the voltage. However, KOOPOR has integrated our own Dual
Driver System that works to buck and boost the voltage to improve the accuracy and speed of
regulating, and enhance the consistency and taste of every puff.
Or let me explain that by using a metaphor: other devices can be compared to front or rear
wheel drive vehicle, and KOOPOR to all-wheel drive, which tends to produce a more outstanding
performance.
HFDMR, is a high-frequency resistance sensing technology, which can detect atomizer
resistance once every 250 microseconds, with a precision of approximately 4000 times per second,
thus regulating the temperature of heating coil more effectively.
Constructed from stainless steel with a zinc-alloy coating, it looks modern and feels
comfortable. Magnet-held battery cover design makes sure that, with a gentle touch, you will
simply slide it off and replace the battery in seconds! This compact mod takes dual 18650 batteries,
and provides 200 watts of maximum output!
This is KOOPOR Plus, helps to satisfy all your desire for temperature control, strong power
and high quality.

http://www.koopor.com/plus/ KOOPOR Plus 4
Packing List
Gift Package
1 x KOOPOR Plus（KP200）
1 x KOOPOR Plus User Manual
1 x KOOPOR Plus Customer Card
1 x KOOPOR Plus Battery Safety Warning Card
Verification
1. Using your Smartphone or PC to visit KOOPOR official website:
http://www.koopor.com/support/
2. Scratch off the coating of the security label on packing box to get the 16 anti-fake codes.
Fill them into the input box on the webpage to verify. The result will come out after a few
seconds.
3. If you have any question, please contact KOOPOR consultant via e-mail, phone or our
website to get more help.
Warranty
KOOPOR Plus Warranty Period: 6 Months from the Purchase Date.
Within the 6 Months, some items may not be eligible for service due to misuse, damage, or
other failures caused other than by manufacturer defects or premature failure. Please contact
KOOPOR Authorized Vendor for more information and terms of service.
The “KOOPOR Plus Customer Card”is an important proof for customers to get warranty
service, please keep it. And read the card carefully and fill it out correctly. Warranty requests must
be accompanied by this card.
For more warranty policy and process, please visit our official website:
http://www.koopor.com/support/

http://www.koopor.com/plus/ KOOPOR Plus 5
User Guide

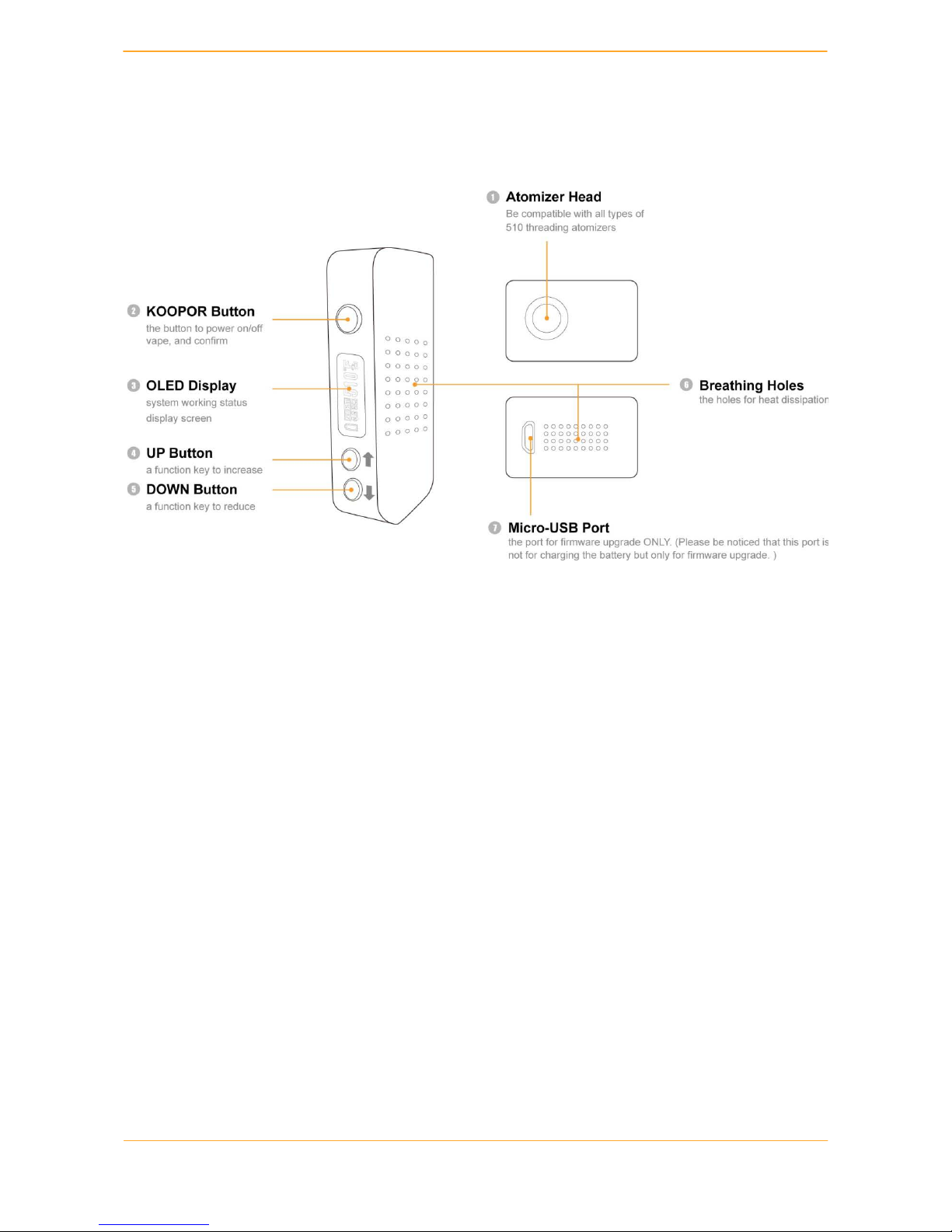

1. Schematic Diagram
2. Install Battery
KOOPOR Plus adopts the magnet-held battery cover design to make sure that, with a gentle
touch, you will simply slide it off and replace the batteries in seconds!
Steps:
1. Please confirm to use dual 18650 batteries with enough power.
2. Slide to open the back cover and place the batteries into the device according to the
correct directions, and then close the battery cover.
3. Click KOOPOR Button 5 times quickly in 2 seconds to power on. The display screen
successively shows "WELCOME", brand "KOOPOR PLUS”. Wait for 2 seconds for the
activation.
4. If the screen is not lighted, please check if the batteries are OK, or placed in the correct
direction or if the batteries have enough power.
5. Please contact with our customer consultant if it still can not be powered on.

http://www.koopor.com/plus/ KOOPOR Plus 6
3. Attach Atomizer
KOOPOR Plus atomizer head is using a new generation of elastic-touch design, perfectly fits
a variety of atomizers.
Please confirm that the atomizer head should not be blocked by any stems before attachment:
1. Connect the atomizer to the device and tighten it clockwise.
2. After the device is powered on, please press the KOOPOR Button to vape.
3. IS NEW COIL? Y/N: A new coil will be detected in the TC Mode. Press UP Button if
you’re using a new atomizer and Press DOWN Button to confirm it’s the same one.
4. Operations
1. Power On:
①While the device is off power, fast click KOOPOR Button 5 times in 2s to start up.
The screen successively shows "WELCOME", brand "KOOPOR PLUS”;
②From standby status, shortly press KOOPOR Button to active the system and light the
display screen.
2. Power Off: While the device is locked, hold KOOPOR Button for 5s, then the display
screen shows “GOOD BYE!”, and the screen turns off, which means the device is power off.
3. Vaping:
①While the device is power on, hold KOOPOR Button to vape (it will be forced to stop
working when one vaping is longer than 12s, release once to vape again);
②Release KOOPOR Button and enter standby mode; if without any operation in 5
minutes, need to be restarted if use again.
4. Screen Unlocked Status:
①Press UP / DOWN Button to adjust the temperature or wattage settings;
②Press UP+ DOWN Button simultaneously to lock the UP / DOWN Button to avoid
accidental operation;
③Press KOOPOR+ UP Button simultaneously to choose working mode between TC
Mode, VW Mode and Memory Mode;
④Press KOOPOR + DOWN Button simultaneously to choose different effect
Normal/Soft/Hard/Max/Min.
5. Screen Locked Status:
①Press the KOOPOR+ UP Button simultaneously to turn display stealth mode ON;
②Press the KOOPOR + DOWN Button simultaneously to turn display stealth mode
OFF;
③Press the UP Button + DOWN Button simultaneously to flip the screen.
④Hold the KOOPOR Button for 5s, choose OFF to power off.
6. Saving: All the settings will be automatically saved while settings done. No need to reset
after power on.

http://www.koopor.com/plus/ KOOPOR Plus 7
7. Menus & Prompts: After startup, fast press the KOOPOR Button 3 times in 2s, then you
will go to the operation menu. And then, long-press on the KOOPOR Button to confirm;
UP/DOWN Button could do menu moves.

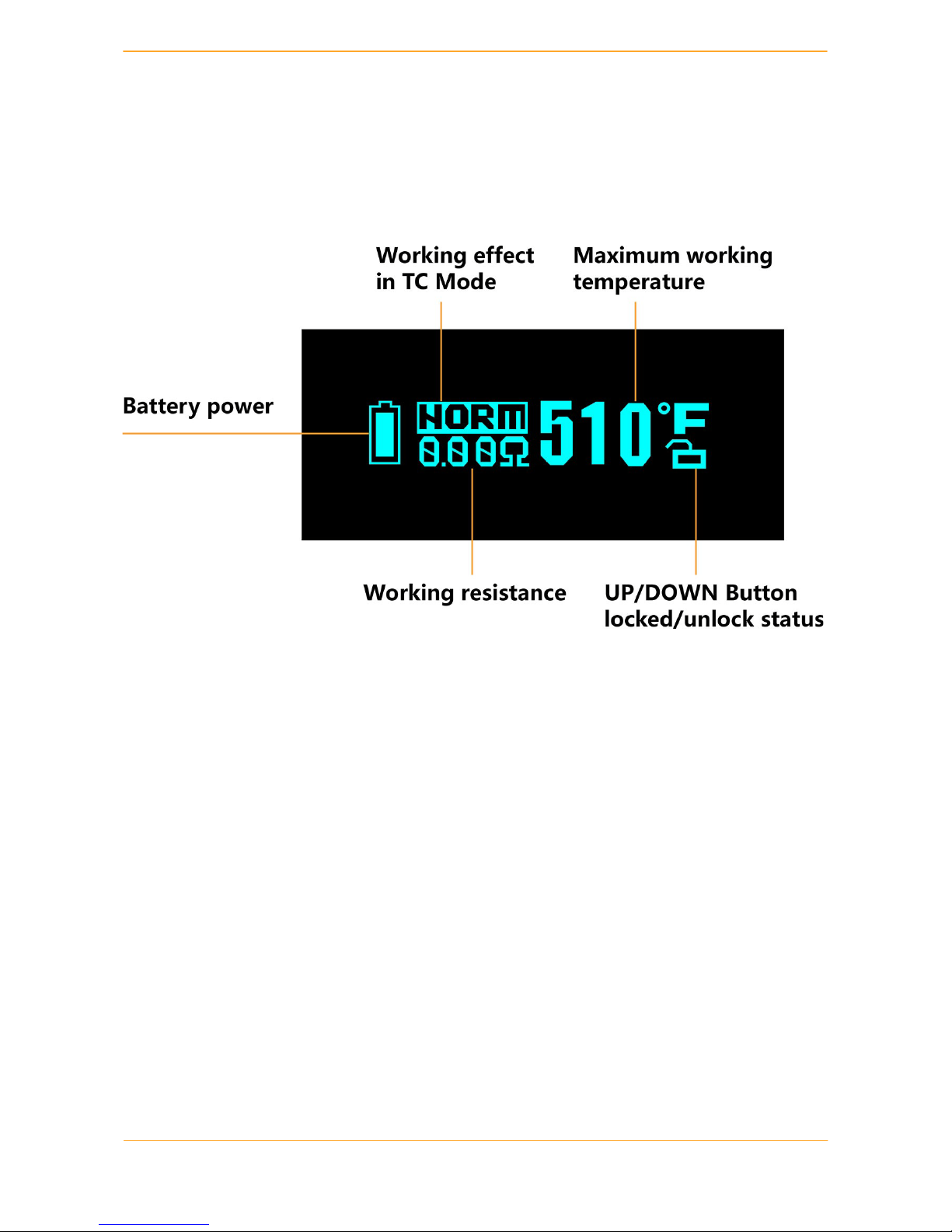

5. TC Mode
TC Mode is available when KOOPOR Plus works with a TC type atomizer.
1. Enter TC Mode: switch between TC Mode and VW Mode by pressing KOOPOR+ Up
Button simultaneously while screen is unlocked.
2. In the TC Mode, please use the UP / DOWN Button to adjust the temperature settings
with an increment/decrement of 10 degrees Fahrenheit (about 5 degrees Celsius) to get the best
preferred settings. Then wait for 5 seconds or hold down KOOPOR Button to switch between the
Hard/Normal/Soft/Max/Min vaping effects. After the above steps are completed, under TC
mode, you can also select coil material: TC-NI/TC-TI/TC-SS, or adjust Nickel
TCR( Temperature Coefficient of Resistance), or set atomizer type: NICKEL Single Coil or
NICKEL Dual Coil.
3. Lock the UP / DOWN Button by pressing the UP+ DOWN Button simultaneously, to
avoid accidentally pressing. Again, simultaneously press to unlock UP / DOWN Button.
4. When the screen shows “TEMPERATURE PROTECTED”, the heating coil reached the
maximum allowed temperature during the vaping. If it happens, the KOOPOR Plus will continue
to fire, but will not be able to provide the desired wattage.

http://www.koopor.com/plus/ KOOPOR Plus 8

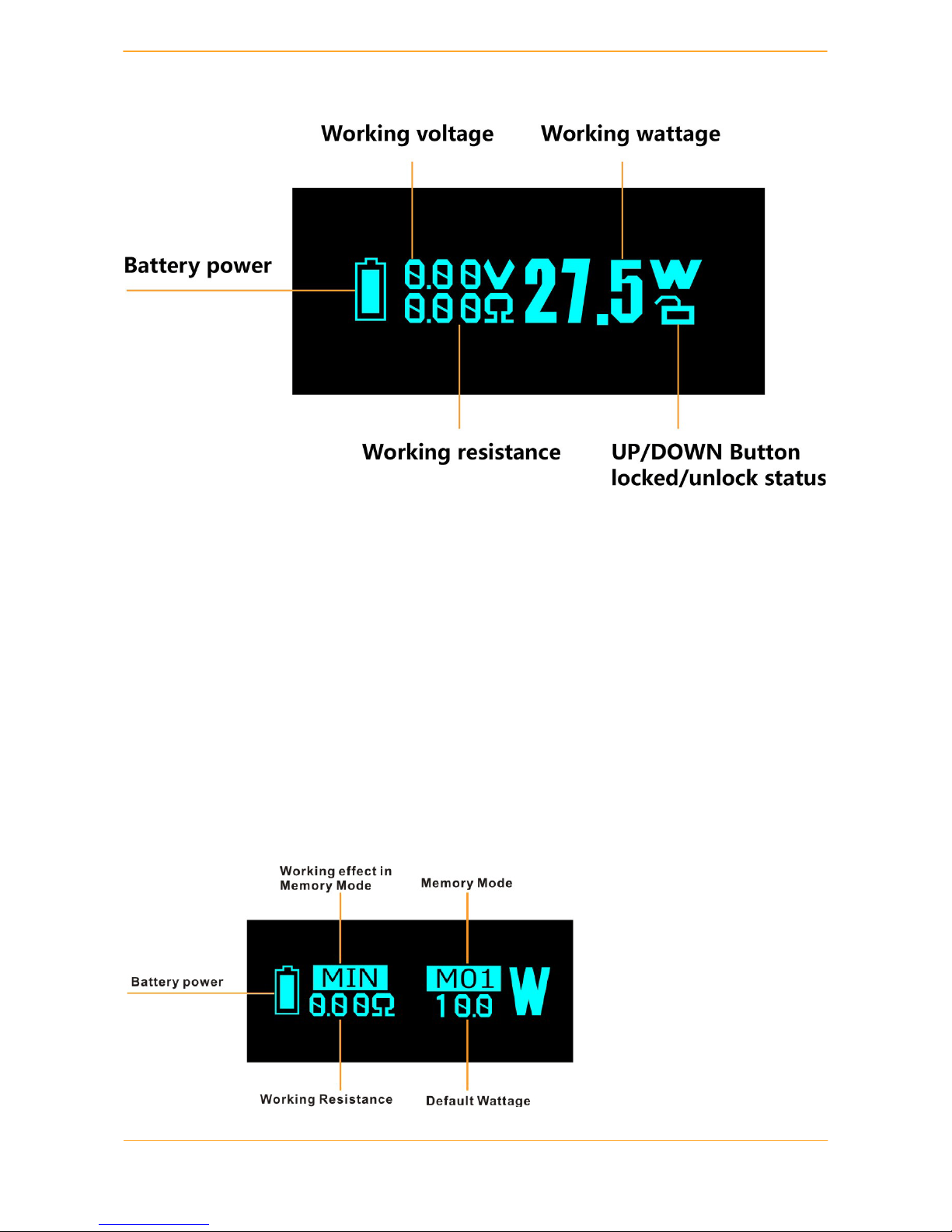

6. VW Mode
KOOPOR Plus VW Mode is available for all types of atomizers.
1. Enter VW Mode: switch between TC Mode, VW Mode and Memory Mode by pressing
KOOPOR Button +Up Button simultaneously while screen is unlocked.
2. In the Wattage Mode, use the UP / DOWN Button to adjust the wattage settings with an
increment/decrement of 0.1w to get the best preferred wattage. Then wait for 5 seconds or hold
down KOOPOR Button to switch between the Hard/Normal/Soft/ Max/Min vaping effects.
3. Lock the UP / DOWN Button by pressing the UP+ DOWN Button
simultaneously, to avoid accidentally pressing. Again, simultaneously press to unlock UP /
DOWN Button.
7. Memory Mode
KOOPOR Plus Memory Mode is designed to save your time and effort.

http://www.koopor.com/plus/ KOOPOR Plus 9
1. Enter Memory Mode: switch between TC Mode, VW Mode and Memory Mode by
pressing KOOPOR Button+Up Button simultaneously while screen is unlocked.
2. In the Memory Mode, use the UP/ DOWN Button to switch between the
Hard/Normal/Soft/ Max/Min vaping effects. And then wait for 5 seconds or hold down
KOOPOR Button to enter M01-M20, and adjust default wattage among them by pressing
the UP/DOWN Button. Their wattages are adjustable from 6W to 200W. After the above
steps are completed, press KOOPOR Button or wait for 5 seconds to save the wattage you
prefer.
8. Self-protection
KOOPOR has dedicated to make high performance and reliable APVs for vapors. KOOPOR
Plus comes with the following self-protection functions. When the device is under abnormal
condition, it will enter protection mode, and stop working to ensure the users’security until the
problem is solved.
1) Atomizer Intelligent Recognition
2) System Over-heating Protection
3) Current Overload/Short-circuit Protection
4) VoltageLow/Over Protection
5) Vaping-time Limit Protection
8. Warnings
1. Please keep the device away from excessive temperature and humid environment to
prolong its life time.
2. Please take the battery out of the device when it’s not used for a long time.
3. Please keep the device away from children, pregnant women, and minors (under 18 years
of age).

http://www.koopor.com/plus/ KOOPOR Plus 10
Appendix 1. Product Specification Table
Items
Details
Basic
Name
KOOPOR Plus
Model
KP200
Appearance &
Size
Material & Technics
Stainless steel and zinc alloy
Weight (g)
~ 245g
Height(mm) x Width(mm) x Depth(mm)
100mm x 59mm x 24.5mm
Atomizer Head Threading
510
Working Mode
TC(Temperature Control) Mode
VW(Variable Wattage) Mode
Memory Mode(M01-M20)
TC Mode Temperature Range
200 - 600
℉
(100-315
℃
)
Support Temperature Sensing Coil Material
Ni200/Titanium/Stainless Steel
Atomizer
TC Mode
0.08-3.00 Ω
VW Mode
0.10-3.00 Ω
Battery
Removable design, suit with dual 18650 batteries
Electrical
Parameters
Power
6 - 200 w
Voltage
0.35 –8.00 v
Current
Standby Current：< 300 µA
Working Current：the maximum current should
be less than 50A when the resistance is 0.1 ohm.

http://www.koopor.com/plus/ KOOPOR Plus 11
Appendix 2. Key Function Table
Key
Function(Screen Unlock Status)
Function(Screen Locked Status)
KOOPOR
Fast click 5 times in 2s - Power On
Fast click 5 times - Locked Screen
Fast click 3 times in 2s - Menu Choose
Hold on - Vape
Release - Standby
Long press 5s - Power Off
Fast click 5 times - Unlock Screen
UP
Increase the temperature （TC Mode）
Increase the wattage （VW Mode/ Memory Mode）
DOWN
Reduce the temperature （TC Mode）
Reduce the wattage （VW Mode/ Memory Mode）
KOOPOR + UP
Change Working Mode(TC / VW/ Memory)
Turn display stealth mode ON
KOOPOR + DOWN
Change TC Effect (Hard/Normal/Soft/Max/Min )
Turn display stealth mode OFF
UP + DOWN
Locked UP & DOWN keys, Again, Unlock keys
Flip the screen

http://www.koopor.com/plus/ KOOPOR Plus 12
Appendix 3. Screen Prompts Table
Prompts
Details
Power on successfully
Power off successfully
Fast click 5 times KOOPOR button to unlock the screen
Fast click 5 times KOOPOR button to lock the screen
Battery power isn’t enough, change batteries
Battery voltage is higher than need, change batteries
Atomizer hasn’t been detected, attach an atomizer
Low resistance value been detected, replace atomizer
High resistance value been detected, replace atomizer
Short circuit has been detected, replace atomizer

http://www.koopor.com/plus/ KOOPOR Plus 13
Temperature protection under TC Mode
Atomizer coil is heating without liquid under TC Mode, fill juice
System is overheating, stop working
Mode Settings
Vape Data
Basic Function Settings
Stealth Mode Waiting Time
Screen Contrast
Screen Rotation
Adjust Initial Resistance Under TC Mode
Power ON/OFF

http://www.koopor.com/plus/ KOOPOR Plus 14
Exit Menu
