Korg DW-8000 User manual

PROGRAMMABLE
DIGITAL WAVEFORM SYNTHESIZER
DW-8000
SERVICE MANUAL
iiimiJiMj/M

1. SPECIFICATIONS
•Keyboard
•Voice
•OSC1
•OSC2
•Auto bend
•Noise
•VCF
•VCF EG
•VCA EG
•MG
•Bend
•Portamento
•Digital delay
•After touch
•Key assign
mode
•MIDI
61 keys (C —C), Initial Touch/After
Touch
8voice
Octave (16', 8', 4'), Waveform (1 —
16), Level adjustment
Octave (16', 8', 4'), Waveform (1 ~
16), Interval (Unison, Minor 3rd,
Major 3rd, Perfect 4th, Perfect 5th),
Detune (25 cents MAX), Level adjust-
ment
Select (OFF, OSC1, OSC2, Both),
Mode (UP/DOWN), Time, Intensity
Level adjustment (White noise)
Cutoff frequency. Resonance,
Keyboard track (0, 1/4, 1/2, 1), EG
polarity \,y^ ), EG intensity
Attack time, Decay time, Breakpoint
level. Slope time, Sustain level, Release
time, Velocity sens
Attack time, Decay time. Breakpoint
level. Slope time, Sustain level, Release
time, Velocity sens
Waveform (/\ ,l\ ,^,_TL ),
Frequency, Delay time, OSC intensity,
VCF intensity
Max. OSC bend (±1 octave), VCF
bend ON/OFF
Portamento time
Time (approx. 4—512ms), Factor
(x0.5 —1.0), Feedback level,
Modulation frequency (max. 10Hz),
Modulation intensity. Effect level
OSC MG, VCF, VCA
POLY 1, POLY 2, UNISON 1,
UNISON 2
Send/receive channel (ch 1—16),
ENABLE (NOTE DATA/ALL), OMNI
(ON/OFF), Arpeggio clock
•Volume
•Tune
•Joystick
•Arpeggiator
•Programmer
•Display
•Tape interface
•Input jacks
•Output jacks
•Tape switch
•Write switch
•MIDI jacks
•Power
consumption
•Power supply
•Weight
•Dimensions
•Accessories
(0 ~max.)
±50 cents
Xaxis (OSC bend, VCF bend), +Y
axis (OSC modulation), -Y axis
(VCF modulation)
ON/OFF, Assign (UP/DOWN Mode or
ASSIGNABLE mode). Octave (1 ,2,
full), Latch (ON/OFF), Speed control
slider (Arpeggio tempo: -approx. 20
~250)
Value (edit slider, UP/DOWN switch
es), PROGRAM/PARAMETER
switches. Number select buttons (1 ~
8), WRITE switch, BANK HOLD
switch
Program number. Parameter number.
Parameter value
Save, Load, Verify, Cancel
FROM TAPE (HIGH/LOW), DAMPER
(1_, GND), PORTAMENTO (1, GND),
Program UP (i, GND)
Output (R, L/MONO, HIGH/LOW),
PHONES, TO TAPE
ENABLE/DISABLE
ENABLE/DISABLE
IN, OUT, THRU
31
W
Local voltage
10.9kg
998(W) x338(D) x101(H)mm
AC power cord. Connection cord,
Data cassette. Program card
-1-

2. MIDI IMPLEMENTATION
1. TRANSMITTED DATA
1.
Channel messages
STATUS SECOND THIRO
1000nnnn0kkk k kk k 01000 0 0 0 NOTE OFF
kkkkkkk =36-96
1001nnnn0kkkkkk k 0VVVV V VVNOTE ON
kkkkkkk =36 -96
wwvw =15-127 (40 STEPS)
1011nnnn00 0 000010VVV V VVVOSC MODULATION
wvvwv =0-127 (31 STEPS)
1011nnnn000 0 00100VVVV V VVVCF MODULATION
vwww =0-127 (31 STEPS)
1011nnnn010 0 0000 00000000DAMPER PEDAL OFF
1011nn n n0100 0 000011111 1 1DAMPER PEDAL ON
1011nnnn010000010 0 0 0 0000PORTAMENTO OFF
1011nnnn0.100000101111 1 1 1 PORTAMENTO ON
DESCRIPTION
110 0
110 1
1110
n n nn
nnnn
nnnn
0p p p
0vvv
0000
PPP P
VVV V
0000 0 bbbbbbb
PROGRAM CHANGE (NOTE 1)
ppppppp =0—63
CHANNEL PRESSURE
(AFTER-TOUCH)
wvvwv =0-127 (63 STEPS)
PITCH BENDER CHANGE
bbbbbbb =0-127
(bbbbbbb =64 :CENTER)
nnnn =0—15: channel number specified by parameter 84.
NOTE: 1. PROGRAM NUMBER (Oppppppp) correspond to DISPLAY NUMBER on the PANEL which will be the
following:
DISPLAY NUMBER
#11
#12
#87'
#88 -
PROGRAM NUMBER
a- 0
—1
62
63
2.
System real time messages
STATUS DESCRIPTION
1111 10 00
1111 10 10
1111 110 0
1111 1110
TIMING CLOCK (NOTE 2)
START (NOTE 2)
STOP (NOTE 2)
ACTIVE SENSING (NOTE 3)
NOTES: 2. Can be sent when "internal clock" has been
specified by parameter 87 (Arpeggio clock).
3.
Sent at intervals of 300ms or less.
—2—

3. System exclusive messages
(a) DEVICE ID
BYTE DESCRIPTION
11110 0 0 0EXCLUSIVE STATUS
01000 0 10KORG ID42H
0 0 11n n nnFORMAT 1D3*H (* *ch)
00000 0 11DW-8000 ID03H
1 1 110111EOX
nnnn =0^15: channel number (channel to transmit
exclusive messages) specified by parameter 84.
NOTE: 4. If receive DEVICE ID REQUEST, DEVICE ID
message will be sent.
(b) WRITE COMPLETED
BYTE DESCRIPTION
11110000EXCLUSIVE STATUS
01000010KORG ID42H
0011nn n nFORMAT ID 3*H {* =ch)
00000011DW-8000 ID03H
0 0 1000 0 1WRITE COMPLETED 21H
1111011 1 EOX
nnnn =0~15: channel number (channel to transmit
exclusive messages) specified by parameter 84.
NOTE: 5. If WRITE REQUEST is received and program
write is completed, aWRITE COMPLETED
message will be sent.
(c) WRITE ERROR
BYTE DESCRIPTION
11110000EXCLUSIVE STATUS
01000010KORG ID42H
0 0 11nnn n FORMAT 1D3*H (* =ch)
00100011DW-8000 ID03H
00100010WRITE ERROR 22H
1111011 1 EOX
nnnn =0~15: channel number (channel to transmit
exclusive messages) specified by parameter 84.
NOTE: 6. If WRITE REQUEST is received and program
write is not completed (if WR ITE DISABLE is
chosen on the rear panel), aWRITE ERROR
message wilf be sent.
(d) DATA SAVE (DATA DUMP)
BYTE DESCRIPTION
11 1 10000EXCLUSIVE STATUS
01000010KORG ID42H
0011nnnnFORMAT ID 3*H {* =ch)
0000001 1 DW-8000 ID03H
010000 0 0DATA DUMP 40H
0VVVV V VVDATA 51 BYTES
{See DW-8000 BIT MAP)
0VVV V V V V
11110111EOX
nnnn =0~15:channel number (channel to transmit
exclusive messages) specified by parameter 84.
NOTE: 7. If DATA SAVE REQUEST is received, DATA
SAVE <DATA DUMP) will be sent.
—3—

2. RECOGNIZED RECEIVE DATA
1. Channel messages
STATUS SECOND THIRD
1000nnnn0kkkki0XXXXX X XNOTE OFF (NOTED
1velocity will be ignored.
1001nnnn0kkkkl0VVVVVVVNOTE ON (NOTED
wwvw =1—127 (15 STEPS)
10 0 1nnnn0kkkk000000 0 0 NOTE OFF (NOTED
1011nnnn0000000i0VVVVVXXOSC MODULATION
(5 BITS RESOLUTION)
1011nnnn000000100VVVVV X XVCF MODULATION
(5 BITS RESOLUTION)
1011nnnn0 0 0001110V V VVVV V VOLUME
(7 BITS RESOLUTION)
1011nnn n 0100 0 000 0 0000000DAMPER PEDAL OFF
1011nnnn0100000001111 1 1 1DAMPER PEDAL ON
1011nnnn0100000100000 0 0 0 PORTAMENTO OFF
1011nnn n 0100000101 1 11111PORTAMENTO ON
1011nnnn0111 1 011000000 0 0ALL NOTES OFF
1011nn n n0111110000000 0 00OMNI MODE OFF
(ALL NOTES OFF)
1011n n nn01111101000 0 0000OMNI MODE ON
(ALL NOTES OFF)
1011nn n n011111100XX X XXXX(ALL NOTES OFF)
1011nnn n 0111111100000 0 0 0 (ALL NOTES OFF)
1100nnnn0PpPPppp—PROGRAM CHANGE (NOTE 2)
1101nn n n0VVVVVVX—AFTER TOUCH
(6 BITS RESOLUTION)
1110nnnn0XXXXXXX0bbbbbbbPITCH BENDER CHANGE
DESCRIPTION
LSB will be ignored.
MSB will be recognized,
(bbbbbbb =64 :CENTER)
nnnn =0~15:
Channel number specified by parameter 84. When the mode is OMNI ON, all the data will be received. When the mode is
OMNI OFF, only data of the channel designated by the parameter will be received. As to MODE MESSAGE, however,
designated channel data only will be received even if the mode is OMNI ON.
NOTES: 1.NOTE NUMBER (Okkkkkkk) =24 ~108. If data outside this range is received, the data will be transposed to the
same note on the nearest octave.
2. PROGRAM NUMBER (Oppppppp) =0~63. If the data is larger than 63, it will be recognized as anumber that
has 64 subtracted from it.
2. System real time messages
STATUS DESCRIPTION
1111 10 00
1111 10 10
1111 110 0
1111 1110
TIMING CLOCK (NOTE 3)
START (NOTE 3)
STOP (NOTE 3)
ACTIVE SENSING (NOTE 4)
NOTES: 3. Can be received if externa! clock has been
selected by parameter 87 (Arpeggio clock).
4. Should be received at intervals of 300ms or less.
-4-

3. System exclusive messages (d) DATA LOAD (DATA DUMP)
(a) DEVICE ID REQUEST
BYTE DESCRIPTION
11110 0 00EXCLUSIVE STATUS
010 0 0 0 10KORG ID42H
010 0 nnnnFORMAT ID 4*H (* =ch)
(NOTE 5)
11110111EOX
nnnn =0~15: channel number (channel to receive
exclusive messages) specified by parameter 84.
(b) WRITE REQUEST
BYTE DESCRIPTION
11110000EXCLUSIVE STATUS
01000010KORG ID42H
0 0 11n n nnFORMAT ID 3*H (* =ch)
(NOTE 5)
0000 0 011DW-8000 ID03H
00010001WRITE REQUEST 11 H
0ppp p P P P PROGRAM NUMBER
(p pppppp=0-63)
1 1 1101 1 1EOX
nnnn =0~15: channel number (channel to receive
exclusive messages) specified by parameter 84.
(c) DATA SAVE REQUEST
BYTE DESCRIPTION
1 1 110000EXCLUSIVE STATUS
01000010KORG ID42H
0 0 11nnnnFORMAT ID 3*H (* =ch)
(NOTE 5)
00000011DW-8000 ID03H
00010000DATA SAVE REQUEST 10H
11110111EOX
nnnn =0—15: channel number (channel to receive
exclusive messages) specified by parameter 84.
BYTE DESCRIPTION
1 1 110000EXCLUSIVE STATUS
01000010KORG ID42H
0011nnnnFORMAT ID 3*H (* =ch)
(NOTE 5)
0000001 1 DW-8000 ID03H
01000000DATA DUMP 40
H
0VVVVVVVDATA 51 BYTES
(See DW-8000 BIT MAP)
0VVVV V VV
11 1 10111EOX
*nnnn =0^15: channel number (channel to receive
exclusive messages) specified by parameter 84.
(e) PARAMETER CHANGE
BYTE DESCRIPTION
111100 0 0EXCLUSIVE STATUS
01000010KORG 1D42H
0011nnnnFORMAT ID 3*H (* =ch)
(NOTE 5)
00000011DW-8000 ID03H
01000001PARAMETER CHANGE 41H
0VVVVVVVPARAMETER OFFSET
(See DW-8000 BIT MAP)
0VV V VVVVPARAMETER VALUE
(See DW-8000 BIT MAP)
11110111EOX
nnnn =0~15: channel number (channel receive
exclusive messages) specified by parameter 84.
NOTE: 5. Messages with channel numbers different from
those specified by parameter 84 are ignored.
(This has no relation to OMNI mode setting.)
/
—5—

3. SYSTEM EXCLUSIVE MESSAGE REFERENCE

PARAMETER
OFFSET
AFTER T. VCF
AFTER T. VCA
2. DW-8000 Bit map and corresponding parameter values
PARAMETER
NAME
OSC 1OCTAVE
OSC. 1WF
OSC 1LEVEL
PARAMETER
OFFSET BIT CORRESPONDING PANEL VALUE
bl -bO 00 =16 01 =810 =411 =INHIBIT
b3 -bO 0000- 1111 =1-16
b4 -bO 00000- 11111 =0-31
bl -bO 00 =OFF 01 =OSC1 10 =OS02 11=BOTH
bO 0=UP 1=DOWN
b4 -bO 00000 -11111 =0-31
b4 -bO 00000-11111 =0- 31 v
bl -bO 00= 16 01 =810 =411* INHIBIT
o
-D
1
20000 -1111=1-1
6
b4 —bO 00000- 11111 =0-31
b2 —bO 000 =1001 =-3 010 =301 1=4100 =5
101 -111 =INHIBIT
b2 —bO 000-110 =0-6 111 =INHIBIT
b4 —bO 00000- 11111 =0-31
b5 —bO 000000 —111111 =0—63
b4 —bO 00000- 11111 =0-31
bl -bO 00=(0) 01 =1(1/4) 10 =2(1/2) 11=3(1)
bO 0=1 (A—v)1=2(\M )
b4 -bO 00000- 11111 =0-31
00000- 11111 =0-31
00000- 11111 *0-31
00000- 11111 -0—31
PARAMETER
NUMBER

PARAMETER
NAME
VCF SLOPE
VCF SUSTAIN
VCF RELEASE
VCF V. SENS
VCAATTACK
VCA DECAY
VCA BREAK P.
VCA SLOPE
VCA SUSTAIN
VCA RELEASE
VCA V. SENS
MG WAVE FORM
MG FREQUENCY
MG DELAY
MG OSC
BEND VCF
DELAY TIME
DELAY FACTOR
D. FEEDBACK
D. FREQUENCY
D. INTENSITY
D. EFF. LEVEL
PORTAMENTO
PARAMETER
OFFSET BIT CORRESPONDING PANEL VALUE
23 b4 -bO 00000- 11111 =0 -31
24 b4 -bO 00000 -11111 =0 -31
25 b4 -bO 00000 -11111 =0-31
26 b2 —bO 000 -1 1 1 =0-7
27 b4 -bO 00000- 11111 =0 -31
28 b4 -bO 00000 —11111 =0—31
29 b4 -bO 00000 -11111 =0-31
30 b4 -bO 00000 -11111 =0- 31
31 b4 -bO 00000- 11111 =0- 31
32 b4 —bO 00000 -11111 =0-31
PARAMETER
NUMBER
b4 -bO
b4-b0
b4 —bO
b3 -bO
bO
b2 —bO
AFTER T. VCA
bl -bO
bl -bO
00000 -11111 =0-31
00000 -11111 =0-31
00000 -11111 =0-31
0000- 1100 =0- 12 1101 -1111 =INHIBIT
0=O(OFF) 1=KON)
000 -111 =0-7
0000- 1111 =0 -15
0000 -1111 =0-15
00000 -11111 =0-31
00000- 11111 =0-31
0000 -1111 =0-15
11111 =0-31
00 -11=0-3
00- 11 =0-3
PARAMETER
NAME
ASSIGN MODE
PAR. NO. MEMO.
PARAMETER
OFFSET CORRESPONDING PANEL DISPLAY/MEMORY
00 =POLY 101 =POLY 210= UNISON 111 =UNISON 2
000000-111110 =0-62 (7, 14, 15, 21, 22, 23, 31, 39, 47, 55, =INHIBIT)

3. DW-8000 can send/receive the following data.
Sending Receiving
DEVICE ID
WRITE
COMPLETED
WRITE ERROR
DATA SAVE
(DATA DUMP)
:Identifies the equipment. Sent upon
receiving aDEVICE REQUEST.
:Sent in response to aWRITE RE-
QUEST. This indicates that the PRO-
GRAM WRITE task has been success-
fully completed.
:Sent in response to aWRITE RE-
QUEST. This indicates that the synth is
set to the WRITE DISABLE mode so
PROGRAM WRITE task cannot be
completed.
:In response to aDATA SAVE RE-
QUEST, this sends the data for the
sound presently being produced.
RECEIVE ID
REQUEST
WRITE
REQUEST
DATA SAVE
REQUEST
DATA LOAD
(DATA DUMP)
PARAMETER
CHANGE
:Arequest for the equipment's MIDI
identification number.
:Arequest for the DW-8000 to write
data for the present sound to program
memory.
:Arequest for the DW-8000 to send
data for the present sound.
:Sound data information. Sound data is
entered via the Data Load.
:Used to change parameters of the cur-
rent sound.
The DW-8000 can use these system exclusive messages
to communicate with acomputer equipped with a
MIDI interface. (A program to process the exclusive
messages is required.)
•Connecting acomputer
Because each exclusive message for the DW-8000 is speci-
fied with achannel designated by parameter 84, the corre-
sponding channel must be used for message transmission
from acomputer to the DW-8000. Amessage sent using the
incorrect channel will be ignored, regardless of OMNI
mode being ON or OFF.
These channels are used to effectively that timbre control
could be done independently for each DW-8000 in asystem
using two or more DW-8000s.
Examples of communication with acomputer
(1) To find the ID number for equipment connected to the computer.
Computer
DW-8000
DEVICE ID
REQUEST
—9—

(2)
To edit sound data within the DW-8000.
PROGRAM DATA SAVE PARAMETER WRITE
CHANGE REQUEST CHANGE REQUEST
Computer
DW-8000
Note: PROGRAM CHANGE is not aSYSTEM EXCLUSIVE message. WRITE ERROR
(3)
To edit data already available in the computer.
Computer
DW-8000
PARAMETER WRITE
DATA LOAD CHANGE REQUEST
WRITE ERROR
(4)
To load all 64 sound programs from the computer to the DW-8000.
Computer
DW-8000
PROGRAM DATA SAVE
CHANGE REQUEST
Repeated 64 times
(5)
To save all 64 sound programs from the DW-8000 to the computer.
Computer
DW-8000
WRITE
Repeated 64 times OR
WRITE ERROR
-10-

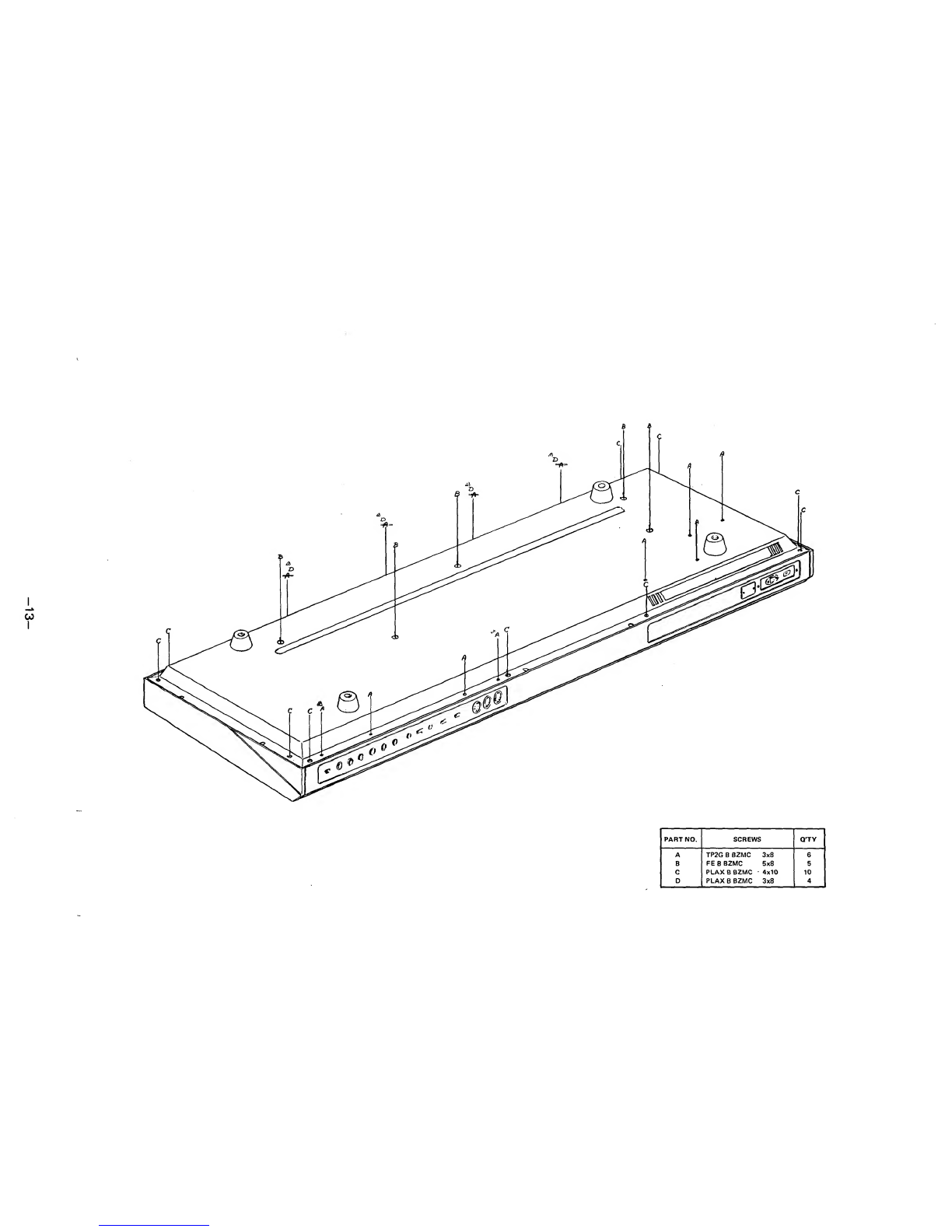

PART NO. PART NAME PART CODE
1.LOWER CASE 64072000
2. P.C. BRD SUPPORT 54011300
3. RADIATOR 56003300
4. HEATSINK 64066800
5. SHIELDING SHEET 58021100
6. SHIELDING COVER 63001700
7. RUBBER FEET 50009500
8. P.C. BRD PROTECTOR 63002000
9. CLAMP 54011100

A
I
mat
I1EBI
NJM2069 *8
PANEL
SWITCHES
LED
display
FOOT SW
CIRC.
ITT DAMPER
PORTAMENTO,
pRG.UP
I- ARPEGGIO
CLOCK CIRC.
SPEED
TAPE
INTERFACE
FROM
TAPE
nTO
TAPE
MIDI
INTERFACE
IN OUT THRU
KEYBOARD
G1 KEYS
AFTER TOUCH
CIRC.
CPU
HD63603X
WF1
WF2
OSC
PITCH
OSC2
PITCH
DWGS
2
3
4
5
6
7
8
SIG2-!
2
3
4
5
6'
7
fi
mixER
FT
CLOCK
CIRC.
%
1Dy
Vrel.
vaOCITYl
SENSE
CIRC.
TIME
FEEDBACK
EFFECT LEVEL
VCF
©1SE
CIRC
0SC1 LEkl
QSC2 LEVEU
,
NOISE LEVEL T
RESONANCE ...
iLrJL
VCA
VCA LEVEL- I
MIX 'DIGITAL
DELAY
TFT
FACTOR
VOLUME
!_1
i
MUTING
CIRC.
HEAD
PHONE
amp.
OUT PUT
OL/MONO
OR
OIL)
PHONE
*0 (RI
-AUDIO LINE
*CONTROL LINE
MPX
TUNE
Rvalue slider
—^JOY stick Y
&JOY STICK X
4.
BLOCK
DIAGRAM

CJ1
03* D4* 05* 00* 07 iDK*
ft- if2If1if'4If 3if0If7
Rd
\cA_
R7 47HcT
P*OG. UP
w* tlUAE
NoH R3
iBinSliiifilm
IlFHIIIIIIftV
imnimm
HIIIIM
lira
irai
§C!i<5j||
1
_
p-l S§| 111 1
1
fil LED1~? 619PR24
6E0a ltD&-U <A.9hDK>
rj O: o'~1L~W)*
fi* rMia our 2
02 0.04 71»
Cfc 0.047*
•7
-TT-nW a
220A m
ft ymidi rHaj W
,Oi
fi O)
<5
JQ
fed MIDI IN ^
v> a>
O)
4*
DIODES; 1S2473
KIM-775
ttDELAr
RCZ 717
Cl 2
L0.0<7>J
KLM-6^8
JACK
.
CIRCUIT
DIAGRAM

KLM-
