Kospel EKCO Series User manual

ELECTRIC CENTRAL HEATING FLOW BOILER
EKCO.M1z EKCO.M1Nz
EKCO.TM

Contents
Safetyinstructions 3
Basicinformationabouttheboiler 3
Instruction for the installer
TechnicalData 4
Installationoftheboiler 4
ConnectingexternalappliancestotheZIOmodule 7
Boilerincascadeconnection 9
Externalmodeswitching 10
Instruction for the user
Controlpanel–introduction 11
Mainview 11
Choosingthedisplayview 12
Selectingthelanguageversion 13
BoilernadDHWCylinderconfiguration 13
Outdoortemperaturecompensation 14
Automaticsummermode 15
Workingmodes 16
Automaticworkwith24HTemperatures,weeklyprogramming 16
Pumpworkingmode 18
Currenttimesetting 19
Roomtemperaturesensor 19
DHWPump 20
DHWcylinder 20
Heatingofthesecondcircuit 22
Centralheatingparametersview 22
Faults 23
Servicemenu 23
Boilerincascadeconnection 25
GSMremotecontrol 26
Instruction for the installer
TechnicalData 4
Installationoftheboiler 4
ConnectingexternalappliancestotheZIOmodule 7
Boilerincascadeconnection 9
Externalmodeswitching 10

3
PL-015B/f.
Safety instructions
1. PleasereadandfollowtheInstallationandOperatingInstructionscarefully,toensurethelonglifeandreliableoperation
ofthisappliance
2. Theboilerinstallationandallelectricalconnectionsmustbemadebyanqualifiedperson.
3. Manufacturermaymakeminorchanges,ifnecessaryintheappliancethatwillnotbeshownintheoperatinginstruc-
tions,solongasthemainfeaturesoftheboilerremainthesame.
4. TheControlPanelispre-setbythemanufacturersoitisreadytobeoperated,howeveryoucanadjustthemanufacturer
settingstoyourindividualrequirements.Appropriateprogrammingensurescomfortableandeconomicaloperationof
theboiler.
5. Itisnecessarytocutoffallpowersupplyusingeithertheboilerswitchesorswitchingoffthefusepriortoremovingthe
boilerfrontcasing.
6. Donotdrainthewaterfromcentralheatingsystemaftertheheatingseason.
7. Inbuildingsweretheboilerisoperatedonlyontemporarybasisandtheheatinginstallationcanbeexposedtofrost,
theboilermustbeoperatedatalltimesusinganti-freezemode,ortheheatinginstallationmustbeprotectedusingan
anti-freezeliquid.
Basic information about the boiler
Theprovidedinstallationandoperatinginstructionsreferstothefollowingboilertypes:
• EKCO.M1z,EKCO.M1Nz,EKCO.TM–wall-mountedelectricboiler,single-functional,withtheweathercompensation,
enabletoco-operatewithoneortwocentralheatingcircuits(e.g.radiatorsandunder-floor),withtheDHWcylinder
andthecentralheatingflowpump.
Theboilersmentionedaboveshallbeoperatedonaclosed(unvented)centralheatinginstallationwithaforced
watercirculation,protectedinaccordancewiththebindingnormsandstandards.Theboilerscanalsoworkon
opened(vented)centralheatinginstallationswithforcedcirculationprotectedinaccordancewiththebindingnorms
andstandards.
Theyareequippedwithafrontcontrolpanel,whichtakesintoconsiderationcurrentoutdoortemperature.This
featureensuresanalmostautomaticoperationoftheboiler.Accuratesettingoftheheatingparametersensures
economicaloperationoftheboiler.
Theboilerisequippedwithacirculatingpump,amanometerandanautomaticventvalve.
Theboilerisalsoequippedwithanumberofothersafetydevices:
• flowcontrolsystem,
• innertemperaturesensor,
• temperaturecut-outandsafetyvalve.
Thepoweroftheboilershouldbeadjustedaccordingtotheheatlossoftheheatedbuilding.

4
4
Technical data
Instructionfortheinstaller
Boiler installation
Installation conditions
• anappropriatepowersupply,
• anefficientelectricalinstallationwhichhasbeencompletedinaccordancewiththebindingnormsofelectricinstallation,
• wetcentralheatingsystemequippedwithanappropriateexpansionvesselmadeaccordingtothebindingnormsofhydraulic
installation,
• theheatinginstallationneedstobeflushedthoroughlybeforetheinstallation,
• theboilermustbeprotectedfromdirtbyusingamagneticfilter,
• donotinstallanybarrierfittings(e.g.valves)ontheoutletofthesafetyvalve,
• thisappliancemustnotbeinstalledinahumidplaceorinaplaceexposedtothedangerofexplosion,
• iftheboileristoco-operatewithanunder-floorheatingsystemprotectingfittingsmustbeinstalled(fig.2bor3).
Amagneticfiltermustbeinstalledonreturnpipeofcentralheatinginstallationsystem(before
boilerinlet).Thefiltermustbeinstalledinhorizontalposition,accordinglytoflowdirection(see
arrowonthefilterbody),withthemagneticinsertchambertothebottom.
Maximalpressure MPa 0,3
Minimalpressure MPa 0,05
Outflowwatertemperature °C 20÷85
Max.watertemperature °C 100
Dimensions(heightxwidth
xdepth)
EKCO.M1z
mm
660x380x175
EKCO.M1Nz 700x425x285
EKCO.TM 815x503x197
Weight
EKCO.M1z
kg
~16
EKCO.M1Nz 24,5
EKCO.TM ~29
Waterconnections
EKCO.M1z,EKCO.M1Nz G3/4”
EKCO.TM G1”
Safetyclass IP21
Boiler type EKCO.M1z,EKCO.M1Nz
Ratedpower kW 4 6 8 12 4 6 8 12
Ratedvoltage 220V~ 380V3N~
Ratedcurrent A 18,0 27,27 36,5 54,5 3x6,1 3x9,1 3x12,8 3x18,3
Fuseratedcurrent A 25 32 40 63 10 16 25
Minimalconnectingwiresdiameter mm23x2,5 3x4 3x6 3X10 5x1,5 5x2,5
Themaximumallowednetworkimpedance
Ω0,44 0,39 0,34
Boiler type
EKCO.M1z,EKCO.M1Nz
EKCO.TM
Ratedpower kW 15 18 21 24 30 36 42 48
Ratedvoltage 380V3N~
Ratedcurrent A 3x22,8 3x27,4 3x31,9 3x36,5 3x45,6 3x54,5 3x63,9 3x73,0
Fuseratedcurrent A 25 32 40 50 63 80 100
Minimalconnectingwiresdiameter mm25x2,5 5x4 5x6 5x10 5x16
Maximalconnectingwires
diameter
EKCO.M1z,EKCO.M1Nz
mm25x16
EKCO.TM
phaseconductor(2x16each),neutralandprotectiveconductor(1x16)
Themaximumallowednetworkimpedance Ω0,14 0,09 0,035 0,03

5
PL-015B/f.
5
PL-015B/f.
Installation work
1. Hangtheboilerupinaverticalpositiononfixingscrews
with inlet and outlet pipes to the bottom, maintaining
clearancesfromthewallsandtheceiling(seefig.1).
2. Connecttheboilertoacentralheatingsystemequipped
withcut-offvalves(seefig.2&fig.3).
3. Fillthecentralheatingsystemwithatreatedwater,that
extendsthelifeoftheheatingelements.
4. Ventthecentralheatingsystem.
5. Connectaboilertotheelectricalsystem(seefig.4).
Instructionfortheinstaller
1b
1a
Fig.1a,1b,1cFixingtheboilertothewall
Important
Thecontrolpanelallowsforitsco-operationindifferent
centralheatingsystems,howeverthecontrolpanelneeds
tobesetaccurately(see„FrontcontrolPanel”„Extanded
Menu”).e.g.iftheboileronlyco-operateswithanunder-
floorheatingsystem,aTcomax(max.temperatureinthe
centralheatingsystem)mustbesetat60°CandWCHG
(radiator coefficient) at „Pod” (see „Extended Menu” on
page24).
1c
Special start-up procedure for EKCO.TM
Aflowratereadingerrormayoccurifyoustart-upthe
unit at low ambient temperature. This error may occur
becausethephysicalpropertiesofantifreezesolution.
Underthiscircumstances,thespecialstart-upprocedure
willstartifyou:
- activatethecentralheatingorcylinderheatingmodeusing
thecontrolpaneldisplay(seefig.14),
- closetheNAentryonZIOboard(seefig.6),
- noticethe„!”(anexclamationmark)atmainviewpanel
display(see„Failures”page12).
Asaresult,themediumwillbewarmeduptotempera-
turethatenabledyoutoreadtheflowratecorrectly.The
duration of procedure depends on both the installation
capacityandthetemperatureinsidethesystem.
Whenthemainviewpaneldisplay(fig.10,11)andthe
central heating parameters view (fig. 31) shows boiler
powervalue and („-”, „--”)alter-nately it means thatthe
procedureisstarted.
The procedure will switch off automatically and the
unit will start normal operation once the minimal flow
rateisreached.
EKCO.M1z
EKCO.M1Nz
EKCO.TM
inlet outlet
inlet outlet
inlet outlet

6
6
 Tzew - outdoortemperaturesensor
 Tpok - roomtemperaturesensor
 ZP - straight-throughvalve
 ZT - thermostaticvalve
 ZO - air-ventvalve
 ZRC - differentialpressurereliefvalve
 NW - expansionvessel
 RW - expansionpipe
 F - magneticfilter
 ZK - cut-offvalve
 Tzew - outdoortemperaturesensor
 Tpok - roomtemperaturesensor
 NW - expansionvessel
 RW - expansionpipe
 F - magneticfilter
 ZK - cut-offvalve
2
b)
a)
Fig.2 Exemplaryschemeofcentralheatingsystem
a)-radiatorssystem(oneheatingcircuit)
b)-under-floorheatingsystem(oneheatingcircuit)
Instructionfortheinstaller
 Pc.w.u - circulationpump
 F - magneticfilter
 NWc.o. - CHexpansionvessel
NWc.u.w.- DHWexpansionvessel
 RW - expansionpipe
 ZB - safetyvalve
 ZK - cut-offvalve
 ZO - air-ventvalve
 ZP - straight-throughvalve
 ZT - thermostaticvalve
3
Fig.3 Exemplaryschemeofcentralheatingsystem–radiators,under-floorheating,DHWcylinder,DHWcircuit
 ZZ - non-returnvalve
 c.w.u. - domestichotwater(DHW)
 PO - circulationpump
 Tco2 - sensorofthemediumtemperatureinthesecondcircuit
 TPO - circulationpumpthermostat
 Tpok - roomtemperaturesensor
 Tzas - thermostatorcylindertemperaturesensor
 Tzew - outdoortemperaturesensor
 ZAS - DHWcylinderwithaheatingcoil
 ZTD - three-wayvalve
 ZM - three-pointmixingvalve
 Z.W. - coldwater

7
PL-015B/f.
7
PL-015B/f.
N
L
N
L

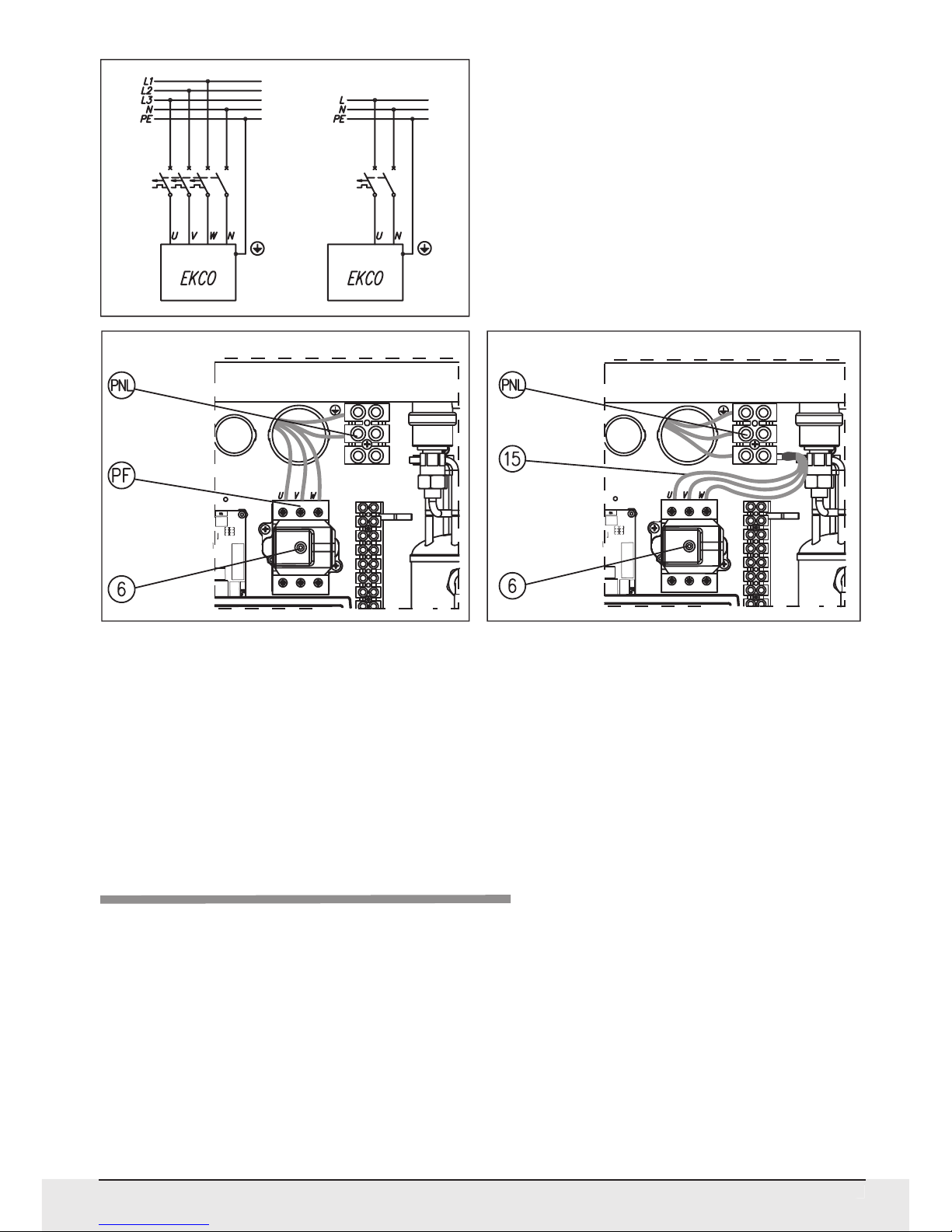

4Fig.4 Connectiontotheelectricmains
Instructionfortheinstaller
5a 5b
Fig.5a  Connection ofthe EKCO.M1zto the threephase
system
 PNL - pointsofneutralandprotectiveconductorcon-
nection
 PF - pointsofphaseconductorsconnection
 [6] - temperaturelimiter
Fig.5b  ConnectionoftheEKCO.M1zto the single phase system (for
boilersof4kW,6kWand8kW)
 PNL - connection points of neutral, protective and
phaseconductor
 [6] - temperaturelimiter
 [15] - wireset
External appliances
Anumberofotherappliancesornecessarysensors(fig.6)canbeconnectedtotheboileraccordingtothein-
dividualrequirements.ThetemperaturesensorsshouldbeconnectedusingaLIYY2x0,14orsimilartypeofwire.
Payspecialattentiontothesensorsending,incorrectwiringmayresultinshortcircuit.Theconnectingwirelengths
mustbelimited.Alongwiremaycauseinterferenceandfaultysensoroperation.Thewiresmustnotberuninthe
sameconduitwith(ortoocloseto)electricalwiring,andmustnotbewrappedaroundanyotherwiresorcables.
Thesensorlocationisessentialforitsproperfunctioning.
Outdoortemperaturesensorshouldbeinstalledinthecoolestplaceinthebuilding(northbuildingside),rela-
tivelyfarawayfromtheheatsource(e.g.windowsthatcanbeopened,ventilationducts,chimneysandotherheated
surfaces).Donotinstalltheoutdoorsensorintheplaceexposedtodirectsunshine
Indoortemperaturesensormustbelocatedinsidethebuilding,inthemostcommonlyusedroom,relativelyfaraway
fromwindows,radiators,doorsandotherplacesthatmayhaveaffectoncorrecttemperaturemeasuring.Theindoor
temperaturesensorisoptionalaccessory.Formoreinformationaboutsensorseepage19-„Roomtemperaturesensor”.
Electric installation should be equipped with residual
current protective devices and other solutions which
will ensure disconnecting the unit from the source of
power (intervals between all their poles should not be
less than 3 mm).
Note: 4, 6 and 8kW boilers are factory pre-set to work as single phase boilers [figure 5b]. If you
intend to connect the boiler to a three-phase system, take off the [15] wire set.

8
6
Fig.6 ConnectingexternalappliancestotheZIOboard
U1 - master appliance
Tzas - DHW Cylinder temperature sensor (WE-008)
Tco2 - second heating circuit temperature sensor (WE-008)
Tzew - outdoor temperature sensor
Tpok - room temperature sensor
U3 - DHW Cylinder thermostat
U2 - device for night or antifreeze work mode
U+ - valve supply - 230V (open/heating)
U- - valve supply - 230V (close)
N - neutral conductor
U - pump supply - 230V
N - neutral conductor
PE - protective conductor
PE - protective conductor
N - neutral conductor
U - pump supply - 230V
LB - valve supply of B circuit (DHW Cylinder)
LA - valve supply of A circuit (central heating system)
N - neutral conductor
ZTM – three way mixing valve (under-floor heating or second heating circuit)
PUMP A2 - second circuit pump
CWU - DHW pump
ZAS - three-way switching valve (DHW Cylinder)
Total output current < 2A
Connecting external appliances to the ZIO module
Anumberofotherappliancesornecessarysensors(fig.6)canbeconnectedtotheboileraccordingtothein-
dividualrequirements.ThetemperaturesensorsshouldbeconnectedusingaLIYY2x0,14orsimilartypeofwire.
Payspecialattentiontothesensorsending,incorrectwiringmayresultinshortcircuit.Theconnectingwirelengths
mustbelimited.Alongwiremaycauseinterferenceandfaultysensoroperation.Thewiresmustnotberuninthe
sameconduitwith(ortoocloseto)electricalwiring,andmustnotbewrappedaroundanyotherwiresorcables.
Thesensorlocationisessentialforitsproperfunctioning.
Outdoortemperaturesensorshouldbeinstalledinthecoolestplaceinthebuilding(northbuildingside),relatively
farawayfromheatsource(e.g.windowsthatcanbeopened,ventilationducts,chimneysandotherheatedsurfaces).
Donotinstalltheoutdoorsensorintheplaceexposedtodirectsunshine.
Indoortemperaturesensormustbelocatedinsidethebuilding,inthemostcommonlyusedroom,relativelyfaraway
fromwindows,radiators,doorsandotherplacesthatmayhaveaffectoncorrecttemperaturemeasuring.Theindoor
temperaturesensorisoptionalaccessory.Formoreinformationaboutsensorseepage19-„Roomtemperaturesensor”.
Master appliance – youcanlimittheboilerelectricityconsumptionbyconnectingthemasterappliance(e.g.
instantaneouswaterheater)–seefig.6.Themasterappliancemustbeequippedwiththerelayoutput.Theoutput
shouldbeconnectedtotheNAentryintheZIOboardbyusingLIYY2x0,14orsimilartypeofwire. Do not con-
nect any voltage to NA entry! Useanappropriaterelayifthemasterappliancecancontrolthevoltagesignalonly.
NA entry must remain closed if not used!
8
Instructionfortheinstaller
PleaserefertotheappropriatesectionofthismanualforZIOboardworkdetails.
DHW temperature reading
Controllercanmeasureawatertemperaturefor:a)cylinderthermostatequippedwithafreevoltageoutput.b)
cylindertemperaturesensor(WE-008offerbyKospelS.A.-optionalequipment)Setthe„ExtendedMenu”foroption
aorb.Forthermostatcontactsandcylindersensorconnectiondetailsseefig.6.

9
PL-015B/f.
9
PL-015B/f.
Instructionfortheinstaller
DHW pump
TheboilerisabletocontrolDHWpump.Thepumpoperationcanbesettomeettheindividualneeds(24hours
program).ThepumpshouldbeconnectedtoZIOboardasshowninfig.6(page8).Thepumpissuppliedwith230V.
Connecting the mixing valve of the second circuit.
TheZTMcontactsofZIO22boardenablestoconnectthemixingvalvewith3pointdrivetosupplythesecond
heatingcircuit(fig.3ZMvalve).Thiscircuitmustbeadjustedtothelowerparametersthanthecircuitoftheboilere.g.
whenthecircuitoftheboilerissetforthemaximumtemperatureof85oC(seethe„ExtendedMenu”forWChG,WChG2,
TcomaxandTc2maxparameters),thesecondcircuitcansupplytheunderfloorheatingsystemwiththemaximum
temperatureof60oC.Inthiscaseitisnecessarytorememberthattheextrasafetydeviceshastobeinstalledtopre-
venttheoverheatingofthesecondcircuit.TheWE-008sensormeasurestemperatureofthesecondheatingcircuit.
Cascade connection
Youcanconnectnumberofboilerstoincreasepower.Themaximumnumberofslaveunit(EKCO.L1zorECKO.T)
incascadeis8.Theslaveunitmustbeequippedwithaspecialcontrollertoenablecascadeconnection.Forhy-
draulicconnectiondetailsseefig.7a.
 Tzew - outdoor temperature sen-
sor
 Tpok - roomtemperaturesensor
 ZP - straight-throughvalve
 ZT - thermostaticvalve
 ZO - air-ventvalve
 ZZ - non-returnvalve
 NW - expansionvessel
 RW - expansionpipe
 F - magneticfilter
 ZK - cut-offvalve
7a
Fig.7a Boilerincascadeconnection
Three-way valve connection (DHW Cylinder)
ThereisaZASconnectoronZIO22board.(fig.6,page8).Ifthereisaneedtoheat-upthewaterintheDHW
cylindertheLBcontactisissuppliedwith230V.Inthecaseofboilerheatthewaterinthecentralheatingsystem
theLAcontactisfedfrom230Vsupply.Youcanconnectathree-wayvalvetotheZASconnectortoswitchthe
centralheatingsystemcircuitforDHW,ifnecessary.InthecaseofDHWheatingtheoutlettemperatureissetat
800C(standardsetpoint).Youcanlowertheoutlettemperaturebysettingthe„ExtendedMenu”.Kospelrecommends
tousetheVCZMH6000Ethree-wayvalvewiththeVC6012ZZ00servo-motorandthe45900445-013Bwire.The
three-wayvalveworkiscontrolledbysupplyingvoltageof230Vtoeitherbrownorblackwire.Thebluewiremust
beconnectedtotheterminalofneutralconductor„N”.Ifyouusethebrownwireyouwillopentheportbetween
„AB”inletand„B”outlet.Ifyouusetheblackwireyouwillopentheportbetween„AB”inletand„A”outlet.See
valvebodyfortheinletandoutletmarking.
Fig.6showsthethree-wayvalveconnectiondiagram.Connectiondiagramisbasedonthefollowingassumptions:
theboilerhotwateroutletiscombinedwiththe„AB”inletofvalve.AandBoutletsfunction:
A-CHsystem
B-supplyingofDHWCylinder.
Inthisconfigurationyoumustconnect:
- blackwireof45900445-013BcabletotheLAterminal(inZIOboard)
- brownwireof45900445-013BcabletoLBterminal(seefig.6)
- bluewireof45900445-013BcabletotheNterminal(seefig.6)

10
10
TosettheEKCO.M1z/EKCO.TMtoworkincascadechangethe„Nr”parameterinthe„ExtendedMenu”fora
requirednumberofslaveboiler.
TosettheEKCO.L1zorEKCO.Ttoworkincascadethe„ExtendedMenu”settingshavetobechanged:
a) setfor„r1”
b) setuptheunitaddress–e.g.„A1”
Theboileraddressisanumberthatinformabouttheboilerinthenetworkconnection.Eachboilerhasitsown
address.Theaddressnumbercannotbehigherthannumberofslaveboilers.Forexample:ifyoubuildboilerscas-
cadesystemwiththeEKCO.M1z/EKCO.TM(asamasterappliance)andthreeotherboilers(asaslaveappliances),
theslaveapplianceshouldhavethefollowingaddresses:A1,A2andA3.
Theboilersmustbeconnectedintothemains(usee.g.LIYY2x0,14wire).Seefig.7b.
7b
Fig.7b Additionalelectricalconnectionforboilersincascade
Theboilersmustbeconnectedintherow.
External mode switching
ThereisRPentryonZIOboard.ClosetheRPinputifyouneedtoswitchtoantifreezeornighttimeoperatingmode.
Set-upthe„ExtendedMenu”toselectmode.DonotconnectanyvoltagetoRPentry!Thisentryallowsconnecting
theexternalcontrollerwiththerelayoutputandsimplifiedboilercontrollingbymobilephone.
Instructionfortheinstaller
PSK.P4Controller
forthenextboilers

11
PL-015B/f.
Control panel – introduction
Thereisacontrolpanel(fig.8)thatenableusertoboilercontrol.
Tu
8Fig.8 Controlpanel
 1 - display
 2-7 - push-buttons
Whenyouswitchboileron,thecontrollergetsreset(fig.9)andthedisplaywillshowyouthesoftwarenumber.
• +GSMsymbolinformsthattheboilerisequippedwithGSMmodule.
178
Fig.9a Controllerreset(EKCO.M1z)
9a
Main view
Aftertheresetoperation,thecontrollerautomaticallyswitchestothe„MainView”.Themainviewcandisplay
aconfigurationasbelow(dependoncurrentmode).Formoredetailsabouttheboilerconfigurationseepage13–
„BoilerandDHWCylinderconfiguration”
Theboilercanco-operatewithboththeCHcircuitandDHWCylinderoranyofthemindividually.
Mo 10 Fig.10  Mainviewinconfiguration„CHON–DHW
ON”(centralheatingmode„on”anddomes-
tichotwatermode„on”)or„CHON-DHW
OFF”(centralheatingmode„on”anddomes-
tichotwatermode„off”)
IftheCHmodeis„on”themainviewdisplaysinformationasshowninfig.10.
Irow–currenttimeandday-GG:MMDTandcurrentworkingmode(seepage16„Workingmode”).
Workingmodemarks:
PX –24hprogramX(e.g.P0–programno.0),afteranequalsign(=)youcanreada24htemperature.
For24hprogramsdetailsseepage16–„Automaticworkingmode(24h,weeklyprograms)”
• „antifreez”-anti-freezeprogram
• „manP5” -programno5(fixedoutlettemperature)
• „man+” -fixeddailytemperatureprogram+(higher)
• „man–” -fixeddailytemperatureprogram–(lower)
• „man*” -fixeddailytemperatureprogram
• „man(” -fixednighttemperatureprogram
IIrow-currentoutdoortemperature
IIIrow-currentroomtemperature,after()youcanreadadesiretemperature
IVrow–currentboilerinlettemperature,after()youcanreadaset-pointofoutlettemperature.
Atthebottomrightcorneryoucanreadcurrentboilerpower(kW)orspecialstart-upproceduremark(seepage.5)
Instructionfortheuser
9b
85
3
Fig.9b Controllerreset(EKCO.TM)

12
11 Fig.11  Mainviewinconfiguration–CH„off”and
DHW„on”
IftheCHmodeis„off”andtheDHWmodeis„on”themainviewdisplaysinformationasshowninfig.11
Irow-DHWmode.Thepowerisshownonly,whentheboilerheatstheDHW.Inthelastrowyoucansee:TZmark
-DHWheatingmodeis‘on’.
12 Fig.12  Mainviewinconfiguration–centralheat-
ingmode„off”andDHWmode„off”
IfteboththecentralheatingmodeandtheDWHmodeis„off”themainviewdisplaysinformationasshowninfig.12.
Faults
Mainviewshowssomeinformationaboutfaults.
•„!!” - sensorfailure.
•„??” - transmissionfailurebetweencontrollerandsensororanextremelyhightemperaturesensorreading(over45oC),
e.g.whenthesensorisplaceddirectlyonsunshine.
•„-” - roomsensormissed.It’snotanerrorastheroomsensorisoptionalequipment.
Mainviewcanshow„!”markthatinformyouabouttheflowfailure.Thisfailureisonlypossiblewhenthecircula-
tionpumpisactive.
Display view settings
Therearepushbuttons(seefig.8)oncontrolpaneltosetthedisplayviewandparameters.
After30seconds(ifyoudon’tuseanybutton)thedisplayviewautomaticallyreturnstothemainviewandtheback
lightturnsoff. isanexitkey–enablestoreturntothepreviousviewortothemainview.
Ifyouareinthemainviewuseanappropriatepushbuttontoaccesstothenextpage:
• –tothe„24hmodes”,
• –totheCHparametersview
• & tootherpages.
Press togoto:
• Mode
• Config.
• Time
• Edit
• Curve
• Tp-hysteresis
• MaximumTz
• CHpump
• DHWpump
• DHWCylinder(1)
• DHWCylinder(2)
• CHCircuit#2
• Error
• Extendedmenu
• Weekmode
• ABC
• 24Htemperatures
• GSM(+GSM)
Press toreturntothepreviouspage.
Instructionfortheuser

13
PL-015B/f.
Boiler and DHW Cylinder Configuration
Boilercanco-operatewithboththeDHWCylinderandcentralheatingsystem.
Configurationpageisshowninfig.14
14 Fig.14  Configurationview
C.O.YES–CH‘on’
C.O.NO–CH‘off’
H.E.YES–DHWCylinder(HeatExchanger)‘on’
H.E.NO-DHWCylinder(HeatExchanger)‘off’
Tochangeconfigurationpress or .
Push- buttons specification:
–returntothemainview
–savechanges
–returntothepreviouspage
–gotothenextpage
–on/offcentralheatingcircuit
–on/offDHWheating
Language version
Tochangethelanguagemenugotothe„ABC”page.Themenuisavailableinthefollowinglanguages:
• Polish
• English
• Russian(optional)
• French
Fig.13 Languagepage
13
Push- buttons specification:
–returntothemainview
–savelanguageversion
–returntothepreviouspage
–gotothenextpage
–selectlanguageversion
–selectlanguageversion
Instructionfortheuser
Important!Makesureyousaveyourchangesbypressing button.

14
Outdoor temperature compensation
ThemainfunctionofPSK.M3ControlleristomaintaintheproperCHmediumtemperaturelevelinrelationto
outdoortemperature.Heatdemandofbuildingrisesquicklywiththedroppingoutdoortemperature.
TheexemplaryrelationshipbetweentheoutdoortemperatureandthetemperatureofCHmediumisshowninfig.15.
15 Fig.15 Heatingcurve
Theheatingcurveisloadedintomemoryofcontroller.„Tp”axecanbeusedtomovethecurvetothedesired
roomtemperature.Thefig.15showsthegroupofheatingcurvesfordifferent„N”parametersandtheroomtem-
peratureof200C.
Theslopeofthecurve(N)dependsonheatlossofbuilding.WhenthebuildingiswellisolatedtheNparameter
willbeaccordinglylowandviceversa.TheNparameterisfactorypre-settovalueof14andshouldbeappropriate
forthemajorityofnowadays’buildings(radiatorsheating).Fortheunderfloorheatingtherecommendedvalueis8.
Setting the heating curve
Toset„N”valuegoto„Edit”page(seefig16).The„N”valuerangeis4-25.
Example:Thefactorypresetvalueof14informsthatCHmediumtemperaturereaches20°Cdegree(Tpok=20°C)
whenTc=76°CandTzew=–20°C.
IncreasetheNvalueiftheroomtemp.istoolow.ReduceNvalueinthecaseofroomsoverheating.
Formoreinformationabout„N”valuerefertosection„Heatingcurve”(fig.17,page15).TochangeNvaluepress
or .
16 Fig.16 Heatingcurveeditpage
Thedisplayshowsthecalculatedvalueofheatingmediuminthecurrentoutdoortemperaturemode.
Thisvalueiscalculatedfromthe„24hourtemperature”.Formoreinformationaboutthe„24hourtemperature”
valueandotherstemperaturevaluesrefertothenextpages.Important!Makesureyousaveyourchangesbypress-
ing button.
Push-buttons specification:
–returntothemainview
–savechanges
–returntothepreviouspage
 N - theslopeofacurve
 Tc - temperatureofCHmedium
 Tz - outdoortemperature
 Tp - roomtemperature
Instructionfortheuser
–gotothenextpage
–increaseNvalue
–decreaseNvalue

15
PL-015B/f.
Automatic summer mode
18 Fig.18  Outdoortemperaturelimit
Push-buttons specification:
–returntothemainview
–savechanges
–returntothepreviouspage
–gotothenextpage
– increasemax.Tzvalue
– decreasemax.Tzvalue
The„MaximumTz”page(fig.18)enablestosettheoutdoortemperaturelimitvalue.Reachingorexceedingthe
limitvaluewillswitch„off”boileroperationautomatically.
17
Heating curve
TochangeTzvaluepress or .ThecontrollercalculatesthetemperatureofCHmediumonthebasisof
dailytemperatureand„N”value.
Push-buttons specification:
–exitkeytothe‘Mainview’
–notapplicable
–previouspage
–nextpage
–outdoortemperature–increase
–outdoortemperature–decrease
Fig.17 Heatingcurve
Instructionfortheuser

16
Boiler working mode
The„Mode”pageenablestosetanappropriateworkingmodeoftheboiler(seefig.19).
19 Fig.19 Workingmode
Working modes of boiler:
•Auto–automaticworkmode
•Always-dailytemperaturemode–(lower)
•Always*-dailytemperaturemode
•Always+-dailytemperaturemode+(higher)
•Always(-nighttemperaturemode
•AlwaysP5–programno.5workmode
•antifreez.–antifreezeworkmode
Push-buttons specification:
–returntothemainview
–savechanges
–returntothepreviouspage
Automatic work with 24h
temperatures, 24h, weekly programs
Acontrollerisenabletoloadintoitsmemoryupto4valuesofestimatedroomtemperature.(seefig.20).
•„+”dailytemperature+(higher)
•„*” dailytemperature
•„–” dailytemperature–(lower)
•„(” nighttemperature
Youcansettheabovetemperaturestoanyvalue.
Important!The„dailytemperature+”mustbesetatthehighestvalueandthe„nighttemperature”atthelowest.
20 Fig.20 24htemperaturessettings
Instructionfortheuser
Tochangetemperaturevaluepress or .
–gotothenextpage
–gotothenextworkmode
–returntothepreviousworkmode

17
PL-015B/f.
21 Fig.21 24hprogram
 ‘+’ - dailytemperature+(higher)
 ‘*’ - dailytemperature
 ‘–‘ - dailytemperature–(lower)
 ‘(‘ - nighttemperature
Tochangeprogrampress or 0-4Programs–modificationisnotavailable
5Program–fixedCHmediumtemperature(irrespectiveofoutdoortemperature)
6-7Programs–usereditableprograms
Eachprogramhasitsownmarke.g„+”.Markpositionrelatestoagiven30minwithin24hours.
Ifyoupointatanymark,acorrespondinghourwillbedisplayedintherightuppercornerofthedisplay.
Toedit/view24hprogrampress or Ifyoupointatanymarkyouwillseetherelatedhour(attheright
uppercorner).Tochangethemarkpress or .
Important!Makesureyousaveyourchangesbypressing button.
Push-buttonsspecification:
Important!Makesureyousaveyourchangesbypressing button.
Tobuildanappropriate24hprogramyouhavetoassigndailytemperaturesforrelevanthours.
Thereareeight(8)24hprogramsloadedintocontrollermemory.Youcanedit2programsonly.
Toenterinto24hprogrammodepress (whenyouareinthemainviewdisplay).
Push-buttons specification:
–returntothemainview
–savechanges,gotothenextmode
–returntothepreviouspage
If the courser is pointed at program no
 - returntothemainview
- savechanges
- gotothe24hprogram(time:23.30)
- gotothe24hprogram(time:00.00)
- gotothenext24hprogram
- gotothenext24hprogram
Instructionfortheuser
–gotothenextpage
–increasetemparaturevalue
–decreasetemperaturevalue
If the courser is pointed at hour
 - topointatprogramno
 - savechanges
 - gototheprevioushouredition
 - gotothenexthouredition
 - tochangetemperaturerelatedtoagivenhour
 - tochangetemperaturerelatedtoagivenhour

18
Therearenumbers1,2,3,4,5,6,7.Thenumbersrelatetodayoftheweek(e.g.no1-Monday)„Prog.”showsthe
relateddailyprogramnumber.
Thecursorshowscurrent24hprogramnumber.Tochangeprogrampress or Tosavethechangesand
proceedtothenextprogrampress .
Pump working mode
Tosetthepumpworkingmodegotopage„Pumpmode”
23 Fig.23 Pumpworkingmode
Push- buttons specification:
–returntothemainview
–saveprogramno.,gotothenextprogram
–gotothepreviouspage
Therearetwoworkingmodesofpump:
- automaticworkmode
- continuousworkingmode
Push- buttons specification:
–returntothemainview
–savechanges
 –gotothepreviouspage
–gotothenextpage
–tochangepumpworkmode
–tochangepumpworkmode
22 Fig.22 Weekprogram
Instructionfortheuser
Programno5iseditableonlytosettheCHmediumtemperature(youcansetatemperaturethesamewayas
forother24hprograms)„Weekprogram”enablestoassignoneofthe24heightprogramsforrelevantdayofthe
week.Seefig.22
Ifyouselect„Auto”workmode,thepumpwillstopoperationinthecaseof:
a) roomtemperaturereachesthedesiredvalue,
b) NAcontactsareopened(masterapplianceis„on”),
c) outdoortemperaturereachesorexceedsmaximumoutdoortemperature(TzMaximumvalue).
Important!Pumpstopsworkingafter90sec.
Irrespectiveofworkingmode,thepumpisactivatedonceevery24hrfor1min.(itprotectsaunitandCHsystem
againstsiltingup).Thepumpactivationtime:12.00.
BoththeCHpump(built-in)andthesecondcircuitpump„Pump2”(connectedtothe„Pump2”connectors)run
simultaneously.ThesecondpumpiscontrolledthesamewayastheCHpump.
–gotothenextpage
–tochange24hprogramno
–tochange24hprogramno

19
PL-015B/f.
Setting the time
Tosetthecurrenttimegotopage„Time”(fig.24)
24 Fig.24 Time
Tochangehour/minute/daypress or .Press tosaveyourchanges.
Important:Iftheclockbatteryrunsflat,changetheCR2032batterylocatedinsideofthecontroller.
Room temperature sensor.
Aroomtemperaturesensorisoptionalaccessory.Theroomtemperatureismeasuredtoturnoffheatingoperation
inthecaseofroomoverheating(whentheroomisoverheatedforareasonotherthanoperationofCHsysteme.g.
expositiontothedirectsunshine).Controllerturnsoffheatingoperationwhentheroomtemperatureexceedsthe
hysteresisvalue.ThevalueofhysteresisisexpressedinCelsiusdegrees.Forthehysteresissettingsdetailsrefertofig.25.
25 Fig.25 Hysteresis
Push- buttons specification:
Hysteresistemperaturerangeis0,5-3,0°C.Acontrollerturnsonheatingoperationshortlyafterthetemperature
dropsbelowthetemperaturethathasbeensetat„24hourstemperature”program.
AvalueofdesiredroomtemperatureisdisplayedontheMainView(seepage11).Thedesiredtemperaturevalue
includesvalueofhysteresis.Example:Ifthedailytemperatureissetat20°Candthehysteresisvalueissetat1°Cthen
thedesiredroomtemperatureis1°Cdegreehigher.Whencontrollerturnsoffheatingoperationduetoexceeded
temperaturelimit(dailytemp.+hysteresis)thedesiredtemperatureis20°C(dailytemperature–hysteresis).
Push- buttons specification:
–returntothemainview
–savechanges
–gotothepreviouspage
Instructionfortheuser
–gotothenextpage
–toincreasethevalue
–todecreasethevalue
–gotothenextpage
–toincreasethevalue
–todecreasethevalue
–returntothemainview
– savechanges
–gotothepreviouspage

20
26 Fig.26 DHWPump
Tochangethevalue(0-1)press or .
1–pump„on”
0–pump„off”
Togotothenexthourwithoutchangingpress .
Push- buttons specification:
–returntothemainview
–gotothenexthour
–gotothepreviouspage
–gotothenextpage
– tosetto1(pump„on”)
–tosetto0(pump„off”)
TosettheDHWpumpmode(on/offtime)gotopage„DHWPump”.On/offpumpmodecanbesetforeveryone
hour(24hours).
DHW Pump
Instructionfortheuser
DHW Cylinder
DHW Cylinder temperature reading
Controllerenablesmeasuringawatertemperatureinthecylinder.
TomeasurethewatertemperaturethecylinderhastobeequippedwitheitherathermostatortheWE-008KOSPEL
temperaturesensor.
Tosetthemeasurementmethod(thermostatorWE-008sensor)goto„ExtendedMenu”page
Forthermostat/sensorwiringdetailsseefig.6onpage8.
27 Fig.27 DHW–24hmode
DHW Cylinder programming
TosetupaprogramofDHWCylindergotopageaorb.
a)„DHW(1)”–24hrprogram
b)„DHW(2)”–currenttemperaturereadingandsetting
Youcansetthepagea)thesamewayyousetthepageofDHWpump(refertoDHWpumpsection)
1–cylinder„on”
0–cylinder„off”
InordertoensureanenergyefficientoperationyoucansettheDHWCylinderworkingtimeaccordingtohours
ofthelow-tariffrate.
