Kospel EKCO.M3 User manual

Electric Central Heating Flow Boiler
EKCO.M3
EKCO.MN3
Assembly and operating instructions

Used product can’t be treated as general communal waste.
Disassembled appliance has to be delivered to the collection
point of electrical and electronic equipment for recycling.
Appropriate utilisation of used product prevents potential
negative environmental inuences that may occur as a result
of inappropriate handling of waste. In order to get more detailed
information about recycling this product you should contact the
local government unit, waste management service or the shop
where this product has been purchased.
This appliance can be used by children aged from 3 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.

GB-090B_f.1158 3
1. Read and strictly follow this installation and operating instructions to ensure
a long life and reliable boiler operation.
2. An efcient electrical installation which has been completed in accordance with
the binding norm of electric installation.
3. Central heating system equipped with an appropriate expansion vessel completed
in accordance with binding norm of hydraulic installation.
4. Rinse the heating installation thoroughly before installing the boiler.
5. Do not install any barrier ttings (e.g. valves) on the outlet of the safety valve.
6. Boiler can only be installed on the at surface.
7. Boiler must not be installed in a humid place, in a place exposed to the danger
of explosion, or in which the temperature may drop below 0°C.
8. Boiler installation and all electrical and hydraulic work must be performed by
a qualied professional installer in accordance with the manufacturer’s instructions.
9. All installation work must be performed when the power and water supply is turned
off.
10. Electric installation should be equipped with residual current protective devices
and other solutions which will ensure disconnecting the heater from the source
of power (intervals between all their poles should not be less than 3mm).
11. Boiler is preset by the manufacturer to work with the central heating system.
Change the factory settings in the advanced settings to shift to boiler’s cooperation
with DHW Cylinder.
12. Electronically controlled boiler is a electrical surge sensitive device, therefore the
electrical installation must contain surge protection devices.
13. Do not drain the water from central heating system after the heating season.
14. Leave the controller in stand-by mode and do not cut off power supply between
the heating seasons.
Safety instructions

4
Installation notes
EKCO.MN3 boilers are equipped with an expansion vessel (capacity: 5l, pressure:
1,5 bar). The expansion vessel is sufcient for following capacities of the heating system
at given temperatures of the medium and central heating system pressure.
Shall the capacity of the wet central heating installation be larger, an extra expansion
vessel should be installed on it as applicable in accordance with binding norm.
Temperature of heating medium
(feed and return)
Capacity of central
heating system
Pressure in central
heating system
[°C] [l] [bar]
85/70 56
1,5
70/55 80
55/45 127
50/40 153
45/35 188
1
1
Tr
Tos
Boiler connection to the central heating system
PI - manometer
Z K - cut-off valve
R W - expansion pipe
NW - built-in expansion vessel (EKCO.MN3)
NW 1 - expansion vessel
Z T - thermostatic valve
ZP - passage valve
F - lter
G - radiator
ZS - drain valve
TWV - three-way valve
ZAS - DHW Cylinder
Tr - regulator of room temperature
Tcyl - DHW cylinder temperature sensor
Tos - outside temp. sensor

GB-090B_f.1158 5
1
1
Tr
Tcyl
Tos
TWV
The lter should be installed that the heating medium ow direction matches the arrow
cast on the hull, and the cover was at the bottom of the lter. Filters can be mounted
on horizontal and vertical pipelines. It is recommended that using shut-off valves
immediately behind and ahead of the lter, which will make it easy cleaning the lter
insert or replacing it.

6

!Do not connect any voltage into FN, MA, RT, Tcyl, Tos, Tr entries! This can
result in permanent controller damage.
1. Hang the boiler up in a vertical position
on xing screws with the inlet and
outlet pipes to the bottom, maintaining
clearances from the walls and the ceiling.
2. Connect the boiler to the central heating
system equipped with a cut-off valves.
3. Fill the central heating system with
treated water or non-freezing liquid what
inuences on the durability of immersion
heaters.
4. Vent the central heating system.
5. Connect a boiler to the electrical system.
6. Assembly and connect the room regulator
sensor and other devices cooperating,
according to the „Connection point
external sensors and devices”.
7. After completing the above steps
start the boiler, set up boiler language
and maximum output and vent the
pump [CONFIGURATION> PUMP>
VENTING> TURN ON].
8. Set the maximum temperature factor
in the installation [CONFIGURATION>
CENTRAL HEATING> MAX BOILER
TEMP.].

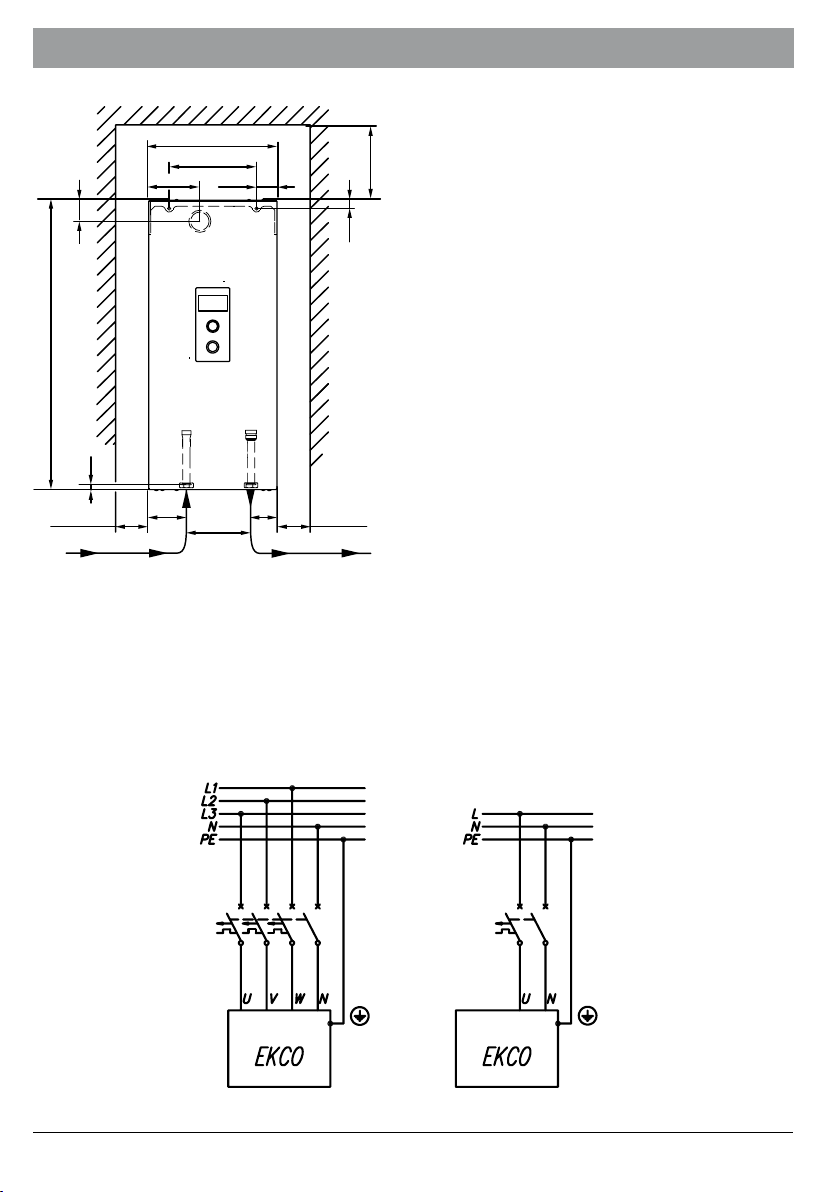

Assembly and installation
159
215
316
126 50
22
min. 150
50
716
64
93
12
min 150 min 60

GB-090B_f.1158 7
1
1
NL
PNL
2
2

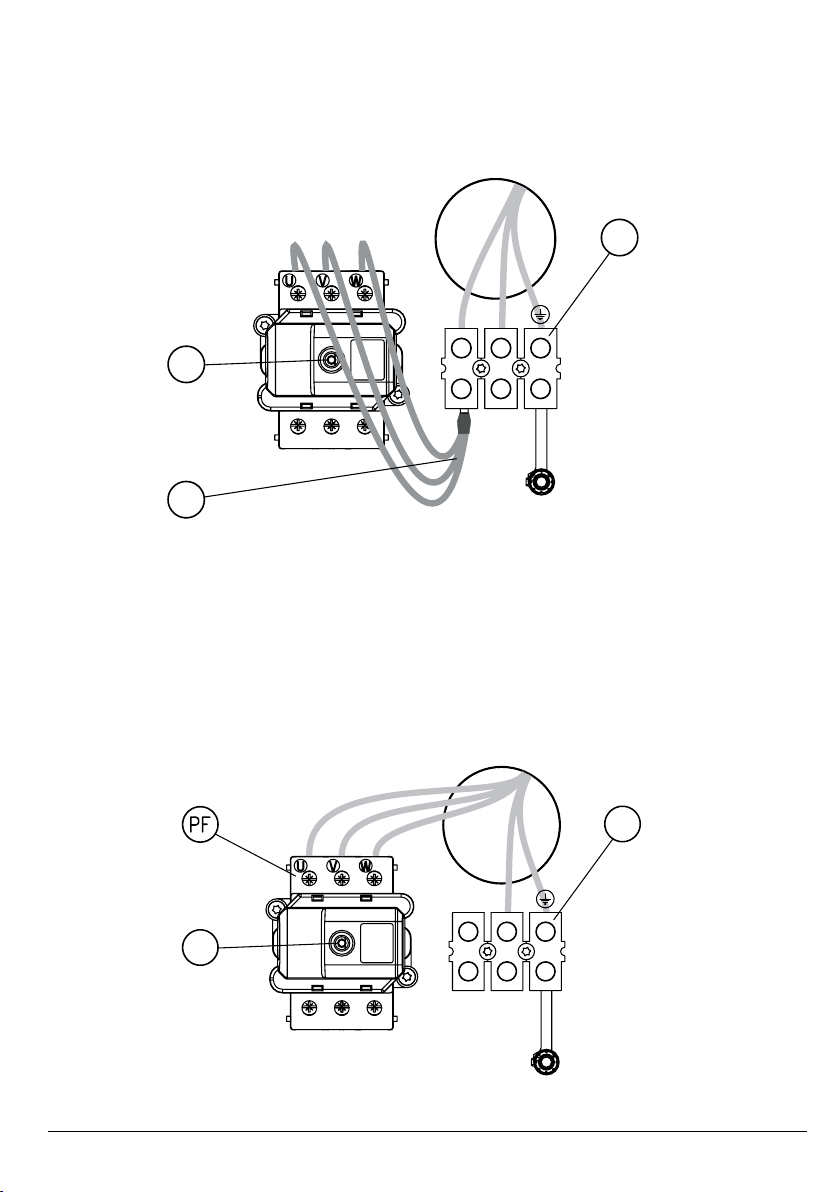

Connection to one-phase electrical system (for boilers of 2kW, 4kW, 6kW and 8kW)
PNL - connection points of neutral, protective and phase conductors
[1] - temperature limiter
[2] - additional conductors (for one-phase system only)
1
1
NL
PNL
Connection to the three-phase electrical system (for boilers of 4, 6, 8kW, you should
delete conductors (2) and switch no. 3 ON, p. 8)
PNL - points of neutral and protective conductor connection
PF - points of phase conductors connection
[1] - temperature limiter

8
FN MA RT Tcyl TosTrM.SUPPLYPUMP.CTWV PUMP
LNPE LNPE LB LA NLNPE
PUMP
OG I
AB
circulation
pump
L N PE
Tr
Tr
Tos
Tos
FN
FN
VCZMH6000E
VC6013ZZ00
MA
MA
RT
RT
Tcyl
Tcyl
black
brown
blue

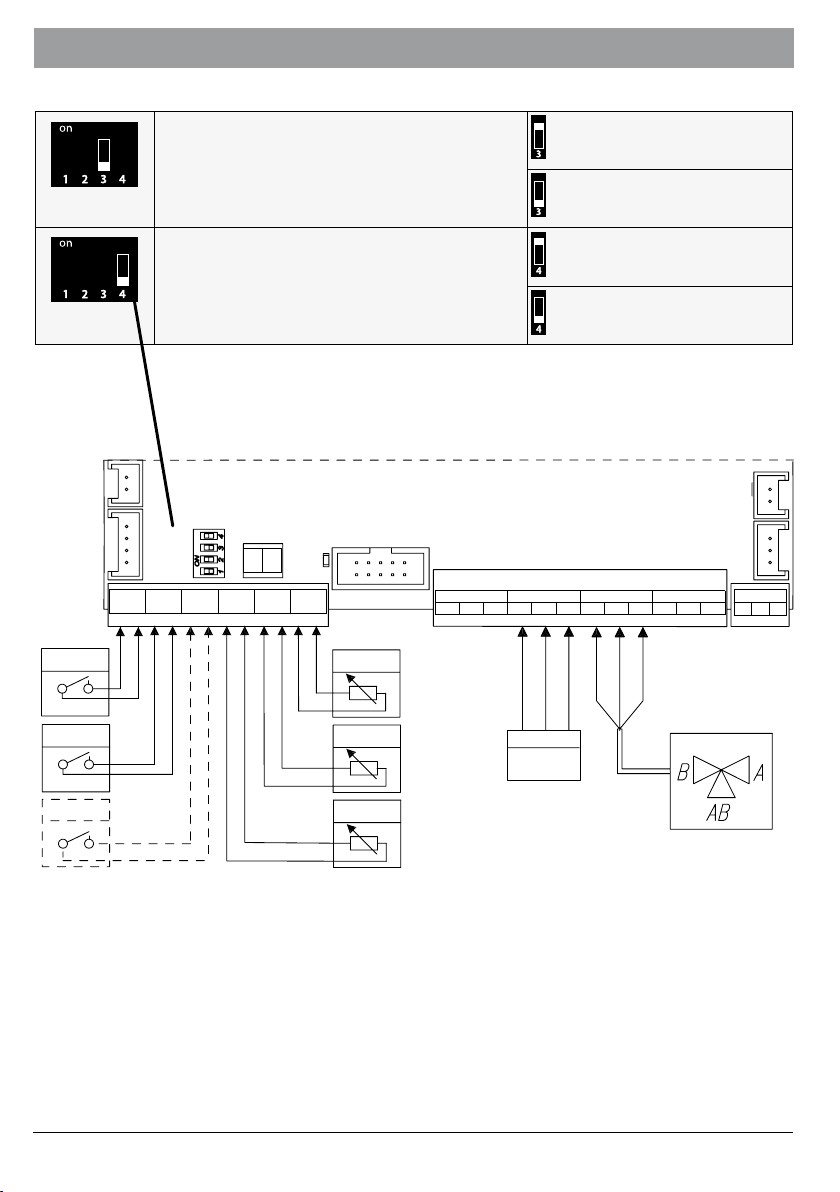

Selecting the type of power supply installation
Type of electrical installation - switch no. 3
three-phase
one-phase
RS 485 terminator- switch no. 4 (safety
instruction of module connected to the
remote boiler control socket)
switched on
switched off- default setting
→→
Note: switches 1, 2 must not be adjusted! - save the factory settings.
→→
Boiler remote control
Output terminal block
FN - external adjustment of selected room temperature
MA - master appliance
RT - alternative room temperature sensor
Tcyl - DHW cylinder temperature sensor
Tos - outside temperature sensor
Tr - room temperature sensor
TWV - the place of assembly three-way valve
PUMP.C- the place of circulation pump assembly

GB-090B_f.1158 9
Do not connect any voltage into FN, MA, RT, Tcyl, Tos, Tr entries! This can result
in permanent controller damage.
AZV 642
M.SUPPLYPUMP.CTWV PUMP
LNPE LNPE LB LA NLNPE
PUMP
OG I
brown
black
blue

!

10
Temperature sensors
The connection cable of the temperature sensor should be as short as possible, it should
not be route it in close proximity to the power cords and do not twist around other cords.
The DHW cylinder temperature sensor can be optionally replaced thermostat, to do this
switch the input type Tcyl [CONFIGURATION> DHW TEMPERATURE> REGULATION>
OUTSIDE] and connect the NO contacts of the thermostat to the Tcyl terminals.
Master appliance (entry MA)
In order to limit the power used, i.e. the boiler can cooperate with other appliances such
as an electric water heater. In order to do so, an electrician should install in line an extra
open contact to the MA entry (voltage free entry), so that when a master appliance gets
on, the contact opens, and the boiler switches off- it results in heating blockage and
pump’s standstill.
External adjustment of selected room temperature (inlet FN)
Closing FN contact shifts boiler’s work to the mode of maintaining the temperature
previously set in the conguration menu [CONFIGURATION> ENTRY FN].
RT - room temperature regulator
Optional controlling the boiler operation depending on the room temperature. RT entry should
be activated [CONFIGURATION> ROOM TEMP.> TEMP. SENSOR> RT] - then opening
the voltage free contact will result in the switch off heating up the CH.

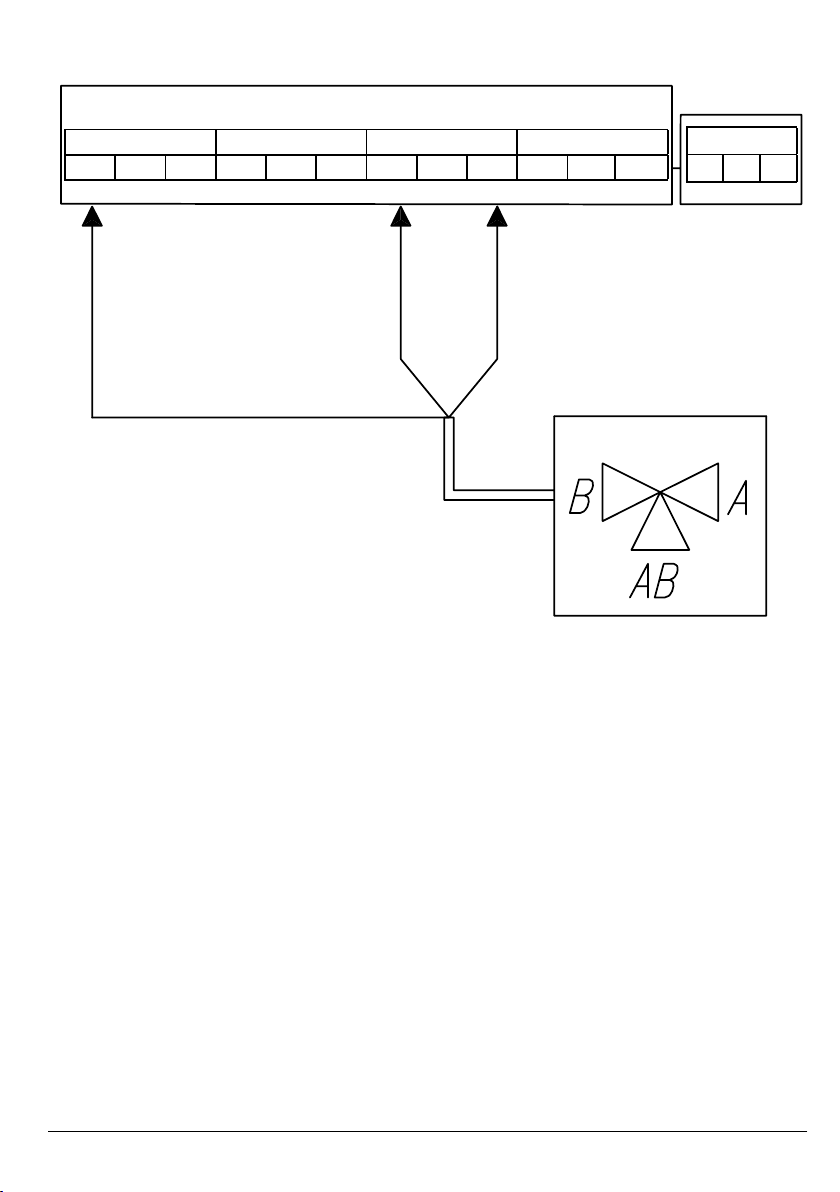

Three-way valve control (TWV entry)
Switching the boiler operation to central heating or heating water in the coil of DHW
cylinder is carried out using a three-way dividing valve with an actuator. Depending on
the model used, the device should be connected as shown on the diagrams, page no. 8
and the manual of valve and servomotor. Note: In case of activation DHW cylinder you
should follow Service / Conguration - cylinder. Valves can be purchased in
KOSPEL.

GB-090B_f.1158 11

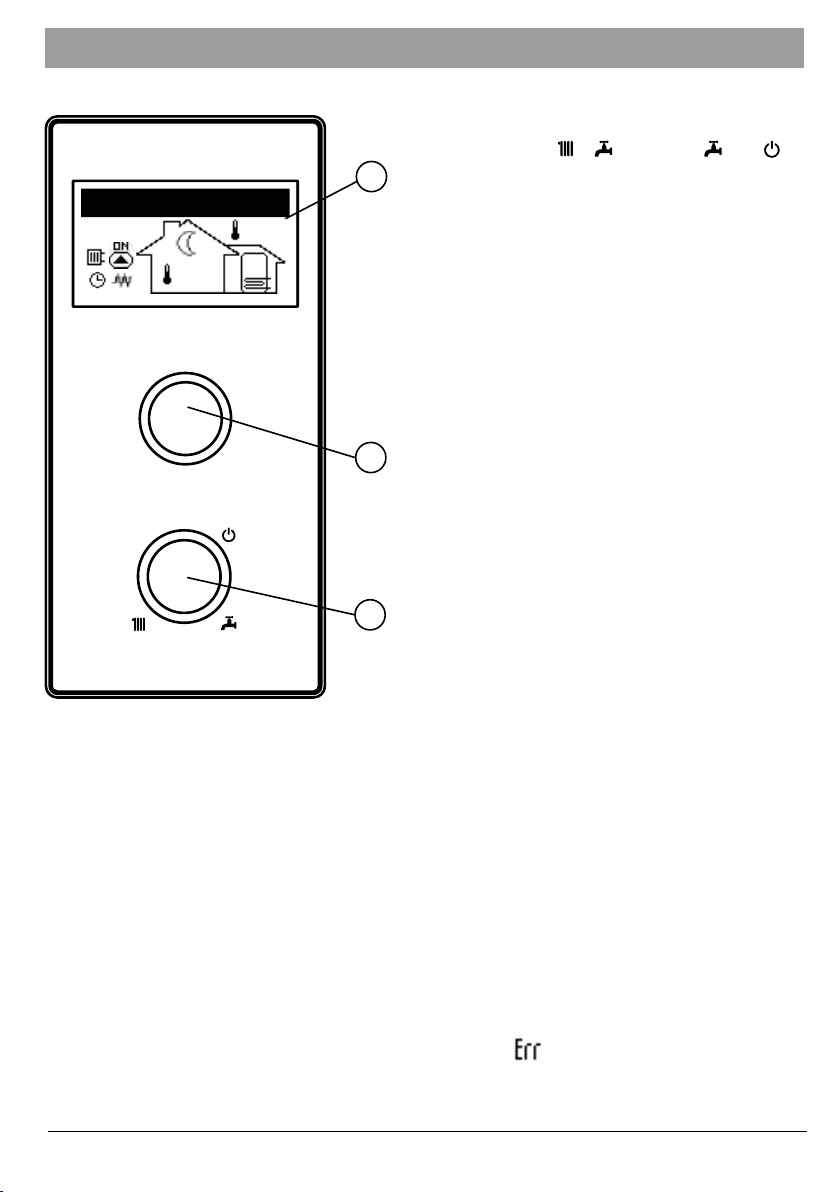

Control panel
2
3
1
Use the operating dial [3] to set one of the
modes: winter + / summer / off .
By turning the navigation dial [2] (left or
right), with winter or summer mode active,
change between function screens on the
display [1].
- main: informs about the basic boiler’s
parameters (details in the table)
- settings: it allows on the customization
of boiler’s parameters and additional
heating circuits to user’s preferences
- service / conguration: allows to
heating system conguration to object’s
conditions (available for installation
company and specialized services
after entering the access code) and
preview of input and output boilers’
signals and current parameters,
- PARTY / HOLIDAY / MANUAL: it allows
to the fast change of work’s algorithm
depending on the needs.
1 - display
2 - navigation dial to preview dial and
settings
3 - dial to choose operating mode
Entering individual functions takes place after selecting a corresponding function screen
and pressing the navigation dial.
Boiler’s error is signalled on the main function screen . After pressing the navigation
dial, there is a list of detected errors.
9:37 THU 14.04.2020
9:37 THU 14.04.2020
24.2
24.2
°
°
5.1°
5.1°
60°
60°

12

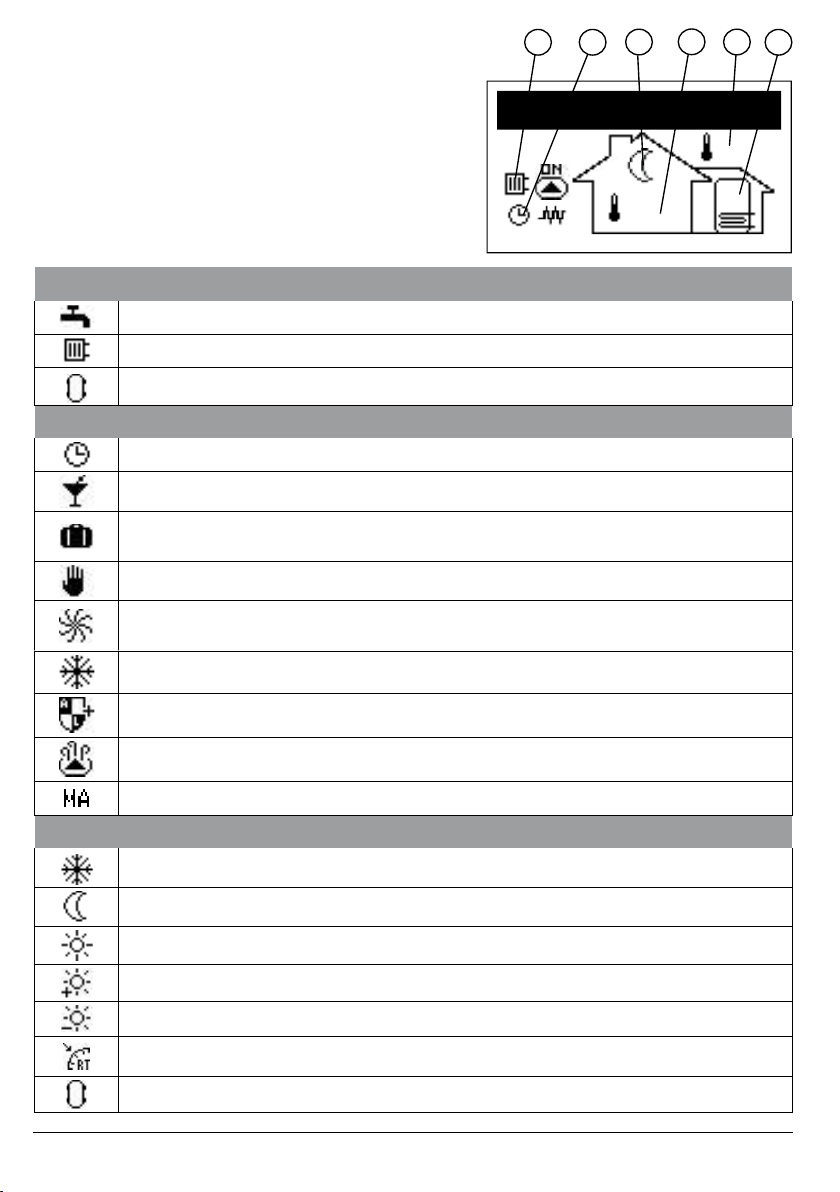

Heat reception:
Hot water heating / DHW cylinder
Central heating system heating
Buffer charging
Signalling of heating program implementation:
According to the daily/weekly schedule
PARTY – maintaining a comfortable temperature in the DHW cylinder
HOLIDAY - maintaining a comfortable economical temperature or anti-freeze
protection in the DHW cylinder
MANUAL - keeping the set room temperature
TURBO - heating up the maximum parameters until the set room temperature is
reached
Implementation of the frost protection program
DHW cylinder disinfection
Circulation pump venting
Heating blocked by signal from master device
Temperature settings for the room:
Frost protection
Economy temperature
Comfort temperature
Comfort temperature plus
Comfort temperature minus
Request for heating from room regulator (with the internal regulator switched off)
Signalling the implementation of buffer loading according to the schedule
1 - heat reception signalling
2 - executing of a heating program
3 -temperature settings for the room
4 - room temperature
5 - outside temperature
6 - storage temperature
MAIN SCREEN
9:37 THU 14.04.2020
9:37 THU 14.04.2020
24.2
24.2
°
°
5.1°
5.1°
60°
60°
5
34
21 6

GB-090B_f.1158 13

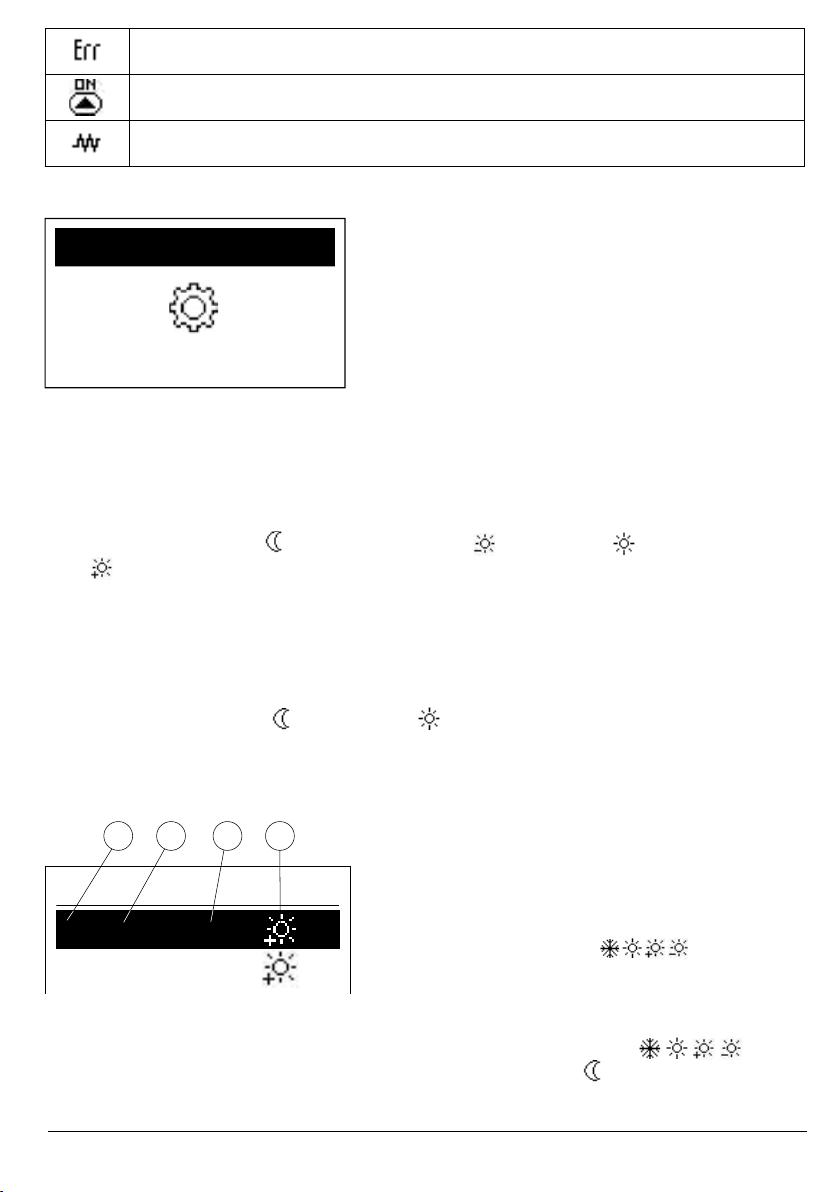

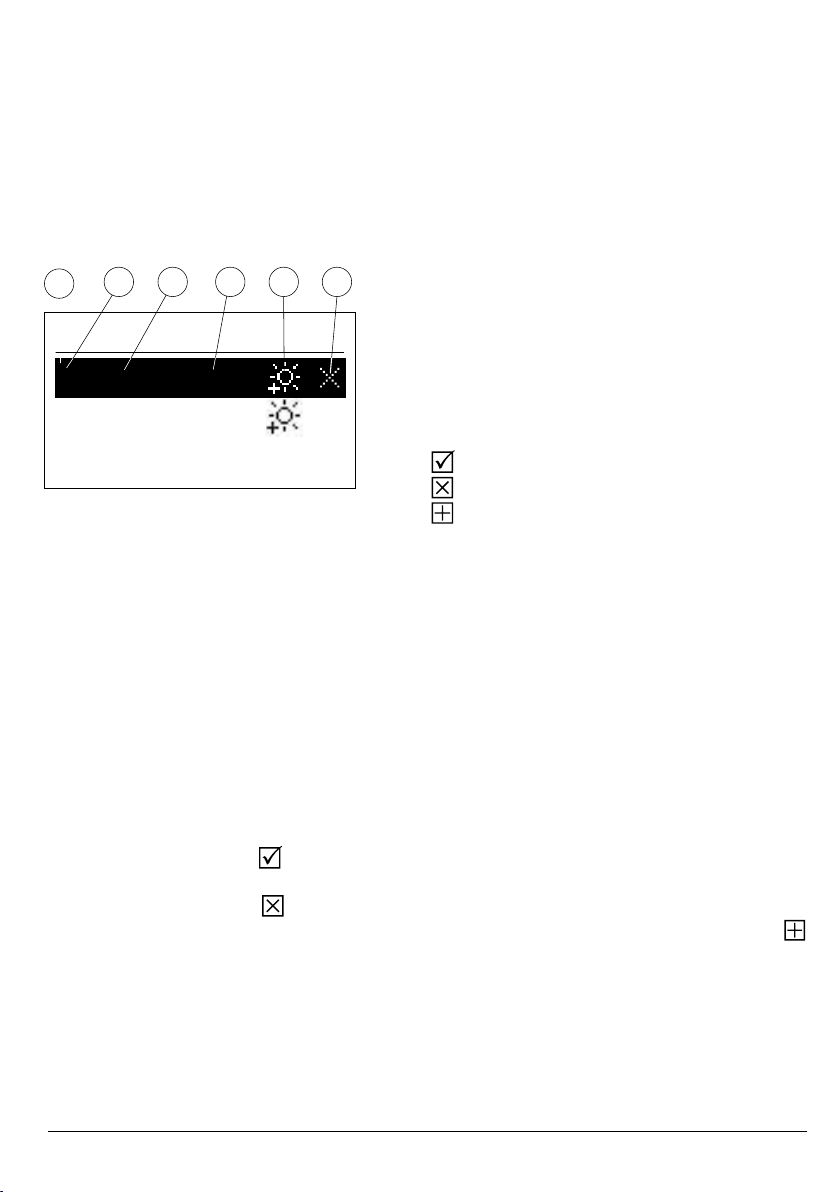

8:38 THU 14.04.2020
8:38 THU 14.04.2020

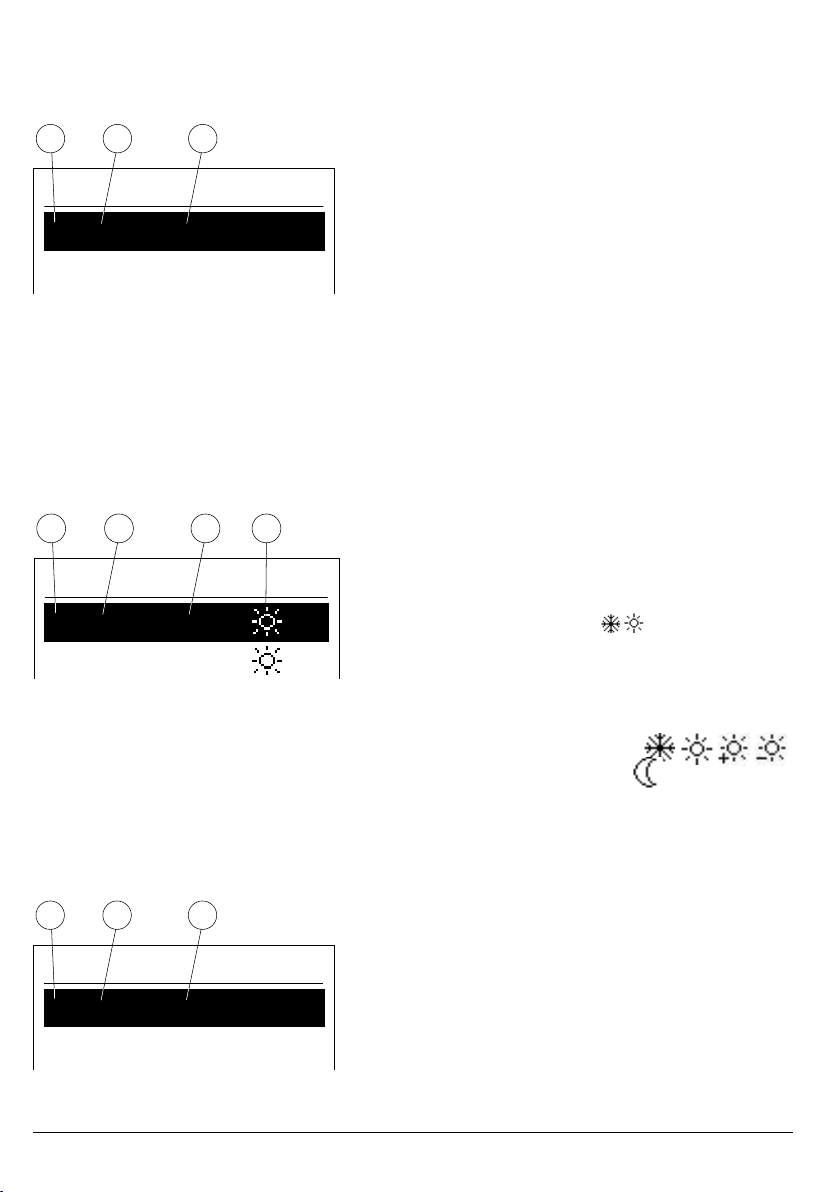

SETTINGS
SETTINGS
SETTINGS:
● BOILER TEMPERATURE: Target CH temperature (only available in basic mode and
setting the constant parameters of CH [CONFIGURATION> CENTRAL HEATING>
REGULATION> CONSTANT])
● ROOM TEMP. (available with activated Tr [CONFIGURATION> ROOM TEMP>
TEMP. SENSOR> ROOM SENSOR]):
- ECONOMY TEMP. , COMFORT MINUS , COMFORT , COMFORT PLUS
: setting hot water temperature values available in schedules,
- PARTY, HOLIDAY: select temperature parameters for programs: PARTY &
HOLIDAY.
● DHW CYLINDER TEMPERATURE (available only in installation with domestic
hot water cylinder and with activated inside regulation. [CONFIGURATION> HOT
WATER> REGULATION> INSIDE]):
- ECONOMY TEMP. , COMFORT : setting hot water temperature values
available in schedules,
● CH PROGRAM (only available in basic mode and source with activated sensor Tr)
[CONFIGURATION> ROOM TEMP.> TEMP. SENSOR> ROOM SENSOR]):
CH Program No.1
CH Program No.1
END
END
1 6:00 - 9:15
2 15:20 - 22:15
2 15:20 - 22:15
1234
1 - no. of time frame according to schedule (max 5)
2 - time of starting the selected temperature
3 - time of nishing the selected temperature
4 - temperature selection: , , ,
Device’s error indication
Circulation pump operation indication (pulsating means that minimum ow is not
activated)
Heating on indication
Adjusting boiler parameters to user preferences.
- No. 1...No. 8 > setting 8 daily programs. In each daily program there are 5 editable
time frames, which can have one of the room temperature sets ,,,. In any
other case, the economy temperature will be activated ( ).
Setting up daily programs procedure is described in Daily Schedule paragraph.

14
DHW CYLINDER PROGRAM No.1
DHW CYLINDER PROGRAM No.1
END
END
1 6:20 - 8:00
2 18:30 - 23:00
2 18:30 - 23:00
12341 - the number of the time interval (max.5)
2 - start time of the selected temperature
3 - nish time of the selected temperature
4 - temperature selection: ,
● BUFFER LOAD PROGRAM (only available in buffer’s mode).
BUFFER LOAD PROGRAM No.1
BUFFER LOAD PROGRAM No.1
Koniec
Koniec
1 6:00 - 8:00
2 18:30 - 23:00
2 18:30 - 23:00
123
1 - the number of the time interval (max.5)
2 - buffer charging start time
3 - buffer charging nish time
- WEEKLY: assigning for each week day one of the previously set daily programs.
- No.1...No.8 - setting of 8 daily programs, in each daily program there are available
5 time intervals in which cylinder buffer will be charging.
Setting procedure of daily programs is described in daily timetable.
- Weekly: assignment of one of the daily programs set for each day of the week.
● DHW CYLINDER PROGRAM (only available in DHW cylinder systems with internal
adjustment activated [CONFIGURATION> DHW TEMPERATURE> REGULATION>
INSIDE]):
- No. 1...No. 8 > setting 8 daily programs. In each daily program there are 5 editable
time frames, which can have one of the room temperature sets ( ,,,)
In any other case, the economy temperature will be activated ( ).
Setting procedure of daily programs is described in daily timetable.
- Weekly: assignment of one of the daily programs set for each day of the week.
● CIRCULATION PROGRAM (available only within active circulation in system DHW):
1 - no. of time frame according to schedule (max 5)
2 - start time of circulation pump operation
3 - nish time of circulation pump operation
CIRCULATION PROGRAM No.1
CIRCULATION PROGRAM No.1
END
END
1 6:00 - 8:00
2 18:30 - 23:00
2 18:30 - 23:00
123

GB-090B_f.1158 15
- No. 1 ... No. 8> setting of 8 daily programs in each daily program. There are 5
adjustable time intervals in which it will work circulation pump
The procedure for setting daily programs is described in the Daily schedule.
- WEEKLY: assign one for each day of the week from set daily programs.
● DISINFECTION (only available in systems with DHW):
- TEMPERATURE: the value of the temperature in the tank during disinfection,
- WEEK DAY: the day for disinfection during automatic program,
- TIME: the time it takes to disinfect with automatic program,
- WORKING TIME: time of disinfection (calculated from the moment the temperature
has reached disinfection),
- AUTOMATIC WORK: automatic work start of disinfection at the set time (time, day
of the week),
- CIRCULATION: it is possible to set disinfection of the entire installation or only
DHW,
- ACTIVATE NOW: manual start of disinfection (independent of the day’s or time’s set).
● TIME / DATE:
- setting of the current system time (YEAR / MONTH/ DAY / HOUR / MINUTE).
- AUTOMATIC TIME CHANGE: Yes > automatic system time changeover from
summer to winter and vice versa.
Attention, in case of cooperation of the boiler with the Internet module,
automatic time change should be switched off.
● INTERFACE:
- BRIGHTNESS MIN: setting of the brightness of the display in stand-by mode.
- BRIGHTNESS MAX: setting of the brightness of the display during the work.
- SOUND: yes> the sound of working dial/no> there is no sound of the working dial.
- DIAL SENSITIVITY: 1 - high / 4 - low.
● LANGUAGE:
- the choice of menu’s language
● SYSTEM:
- TYPE: EKCO.Mx3 (identity)
- MSK PROGRAM: shows the version of boiler’s controllers program
- PW PROGRAM: shows the version of panel’s program
- MAX RATED POWER: shows the settled power of boiler
- RESET: boiler’s start-up
- FACTORY SETTINGS: restore

16
8:38 THU 14.04.2020
8:38 THU 14.04.2020
SERVICE/CONFIGURATION
SERVICE/CONFIGURATION
SERVICE / CONFIGURATION
PREVIEW OF PARAMETERS:
Preview of input and output signals of the boiler.
CONFIGURATION: adaptation of the boiler to the
heating system in the facility.
* Changes in the conguration menu are possible after entering an access code. When prompted
for an access code, turn the navigation dial to the required code and conrm the code by pressing
the dial. If you want to retract from the code request screen, hold the navigation dial or wait until
automatic return to main function screen.
Code: 987
● BUFFER (available only in buffer’s mode)
- BUFFER TEMP.: temperature of the buffer charging factor.
- LOAD OFF-PROGRAM: Yes- means consent to work outside the schedule with
parameters according to the needs of the heating modules
● CENTRAL HEATING:
- WEATHER COMP.*: Choice of heating curve.
- OFFSET*: offset of the heating curve.
- MAX BOILER TEMP.: maximum CH temperature.
Attention: adjustment of too high temperature parameters not compatible with
the type of building, central heating installation and building’s insulation may
lead to high exploitation costs.
- SET BOILER TEMP.: Temperature in CH installation when cooperating with constant
parameters and in emergency conditions.
- REGULATION: PER CURVE / CONSTANT.
Per curve > temperature in CH installation is calculated on the basis of outside
temperature and heating curve parameter. Constant > temperature in CH
installation is equivalent to Supply temperature MAN
- OUTSIDE TEMP. OFF: setting of selected temperature above which CH circuit will
be switched off.
- FROST PROTECTION: frost protection of the building ON.
* not available in buffer mode
**not available in source mode
- BOILER PROTECTION:
Yes - if the temp of inside’s sensor of boiler drops below 5, the circulation pipe
will be turned on,
No - protection turned-off. The need of conguration in case of central heating
installation lled in with non-freezing liquid

GB-090B_f.1158 17
● DHW CYLINDER:
- HW COIL TEMPERATURE: the setting of coil’s power temperature.
- REGULATION: DHW cylinder temperature control - INSIDE> according to Tcyl
sensor/ OUTSIDE> according to external thermostat (not available when OUTSIDE
there are items in the menu: DHW CYLINDER TEMPERATURE, DHW CYLINDER
PROGRAM, DISINFECTION and MANUAL mode).
- CANCEL: turning off the function of DHW.
* If function DHW is turned-off, there will be only a possibility to turn-on.
● CIRCULATION: switching the circulation „YES” or „NO”.
● ROOM TEMP.:
- TEMP. SENSOR*:
RT - set outside room sensor: shifting boiler’s control to the external regulator (RT
clasp).
Tr - internal room regulator.
- TEMP. CONTROL**:yes -> heating turned off after reaching the set room
temperature.
- TEMP. HYSTERESIS**: room temperature hysteresis when „Tr control” is on.
*Parameter available only for constant mode [Regulation > basic mode]
**Parameter for conguration of the internal switch, available only in the setting
[CONFIGURATION> ROOM TEMP.> TEMP. SENSOR> ROOM SENSOR].
● AUT. TURBO MODE:
- TEMP. HYSTERESIS: room temperature fall triggers this function.
- HOT WATER: No - turns off hot water for the Turbo function.
- CANCEL - turns off automatic Turbo function.
*If Turbo function is off - menu will only show a possibility to turn it on (‘On’).
● PUMP:
- PUMP OVER RUN: time to turn the pump on for a short time at a longer standstill
(protection against blocking).
- AUTOMATIC MODE: YES -> works according to user’s needs / NO -> works
constantly
- TYPE: pump’s type,
- REGULATION: constant p. ->CONST P. / VARIABLE P. > variable pressure.
In the regulation mode (CONST P.), the pressure difference produced by the
pump is maintained at the constant set level in terms of performance to pump’s
maximum characteristics. This type of regulation is recommended for oor heating
circulations or older heating systems with pipes of larger diameters, as well as
for all applications with constant characteristics.
In the regulation mode (VARIABLE P. the pressure difference produced by the
pump is maintained at the level of settings changing linearly between 1/2H and
H. Setting pressure differences decreases or increases depending on the ow.
This regulation type is recommended for heating systems with heaters, thanks
to which ow noise in thermostatic valves is reduced.
- VENTING: TURN ON / CANCEL
During venting procedure (10 min) the pump works alternately with a maximal
and minimal rotation speed. Thanks to this air bubbles are concentrated and
easier to remove from the installation.

18
- H MAX- pump’s raising height.
● MAX RATED POWER: setting heater’s rated power.
● COMMUNICATION:
- DEVICE NUMBER: device’s number on the mains.
● ENTRY FN: selection of reaction to closing FN inlet: either setting economy
temperature or frost protection.
● PRESSURE SENSOR : no -> switching the control off- pressure control should be
switched off only when boiler works in the open installation.
● WORKING MODE: STANDARD/SOURCE/BUFFER
STANDARD > boiler is the only device that controls CH system.
BUFFER > boiler supervises buffer charging, buffer’s discharge is done by heating
modules (working mode of the system described in operation manual of the heating
module).
● SERVICE: Code available only for specialized servicemen.
Exit any menu item by pressing „END” or by pressing and holding the navigation dial.
When not operated by the user, main function screen will appear after about 3 min.
8:38 THU 14.04.2020
8:38 THU 14.04.2020
PARTY/HOLIDAY/MANUAL
PARTY/HOLIDAY/MANUAL
PARTY / HOLIDAY / MANUAL
Fast switching algorithm of work depending on
the needs.
● PARTY: SET DURATION TIME [HOURS]
(from 1 to 24 hours or until the user’s change).
● HOLIDAY: SET DURATION TIME [DAYS]
(from 1 to 60 days or until the user’s change).
● MANUAL: SET ROOM TEMPERATURE by
the system control - until cancelled.
● TURBO: turning on the place’s heating up with max parameters - until reaching the
set room temperature.
Attention: the option is available if the room temperature falls below the
current working temperature resulting from the schedule.
* If any of the above modes is ON then after entering PARTY/ HOLIDAY/ MANUAL there is a
possibility to turn it off, and in case of setting the MANUAL mode, it is also possible to change
the set temperature.
* The symbol of the activated mode is signalled on the main function screen.

GB-090B_f.1158 19
In daily schedule CH circuit and DHW cylinder have dened starting time (3) and
nishing time (4) of maintaining selected temperature value (5) in the room (CH) or DHW
cylinder. Outside dened time frames economy temperature will be maintained in the
room/cylinder. For circulation circuit within the schedule there is an adjustment of start
time (3) and nish time (4) of circulation pump’s operation. In buffer mode there is an
adjustment of start time (3) and nish time (4) of buffer’s charging.
To change the parameters for the daily schedule select chosen program number and
press navigation dial.
The rst parameter ashes (start time) - use the navigation dial to set the new time
frame value (hour and minutes separately) by turning the dial left/right and conrm it by
pressing the dial again. At the same time next screen starts to ash allowing edition of next
parameters (nish time). Last editable position is a command. In order to save changes
select command „save” and press the dial to nish editing. To delete selected time
frame start editing chosen time frame and by pressing the dial go to command position,
select command „delete” and press the dial. To add new time frame, select last dened
time frame and by pressing the dial go to command position, select command „add”
and press the dial to add new time frame (edition of new time frames described above) .
Daily schedule:
CH PROGRAM No.1
CH PROGRAM No.1
END
END
1 6:00 - 9:15
2 15:20 - 22:15
2 15:20 - 22:15
23456
11 - time period panel
2 - no. of time frame according to schedule
(max 5)
3 - start time
4 - nish timeg
5 - temperature selection (CH and DHW
cylinder)
6 - command (active when editing):
accept
delete
add
Start-up
With the start-up of the boiler or after the restoration of the factory settings it is necessary
to select MENU’s language and boiler’s rated power. Boiler is ready to work properly
only after selection of these parameters.

20
CH PROGRAM No.3
CH PROGRAM No.3
ENDEND
1 0:00 - 23:59
CH PROGRAM No.1
CH PROGRAM No.1
END
END
1 6:00 - 9:15
1 6:00 - 9:15
2 15:20 - 22:15
2 15:20 - 22:15
TURBO function
If the facility is cold and if it is necessary to heat it up quickly, there is a possibility to
turn on the TURBO function. This function, when conditions to turn on the heating are
fullled, starts central heating installation with maximum parameters and continues until
required temperature is reached in a room. This function can start automatically when
room’s temperature falls down by the set room temperature hysteresis.
Automatic work is set in menu CONFIGURATION > AUT. TURBO MODE. Selection of
„Hot water tank- NO” will result in switching off hot water heating priority for the time of
using Turbo function. In menu PARTY/ HOLIDAY/ MANUAL it is possible to turn on this
function manually (without hot water heating up priority), in condition that the room’s
temperature is lower than the programmed one. Sensor Tr is required to turn on Turbo
function
Frost protection
Frost protection is activated automatically during stand- by and HOLIDAY mode
(power mode only on cylinder). It can be activated in the time frames for installations of
CH and DHW or during the HOLIDAY mode. The installation protection will be activated
if the outside temperature falls below 2°C or the room temperature drops below 7°C.
In this case, the CH circulation will be activated.
The temperature will be set according to the heating curve estimations or manually set
according to the regulation. Tr sensor is required to activate this function.
The function is disabled when the boiler is controlled by an external room controller or
other external sensor connected to the RT input. In this case, the frost protection mode
must be enabled on the external controller, the boiler will maintain temperature set
manually or based on heating curves.
If there are no dened time frames, then after
selecting „new” the time frame 00:00am to
23:59pm will be set , which should be edited in
accordance with user’s needs.
The daily program will be saved to the boiler’s
settings by pressing the command „END”.
