Kospel EKCO.L3 User manual

Electric Central Heating Flow Boiler
EKCO.L3
EKCO.LN3
Assembly and operating instructions

This appliance can be used by children aged from 3 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Used product can’t be treated as general communal waste.
Disassembled appliance has to be delivered to the collection
point of electrical and electronic equipment for recycling.
Appropriate utilisation of used product prevents potential
negative environmental inuences that may occur as a result
of inappropriate handling of waste. In order to get more detailed
information about recycling this product you should contact the
local government unit, waste management service or the shop
where this product has been purchased.

GB-091B_f.1157 3
1. Read and strictly follow the installation and operating instructions to ensure
a long life and reliable boiler operation.
2. An efcient electrical installation which has been completed in accordance with the
binding norms of electric installation.
3. Central heating system equipped with an appropriate expansion vessel completed
in accordance with binding norm of hydraulic installation.
4. Rinse the heating installation thoroughly before installing the boiler.
5. Do not install any barrier ttings (e.g. valves) on the outlet of the safety valve.
6. Boiler must be installed on the at surface.
7. Boiler must not be installed in a humid place, in a place exposed to the danger of
explosion or in which the temperature may drop below 0°C
8. Boiler installation and all electrical and hydraulic work must be performed by
a qualied professional installer in accordance with the manufacturer’s instructions..
9. All installation work must be performed when the power and water supply is turned
off.
10. Electric installation should be equipped with residual current protective devices
and other solutions which will ensure disconnecting the heater from the source of
power (intervals between all their poles should not be less than 3 mm).
11. Boiler is preset by the manufacturer to work with the central heating system. Change
the factory settings in the advanced settings to shift to boiler’s cooperation with
DHW Cylinder.
12. Electronically controlled boiler is a electrical surge sensitive device, therefore the
electrical installation must contain surge protection devices.
13. Do not drain the water from central heating system after the heating season.
14. Leave the controller in stand-by mode and do not cut off power supply between the
heating seasons.
Safety instructions

4
Installation notes
EKCO.LN3 boilers are equipped with an expansion vessel (capacity: 5l, pressure: 1.5bar).
The expansion vessel is sufcient for following capacities of the heating system at given
temperatures of the medium and central heating system pressure.
Shall the capacity of the wet central heating installation be larger, an extra expansion
vessel should be installed on it as applicable in accordance with binding norm.
Temperature of heating medium
(feed and return)
Capacity of central
heating system
Pressure in central
heating system
[°C] [l] [bar]
85/70 56
1,5
70/55 80
55/45 127
50/40 153
45/35 188
1
1
RT

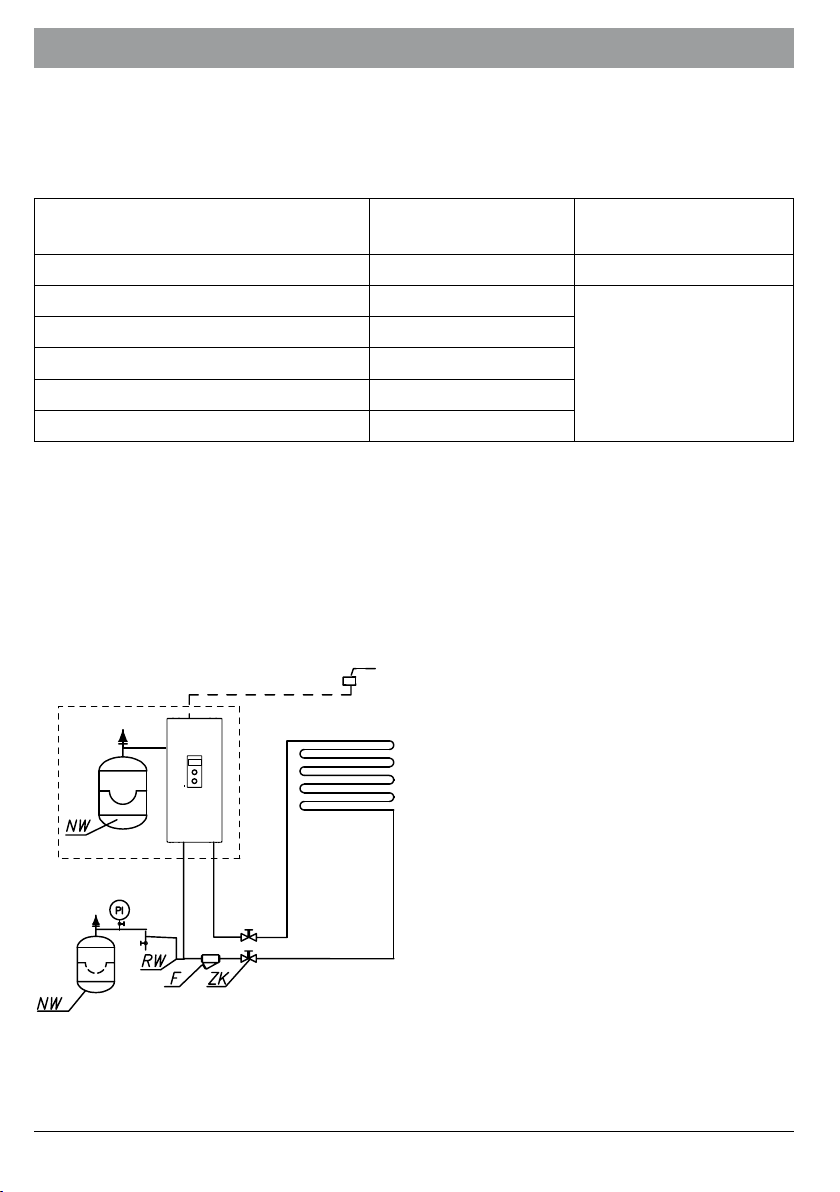

Boiler connection to the central heating system
PI - manometer
ZK - cut-off valve
RW - expansion pipe
NW - built-in expansion vessel
NW1 - expansion vessel
ZT - thermostatic valve
ZP - passage valve
F - lter
G - radiator
ZS - drain valve
Z3D - three-way valve
ZAS - DHW Cylinder
TWV - three-way valve
RT - alternative room temperature sensor
Tcyl - DHW cylinder temperature sensor

GB-091B_f.1157 5
1
1
RT
Tcyl
TWV
The lter should be installed that the heating medium ow direction matches the arrow
cast on the hull, and the cover was at the bottom of the lter. Filters can be mounted
on horizontal and vertical pipelines. It is recommended that using shut-off valves
immediately behind and ahead of the lter, which will make it easy cleaning the lter
insert or replacing it.

6

!Do not connect any voltage into MA, RT, Tcyl entries! This can result in
permanent controller damage.

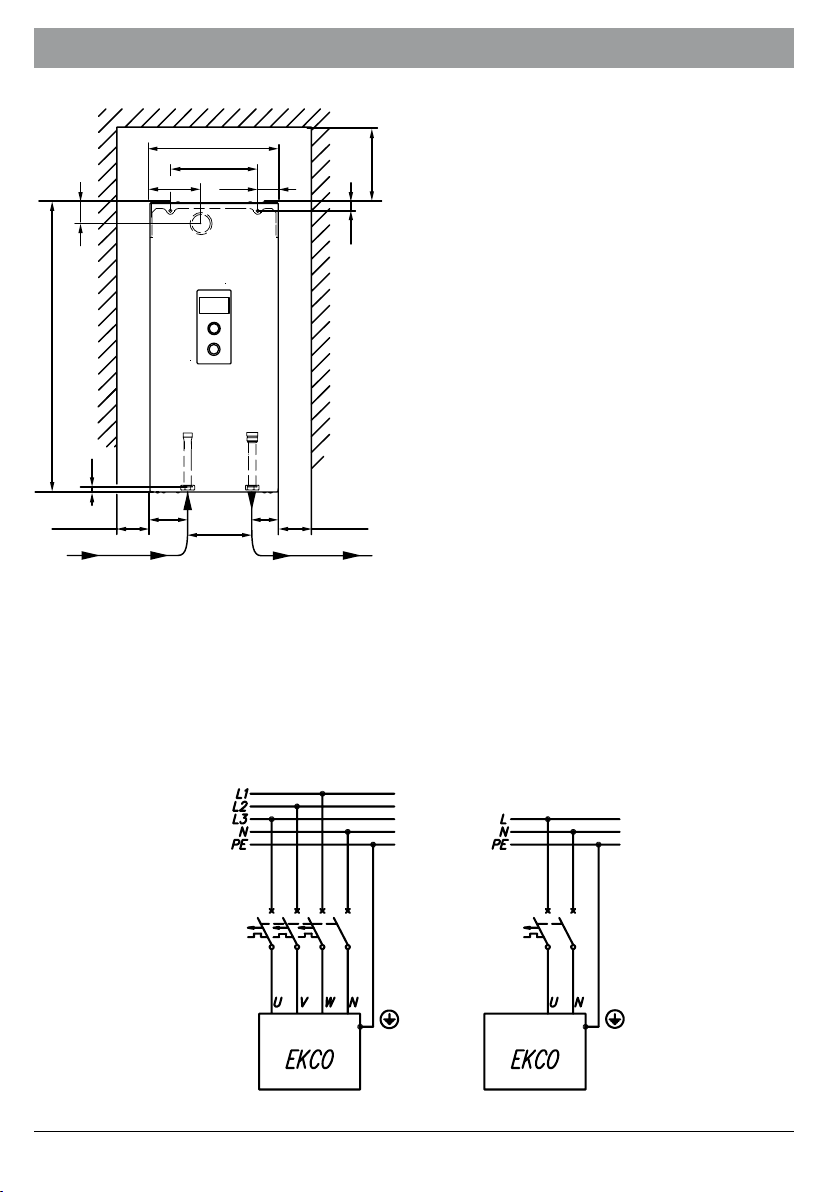

1. Hang the boiler up in a vertical position
on xing screws with the inlet and
outlet pipes to the bottom, maintaining
clearances from the walls and the
ceiling.
2. Connect the boiler to the central heating
system equipped with a cut-off valves.
3. Fill the central heating system with
treated water or no-freezing liquid what
inuences on the durability of immersion
heaters.
4. Vent the central heating system.
5. Connect a boiler to the electrical system.
6. Assembly and connect the room regulator
sensor and other devices cooperating,
according to the Connection point
external sensors and devices.
7. After completing the above steps
start the boiler, set up boiler language
and maximum output and vent the
pump [CONFIGURATION> PUMP>
VENTING> TURN ON].
Assembly and installation
159
215
316
126 50
22
min. 150
50
716
64
93
12
min 150 min 60
8. Set the maximum temperature factor in the installation [CONFIGURATION>
CENTRAL HEATING> MAX BOILER TEMP.].

GB-091B_f.1157 7
1
1
NL
PNL
2
2
Connection to one-phase electrical system (for boilers of 2kW, 4kW, 6kW and 8kW)
PNL - points of neutral and protective conductor connection
[1] - temperature limiter
[2] - additional conductors (for one-phase system only)
1
1
NL
PNL
Connection to the three-phase electrical system (for boilers of 4, 6, 8kW, you should
delete conductors (2) and switch no. 3 ON, p. 8).
PNL - points of neutral and protective conductor connection
PF - points of phase conductors connection
[1] - temperature limiter

8
MA RT Tcyl M.SUPPLY PUMP.C TWVPUMP
LNPE LNPE LB LA NLNPE
PUMP
OG I
circulation
pump
L N PE
VCZMH6000E
VC6013ZZ00
MA
MA
RT
RT
Tcyl
Tcyl
black
brown
blue
Selecting the type of power supply installation
Type of electrical installation - switch no. 3 three-phase
one-phase
→→
Note: switches 1, 2 must not be adjusted! - save the factory settings.
Output terminal block
→→
MA - master appliance
RT - alternative room temperature sensor
Tcyl - DHW cylinder temperature sensor
TWV - the place of assembly three-way valve
PUMP.C- the place of circulation pump assembly

GB-091B_f.1157 9
AZV 642
LNPE LNPE LB LA NLNPEOG I
M.SUPPLY PUMP.C TWVPUMP PUMP
black
brown
blue

!Do not connect any voltage into MA, RT, Tcyl, entries! This can result in
permanent controller damage.

10
Tcyl – DHW cylinder temperature sensor
The connection cable of the temperature sensor should be as short as possible, it should
not be route it in close proximity to the power cords and do not twist around other cords. The
DHW cylinder temperature sensor can be optionally replaced thermostat, to do this switch
the input type Tcyl [CONFIGURATION> DHW TEMPERATURE> REGULATION> OUTSIDE]
and connect the NO contacts of the thermostat to the Tcyl terminals.
MA - Master appliance (entry MA)
In order to limit the power used, i.e. the boiler can cooperate with other appliances such
as an electric water heater. In order to do so, an electrician should install in line an extra
open contact to the MA entry (voltage free entry), so that when a master appliance gets
on, the contact opens, and the boiler switches off- it results in heating blockage and
pump’s standstill.
RT - room temperature regulator
Optional controlling the boiler operation depending on the room temperature. RT entry should
be activated [CONFIGURATION> ROOM TEMP.> TEMP. SENSOR> RT] - then opening
the voltage free contact will result in the switch off heating up the CH.

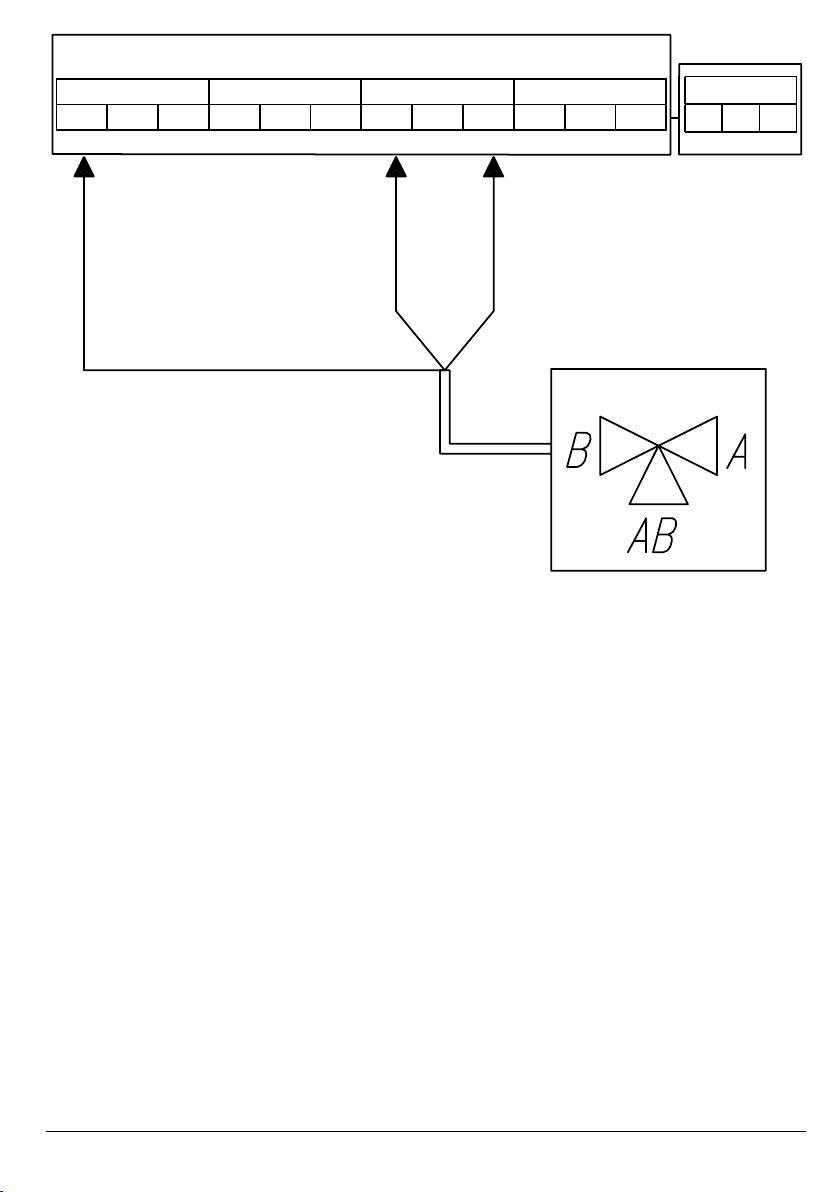

Three-way valve control (TWV entry)
Switching the boiler operation to central heating or heating water in the coil of DHW
cylinder is carried out using a three-way dividing valve with an actuator. Depending on
the model used, the device should be connected as shown on the diagrams, page no.
8and the manual of valve and servomotor. Note: In case of activation DHW cylinder you
should follow Service / Conguration - cylinder. Valves can be purchased in KOSPEL.

GB-091B_f.1157 11

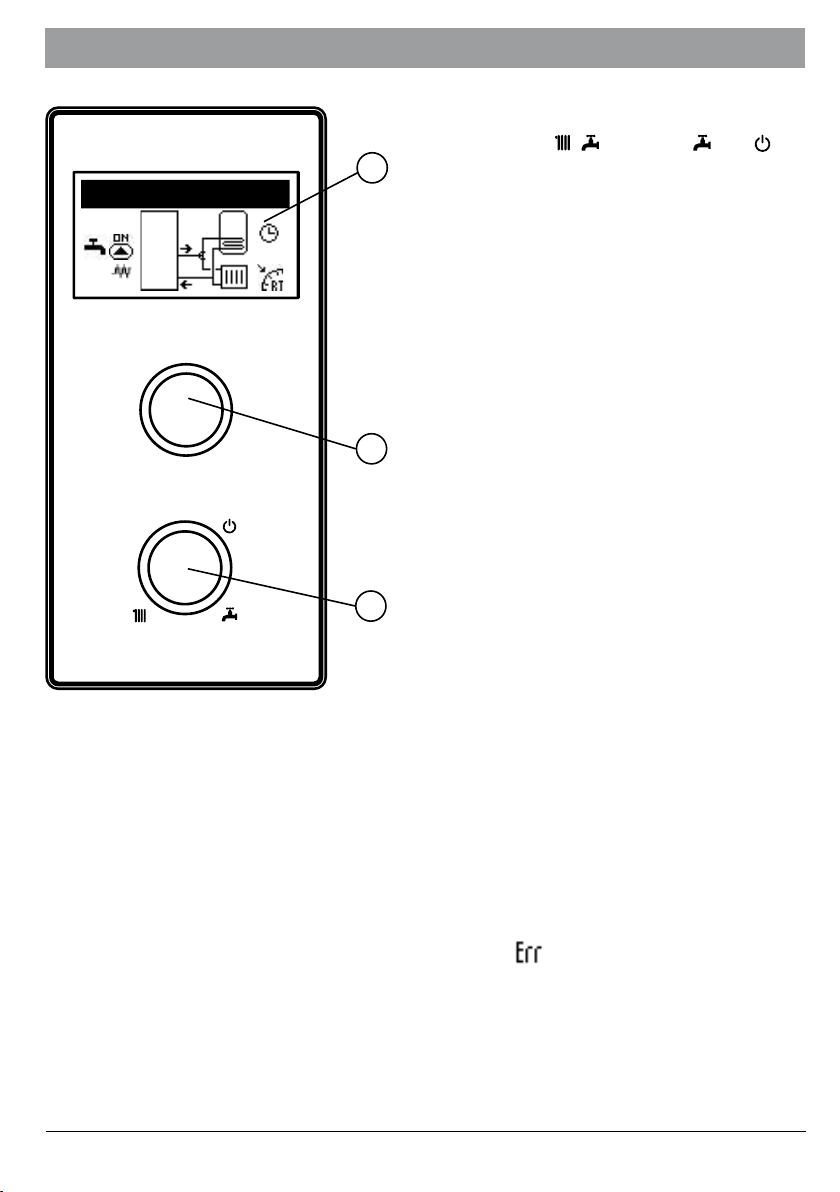

Control panel
2
3
9:37 Mo 12.08.2019
9:37 Mo 12.08.2019
42
42
°
°
65
65
°
°
32°
32°
85°
85°
1
Use the operating dial [3] to set one of the
modes: winter + / summer / off .
By turning the navigation dial [2] (left or
right), with winter or summer mode active,
change between function screens on the
display [1].
- main: informs about the basic boiler’s
parameters (details in the table),
- settings: it allows on the customization
of boiler’s parameters and additional
heating circuits to user’s preferences,
- service / conguration: allows to
heating system conguration to object’s
conditions (available for installation
company and specialized services after
entering the access code) and preview
of input and output boilers’ signals and
current parameters,
- PARTY / HOLIDAY / MANUAL: it allows
to the fast change of work’s algorithm
depending on the needs.
[1] - display
[2] - navigation dial to preview dial and
settings
[3] - dial to choose operating mode
Entering individual functions takes place after selecting a corresponding function screen
and pressing the navigation dial.
Boiler’s error is signalled on the main function screen . After pressing the navigation
dial, there is a list of detected errors.

12
Heat reception:
Hot water heating / DHW cylinder
Central heating system heating
Signalling of heating program implementation:
According to the daily/weekly schedule
PARTY – maintaining a comfortable temperature in the DHW cylinder
HOLIDAY - maintaining a comfortable economical temperature or anti-freeze
protection in the DHW cylinder
Implementation of the frost protection program
DHW cylinder disinfection
[1] - heat reception signalling
[2] - temperature of return from installation
[3] - temperature of charging installation
[4] - preset temperature in the installation or
symbol (when heating is blocked by
a signal from the main device)
[5] - DHW cylinder temperature
[6] - executing of heating program
[7] - signalling of closed controller contact room
(order to heat the room)
MAIN SCREEN
9:37 Mo 12.08.2019
9:37 Mo 12.08.2019
21
21
°
°
45
45
°
°
61°
61°
24
3
17
Device's error indication
Circulation pump operation indication
(pulsating means that minimum ow is not
activated)
Circulation pump venting
Heating blocked by signal from master device
Heating on indication
Request for heating from foom regulator (with
the internal regulator switched off)
9:37 Mo 12.08.2019
9:37 Mo 12.08.2019
42
42
°
°
65
65
°
°
32°
32°
85°
85°
24
3
165 7

GB-091B_f.1157 13
8:38 Mo 12.08.2019
8:38 Mo 12.08.2019
Settings
Settings
SETTINGS:
● BOILER TEMPERATURE: Target CH
temperature
● DHW CYLINDER TEMPERATURE: (only
available in systems with a DHW cylinder
and with switched on internal adjustment
[CONFIGURATION> DHW TEMPERATURE>
REGULATION> INSIDE])
- ECONOMY TEMP. , COMFORT :
setting the hot water temperature available
in schedules,
Adjusting boiler parameters to user preferences.
DHW CYLINDER PROGRAM No.1
DHW CYLINDER PROGRAM No.1
END
END
1 6:20 - 8:00
2 18:30 - 23:00
2 18:30 - 23:00
1234
[1]- no. of time frame according to schedule (max 5)
[2]- start time of the selected temperature
[3] - nish time of the selected temperature
[4]- temperature selection: ,
● DHW CYLINDER TEMPERATURE (only available in DHW cylinder systems
with internal adjustment activated [CONFIGURATION> DHW TEMPERATURE>
REGULATION> INSIDE]):
[1]- no. of time frame according to schedule (max 5)
[2]- start time of circulation pump operation
[3] - nish time of circulation pump operation
CIRCULATION PROGRAM No.1
CIRCULATION PROGRAM No.1
END
END
1 6:00 - 8:00
2 18:30 - 23:00
2 18:30 - 23:00
123
- No. 1 ... No. 8> setting 8 of daily programs in each daily program where there are
3 editable time frames, which can have one of the room temperature sets ( ,).
The procedure for setting daily programs is described in the Daily schedule.
In any other case, the economic temperature will be activated ( ).
- WEEKLY: assign one of for each day of the week daily programs.
● CIRCULATION PROGRAM (available only within active circulation in system DHW):
- No. 1 ... No. 8> setting of 8 daily programs in each daily program. There are
3adjustable time intervals in which it will work circulation pump.
The procedure for setting daily programs is described in the Daily schedule.
- WEEKLY: assign one for each day of the week from set daily programs.

14
● DISINFECTION (only available in systems with DHW):
- TEMPERATURE: the value of the temperature in the cylinder during disinfection,
- WEEK DAY: the day for disinfection during automatic program,
- TIME: the time it takes to disinfect with automatic program,
- WORKING TIME: time of disinfection (calculated from the moment the temperature
is reached disinfection),
- AUTOMATIC WORK: automatic work start of disinfection at the set time (time,day
of the week),
- CIRCULATION: it is possible to set disinfection of the entire installation or only
DHW,
- ACTIVATE NOW: manual start of disinfection (independent of the day’s or time’s
set.
● TIME/ DATE:
- setting of the current system time (YEAR / MONTH/ DAY / HOUR / MINUTE).
- AUTOMATIC TIME CHANGE: Yes > automatic system time changeover from
summer to winter and vice versa.
● INTERFACE:
- BRIGHTNESS MIN: setting of the brightness of the display in stand-by mode.
- BRIGHTNESS MAX: setting of the brightness of the display during the work.
- SOUND:
Yes - the sound of working dial
No - there is no sound of the working dial.
- DIAL SENSITIVITY: 1 - high / 4 - low.
● LANGUAGE:
- the choice of menu’s language.
● SYSTEM:
- TYPE: EKCO.Lx3 (identity),
- MSK PROGRAM: shows the version of boiler’s controllers program,
- PW PROGRAM: shows the version of panel’s program,
- MAX RATED POWER: shows the settled power of boiler,
- RESET: boiler’s start-up,
- FACTORY SETTINGS: restore.

GB-091B_f.1157 15
8:38 Mo 12.08.2019
8:38 Mo 12.08.2019
SERVICE/CONFIGURATION
SERVICE/CONFIGURATION
SERVICE / CONFIGURATION
PREVIEW OF PARAMETERS:
preview of boiler’s input and output signals.
CONFIGURATION
adaptation of the boiler to the heating system in the
facility:
* Changes in the conguration menu are possible after entering an access code. When prompted
for an access code, turn the navigation dial to the required code and conrm the code by pressing
the dial. If you want to retract from the code request screen, hold the navigation dial or wait until
automatic return to main function screen.
Code : 987
● CENTRAL HEATING:
- MAX BOILER TEMP.: maximum CH temperature
Attention: adjustment of too high temperature parameters not compatible
with the type of building, central heating installation and building’s insulation
may lead to high exploitation costs.
- MAN the temperature of charging: set point of temperature ow CH.
- BOILER PROTECTION:
Yes - if the temp of inside’s sensor of boiler drops below 5, the circulation pipe
will be turned-on
No - protection turned-off. The need of conguration in case of central heating
installation lled in with non-freezing liquid.
● DHW CYLINDER:
- HW COIL TEMPERATURE: the setting of coil’s power.
- REGULATION: DHW cylinder temperature control - INSIDE> according to Tcyl
sensor/ OUTSIDE> according to external thermostat (not available when OUTSIDE
there are items in the menu: DHW CYLINDER TEMPERATURE, DHW CYLINDER
PROGRAM, DISINFECTION and MANUAL mode).
- CANCEL: turning off the function of DHW.
* If function DHW is turned-off, there will be only a possibility to turn-on.
● CIRCULATION:
switching the circulation "YES" or "NO",
● PUMP:
- PUMP OVER RUN: time when the pump is switched on for a short period of time
with a long standstill (blocking protection),
- AUTOMATIC MODE:
Yes - works depending on the demand,
No - continuous work.
- TYPE: pump's type,
- REGULATION:
CONST P. - constant pressure,

16
VARIABLE P. - variable pressure.
In the regulation mode (CONST P.)the pressure difference produced by the pump
is maintained at the constant set level in terms of performance to pump’s maximum
characteristics. This type of regulation is recommended for oor heating circula-
tions or older heating systems with pipes of larger diameters, as well as for all
applications with constant characteristics. In regulation mode (VARIABLE P.) the
pressure’s difference produced by the pump is maintained at the level of settings
changing linearly between 1/2H and H. Setting pressure differences decreases or
increases depending on the ow. This regulation type is recommended for heating
systems with heaters, thanks to which ow noise in thermostatic valves is reduced.
- VENTING: TURN ON / CANCEL
During venting procedure (10 min) the pump works alternately with a maximal and
minimal rotation speed. Thanks to this air bubbles are concentrated and easier to
remove from the installation.
- H MAX- pump’s raising height
● MAX RATED POWER: the setting of boiler’s rated power.
● PRESSURE SENSOR:
No - switching the control off- pressure control should be switched off only when
boiler works in the open installation.
Exit any menu item by pressing „END” or by pressing and holding the navigation dial.
When not operated by the user, main function screen will appear after about 3 min.
8:38 Mo 12.08.2019
8:38 Mo 12.08.2019
PARTY/HOLIDAY
PARTY/HOLIDAY
PARTY / HOLIDAY
Fast switching algorithm of work depending on the
needs.
● PARTY: SET DURATION TIME (from 1 to 24
hours or until the user’s change).
● HOLIDAY: SET DURATION TIME (from 1 to 60
days or until the user’s change).
* if any of the above modes is turned on, after entering the „PARTY/ HOLIDAY” we can turn it off.
* the symbol of the activated mode is signalled on the main function screen.

GB-091B_f.1157 17
For the hot water circuit in the daily schedule, the start time is dened (3) and the end time
(4) of keeping the selected temperature (5) in the tank. Outside the set time intervals, the
temperature will be maintained in the tank economic. The start time is set in the schedule
for the circulation circuit and end of circulation pump operation.
To change the parameters for the daily schedule select chosen program number and
press navigation dial.
The rst parameter ashes (starting time) - use the navigation dial to set the new time
frame value (hour and minutes separately) by turning the dial left/right and conrm it by
pressing the dial again. At the same time next screen starts to ash allowing edition of next
parameters (nishing time). Last editable position is a command. In order to save changes
select command ‘save’ and press the dial to nish editing. To delete selected time
frame start editing chosen time frame and by pressing the dial go to command position,
select command ‘delete’ and press the dial. To add new time frame, select last dened
time frame and by pressing the dial go to command position, select command ‘add’
and press the dial to add new time frame (edition of new time frames described above).
Daily schedule:
DHW CYLINDER PROGRAM No1
DHW CYLINDER PROGRAM No1
END
END
1 6:00 - 9:15
2 15:20 - 22:15
2 15:20 - 22:15
23456
1[1] - time period panel
[2] - no. of time frame according to schedule
(max 5)
[3] - start time
[4] - nish time
[5] - temperature selection (applies to DHW
cylinder)
[6] - command (active when editing):
accept
delete
add
DHW CYLINDER PROGRAM No3
DHW CYLINDER PROGRAM No3
ENDEND
1 0:00 - 23:59
DHW CYLINDER PROGRAM No1
DHW CYLINDER PROGRAM No1
END
END
1 6:00 - 9:15
1 6:00 - 9:15
2 15:20 - 22:15
2 15:20 - 22:15
If there are no dened time frames, then after
selecting „new” the time frame 00:00am to
23:59pm will be set, which should be edited in
accordance with user’s needs.
The daily program will be saved to the boiler’s
settings by pressing the command „END”.

18
Technical data
Max. pressure MPa 0,3 (3 bar)
Min. pressure (concerns to the closed system)
MPa 0,05 (0,5 bar)
Outlet temperature °C
20 ÷ 85
Max. temperature °C 100
Dimensions (height x width x
depth)
EKCO.LN3
mm
716 x 316 x 235
EKCO.L3 716 x 316 x 191
Weight
EKCO.LN3
kg
~20,5
EKCO.L3 ~15,8
Boiler’s connections G 3/4" (inside thread)
Expansion vessel
EKCO.LN3 l ~5
Safety class IP 22

GB-091B_f.1157 19
Boiler 4 / 6 / 8
Rated power kW 2 4 6 8 4 6 8
Rated voltage 230V~ 400V 3N~
Rated current A 8,7 17,4 26,1 34,8 3x5,8
3x8,7 3x11,6
Min. power supply cable
cross-section mm23x2,5 3x4 3x6 5x2,5
Max. power supply cable
cross-section mm25 x 16
Max. allowed network
impedance Ω0,27 0,17 0,15 0,27
Boiler 12 / 16 / 20 / 24
Rated power kW 12 16 20 24
Rated voltage 400V 3N~
Rated current A 3x17,4 3x23,1 3x28,8 3x34,6
Min. power supply cable
cross-section mm25 x 2,5 5 x 4 5 x 6
Max. power supply cable
cross-section
mm25 x 16
Max. allowed network
impedance Ω0,27 0,13

KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1
tel. [phone]
[email protected] www.kospel.pl
