Kostal Smart Energy Meter User manual

Operating manual

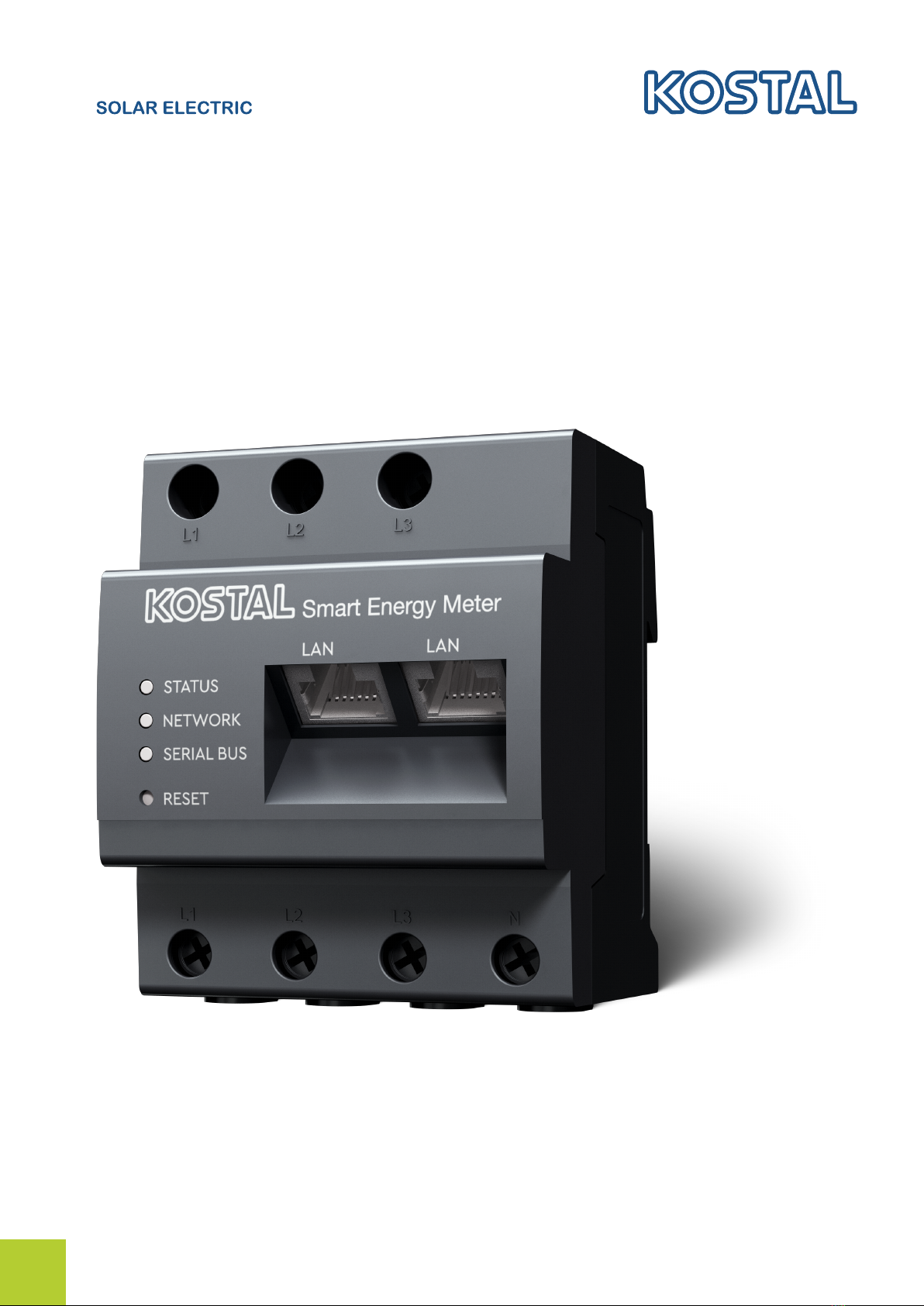

KOSTAL Smart Energy Meter
Power measuring device

Legal notice
KOSTAL Solar Electric GmbH
Hanferstraße 6
79108 Freiburg i. Br.
Germany
Tel. [phone]
Fax [phone]
www.kostal-solar-electric.com
Exclusion of liability
All names, trademarks, product names and other designations used in this manual may be legally pro-
tected even if not indicated as such (e.g. as a trademark). KOSTAL Solar Electric GmbH assumes no li-
ability for their free usage. The illustrations and texts have been compiled with great care. However, the
possibility of errors cannot be ruled out. The compilation is made without any guarantee.
General note on gender equality
KOSTAL Solar Electric GmbH is aware of how language impacts on gender equality and always makes
an effort to reflect this in documentation. Nevertheless, for the sake of readability we are unable to use
non-gender-specific terms throughout and use the masculine form instead.
© 2022 KOSTAL Solar Electric GmbH
All rights reserved by KOSTAL Solar Electric GmbH, including those of reproduction by photocopy and
storage in electronic media. Commercial use or distribution of the texts, models, diagrams and photo-
graphs appearing in this product is not permitted. This manual may not be reproduced, stored, trans-
mitted or translated in any form or by means of any medium, in whole or in part, without prior written
permission.
Valid from version: 2.1.0

Contents
112345
© 2022 KOSTAL Solar Electric GmbH 3
Contents
1. General information........................................................................................................... 5
1.1 Contact ............................................................................................................................... 6
1.2 About this manual ............................................................................................................... 7
1.3 Exclusion of liability.............................................................................................................. 8
1.4 Target group ....................................................................................................................... 9
1.5 Proper use .......................................................................................................................... 10
1.6 Open Source licence ........................................................................................................... 11
1.7 EU declarations of conformity.............................................................................................. 12
1.8 Notes in this manual ............................................................................................................ 13
1.9 Navigation in the document ................................................................................................. 15
1.10 Labels on the energy meter ................................................................................................. 16
2. Device and system description ........................................................................................ 17
2.1 Using the KOSTAL Smart Energy Meter ........................................................................... 18
2.2 The KOSTAL Smart Energy Meter ....................................................................................... 20
2.3 LED statuses....................................................................................................................... 21
2.4 Functions ............................................................................................................................ 22
3. Connection variants .......................................................................................................... 25
3.1 KSEM with PLENTICORE plus............................................................................................. 26
3.2 KSEM with PLENTICORE BI................................................................................................ 31
3.3 KSEM with PIKO IQ............................................................................................................. 33
3.4 KSEM with PIKO MP plus.................................................................................................... 36
3.5 KSEM with PIKO 4.2-20 / PIKO EPC................................................................................... 45
3.6 KSEM with PIKO CI ............................................................................................................. 47
3.7 KSEM with ENECTOR AC 3.7/11 wallbox ........................................................................... 51
3.8 KSEM with PLENTICORE plus and ENECTOR AC 3.7/11 wallbox....................................... 55
3.9 KSEM with PIKO MP plus and ENECTOR AC 3.7/11 wallbox.............................................. 56
3.10 Multiple-inverter connection of KOSTAL inverters ................................................................ 58
3.11 Configuring settings in the Webserver.................................................................................. 66
4. Operation ........................................................................................................................... 67
4.1 The Webserver .................................................................................................................... 68
4.2 Preparing KOSTAL Smart Energy Meter .............................................................................. 69
4.3 Calling up user interface ...................................................................................................... 70
4.4 Configuring settings............................................................................................................. 72
4.5 The dashboard.................................................................................................................... 73
4.6 Menu - smart meter............................................................................................................. 74
4.7 Menu - wallbox.................................................................................................................... 75

Contents
112345
© 2022 KOSTAL Solar Electric GmbH 4
4.8 Menu – tariff ........................................................................................................................ 86
4.9 Menu - plant overview/settings ............................................................................................ 89
4.10 Menu - activation code........................................................................................................ 93
4.11 Menu - inverter .................................................................................................................... 94
4.12 Menu - solar portal .............................................................................................................. 99
4.13 Menu - Modbus settings...................................................................................................... 100
4.14 Menu - device settings ........................................................................................................ 107
5. Faults / maintenance......................................................................................................... 113
5.1 Functions of the reset button............................................................................................... 114
5.2 Error messages / displays ................................................................................................... 115
5.3 Exporting log data ............................................................................................................... 116
5.4 Updating device firmware .................................................................................................... 117
5.5 Change password ............................................................................................................... 118
5.6 Access tokens..................................................................................................................... 119

General information
112345
© 2022 KOSTAL Solar Electric GmbH 5
1. General information
1.1 Contact........................................................................................................................... 6
1.2 About this manual ........................................................................................................... 7
1.3 Exclusion of liability ......................................................................................................... 8
1.4 Target group................................................................................................................... 9
1.5 Proper use ...................................................................................................................... 10
1.6 Open Source licence....................................................................................................... 11
1.7 EU declarations of conformity ......................................................................................... 12
1.8 Notes in this manual........................................................................................................ 13
1.9 Navigation in the document............................................................................................. 15
1.10 Labels on the energy meter............................................................................................. 16

General information
112345
© 2022 KOSTAL Solar Electric GmbH 6
1.1 Contact
Thank you for choosing a device from KOSTAL Solar Electric GmbH.
If you have any technical questions, please call our service hotline:
■Germany and other countries (language: German, English):
[phone]
■Switzerland:
[phone]
■France, Belgium, Luxembourg:
[phone]
■Greece:
[phone]
■Italy:
[phone]
■Poland:
[phone]
■Spain, Portugal (language: Spanish, English):
[phone]
Please have the following information to hand for speedy processing:
■Type designation
■Serial number (see type plate on the device)

General information
112345
© 2022 KOSTAL Solar Electric GmbH 7
1.2 About this manual
Read this manual carefully in its entirety.
It contains important information about installation and operation. Pay particular attention to
the information regarding safe usage. KOSTAL Solar Electric GmbH assumes no liability for
damages arising from non-observance of this manual.
This manual is an integral part of the product. It applies exclusively to the device from
KOSTAL Solar Electric GmbH. Keep this manual and give it to the new owner should you
pass it onto a new operator.
The installer and the operator must have unrestricted access to these instructions at all
times. The installer must be familiar with this manual and follow all instructions.
The most recent version of the operating manual for your product is available in the down-
load area at www.kostal-solar-electric.com.

General information
112345
© 2022 KOSTAL Solar Electric GmbH 8
1.3 Exclusion of liability
Any use that deviates from or goes beyond the proper use described is considered im-
proper use. The manufacturer accepts no liability for any damage resulting from this. Modi-
fications to the device are prohibited. The device may only be used if it is safe to operate
and is in a technically perfect condition. Any instance of misuse will result in the termination
of the warranty, guarantee and general liability of the manufacturer.
IMPORTANT INFORMATION
The device may only be installed, maintained and repaired by a trained and qualified elec-
trician.
Only a qualified electrician may open the device. The device must be installed by a
trained electrician (according to DIN VDE 1000-10 or BGV A3 accident prevention regula-
tions or an internationally comparable standard) who is responsible for observing the ap-
plicable standards and regulations.
The electrician is responsible for ensuring that the applicable standards and regulations
are observed and implemented. Work that could affect the electrical power system of the
relevant energy supply company at the site of the solar power feed-in may only be carried
out by qualified electricians expressly authorised (licensed) by the energy supply com-
pany.
This includes changes to the factory-preset parameters.
Work that could affect the electrical power system of the relevant energy supply company
at the site of the solar power feed-in may only be carried out by qualified electricians ex-
pressly authorised (licensed) by the energy supply company. This includes changes to the
factory-preset parameters. The installer must always observe the regulations of the energy
supply company.
Factory settings may only be changed by qualified electrical installers or persons with at
least comparable or higher technical qualifications, e.g. foremen, technicians or engineers.
When doing so, all requirements are to be observed.

General information
112345
© 2022 KOSTAL Solar Electric GmbH 9
1.4 Target group
Operator
As the operator, you are responsible for the device. You are responsible for the proper use
and safe use of the device. This also includes instructing people using the device.
As an operator without specialist electrical training, you may only carry out activities that do
not require an electrician.
Electrician
As an electrician, you have recognised electrical engineering training. On the basis of this
expertise, you are authorised to carry out the electrical work required in this manual.
Requirements of an electrician:
■Knowledge of general and specific safety and accident prevention regulations.
■Knowledge of electrical regulations.
■Knowledge of national regulations.
■Ability to recognise risks and avoid possible hazards.
Qualification
Some activities in this manual require expertise in electrical engineering. If activities are car-
ried out by someone without the necessary knowledge and qualifications, serious accidents
and death may result.
■Only carry out activities for which you have been qualified and instructed.
■Observe the references to electricians in this manual.

General information
112345
© 2022 KOSTAL Solar Electric GmbH 10
1.5 Proper use
The KOSTAL Smart Energy Meter is a measuring device, which determines electrical meas-
uring values and is available to the inverter via LAN or RS485. It is not an electricity meter
for measuring active consumption in the sense of the EU Directive 2004/22/EC (MID) and it
may only be used for internal purposes.
The data about your system’s energy generation collected by the KOSTAL Smart Energy
Meter may deviate from the data of the main energy meter.
According to its classification as overvoltage category III, the KOSTAL Smart Energy Meter
may only be connected in the sub-distribution / circuit distribution on the consumer side
behind the energy supply company’s energy meter and is only suitable for indoor use.
The KOSTAL Smart Energy Meter is approved for use in EU member states. Only use the
KOSTAL Smart Energy Meter in accordance with the details provided in the enclosed docu-
mentation.
Any other form of use may result in damage to property or personal injury. For reasons of
safety, the product (including the software) must not be modified and components must not
be fitted if they are not expressly recommended or sold by KOSTAL Solar Electric GmbH
for this product. Any form of product use other than that described in the intended use sec-
tion is not considered to be intended.
Operators are prohibited from undertaking unauthorised changes, conversions and repairs
as well as opening the product.
The enclosed documentation forms part of the product and must be read, noted and kept
accessible at all times.

General information
112345
© 2022 KOSTAL Solar Electric GmbH 11
1.6 Open Source licence
This product contains Open Source software, developed by third parties and licensed using
vehicles including GPL and/or LGPL.
For more details on this, a list of the Open Source software used and the related licence
texts, go to the Licences section on the device’s website (Webserver).

General information
112345
© 2022 KOSTAL Solar Electric GmbH 12
1.7 EU declarations of conformity
KOSTAL Solar Electric GmbH hereby declares that the devices described in this document
complies with the basic requirements and other relevant conditions of the directives listed
below.
■Directive 2014/30/EU
(on the harmonisation of the laws of the Member States relating to electromagnetic
compatibility (EMC))
■Directive 2014/35/EU
(on the harmonisation of the laws of the Member States relating to the making available
on the market of electrical equipment designed for use within certain voltage limits Low
Voltage Directive)
■Directive 2011/65/EU
(RoHS) to limit the use of certain hazardous substances in electrical and electronic
equipment
You will find a detailed EU Declaration of Conformity for the product in the download area
at:
www.kostal-solar-electric.com

General information
112345
© 2022 KOSTAL Solar Electric GmbH 13
1.8 Notes in this manual
A distinction is made in this manual between warnings and information notes. All notes are
identified in the text line with an icon.
Warnings
The warnings refer to life-threatening dangers. Serious injuries possibly resulting in death
may occur.
DANGER
Indicates a direct hazard with a high level of risk, which, if not avoided, will result in death
or serious injury.
WARNING
Indicates a hazard with a moderate level of risk, which, if not avoided, will result in death
or serious injury.
CAUTION
Indicates a hazard with a low level of risk, which, if not avoided, will result in minor or
slight injury or property damage.
IMPORTANT INFORMATION
Indicates a hazard with a low level of risk, which, if not avoided, may result in damage to
property.
NOTE
Information notes contain important instructions for the installation and problem-free op-
eration of the device. These must be followed at all times. The information notes also
point out that failure to observe instructions may result in damage to property or financial
damages.
Warning symbols
Danger

General information
112345
© 2022 KOSTAL Solar Electric GmbH 14
Danger due to electrical shock and discharge
Danger due to burns
Symbols within the information notes
The symbol indicates activities that may only be carried out by an electrician.
Information or tip
Important information
Damage to property possible

General information
112345
© 2022 KOSTAL Solar Electric GmbH 15
1.9 Navigation in the document
In order to enable navigation through this document, it contains clickable areas.
The table of contents takes you to the specified chapter in one click.
You can navigate to the referenced points in the document within the instruction text using
the cross-references.

General information
112345
© 2022 KOSTAL Solar Electric GmbH 16
1.10 Labels on the energy meter
Signs and labels are attached to the housing of the energy meter. These signs and labels
may not be altered or removed.
Symbol Explanation
Electrical installations require specialist skills
Housing with protective insulation (protective class II).
Device may not be disposed of with household waste.
Observe the local application of disposal requirements
CE marking
The product satisfies the applicable EU requirements

Device and system description
112345
© 2022 KOSTAL Solar Electric GmbH 17
2. Device and system description
2.1 Using the KOSTAL Smart Energy Meter ...................................................................... 18
2.2 The KOSTAL Smart Energy Meter................................................................................... 20
2.3 LED statuses .................................................................................................................. 21
2.4 Functions........................................................................................................................ 22

Device and system description
112345
© 2022 KOSTAL Solar Electric GmbH 18
2.1 Using the KOSTAL Smart Energy Meter
The KOSTAL Smart Energy Meter (KSEM) is a measuring device, which determines elec-
trical measuring values at the grid connection point and is available via LAN or RS485. It
can be used in combination with various KOSTAL solar inverters and the KOSTAL wallbox.
This includes the following inverters:
■PLENTICORE plus
■PLENTICORE BI
■PIKO IQ
■PIKO MP plus
■PIKO 4.2-20
■PIKO CI
■PIKO EPC
The inverters can be used in combination with the KOSTAL Smart Energy Meter for the fol-
lowing applications:
■Reading the current home consumption and output power
■Power curtailment of inverters down to 0W
NOTE
If a battery storage system and other KOSTAL inverters are used in the system, the max-
imum possible curtailment is to 50 % of the generator output (kWp).
■With a multiple-inverter connection with several PV inverters in the same house grid,
only one KOSTAL Smart Energy Meter is required at the grid connection point.
■If using PIKO MP plus with a battery, battery management, which controls the battery’s
charging / discharging, is handled by the KOSTAL Smart Energy Meter.
■Sending consumption data to the KOSTAL Solar Portal.
This includes the following wallbox:
■ENECTOR AC 3.7/11
The wallbox can be used in combination with the KOSTAL Smart Energy Meter and
KOSTAL inverters for the following applications:

Device and system description
112345
© 2022 KOSTAL Solar Electric GmbH 19
■Blackout protection (house connection monitoring)
Here, the house connection is monitored when charging the electric vehicle. If the max-
imum connected load (e.g. 63 A) is exceeded, the charging power is reduced or char-
ging is interrupted.
■ENECTOR with convenience function
These include advanced ENECTOR charging modes (e.g. Lock Mode, Power Mode,
Solar Pure Mode, Solar Plus Mode). Some modes only work in combination with a
KOSTAL inverter.

Device and system description
112345
© 2022 KOSTAL Solar Electric GmbH 20
2.2 The KOSTAL Smart Energy Meter
1 Inputs for external wires L1, L2, L3
2 Neutral wire N
3 2 x LAN connection
4 RS485 connection (A) Pre-configured for PIKO IQ/PLENTICORE
5 RS485 connection (B) Pre-configured for PIKO MP plus
6 Outputs for external wires L1, L2, L3
7 Status LED
8 Network LED
9 Sensor LED for RS485 bus
10 Reset button
