kozy heat 932 Installation instructions

Page 1
INSTALLATION & OPERATING MANUAL
MODELS:
#932 DIRECT VENT WALL-FURNACE
#936 DIRECT VENT WALL- FURNACE
U.S. Patents:
#5.931.154
#6.004.493
IMPORTANT:
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. FAILURE TO INSTALL
THIS FIREPLACE CORRECTLY CAN CAUSE SERIOUS STRUCTURAL AND FIRE
HAZARDS AND MAY VOID YOUR WARRANTY.
www.kozyheat.com July 2006

Page 2
INDEX
DESCRIPTION PAGE
SAFETY REQUIREMENTS / SPECIFICATIONS ................................................ 3-4
MINIMUMCLEARANCES ....................................................................4
GASCONVERSIONKIT .....................................................................4
PREPARE THE UNIT ........................................................................5
DETERMINELOCATION................................................................... 5-7
ROUGH-INCHIMNEYVENTDIMENSIONS............................7
ROUGH-INDIMENSIONS ..........................................7
VENTINGREQUIREMENTS ............................................................... 8-12
#700 SERIES DIRECT VENT KIT INSTALLATION ................................................12
FANINSTALLATION .................................................................... 13-14
GAS LINE SPECIFICATIONS ............................................................. 15-16
MILLIVOLTBOARDREMOVAL/INSTALLATION ............................................. 16-17
LOGINSTALLATION .................................................................... 18-19
MODEL #932 DV ................................................18
MODEL #936 DV ................................................19

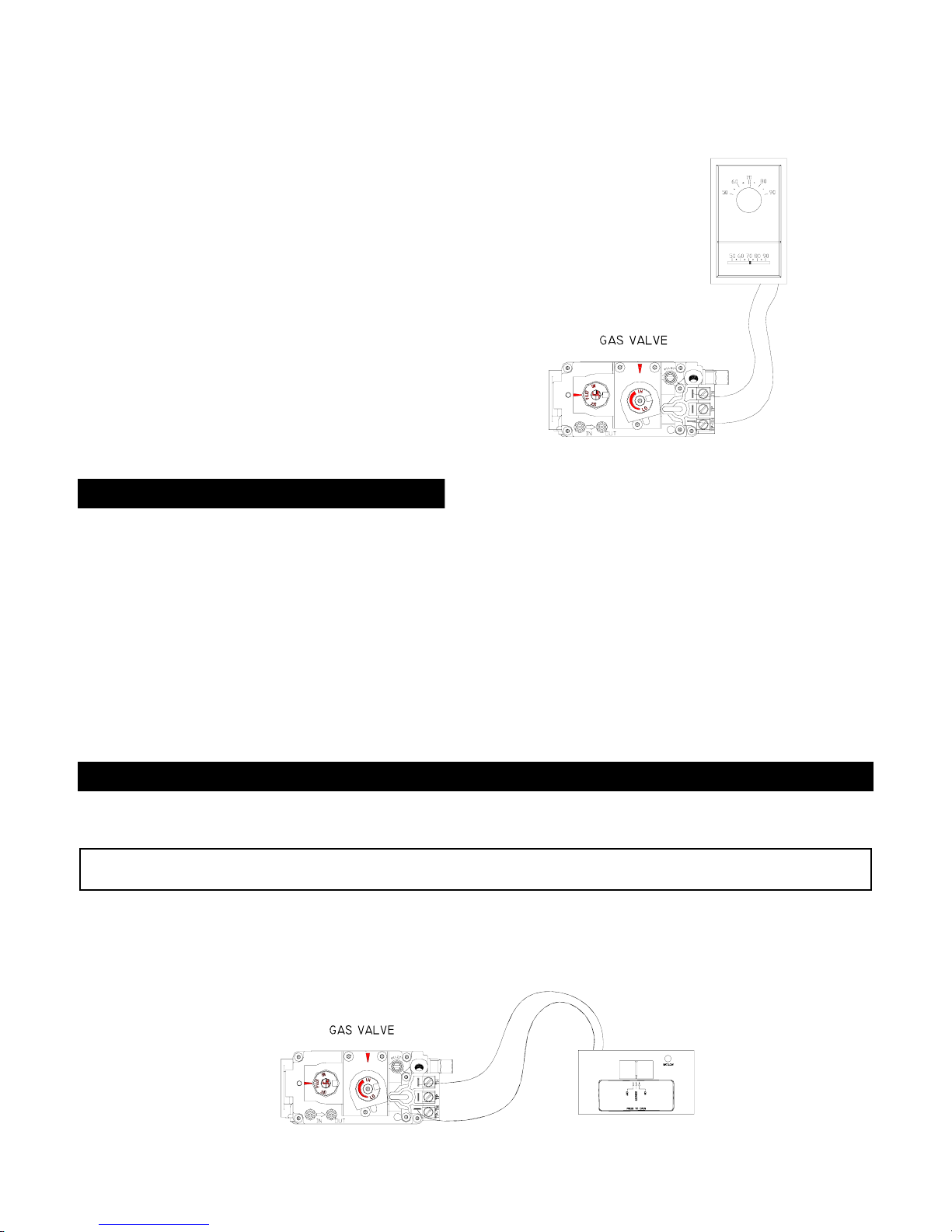

WALLSWITCH-THERMOSTAT-REMOTECONTROLINSTALLATION .......................... 20-21
MODEL #932 DV ................................................20
MODEL #936 DV ................................................21
COMPLETETHEINSTALLATION.......................................................... 22-23
LIGHTING&SHUTDOWN/PRESSURETESTING ............................................ 24-29
MODEL #932 DV: LIGHTING & SHUTDOWN ............................... 24-25
PRESSURETESTING .....................................26
MODEL #936 DV LIGHTING & SHUTDOWN ............................... 27-28
PRESSURETESTING .....................................29
CLEANING&MAINTENANCEREQUIREMENTS ................................................30
TROUBLESHOOTING .................................................................. 31-32
REPLACEMENTPARTSLISTS ..............................................................33
WARRANTYPOLICY........................................................... 34-35

Page 3
IMPORTANT:
READTHISMANUALBEFOREINSTALLINGANDUSINGTHISFIREPLACE
MODELS #932 DV & #936 DV WALL FURNACE
INSTALLATION INSTRUCTIONS
This appliance has been tested to and complies with ANSI Z21.88-2002•CSA 2.33-M02, “VENTED GAS FIREPLACE HEATER”.
Installationmust conformwithlocal buildingcodes,or, intheabsenceof localbuilding codes,withthe nationalfuelgas code,ANSI
Z223.1, NFPA 54 - current edition, or the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3288.
The appliance may be installed in an aftermarket permanently
located, manufactured (mobile) home, where not prohibited by
local codes. This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is notconvertiblefor
use with other gases , unless a certified kit is used.
INSTALLATION AND/OR REPAIR OF THIS UNIT SHOULD ONLY BE
DONE BY A QUALIFIED INSTALLER.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
COMMONWEALTH OF MASSACHUSETTS
INSTALLATIONS:
WARNING: This Product Must Be Installed By A
Licensed Plumber or Gas Fitter When Installed Within
The Commonwealth of Massachusetts.
IMPORTANT: Installation of the CO detector is
required in the fireplace room.
FOR YOUR SAFETY: WHAT TO DO IF YOU
SMELL GAS:
!Do not touch any electrical switches.
!Do not try to light any appliance.
!Do not use the phone in your building.
!Immediately call you gas supplier from a
neighbor’s phone.
!Follow the gas suppliers instructions.
!If you cannot reach your gas supplier, call the fire
department.
!Do not store or use gasoline or other flammable
vaporsandliquidsinthevicinityofthisoranyother
appliance.
WARNING:Improperinstallation,adjustment,alteration,
service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information consult a qualified installer,
service agency, or the gas supplier.
WARNING: Do not use this heater if any part has
beenunderwater. Immediatelycallaqualifiedservice
technician to inspect the appliance and to replace any
part of the control system and any gas control which
has been under water.
WARNING: DO NOT REPLACE THIS BURNER UNIT
WITH ANY OTHER SIZED BURNER. REPLACEMENT
WITH AN UNAUTHORIZED BURNER CAN RESULT IN
TEMPERATURES EXCEEDING THE LIMITS FOR THIS
UNIT, AND VOID YOUR WARRANTY.

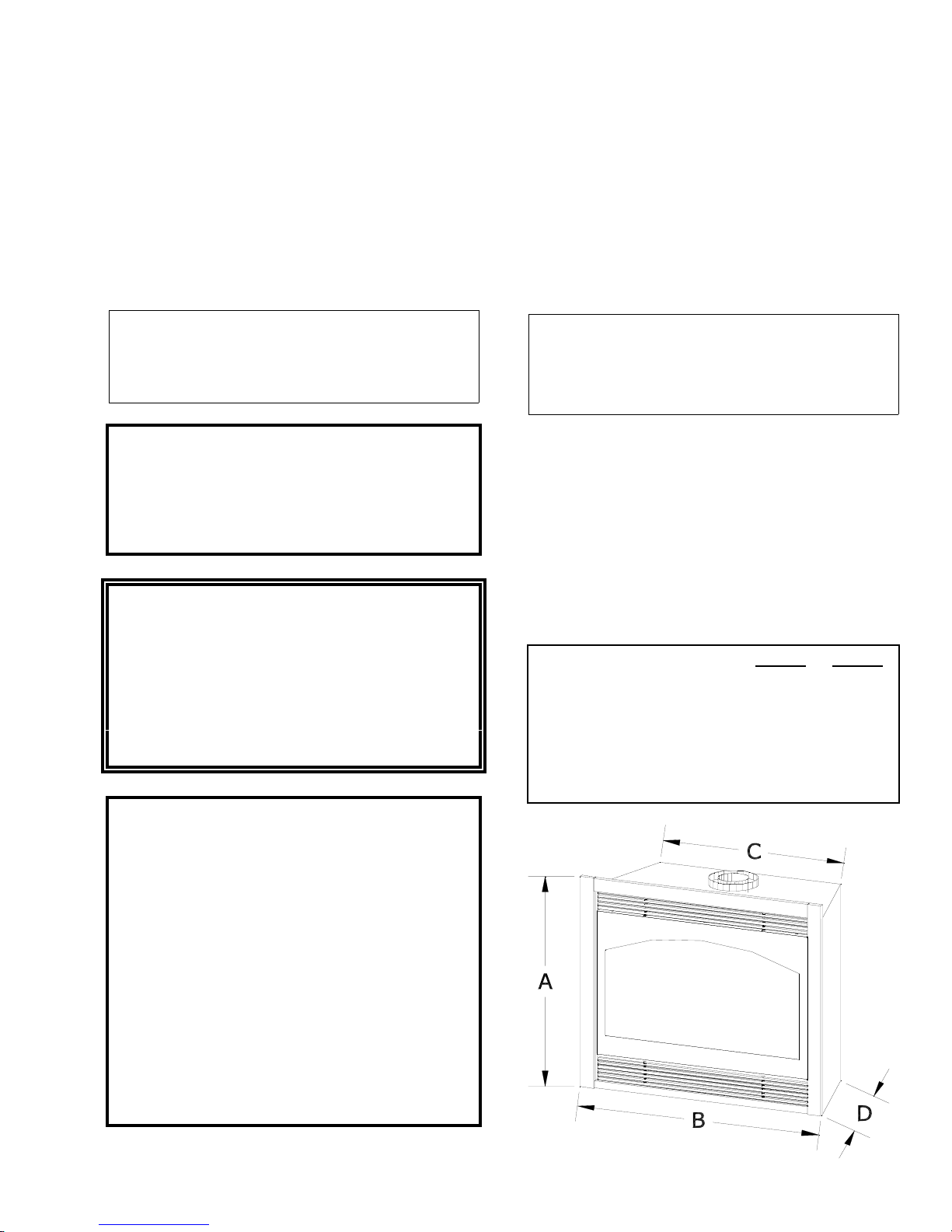

UNIT SPECIFICATIONS - #932DV #936DV
Height (A): 25” 32"
Front width (B): 32” 36"
Back width (C): 22" 26”
Depth (D): 18 1/4" 18 1/4”
Face to front of 7” intake: 7 3/4” 7 3/4”
Face to center of of 4” exhaust: 11 1/4” 11 1/4”
Flue size: 4" exhaust, 7" intake

Page 4
IMPORTANT: THESE MODELS ARE APPROVED FOR USE ONLY WITH ONE OF THE FOLLOWING DIRECT
VENT SYSTEMS :
- #745 DIRECT VENT TERMINATION KIT - for
terminations 4' for less.
- #718 DIRECT VENT TERMINATION KIT - for
terminations greater than 4' but less than 8'.
-#746 DIRECT VENT EXTENSION KIT - used in
conjunction with #745 or #718. The extension kit is
expandable to 6'.
-SIMPSON DURA-VENT DV-GS DIRECT VENT
CHIMNEY SYSTEM: 4” x 6 5/8”. For vertical
terminations.
*Adaptor #923-C is required to adapt the flue
collars to the Dura-Vent chimney system.
Refer to pages #8 - #12 for complete venting
installation instructions / requirements.
For visual inspection of proper vent connection; upon completion of installing the direct vent kit, remove the nuts
and the baffle inside the unit to expose the lower end of the flue gas exit. Re-install baffle upon inspection and
secure with nuts - DO NOT OVER TIGHTEN THE NUTS!
IMPORTANT: NON-COMBUSTIBLE FACING MATERIAL MAY BE APPLIED OVER THE FACE. TO PREVENT THE
FACING MATERIAL FROM CRACKING AND FALLING OFF DUE TO EXPANSION OF THE FACE WHEN HEATED, DO
NOT ATTACH FACING MATERIAL DIRECTLY TO THE FACE OF THE UNIT.
CLEARANCES Mantel Projection
Minimum clearance to combustibles:
From unit sides & back: 0"
From unit top stand-off: 0"
To flooring: 0"
From flue vent: 1"
From unit glazing to adjacent sidewall: 8"

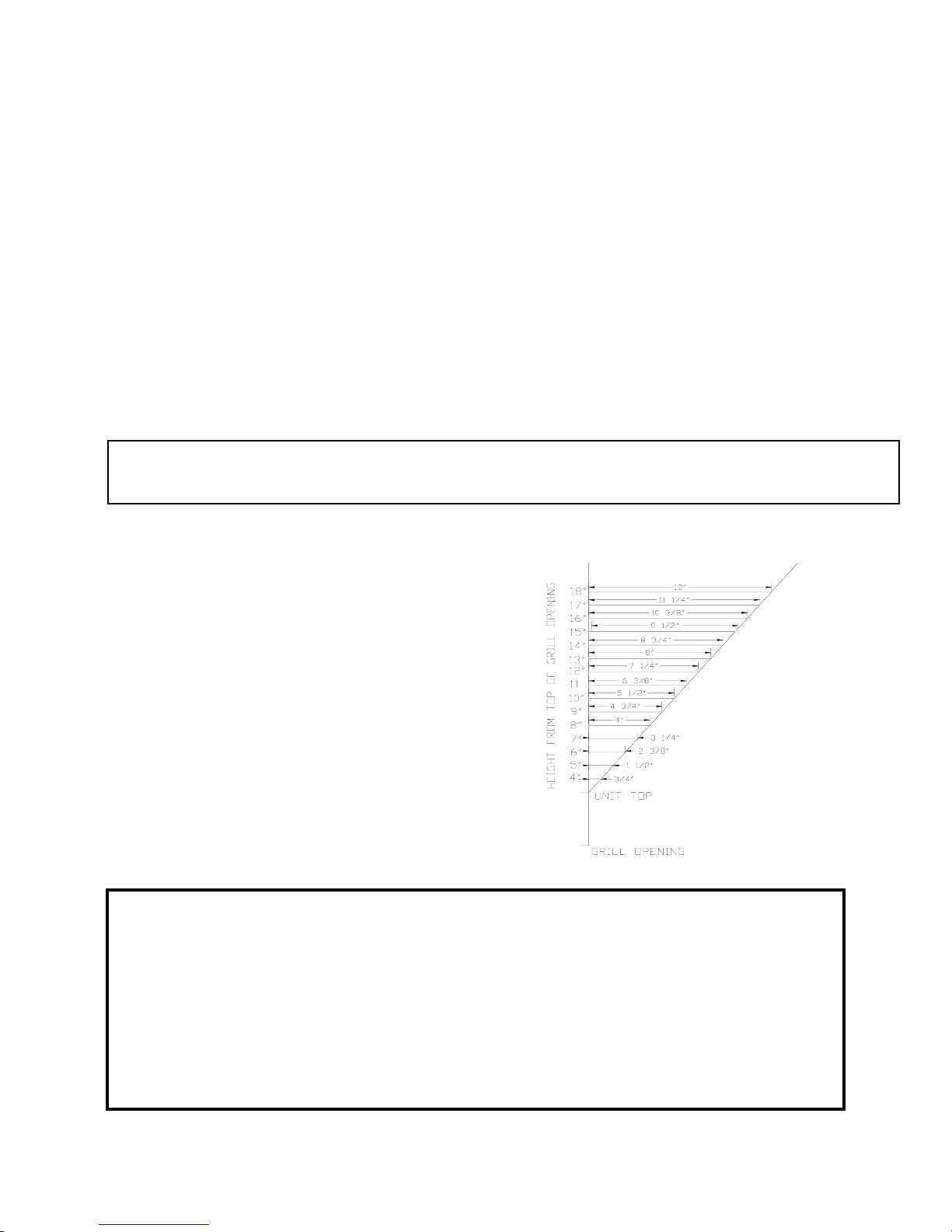

From heat outlet to mantle: See figure 1.
Figure 1
GAS CONVERSIONS
If a gas conversion is necessary, one of the following conversions kits must be used:
Natural Gas Converison Kits - used to convert an LP millivolt board to natural gas.
Model #932 - #OCK-S38 Model #936 - #OCK-H31N
LP Gas Conversion Kits - used to convert a Natural Gas millivolt board to LP Gas.
Model #932 - #OCK-S53 Model #936 - #OCK-H51L
The conversion shall be carried out in accordance with the requirements of the provincial authorities having
jurisdiction and in accordance with the requirements of the ANSI Z223.1 installation code.

Page 5
A) PREPARE THE FIREPLACE
1. REMOVE THE GLASS ASSEMBLY.
See Figure 2.
A. Locate the spring-loaded latch handles
securing the glass assembly (under the
firebox).
B. Pull the handles out, then down to release the
glass assembly.
C. Pull the bottom of the glass assembly out and
lift up off the tabs (at the top).
D. Set aside where it will not be broken.
E. Remove the logpackage from the firebox and
set aside.
Figure 2
B) DETERMINE LOCATION. See Figures 3A & 3B.
1. Determinetheexact positionofyour fireplace.
If possible, place the fireplace in such a
manner that the venting will be placed
betweentwo studsso additionalframingis not
necessary. Determine the width, depth and
height of the (optional) hearth.
2. The unit may be installed on eitherthe outside
or inside of an exterior wall. See Figures 3A &
3B, page #6 for various installation options.
The location of doors, windows,
soffits/overhangs, etc. must be considered in
relation to where the vent termination cap will
be located. Refer to Figure 8, page #10.
All clearances to combustible requirements
must be maintained. Follow clearance
requirements on page #4.
3. If the optional heat ducts are used, their
location must be considered in relation to the
fireplace.
The heat ducts may be vented into the same
room as the fireplace or may be vented to
other rooms. A maximum run of 20 ft. for each
duct is recommended.
Venting should be completed before framing
the unit it.
Refer to instructions included in the #970 duct
kit for complete installation requirements.
4. Ifusingtheoptionalfankit,115Vwiring should
be run to the lower left of the fireplace by a
qualified technician. A removable electrical
access panel with romex connector is located
on the left side of the fireplace. The wiring
should be run prior to enclosing the sides of
the unit.
CAUTION: COLD AIR TRANSFER AREA. THE SURROUNDING WOOD CHASE OF THE OUTSIDE
WALL MUST BE INSULATED TO PREVENT COLD AIR FROM ENTERING THE ROOM.
NOTE: Due to high temperatures, this unit should be located out of traffic areas and away from
furniture and draperies.

Page 6
*
133
8
4413
16 633
8
18 1/2"
361
2
181
2

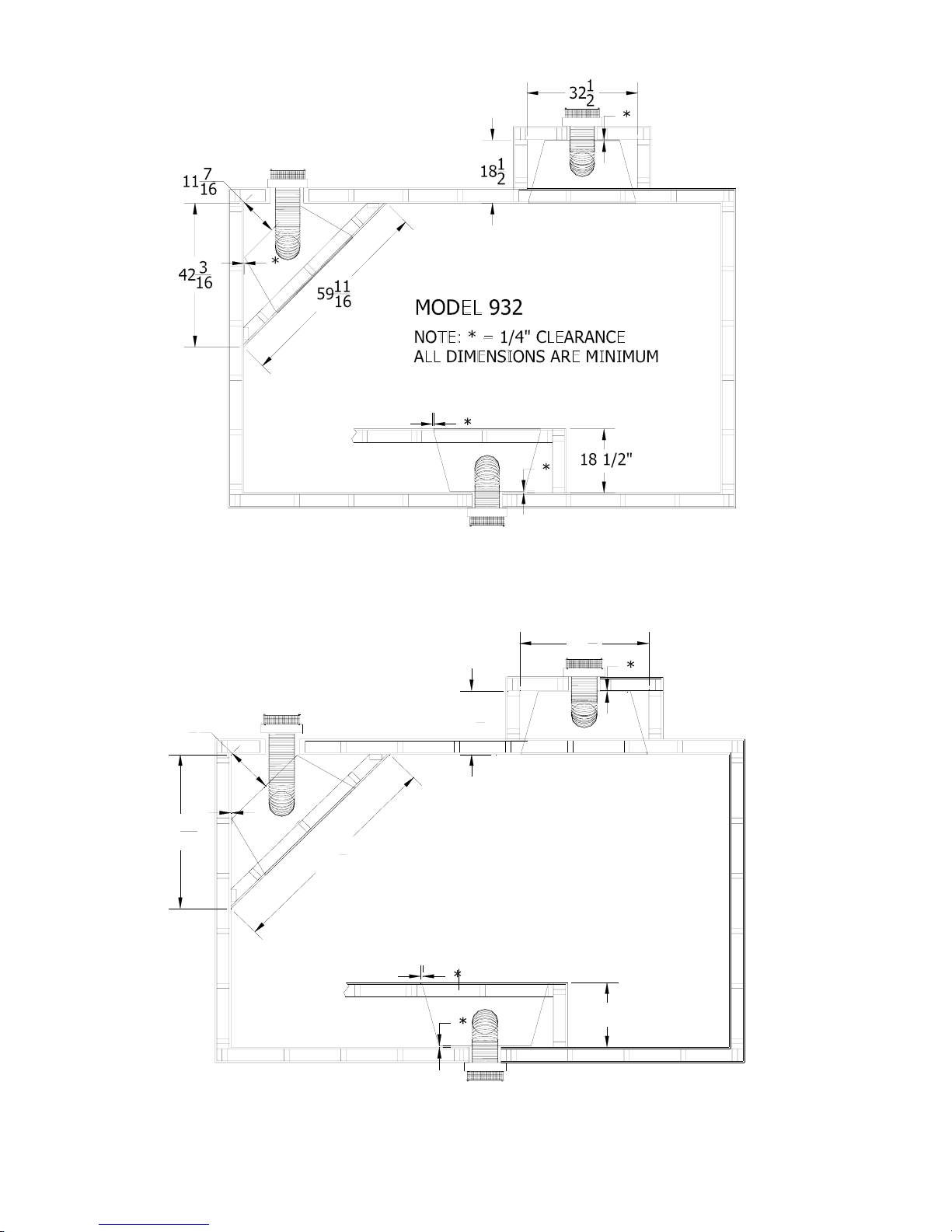

MODEL 936
NOTE: * = 1/4" CLEARANCE
ALL DIMENSIONS ARE MINIMUM
Figure 3A
Figure 3B

Page 7
5. Cut a hole for the firestop, 9 1/2" x 9 1/2".
The top of this hole must be a minimum of:
- 42 1/2” * (A) - Model #932 DV
- 49 1/2" * (A) - Model #936 DV
above the height of the hearth (optional). (G)
See Figure 4A.
*Important: This measurement is determined by
the vertical height and horizontal length of the
venting application desired. The measurement
is to the top of the pipe. Please refer to pages
#8 - #10 of this installation manual for
requirements and restrictions. Figure 4A
6. Rough in the wall enclosure. The minimum rough opening dimensions are:
Model #932 DV: 25 1/4” high (A)
32 1/2” wide (B)
18 1/2” deep
Model #936 DV: 32 1/4" high (A)
36 1/2" wide (B)
18 1/2" deep
Build the hearth to the desired
size, and height. See Figure 4B.
Figure 4B
NOTE: When thefireplace isinstalleddirectlyon carpeting, tile,orother combustible materialsotherthan woodflooring,
it must be installed on a metal or wood panel extending the full width and depth of the unit. The minimum for the support
platform under the unit is: Model #932 DV: 18 1/4” deep by 32” wide Model #936 DV: 18 1/4" deep by 36" wide. If
masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry construction
is being used, a lintel must be used over the top of the unit to support the added weight.
NOTE: A non-combustible hearth extension is not required. If a hearth extension is desired, combustible
materials may be used.
NOTE: Provide for a minimum of 6" of clearance in front of the lower grill. This will provide adequate space
to open the lower grill and operate the controls.
Do not obstruct the upper and lower grill areas to allow proper ventilation air around the fireplace. Air enters
the unit at the lower grill, and exits at the upper grill. Blocking these passages may result in overheating the
fireplace creating a potentially hazardous situation.
7. Place the fireplace into position.

Page 8
C) VENTING REQUIREMENTS
IMPORTANT: MODELS#932 DV& #936DVARE APPROVEDFOR USEONLYWITH THE FOLLOWING
DIRECT VENT SYSTEMS:
HORIZONTAL TERMINATIONS

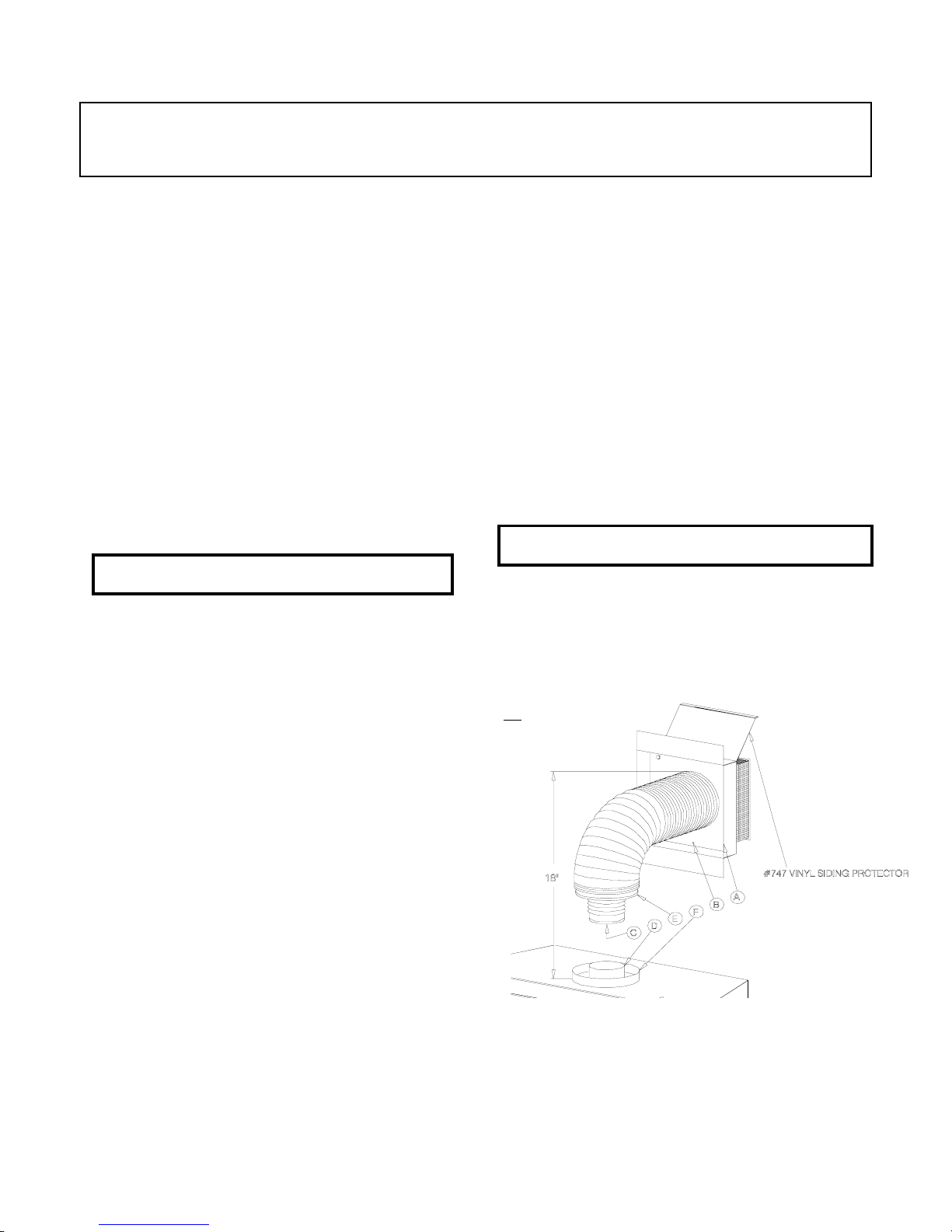

#700 SERIES DIRECT VENT TERMINATION KITS:
- #745 KOZY HEAT DIRECT VENT KIT - For terminations of 4' or less.
- #718 KOZY HEAT DIRECT VENT KIT - For terminations greater than 4' but less than 8'.
- #746 KOZY HEAT DIRECT VENT EXTENSION KIT - Used to extend the
#745 or #718 kit an additional 6'. Used for horizontal terminations.

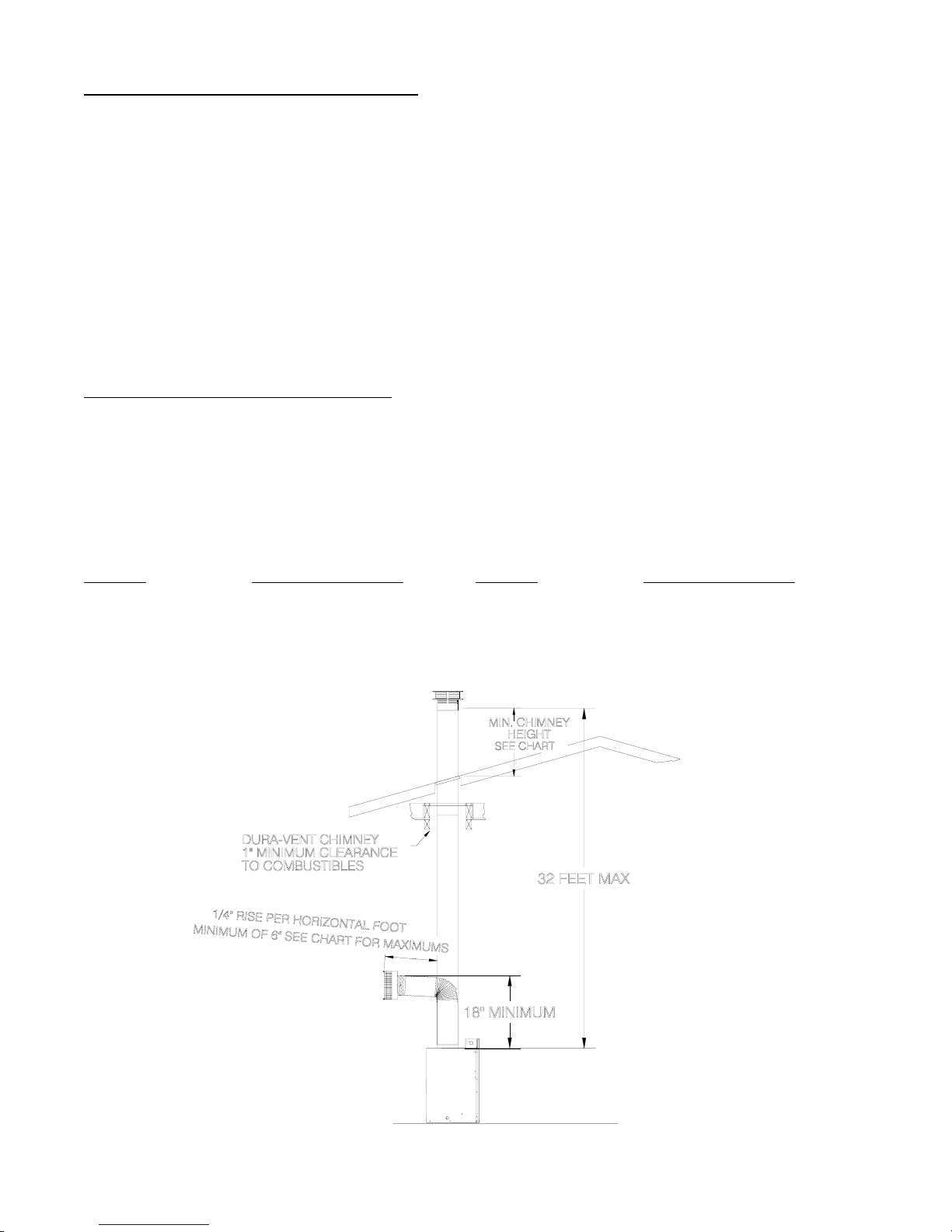

VERTICALTERMINATIONS
-SIMPSON DURA-VENT DV-GS DIRECT VENT CHIMNEY SYSTEM ( 4” x 6 5/8”).
- Used for vertical terminations only.
- Adaptor #923-C is required to adapt the flue collars on the unit to the Dura-Vent chimney system.
- Vent runs must be in compliance as outlined below.
- 45oelbows only - Follow installation instructions included with the #923-C adaptor & chimney
system.
FIGURE 5 - HORIZONTAL & VERTICAL VENTING CHART
Vertical Rise
Horizontal Run

Page 9
RESTRICTOR INSTALLATION
The restrictor plate included in the fireplace components
packet can be installed as either a large or small restrictor,
depending on your specific venting configuration.
There are severalfactorswhichcan affect properdraftofthe
vent system and the burner operation of a fireplace.
Installing a restrictor may be necessary to resolve the
problem, even though it may not be required under ‘normal
conditions’.
IMPORTANT: DO NOT INSTALL IF THE VENTING
CONFIGURATION
IS AT THE MINIMUM REQUIREMENTS!
Therestrictorincludedissizedasthe‘large’restrictor,Figure
6A. To reduce the size to the small restrictor, simply bend
thesectionwithoutthetabsoffattheperforationanddiscard,
Figure 6B.
Figure 6A
Figure 6B
To install the restrictor, refer to Figures 7A & 7B and bend the tabs ‘up’ far enough (approximately 80-degrees) so that when
positioned into the exhaust pipe, will create tension to hold itself in place. Do not over bend the tabs! Slide the restrictor into the
exhaust pipe with the tabs pointing toward you. Access to the exhaust pipe can be gained by removing the nuts securing the
exhaust baffle inside the firebox at the top.
Figure 7A Figure 7B
Install with the tabs pointing toward you.
IMPORTANT: REPLACE THE EXHAUST BAFFLE AFTER RESTRICTOR INSTALLATION IS COMPLETE. DO NOT OVER
TIGHTEN THE NUTS!

Page 10
TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, etc.. If necessary, extend framing
so that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of combustion and ventilation air
must be not obstructed.
LOCATION CLEARANCES:
SAbove grade, veranda, porch, deck, balcony - 12". (A)
SOperable window - 12". (B)
SPermanently closed window - 12" (recommended to prevent condensation on window. (C)
SVentilated soffit - 24". (D)
SUnventilated soffit - 12". (E)
SOutside / inside corner - 12". (F)
SMeter / Regulator: not to be installed above within 3 ft. horizontally from the center line of the regulator.
SService regulator vent outlet - 3 ft. radius
SNon-mechanical air supply inlet to building - 12".
SCombustion air inlet to any other appliance - 12".
SMechanical air supply inlet - (G) CANADA: 6 ft. US: 3 ft. above if within 10 ft. horizontally.
SAbove furnace exhaust or inlet - 12".
SAbove paved side-walk or paved driveway located on public property - 7 ft. * (H)
NOTE: A vent cannot be located directly above a sidewalk or paved driveway that is located between two single family dwellings and
serves both dwellings.
SUnder veranda, porch, deck, or balcony (must be fully opened on a min. of 2 sides) - 12". (I)
SBetween two horizontal terminations - 12".
SBetween two vertical terminations - 12". (J) - Note: May be the same height.
* Clearance must be in accordance with local installation codes and the requirements of the gas supplier.
Figure 8
