Kraken RC VESLA.5 User manual

ELECTRIC
2WD
INSTRUCTION MANUAL

DISCLAIMER
All information on this document is subject to change at the sole discretion of Kraken RC,
Inc. for up-to-date product information, please visit krakenrc.com for the latest updates.
ATTENTION
Please read this manual in its entirety and observe applicable suggestions and
recommendations. Failure to operate the product correctly may result in damage to the
product, personal property and cause serious injury.
WARNING
VESLA.5 is recommended only for professional or advanced RC drivers.
Failure to follow all instructions can lead to damage to your vehicle, property damage and
bodily injury or death.
CAUTION
Making modications to your car not specied in this manual may void the warranty
and cause your vehicle to malfunction.
VESLA.5 is a remote control vehicle operated by radio frequencies. Please be aware of
radio interference in your area or you may lose reception. Always be aware of your
surroundings while driving VESLA.5. We highly recommend using a Kill Switch which can
be purchased from Davesmotors.com. A Kill Switch will allow you to “kill” your engine
remotely should you lose control of the vehicle.
• Never run your vehicle on the street where people are present
• Invest in a Kill Switch
• VEKTA.5 battery box is not waterproof, avoid running in water
• Never run your vehicle with low transmitter batteries
• Invest in a high quality radio transmitter and batteries
• Always turn off engine rst, then receiver, then transmitter
• Inspect your vehicle after each run and perform maintenance on the vehicle when
necessary
Page 2 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC

KRAKEN RC LIMITED WARRANTY (USA)
VESLA.5 is warranted to be free of defects in material and workmanship. This warranty
does not cover damage due to normal wear and tear, user error of assembly, installation,
user modications and after-market hop ups used. This warranty is not transferable.
Kraken RC will, at our discretion, repair or replace products or parts, provided our
inspection indicates that an original defect exists. Kraken RC reserves the right to replace
any product or part which is no longer available with a product of comparable value and
function. If Kraken RC determines that the repairs or replacements are not covered
under warranty guidelines, there could be a charge applied for repair and return shipping
charges.
KRAKEN RC LIMITED WARRANTY (USA)
Please return product to your local dealer where the purchase was made. Kraken RC
assumes no responsibility for Kraken RC products sold internationally by online retailers.
THANK YOU!
Kraken RC would like to thank you for purchasing the VESLA.5. Only through hard work,
great investments, and time were we able to bring this vehicle into reality. The VESLA.5
is the product of our passion and joy for our RC hobby and we are so grateful to be able
to share our dream with you. We wish you many hours of fun and hope that the VESLA.5
brings you miles of smiles.
Happy Bashing!
Team Kraken
Page 3 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC

Page 4 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . .5
ESC Programming and radio adjustments. . . . . . . . . . 6
Slipper Gear Maintenance . . . . . . . . . . . . . . . .8
Shocks Maintenance . . . . . . . . . . . . . . . . . 11
Differential Maintenance . . . . . . . . . . . . . . . . 17
Roll Cage Assembly instructions . . . . . . . . . . . . 21

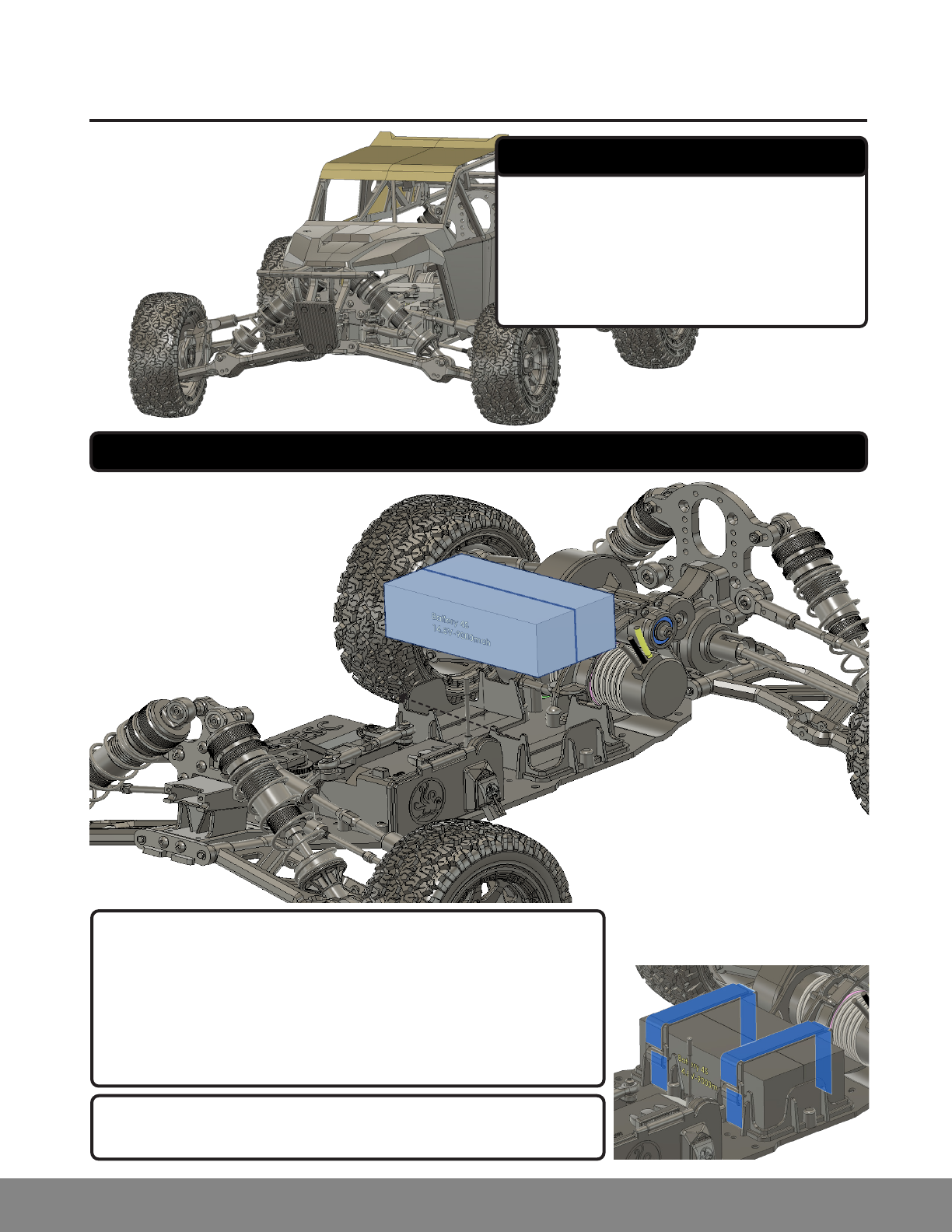

INTRODUCTION
Page 5 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
1. 3AAA Batteries
2. 4S LIPO Batteries (8S) Set of two*
3. Battery Charger
* Battery tray dimesions 160mm (L) x
92mm (W).
1. Before you start, please ensure that your vehicle is lifted and the
wheels are off the ground. For extra safety, program your ESC
outside.
2. Locate the serial cable and attach it to the ESC’s plugs (Red to Red
and Black to black).
3. Install your LIPO Batteries with the leads on the opposite end. En-
sure that any cables are not pinched.
4. Secure the batteries with the battery straps before operating.
Watch our step-by-step instructional video here - https://www.youtube.
com/watch?v=6z7VS5UZCYM
PARTS NEEDED TO COMPLETE:
REMOVE THE ROLL CAGE AND INTALL YOUR LIPO BATTERIES

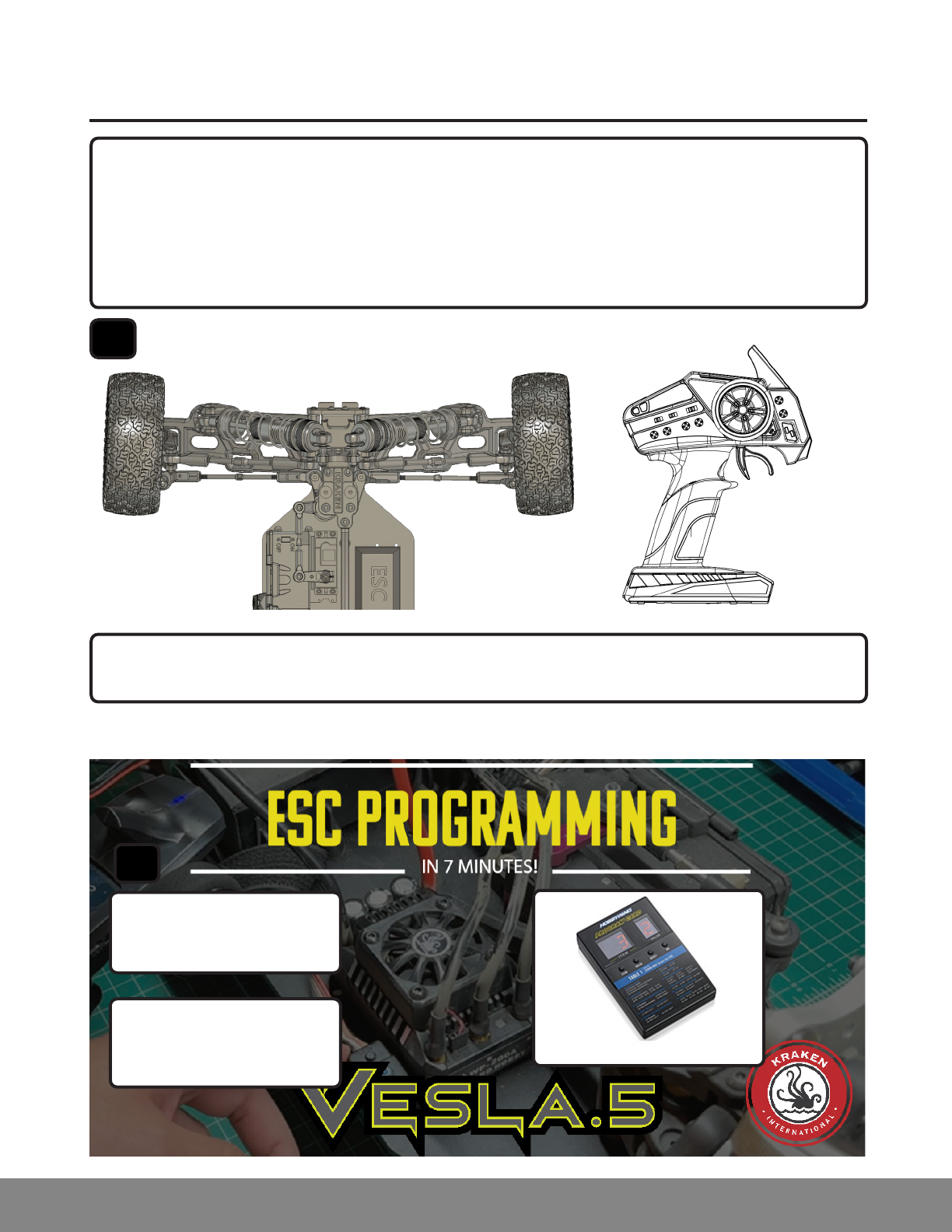

ADJUSTING STEERING AND THROTTLE TRIMS
Page 6 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
1. Center the tires by adjusting the steering trim. Use subtrim if necessary (see your trans-
mitter’s instruction manual for further direction).
If steering is not in the desired neutral position after binding, and steering cannot be cen-
tered using trim and subtrim, please follow these tips:
(1). Reset trim and subtrim to set to its neutral factory settings.
(2). Remove the servo horn and reinstall.
(3). Retrim as needed.
2. Make sure your receiver and servo are turned on and check that they are in neutral posi-
tion. Use the diagram above as a guide for the position of the throttle/brake horn.
Watch our step-by-step instruc-
tional video here - https://www.
youtube.com/watch?v=6z7V-
S5UZCYM
For quick and easy program-
ming get the Hobbywing LED
ESC programming card -
https://tinyurl.com/mu8yndjs
HOBBYWING LED Program Card
1
2

ESC PROGRAMMING
Page 7 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Before programming, please make
sure that the vehicle is off the ground
and the wheels are free spinning. You
can prop up the vehicle on a stool as
pictured.
2. Attach the roll cage
ESC Manual -https://tinyurl.com/2wu2tpce
3. When you feel that your vehicle
is ready, you can now go for a test
drive. Operate the vehicle in an
open space away from trafce and
people. Drive slow at rst to make
sure everything is working correctly
1
2
3

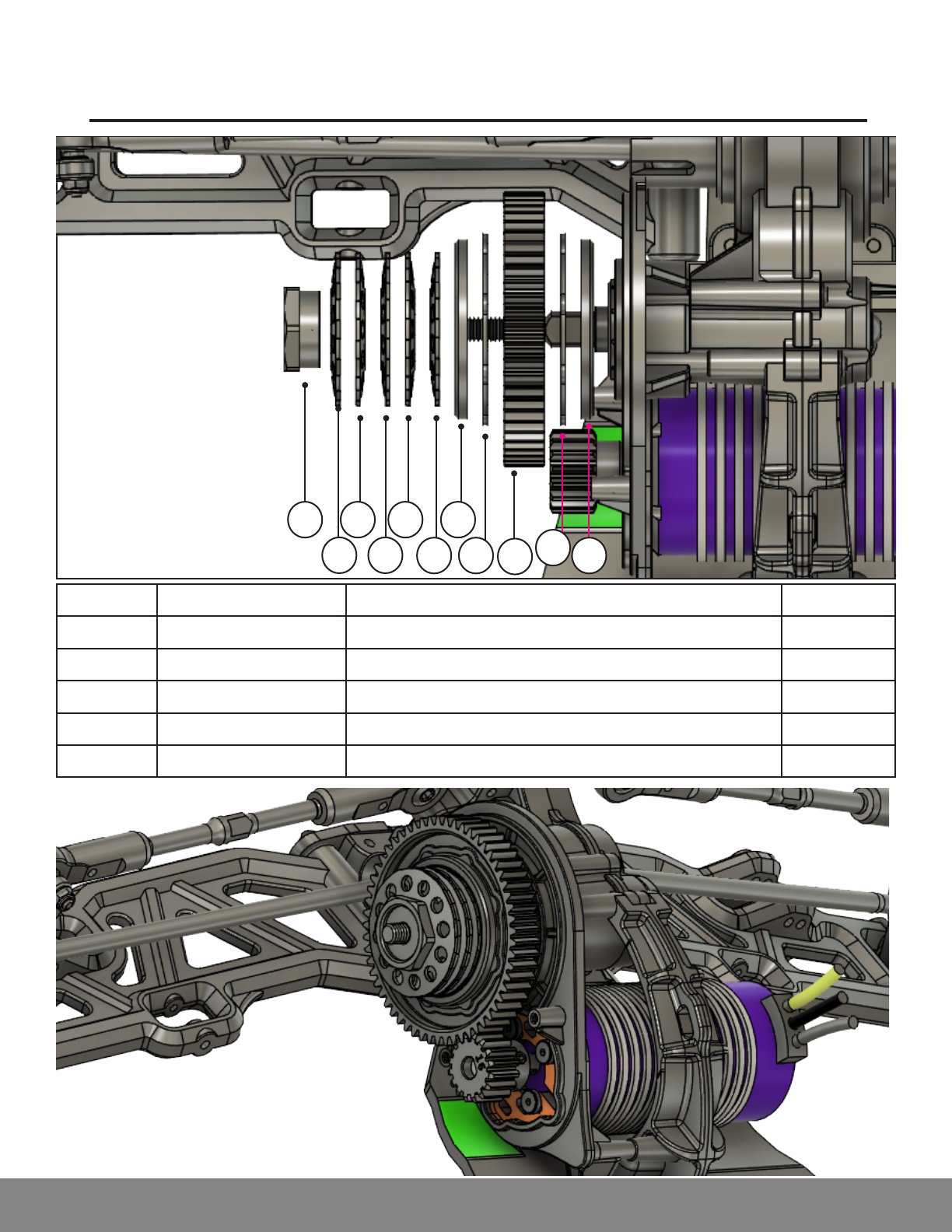

SLIPPER GEAR MAINTENANCE
Page 8 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KVS425 SlipperDisk 2
2 KV4414 KV5-SlipperPad 2
3 KVS423 SlipperGear,m1.5 T57 1
4 KV3306 KV5-DiskSpring50x25.4x1.5 5
5 KVS463 SlipperAdjustingNut 1
1
2
3
2
1
4
44
4
5
4

SLIPPER GEAR MAINTENANCE
Page 9 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Jam the pinion with another spur
gear to and tighten the adjusting
nut
Fully snug clockwise and loosen
by the nut by 1/8th of a turn

SLIPPER GEAR MAINTENANCE
Page 10 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 3300089 WasherS8x15.6x2.5 1
2 KKR412012 LockNut080 1
2
1

SHOCK MAINTANENCE
Page 11 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KVS444 ShockBody 1
2 KV8853 KV5-ShockShaftGuide 1
3 KV3303 ORing8x4(NBR70) 2
4 KV8852 KV5-Shock-BackUpRing 1
5 KV8856 KV5-ShockShaftGuideA 1
6 KV5559 KV5-ShockSealCap 1
1
2
3
4
3
5
6

SHOCK MAINTANENCE
Page 12 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KVS445 ShockShaft 1
2 KV3381 Washer6x12x1.6 1
3 KV8851 KV5-ShockPiston 1
4 KV3334 LockNut6 1
5 KV8854 KV5-ShockShaftEnd 1
4
1
5
2
3

SHOCK MAINTANENCE
Page 13 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV4433 KV5-ShockDiaphragm 1
2 KV8855 KV5-ShockTopEnd 1
3 KV5548 KV5-ShockTopCap 1
1
2
3
Front Shock Oil: 250 CST
Rear Shock Oil: 150 CST

SHOCK MAINTANENCE
Page 14 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV5560 KV5-ShockSpringAdjustingRing 1
2 KV3302 ORing33.5x2,S34(NBR70) 1
3 KV5561 KV5-FrontShockSpring 1
4 KV8850 KV5-ShockSpringPerch 1
1
2
3
4
Front Shocks Gap: 15mm
Rear Shocks Gap: 20mm

SHOCK MAINTANENCE

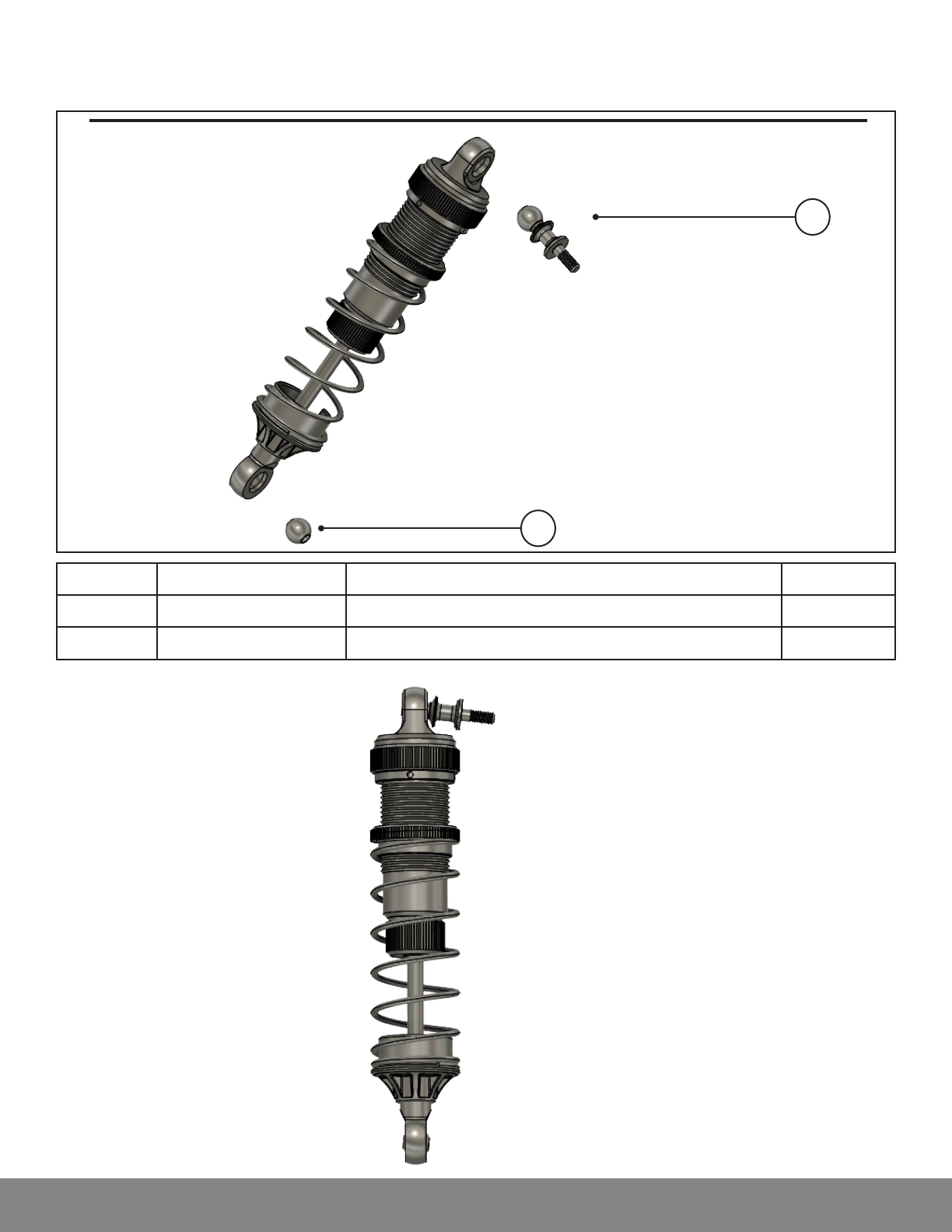

Page 15 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV5509 KV5-ShockStand 1
2 KV5508 KV5-Ball13.8x5 1
1
2

SHOCK MAINTANENCE
Page 16 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV5509 KV5-ShockStand 1
2 KV5508 KV5-Ball13.8x5 1
1
2

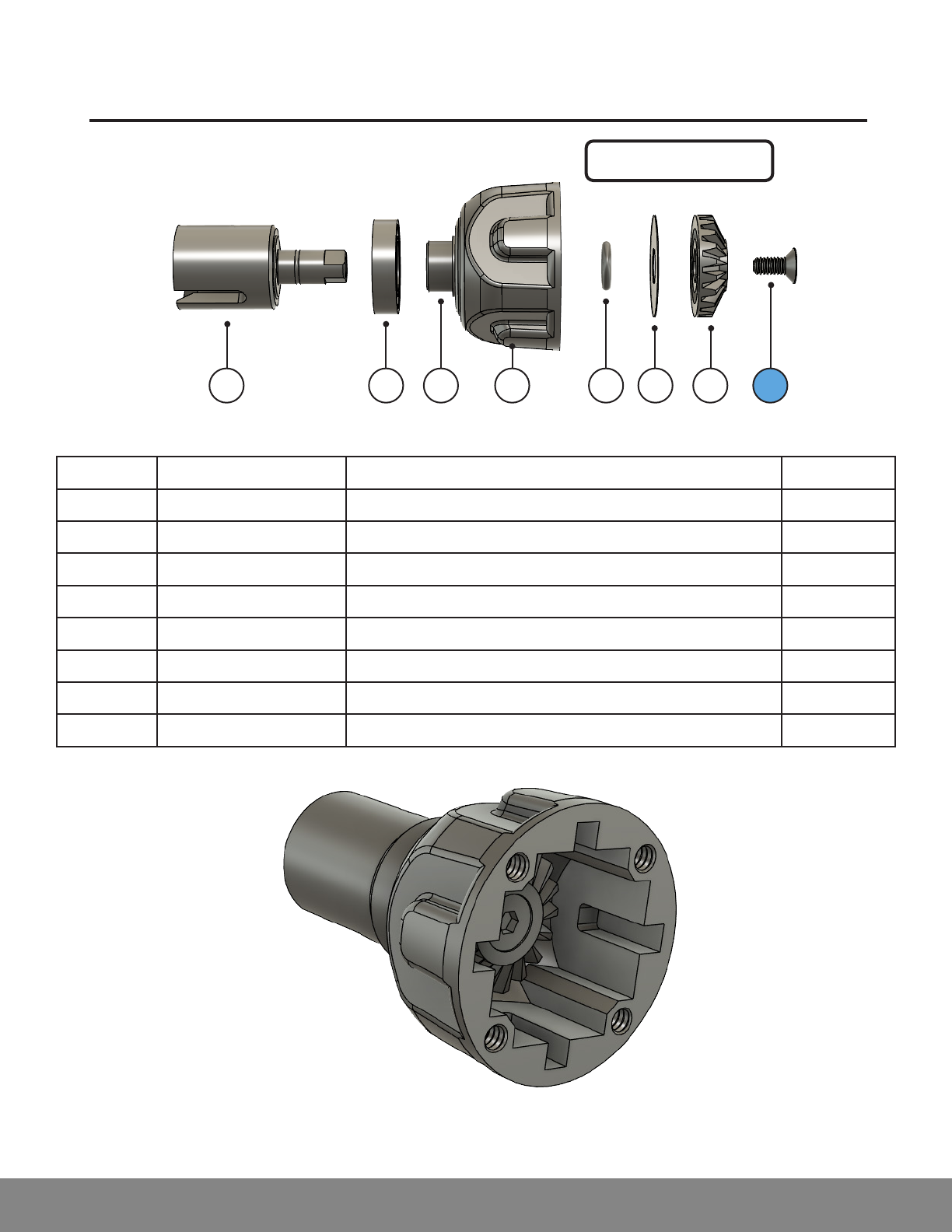

DIFFERENTIAL MAINTANENCE
Page 17 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV4436 KV5-DiffCase 1
2 KV4437 KV5-DiffCaseBushing (Pressed inside 2702288) 1
3 KV3317 Bearing15x28x7 1
4 KV5547 KV5-DiffOutDriver 1
5 KV3304 ORing9.8x2.4,P10A(NBR70) 1
6 KV4428 KV5-DiffWasher10x30x03 1
7 KV4425 DiffBevelSunGear 1
8 KV3365 ScrewFH5x12 1
4 3 2 1 5 6 7 8 BLUE LOCTITE
500,000 CST Diff Oil

DIFFERENTIAL MAINTANENCE

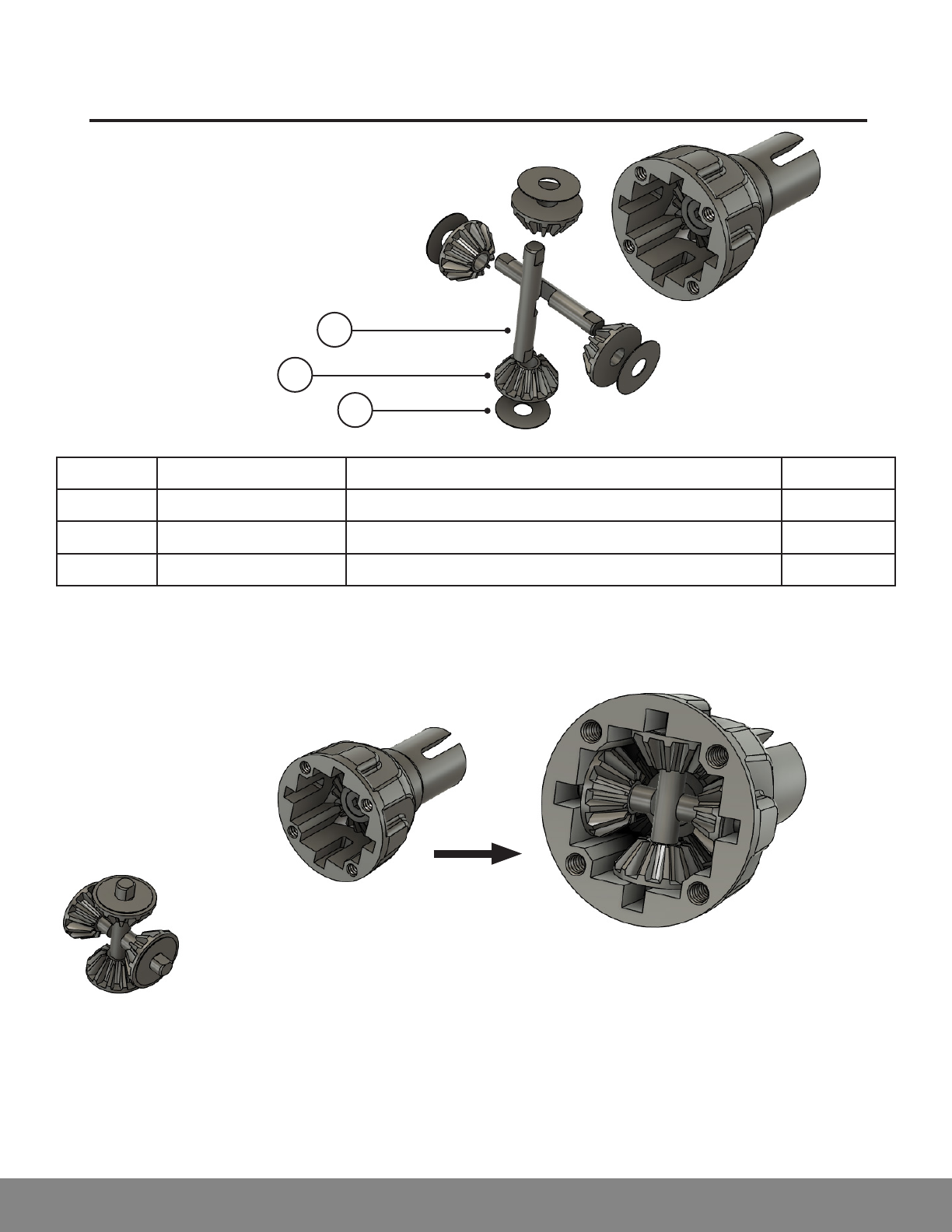

Page 18 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV5546 KV5-DiffCrossPin 2
2 KV4426 DiffBevelPlanetGear 4
3 KV4429 KV5-DiffWasher6x18x03 4
3
2
1

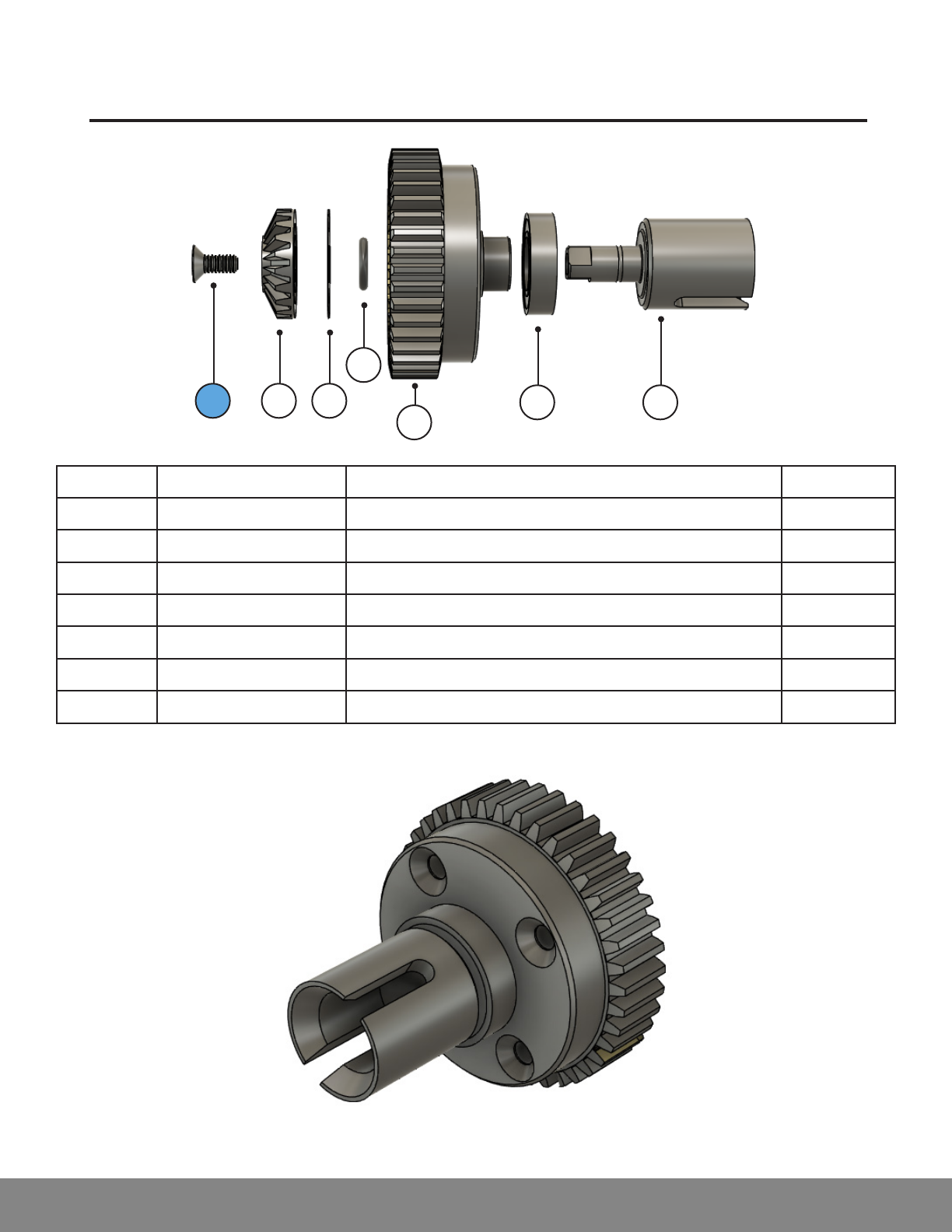

DIFFERENTIAL MAINTANENCE
Page 19 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KVS472 DiffRingGear 1
2 KV3317 Bearing15x28x7 1
3 KV5547 KV5-DiffOutDriver 1
4 KV3304 ORing9.8x2.4,P10A(NBR70) 1
5 KV4428 KV5-DiffWasher10x30x03 1
6 KV4425 DiffBevelSunGear 1
7 KV3365 ScrewFH5x12 1
7 6 5
4
1
2 3
BLUE LOCTITE

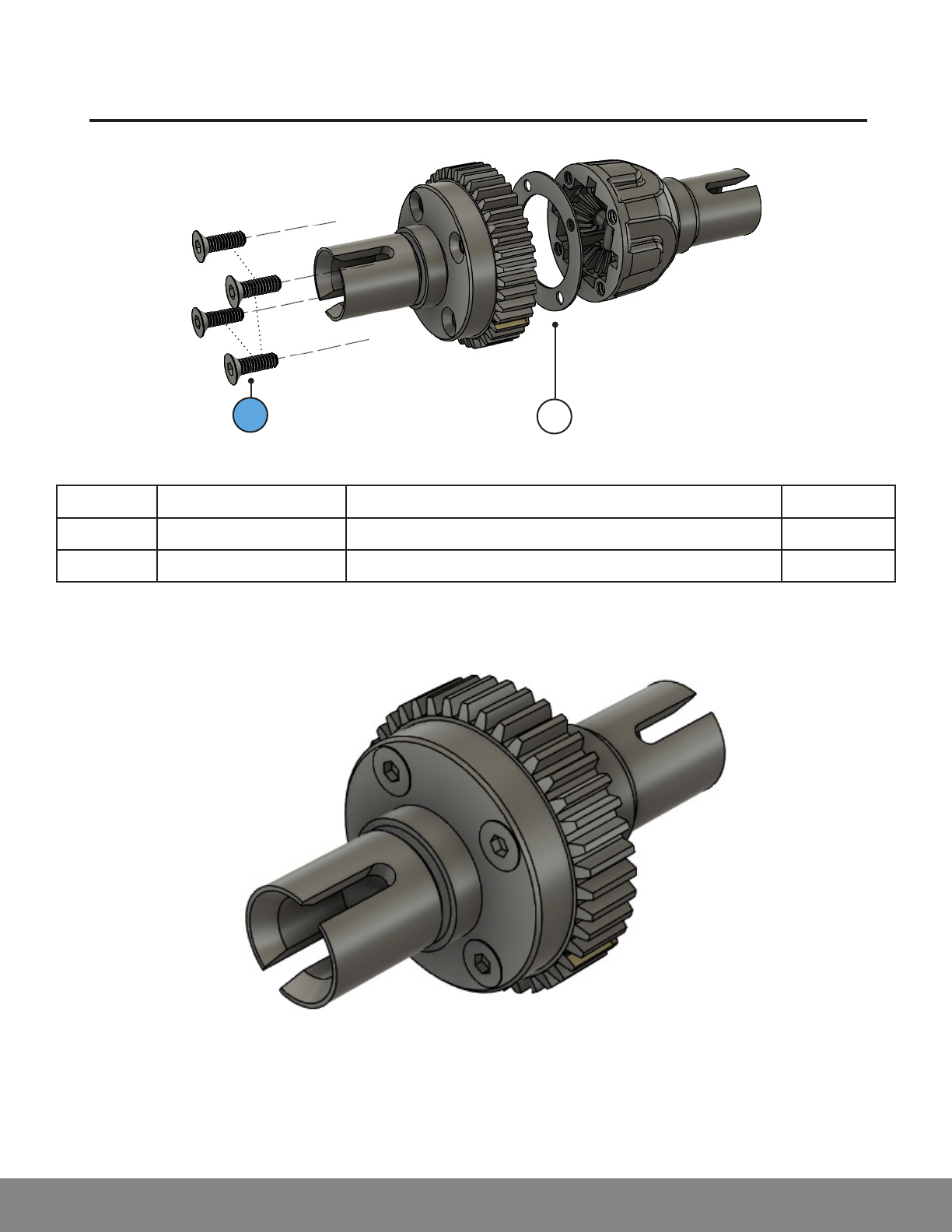

DIFFERENTIAL MAINTANENCE
Page 20 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC
Assembly Item Number Name Quantity
1 KV4427 KV5-DiffGasket 1
2 KV3366 ScrewFH5x16 4
21
BLUE LOCTITE
