Kramer 104LN User manual

Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
104LN
1:4 Differential Video Line Amplifier

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
4 Your 104LN 1:4 Differential Video Line Amplifier 4
5 Connecting the 104LN 5
6 Technical Specifications 6
Figures
Figure 1: 104LN 1:4 Differential Video Line Amplifier 4
Figure 2: 104LN 1:4 Differential Video Line Amplifier (Underside Panel) 5
Figure 3: Connecting a 104LN 1:4 Differential Video Line Amplifier 6
Tables
Table 1: 104LN Component / UXGA HDMI Scaler Features 4
Table 2: Technical Specifications of the 104LN 6

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing your 104LN, which is ideal for:
Any system requiring a compact distribution amplifier and line
driver
Rental and staging applications
The package includes the following items:
104LN 1:4 Differential Video Line Amplifier
Power adapter (12V DC Input)
Mounting bracket
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start

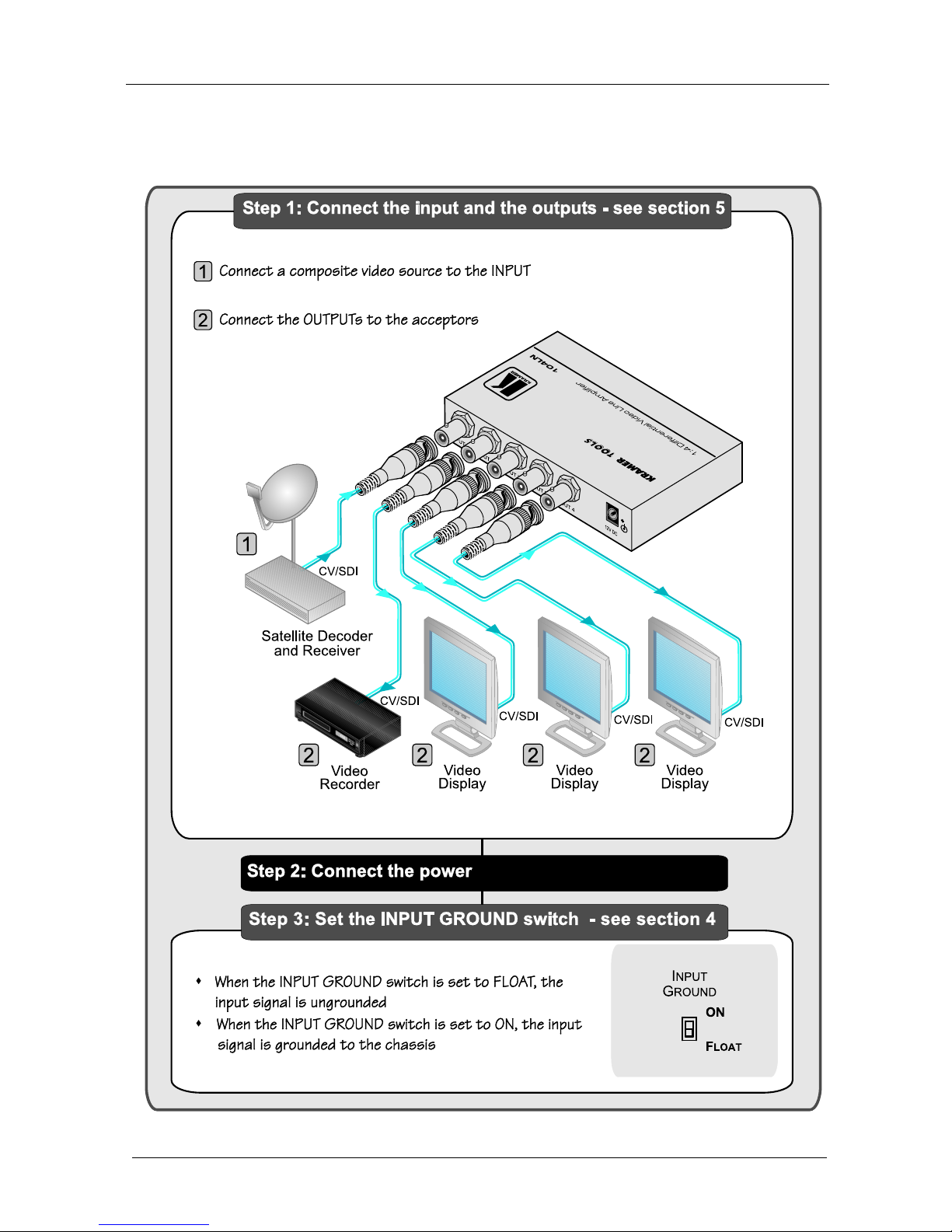

This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The 104LN is a high-performance distribution amplifier and line driver for
composite and SDI video signals.
The 104LN 1:4 Differential Video Line Amplifier features:
One composite video input and 4 identical buffered outputs
Recessed gain and EQ. (equalization) trimmer controls that
compensate for signal losses inherent in long cable runs
A differential input that eliminates common mode noise picked up by
the input cable, and supports long cables (letting you locate it
anywhere in the distribution chain)
A bandwidth exceeding 400MHz, ensuring transparency in the most
critical applications
Full DC coupling, ensuring signal linearity and flatness
To achieve the best performance:
Connect only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching,
and elevated noise- levels (often associated with low quality
cables)
Avoid interference from neighboring electrical appliances and
position your Kramer 104LN away from moisture, excessive
sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
1
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example, part number 22535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 104LN 1:4 Differential Video Line Amplifier
4
4 Your 104LN 1:4 Differential Video Line Amplifier
Figure 1, Figure 2 and Table 1 define the 104LN:
Figure 1: 104LN 1:4 Differential Video Line Amplifier
Table 1: 104LN Component / UXGA HDMI Scaler Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT 4 BNC Connector Connects to composite video acceptor 4
3 OUT 3 BNC Connector Connects to composite video acceptor 3
4 OUT 2 BNC Connector Connects to composite video acceptor 2
5 OUT 1 BNC Connector Connects to composite video acceptor 1
6 INPUT BNC Connector Connects to the composite video source
7 LEVEL Trimmer Adjusts
1
the output signal level for outputs 1, 2, 3 and 4
8 EQ. Trimmer Adjusts
1
the cable compensation equalization level
9 ON LED Illuminates when receiving power

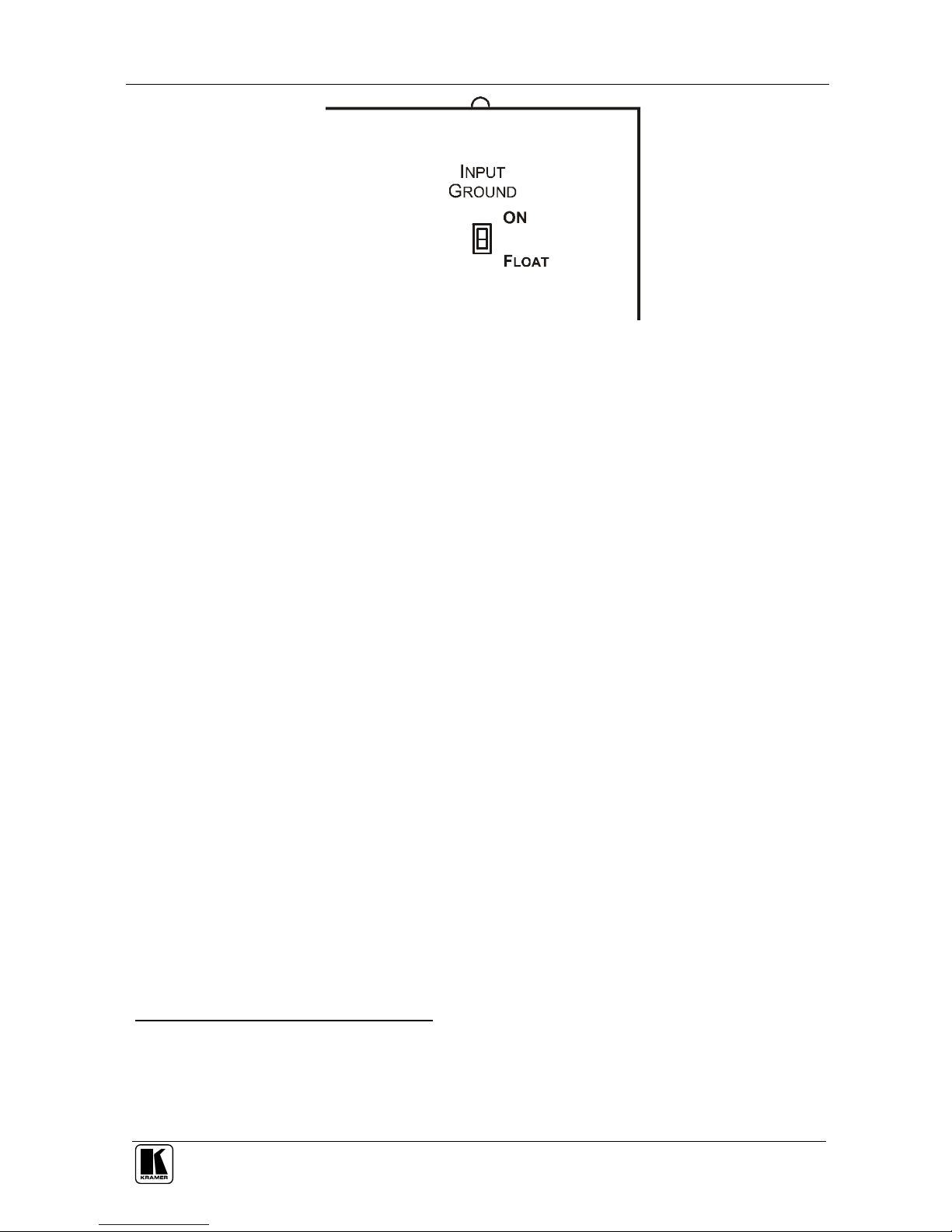

Figure 2 illustrates the INPUT GROUND switch:
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level

Connecting the 104LN
5
Figure 2: 104LN 1:4 Differential Video Line Amplifier (Underside)
By default, the INPUT GROUND switch is set to FLOAT
1
. If the image
appears noisy, set the switch to ON
2
.
5 Connecting the 104LN

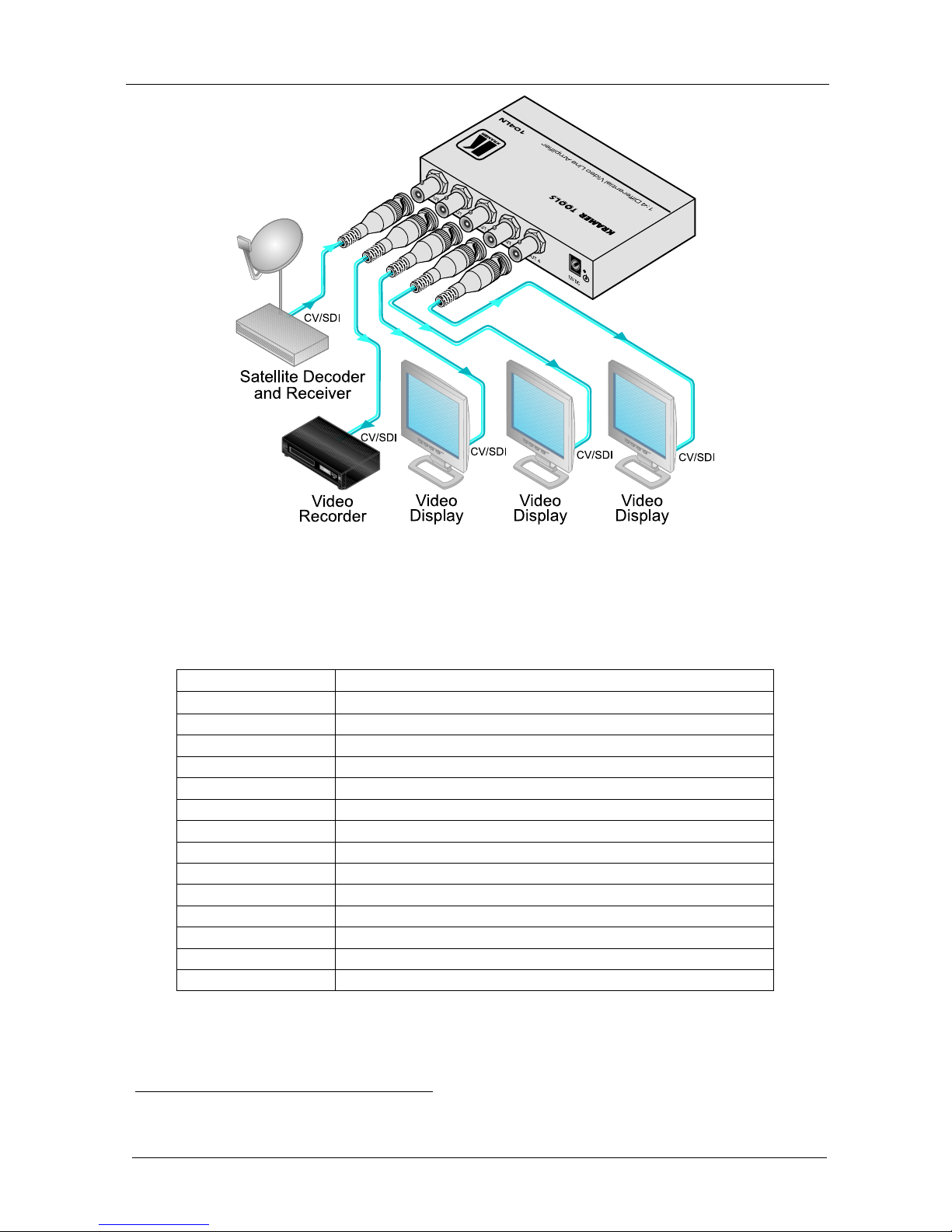

To connect the 104LN 1:4 Differential Video Line Amplifier, as the
example in Figure 3 illustrates, connect the following
3
:
1. Connect a composite video source (for example, a satellite decoder and
receiver) to the INPUT BNC connector.
2. Connect the four OUT BNC connectors to up to four composite video
acceptors, as follows:
Connect the OUT 1 connector to video acceptor 1 (for
example, a video recorder)
Connect the OUT 2 connector to video acceptor 2 (for
example, a video display)
Connect the OUT 3 connector to video acceptor 3 (for
example, a video display)
Connect the OUT 4 connector to video acceptor 4 (for
example, a video display)
3. Adjust the output signal level and/or cable compensation equalization level,
if required.
4. If the image appears noisy, set the INPUT GROUND to either ON or
FLOAT to lower the noise level.
1 The input signal is isolated from the chassis
2 The input signal is grounded to the chassis
3 Switch OFF the power on each device before connecting it to your 104LN. After connecting your 104LN, switch on its
power and then switch on the power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
6
Figure 3: Connecting a 104LN 1:4 Differential Video Line Amplifier
6 Technical Specifications
Table 2: Technical Specifications
1
of the 104LN
INPUT: 1 video (CV IN), differential, 1Vpp/75, on a BNC connector
OUTPUTS: 4 video, 1Vpp/75on BNC connectors
MAX. OUTPUT LEVEL:
1.6Vpp
BANDWIDTH (-3dB): >400MHz
DIFF. GAIN: 0.22%
DIFF. PHASE: 0.1Deg
K-FACTOR: <0.05%
S/N RATIO: 73.3dB
CONTROLS: Level: -1.3 to 6dB; EQ. 0 to 10.2dB
COUPLING: DC
POWER SOURCE: 12 VDC, 95mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), W, D, H.
WEIGHT: 0.3kg. (0.66lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter.
