USER MANUAL
Model:
VM-22HD
2 x 1:2 HD/SD-SDI DA

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1Quick Start 2
3Overview 3
4Your VM-22HD 2 x 1:2 HD/SD-SDI DA 4
5Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA 5
5.1Connecting the VM-22HD in the Single Link Mode 5
5.2Connecting the VM-22HD in the Dual Link Mode 6
6Technical Specifications 7
Figures
Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA 4
Figure 2: Connecting the VM-22HD in Single Link Mode 5
Figure 3: Connecting the VM-22HD in Dual Link Mode 6
Tables
Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions 4
Table 2: VM-22HD 2 x 1:2 HD/SD-SDI DA Technical Specifications 7

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1that are clearly
defined by function.
Thank you for purchasing the Kramer DigiTOOLS®VM-22HD
2 x 1:2 HD/SD-SDI DA, which is ideal for:
•SDI production studios for signal distribution
•Broadcast studios for on-air operation and SDI field production
•Using with SDI video sources such a professional digital camera
•Signal equalization after long cable runs
The package includes the following items:
•The VM-22HD 2 x 1:2 HD/SD-SDI DA
•Power supply (12V DC / 250mA)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

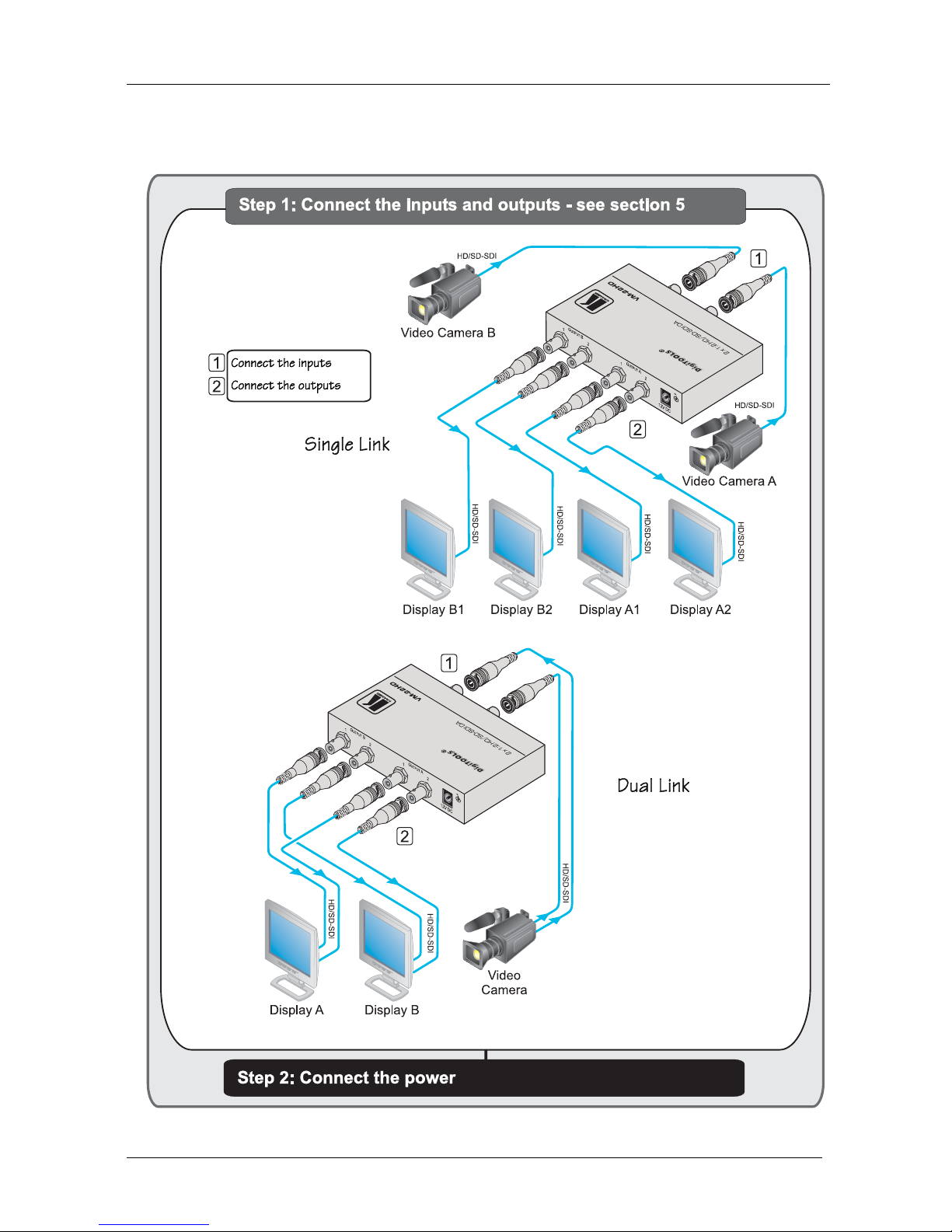

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The VM-22HD 2 x 1:2 HD/SD-SDI DA is a high-performance 2 x 1:2
distributor for all SDI video signals. In particular, the VM-22HD:
•Transmits up to 200m
•Accepts two inputs and distributes each signal to two pairs of
identical outputs using BNC connectors
•Has a video bandwidth of 1.485GHz that enables it to be used for
standard-definition and high-definition serial digital video signals
(SD/HD-SDI)
•Also passes digital information (embedded audio, Teletext, time
code, and so on) during the video blanking period
•SMPTE 292M, 259M, 344M, and 372M (dual link application)
compliance and data rates of 143, 177, 270, 360, 540, 1483.5, and
1485Mbps
•Provides automatic, multi-rate, equalization and reclocking to
compensate for losses typical to long runs of 75Ωco-axial cable
of up to 200m
•Has LEDs indicating the SDI resolution
To achieve the best performance:
•Use only good quality connection cables1to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
•Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VM-22HD away from moisture, excessive sunlight and dust
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-22HD 2 x 1:2 HD/SD-SDI DA
4
4 Your VM-22HD 2 x 1:2 HD/SD-SDI DA
Figure 1 and Table 1 define the unit.
Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA
Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions
# Feature Function
1 12V DC Connector +12V DC for powering the unit
2 OUTPUT A 2 BNC connector Connects to the SDI A acceptor 2
3 OUTPUT A 1 BNC connector Connects to the SDI A acceptor 1
4 OUTPUT B 2 BNC connector Connects to the SDI B acceptor 2
5 OUTPUT B 1 BNC connector Connects to the SDI B acceptor 1
6 INPUT A BNC connector Connects to the SDI A source
7 SD1/HD
2
INPUT A LED Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input A
8 SD/HD INPUT B LED Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input B
9 INPUT B BNC connector Connects to the SDI B source
10 ON LED Illuminates green when receiving power
1 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)
lines of interlaced video; as well as 480 and 576 line progressive scan video format
2 High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080 lines of either
progressive or interlaced video

Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
5
5 Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
This section describes how to connect the VM-22HD in single link mode
(see section 5.1) and in dual link mode (see section 5.2).
5.1 Connecting the VM-22HD in the Single Link Mode
To connect the VM-22HD, as shown in the example in Figure 2, do the
following1:
1. Connect one or two HD-SDI/SD-SDI video sources (for example, cameras)
to the INPUT A and/or B BNC connectors.
2. Connect up to2four video OUTPUT BNC connectors to the appropriate
HD-SDI/SD-SDI video acceptors (for example, displays).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
The VM-22HD operates as soon as it is connected and powered on.

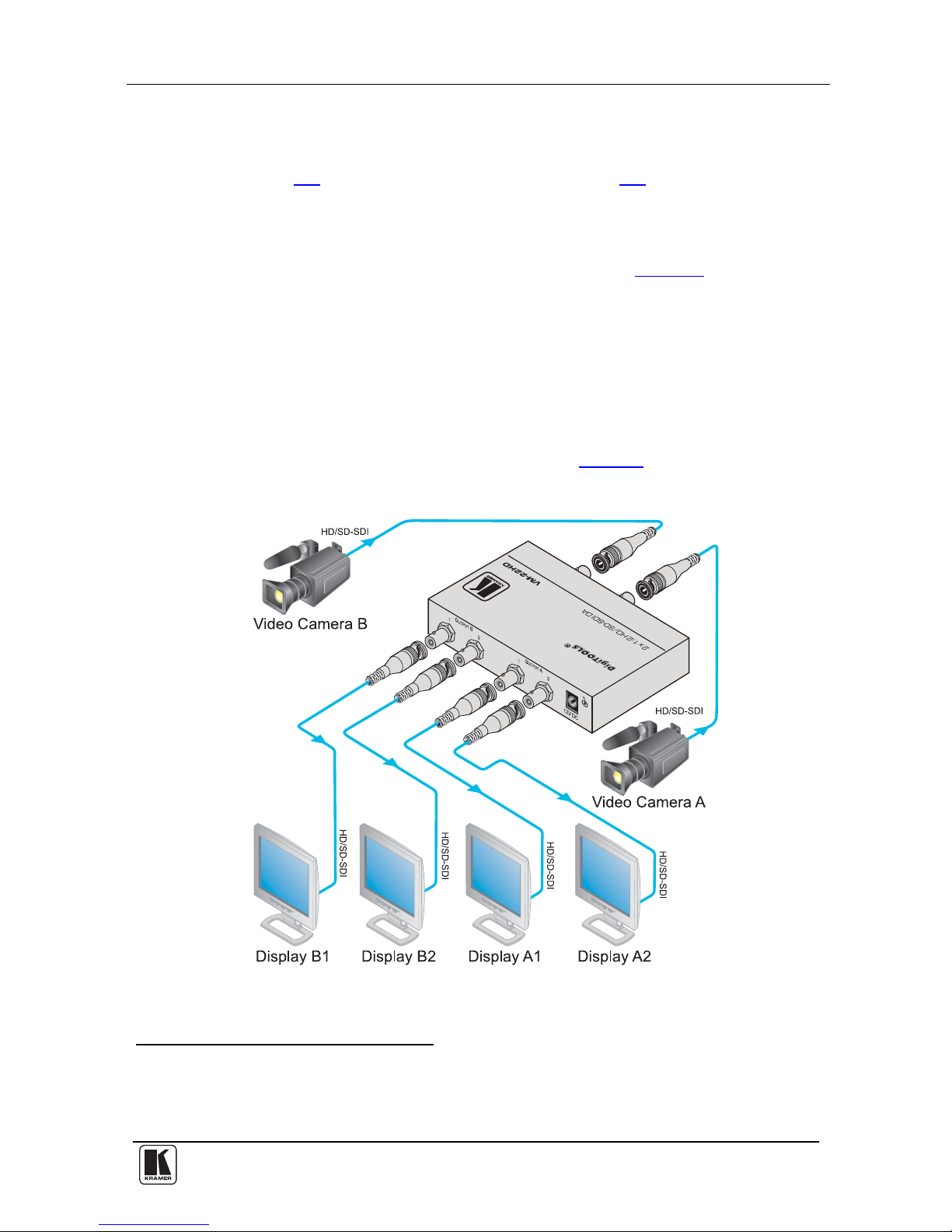

Figure 2: Connecting the VM-22HD in Single Link Mode
1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on
its power and then switch on the power on each device
2 You do not have to connect all outputs

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
6
5.2 Connecting the VM-22HD in the Dual Link Mode
To connect the VM-22HD, as the example in Figure 3 illustrates, do the
following1:
1. Connect one HD-SDI/SD-SDI video source (for example, a dual-link
camera) to the INPUT A and B BNC connectors.
2. Connect OUTPUT A 1 and B 1 BNC connectors to a dual link
HD-SDI/SD-SDI video acceptor (for example, display A).
3. Connect OUTPUT A 2 and B 2 BNC connectors to a dual link
HD-SDI/SD-SDI video acceptor (for example, display B).
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 3).
The VM-22HD operates as soon as it is connected and powered on.
Figure 3: Connecting the VM-22HD in Dual Link Mode
1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on
its power and then switch on the power on each device

Technical Specifications
7
6 Technical Specifications
The VM-22HD technical specifications are shown in Table 2:
Table 2: VM-22HD 2 x 1:2 HD/SD-SDI DA Technical Specifications1
INPUTS: 2 SMPTE-259M, 292M, 344M, 372M serial video inputs,
75Ωon BNC connectors
OUTPUTS: 4 equalized and reclocked SMPTE-259M, 292M, 344M, 372M
serial video outputs, 75Ωon BNC connectors
OUTPUT LEVEL: 800mVpp /75Ω
COUPLING: AC
POWER SOURCE: 12V DC, 250mA
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H
WEIGHT: 0.3kg (0.7lbs) approx.
ACCESSORIES: Power supply
OPTIONS: RK-3T 19” rack adapter
1 Specifications are subject to change without notice
