USER MANUAL
MODEL:
PA-50HZ
50W Power Amplifier

PA-50HZ –Introduction
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 2
Defining the PA-50HZ 3
Connecting the PA-50HZ 4
Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 5
Connecting a Balanced/Unbalanced Stereo Audio Source to the Balanced Input 5
Adjusting the Master Volume 5
Technical Specifications 6

Kramer Electronics Ltd.
PA-50HZ –Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 15 groups that are clearly defined by function:
GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control
Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders &
Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and
Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters;
GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; GROUP 14:
Collaboration; and GROUP 15: KM & KVM Switches.
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/PA-50HZ to check for up-to-date user manuals, application
programs, and firmware upgrades (where appropriate).
Achieving the Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer PA-50HZ away from moisture, excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
Warning:
Do not open the unit. High voltages can cause electrical shock! Servicing by qualified
personnel only.
Warning:
Disconnect the power and unplug the unit from the wall before installing.

Kramer Electronics Ltd.
PA-50HZ –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer PA-50HZ 50W Power Amplifier
PA-50HZ is a compact Hi-Z (70V/100V) power amplifier with line-level output, ideal for small
to medium-size meeting spaces and classrooms.
•Simple and flexible speaker array installation.
•Line level output for cascading, recording or conferencing scenarios.
•Small form factor and convection cooling for simple installation.
•50W of power into a 70V or 100V line.
•Over-current, and over-heat protection –The PROTECT LED lights, and the device shuts
down until correct operational conditions are regained.
Typical Applications
The PA-50HZ is ideal for the following typical applications:
•Small to medium-size meeting spaces.
•Lecture halls.
•Multipurpose rooms.
•City halls and courtrooms.
•Retail stores.

Kramer Electronics Ltd.
PA-50HZ –Defining the PA-50HZ
3
Defining the PA-50HZ
This section defines the PA-50HZ.
Figure 1: PA-50HZ Front and Back Panel
#
Feature
Function
ON LED
Lights green when powered on.
PROTECT LED
Lights red in case of over-current / over-heat.
The device powers down until operational conditions
are corrected and automatically powers up.
INPUT 5-pin Terminal Block
Connector
Connect to a line-level, balanced, stereo audio
source.
VOLUME Attenuator
Volume for speaker output.
LINE OUT 5-pin Terminal Block
Connector
Connect to a balanced, stereo audio acceptor (for
example, amplified speakers).
Hi-Z OUT 3-pin Large Terminal
Block Connectors
Connect Hi-Z (70V or 100V) and COM to mono Hi-Z
speakers.
Speaker can output a mono signal.
48V DC Power Terminal Block
Connector
Connect to the Kramer power adapter.

Kramer Electronics Ltd.
PA-50HZ –Connecting the PA-50HZ
4
Connecting the PA-50HZ
Always switch off the power to each device before connecting it to your PA-50HZ. After
connecting your PA-50HZ, connect its power and then switch on the power to each device.
Figure 2: Connecting the PA-50HZ
To connect the PA-50HZ as illustrated in the example in Figure 2:
1. Connect the audio source (for example, a balanced stereo audio source, such as the
Kramer VS-88UHDA matrix switcher) to the INPUT 5 pin terminal block connector .
2. Connect the LINE OUT 5 pin terminal block connector to a balanced stereo input (for
example, an additional PA-50HZ device).
3. Connect the Hi-Z OUT 3-pin large terminal block connectors (70V and COM) to the +
and –terminals of a passive speaker (for example, the Galil 8-C ceiling speakers, daisy
chained). The speakers will output the audio after summing the stereo signal to a mono
signal.
Do not ground the loudspeakers.
4. Connect the power cord (not shown).

Kramer Electronics Ltd.
PA-50HZ –Connecting the PA-50HZ
5

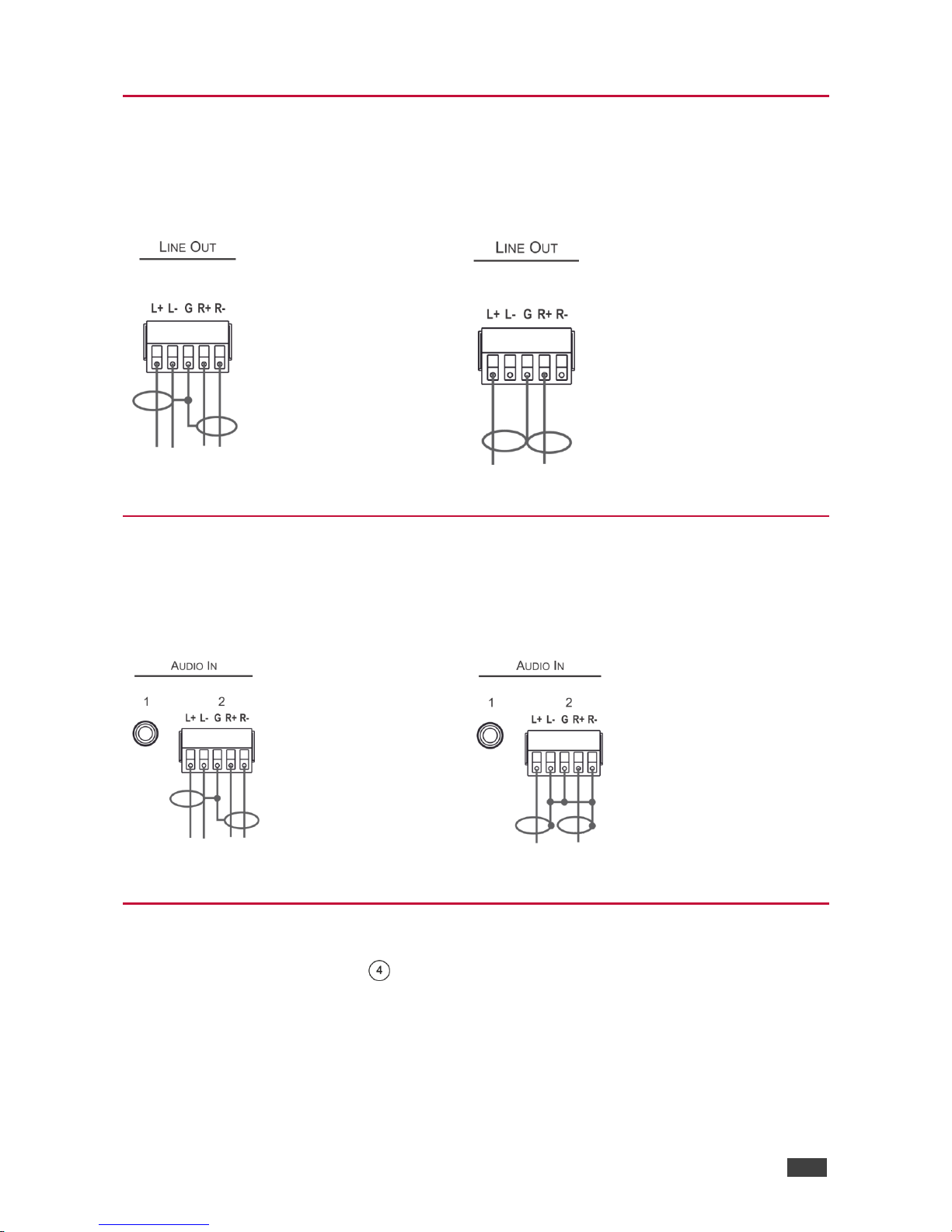

Connecting the Output to a Balanced/Unbalanced
Stereo Audio Acceptor
The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:
Figure 3: Connecting to a Balanced Stereo Audio
Acceptor
Figure 4: Connecting to an Unbalanced Stereo Audio
Acceptor
Connecting a Balanced/Unbalanced Stereo Audio
Source to the Balanced Input
The following are the pinouts for connecting a balanced or unbalanced stereo audio source to
the balanced input:
Figure 5: Connecting a Balanced Stereo Audio
Source to the Balanced Input
Figure 6: Connecting an Unbalanced Stereo Audio
Source to the Balanced Input
Adjusting the Master Volume
Use the VOLUME Attenuator on the rear panel to set the maximum level for the speaker
output.

Kramer Electronics Ltd.
PA-50HZ –Technical Specifications
6
Technical Specifications
Inputs
1 Stereo Balanced Audio
On a 5-pin terminal block (up to +4dBu/10kΩ)
Outputs
1 Stereo Balanced Line
Level
On a 5-pin terminal block connector (up to
+4dBu/600Ω)
1 Mono Speaker
On a 3-pin large terminal block
Input Sensitivity
Full power @1.5V (+5dBV)
Amplifier
Class
D
Output Power
1 x 50W @ 70V or 100V
Maximum Voltage Gain
37dB BTL
Dynamic Range
>120dB
Frequency Response
Speaker output 50Hz to 20kHz @ +/–3dB
Frequency Response
Line level output 20Hz to 20kHz @ +/–0.3dB
S/N Ratio
90dB, 20 Hz –20 kHz
Audio THD + Noise
Speaker output THD+N (1kHz @ 1W) 0.01 %
Audio 2nd Harmonic
0.00006%
Controls
Screw trimmer input volume attenuator
Power
Consumption
48V DC, 1.2A
Source
48V DC, 1.36A
Environmental Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
–40° to +70°C (–40° to 158°F)
Humidity
10% to 90%, RHL non-condensing
Regulatory Compliance
(Standards Compliance)
Safety
CE, UL
Environmental
RoHs, WEEE
Enclosure
Size
1/4 19” 1U
Type
Aluminum
Cooling
Convection ventilation
Accessories
Included
Power adapter, power cord
Specifications are subject to change without notice at www.kramerav.com
