Kramer VS-5x5 User manual

Kramer Electronics, Ltd.
USER MANUAL
Model:
VS-5x5
5x5 Video Audio Matrix Switcher

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 2
4 Your VS-5x5 5x5 Video Audio Matrix Switcher 2
5 Connecting the VS-5x5 6
5.1 Connecting the VS-5x5 Rear Panel 6
5.2 Controlling via RS-232 (for example, using a PC) 7
5.3 Controlling via RS-485 8
5.4 Connecting the Balanced/Unbalanced Stereo Audio Input/Output 9
5.5 Setting the Dipswitches 10
5.5.1 Setting the MACHINE # 10
6 Controlling via RS-232 and RS-485 11
7 Operating the VS-5x5 13
7.1 Displaying Unit Characteristics 13
7.2 Choosing the Audio-Follow-Video or Breakaway Option 13
7.2.1 Setting the Audio-Follow-Video Option 14
7.2.2 Setting the Breakaway Option 14
7.3 Switching OUT-IN Combinations 14
7.4 Confirming Settings 14
7.4.1 Toggling between the AT ONCE and CONFIRM Modes 15
7.4.2 Confirming a Switching Action 15
7.5 Storing/Recalling Input/Output Configurations 16
7.5.1 Storing an Input/Output Configuration 16
7.5.2 Recalling an Input/Output Configuration 16
7.5.3 Deleting an Input/Output Configuration 17
7.6 Locking the Front Panel 17
7.7 Adjusting the Audio Gain Control 17
8 Flash Memory Upgrade 18
8.1 Downloading from the Internet 18
8.2 Connecting the PC to the RS-232 Port 18
8.3 Upgrading Firmware 19
9 Technical Specifications 23
10 Table of Hex Codes for Serial Communication 24
11 Tables of Hex Codes for Audio Input/Output Gain Control 24
11.1 Tables of Hex Codes for Audio Input Gain Control 24
11.2 Tables of Hex Codes for Audio Output Gain Control 26
12 Kramer Protocol 2000 28

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
Figures
Figure 1: VS-5x5 5x5 Video Audio Matrix Switcher 3
Figure 2: VS-5x5 5x5 Video Audio Matrix Switcher Underside View 5

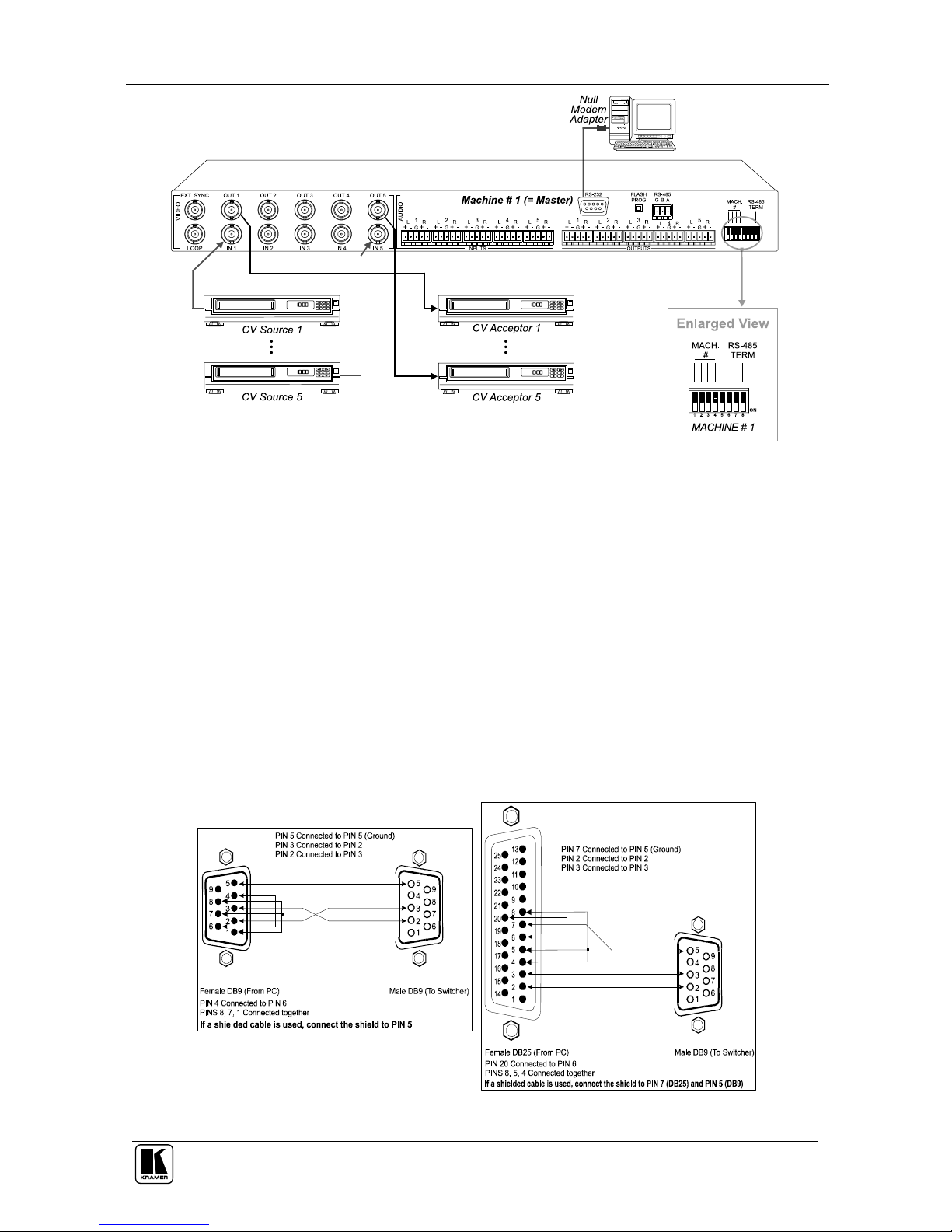

Figure 3: Connecting the VS-5x5 5x5 Video Audio Matrix Switcher 7
Figure 4: Connecting a PC without using a Null-modem Adapter 7
Figure 5: Controlling via RS-485 (for example, using an RC-3000) 8
Figure 6: Connecting the Balanced Stereo Audio Input/Output 9
Figure 7: Connecting the Unbalanced Stereo Audio Input 9
Figure 8: Connecting the Unbalanced Stereo Audio Output 9
Figure 9: Dipswitch Settings 10
Figure 10: Cascading Individual Units in a Control Configuration via RS-232 and RS-485 12
Figure 11: VS-5x5 Unit Characteristics 13
Figure 12: Storing and Recalling using the Input / Output Buttons 16
Figure 13: Splash Screen 19
Figure 14: Atmel – Flip Window 19
Figure 15: Device Selection Window 20
Figure 16: Device Selection window 20
Figure 17: Loading the Hex 21
Figure 18: RS-232 Window 21
Figure 19: Atmel – Flip Window (Connected) 22
Figure 20: Atmel – Flip Window (Operation Completed) 22
Tables
Table 1: Front Panel VS-5x5 5x5 Video Audio Matrix Switcher Features 4
Table 2: Rear Panel VS-5x5 5x5 Video Audio Matrix Switcher Features 5
Table 3: Dipswitch Settings 10
Table 4: Machine # Dipswitch Settings 10
Table 5: Technical Specifications of the VS-5x5 5x5 Video Audio Matrix Switcher 23
Table 6: VS-55 Hex Codes for Switching via RS-232/RS-485 24
Table 7: VS-55 Hex Codes for Audio Input Gain Control 25
Table 8: VS-55 Hex Codes for Audio Output Gain Control 27
Table 9: Protocol Definitions 28
Table 10: Instruction Codes for Protocol 2000 29

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your VS-5x5 5x5 Video Audio Matrix
Switcher, which is ideal for the following typical applications:
 Professional display systems requiring true 5x5 matrix operation
 Multimedia and presentation source and acceptor selection, and remote
monitoring of computer activity in schools and businesses
The package includes the following items:
 VS-5x5 5x5 Video Audio Matrix Switcher
 Power cord
 Null-modem adapter
 Windows®-based Kramer control software
2
 Infra-red remote control transmitter (including the required battery and a
separate user manual
3
)
 This user manual
3
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Downloadable from our Web
site at http://www.kramerelectronics.com
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3 Overview
The VS-5x5 is a true 5x5 matrix switcher for composite video signals and
balanced stereo audio signals. The high quality VS-5x5 lets you
simultaneously route any or all of the 5 inputs to any or all of the 5 outputs.
The VS-5x5 5x5 Video Audio Matrix Switcher includes:
 Video bandwidth of 70MHz that ensures transparent performance
 Easy-to-connect detachable terminal block connectors for the audio
signals
 Glitch-free transitions, which are produced when sources share a common
reference sync, as switching occurs during the vertical interval
1
. Any input or
special external sync input may be selected as the vertical interval source
 DC coupled inputs and outputs
 Audio-follow-video and breakaway options
 Storing and recalling setups
 “Take” button for precise switch control
 “Lock” button to prevent tampering with the front panel
 Gain control for all inputs and all outputs
 The ability to control via the front panel buttons, via the Infra-red remote
control transmitter, and remotely by RS-485 or RS-232 serial commands
transmitted by a touch screen system, PC, or other serial controller
To achieve the best performance:
 Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
 Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VS-5

5 away
from moisture, excessive sunlight and dust
4 Your VS-5x5 5x5 Video Audio Matrix Switcher
Figure 1, Table 1 and Table 2 define the VS-5x5 5x5 Video Audio Matrix
Switcher:
1 When one video signal replaces another video signal, the switching process causes a random interruption in the first video
signal (in the middle of a frame) and a random entrance into the second video signal (also in the middle of a frame). The
result is a visible jump in the edited tape. This deteriorates when the tape is copied, and the disturbance on playback is more
serious. Avoid this by switching at a very specific point during the vertical interval, allowing smooth replacement of a whole
frame by a second whole frame as long as the video sources are Genlocked to each other

Your VS-5x5 5x5 Video Audio Matrix Switcher
3
Figure 1: VS-5x5 5x5 Video Audio Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-5x5 5x5 Video Audio Matrix Switcher
4
Table 1: Front Panel VS-5x5 5x5 Video Audio Matrix Switcher Features
# Feature Function
1 IR Receiver The red LED is illuminated when receiving signals from the Infra-red remote
control transmitter
2 Power Switch Illuminated switch for turning the unit ON or OFF
3 OUT Buttons Select the output to which the input is switched
4 IN Buttons Select the input to switch to the output
5 ALL Button Pressing ALL followed by an INPUT button, connects that input to all outputs
1
6 OFF Button An OFF-OUT combination disconnects that output from the inputs; an
OFF-ALL combination disconnects all the outputs
7 7-segment Display Displays the selected audio
2
or video
3
input switched to the output (marked
above each input)
4
8 VIDEO Button When pressed
5
actions relate to video
9 AFV Button When pressed
6
actions relate to video and audio channels. Audio channels
follow the video channels
10
AUDIO Button When pressed
7
actions relate to audio
11
STO (STORE) Button
Pressing STO followed by an output button stores the current setting
8
12
RCL (RECALL)
Button
Pressing the RCL button and the corresponding OUTPUT key recalls a
setup from the non-volatile memory. The stored status blinks. Pressing a
different OUTPUT button lets you view
9
another setup. After making your
choice, pressing the RCL button again implements the new status
13
TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode
10
and the
AT ONCE mode (user confirmation per action is unnecessary)
14
LOCK Button Disengages the front panel switches
1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
2 When the Audio button illuminates, that is, when the audio breakaway mode is selected
3 When the Video button illuminates, that is, when the video breakaway mode is selected
4 Also displays the number of IN and OUT ports, the firmware version number, and the MACHINE #. Refer to section 7.1
5 The VIDEO button is illuminated when the video breakaway mode is selected
6 The AFV button is illuminated when the AFV mode is selected
7 The AUDIO button is illuminated when the audio breakaway mode is selected
8 For example, press STO and then the Output button # 3 to store in Setup # 3
9 Only view, nothing is implemented at this stage
10 When in Confirm mode, the TAKE button illuminates

Your VS-5x5 5x5 Video Audio Matrix Switcher
5
Table 2: Rear Panel VS-5x5 5x5 Video Audio Matrix Switcher Features
# Feature Function
1 LOOP BNC Connector For looping the inputs
2 EXT. SYNC BNC
Connector Connects to the external SYNC source
3 Composite BNC OUT
Connectors Connects to the composite video acceptors (from 1 to 5)
4
VIDEO
Composite BNC IN
Connectors Connects to the composite video sources (from 1 to 5)
5 INPUTS Terminal Block
Connectors Connect to the balanced stereo audio sources (from 1 to 5)
6
AUDIO
OUTPUTS Terminal
Block Connectors Connect to the balanced stereo audio acceptors (from 1 to 5)
7 RS-232 DB 9F Port Connects to the PC or the Remote Controller
8 RS-485 Terminal Block Port Pin G is for Ground connection; Pins B (-) and A (+) are for RS 485
9 FLASH PROG Button Push in
1
for “Program” to upgrade to the latest Kramer firmware
(see section 8), or release for Normal (the factory default)
2
10
Dipswitches Dipswitches for setup of the unit (1, 2, 3 and 4 are for setting the
Machine #; 5 is for the Vertical Interval Source; 8 is for RS-485
Termination)
11
Power Connector with Fuse AC connector enabling power supply to the unit
Figure 2 illustrates the VS-5x5 underside, including the Flash Program Reset
button (see section 8.2).
ENLARGED VIEW
Figure 2: VS-5x5 5x5 Video Audio Matrix Switcher Underside View
1 Using a screwdriver if required
2 Note that the FLASH PROG “Reset” button is located on the underside of the unit. Push in for “Reset”(Figure 2), or release
for Normal (see section 8)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-5x5
6
5 Connecting the VS-5x5
This section describes how to connect the VS-5x5. In particular, how to:
 Connect the VS-5x5 rear panel (see section 5.1)
 Control via RS-232, for example, using a PC (see section 5.2)
 Control via RS-485 (see section 5.3)
 Connect the audio inputs/outputs (see section 5.4)
 Set the dipswitches (see section 5.5)
5.1 Connecting the VS-5x5 Rear Panel
To connect the VS-5x5, do the following
1
:
1. Connect up to 5 composite video sources
2
to the 5 BNC input
connectors, and connect
3
up to 5 balanced stereo audio sources
4
to the
“AUDIO INPUTS” terminal block connectors.
2. Connect
5
the 5 composite video output connectors to up to 5 composite
video acceptors
2
and connect the corresponding “AUDIO OUTPUTS”
terminal block connectors to the balanced stereo audio acceptors
4
.
3. Set the dipswitches (see section 5.5).
4. Connect a PC and/or controller (if required) to the RS-232 port (see
section 5.2) and/or RS-485 port (see section 5.3).
5. Connect
4
the power cord
6
.
1 Switch OFF the power on each device before connecting it to your VS-5x5. After connecting your VS-5x5, switch on its
power and then switch on the power on each device. DO NOT push in the rear panel Flash Program “Program” button (item 9
in Table 2) and DO NOT push in the underside Flash Program “Reset” button. These are only used for upgrade to the latest
Kramer firmware (see section 8)
2 For example, VCR machines
3 See section 5.4 for a description of how to connect a balanced/unbalanced stereo audio input/output
4 Not illustrated in Figure 3
5 When less than five outputs are required, connect only those outputs of the VS-5x5 that are required, and leave the other
outputs unconnected
6 We recommend that you use only the power cord that is supplied with this machine

Connecting the VS-5x5
7
Figure 3: Connecting the VS-5x5 5x5 Video Audio Matrix Switcher
5.2 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VS-5x5 unit, using the Null-modem adapter provided
with the machine (recommended):
 Connect the RS-232 DB9 rear panel port on the Master VS-5x5 unit to the
Null-modem adapter and connect the Null-modem adapter with a 9 wire
flat cable to the RS-232 DB9 port on your PC
To connect a PC to the VS-5x5 unit, without using a Null-modem adapter:
 Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the Master VS-5x5 unit, as Figure 4 illustrates (depending on
whether the PC has a 9-pin or 25-pin connector)
Figure 4: Connecting a PC without using a Null-modem Adapter

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-5x5
8
5.3 Controlling via RS-485
You can control a VS-5x5 unit via an RS-485 controller, for example, a PC
(equipped with an RS-485 interface) or a Master Programmable Remote
Control system such as the Kramer RC-3000
1
.
To connect an RC-3000 to a VS-5

5 unit (see Figure 5):
1. Connect the RS-485 terminal block port on the RC-3000 to the RS-485
port on the VS-5x5 unit, as follows:
 Connect the “ A” (+) PIN on the RS-485 rear panel port of the
RC-3000 to the “ A” (+) PIN on the RS-485 rear panel port of the
VS-5x5 unit
 Connect the “ B” (-) PIN on the RS-485 rear panel port of the
RC-3000 to the “B” (-) PIN on the RS-485 rear panel port of the
VS-5x5 unit
 If shielded twisted pair cable is used, the shield may be connected to
the “ G” (Ground) PIN on one of the units (for example, on the
RC-3000)
2. Set the VS-5x5 unit as MACHINE # 1, according to Table 4 (that is, DIP
1, DIP 2, DIP 3, and DIP 4 OFF), and set the other dipswitches on the
VS-5x5 unit, as follows:
 Set DIP 5 to OFF for an external vertical interval source (factory
default) or ON for an input #1 (or programmable – see Table 10,
instruction # 7) vertical interval source
 Set DIP 6 and DIP 7 OFF on all VS-5x5 units
 Set Dip 8 ON (for RS-485 Line Termination with 120)
KEYBOARD EXTENSION REMOTE CONTACT
RS-485 RS-232 IN RS-232 OUT 12 VDC
1 2 12345 6 78G 4 6 8 1 03 5 7 9 11 1 2 14 16
OUT
13 1 5
IN

RS-485 PINOUT
B
A
_
+
   
OUT 5
AUDIO
VIDEO
OUT 4
OUT 3
OUT 2OUT 1EXT. SYNC
+ - G
L
2
R
+ - + - G
L
3
R
+ - + - G
L
4
R
+ - + - G
L R
+ - + - G
L
1
R
+ - + - G
L
2
R
+ - + - G
L
3
R
+ - + - G
L
4 R
+ - + - G
L
5
OUTPUTS IN 5IN 4IN 3IN 2IN 1LOOP INPUTS
5
R
100-240 VAC, 50/60 Hz
+ -+ - G
L
1
R
+ -
RS-232
RS-485
FLASH
PROG G B A MACH.
#
RS-485
TERM
Figure 5: Controlling via RS-485 (for example, using an RC-3000)
1 Previously known as the VS-3000

Connecting the VS-5x5
9
5.4 Connecting the Balanced/Unbalanced Stereo Audio Input/Output
Figure 6, Figure 7, and Figure 8 illustrate how to wire a balanced/unbalanced
input and/or output connection:
Figure 6: Connecting the Balanced Stereo Audio Input/Output
Figure 7: Connecting the Unbalanced Stereo Audio Input
Figure 8: Connecting the Unbalanced Stereo Audio Output

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-5x5
10
5.5 Setting the Dipswitches
Figure 9 illustrates the factory default dipswitches and Table 3 describes them.
MACH #
RS-485 TERM
VERTICAL INTERVAL SOURCE
ON
18 74 63 5 2
Figure 9: Dipswitch Settings
Table 3: Dipswitch Settings
DIPS Function Description
1, 2, 3, 4 Machine # Determines the position of a unit in the sequence (see section 5.5.1)
5 Vertical Interval
Source ON for Input # 1 (or programmable
1
) Vertical Interval Source;
OFF for External Vertical Interval Source (default)
6 Reserved OFF
7 Reserved OFF
8 RS-485
Termination ON for RS-485 Line Termination with 120;
OFF for no RS-485 Line Termination
5.5.1 Setting the MACHINE #
The MACHINE # determines the position of a VS-5x5 unit, specifying which
VS-5x5 unit is being controlled when several VS-5x5 units connect to a PC or
serial controller. Set the MACHINE # on a VS-5x5 unit via DIPS 1, 2, 3 and
4, according to Table 4.
When using a stand-alone VS-5x5 unit, set the MACHINE # to 1. When
connecting more than one VS-5x5 unit, set the first machine (the Master) that
is closest to the PC, as MACHINE # 1
2
.
Table 4: Machine # Dipswitch Settings
DIPSWITCH DIPSWITCH
MACHINE
# 1 2 3 4
MACHINE
# 1 2 3 4
1
Master
OFF
OFF
OFF
OFF
9 ON OFF OFF OFF
2 OFF
OFF
OFF
ON 10 ON OFF OFF ON
3 OFF
OFF
ON OFF
11 ON OFF ON OFF
4 OFF
OFF
ON ON 12 ON OFF ON ON
5 OFF
ON OFF
OFF
13 ON ON OFF OFF
6 OFF
ON OFF
ON 14 ON ON OFF ON
7 OFF
ON ON OFF
15 ON ON ON OFF
8 OFF
ON ON ON 16 ON ON ON ON
1 See Table 10, instruction # 7
2 Set the dipswitches to OFF

Controlling via RS-232 and RS-485
11
6 Controlling via RS-232 and RS-485
You can cascade up to 16 VS-5x5 units with control from a PC or serial
controller.
To cascade up to 16 individual VS-5x5 units, via RS-232 and RS-485, do the
following:
1. Connect the composite video sources and acceptors, as well as the
appropriate stereo audio sources and acceptors, as section 5.1 describes.
2. Connect the RS-232 port
1
on the first VS-5x5 unit to the PC using the
Null-modem adapter provided with the machine (recommended), as
section 5.2 describes.
3. Connect the RS-485 terminal block port on the first VS-5x5 unit to the
RS-485 port on the second VS-5x5 unit and so on, connecting all the
RS-485 ports.
4. Set the dipswitches, as section 5.5 describes. In particular:
 Set the first VS-5x5 unit as MACHINE # 1 and the following 15
VS-5x5 units as MACHINE # 2 to MACHINE # 16, according to
Table 4
 Set DIP 8 ON on the first and last VS-5x5 units (terminating the
RS-485 line at 120). Set DIP 8 OFF on the other VS-5x5 units
 Set DIP 5 to OFF for an external vertical interval source (factory
default) or ON for an input #1 (or programmable – see Table 10,
instruction # 7) vertical interval source
 Set DIP 6 and DIP 7 OFF on all VS-5x5 units
1 Alternatively, the RS-485 port could be used for PC control (instead of RS-232)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling via RS-232 and RS-485
12
Figure 10: Cascading Individual Units in a Control Configuration via RS-232 and RS-485

Operating the VS-5x5
13
7 Operating the VS-5x5
You can operate your VS-5x5 via:
 The front panel buttons
 RS-232/RS-485 serial commands transmitted by a touch screen system,
PC, or other serial controller
 Infra-red remote control transmitter
7.1 Displaying Unit Characteristics
The VS-5x5 unit characteristics are displayed in the following circumstances:
 Immediately (and automatically) after switching on the power; and
 When simultaneously pressing the 3 “IN” buttons 1, 2 and 3, for 3
seconds
The following information is displayed in the 7-segment Display
1
:
 The number of IN and OUT ports (shown during the “ First Display
2
”)
 The firmware version number and the MACHINE # (shown during the
“ Second Display
2
”)
Figure 11: VS-5x5 Unit Characteristics
7.2 Choosing the Audio-Follow-Video or Breakaway Option
You can switch stereo audio signals in one of 2 ways, either:
 Audio-follow-video (AFV), in which all operations and status indicators
relate to both the video and the audio channels
3
; or
 Breakaway, in which video and audio channels switch independently
1 Item 7 in Table 1
2 The “First Display” appears initially, followed a few seconds later by the “Second Display”
3 Audio and video connections are the same

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VS-5x5
14
7.2.1 Setting the Audio-Follow-Video Option
To set the Audio-follow-video (AFV) option:
1. Press the AFV button.
The AFV button illuminates. The audio will follow the video.
 If the audio configuration differs from the video configuration, the
audio input(s), which will be changed, will blink in the 7-segment
Display, and the AUDIO and TAKE buttons will also blink
1
.
2. Press the TAKE button to confirm the modification (reconfiguring the
audio according to the video).
7.2.2 Setting the Breakaway Option
To set the Breakaway option, press either the AUDIO (for audio control only)
or the VIDEO (for video control only) button.
 If the AUDIO button illuminates, all switching operations, and the
7-segment Display, relate to the Audio section
 If the VIDEO button illuminates, all switching operations, and the
7-segment Display, relate to the Video section
7.3 Switching OUT-IN Combinations
To switch a video/audio input to a video/audio output, do the following:
1. Press an OUT button (either 1, 2, 3, 4 or ALL).
The 7-segment Display blinks.
2. Press an IN button (either 1, 2, 3, 4 or OFF).
The selected input switches to the selected output.
For example, press the ALL button and then IN button # 2 to connect input #
2 to all the outputs.
7.4 Confirming Settings
Choose to work in the AT ONCE or the CONFIRM mode, as section 7.4.1
describes. When the VS-5x5 operates in the AT ONCE mode (TAKE button
is not lit), pressing an OUT-IN combination implements the switch
immediately. In the CONFIRM mode (TAKE button is lit), the TAKE button
must be pressed to authorize the switch.
1 Warning that changes are about to occur in the audio section

Operating the VS-5x5
15
In the AT ONCE mode, you save time as execution is immediate and actions
require no user confirmation. However, no protection is offered against
changing an action in error.
In the CONFIRM mode:
 You can key-in several actions and then confirm them by pressing the
TAKE button, to simultaneously activate the multiple switches
 Every action requires user confirmation, protecting against erroneous
switching
 Execution is delayed
1
until the user confirms the action
7.4.1 Toggling between the AT ONCE and CONFIRM Modes
To toggle between the AT ONCE and CONFIRM modes, do the following:
1. Press the dim TAKE button to toggle from the AT ONCE mode (in
which the TAKE button is dim) to the CONFIRM mode (in which the
TAKE button illuminates).
Actions now require user confirmation and the TAKE button
illuminates.
2. Press the illuminated TAKE button to toggle from the CONFIRM mode
back to the AT ONCE mode.
Actions no longer require user confirmation and the TAKE button no
longer illuminates.
7.4.2 Confirming a Switching Action
To confirm a switching action (in CONFIRM mode), do the following:
1. Press an OUT-IN combination.
The corresponding 7-segment Display blinks. The TAKE button also
blinks.
2. Press the blinking TAKE button to confirm the action.
The corresponding 7-segment Display no longer blinks. The TAKE
button illuminates.
3. To confirm several actions (in CONFIRM mode), do the following:
Press each OUT-IN combination in sequence.
The corresponding 7-segment Display blinks. The TAKE button also
blinks.
4. Press the blinking TAKE button to confirm all the actions.
The corresponding 7-segment Display no longer blinks. The TAKE
button illuminates.
1 Failure to press the TAKE button within one minute (the Timeout) will abort the action

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VS-5x5
16
7.5 Storing/Recalling Input/Output Configurations
You can store and recall
1
up to 10 input/output configurations using the 5
input buttons and the 5 output buttons, as Figure 12 illustrates:
Figure 12: Storing and Recalling using the Input / Output Buttons
2
7.5.1 Storing an Input/Output Configuration
To store the current status in memory, do the following:
1. Press the STO button.
The STO button blinks.
2. Press one of the 10 Input / Output buttons (this will be the setup # in
which the current status is stored). If in the CONFIRM mode, press the
blinking TAKE button to confirm the action.
The memory stores the data at that reference.
7.5.2 Recalling an Input/Output Configuration
To recall an input/output configuration, do the following:
1. Press the RCL button.
The RCL button blinks.
2. Press the appropriate Input / Output button (the button # corresponding
to the setup #). If in the CONFIRM mode, that setup configuration will
blink in the 7-segment Display, together with the RCL button and the
TAKE button, and will only be implemented after pressing the TAKE
button.
The memory recalls the stored data from that reference.
Tip: If you cannot remember which of the 10 input/output configurations is the one
that you want, set the VS-5x5 to the CONFIRM mode and manually scan all the
input/output configurations until you locate it.
1 The 10 input/output configurations (or setups) also include the relevant audio-follow-video / breakaway option definition
2 The gray numbers (1 to 10) in Figure 12 that illustrate the corresponding store/recall configuration numbers, are for the
purpose of illustration only and do not appear on the buttons

Operating the VS-5x5
17
7.5.3 Deleting an Input/Output Configuration
To delete an input/output configuration, do the following:
1. Press the STO and RCL buttons simultaneously.
Both the STO and RCL buttons blink.
2. Press the appropriate Input / Output button.
This erases that specific input/output configuration from the memory,
leaving it empty and available
1
.
7.6 Locking the Front Panel
To prevent changing the settings accidentally or tampering with the unit via
the front panel buttons, lock
2
your VS-5x5. Unlocking releases the protection
mechanism.
To lock the VS-5x5:
 Press the LOCK button for more than two seconds, until the LOCK button
is illuminated
The front panel is locked. Pressing a button will have no effect, except to
cause the LOCK button to blink
3
To unlock the VS-5x5:
 Press the illuminated LOCK button for more than two seconds, until the
LOCK button is no longer illuminated
The front panel unlocks
7.7 Adjusting the Audio Gain Control
You can adjust the gain control for each input and output using the latest
4
K-Router Windows®-based control software (provided). (See the tables of
Hex Codes for Audio Input/Output Gain Control in section 11, if you want to
program a serial controller to control the audio gain).
1 Storing a new configuration over a previous configuration (without deleting it first) replaces the previous configuration
2 Nevertheless, even though the front panel is locked you can still operate via RS-232 or RS-485, as well as via the Kramer
IR Remote Control Transmitter
3 Warning that you need to unlock to regain control via the front panel
4 Version 3.9 or higher
