Kramer VS-66HDMI User manual

Kramer Electronics, Ltd.
USER MANUAL



Model:
VS-66HDMI
6x6 HDMI Matrix Switcher

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 Defining EDID 3
3.2 About HDMI 3
3.3 Recommendations for Best Performance 4
3.4 Terminology Used in this User Manual 5
4 Your VS-66HDMI 6x6 HDMI Matrix Switcher 5
4.1 Using the IR Transmitter 8
5 Installing the VS-66HDMI on a Rack 9
6 Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 10
7 Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 12
7.1 Switching an Input to an Output 12
7.2 Acquiring the EDID 12
7.2.1 Acquire an EDID from a Connected Output 12
7.2.2 Acquire an EDID from Several Sets of Inputs and Outputs 13
7.2.3 Acquire an EDID from Several Connected Outputs (Auto) 13
7.2.4 Acquire the Default EDID 14
7.3 Storing and Recalling a Setting 14
7.4 Controlling via RS-232 (for example, using a PC) 15
7.5 Controlling via ETHERNET 15
7.5.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) 15
7.5.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 17
8 Technical Specifications 17
9 Kramer Protocol 2000 18
Figures
Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher 6

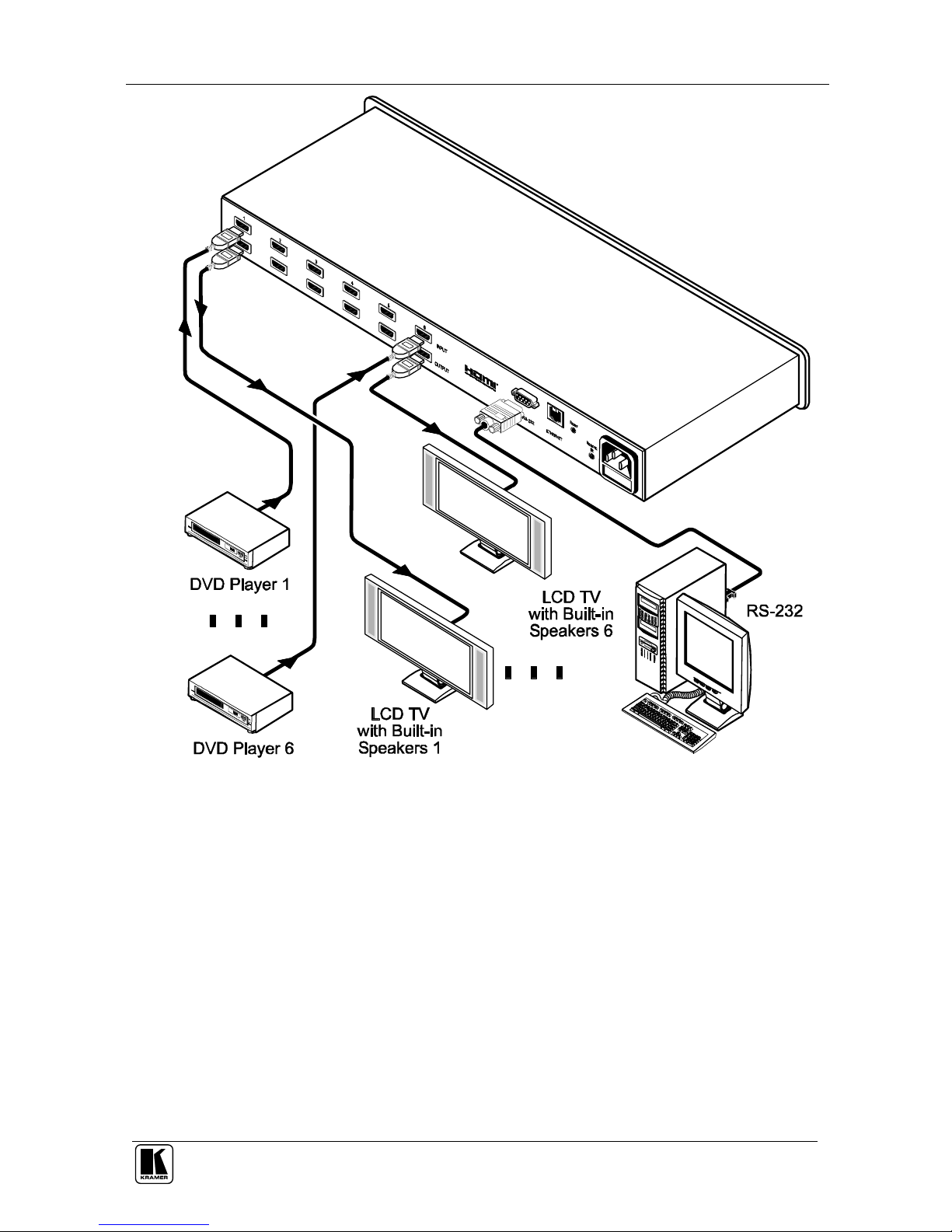

Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 11
Figure 3: Connecting a PC without using a Null-modem Adapter 15
Figure 4: Local Area Connection Properties Window 16
Figure 5: Internet Protocol (TCP/IP) Properties Window 16
Tables
Table 1: Terminology Used in this User Manual 5
Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features 7
Table 3: Technical Specifications of the VS-66HDMI 17
Table 4: Protocol Definitions 18
Table 5: Instruction Codes for Protocol 2000 19

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer VS-66HDMI 6x6 HDMI Matrix
Switcher.
The VS-66HDMI is ideal for conference room presentations and advertising
applications, as well as for rental and staging.
Each package includes the following items:
VS-66HDMI 6x6 HDMI Matrix Switcher
Power cord and Null-modem adapter
Windows®-based Kramer control software
2
Windows®-based Ethernet Configuration Manager and Virtual Serial Port
Manager
Kramer RC-IR2 Infra-Red Remote Control Transmitter (including the
required batteries and a separate user manual
3
)
This user manual
3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Downloadable from our Web site at http://www.kramerelectronics.com
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

Getting Started
KRAMER: SIMPLE CREATIVE TECHNOLOGY
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The VS-66HDMI is a high quality 6x6 matrix switcher for HDMI signals.
In particular, the VS-66HDMI:
Supports up to 1.65Gbps bandwidth per graphic channel
1
Supports HDCP (High Definition Digital Content Protection)
Includes an OFF button to disconnect an output
Includes a PANEL LOCK button to prevent unwanted tampering with the
buttons on the front panel
Has 12 preset memory locations for quick access to common configurations
Fits into one vertical space of a standard 19” professional rack enclosure
Control the VS-66HDMI using the front panel buttons, or remotely via:
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
The Kramer infra-red remote control transmitter
The ETHERNET
An external remote IR receiver (optional), see section 4.1
3.1 Defining EDID
The Extended Display Identification Data (EDID
2
) is a data-structure,
provided by a display, to describe its capabilities to an HDMI source. The
EDID enables the VS-66HDMI to “know” what kind of monitor is connected
to the output. The EDID includes the manufacturer’s name, the product type,
the timing data supported by the display, the display size, luminance data and
(for digital displays only) the pixel mapping data. See section 7.1 for details
of how to acquire the EDID.
3.2 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital
3
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note that
Kramer Electronics Limited is an HDMI Adopter
4
and an HDCP Licensee
5
.
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
2 Defined by a standard published by the Video Electronics Standards Association (VESA)
3 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
4 See http://www.hdmi.org/about/adopters_founders.asp
5 See http://www.digital-cp.com/list/

Overview
KRAMER: SIMPLE CREATIVE TECHNOLOGY
4
In particular, HDMI
1
:
Provides a simple
2
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy
3
cable
Supports standard, enhanced, high-definition video, and multi-channel
digital audio
4
on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and
requirements
Benefits consumers by providing superior, uncompressed digital video
quality via a single cable
5
, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface)
Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats
(720p, 1080i, and 1080p/60), standard definition formats such as NTSC or
PAL, as well as 480p and 576p.
3.3 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your VS-66HDMI away from moisture, excessive sunlight and dust
1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
3 HDMI technology has been designed to use standard copper cable construction at up to 15m
4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

Your VS-66HDMI 6x6 HDMI Matrix Switcher
5
3.4 Terminology Used in this User Manual
Table 1 defines some terms that are used in this user manual.
Table 1: Terminology Used in this User Manual
Term Definition
802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical
and Electronics Engineers (IEEE).
Dynamic Host
Configuration
Protocol (DHCP)
Allows the network administrator to distribute IP addresses from a central point and
automatically send a new IP address when an Ethernet point is plugged into a different
network location
Gateway A network position serving as an entry to another network. On the Internet, a node or
stopping point can be either a gateway node or a host (end-point) node.
IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a
particular server or workstation) of data (HTML pages or e-mails) that is sent in packets
across the Internet. Every device connected to an IP network must have a unique IP
address. This address is used to reference the specific unit.
Local Area Network
(LAN)
Computers sharing a common communications line or wireless link, which often share a
server within a defined geographic area.
Media Access
Control (MAC)
Address
A computer's unique hardware number (or address) in a LAN or other network. On an
Ethernet LAN, the (MAC) address is identical to the Ethernet address.
Transmission
Control
Protocol/Internet
Protocol (TCP/IP)
The basic communication language or protocol of the Internet that breaks the message
into appropriately sized packets for the network, and can be used as a communications
protocol in an intranet or an extranet.
4 Your VS-66HDMI 6x6 HDMI Matrix Switcher
Figure 1 and Table 2 define the front and rear panels of the VS-66HDMI.

Your VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
6
Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher

Your VS-66HDMI 6x6 HDMI Matrix Switcher
7
Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features
# Feature Function
1 IR Receiver The red LED lights when receiving signals from the Infra-red remote
control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 ALL Button Pressing ALL before pressing an input button, connects that input to
all outputs
1
4 OFF Button Pressing OFF after pressing an output button disconnects that output
from the inputs. To disconnect all the outputs,
press the ALL button and
then the OFF button
5 OUT Select the output to which the input is switched (from 1 to 6). The
selected button illuminates if an acceptor is connected
6
SELECT
Buttons
2
IN Select the input to switch to the output (from 1 to 6). The selected
button illuminates if a source is connected
7 STO Button Press to store an input setting (see section 7.3)
8 RCL Button Press to recall an input setting (see section 7.3)
9 LOCK Button Press to toggle disengaging the front panel buttons and to acquire
the EDID (see section 7.1)
10 EDID Button
3
Press to acquire the EDID (see section 7.1)
11 OUTPUT/ INPUT
LCD Display
Displays the selected input switched to the output (marked above
each input)
12 INPUT HDMI Connectors Connect to the HDMI sources (from 1 to 6)
13 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 6)
14 RS-232 DB-9F Port Connects to the PC or other RS-232 Remote Controller
15 ETHERNET Connector Connects to the PC or other Ethernet Controller
16 RESET Button Press the ETHERNET factory reset button to reset to the factory default
definitions
4
:
IP number 192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
17 REMOTE IR Opening
5
Connects to an external IR receiver unit
6
for controlling the machine via an
IR remote controller (instead of using the front panel IR receiver)
18 Power Connector with Fuse
AC connector enabling power supply to the unit
1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
2 Are also used for storing machine setups (see section 7.3)
3 Illuminates when configuring the EDID
4 First turn the VS-66HDMI OFF and then turn it ON again while pressing the RESET button. The unit will power up and
load its memory with the factory default definitions
5 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening
6 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal
IR connection cable has been installed)

Your VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
4.1 Using the IR Transmitter
You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an optional external IR
receiver
1
. The external IR receiver can be located up to 15 meters away from
the machine. This distance can be extended to up to 60 meters when used
with three extension cables
2
.
Before using the external IR receiver, be sure to arrange for your Kramer
dealer to insert the internal IR connection cable
3
with the 3.5mm connector
that fits into the REMOTE IR opening on the rear panel.
Connect the external IRreceiver to the REMOTE IR 3.5mm connector.
1 Model: C-A35M/IRR-50
2 Model: C-A35M/A35F-50
3 P/N: 505-70434010-S

Installing the VS-66HDMI on a Rack
9
5 Installing the VS-66HDMI on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
5 to 65% RHL, non-condensing
-20 to +70 Deg. Centigrade
5 to 95% RHL, non-condensing
Operating humidity range
Storage temperature range
Storage humidity range
When installing on a 19" rack, avoid hazards by taking
care that:
It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.
Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.
Note that:
Detachable rack ears can be removed
for desktop use
Always mount the machine in the rack
before you attach any cables or
connect the machine to the power
If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)




In some models, the front panel
may feature built-in rack ears
Once rack mounted, enough air will still flow around the
machine.
The machine is placed straight in the correct horizontal
position.
You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.
The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to supply
connections other than direct connections to the
branch circuit (for example, the use of power strips),
and that you use only the power cord that is supplied
with the machine.

CAUTION!!
Before Installing on a Rack
How to Rack Mount
To rack-mount a machine:
1
1
2
2
3
4
5

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
6 Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher
To connect the VS-66HDMI 6x6 HDMI Matrix Switcher, as illustrated in the
example in Figure 2, do the following
1
:
1. Connect
2
up to six HDMI sources (for example, DVD players) to the six
INPUT HDMI connectors.
2. Connect
3
the six OUTPUT HDMI connectors to up to six HDMI acceptors (for
example, LCD displays with built-in speakers).
3. If required, connect a PC and/or controller to the RS-232 port (see section 7.4)
and/or the ETHERNET port (see section 7.5).
4. Connect the power connector to the mains electricity (not shown in Figure 2).
5. If required, acquire the EDID (see section 7.1)
Press the SELECT IN and OUT buttons to choose which HDMI input to route
to a selected output.
1 Switch OFF the power on each device before connecting it to your VS-66HDMI. After connecting your VS-66HDMI,
switch on its power and then switch on the power on each device
2 You do not have to connect all the HDMI sources
3 You do not have to connect all the outputs

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher
11
Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
12
7 Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
This section describes how to:
Route an input to an output (see section 7.1)
Acquire the EDID (see section 7.2)
Store and recall a setting (see section 7.3)
Control the machine via RS-232 (see section 7.4)
Control the machine via the ETHERNET port (see section 7.5)
7.1 Switching an Input to an Output
To route an input to an output, press an output key, followed by an input key
to route this input to that output.
7.2 Acquiring the EDID
You can acquire the EDID:
From one output to any of the six inputs (see section 7.2.1)
From several sets of inputs and outputs (see section 7.2.2)
From several connected outputs to any of the inputs (see section 7.2.3)
From the default EDID (see section 7.2.4)
7.2.1 Acquire an EDID from a Connected Output
To acquire or change the EDID of a new output display:
1. Turn the VS-66HDMI ON.
2. Connect the required acceptor to the output from which you want to acquire the
EDID.
3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.
4. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.
5. Select the output from which the EDID will be acquired.
6. Press the EDID button.
The process is complete when the display returns to normal.

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
13
7.2.2 Acquire an EDID from Several Sets of Inputs and Outputs
To acquire the EDID for more than one output (for example, OUT 1 to IN 1
and OUT 6 to IN 3), do the following:
1. Turn the VS-66HDMI ON.
2. Connect the required acceptor to the output from which you want to acquire the
EDID.
3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.
4. Press the input button to which the EDID will be copied (for example, IN 1).
The selected input number blinks on the display.
5. Select the output from which the EDID will be acquired (for example, OUT 1).
6. Press the IN 1 button.
The IN 1 button ceases to blink.
7. Press the next input button to which the EDID will be copied (for example,
IN 3).
The selected input number blinks on the display.
8. Select the output from which the EDID will be acquired (for example, OUT 6).
9. Press the IN 3 button.
The IN 3 button ceases to blink.
10. Press the input buttons to which you want to copy the EDID (for example, IN 1
and IN 3).
11. Make sure that the relevant input numbers blink on the display.
12. Press the EDID button.
The process is complete when the display returns to normal.
7.2.3 Acquire an EDID from Several Connected Outputs (Auto)
To acquire or change the EDID of several output displays
1
:
1. Turn the VS-66HDMI ON.
2. Connect the required acceptors to the outputs from which you want to acquire
the EDID.
3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.
1 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
14
4. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.
5. Press the OFF button until the numeric – (hyphen) appears on the display.
6. Press the EDID button.
The process is complete when the display returns to normal.
7.2.4 Acquire the Default EDID
To reset to the default EDID, do the following:
1. Turn the VS-66HDMI ON.
2. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.
3. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.
4. Press the OFF button until a "0" (zero) appears on the display.
5. Press the EDID button.
The process is complete when the display returns to normal.
7.3 Storing and Recalling a Setting
You can use the STO and RCL buttons to store up to 12 setups and then recall
them.
To store a setting:
1. Set the machine to the desired setting.
For example, press the OUT 3 button and IN 4 button
1
.
2. Press the STO button.
The STO button blinks.
3. Select an OUT or IN SELECT button to store the machine setting (for example,
OUT 5).
4. Press the LOCK button
2
to store the current setup.
In this example, the OUT 5 button stores the setting.
To recall a setup:
1. Press the RCL button.
The RCL button blinks.
2. Press the relevant OUT or IN button that stored the setting.
In this example, press OUT 5.
3. Press the LOCK button to recall the stored setting.
1 You can set all the switcher IN-OUT buttons
2 You have to press the LOCK button within 10 seconds, before the store operation times out

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
15
7.4 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VS-66HDMI unit, using the Null-modem adapter
provided with the machine (recommended):
Connect the RS-232 DB9 rear panel port on the VS-66HDMI unit to the
Null-modem adapter and connect the Null-modem adapter with a 9-wire
flat cable to the RS-232 DB9 port on your PC
To connect a PC to the VS-66HDMI unit, without using a Null-modem adapter:
Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the Master VS-66HDMI unit, as Figure 3 illustrates
Female DB9 (From PC)
PIN 4 Connected to PIN 6
PINS 8, 7, 1 Connected together
If a Shielded cable is used, connect the shield to PIN 5
PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Male DB9
Figure 3: Connecting a PC without using a Null-modem Adapter
7.5 Controlling via ETHERNET
You can connect the VS-66HDMI via the Ethernet, using a crossover cable
(see section 7.5.1) for direct connection to the PC or a straight through cable
(see section 7.5.2) for connection via a network hub or network router
1
.
7.5.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the VS-66HDMI to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory default
IP Address of the VS-66HDMI during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
1 After connecting the Ethernet port, you have to install and configure your Ethernet Port. For detailed instructions, see the
“Ethernet Configuration (FC-11) guide.pdf” file in the technical support section on our Web site:
http://www.kramerelectronics.com

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
16
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 4).
Figure 4: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 5.
7. Click OK.
Figure 5: Internet Protocol (TCP/IP) Properties Window

Technical Specifications
17
7.5.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)
You can connect the Ethernet port of the VS-66HDMI to the Ethernet port on
a network hub or network router, via a straight-through cable with RJ-45
connectors.
8 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications
1
of the VS-66HDMI
INPUTS: 6 HDMI Connectors
OUTPUTS: 6 HDMI Connectors
BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel
COMPLIANCE WITH
HDMI STANDARD:
Supports HDMI 1.1 and HDCP
RESOLUTION: Up to UXGA; 1080p
POWER SOURCE: 100240VAC; 50/60Hz, 32VA
CONTROLS: Front panel buttons, Infra-red remote control transmitter, RS-232, Ethernet
DIMENSIONS: 19-inch (W), 7-inch (D), 1U (H)
WEIGHT: 2.5 kg. (5.5 lbs.) approx.
ACCESSORIES: Power cord, IR transmitter
OPTIONS: Kramer HDMI cables
2
1 Specifications are subject to change without notice
2 For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber
optics C-FOHM/FOHM series

Kramer Protocol 2000
KRAMER: SIMPLE CREATIVE TECHNOLOGY
18
9 Kramer Protocol 2000
1
TheVS-66HDMI iscompatiblewithKramer’sProtocol2000
2
(version0.49)
(below). This RS-232/RS-485 communication protocol uses four bytes of
information as defined below. For RS-232, a null-modem connection between
the machine and controller is used. The default data rate is 9600 baud, with
no parity, 8 data bits and 1 stop bit.
Table 4: Protocol Definitions
MSB LSB
DESTI-
NATION
INSTRUCTION
0 D N5 N4 N3 N2 N1 N0
7 6 5 4 3 2 1 0
1st byte
INPUT
1 I6 I5 I4 I3 I2 I1 I0
7 6 5 4 3 2 1 0
2nd byte
OUTPUT
1 O6 O5 O4 O3 O2 O1 O0
7 6 5 4 3 2 1 0
3rd byte
MACHINE NUMBER
1 OVR X M4 M3 M2 M1 M0
7 6 5 4 3 2 1 0
4th byte
1
st
BYTE: Bit 7 – Defined as 0.
D – “DESTINATION”: 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher).
N5…N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits). Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO., which was performed. The
instruction codes are defined according to the table below (INSTRUCTION NO. is the value to be set for N5…N0).
2
nd
BYTE: Bit 7 – Defined as 1.
I6…I0 – “INPUT”.
When switching (ie. instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
3
rd
BYTE: Bit 7 – Defined as 1.
O6…O0 – “OUTPUT”.
When switching (ie. instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
4
th
BYTE: Bit 7 – Defined as 1.
Bit 5 – Don’t care.
OVR – Machine number override.
M4…M0 – MACHINE NUMBER.
1 You can download our user-friendly “Software for Calculating Hex Codes for Protocol 2000” from the technical support
section on our Web site at: http://www.kramerelectronics.com
2 The instruction codes in Table 5 are a sub-set of the Protocol 2000. You can find the full protocol on our Web site at
http://www.kramerelectronics.com
