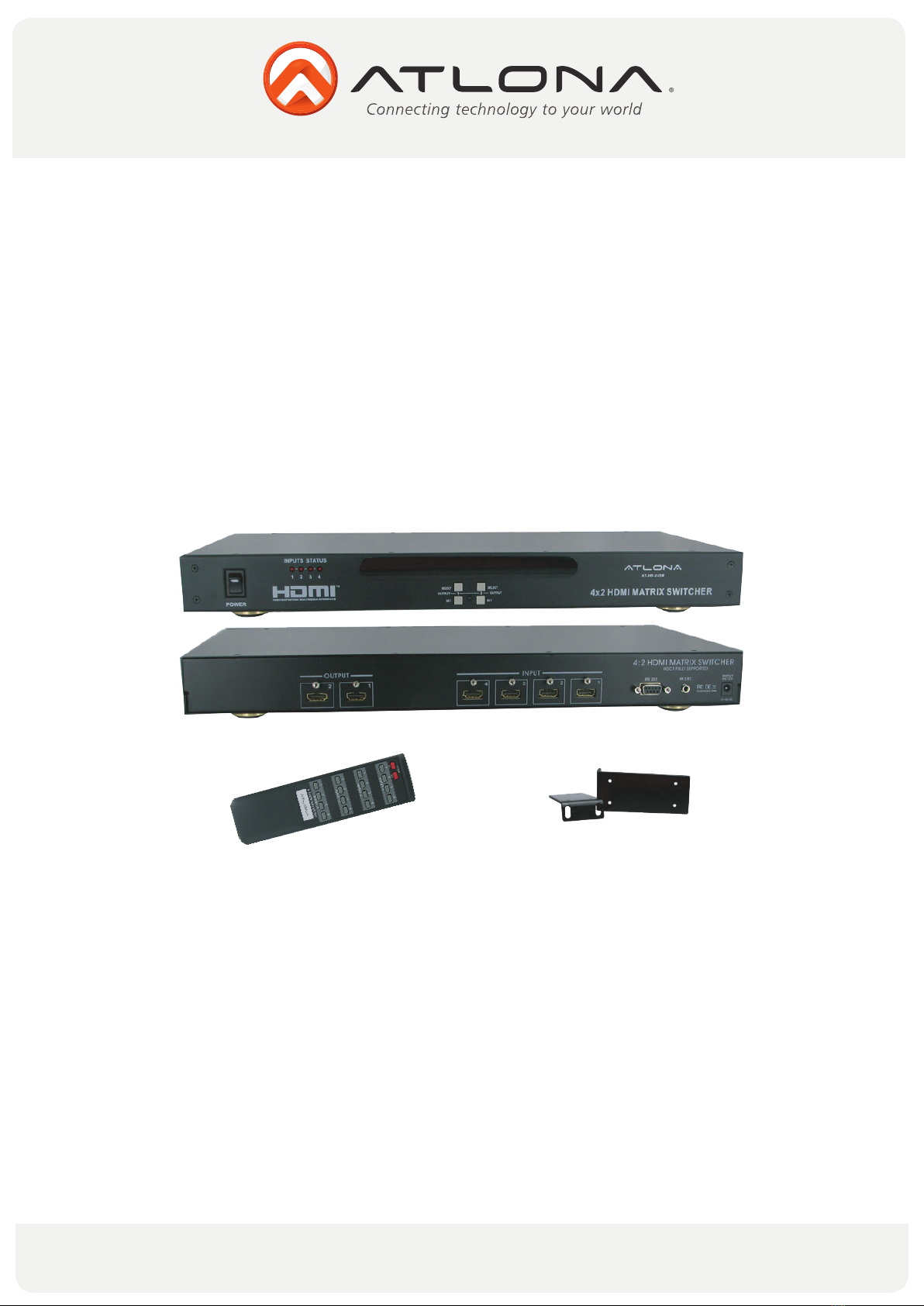

Atlona 4x2 HDMI Matrix Switcher
AT-HD-V42M
User Manual

1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
.................................................. 4
5. Panel Descriptions
5.1 Front Panel .................................................. 4
5.2 Rear Panel .................................................. 5
6. Remote Control .................................................. 5
7. IR Extender
7.1 IR Extender Connection .................................................. 6
7.2 IR Extender Package .................................................. 6
8. RS-232 .................................................. 7
8
9. Connection and Installation ..................................................
9
10. Safety Information ..................................................
10
11. Warranty ..................................................
11
12. Atlona Product Registration ..................................................
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Table of Contents

INTRODUCTION
PACKAGE CONTENTS
FEATURES
Atlona Technologies’ AT-HD-V42M is a 4x2 HDMI Matrix Switcher with audio designed to work as a
switcher for multiple Audio/Video sources and displays. This Atlona unit is capable of switching HDMI
signals between four sources and two displays. Because it is a matrix switch, any or all of the 4 inputs
.noitallatsniysaednakciuqsahtinusihT.0021x0291rop0801otpufosnoituloserelpitlumnioediv
With manual, RS232, as well as IR Remote control options, Atlona’s AT-HD-V42M Matrix Switcher
is HDCP Compliant making it is perfect for all HDMI devices, PC monitors, Plasma TV displays and
• 4x2 HDMI Matrix Switcher (AT-HD-V42M)
• Instruction Manual
• IR Remote Control
• Universal AC/DC power adapter: 12VDC
• 19 inch Ear mount pair
• IR Extender receiver
• RS232 package (RS232 DVD Drive & RS232 Cable)
• Switches HDMI Video signal with Audio between 4 sources and 2 displays.
• Matrix Switch: each input can be directed to either or both outputs at the same time
• Quick and easy installation
• HDMI digital video/audio format, DVI format and HDCP compliant
• Supports link speeds of up to 2.25 Gbps (link clock rate of 225 MHZ)
• Supports wide range of PC resolutions from XGA to UXGA 1600x1200 and HDTV/DTV
• Resolutions 480i/480p, 576i/576p, 720p, 1080i, 1080p, and 1920x1200
• Compatible with all HDMI devices, PC monitors, Plasma TV display and HDTV
• Supports Digital Video TMDS formats in Deep Color 12bits
• Support IR Remote and IR Extender with distance 300M Maximum.
• Various User Interface control:
• Attached Window based control software for Desktop or NB control by RS232 port
• Manual controlled by Front Panel button
• IR remote control
•Automatically scanning input status by LED on front panel
Toll free: 1-877-536-3976
Local: 1-408-962-0515 3 atlona.com

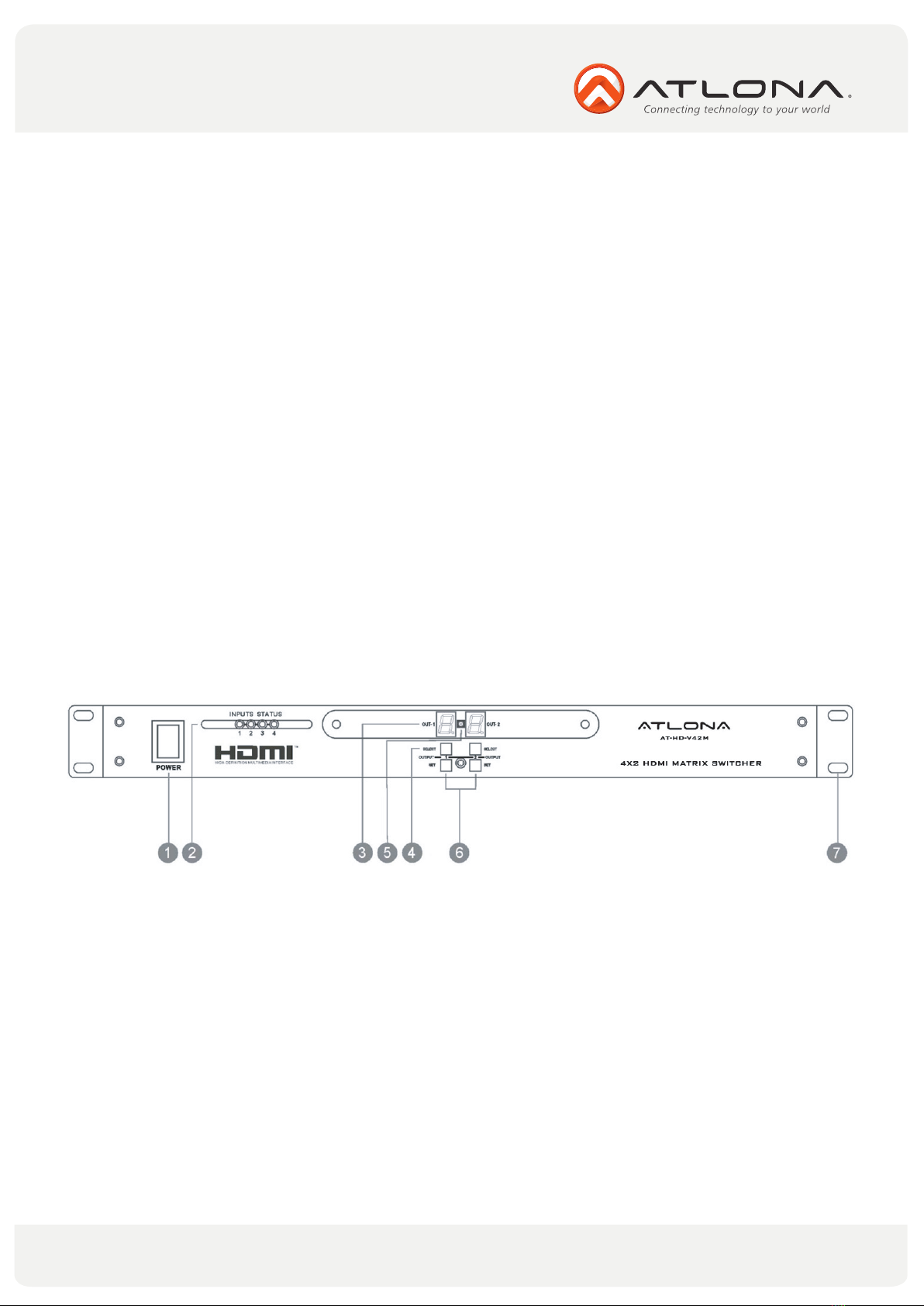

PANEL DESCRIPTIONS
1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate that the
switcher is ON
2. INPUT SOURCES STATUS DISPLAY. Input sources 1 to 4 LEDs illuminate blue to indicate desired video
source is present on that input.
3. OUTPUT SOURCES STATUS DISPLAY. Output Status shows by LED display.
4. SOURCES SELECT BUTTONS. Separate outputs 1 ~ 2 source select buttons are provided. Select sources
are 1-HDMI, 2-HDMI, 3-HDMI, 4-HDMI.
5. IR SENSOR.The IR sensor receives IR commands from the supplied remote control.
6. SOURCE SETUP BUTTONS. Setup the inputs 1 ~ 4
7. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair
1. Front Panel
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
• 4x2 HDMI Matrix Switcher: 4 HDMI Inputs To 2 HDMI Outputs
• Input Signals: Video (TMDS) 0.5~1.0Vpp, DDC 5Vpp
• Signal Supports : HDMI Standard, DVI and HDCP Compliant
• Video Supported: HDMI formats up to 1080p or 1920x1200 and DVI UXGA 1600x1200 HD resolutions
•Audio Supported: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
• Supports digital video standards such as:
RGB/YCBCR: 24/30/36-bits
YCBCR: 8/10/12/16/20/24-bits
Double data rate interface for RGB/YCBCR: 12/15/18-bits
• Controls: IR, IR EXT, RS232, and Select buttons on the front panel
• Data Rates: 250Mbps to 2.25Gbps.
• IR Extender Distance: 300 meters maximum.
• IR frequency: 38KHz.
• Safety Approvals: CE, FCC, RoHS(2002/95/EC).
• Power Supply: 12V DC
• Use Universal Switch Type 50/60Hz,100~230 VAC
• Use Universal Switch Type 50/60Hz,100~230 VAC
SPECIFICATIONS
4

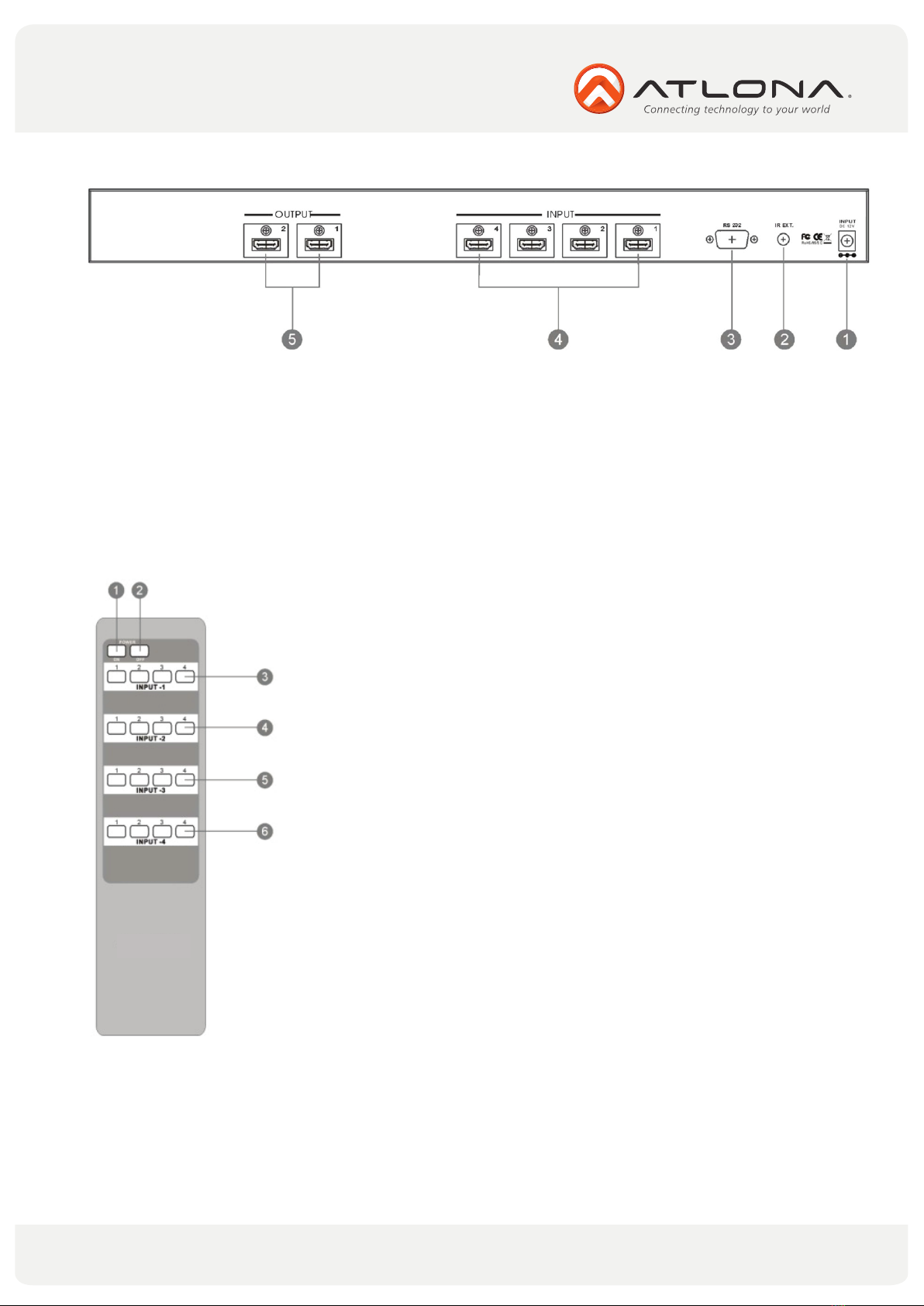

2. Rear Panel
1. DC POWER INLET. Power Input: 12VDC
2. IR EXTENDER CONTROL. Support one of IR Extender, extend distance maximum 300Meters
3. RS 232 CONNECTION. DB-9pin Female connector for serial RS-232 control.
4.VIDEO INPUTS: HDMI Inputs 1-4. HDMI Female connector. (Unit can be used with HDCP compliant DVI
digital video signals with appropriate)
5. VIDEO OUTPUTS: HDMI Outputs 1-2. HDMI Female connector. (Unit can be used with HDCP compliant
DVI digital video signals with appropriate)
Ensure the mains voltage supply matches the label on the supplied
plug-Pack (+/- 10%)
Ensure that the power switch is OFF
Connect all audio video sources and destination equipment
Power up all HD Source and Displays
For each desired output select the appropriate input by using the front
panel select buttons, IR remote control, or the RS232 serial communica-
tions port.
When powering up the AT-HD-V44M will return to its last used setting
before Powered down.
1,2. SWITCH POWER ON or OFF
3. INPUT 1 SOURCES SELECTION
(Select input 1, 2, 3 & 4 sources with selection button)
4. INPUT 2 SOURCES SELECTION
(Select input 1, 2, 3 & 4 sources with selection button)
5. INPUT 3 SOURCES SELECTION
(Select input 1, 2, 3 & 4 sources with selection button)
6. INPUT 4 SOURCES SELECTION
(Select input 1, 2, 3 & 4 sources with selection button)
REMOTE CONTROL
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
5

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
IR EXTENDER
1. IR Extender Connection
2. IR Extender Package
6

TION
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
7
RS-232
Connection
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated
with them, some will be unassigned.
No. Pin Function
1 ---- Not used
2 Tx Transmit
3 Rx Receive
4 ---- Not used
5 Gnd Ground
6 ---- Not used
7 ---- Not used
8 ---- Not used
9 ---- Not used
Baud Rate: 9600bps Data Bit: 8bits Parity: None Stop Bit: 1bit
Command
The command codes are very sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power on
PWOFF PWOFF Power off
All# All# Resets all inputs to corresponding outputs (in3 to out3)
x1$ x1$ Turns off output channel (to turn off output 3 = x3$)
x1AVx2 x1AVx2 Switch input to output (input 3 to output 5 = x3AVx5)
x1AVx2,x3,x4 x1AVx2,x3,x4 Switch input to multiple outputs (input 3 = x3AVx1,x2)
Statusx1 x7AVx1 Shows what input is connected to selected output
Status x1AVx1, x2AVx2,
x3AVx4, ....
Displays which inputs are currently connected to which outputs
Save[Y] Save2 Saves settings for future use, saves vary from 0 to 9
Recall[Y] Recall2 Pulls up saved settings for the number you selected
Clear[Y] Clear2 Erases the save for the number you selected
Mreset Mreset Sets matrix back to the default settings
Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
12345
9 8 7 6

PC RS232 Control
HDMI Player 2
HDMI Player 3
HDMI Display 1HDMI Display 2
Note: If connecting the outputs to both displays and AV receivers, the audio output will only be stereo due
to the display are only able to handle PCM or Stereo Audio through HDMI inputs. If all devices are AV re-
ceivers then multi-channel audio such as Dolby TrueHD and DTS-HD can be output. Likewise, the switch-
For example: If three TV’s are 1080p and one is 720p, the output to all TV’s will be 720p
To achieve 1080p across all displays, no matter what their resolution is, take a look at the AT-HD560 and
AT-HD550 both are up/down scalers which can take any resolution and turn it to whatever the displays native
resolution is.
AT-HD-V42M
IR ext.
HDMI Player 4 HDMI Player 1
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
CONNECTION AND INSTALLATION
8

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Safety Information
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture
-
cal power socket, hire an electrician to
replace your obsolete socket.
Do not modify the wall plug. Doing so
will void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should be
easily accessible in the case it requires
disconnection.
Precautions
not expressly approved by the manufacturer, could void the user’s authority to operate this
equipment.
Operate this product using only the included external power supply. Use of other power supplies
In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on
or against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements,
Unplug the product before cleaning. Use a damp cloth for cleaning and not
Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may
also cause damage to your AT-HD-V42M. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.
9

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com

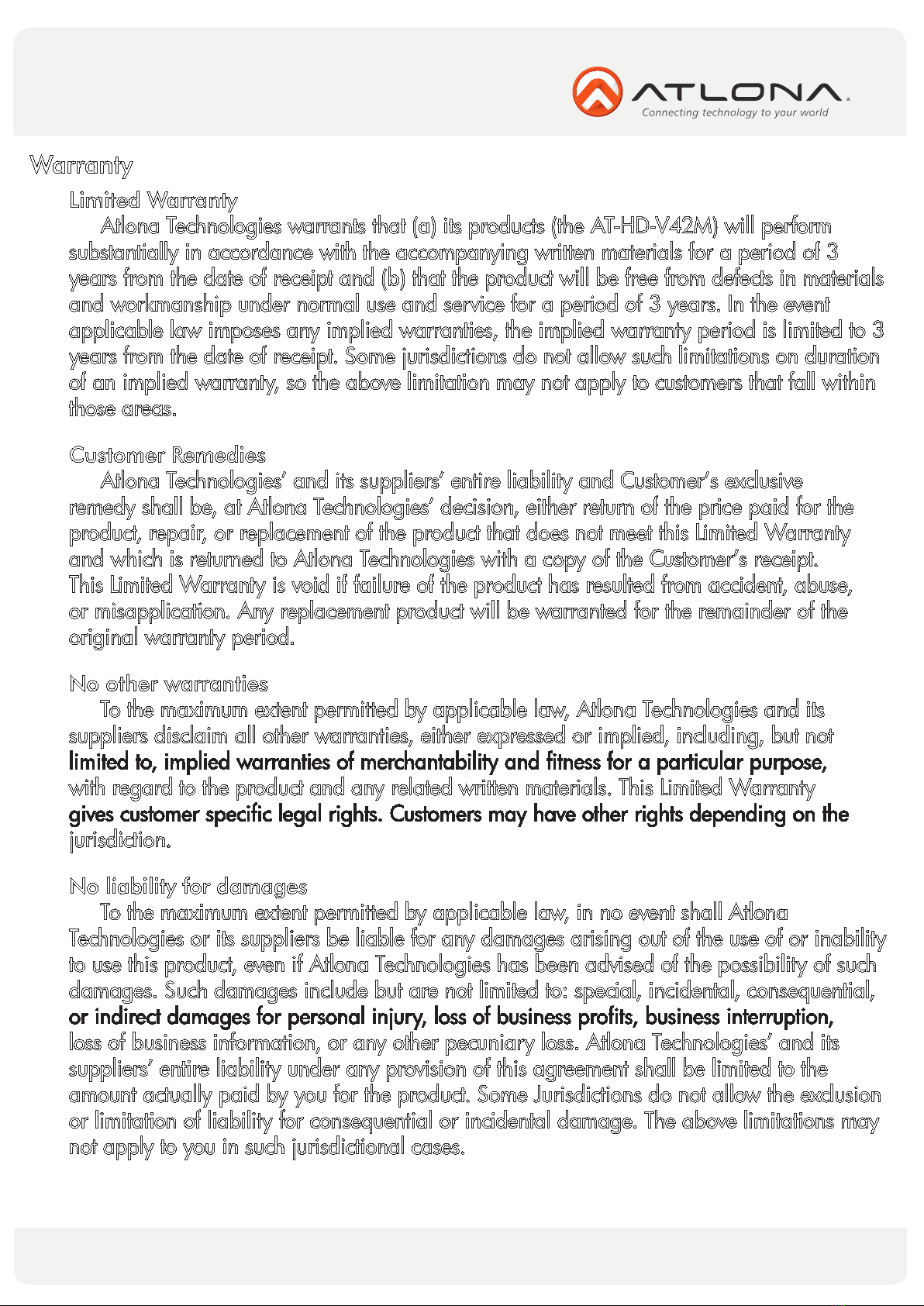

Warranty
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-HD-V42M) will perform
substantially in accordance with the accompanying written materials for a period of 3
years from the date of receipt and (b) that the product will be free from defects in materials
and workmanship under normal use and service for a period of 3 years. In the event
applicable law imposes any implied warranties, the implied warranty period is limited to 3
years from the date of receipt. Some jurisdictions do not allow such limitations on duration
of an implied warranty, so the above limitation may not apply to customers that fall within
those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive
remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the
product, repair, or replacement of the product that does not meet this Limited Warranty
and which is returned to Atlona Technologies with a copy of the Customer’s receipt.
This Limited Warranty is void if failure of the product has resulted from accident, abuse,
or misapplication. Any replacement product will be warranted for the remainder of the
original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its
suppliers disclaim all other warranties, either expressed or implied, including, but not
with regard to the product and any related written materials. This Limited Warranty
jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona
Technologies or its suppliers be liable for any damages arising out of the use of or inability
to use this product, even if Atlona Technologies has been advised of the possibility of such
damages. Such damages include but are not limited to: special, incidental, consequential,
loss of business information, or any other pecuniary loss. Atlona Technologies’ and its
suppliers’ entire liability under any provision of this agreement shall be limited to the
amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion
or limitation of liability for consequential or incidental damage. The above limitations may
not apply to you in such jurisdictional cases.
10

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Atlona Product Registration
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an
extra few moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure
At Atlona, we respect and protect your privacy, assuring you that your registration
information is completely secure. Atlona product registration is completely voluntary and
failure to register will not diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
11
