Kramer TP-121xl User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODELS:
TP-121xl
UXGA/Audio Line Transmitter
TP-122xl
UXGA/Audio Line Receiver
P/N: 2900-300261 Rev 4

TP-121xl/TP-122xl – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 About the Power Connect™ Feature 3
2.4 Shielded Twisted Pair/Unshielded Twisted Pair 3
2.5Recycling Kramer Products 3
3Overview 4
4Defining the TP-121xl Transmitter and TP-122xl Receiver 5
4.1 Defining the TP-121xl UXGA/Audio Line Transmitter 5
4.2 Defining the TP-122xl UXGA/Audio Line Receiver 7
5Connecting the TP-121xl Transmitter and TP-122xl Receiver 8
6Operating the TP-121xl and TP-122xl 10
6.1 Capturing the EDID 10
6.2 Adjusting the Level and Equalization on the TP-122xl 10
7Wiring the Twisted Pair RJ-45 Connectors 11
8Technical Specifications 12
Figures
Figure 1: TP-121xl UXGA/Audio Line Transmitter Front Panel 5
Figure 2: TP-121xl UXGA/Audio Line Transmitter Rear Panel 6
Figure 3: TP-122xl UXGA/Audio Line Receiver Front Panel 7
Figure 4: TP-122xl UXGA/Audio Line Receiver Rear Panel 7
Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver 8
Figure 6: TP Pinout Wiring 11

TP-121xl/TP-122xl - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products.
Thank you for purchasing the Kramer TOOLS®TP-121xl UXGA/Audio Line
Transmitter and/or TP-122xl UXGA/Audio Line Receiver that are ideal for:
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, stores and security
applications

2
TP-121xl/TP-122xl - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate)
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer TP-121xl and TP-122xl away from moisture,
excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

TP-121xl/TP-122xl - Getting Started
3
3
2.3 About the Power Connect™ Feature
The Power Connect™ feature here means that only one unit in a system, the
transmitter or receiver, needs to be connected to a power source when the
devices are within 60m (197ft) of each other. The Power Connect™ feature
applies as long as the cable can carry power and the distance does not exceed
60m on standard TP cable. (Heavier gauge cable may be used to extend the
Power Connect™range.)
2.4 Shielded Twisted Pair/Unshielded Twisted Pair
We recommend that you use Shielded Twisted Pair (STP) cable, and stress that
the compliance to electromagnetic interference was tested using STP cable.
There are different levels of STP cable available, and we advise you to use the
best quality STP cable that you can afford. Our non-skew-free cable, Kramer
BC-STP is intended for analog signals where skewing is not an issue.
In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free
cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be
preferable for long range applications. In any event when using UTP cable, it is
advisable to ensure that the cable is installed far away from electric cables, motors
and so on, which are prone to create electrical interference.
2.5 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
TP-121xl/TP-122xl - Overview
3 Overview
The TP-121xl and TP-122xl is a high-performance, TP (Twisted Pair) transmitter
and receiver pair for transmitting computer graphics video and unbalanced stereo
audio signals over extended distances using CAT 5/6 cable.
The TP-121xl and TP-122xl together form an extended computer graphics/audio
line transmission and reception system.
The TP-121xl encodes computer graphics video and unbalanced stereo audio into
a TP signal. The TP-122xl decodes the TP signal into computer graphics video
and digital unbalanced stereo audio signals.
More specifically, the TP-121xl and TP-122xl support:
Video resolutions up to UXGA (1920 x 1200)
EDID (TP-121xl)
HDTV
Level (gain) and equalization (peaking) adjustment (TP-122xl)
Increased level of protection against noise, spikes and interference in
adverse environments
Transmission range of up to 250m (820ft)
Power Connect™ (see Section 2.3)

TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and
TP-122xl Receiver
5
5
4 Defining the TP-121xl Transmitter and
TP-122xl Receiver
This section defines the:
TP-121xl (see Section 4.1)
TP-122xl (see Section 4.2)
The TP-121xl has inputs for:
Computer graphics video
Unbalanced stereo audio
The TP-121xl encodes the video and audio signals and transmits them over STP
cable to a TP-122xl receiver.
The TP-122xl accepts the encoded signal over STP from the TP-121xl and
outputs computer graphics video, unbalanced stereo audio and digital audio.
4.1 Defining the TP-121xl UXGA/Audio Line Transmitter
Figure 1 defines the front panel of the TP-121xl.
Figure 1: TP-121xl UXGA/Audio Line Transmitter Front Panel
#
Feature
Function
1
EDID
CAPTURE Button
Press to capture the EDID from the video display
2
STATUS LED
Indicates the following EDID status:
Flashes slowly then lights solid—new EDID stored
Flashes quickly then lights solid—default EDID stored
3
ON LED
Lights green when the device is powered on

6
TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and
TP-122xl Receiver
Figure 2 defines the rear panel of the TP-121xl.

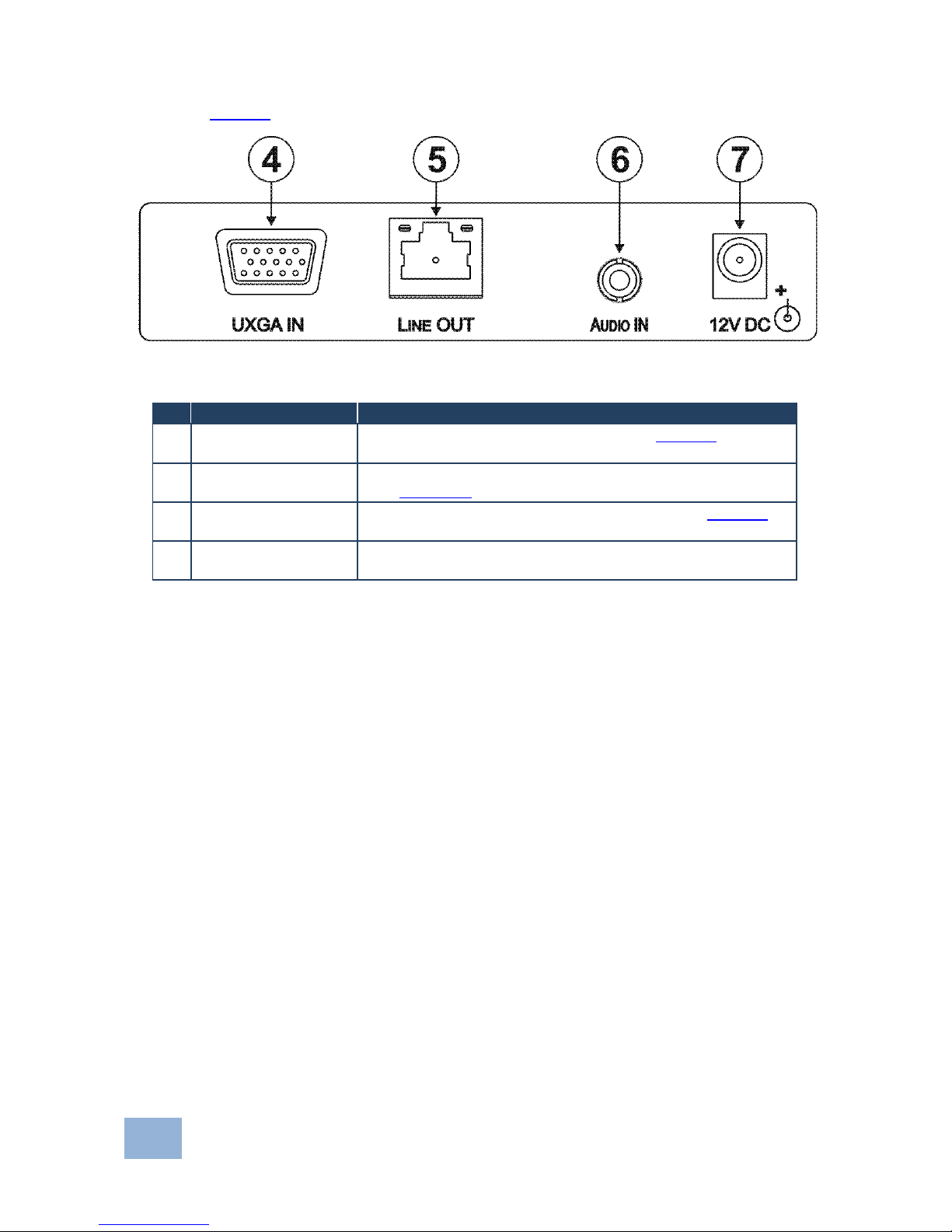

Figure 2: TP-121xl UXGA/Audio Line Transmitter Rear Panel
#
Feature
Function
4
UXGA IN 15-pin HD
Connector (F)
Connect to a computer graphics source (see Section 5)
5
LINE OUT RJ-45
Connector
Connect to the Line In RJ-45 connector on the TP-122xl
(see Section 2.2)
6
AUDIO IN 3.5mm Mini
Jack
Connect to an unbalanced, stereo audio source (see Section 5)
7
12V DC Power
Connector
Connect to one of the supplied +12V DC power adapters. Center
pin positive

TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and
TP-122xl Receiver
7
7
4.2 Defining the TP-122xl UXGA/Audio Line Receiver
Figure 3 defines the front panel of the TP-122xl.
Figure 3: TP-122xl UXGA/Audio Line Receiver Front Panel
#
Feature
Function
1
LINK LED
Lights green when the TP link is established
2
LEVEL Trimmer
Use to adjust the output signal level (see Section 6.2)
3
EQ. Trimmer
Use to adjust the cable compensation equalization level
4
ON LED
Lights green when the device is powered on
Figure 4 defines the rear panel of the TP-122xl.
Figure 4: TP-122xl UXGA/Audio Line Receiver Rear Panel
#
Feature
Function
5
UXGA OUT 15-pin HD
Connector (F)
Connect to a computer graphics video acceptor (see Section 5)
6
LINE IN RJ-45 Connector
Connect to the Line Out RJ-45 connector on the TP-121xl
(See Section 2.2)
7
AUDIO
OUT
ANALOG 3.5mm
Mini Jack
Connect to an unbalanced, stereo audio acceptor (see Section 5)
8
S/PDIF RCA
Connector
Connect to a digital audio acceptor
9
12V DC Power Connector
Connect to one of the supplied +12V DC power adapters. Center
pin positive

8
TP-121xl/TP-122xl - Connecting the TP-121xl Transmitter and TP-122xl Receiver
5 Connecting the TP-121xl Transmitter and
TP-122xl Receiver
Switch off the power to all devices before connecting them to your
TP-121xl/TP-122xl. After connecting your TP-121xl/TP-122xl, connect
the power to the transmitter and receiver and then switch on the power
to the other devices.

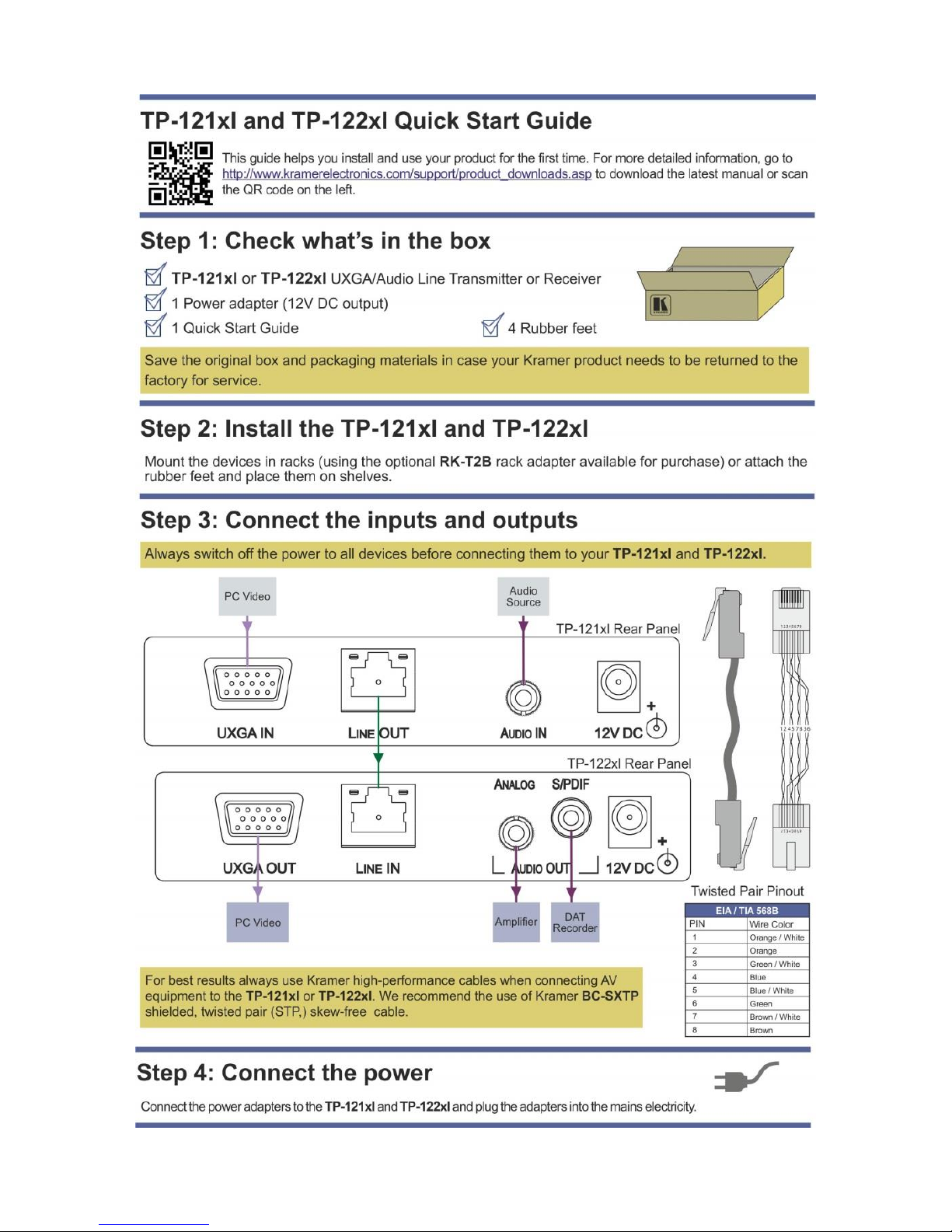

Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver
To connect the TP-121xl and the TP-122xl as illustrated in Figure 5:
1. On the TP-121xl, connect:
The computer graphics video source, (for example, the graphics output
from a laptop) to the UXGA In 15-pin HD connector (F)
i

TP-121xl/TP-122xl - Connecting the TP-121xl Transmitter and TP-122xl Receiver
9
9
An unbalanced, stereo audio source, (for example, the audio output
from a laptop) to the Audio In 3.5mm mini jack
2. On the TP-122xl, connect:
The UXGA Out 15-pin HD (F) connector to the video acceptor, (for
example, an AV display system)
The Audio Out Analog 3.5mm mini jack to the unbalanced, stereo
audio acceptor, (for example, an AV display system with speakers)
The Audio Out S/PDIF RCA connector to the digital audio acceptor,
(for example, a DAT recorder)
3. Using STP cabling, connect the TP-121xl Line Out RJ-45 connector to the
TP-122xl Line In RJ-45 connector (see Section 2.2).
4. Because the devices support Power Connect, if they are within 60m of one
another, connect one of the power adapters to the power socket on either
the TP-121xl or the TP-122xl. If the devices are more than 60m apart
connect both power adapters to the devices and to the mains electricity (see
Section 2.2).
5. If necessary, adjust the level and equalization for an optimum picture (see
Section 6.2).

10
TP-121xl/TP-122xl - Operating the TP-121xl and TP-122xl
6 Operating the TP-121xl and TP-122xl
6.1 Capturing the EDID
The TP-121xl is programmed with a default EDID. The default EDID can be
replaced with the EDID from a display device.
To capture a new EDID:
With the display device connected to the TP-121xl, press the EDID Capture
button on the front panel.
If the EDID is successfully captured the Status LED flashes slowly for a few
seconds and then lights solid. If the EDID is not successfully captured the
Status LED flashes quickly for a few seconds then lights solid when the
default EDID is loaded.
6.2 Adjusting the Level and Equalization on the TP-122xl
To achieve optimum picture quality, you can manually adjust the signal level and
equalization using the trimmers on the front of the TP-122xl.
To adjust the level and equalization on the TP-122xl:
1. Use a small screwdriver to slowly turn the Level trimmer clockwise to
increase or anticlockwise to reduce the signal level of the TP-122xl.
2. Use a small screwdriver to slowly turn the EQ trimmer clockwise or
anticlockwise until you achieve an optimum picture.

TP-121xl/TP-122xl - Wiring the Twisted Pair RJ-45 Connectors
11
11
7 Wiring the Twisted Pair RJ-45 Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield. Figure 6 defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B
Figure 6: TP Pinout Wiring
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
Pair 1
4 and 5
Pair 2
1 and 2
Pair 3
3 and 6
Warning:
Using a TP cable that is incorrectly wired will cause
permanent damage to the device
!

12
TP-121xl/TP-122xl - Technical Specifications
8 Technical Specifications
TP-121xl
TP-122xl
INPUTS:
1 UXGA on a 15-pin HD
connector (F)
1 Unbalanced stereo audio on a
3.5mm mini jack
1 TP on an RJ-45 connector
OUTPUTS:
1 TP on an RJ-45 connector
1 UXGA on a 15-pin HD connector (F)
1 Digital audio on an RCA connector
1 Unbalanced stereo audio on a
3.5mm mini jack
VIDEO RESOLUTION:
Up to WUXGA, 1080p
MAX. OUTPUT LEVEL:
Video: 1.1V
Audio: 2.2V
AUDIO:
BANDWIDTH:
Audio: 20Hz-20kHz @–3dB
S/N RATIO:
Audio: 84dB unweighted
COUPLING:
AC
TND+N:
Audio: 0.02% unweighted
TOTAL GAIN:
Analog/analog: 0dB
Analog/SPDIF: –12dBFS
POWER CONSUMPTION:
12V DC 190mA (380mA when
powering both devices)
12V DC 220mA (380mA when
powering both devices)
TRANSMISSION DISTANCE:
Up to 250m (820ft)
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
–40° to +70°C (–40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
12.1cm x 7.18cm x 2.48cm (4.76" x 2.83" x 0.98"), W, D, H
WEIGHT:
0.2kg (0.44lbs.) approx. each
INCLUDED ACCESSORIES:
Power supply
OPTIONS:
RK-3T 19” rack adapter

13

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N:
2900-300261
Rev:
4
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
